Hawke Airmax 1"

Hawke Airmax 4-12x50 etched glass AMX Mil Dot Reticle AO Rifle Scope - 13140

£164.95
You will earn 164 loyalty points with this purchase

Hawke Airmax 4-12x50 etched glass AMX Mil Dot Reticle AO parallax adjust 1" tube Rifle Scope - 13140

Hawke Airmax scopes offer beautiful 16 layer fully multi-coated optics for excellent clarity. With etched glass reticles they are Waterproof, Shockproof and Nitrogen purged.

The Airmax range is all calibre rated and supported by Hawkes Worldwide Warranty

AMX Mil Dot reticle - The AMX reticle is based on the spacing of a 10x Mil Dot. the AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Outside United Kingdom buyers please READ - There are special UK export rules for sales of telescopic scopes of 10x or more maximum magnification. You are very welcome to buy but we might have to get an export permit before the product can be shipped. Please read this page BEFORE buying (opens in new window)

Mount rings to fit it onto a rifle ARE NOT included

If you need mount rings you will need to purchase them in addition to the scope. See shop and look for high profile models for 1"/25mm tube for whatever rifle base you have. Please ask if unsure

Main Features

>>> Waterproof, Shockproof, Nitrogen purged.

>>> All calibre rated - reticle design makes this model best suited for airguns

>>> Warranty: Hawke Worldwide Warranty

Key Features
  • 16 layer fully multi-coated optics for excellent clarity
  • Wide View optical system, ideal for airguns
  • 1 inch mono-tube chassis for superior strength
Glass etched reticle to withstand high recoil (and give a clear crisp view)
  • Integrated adjustable objective for parallax adjustment
  • ¼ MOA low profile ‘no-snag’ fingertip turrets
  • Fast focus eyebell and high torque zoom ring
  • Threaded objective/ocular for optional accessories
AMX Mil Dot Reticle - Glass Etched
  • The AMX reticle is based on the spacing of a 10x Mil Dot the AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
  • Half Mil dot spacing on the lower post provides increased aim points for long shots.
  • The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.






Benefits of Glass Etched Reticles

Etched glass reticle - The reticle is laser etched onto the lens glass giving a beautiful crisp and clear view, much more so than with a standard wire reticle.

The etching also makes it totally immune to recoil shock - it will never break or come loose as can happen with wire reticles.


50mm Fully Multi Coated Lens:
  • 16 layer fully multi coated for excellent clarity.
  • 50mm diameter - Excellent all round medium/large size. A good blend of size without bulk
4-12x variable magnification
  • Adjust from 4x to 12x.
  • A great magnification range for general purpose hunting.
  • Very Easy and very fast dial adjustment.
  • Ocular eyebell focus from 5 yards.


Fast focus eyebell
Easy, effective focus.


Parallax Focus Adjustment - AO - Adjustable Objective (front lens casing)

Parallax effect is the term that describes the difference in angles between objects that are seen up close and those seen far away. When you look at telephone poles passing by on the side of the road, those closest to your car seem to pass very fast, while the ones far away seem to go very slow. That difference is due to the parallax effect.

The reticle in your scope is like a telephone pole that's very close. If you move your head on the stock while watching the target through the scope the reticle may seem to move, wobble or blur against the target. That affects where you perceive the aim point to be, and that affects your accuracy. Parallax focus correction adjustment reduces this phenomenon to the greatest extent possible.

Parallax focus correction therefore is a must for anyone attempting to use either a high magnification scope, shooting drastically different yardages with the same scope or anyone attempting to shoot at extremely close ranges or extremely long ranges. Especially so if it is a combination of these factors.

This scope features Parallax focus correction by way of the adjustable front lens housing.

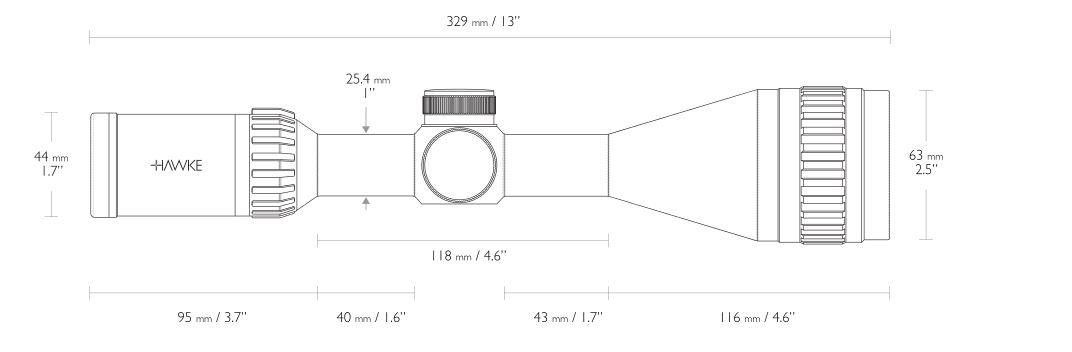

 Specifications

  • Chassis: 1" (25mm) Mono-tube
  • Magnification range: 4-12x
  • Objective: 50mm
  • Reticle: AMX Mil Dot
  • Illumination: NA
  • Focus/Parallax: 9.1m/10 yards to infinity
  • Field of View: m @100m / ft @100yds 10 - 3.7m / 29.9 - 11ft
  • Eye relief: 89mm / 3.5″
  • Length: 329mm / 13″
  • Weight: 620g / 21.9oz

Other Specification

  • Material: Aluminum
  • Exit Pupil: 13 - 4mm / 0.5 - 0.2″
  • Ocular Type: Fast Focus
  • Lens Coating: Fully Multi-Coated - 16 Layers
  • Power Selector Style: Rubber coated Posi-Grip
  • Elevation and Windage Increment: ¼ MOA
  • Elevation and Windage Adjustment Range: 70 MOA
  • Turret Caps: YES
  • Turret Type: Low Profile


Accessories included

  • Elasticated Lens Covers
  • Lens Cloth

Own this product? Write a review.
Brand Hawke
Code NW841
Weight 0.9kg
MPN 13140
EAN 5054492131402
