Athlon Helos BTR 6-24x50 30mm SF FFP Illuminated Etched APMR MIL Reticle Rifle Scope
Athlon Helos BTR 6-24x50 FFP Illuminated Riflescope design application: Mid to upto 1200 yards long Range Shooting for hunting, tactical and targets
The Athlon Helos BTR 6-24×50 FFP Illuminated SF is a first focal plane riflescope that comes with the following features; locking turrets, crisp turrets, illumination is located on side parallax wheel, advanced fully multi-coated options built from a one piece tube made from aircraft-grade 6061-T6 aluminium you at a price which is unbeatable.
Reviews - Danger - when you read it will be hard not to buy one - See the many 5 star user reviews HERE (opens new window so you will not lose this page)

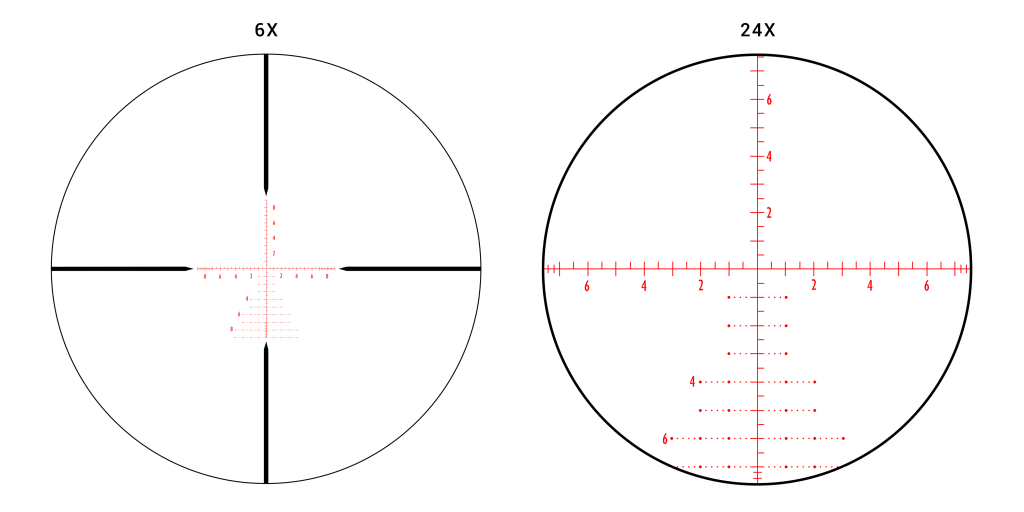

Athlon APMR FFP IR MIL Reticle - Etched Glass
Very detailed reticle guide at https://athlonoptics.com/wp-content/uploads/2016/12/ATHLON-APMR-FFP-IR-MIL-Reticle-Manual.pdf
Features in detail
First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil as well as a very crisp clear reticle and zero internal light reflection when illumination is in use.
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
6061 T6 Aluminum
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability.
Technical Specifications at a glance
- Magnification: 6-24
- Objective Lens Diameter: 50 mm
- Reticle - Etched glass APMR IR MIL, Glass Etched
- Surface Finish: Matte
- Lens Coating: Wide Band Fully Multicoated
- Extra Coating: Xtra Protective Coating
- Tube Material: 6061 Aluminium
- Tube Diameter: 30 mm
- Exit Pupil: 8.2-2.1 mm
- Eye Relief: 3.3 inches / 83mm
- Field of View @100 yards: 16.7-4.5 feet
- Click Value: 0.1 MIL
- Adjustment range per rotation: 6 MIL
- Total Elevation Adjustment: 18 MIL
- Total Windage Adjustment: 18 MIL
- Turret Style: Exposed
- Parallax Adjustment: Side Focus turret, 10 yards to infinity.
- Purging Material: Argon

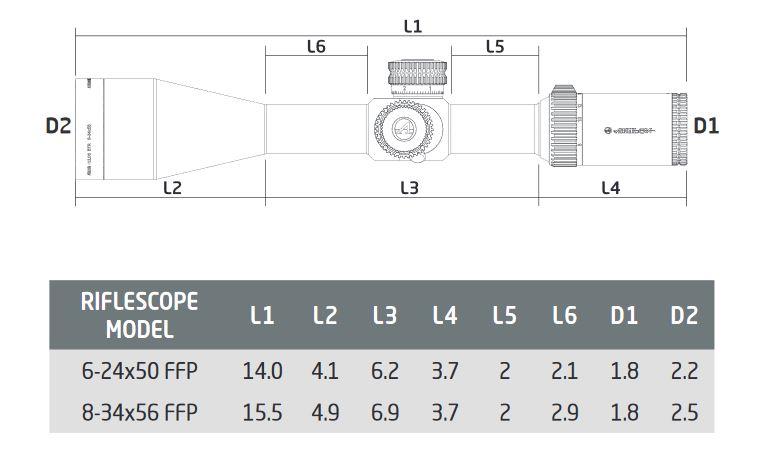

- Length:14.1 inches - 365mm
- Weight: 29.8 ounces - 829 g
|Length||14.1 inches - 365mm|
|Click value||1/10 Mil|
