Key Features
- Wide Angle optical system
- Long 4″ Eye Relief
- 18 layer Fully Multi-Coated optics for exceptional clarity
- Side Focus parallax distance from 14m / 15 yards to infinity
- 30mm mono-tube chassis for superior strength
Glass etched reticle with red illumination - Incredibly crisp and precise as well as immune to recoil. With 6 levels of brightness with off positions in-between
- 1⁄4 MOA exposed locking turrets
- Fast focus eyebell and high torque zoom ring
- Threaded objective for optional accessories such as Screw in flip up lens caps and honeycomb sunshade (Not included)
Feature Specification
- Chassis: 30mm Mono-tube
- Optical System: 6-24x
- Objective: 50mm
- Reticle: LRC 24x (Long Range Centerfire - preset 24x)
- Illumination: Red - 6 Levels
- Focus/Parallax: From 14m / 15 yards to infinity
- Field of View: m @100m / ft @100yds 6.9 - 1.7m / 20.7 - 5.1ft
- Eye relief: 102mm / 4″
- Length: 369mm / 14.5″
- Weight: 644g / 23oz
Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

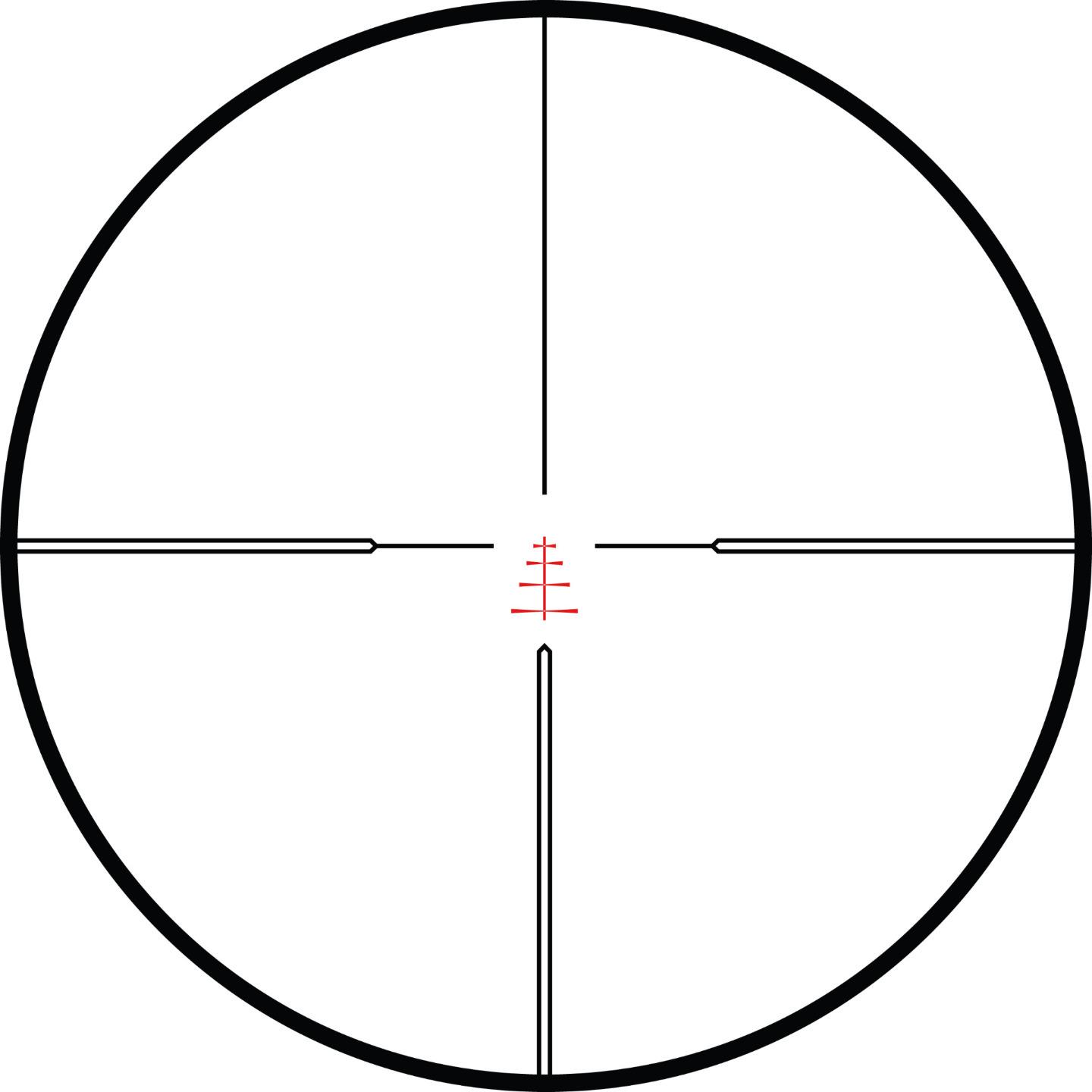

Glass Etched LRC 24x Reticle (Preset Correct 24x)
Working with your bullet’s trajectory the LRC reticle, exclusively from Hawke, provides usable aim points for Long Range Centerfire shooting and hunting.
The LRC is built specifically around the ballistics of centerfire cartridges, making holdover/under accuracy more possible than ever before.
The glass-etched LRC features an illuminated aim point with windage markers for better accuracy and a reticle that stands out against foliage and dark backgrounds.
The aim points of the reticle are designed with gaps increasing in size. This more closely represents the fall of a bullet’s trajectory; the further the bullet travels, the faster the bullet falls. All you need to do is adjust the magnification setting to match your ballistics.
Preset Correct at 24x
The reticle can be used for yards or meters depending on magnification setting.
- Zero the rifle at 200 yards/meters using the marker in the center of the reticle.
- Adjust the magnification to match your cartridge based on the ballistic table
- The holdover markers below center represent 300, 400 and 500.
- The top of the post above center can be used for distances closer than 200.
Technical Specification
- Material: Aluminium
- Exit Pupil: 8 - 2 mm / 0.3 - 0.1"
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 18 Layers
- Power Selector Style: Rubber Coated Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Warranty: Hawke Worldwide Warranty
- Elevation & Windage Increment: 1⁄4 MOA
- Elevation & Windage Adjustment Range: 75 MOA
- Turret Caps: No
- Turret Type: Exposed, locking
SUPPLIED WITH
4" Screw-in Sunshade
Elasticated Lens Covers
Lens Cloth
CR2032 Battery
Expanded Info that may answer many questions
Side Focus & Illumination Rheostat
Precise Side Focus adjustment to infinity ensures accuracy is maintained. The rheostat operates brightness settings for the red reticle illumination. With off positions in between on levels. Useful when at a higher level and you want to flick on and off, no need to dial up and down all the time.
Wide Angle Optical System
Wider than ever before, the Endurance Wide Angle optical system creates a breathtaking image that gives full edge to edge clarity. Seeing is believing.
Fast Focus Ocular Adjustment with 4″ Eye Relief
The apparent field of view is complemented further by a fine outer ocular assembly, making the enlarged target image almost float in front of your eye.
Tactical Locking Turrets
Push-pull locking and resettable turrets with positive clicks. 1⁄4 MOA with 15 MOA per revolution
50mm Fully Multi Coated Lens:
- 18 layer fully multi coated for excellent clarity.
- 50mm diameter - Excellent large size. Excellent light capture.
6-24x variable magnification
- Adjust from 6x to 24x.
- A very good magnification range for medium to long range hunting
- Easy & fast adjustment.
- Ocular eyebell focus from 5 yards, parallax from 14m / 15 yards
Fast focus eyebell
Easy, effective ocular focus.
Benefits of Glass Etched Reticles and Illumination
Glass-etched reticles are superior to wire for several reasons, most notable is how much more crisp, fine and clean your view is when you look thorough the scope.
A glass etched reticle, also cannot be broken. Anyone who has shot enough has seen a wire reticle actually break within the reticle field. As the reticle design is etched into the reticle lens, it is static and cannot physically be broken.
All illuminated scopes with glass-etched reticles have the added benefit of zero internal light reflection which occurs to some extent in illuminated scopes with wire reticles.
This superior design requires an additional cost, but even if you don’t plan to use the illumination, the glass-etched reticle is a feature with value to the shooter.
Illumination comes into its own when shooting targets that are either naturally dark or made dark by light conditions such as shadow, dawn dusk, very bright light or night shooting with lamps or night vision kit.
Without Illumination a black reticle can be very hard to make out against the target. Illumination fixes this problem and gives immediate contrast. Adjust intensity according to the light conditions.
