>>> For all calibers from airgun to centerfire
- 1 piece 1" tube - 335mm long, mounting length 135mm
- Etched glass engraved illuminated reticle
- Waterproof - Shockproof - Fogproof - Exceptionally Recoil proof
- Nitrogen filled and sealed tube
- Exceptional focus clarity at all ranges
- Side Focus Parallax
With screw in sunshade and elasticated lens caps
Genuine Konus rifle scope. UK importer supplied with UK based warranty.

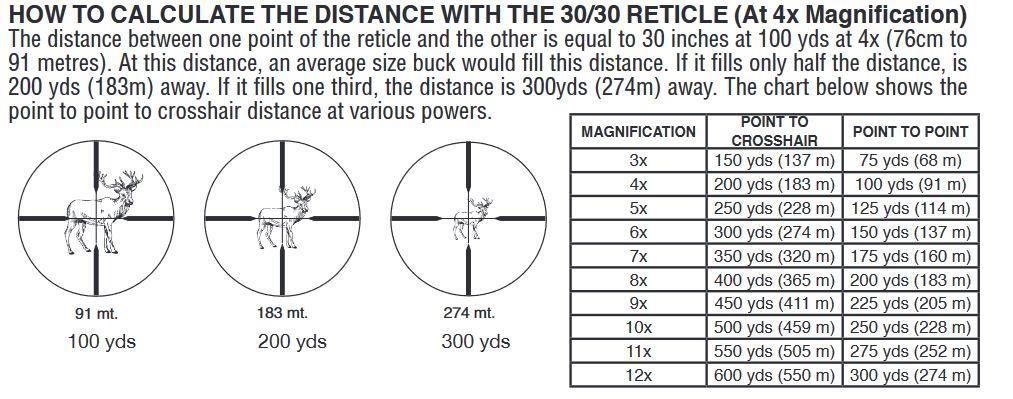

Etched glass Red-Blue illuminated 30-30 Reticle
A simple classic hunting reticle that allows for fast range-finding at different magnification levels.

The illuminated reticle is an excellent choice for low light conditions or for shooting against a very dark target. The intensity of the illumination can be adjusted up or down for any lighting conditions
Red and Blue with 5 intensity levels on each colour and turned off for plain black.
- Side turret Illuminator Turret Dial with 5 Intensities (Blue and Red)
- IR is very useful in low and bright light where it allows you to get better contrast of the reticle against dark backgrounds.
Benefits of Glass Etched Reticles and Illumination
Glass-etched reticles are superior to wire for several reasons, most notable is how much more crisp, fine and clean your view is when you look thorough the scope.
A glass etched reticle, also cannot be broken. Anyone who has shot enough has seen a wire reticle actually break within the reticle field. As the reticle design is etched into the reticle lens, it is static and cannot physically be broken.
All illuminated scopes with glass-etched reticles have the added benefit of zero internal light reflection which occurs to some extent in illuminated scopes with wire reticles.
This superior design requires an additional cost, but even if you don’t plan to use the illumination, the glass-etched reticle is a feature with value to the shooter.
Illumination comes into its own when shooting targets that are either naturally dark or made dark by light conditions such as shadow, dawn dusk, very bright light or night shooting with lamps or night vision kit.
Without Illumination a black reticle can be very hard to make out against the target. Illumination fixes this problem and gives immediate contrast. Adjust intensity according to the light conditions.
50mm Fully Multi Coated Lens:
- A great larger size lens that gives you superb light capture and transmission resulting in a truly excellent view.
- Fast target acquisition and moving target tracking.
- Fully multi coated with emerald to protect and limit glare and reflections
3-12x variable magnification
- A popular all round variable magnification for most hunting ranges
- Easy, fast dial adjustment.
- Exceptional clarity through premium quality lens.
Technical Summary
- Magnification:3-12x variable
- Objective lens: 50mm
- Tube Diameter: 1 inch / 25.4mm
- Reticle: Engraved glass 30-30
- Exit Pupil: 5mm at 3x; 2.6mm at 12x
- Eye Relief: 2.85"/72.3mm
- F.O.V. @ 100 yards: 31.53ft/9.6m at 3x; 9.43ft/2.8m at 12x
- Click Value @ 100 Yards: 1/4 MOA - 7.25mm
- Parallax - Side focus adjust
- Length: 13.1"/335mm
- Weight: 33.1oz/940gr
- Mounting Length: 5.31"/135mm
Feature Summary
- Waterproof, Fogproof, Shockproof
- Dry Nitrogen Filled
- All caliber suited including airgun
- Heavy Caliber Recoil Proof Reticle
- Fully Multi-Coated Optics
- Engraved Reticle in the Second Focal Plane
- Includes sunshade and elasticated lens covers
- 1 Piece Tube Construction
- Battery: Coin Style CR2032 (included)
Mount rings NOT included.
Requires 1" / 25mm rings for whatever base type is on the rifle. Generally high profile will suit though can vary depending on base set up. Please ask us if unsure.
Konus Warranty
All Konus riflescopes and pistol scopes carry a Lifetime Replacement Warranty. That's replacement, not repair! It's simply the best warranty in the industry. If you encounter a manufacturer's defect on any of these products, simply send it back to the retailer or Konus and we will replace it for the life of the original owner.
