Glass Etched Half Mil Dot Reticle with Anti Cant Level
Ever popular modified mil dot. For rangefinding if you know the method. If not (or if you do), just very useful for aim point estimation at range, in cross winds and holdover/bullet drop when range is approximately known.

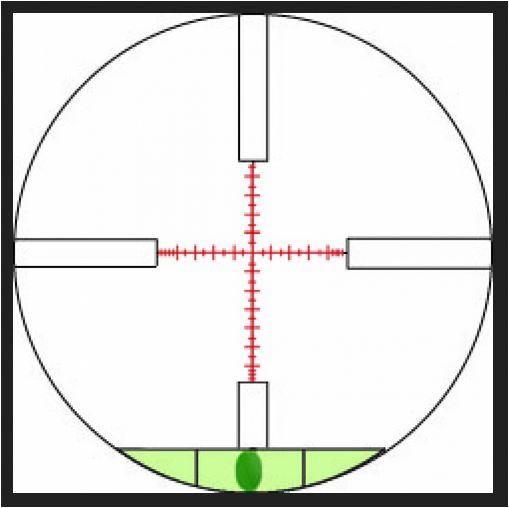

The image below (from Konus) is an illustration to blow up detail. The red is the illumination which of course can be turned off to become black. It is also finer and crisper than shown here. (Engraved reticles, by definition are very crisp and fine)
Precision at long range requires a tilt free (anti-canted) rifle position.
The KonusPro M30 series has an anti-canting level bubble built into the rifle scope that gives instant canted rifle correction. While looking through the eyepiece simply align the bubble through the centre lines of the tube, and your level. The phosphorescent formula allows the anti-canting bubble system to be easily viewed witn or without scope illumination turned on.
Glass-etched Reticle
Glass-etched reticles are superior to wire for several reasons, most notable is how much more crisp, fine and clean your view is when you look thorough the scope.
A glass etched reticle, also cannot be broken. Anyone who has shot enough has seen a wire reticle actually break within the reticle field. As the reticle design is etched into the reticle lens, it is static and cannot physically be broken.
All illuminated scopes with glass-etched reticles have the added benefit of zero internal light reflection which occurs to some extent in illuminated scopes with wire reticles.
Feature Overview
- Rated for all firearms Air Rifles, Rim; Centre Fire Rifles
- Single-piece, hard anodised, Aviation grade aluminium tube
- Tube Size: 30mm
- Shockproof, Waterproof, Dustproof, Fogproof
- Finest quality fully multi-coated lenses for improved light transmission
- Turrets: External tactical locking turrets with 1/10 mil adjustments
- Parallax: From 10 yards by large easy to use side turret. Large Konus sidewheel available as accessory.
- Lens Covers Supplied: Flip Up black solid
Technical Spec
- Magnification x Ø Objective: 12.5-50x56
- Reticle: Engraved 1/2 Mil Dot with illumination
- Field of view at 100m/yds: 2.9m /9.7ft at12.5x • 0.7m /2.5ft at 50x
- Weight: 870gr - 30.6oz
- Length: 449mm - 17.6"
- Eye relief: 76.2mm 3"
- Exit Pupil mm: 4.4mm at 12.5x - 1.15mm at 50x
- Adjustment range: 125 clicks Windage and Elevation
- Click value mm@100m in@100yds: 1/10 Mil (10mm).
- Adjusting range m@100m in@100yds: 0.81m - 32"
- Mounting length mm/inches: 195mm - 7.6"
Warranty
10 year New for old replacement.
