Sportsmatch ATP90 30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings

Sportsmatch ATP90  30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings
Sportsmatch ATP90  30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings
Sportsmatch ATP90  30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings
Sportsmatch ATP90  30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings
Sportsmatch ATP90  30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings

Sportsmatch ATP90 30mm Elevation and Windage Adjustable Weaver/Picatinny Scope Mount Rings

£114.95 £95.79 (ex. VAT)
Stock Status: In Stock
Extra high profile. For 30mm tube scopes on weaver/picatinny base. Adjustable for windage, MOA elevation and height.
You Will Earn 114 points with this purchase
Laybuy

Make 6 weekly payments of £19.16.

Interest free. Learn More

PayPal Checkout
  • 30mm Diameter Body Tube
  • Extra High adjustable Range
  • Weaver/picatinny bases
  • Suit the biggest lens scopes about (see clearance guide below)


2 PIECE ADJUSTABLE
A = 26.5-29mm saddle (Height from where the ring base touches rail to bottom of scope ring)
B = 21mm long
Weight = 140g

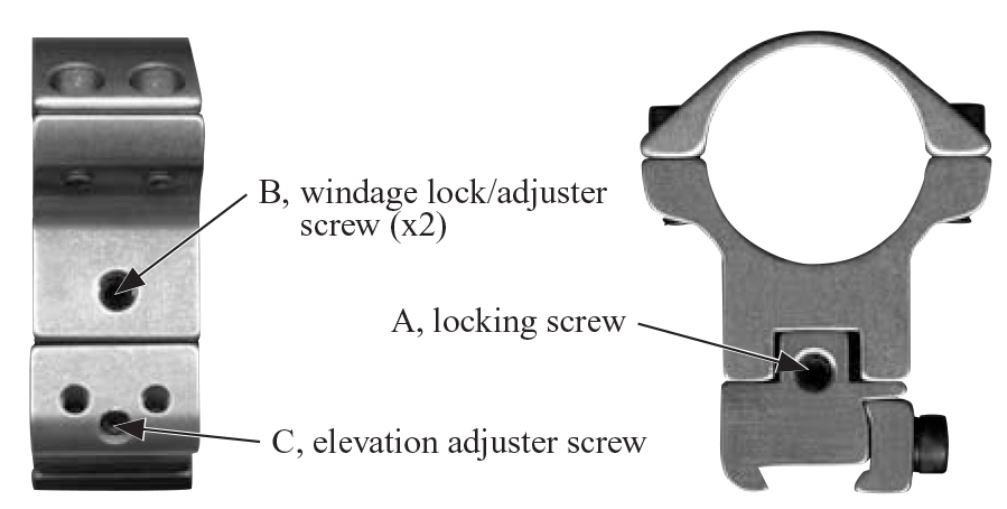

  • Adjustable for windage, elevation and height.
  • Upto 65 MOA Vertical Adjustment
Clearance guide

The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.

For scopes with a 30mm diameter body tube diameter this would mean deducting 15mm.

Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.

The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring.

The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.

The saddle on these mounts is
26.5m at lowest adjustment

Example -

  1. A 60mm objective lens scope is measured and found to have an outer case measurement of 70mm.
  2. 70 divided by 2 = 35
  3. 30mm tube scope so deduct 15mm = 20mm
  4. So the mount must have a measure (bottom of mount to bottom of the ring) greater than 20mm or else it will ground out on the rifle body.
So in this example, we have 26.5mm to use, so have a good minimum clearance of 6.5mm

Calculating your rifle scopes clearance in this way assumes the base is a regular flat base. Some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.


  • MPN:
    ATP90
  • Brand:
    Sportsmatch
  • Product Code:
    NW1929
  • Weight:
    0.17kg
