Vortex Viper 6.5-20x50 SFP Mildot (1/4 MOA Turrets) PA Side Focus Rifle Scope
Vortex Viper 6.5-20x50 SFP Mildot (1/4 MOA Turrets) PA Side Focus Rifle Scope
Vortex Viper 6.5-20x50 SFP Mildot (1/4 MOA Turrets) PA Side Focus Rifle Scope is a rifle scope that you can rely on effortlessly shrugging off recoil, moisture and darkness! The Vortex Viper 6.5-20x50 PA status as a premium rifle scope won't be as easy to shake.
Discover a riflescope with incredible performance features like premium, fully multi-coated optics with 95 percent light transmission, heavy duty Precision Force spring systems and the glass smooth Precision Glide erector system—delivering all this and more at a price that should have pulled a few more hundreds from your wallet than it did.
Vortex Viper 6.5-20x50 SFP Mildot (1/4 MOA Turrets) PA Side Focus Rifle Scope
| Magnification | 6.5-20 x |
| Objective Lens Diameter | 50 mm |
| Eye Relief | 3.1 inches |
| Field of View | 17.4-6.2 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Tall capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 12 MOA |
| Max Elevation Adjustment | 65 MOA |
| Max Windage Adjustment | 65 MOA |
| Parallax Setting | 50 yards to Infinity |
| Length | 14.4 inches |
| Weight | 21.6 ounces |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |

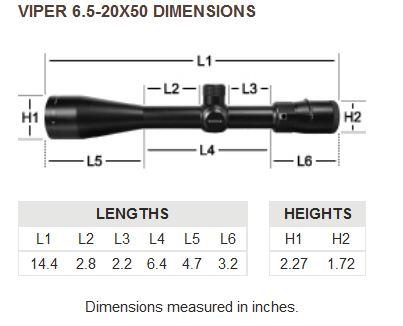

Vortex Viper 6.5-20x50 PA DIMENSIONS
| LENGTHS | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.4 | 2.8 | 2.2 | 6.4 | 4.7 | 3.2 |
| HEIGHTS | |
| H1 | H2 |
| 2.27 | 1.72 |
Vortex Viper 6.5-20x50 SFP Mildot (1/4 MOA Turrets) PA Side Focus Rifle Scope
- The Vortex Viper 6.5-20x50 PA riflescope is ideal for long range, predator/varmint, and target applications.
- Dead-Hold BDC reticle has a customized design that helps eliminate guesswork on hold-over and windage corrections. Good for any hunting or shooting at varying ranges where estimating hold-over would be a concern.
- Side knob parallax adjust allows quick and easy parallax adjustments with range numbers visible while in the shooting position.
- 30mm main tube offers improved windage and elevation adjustment along with greater strength.
- Tall capped turrets allow quick and easy field adjustments.
OPTICAL FEATURES |
|
| XD Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| XR Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
CONSTRUCTION FEATURES |
|
| Tube Size | 30 mm diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret. |
| Side Focus | Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
INTERNAL MECHANISM DESIGN FEATURES |
|
| Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
CONVENIENCE FEATURES |
|
| MAG-Bar | Allows rapid, easy changes in magnification. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
MIL DOT RETICLE
Originating from the US Marine Corps., this reticle is useful for helping to estimate range, windage and bullet holdover. Good for long distance shooters/hunters needing ranging ability. Subtension detail for the Vortex Viper 6.5-20x50 Mil Dot Reticle. >
