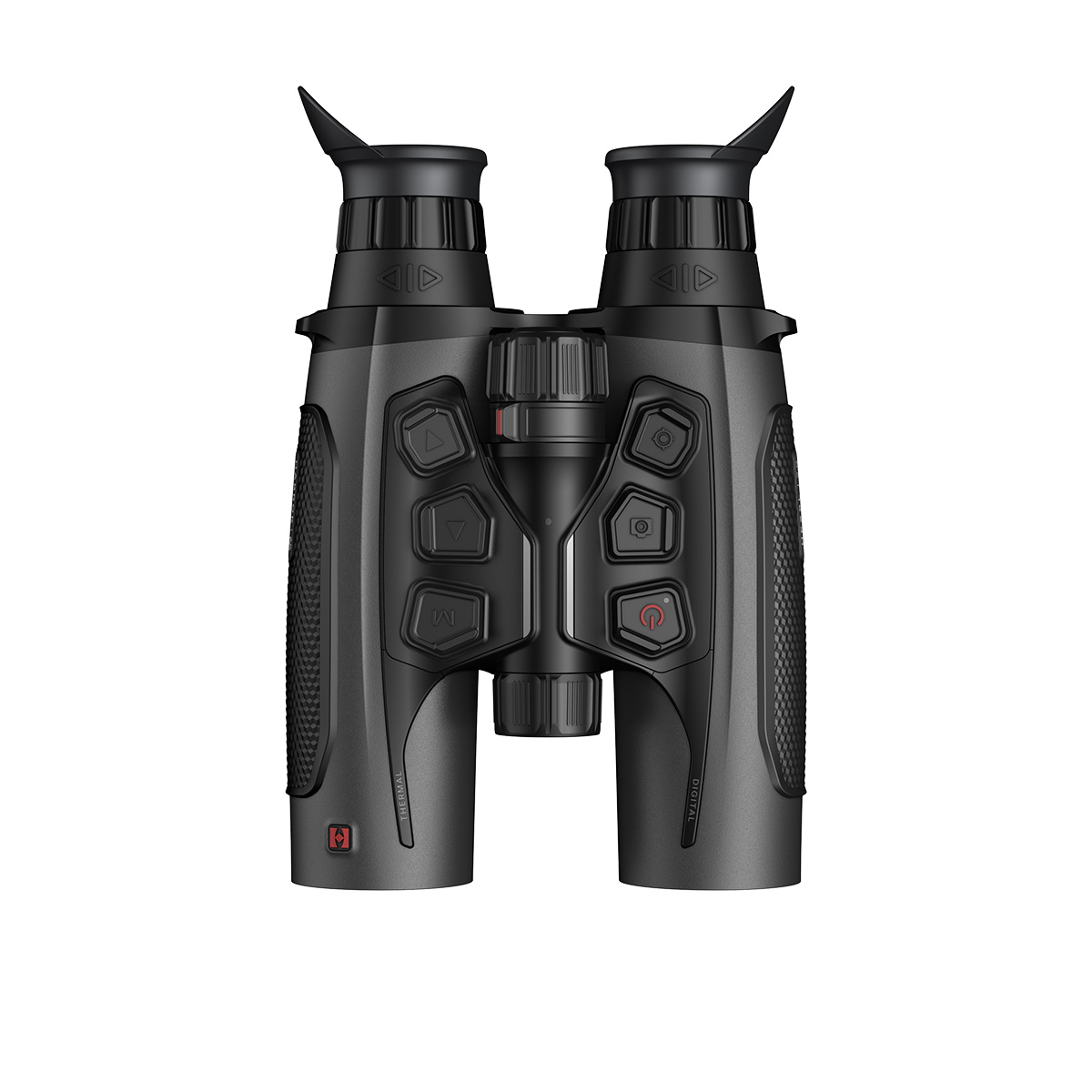

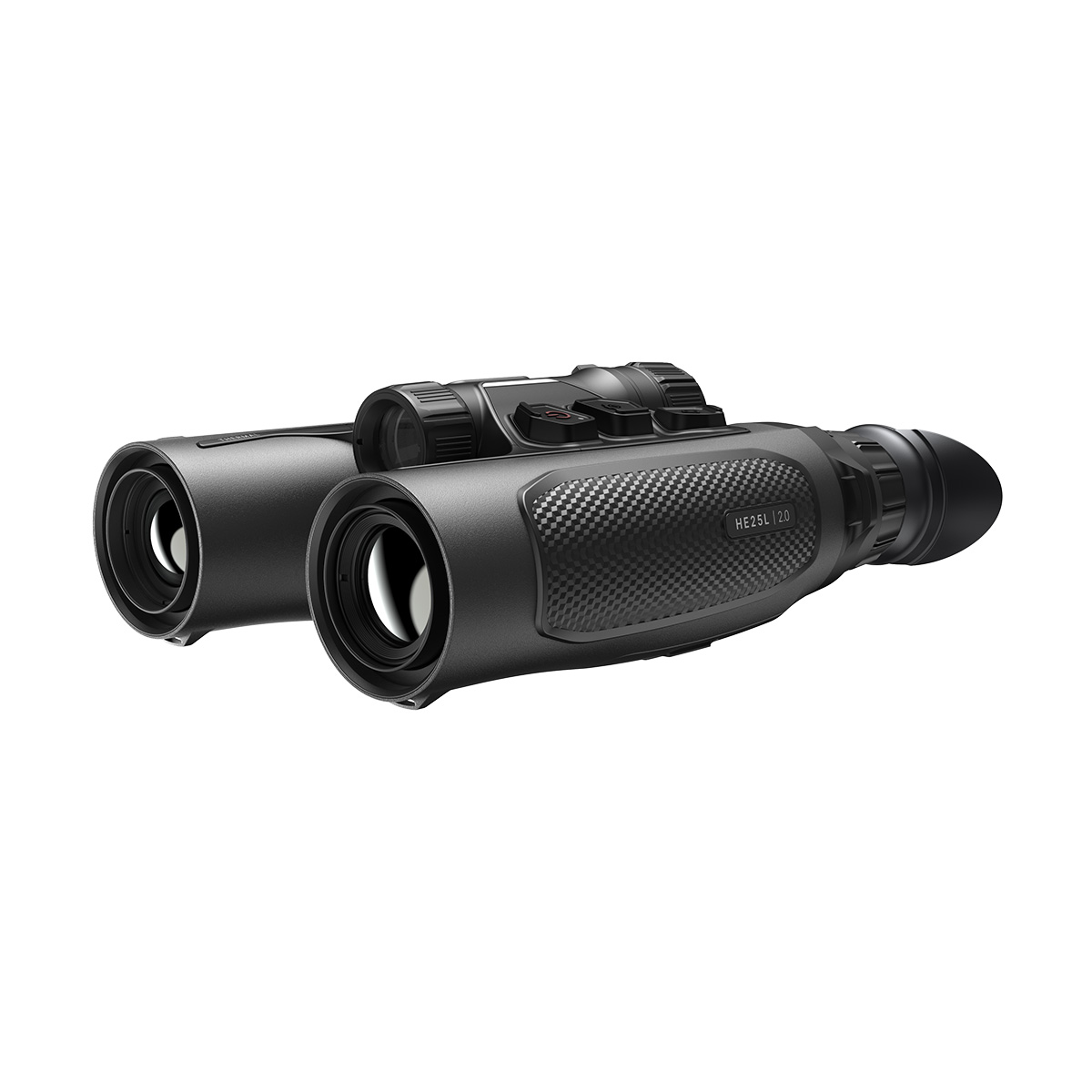

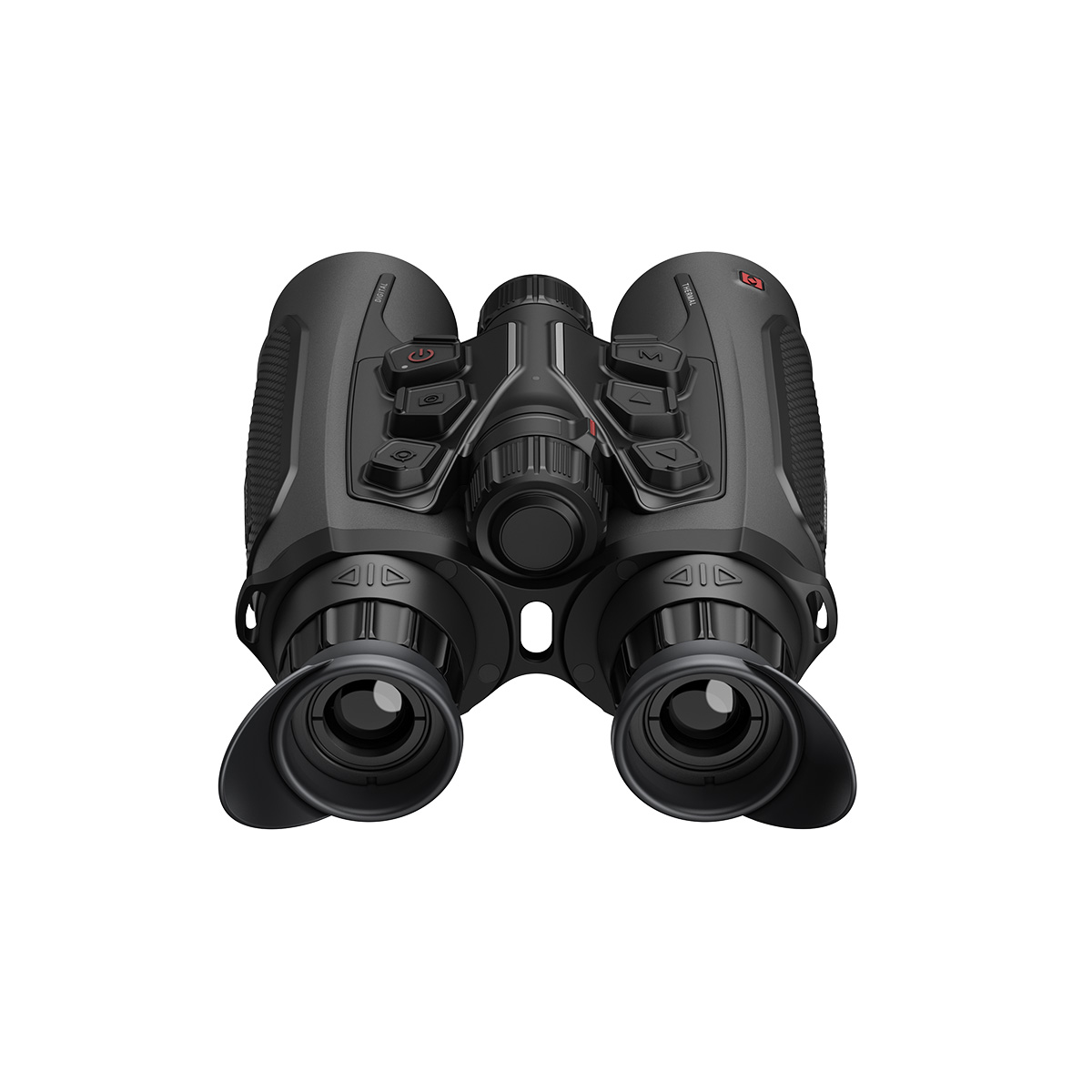

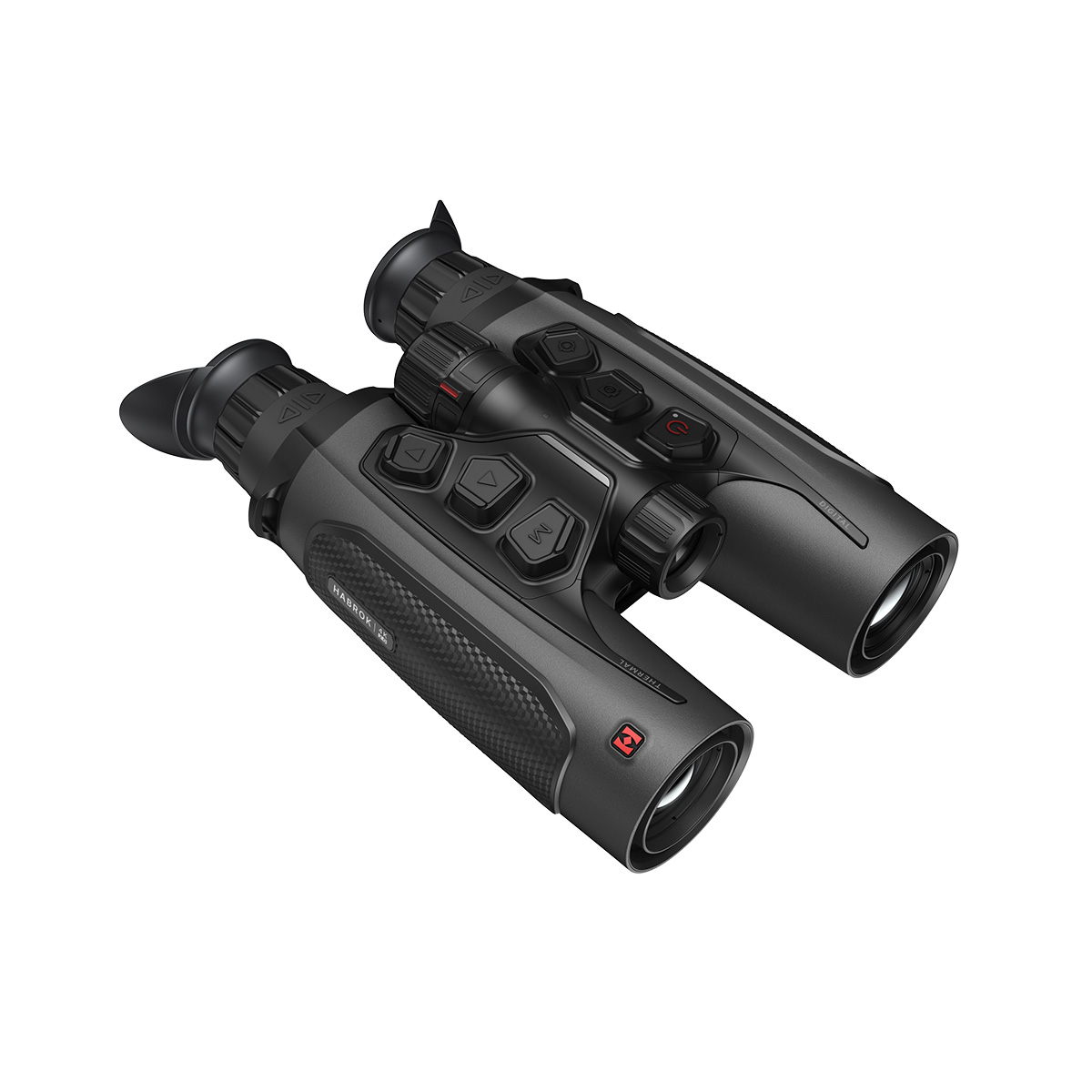

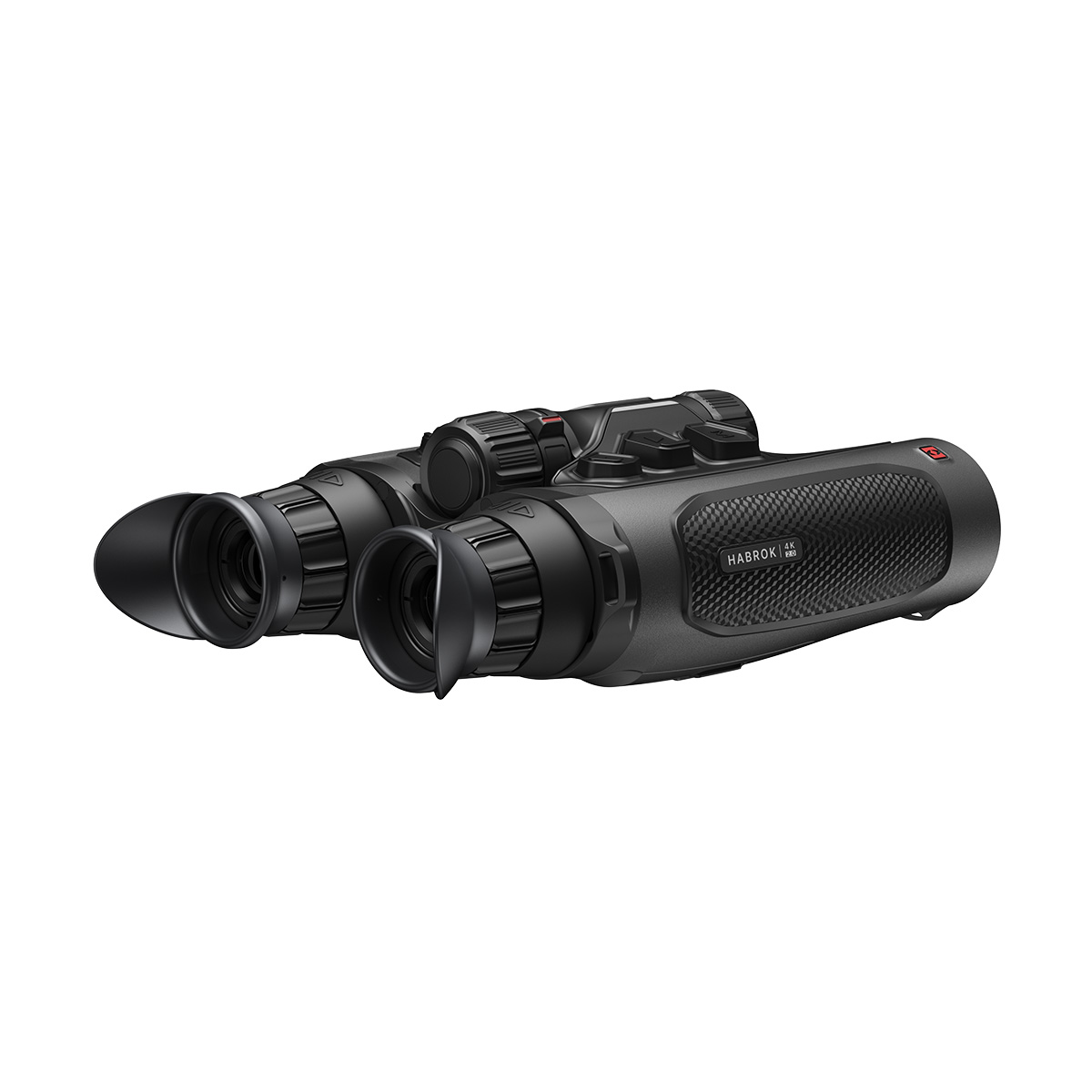

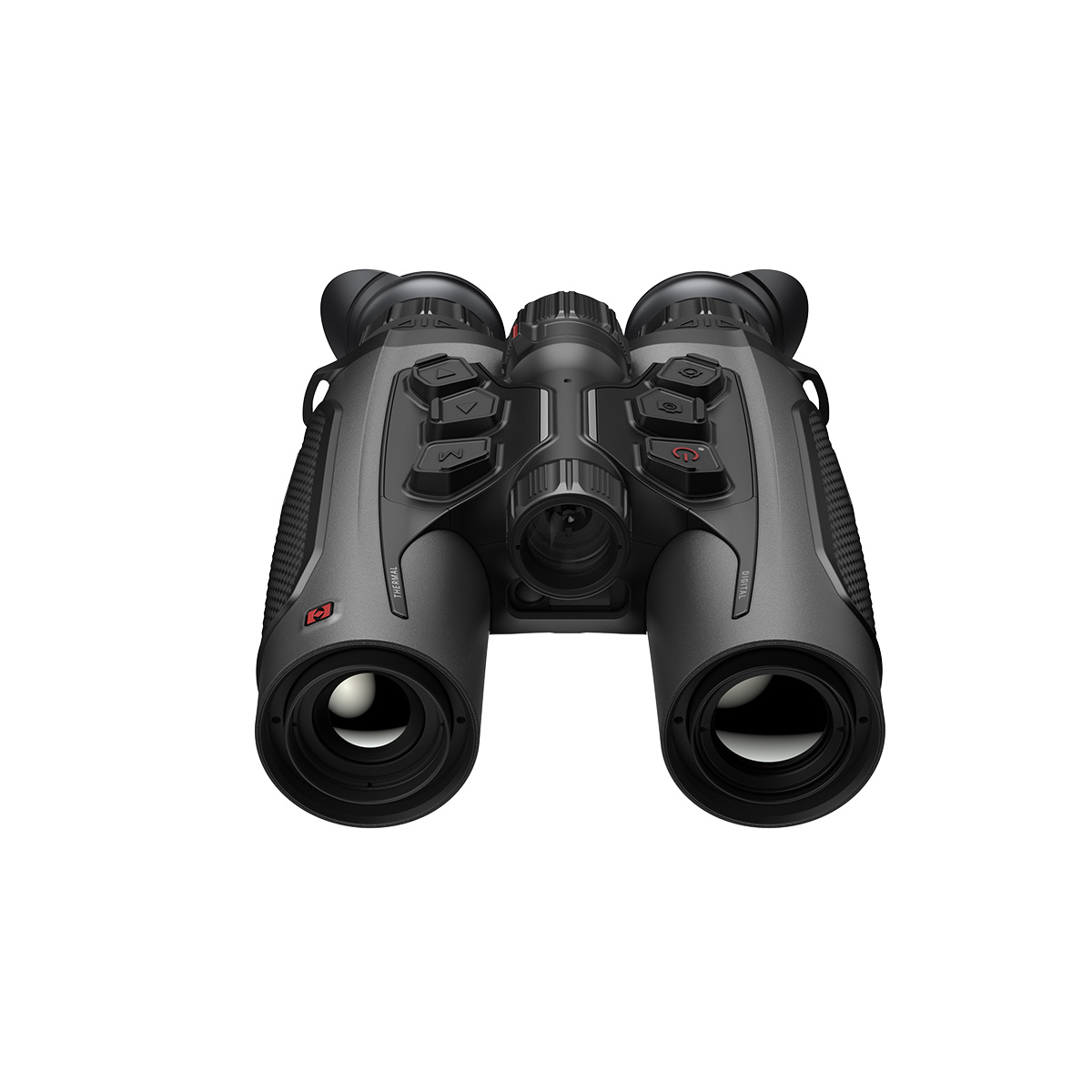

HIKMICRO Habrok 4K 2.0 HE25L Multi-Spectrum Thermal / Digital Binoculars with LRF
25mm 18mk 256x192px with 4K Optical Camera and Harness
HABROK 4K 2.0 delivers shutterless thermal innovation, crisp 4K visuals, and ergonomic efficiency, empowering field operators to capture critical moments with confidence across twilight terrain and dense woodland environments.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The HIKMICRO Habrok 4K 2.0 HE25L is a highly advanced multi-spectrum digital and thermal binocular with integrated laser rangefinder, purpose-built for demanding daytime and mixed-light applications. Designed for hunting, wildlife observation, search and rescue, and field exploration, it combines thermal detection, true 4K digital imaging and precision ranging into a single, ergonomic platform capable of performing in all weather conditions.
At its core is an ultra-sensitive 256 × 192 thermal sensor with <18 mK NETD, paired with a fast 25 mm F1.0 lens delivering reliable thermal detection out to 1200 metres. This allows heat signatures to be clearly identified through foliage, mist and low-contrast environments. HIKMICRO’s HSIS Shutterless Image System ensures uninterrupted viewing without image freezing, maintaining smooth, stable observation during dynamic use.
For daylight performance, the Habrok 4K 2.0 features a 3840 × 2160 UHD CMOS digital sensor combined with a 60 mm F2.2 lens, providing exceptionally sharp imagery with 5.5x to 22x zoom. The dual-channel optics architecture allows instant switching between thermal and digital modes via a dedicated control, giving rapid situational awareness from dawn to dusk.
An integrated 1000 m laser rangefinder with ±1 m accuracy enhances precision for scouting and navigation, while replaceable 850 nm and 940 nm IR illuminators provide adaptable night-time illumination for both range and discretion. Advanced onboard features including electronic image stabilisation, picture-in-picture, video and audio recording, GPS, compass and hotspot connectivity further elevate its capability in the field.
Despite its performance, the Habrok 4K 2.0 remains highly practical, weighing just 895 g with a compact, balanced design optimised for extended use. A replaceable rechargeable battery system delivers over 6.5 hours of runtime, while IP67 protection ensures reliability in harsh environments. Supplied with batteries, charger, IR illuminator and accessories, and backed by a 3-year HIKMICRO warranty, it is a powerful all-in-one observation tool for serious users who demand versatility, clarity and precision.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
- Thermal Image Sensor VOx uncooled focal plane array
- Thermal Resolution 256 × 192
- Thermal Frame Rate 50 Hz
- Pixel Pitch 12 μm
- Spectral Response 8 μm to 14 μm
- Thermal Sensitivity (NETD) <18 mK (@25°C, F# 1.0)
- Thermal Lens 25 mm, F1.0
- Thermal Focus Rear focus wheel
- Thermal Detection Range Up to 1200 m
- Minimum Focus Distance (Thermal) 3 m
- Thermal Magnification 4.3x–17.2x with 2×/3×/4×/5× digital zoom
- Thermal Field of View 7.0° × 5.3° / 12.2 m × 9.3 m @100 m
- Digital Image Sensor 1/1.8" progressive scan CMOS
- Digital Resolution 3840 × 2160 (4K UHD)
- Digital Lens 60 mm, F2.2
- Minimum Working Distance (Digital) 8 m
- Digital Focus Rear focus wheel
- Digital Magnification 5.5x–22.0x with 2×/3×/4×/5× digital zoom
- Digital Field of View 7.3° × 4.1° / 12.8 m × 7.2 m @100 m
- Smart IR Yes
- IR Illuminator 940 nm (default) / 850 nm (replaceable)
- Night Viewing Range Up to 400 m
- Replaceable IR Illuminator Yes
- Display Type 0.49" OLED
- Display Resolution 1920 × 1080
- Colour Palettes Thermal
- Exit Pupil 8 mm
- Eye Relief 15 mm
- Diopter Adjustment –5D to +3D
- Brightness Adjustment Yes
- Tone Adjustment Cold / Warm
- Contrast Adjustment Yes
- Electronic Image Stabilisation Supported on thermal and digital channels (from 2x)
- Zoom Pro Yes
- HSIS Shutterless Imaging Yes
- Video Recording Yes
- Photo Capture Yes
- Audio Recording Yes
- Standby Mode Yes
- Internal Storage 64 GB EMMC
- Picture-in-Picture Yes
- Hotspot Detection Yes
- Hot Track Yes
- Digital Magnetic Compass Yes
- GPS Yes
- Local Album Yes
- Battery Type Replaceable rechargeable Li-ion
- Operating Time ≥6.5 hours (25°C, hotspot and LRF on)
- Power Supply USB Type-C, 5V DC, 2A
- Protection Rating IP67
- Dimensions 143.1 × 74.8 × 223.3 mm
- Operating Temperature –30°C to +55°C
- Weight 895 g (without batteries)
- Interpupillary Adjustment 60–74 mm
- Mounting Interface 1/4"-20 UNC
- Laser Safety Class Class 1
- Laser Wavelength 905 nm
- Maximum Rangefinder Distance 1000 m
- Range Accuracy ±1 m
- Minimum Rangefinder Distance 10 m
-
Dual-Spectrum Viewing System – Seamlessly switch between thermal and 4K digital imaging using the dedicated T/D selector, allowing rapid target identification and improved situational awareness across changing environments.
-
Shutterless Thermal Imaging – HIKMICRO’s HSIS technology eliminates image freezing during calibration, delivering smooth, uninterrupted thermal viewing when tracking moving targets.
-
Integrated Laser Rangefinder – Built-in LRF provides fast and accurate distance measurements, supporting confident decision-making for observation, navigation and engagement planning.
-
Replaceable IR Illumination – Supplied with interchangeable 850 nm and 940 nm IR illuminators, enabling adaptable night-time performance from long-range visibility to discreet, low-signature observation.
-
Advanced Image Stabilisation – Electronic image stabilisation on both thermal and digital channels reduces shake at higher magnifications for clearer, more comfortable viewing.
-
Onboard Recording & Storage – Capture video, photos and audio directly to the internal memory, with easy access to a local album for reviewing content in the field.
-
Smart Tracking & Observation Tools – Features such as hotspot detection, Hot Track and picture-in-picture enhance target awareness and monitoring efficiency.
-
Integrated Navigation Sensors – Built-in GPS and digital magnetic compass add positional awareness and orientation support during extended field use.
-
Ergonomic, Field-Ready Design – Compact, lightweight construction with rear focus controls allows comfortable, one-handed operation over prolonged periods.
-
Replaceable Battery System – Hot-swappable rechargeable batteries ensure extended operational flexibility without reliance on fixed internal power.
-
All-Weather Reliability – Robust, sealed housing with full environmental protection ensures dependable performance in rain, dust and extreme temperatures.
-
Tripod Mount Compatibility – Integrated mounting interface allows stable observation during long viewing sessions or precision scanning.
-
Comprehensive Warranty Coverage – Supplied with a 3-year HIKMICRO warranty for long-term confidence and peace of mind.
- 1 x Habrok 4K 2.0 (HE25L)
- 1 x Neck Strap
- 1 x Type-C Cable
- 1 x Tripod Adapter
- 4 x Battery
- 1 x Replaceable IR Illuminator
- 1 x QSG
- 1 x Lint-Free Cloth
- 1 x Battery Charger
Can the thermal and digital channels be used independently?
Yes. The Habrok 4K 2.0 features a dual-channel architecture that allows you to switch instantly between thermal and 4K digital imaging using the dedicated T/D switch.
Does the thermal image freeze during calibration?
No. HIKMICRO’s HSIS Shutterless Image System removes traditional shutter calibration, ensuring smooth, uninterrupted thermal viewing at all times.
What is the effective detection range of the thermal channel?
The thermal channel can detect heat signatures at distances of up to 1200 metres, depending on target size and environmental conditions.
Is the laser rangefinder always active?
No. The laser rangefinder can be activated only when required, helping to conserve battery life during extended observation sessions.
How accurate is the laser rangefinder?
The integrated laser rangefinder measures distances up to 1000 metres with an accuracy of ±1 metre.
Does image stabilisation work on both channels?
Yes. Electronic image stabilisation is available on both the thermal and digital channels, significantly improving clarity when using higher magnification levels.
Can the IR illuminator be changed or upgraded?
Yes. The Habrok 4K 2.0 is supplied with a replaceable IR illuminator and supports both 850 nm and 940 nm wavelengths.
Is the device suitable for daytime use only?
No. While optimised for daytime observation with its 4K digital sensor, the thermal channel and IR illumination make it fully effective for night-time and low-light use.
Can video and audio be recorded simultaneously?
Yes. The device supports video recording with audio, as well as still image capture, all stored on the built-in 64 GB internal memory.
Does the device have GPS and compass functionality?
Yes. Built-in GPS and a digital magnetic compass provide positional and directional data during use.
What power system does it use?
The Habrok 4K 2.0 uses replaceable, rechargeable Li-ion batteries and can also be powered or charged via USB Type-C.
How long does the battery last?
Typical operating time is 6.5 hours at 25°C with hotspot detection and the laser rangefinder enabled.
Is the Habrok 4K 2.0 weatherproof?
Yes. It is IP67 rated, meaning it is fully protected against dust and can withstand immersion in water.
Can the binocular be tripod mounted?
Yes. A standard 1/4"-20 UNC mounting thread allows secure attachment to a tripod or mounting adapter.
Is the interpupillary distance adjustable?
Yes. The binocular supports interpupillary adjustment from 60 mm to 74 mm for a comfortable viewing fit.
What warranty is included?
The Habrok 4K 2.0 HE25L is supplied with a 3-year HIKMICRO manufacturer’s warranty
- 3-Year HIKMICRO Warranty
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
