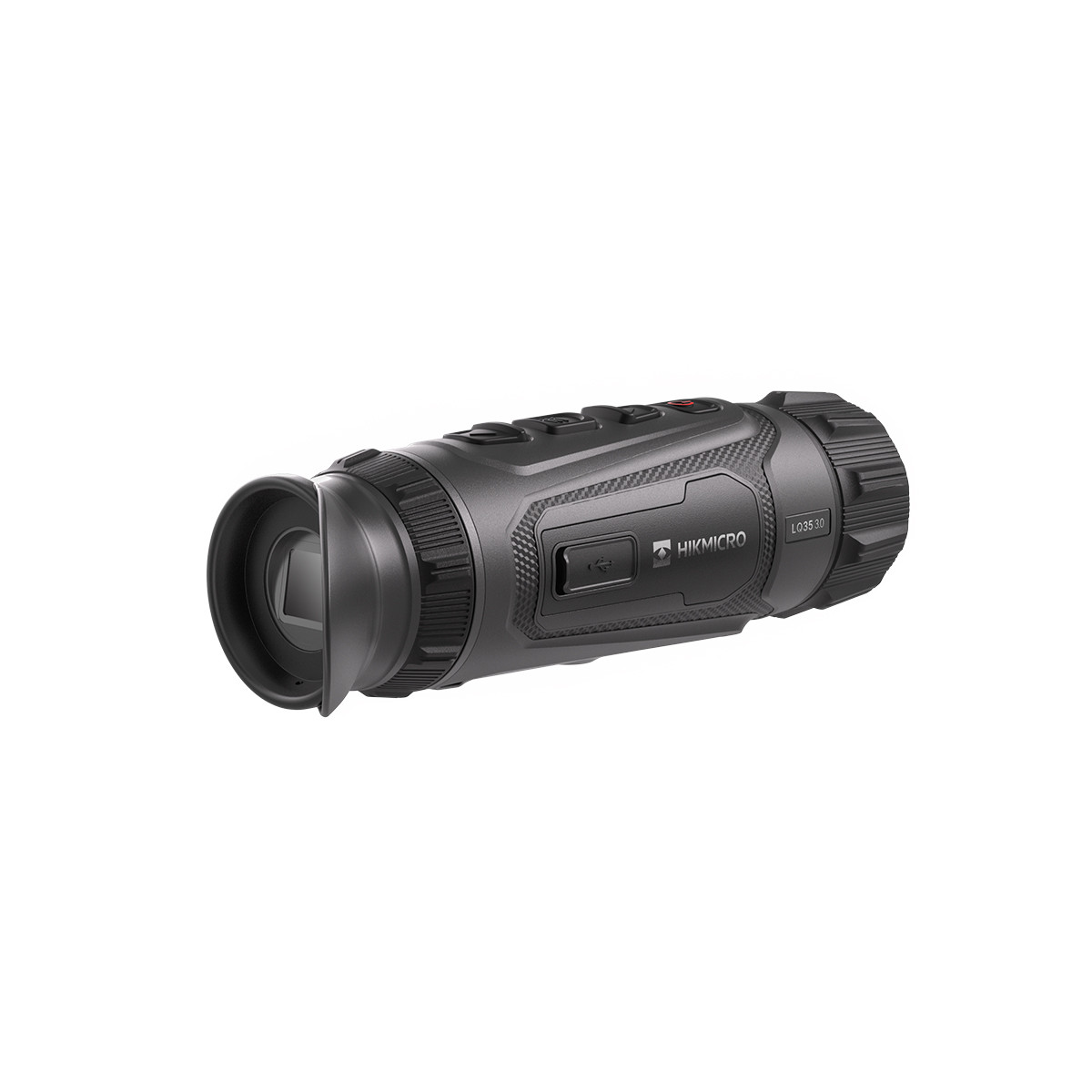

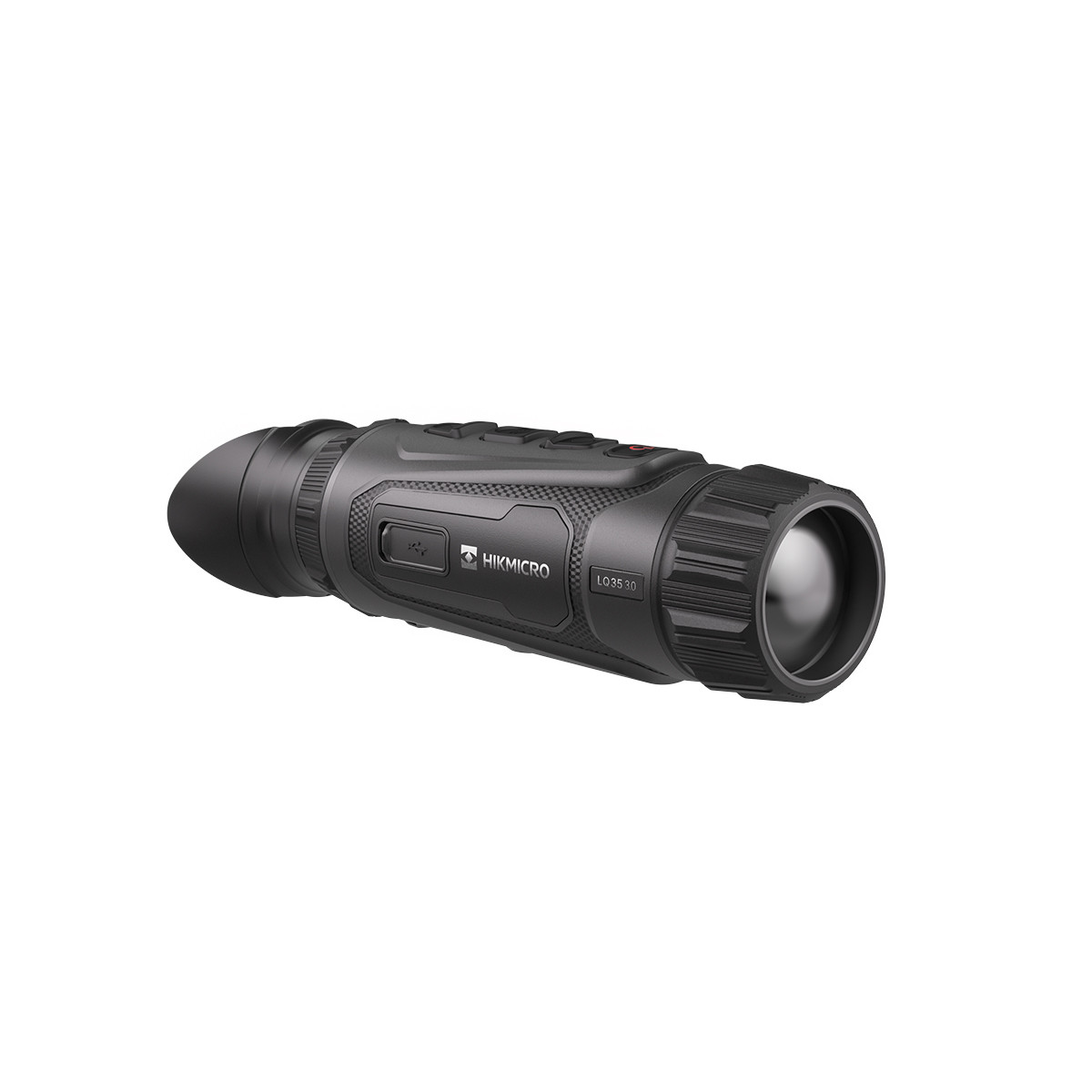

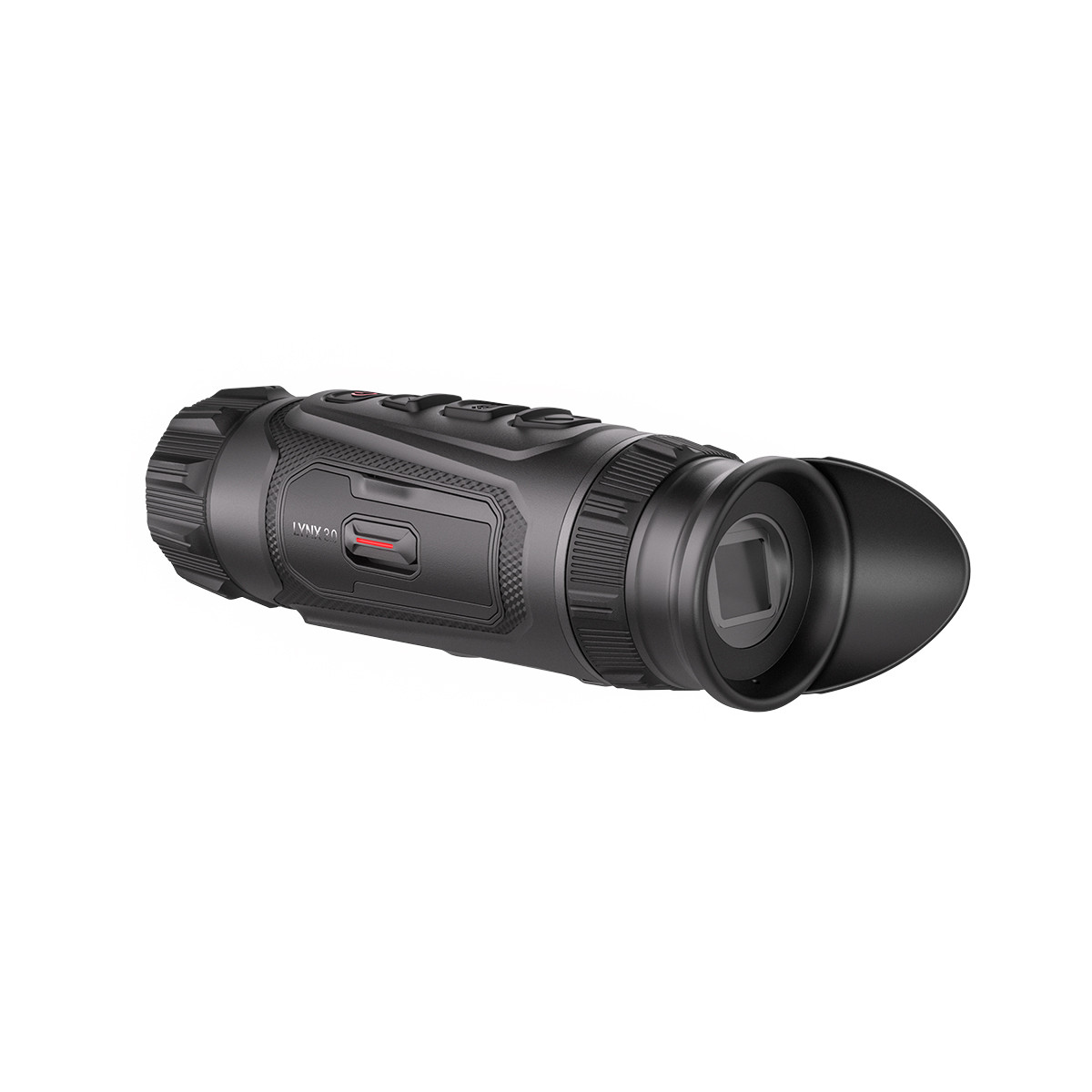

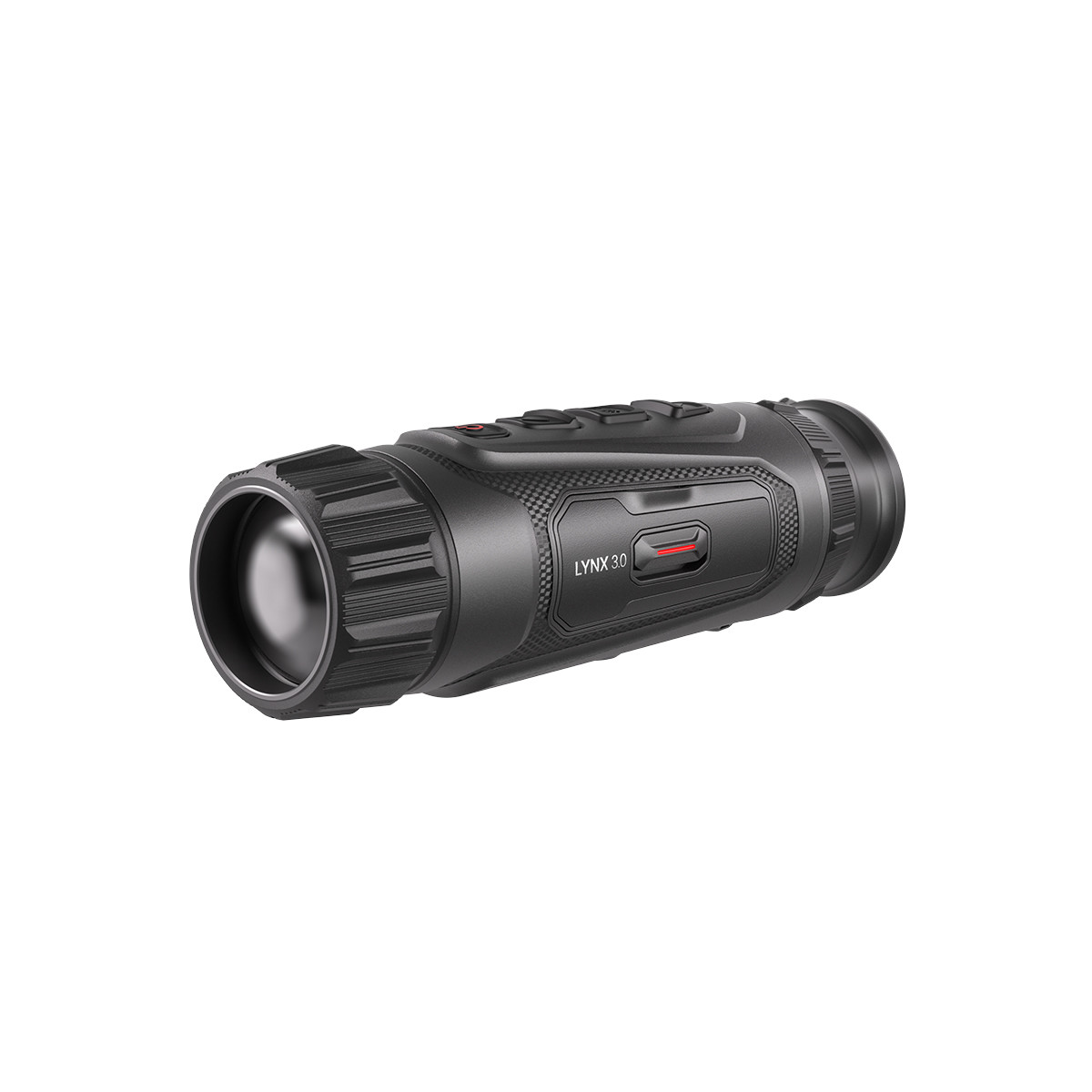

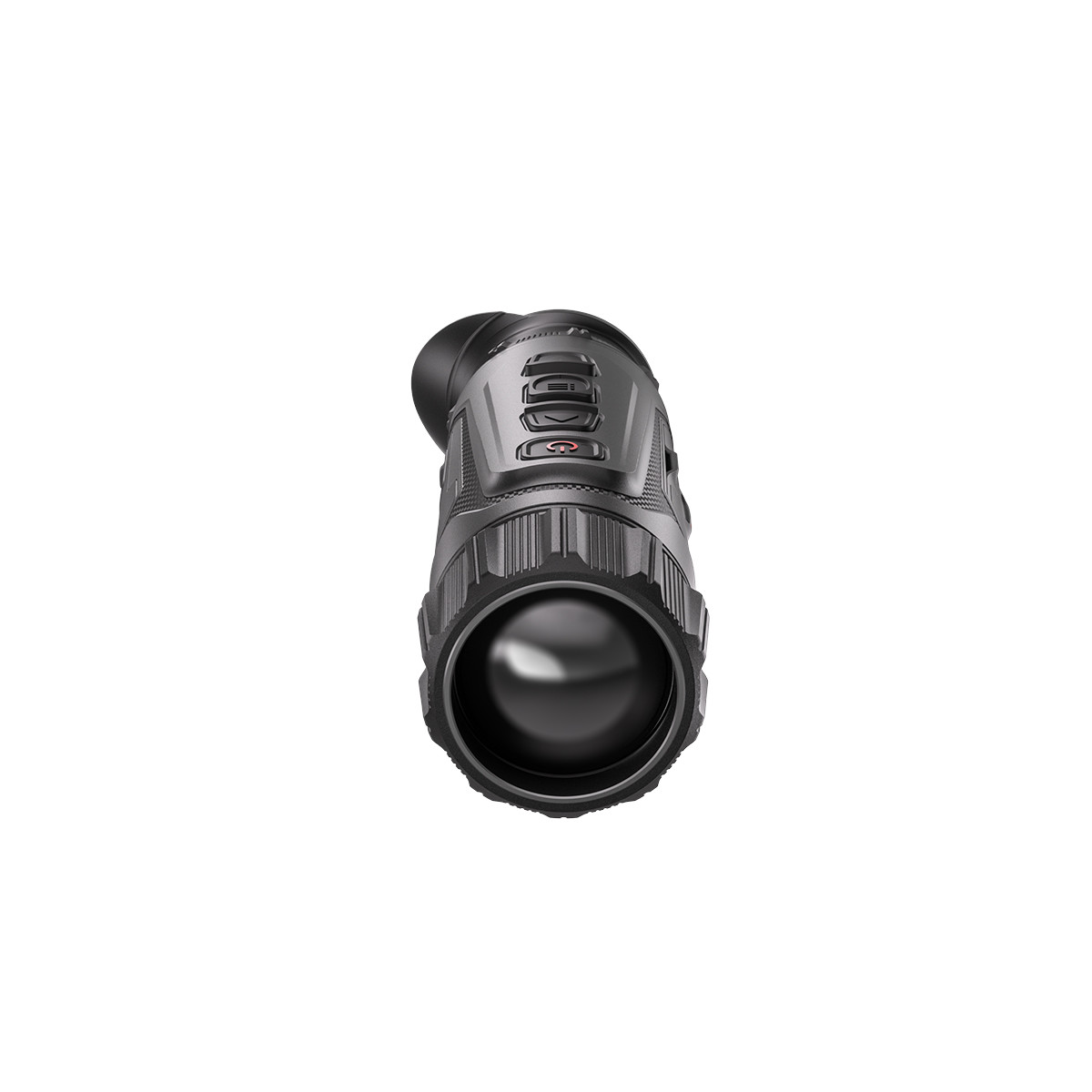

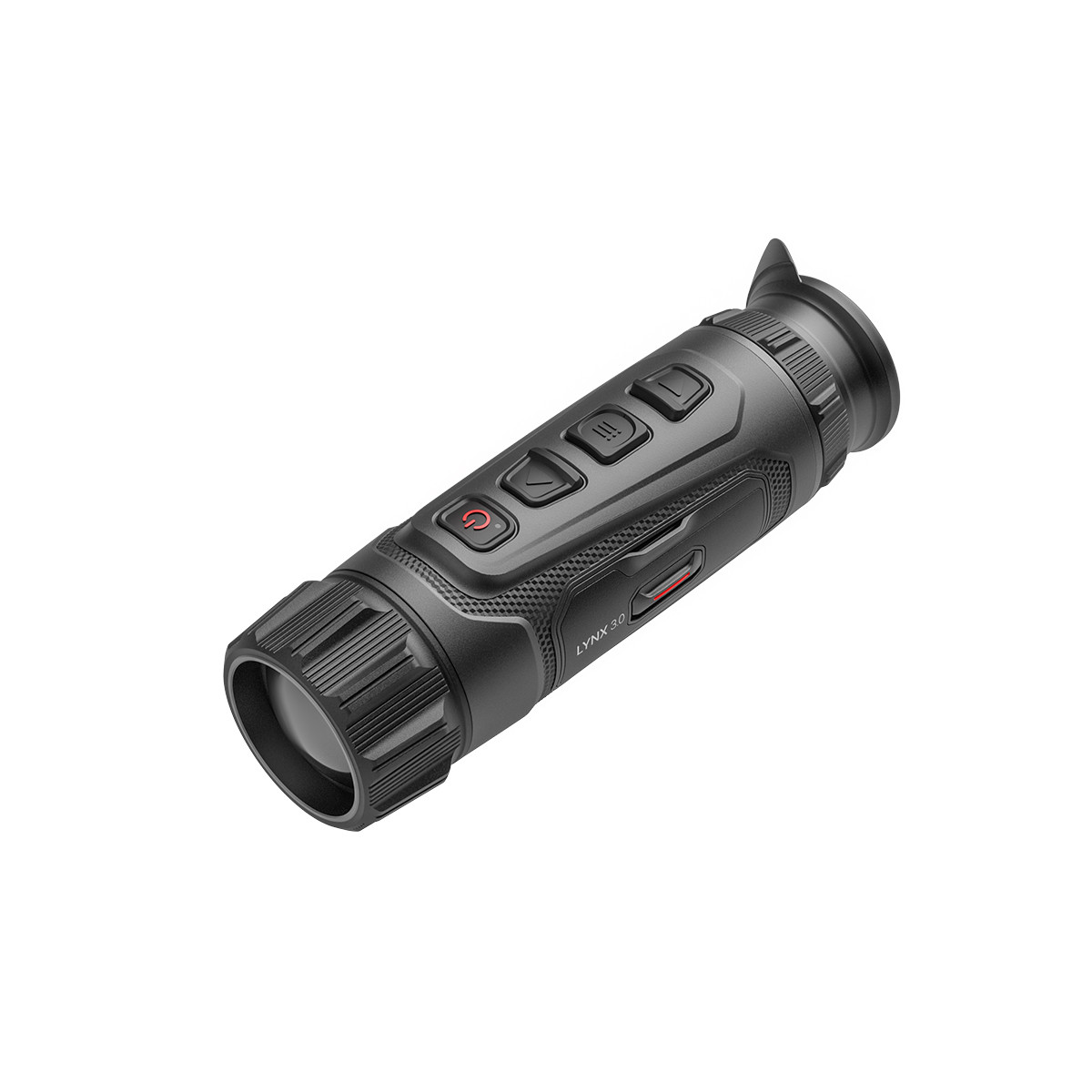

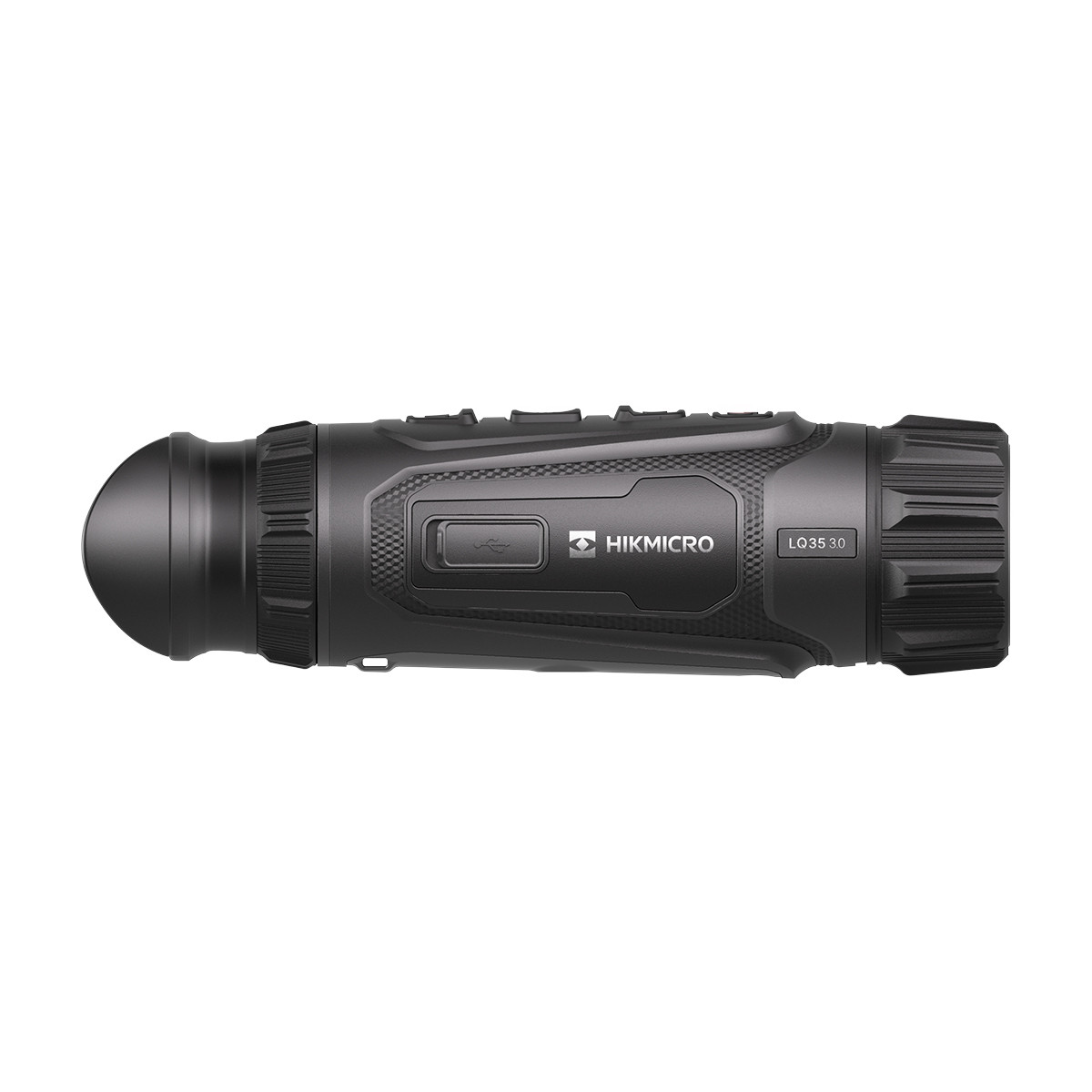

HIKMICRO Lynx 3.0 LQ35 35mm Thermal Monocular
35mm, <15mK, 640x512px, 12µm, 50Hz
- High-resolution 640×512 thermal sensor with 35mm F1.0 lens for exceptional image clarity.
- Long-range detection up to 1800 metres, ideal for hunting, security, and professional surveillance.
- AI Image Pro 3.0 and Zoom Pro deliver enhanced detail, stability, and consistent image quality.
- Shutterless HSIS technology ensures smooth, silent, uninterrupted viewing.
- Lightweight and robust at 354.5g, with a replaceable 18650 battery offering up to 4.5 hours runtime at –20°C.
- Wide 12.5° × 7.5° field of view with 1.9–15.2x magnification for versatile observation.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 640 × 512
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm – 14 μm
- NETD < 15 mK (@25°C), F#=1.0
- Lens (Focal Length) 35 mm, f1.0
- Focus Mode Focus Ring
- Detection Range 1800 m
- Min. Focusing Distance 3.5 m
- Magnification 1.9× – 15.2× (8×)
- Field of View (H × V) 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
- Display 1920 × 1080, 0.49 in, AMOLED
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5D to +3D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Record Video Yes
- Capture Snapshot Yes
- Audio Recording Yes
- Standby Mode Yes
- Built-in Memory 64 GB EMMC
- PIP Yes
- Hotspot 2.4 GHz / 5 GHz Wi-Fi
- Hot Track Yes
- Distance Measurement Yes
- Local Album Yes
- Battery Type Replaceable & Rechargeable Li-ion 18650
- Battery Operating Time 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
- Type-C Power Supply 5V DC, 2A
- External Power Supply Supported, Direct Charging Supported
- Protection Level IP67
- Dimension 169.6 × 53.6 × 49.5 mm
- Weight 354.5 g (with battery)
- Working Temperature -30°C to 45°C (-22°F to 113°F)
- Humidity ≤ 90%
- Up to 640×512 Thermal resolution
- High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- HIKMICRO Shutterless Imaging System (HSIS)
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
- Lightweight design at 354.5 g, with a pocket-sized build
- 1 x Lynx 3.0 Thermal Monocular
- 1 x Quick Start Guide
- 2 x 18650 Battery
- 1 x Type-C USB Cable
- 1 x Battery Charger
- 1 x Lint Free Cloth
What is the HIKMICRO Lynx 3.0 LQ35 designed for?
The Lynx 3.0 LQ35 is a handheld thermal monocular designed for spotting, scanning, and observation. It is suited to hunting, wildlife watching, security, and general long-range thermal use.
What thermal resolution does it have?
It has a 640 × 512 thermal sensor, which gives a clearer and more detailed image than lower-resolution models.
How far can it detect?
It has a detection range of up to 1800 metres, making it a strong option for long-range spotting.
What magnification does it offer?
It offers 1.9x base magnification and can zoom up to 15.2x digitally.
How good is the image quality?
It offers excellent image quality thanks to its sub-15 mK NETD thermal sensitivity, 35 mm F1.0 lens, and HIKMICRO’s Image Pro 3.0 and Zoom Pro technology.
Does it have shutterless imaging?
Yes, it features HIKMICRO’s shutterless HSIS system, which provides a smoother and quieter viewing experience without the normal shutter freeze.
Can it record video and take photos?
Yes, it can record video, capture photos, and record audio.
How long does the battery last?
It offers up to 5 hours of continuous use at 25°C and up to 4.5 hours at -20°C. It uses a replaceable rechargeable pip-top 18650 battery.
Is it lightweight and easy to carry?
Yes, it weighs 354.5 g including the battery, so it is compact and easy to carry in the field.
Is it weatherproof?
Yes, it is IP67 rated, meaning it is well protected against dust and water ingress.
What comes in the box?
In the box you get the Lynx 3.0 monocular, two 18650 batteries, a battery charger, a Type-C USB cable, a quick start guide, and a lint-free cloth.
What warranty does it come with?
The main unit comes with a 3-year warranty.
How does this unit focus?
This unit has a manually adjustable focus wheel at the front of the unit.
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
