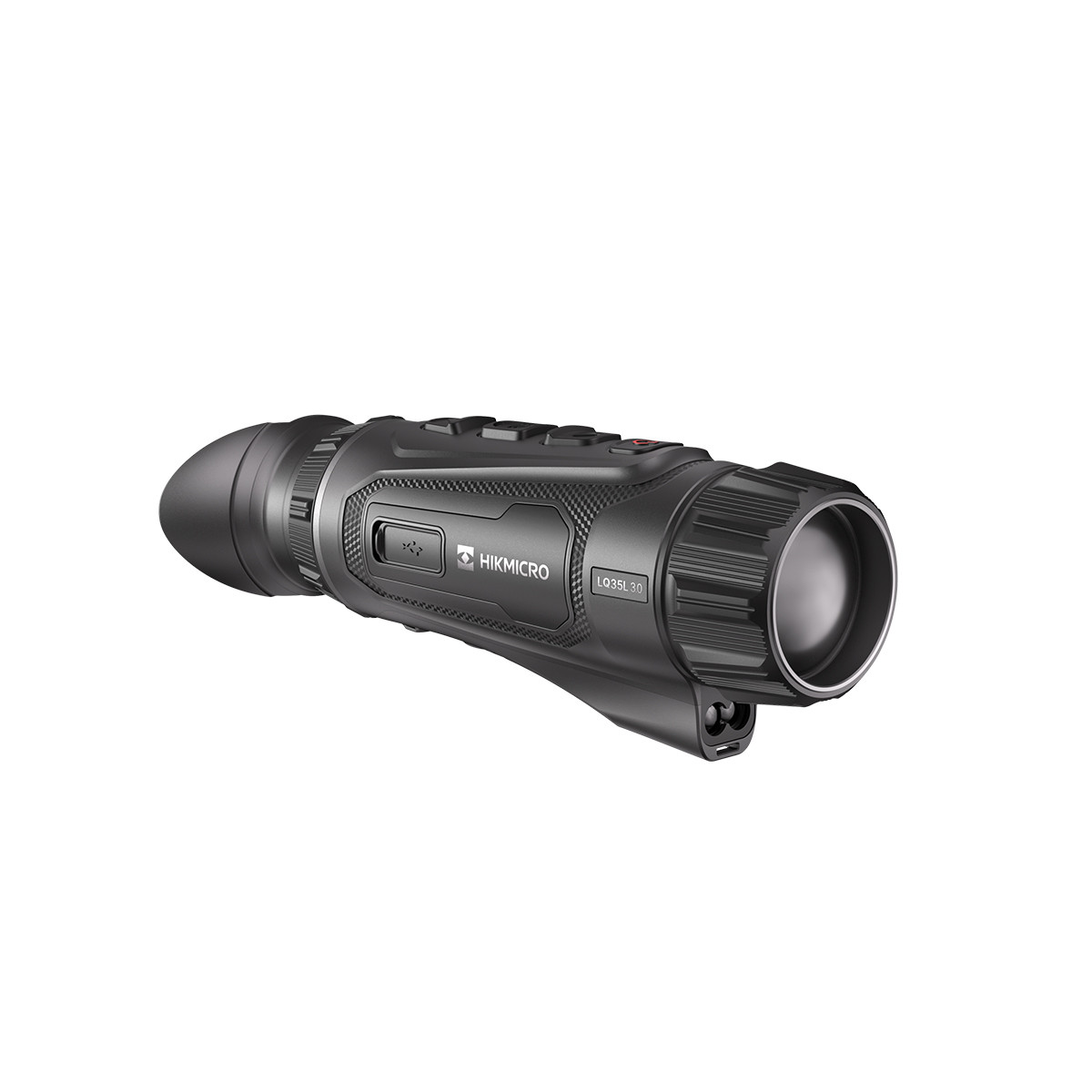

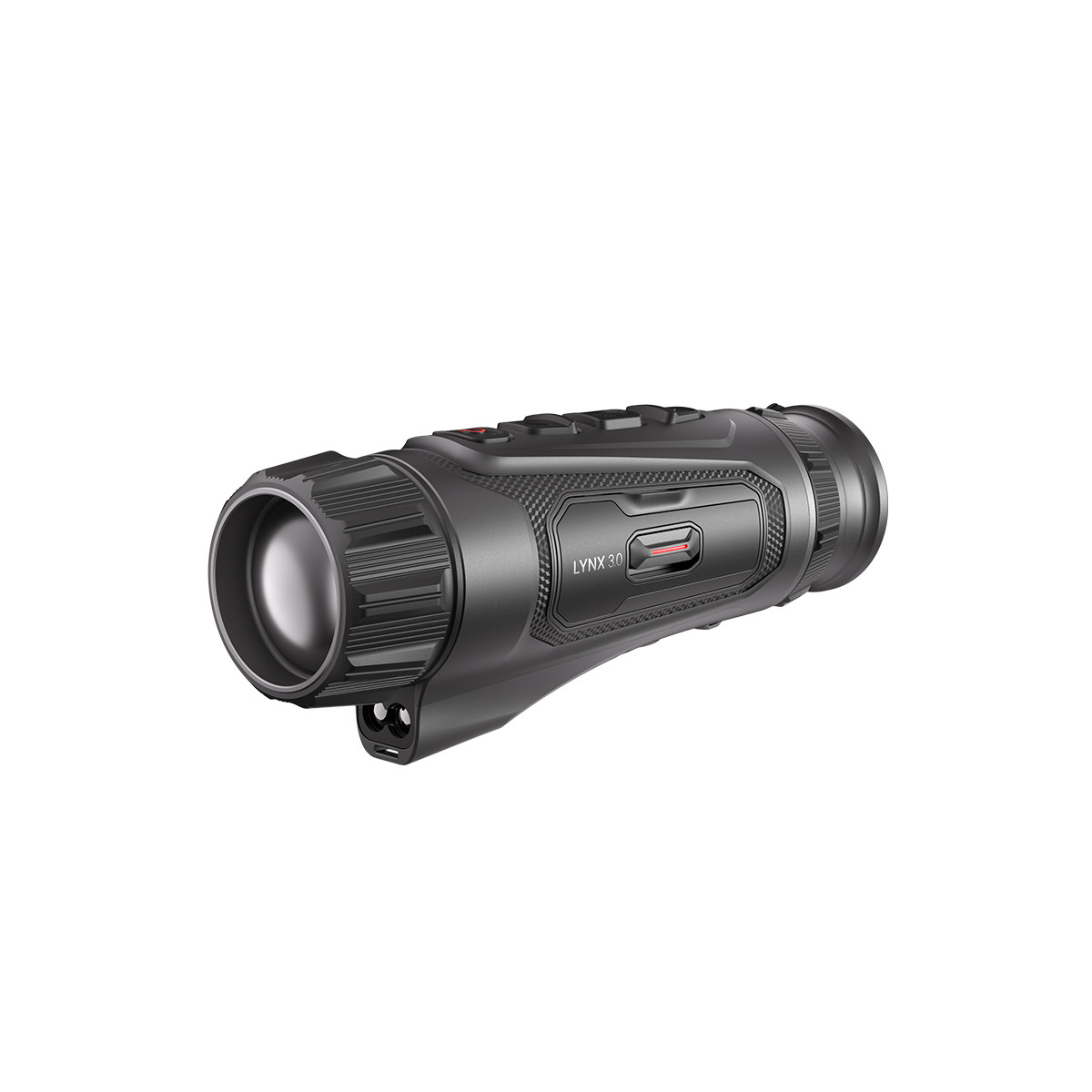

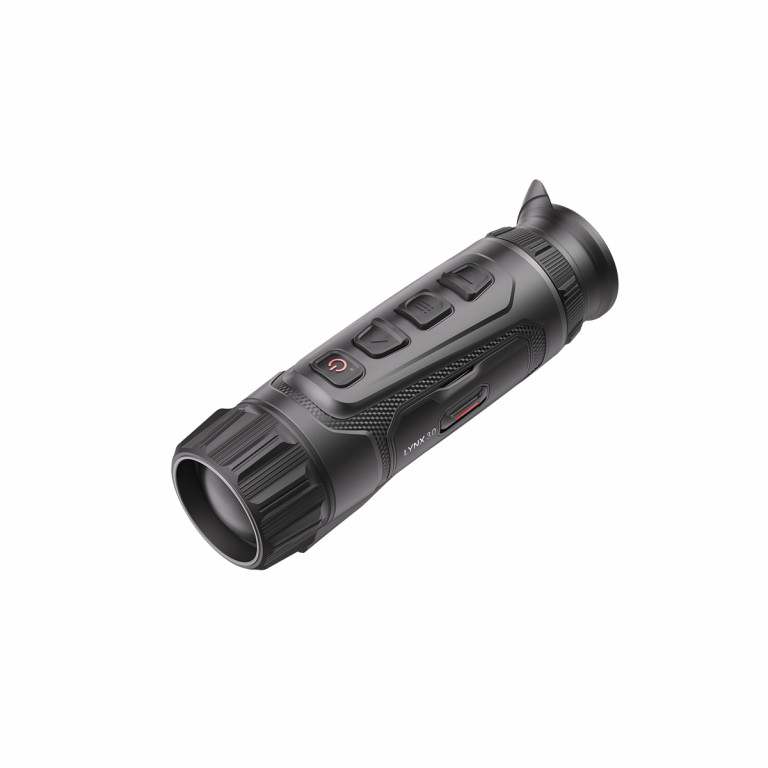

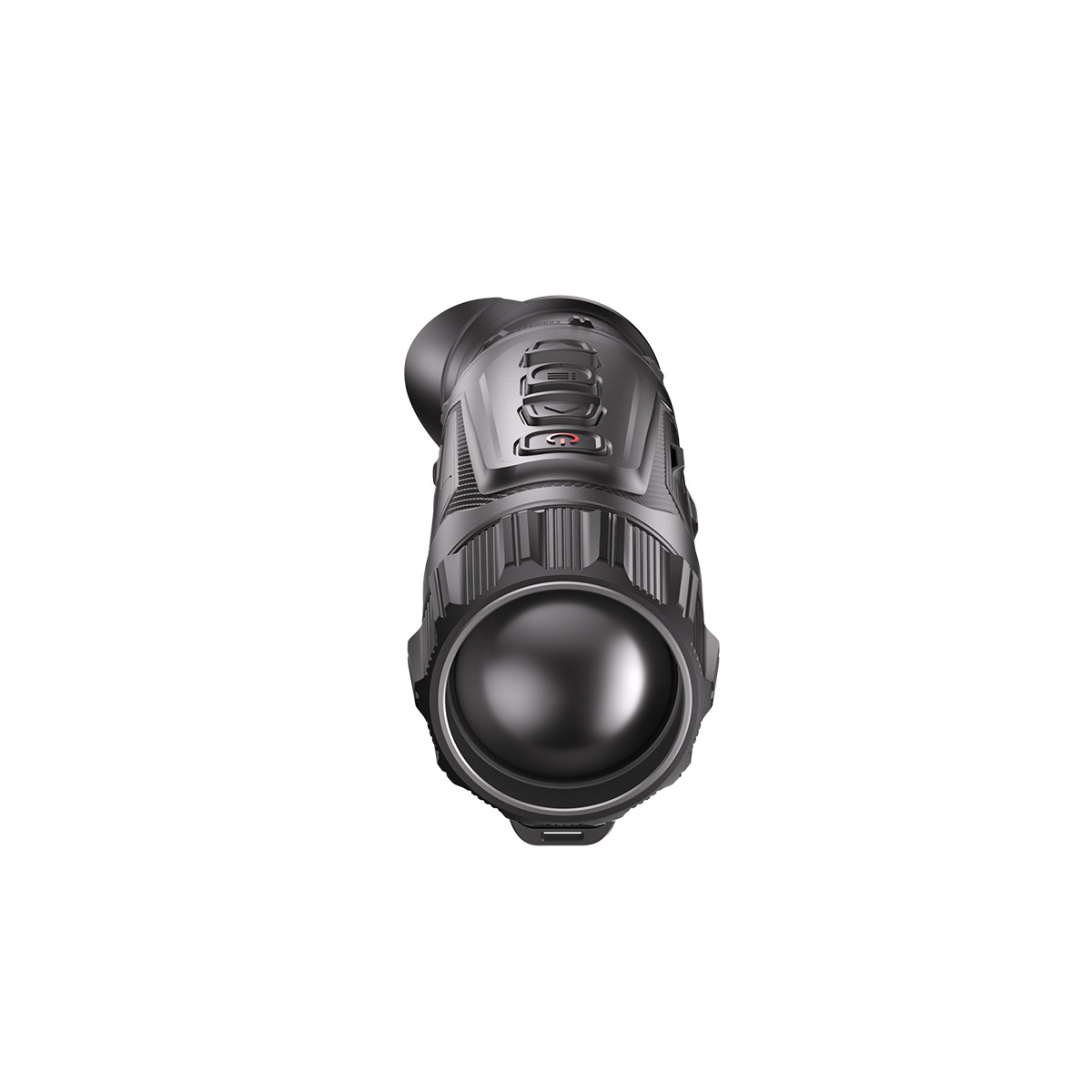

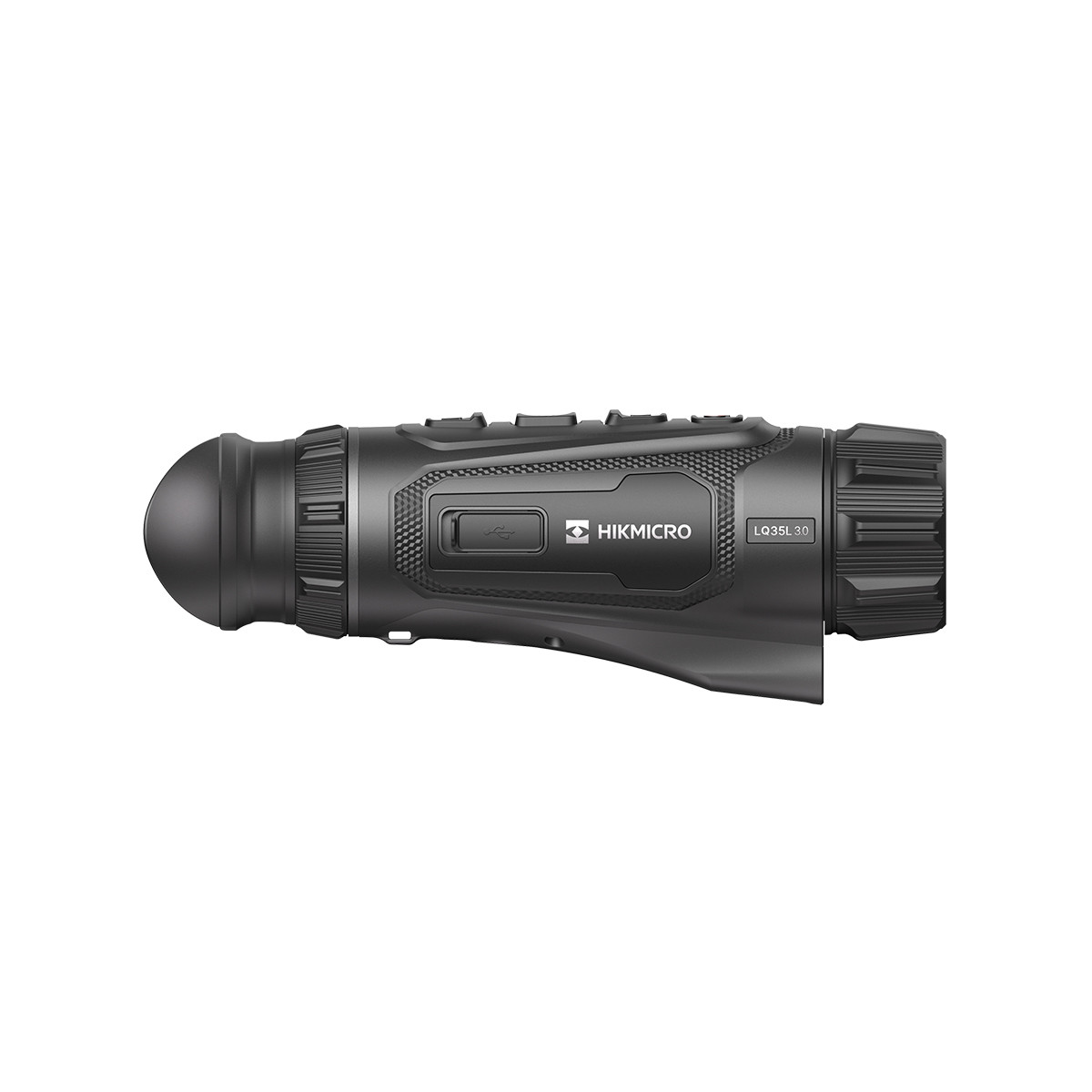

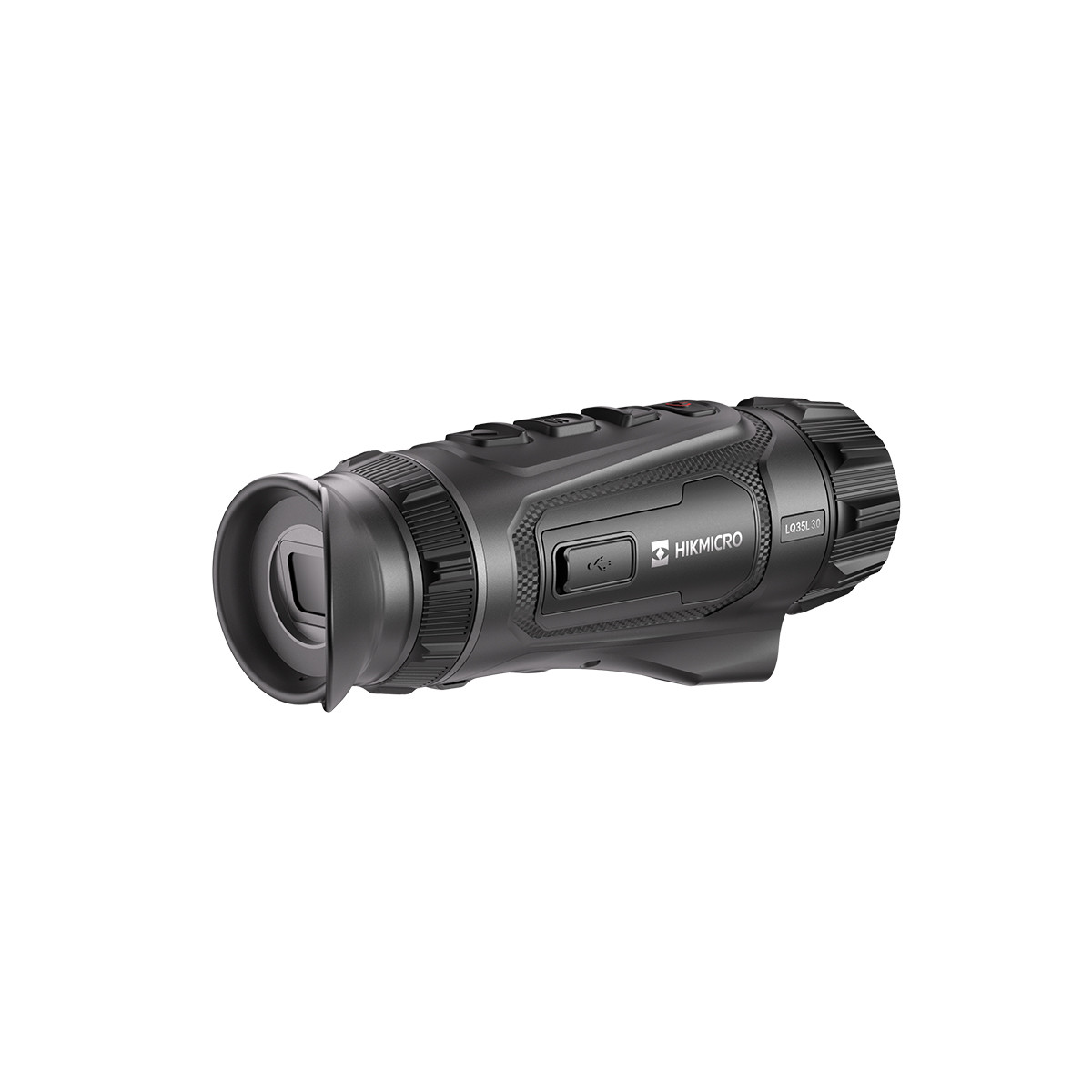

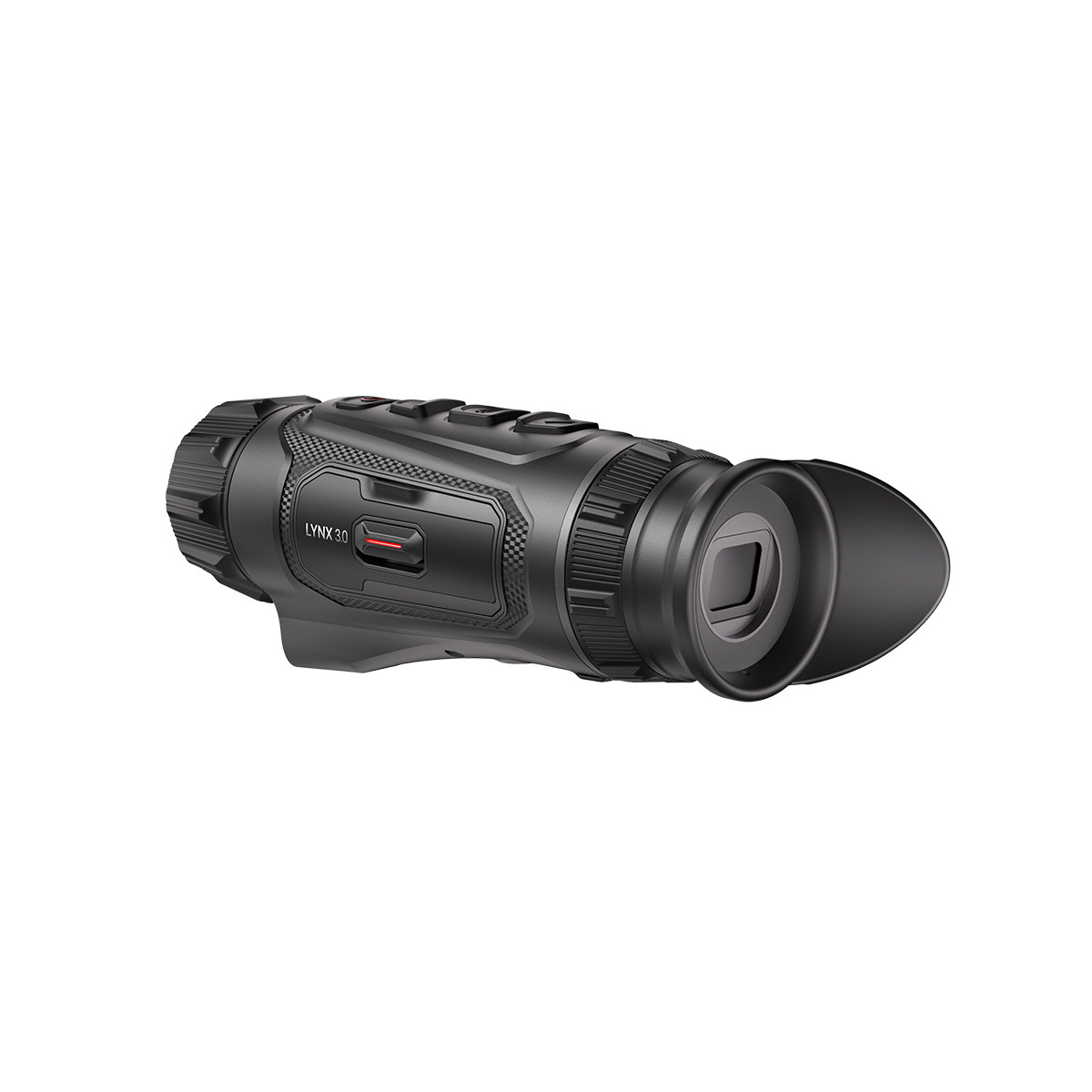

HIKMICRO Lynx LQ35L 3.0 35mm Thermal Monocular LRF
35mm, <15mK, 640x512px, 12µm, 50Hz, LRF 1000m
- High-resolution 640×512 thermal sensor paired with a 35mm F1.0 lens for exceptional detail and clarity.
- Long-range detection up to 1800 metres, ideal for hunting, surveillance, and professional field work.
- Integrated 1000m Laser Range Finder (LRF) providing accurate, on-screen distance measurement.
- Wide 12.5° × 7.5° field of view, offering strong situational awareness and easy target acquisition.
- Advanced AI Image Pro 3.0 and Zoom Pro algorithms deliver improved contrast, sharpness, and image stability.
- Robust yet lightweight at 354.5g, with a replaceable 18650 battery giving up to 4.5 hours runtime in harsh conditions.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
For the First time the LQ35 introduces an integrated Laser Range Finder (LRF) with a 905 nm wavelength and a maximum measuring range of 1000m, providing precise distance measurement directly within the thermal imaging system
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
- Max. Resolution 640 × 512
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm – 14 μm
- NETD < 15 mK (@25°C), F#=1.0
- Lens (Focal Length) 35 mm, f1.0
- Focus Mode Focus Ring
- Detection Range 1800 m
- Min. Focusing Distance 3.5 m
- Magnification 1.9× – 15.2× (8×)
- Field of View (H × V) 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
- Display 1920 × 1080, 0.49 in, AMOLED
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5D to +3D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Record Video Yes
- Capture Snapshot Yes
- Audio Recording Yes
- Standby Mode Yes
- Built-in Memory 64 GB EMMC
- PIP Yes
- Hotspot 2.4 GHz / 5 GHz Wi-Fi
- Hot Track Yes
- Distance Measurement Yes
- Local Album Yes
- Battery Type Replaceable & Rechargeable Li-ion 18650
- Battery Operating Time 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
- Type-C Power Supply 5V DC, 2A
- External Power Supply Supported, Direct Charging Supported
- Safety Class for Laser Class 1
- Wavelength 905 nm
- Max Measuring Range 1200 m
- Min. Measuring Range 5 m
- Measurement Accuracy ±1 m
- Protection Level IP67
- Dimension 169.6 × 53.6 × 49.5 mm
- Weight 354.5 g (with battery)
- Working Temperature -30°C to 45°C (-22°F to 113°F)
- Humidity ≤ 90%
- Up to 640×512 Thermal resolution
- High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- HIKMICRO Shutterless Imaging System (HSIS)
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
- Lightweight design at 354.5 g, with a pocket-sized build
- Integrated 1200m Laser Range Finder
- 1 x Lynx 3.0 Thermal Monocular
- 1 x Quick Start Guide
- 2 x 18650 Battery
- 1 x Type-C USB Cable
- 1 x Battery Charger
- 1 x Lint Free Cloth
What is the detection range of the HIKMICRO Lynx 3.0 LQ35L?
The Lynx 3.0 LQ35L has a thermal detection range of up to 1800 metres, making it suitable for long-range observation.
Does this model have a built-in laser range finder?
Yes, this model includes an integrated laser range finder with a maximum measuring range of 1200 metres.
What thermal sensor resolution does it use?
It uses a 640 × 512 thermal detector, which gives a high level of image detail and clarity.
How much magnification does it offer?
The Lynx 3.0 LQ35L offers 1.9x base magnification and can be digitally zoomed up to 15.2x.
How long does the battery last?
The replaceable 18650 battery gives up to 5 hours of continuous use at 25°C and around 4.5 hours at -20°C.
Is the battery replaceable and rechargeable?
Yes, the unit uses a replaceable and rechargeable pip-top 18650 battery, and it also supports direct charging through USB-C.
Can it record videos and take photos?
Yes, it can record video, capture snapshots, and also supports audio recording.
How does this unit focus?
This unit has a manually adjustable focus wheel at the front of the unit.
Is this thermal monocular waterproof?
It is rated IP67, which means it offers strong protection against dust and water ingress in harsh outdoor conditions.
How heavy is the Lynx 3.0 LQ35L?
It weighs 354.5 grams with the battery fitted, so it is lightweight and easy to carry in the field.
What comes in the box with the monocular?
In the box you get the Lynx 3.0 thermal monocular, quick start guide, two 18650 batteries, a Type-C USB cable, a battery charger, and a lint-free cloth.
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
