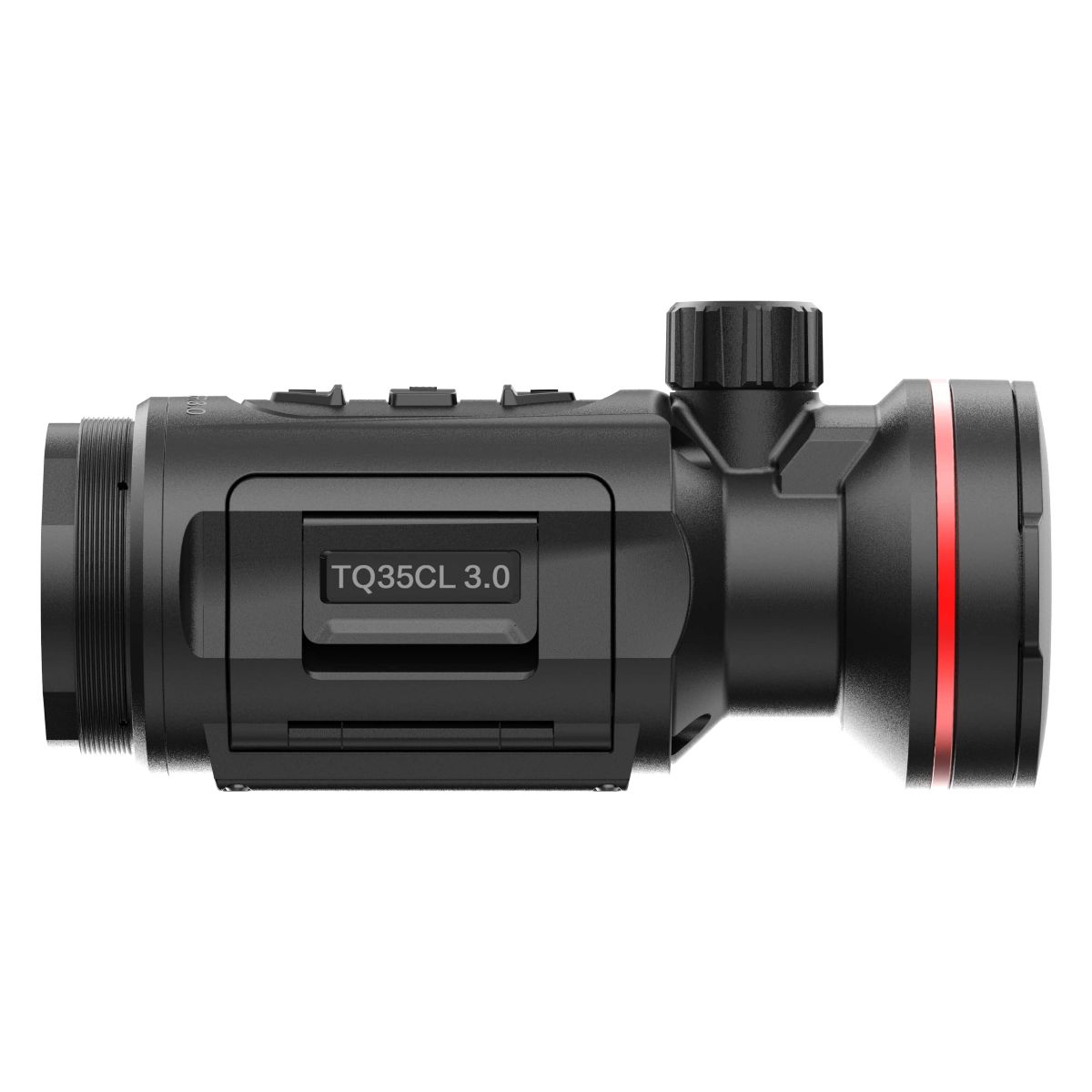

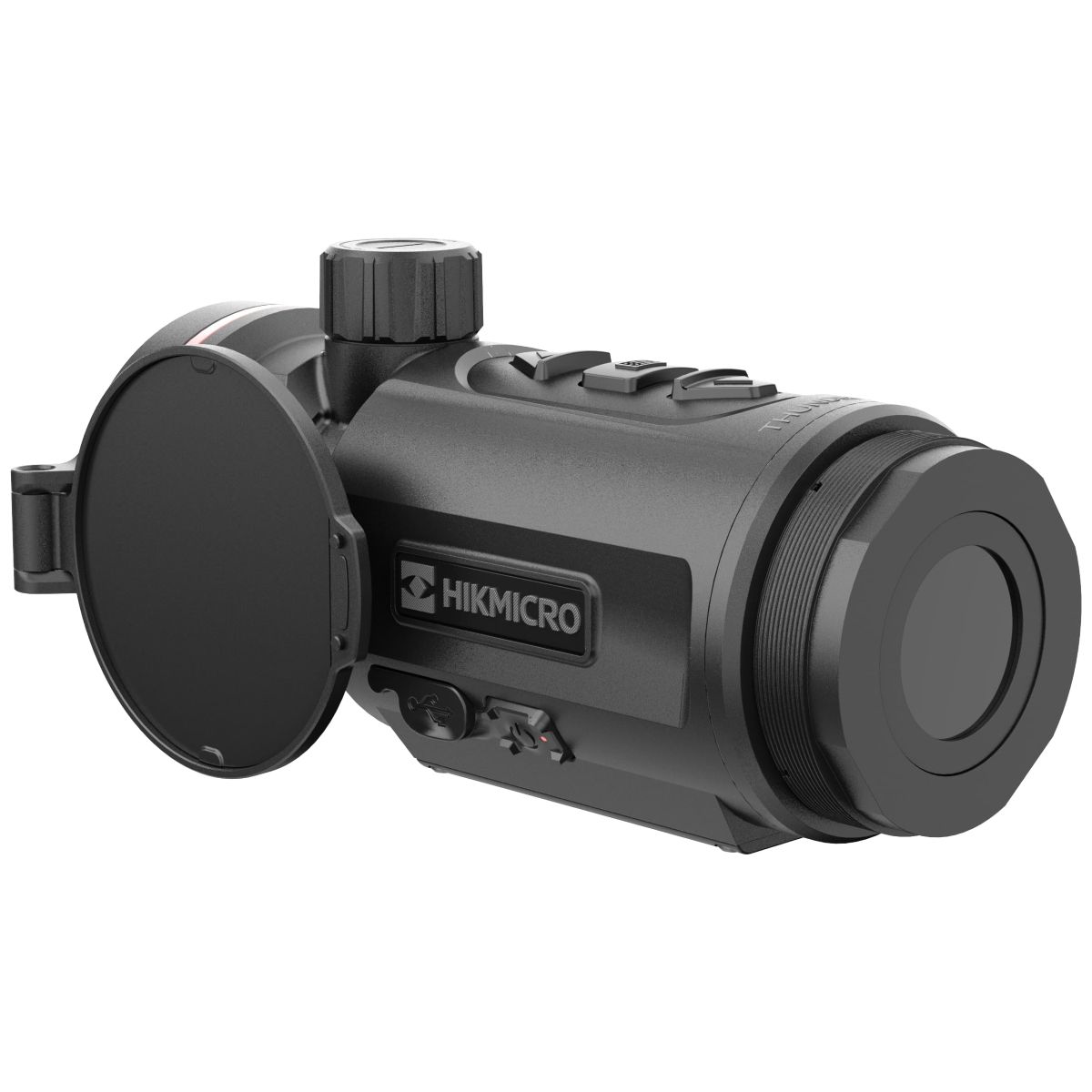

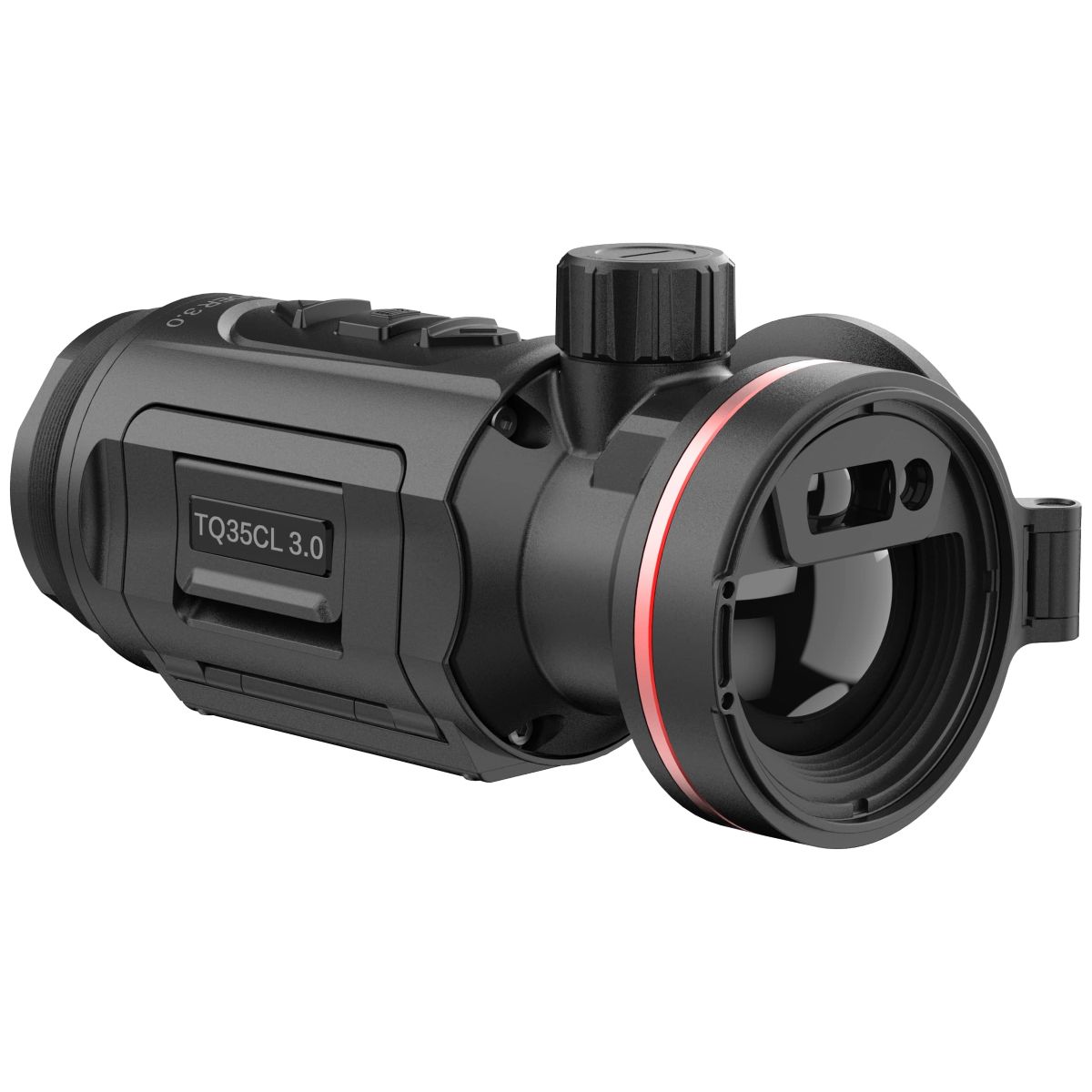

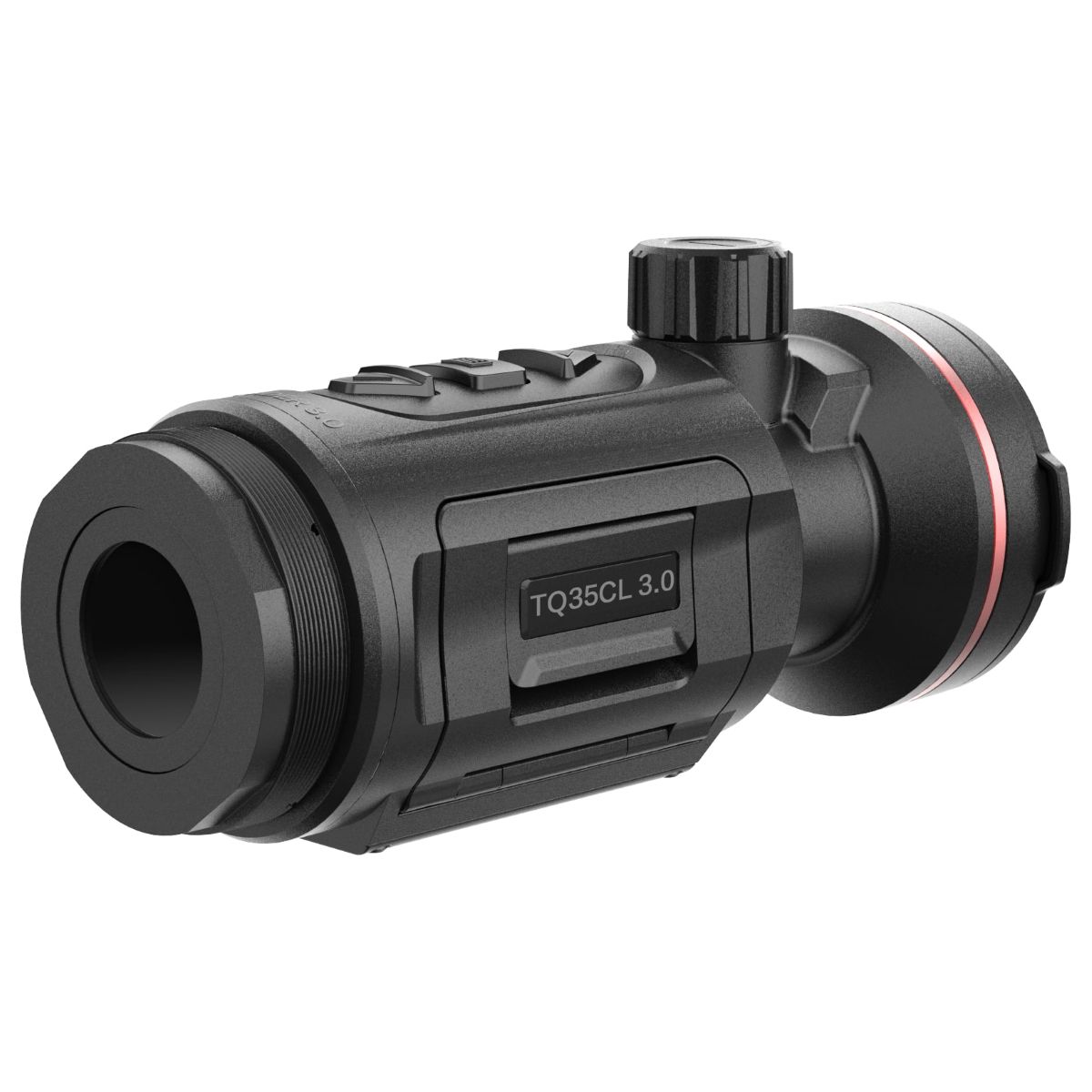

HIKMICRO Thunder 3.0 TQ35CL Thermal Front Clip-On with LRF
35mm <15mK 640x512px 12μm
- 640x512 thermal sensor with <15mK sensitivity for exceptional image clarity in all conditions
- 35mm f/1.0 lens with Image Pro 3.0 for superior detail recognition at distances up to 1800m
- Innovative in-lens LRF design with 1000m range for precise, compact performance
- 1920x1080 OLED display delivers sharp, vibrant visuals
- Rechargeable and replaceable Li-ion battery offering up to 5 hours continuous operation
- Durable magnesium alloy housing with IP67 protection and high shock resistance
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The HIKMICRO Thunder 3.0 TQ35CL Thermal Front Clip-On with Laser Rangefinder sets a new benchmark for thermal clip-on systems, offering outstanding image performance and precision. Built around a 640x512 12μm thermal sensor with <15mK sensitivity, it delivers crystal-clear imaging even in challenging environments. The 35mm f/1.0 lens, powered by Image Pro 3.0 and the HIKMICRO Shutterless Image System (HSIS), ensures sharp detail in both forested and open-field conditions. A unique integrated LRF-in-lens design provides accurate distance measurement up to 1000m while maintaining a compact, sleek profile. With robust construction, advanced connectivity, and user-friendly features such as a local album for instant playback, the Thunder 3.0 TQ35CL is a premium solution for hunters and professionals seeking reliability, accuracy, and convenience in the field.
When placing your order, please clearly state the exact external diameter of the objective lens on the scope you're planning to clip this unit onto, and we will supply the correct adaptor clamp to fit.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
- Image Sensor Uncooled Focal Plane Arrays
- Max. Resolution 640x512
- Frame Rate 50Hz
- Pixel Interval 12μm
- Response Waveband 8μm – 14μm
- NETD <15mK (25°C, F#=1.0)
- Lens (Focal Length) 35mm, F1.0
- Detection Range 1800m
- Focus Mode Focus Knob
- Min. Focusing Distance 10m
- Magnification (Clip-On) 1x
- Field of View (H × V) 12.5° × 8.0° / 21.9m × 14.0m @100m
- Recommended Magnification of Day Scope 1–15x
- Magnification (Monocular Mode) 2.0x – 16.0x (8x digital zoom)
- Display 1920x1080, 0.49-inch OLED
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome
- Exit Pupil 25mm
- Eye Relief 20mm
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- HSIS (Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Record Video On-board video recording
- Capture Snapshot Yes
- Virtual Reticle Yes
- Standby Mode Yes
- Storage Built-in EMMC (64GB)
- Hotspot (Wi-Fi) Yes
- Audio Recording Yes
- Recoil-Activated Recording Yes
- Local Album Yes
- Image Calibration Yes
- Zeroing Profiles 5
- Max. Recoil Resistance 1000g/0.4ms
- Battery Type Replaceable and Rechargeable Li-ion Battery Pack
- Battery Operating Time ≥5h (25°C, hotspot off, LRF on)
- Type-C Power Supply 5V DC, 2A (supports direct charging & external power supply)
- Protection Level IP67
- Dimensions 152.3mm × 63mm × 74.1mm
- Weight 525g (with battery)
- Working Temperature -30°C to +55°C (-22°F to 131°F)
- Body Material Magnesium Alloy (body & lens cover)
- Centre Height 32mm
- Laser Rangefinder Safety Class Class 1
- Wavelength 905nm
- Max. Measuring Range 1000m
- Measurement Accuracy ±1m
- Min. Measuring Range 10m
- LRF Module in Lens Yes
- Superior thermal imaging: The 640x512 resolution, 12μm detector, and <15mK NETD guarantee excellent thermal sensitivity, capturing fine details even in low-contrast conditions.
- Enhanced optical system: A 35mm f/1.0 lens with Image Pro 3.0 ensures clearer images, whether spotting in dense woodland or scanning wide-open fields.
- Integrated laser rangefinder: The innovative LRF-in-lens design provides accurate measurements up to 1000m, reducing bulk while improving balance and usability.
- Advanced display technology: A 1920x1080, 0.49-inch OLED screen offers sharp contrast and natural colours, improving target recognition.
- Reliable power system: The replaceable, rechargeable Li-ion battery provides up to 5 hours runtime, with direct charging and external power options for longer sessions.
- Practical user features: HSIS technology eliminates the need for mechanical shutters, while local album playback, on-board recording, recoil-activated capture, and audio recording simplify operation in the field.
- Built for endurance: The magnesium alloy body delivers IP67 protection and withstands recoil up to 1000g/0.4ms, ensuring rugged reliability in extreme conditions.
- HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with LRF
- Battery charger
- Type C USB cable
- Lint-free cloth
- Quick start guide
- 2x batteries
- Wrench
- Carrying case
What are the key features of the HIKMICRO Thunder 3.0 Thermal Clip-Ons?
The HIKMICRO Thunder 3.0 Thermal Clip-Ons are equipped with high-resolution thermal sensors, ranging from 384x288px to 640x512px, depending on the model. They feature advanced shutterless technology, Image Pro 2.0/3.0 processing, and a high-resolution 1920 × 1080 OLED display. The TQ35CL and TQ50CL model also includes a built-in Laser Range Finder (LRF).
How does the shutterless technology in the Thunder 3.0 improve performance?
The Thunder 3.0 series utilises shutterless technology to eliminate the need for a physical shutter, which prevents image freezes and ensures continuous, clear viewing. This allows users to maintain a steady visual feed without interruptions, crucial for accurate targeting.
What is the detection range of the different Thunder 3.0 models?
The TH35C and TQ35CL has a detection range of up to 1800 metres, the TQ50C offers a range of up to 2600 metres, and the TQ50CL, which also includes an LRF, provides a detection range of up to 2600 metres with precise distance measurement capabilities.
What kind of battery life can be expected from the Thunder 3.0 Thermal Clip-Ons?
All Thunder 3.0 models are powered by a rechargeable Li-ion battery. The TH35C and TQ50C models offer up to 6 hours of continuous operation, while the TQ50CL provides up to 5 hours due to the additional power requirements of the LRF.
How does the Image Pro 3.0 processing improve the thermal imagery?
The TQ35CL comes preinstalled with Image Pro 3.0 but all models of the Thunder 3.0 are compatible with HIKMICROS latest firmware upgrade. This cutting-edge algorithm dynamically enhances contrast, sharpness, and definition, delivering a rich, balanced scene even in the most challenging conditions.
What are the differences between the Thunder 3.0 models?
The main differences lie in their thermal sensor resolutions, detection ranges, and features. The TH35C and TQ35CL has a 384x288px sensor with a 35mm focal length, the TQ50C has a 640x512px sensor with a 50mm focal length, and the TQ50CL, which also includes a built-in LRF, features a 640x512px sensor and a 50mm focal length.
How durable are the Thunder 3.0 Thermal Clip-Ons?
The Thunder 3.0 series is designed with high shock resistance, capable of withstanding up to 1000 g/0.4 ms. This ensures that the clip-ons can endure tough conditions and rough handling during field use.
Can the Thunder 3.0 models be easily attached and detached from a riflescope?
Yes, the Thunder 3.0 models feature the Rusan Quick-Release clamp system, which allows for quick and repeatable attachment and detachment from your optical scope with the twist of a locking ring.
Can the Thunder 3.0 models be used as a thermal monocular?
Yes, the Thunder 3.0 can be used as a thermal monocular with the addition of the HIKMICRO Eye Piece for the Thunder 3.0 Clip-On.
- Main Unit: 3 Years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
