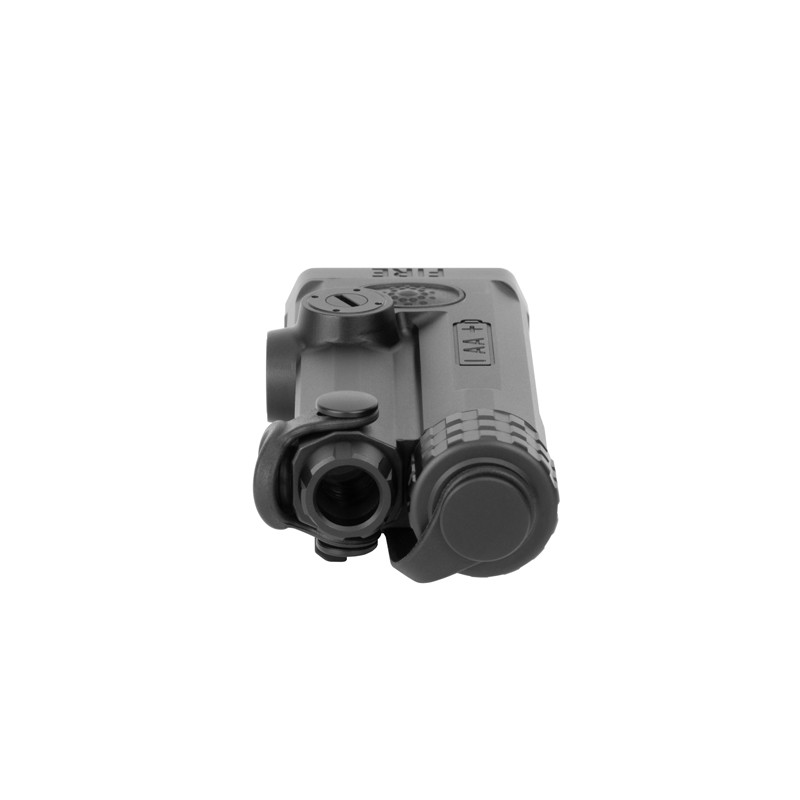

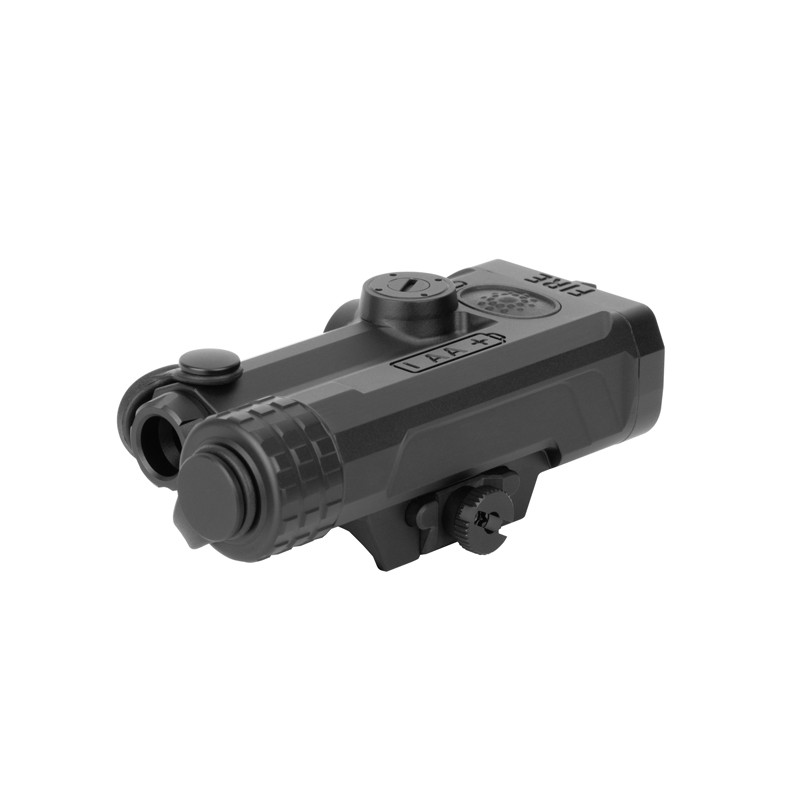

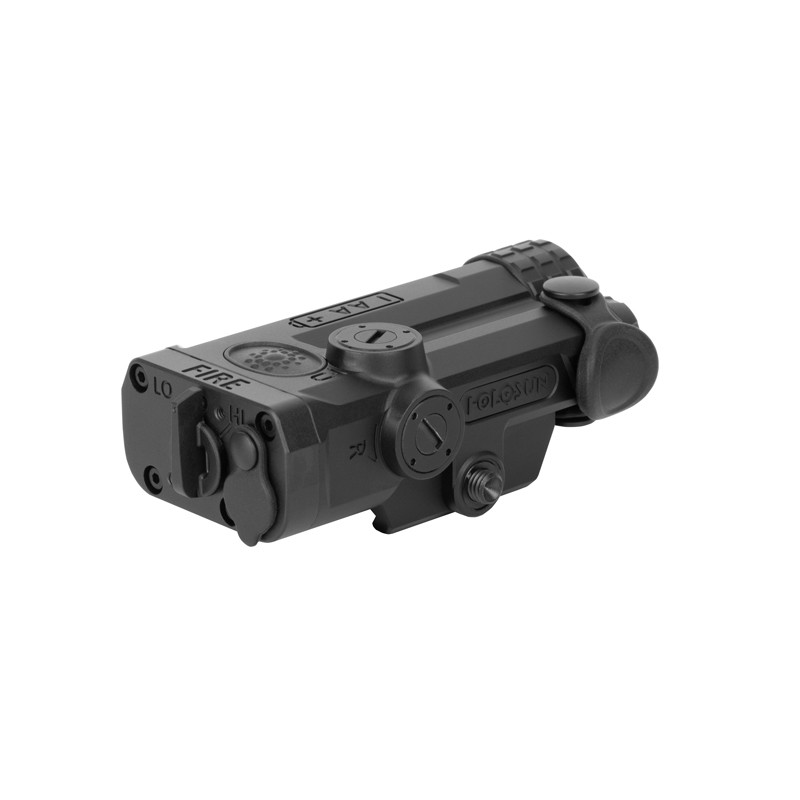

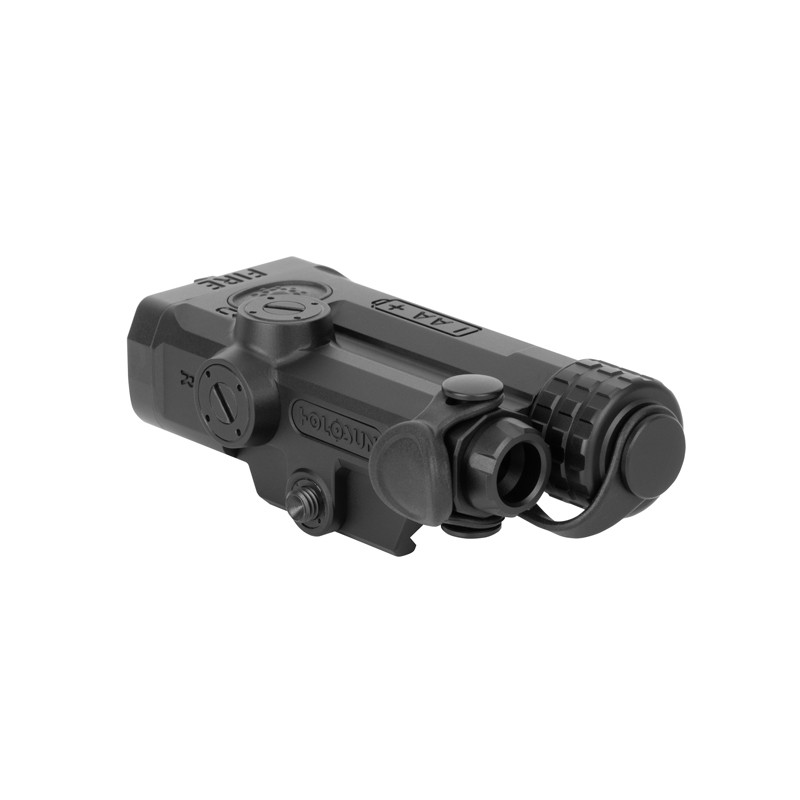

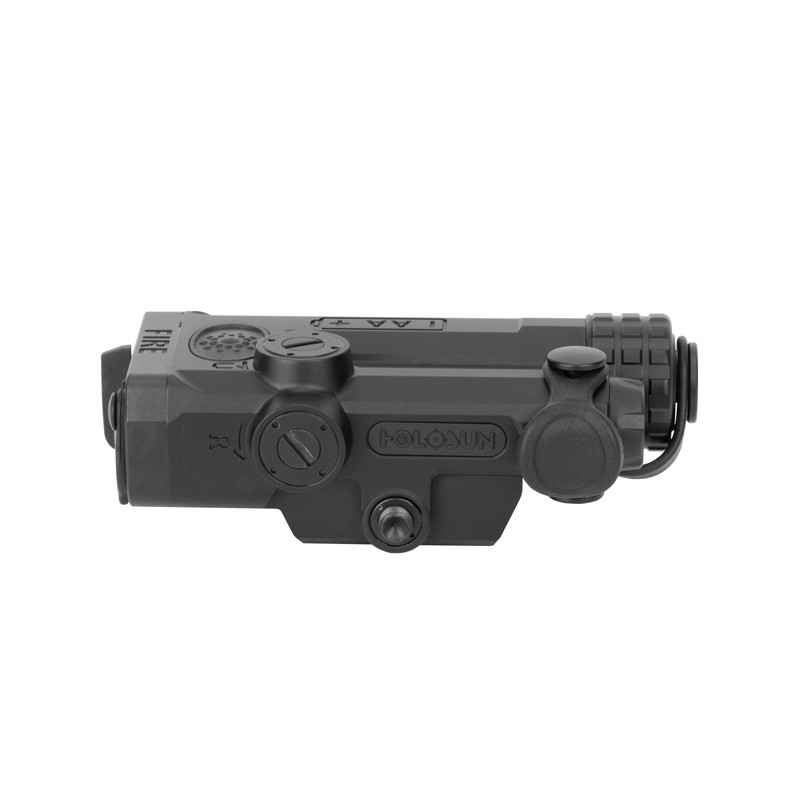

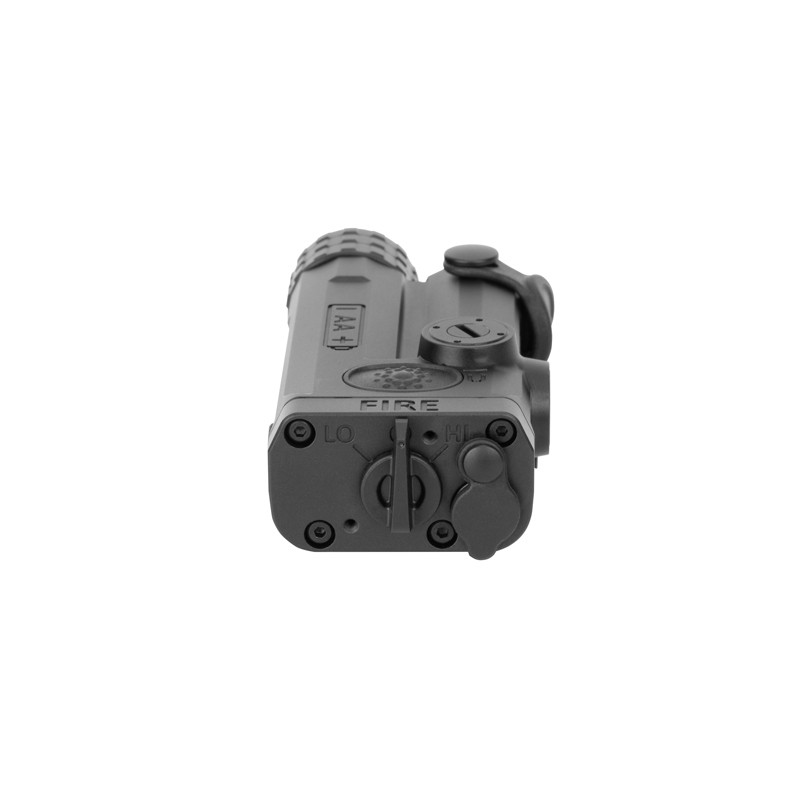

Holosun IRIS-IR-1 IR Laser
The Holosun IRIS-IR1 is about as simple and streamlined as it gets for night vision aiming. It’s a dedicated IR laser—no visible laser, no illuminator—just a clean, reliable infrared aiming point for use under NVGs. The whole unit is compact, lightweight, and sits nice and low on your rail, so it doesn’t bulk out your setup. You’ve got a top-mounted fire button, rear controls, and a pressure pad included, so it’s easy to run however you like. If you already have an IR illuminator or just want the lightest possible NV aiming setup, this is a straightforward “does one job well” kind of unit.
-Nathan (Technical Advisor)
The Holosun IRIS-IR1 is a compact, single-function infrared aiming laser designed for professional users who require dependable night-vision capability in a streamlined, lightweight package. Crafted from high-strength 7075-T6 aluminium, the IRIS-IR1 features a redesigned housing that offers a 33% weight reduction and a 20% lower profile compared to the popular LS117 series, making it an optimal match for modern rifle builds where space and weight savings matter.
The IRIS-IR1 projects a precise Class 1 IR laser with a 0.7mW output and an 800–880nm wavelength, delivering a clean and consistent aiming point when viewed through night-vision devices. Its enhanced ergonomic layout includes a top-mounted activation button supporting momentary and constant-on modes, a rear power/mode selector, and a Crane-style single-button remote switch for operational flexibility in any shooting position.
Engineered for rugged reliability, the IRIS-IR1 is IPX8 waterproof, shock-resistant to 1000G, and built to perform in demanding field conditions. Lightweight, durable, and mission-ready, it offers professional-grade IR aiming capability in a minimalist, highly refined form.
- Power Source Battery
- Battery Type AA
- Thermal Modes N/A
- Digital Modes N/A
- Video Recording N/A
- Screen Refresh Rate N/A
- Digital Screen N/A
- Brightness Setting Up to modes
- Window Size (in) N/A
- Dimension (in) 3.4 × 1.6 × 1.2
- Weight (oz) 4.6
- Housing Material 7075-T6 Aluminium
- Surface Finish Hard Anodise
- Adjustment per Click 0.5 MOA
- W&E Travel Range ±50 MOA
- Storage Temperature -40°C ~ 70°C
- Working Temperature -20°C ~ 51°C
- Submersion IPX8
- Vibration 1000G
- White LED Candela N/A
- Laser & Illuminator Type Single Laser
- White LED Output N/A
- IR Illuminator Class N/A
- IR Illuminator Output N/A
- IR Pointer Class Class 1
- IR Pointer Output <0.7 mW
- Visible Laser Class N/A
- Visible Laser Output N/A
- Night-Vision Optimised IR Laser – Provides a clean and precise IR aiming point when used with night-vision goggles, ideal for low-light or no-light operations.
- Ultra-Lightweight Housing – Redesigned 7075-T6 aluminium construction reduces weight while maintaining exceptional durability.
- Low-Profile Footprint – Compact dimensions ensure easy mounting alongside optics, lights, or multi-laser units on modern rifles.
- Enhanced Activation Controls – Features a top-mounted activation button plus a rear selector for intuitive mode and power adjustment.
- Remote Switch Compatible – Includes a Crane-style remote pressure switch for effortless activation without shifting grip.
- Built for Harsh Environments – IPX8-rated waterproofing and high shock resistance make it suitable for professional and duty use.
- Minimalist Functionality – Designed for users who only require a clean IR aiming solution without unnecessary features or bulk.
- Holosun IRIS-IR-1 IR Laser
1. What does the IRIS-IR1 do?
It’s a dedicated infrared aiming laser designed specifically for use with night vision devices.
2. Does it have a visible laser?
No, it’s IR-only—there’s no visible red or green laser.
3. Does it include an IR illuminator or white light?
No, it’s a single-function unit with just the IR aiming laser.
4. What power is the IR laser?
It’s a Class 1 IR laser with output under 0.7mW at around 800–880nm wavelength.
5. What battery does it use?
It runs on a single AA battery, which is easy to replace in the field.
6. Is it compact compared to older models?
Yes, it’s about 33% lighter and 20% lower profile than older LS117-style units.
7. How do you activate it?
You can use the onboard top fire button or the included remote pressure switch.
8. Can you adjust the zero?
Yes, it has 0.5 MOA click adjustments with a wide windage and elevation range.
9. Is it durable?
It’s built from 7075-T6 aluminum, waterproof (IPX8), and rated for heavy recoil and harsh conditions.
10. What’s the main advantage of the IRIS-IR1?
It’s a lightweight, no-frills IR aiming solution—perfect if you want night vision capability without adding extra bulk or features you don’t need.
