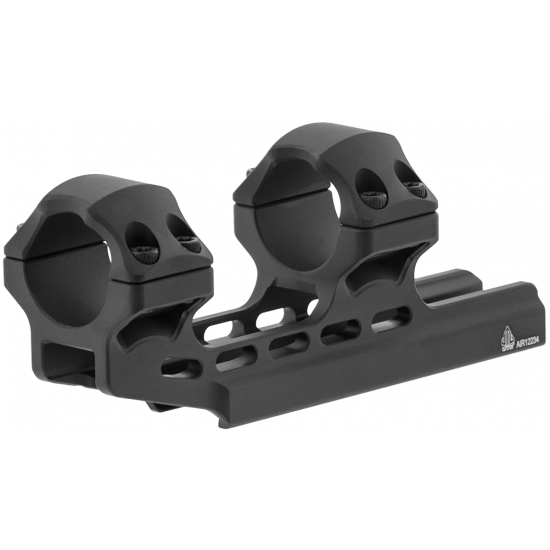

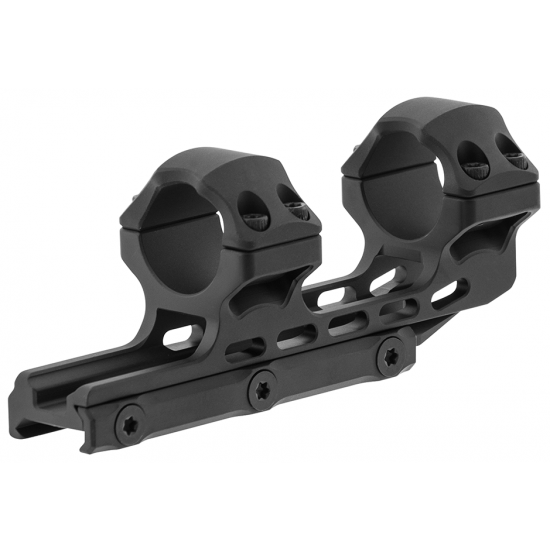

Leapers UTG 1pc 1" HIGH Height 34mm Offset Picatinny Scope Mount Ring
- UTG ACCU-SYNC® 1" High Profile 34mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
- Precision CNC Machined from Aircraft Aluminum and Finished in a Matte Black Anodize

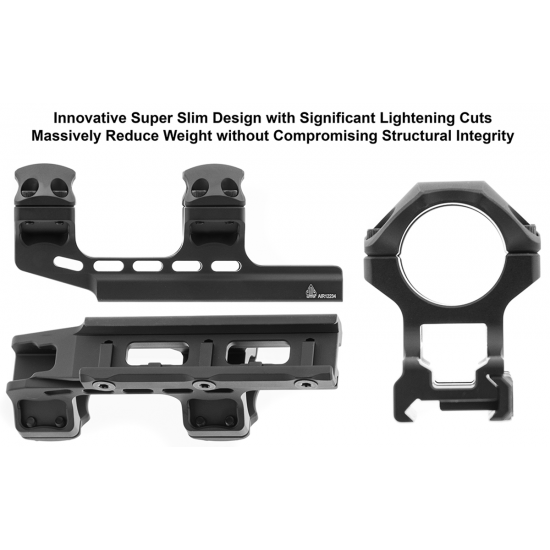

- Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets

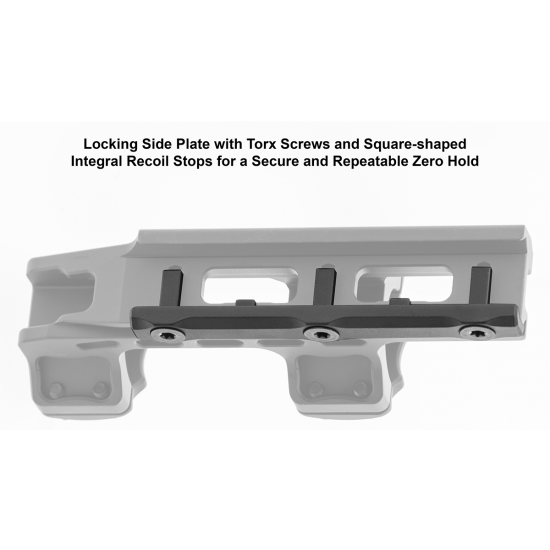

- Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
- 22mm Saddle Height, 34mm Offset Distance, 100mm Base Length, High Profile Fits 1" Tube Optics with up to a 69mm Outer Objective Diameter
- Includes a T20 Torx Wrench for Simple and User Friendly Installation
The Leapers UTG 1pc 1" High Height 34mm Offset Picatinny Scope Mount Ring AIR12234, a precision-crafted mount for improved shooting performance. This mount features an offset design to enhance eye relief, perfect for a comfortable shooting position. It's compatible with MIL-STD-1913 Picatinny rails (20mm width), constructed from aircraft-grade aluminium, and finished in matte black anodize. Lightening cuts reduce weight without sacrificing durability, and radiused edges prevent gear snags while ensuring easy access to scope turrets. Installation is secure, thanks to locking Torx screws and integral recoil stops for a reliable zero hold. Elevate your shooting experience with this versatile mount.
NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.
Scope size fitting considerations:
Suit scopes with outer objective casing diameter maximum size 69mm - That equals about a maximum 60mm lens size depending on the scope. If unsure please check measures before you order and see Clearance Guide below to learn how to assess if they are the right height for you and if so how much clearance you will have over the base
Calculating scope to rifle body clearance
The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.
For scopes with a 1 inch diameter body tube this means deducting 12.5mm.
Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.
The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring = the 22mm saddle.
The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body. The saddle on these mounts is 22mm
Example -
- A scope has an outer case measurement of 68
- 68 divided by 2 = 34mm.
- 1 inch tube scope so deduct 12.5mm from 34mm = 21.5mm
- So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 21.55mm or else it will ground out on the rifle body.
- So in this case with 22mm it will just fit.
Calculating your rifle scopes clearance in this way does assume your base is not raised above or below your rifles barrel. Many weaver bases are raised to some degree which may well affect the sizing consideration.
Note some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.
- Material: Aluminum
- Weight: 5.2 oz / 146 grams
- Pieces: 1
- Profile Level: High
- Ring Diameter: 1 Inch/25mm
- Ring Width: 25 mm
- Max. Scope Outer Dia.: 69 mm
- Screws Per Ring: 4
- Saddle height: 22mm
- Offset distance: 34mm
- Base length: 100mm
- Distance between rings: 44mm
- High profile fits 1" tube optics with up to a 69mm outer objective diameter
- UTG ACCU-SYNC® 1" High Profile 34mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
- Precision CNC Machined from Aircraft Aluminum and Finished in a Matte Black Anodize
- Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
- Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
- 22mm Saddle Height, 34mm Offset Distance, 100mm Base Length, High Profile Fits 1" Tube Optics with up to a 69mm Outer Objective Diameter
- Includes a T20 Torx Wrench for Simple and User Friendly Installation
- Leapers UTG 1pc 1" HIGH Height 34mm Offset Picatinny Scope Mount Ring
- T20 Torx wrench
- Leapers Lifetime Warranty
