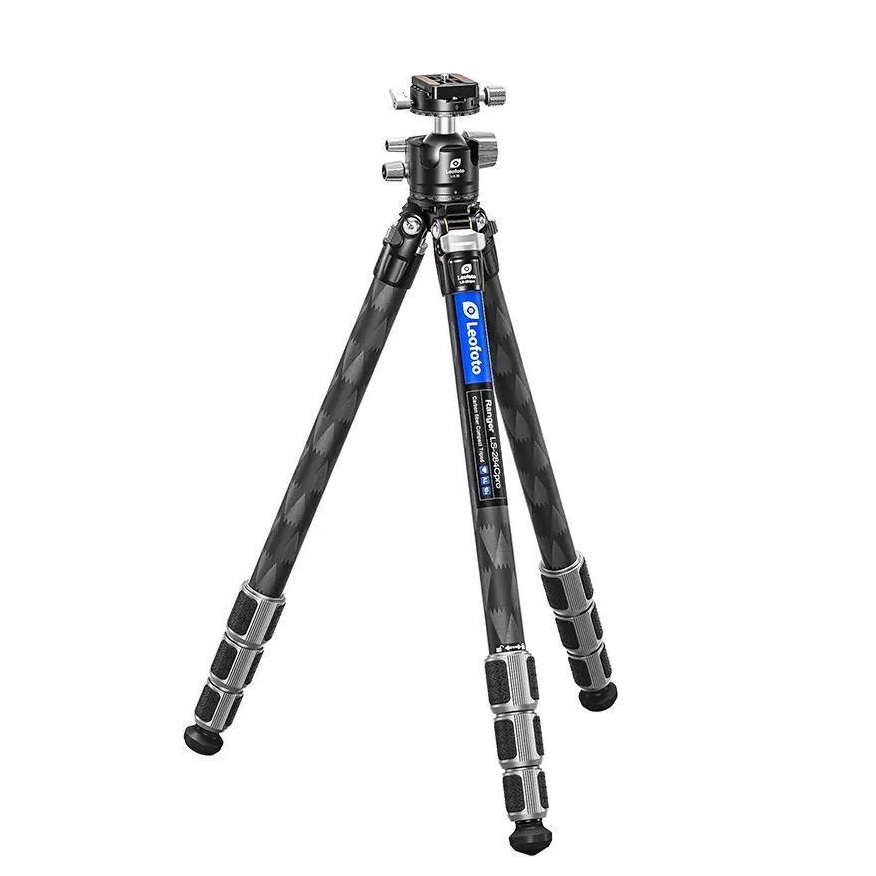

Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head
The Leofoto LS-324C PRO Ranger Series Tripod with LH-40LR Ball Head features high-density carbon fibre legs for superior strength, water-resistant twist locks, and ergonomic angle stops offering four leg positions for maximum versatility. Its redesigned apex platform provides 10% more mounting surface, while the CNC-machined aluminium components ensure durability. Despite weighing just 1.49kg, it supports up to 15kg, and the included LH-40LR ball head delivers smooth, precise control with a 20kg load capacity.
The Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head is a refined evolution of the popular Ranger Series, offering professional-grade stability, durability and functionality for serious photographers and videographers. Designed with the latest advancements in materials and engineering, the LS-324C PRO features high-density carbon fibre leg tubes that deliver exceptional rigidity while keeping weight to a minimum.
Enhanced water-resistant twist leg locks ensure smoother operation and improved resistance to the elements, while the newly redesigned ergonomic angle stops provide four distinct leg angle settings, 23°, 42°, 62°, and 82°, allowing for maximum versatility in challenging terrain. The compact apex platform has been enlarged by 10%, offering a more stable and secure mounting surface for heads and accessories, and includes a 1/4"-20 accessory socket for added functionality.
Despite its lightweight build at just 1.49kg, the LS-324C PRO can support loads up to 15kg, with a maximum height of 1400mm and a minimum working height of just 105mm, making it ideal for low-angle and macro photography. The four-section legs, made from robust 32/28/25/22mm tubes, fold down to a compact 515mm, ensuring portability without compromise.
Paired with the LH-40LR ball head, this kit offers precision and control thanks to its 40mm ball diameter, 530g weight, and impressive 20kg load capacity. The CNC-machined T6-6061 aluminium construction, combined with a hard anodised finish, gives both the tripod and head superior resistance to wear and corrosion, even in tough environments.
Leofoto LS-324C PRO Tripod
- Max Height: 1400mm / 55.11"
- Min Height: 105mm / 4.13"
- Folded Length: 515mm / 20.27"
- Leg Sections: 4
- Max Load Capacity: 15kg / 33lb
- Weight: 1.49kg / 3.28lb
- Leg Tube Diameters: 32mm / 28mm / 25mm / 22mm
Leofoto LH-40LR Ball Head
- Ball Diameter: 40mm / 1.57"
- Panning Base Diameter: 57mm / 2.24"
- Height: 91mm / 3.58"
- Mounting Thread: UNC 3/8"-16
- Max Load Capacity: 20kg / 44.09lb
- Weight: 530g / 1.16lb
- High-density carbon fibre construction for increased strength and rigidity without added weight

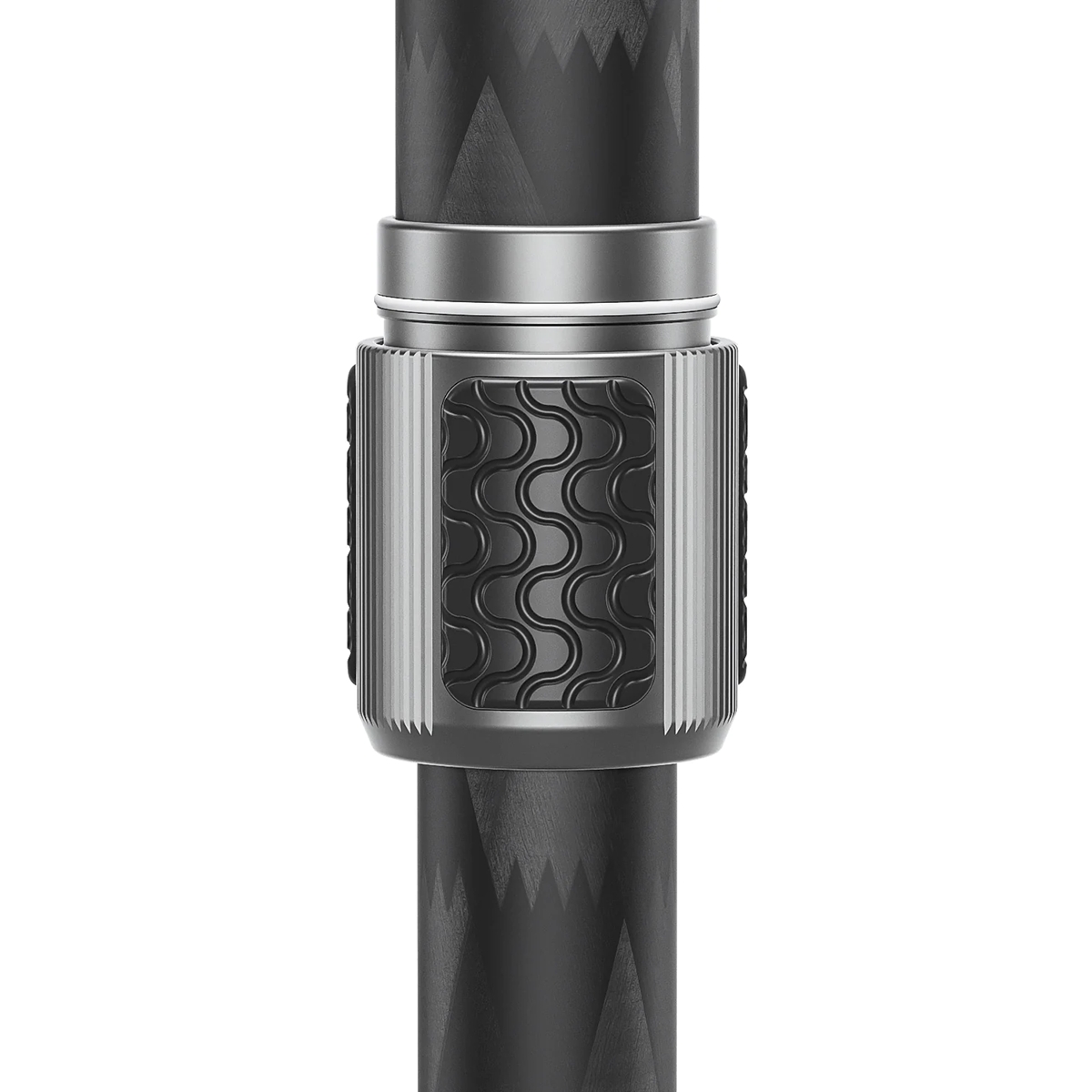

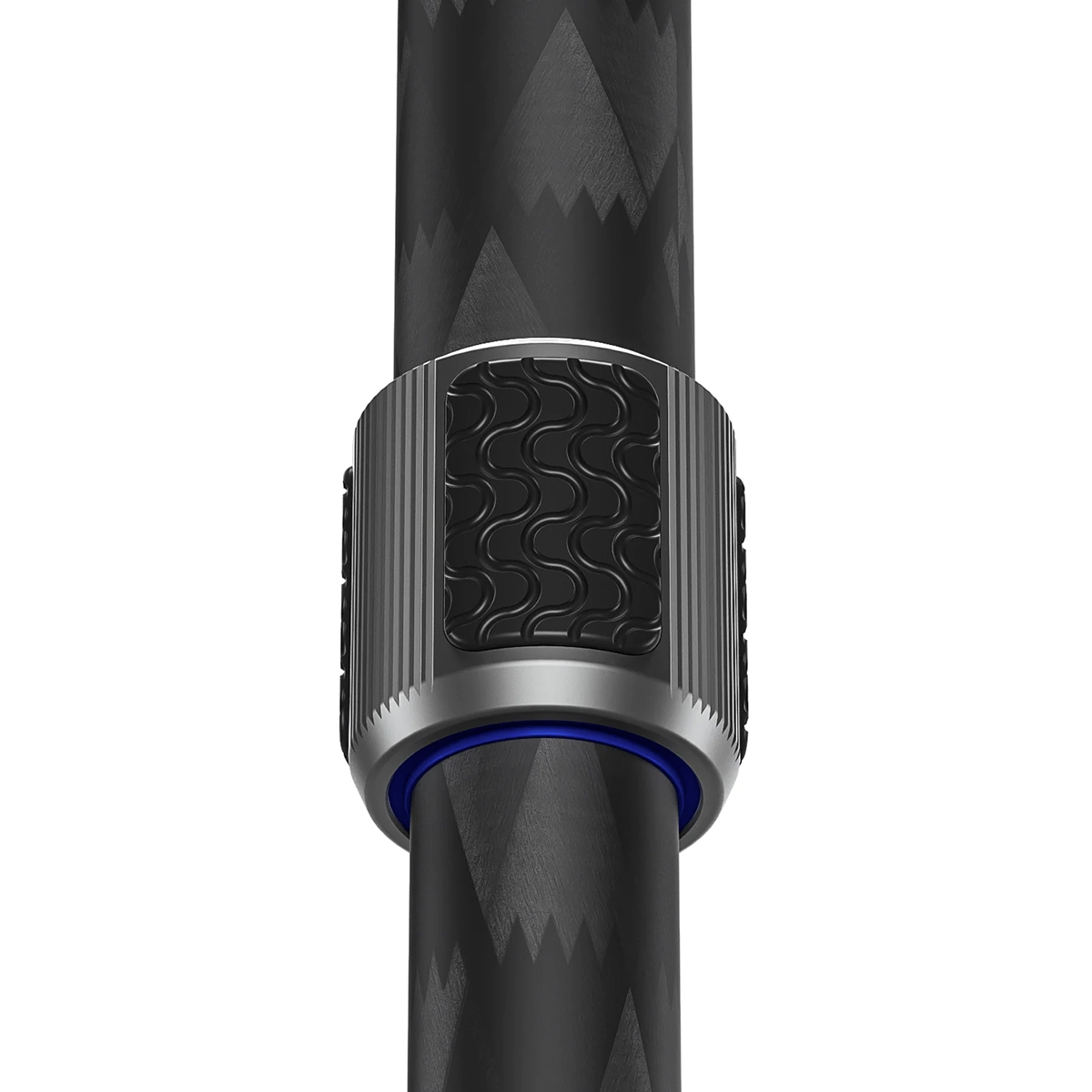

- Water-resistant twist leg locks to prevent debris and moisture ingress, ensuring smooth operation in all conditions

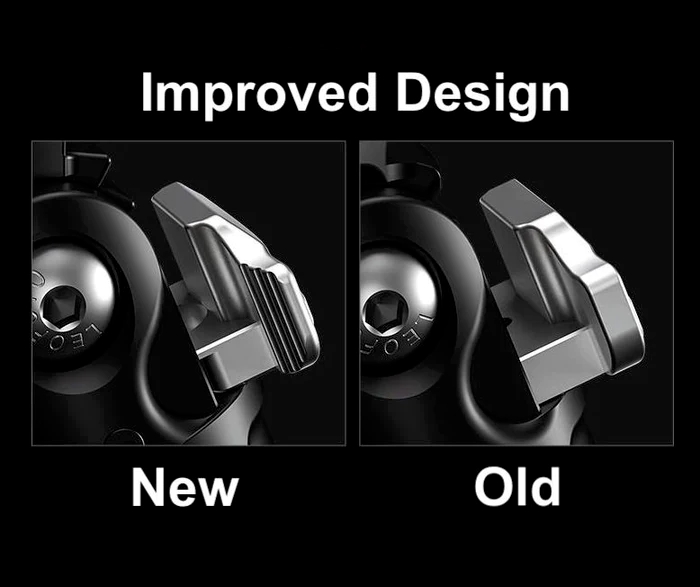

- Improved ergonomic angle stops with four leg positions (23°, 42°, 62°, and 82°) for versatile shooting angles
- Redesigned compact apex platform with 10% more surface area for enhanced head stability
- Independent leg spread for flexible positioning on uneven terrain
- 1/4"-20 accessory socket on the apex for mounting arms, monitors, or other gear
- Interchangeable feet system, including rubber feet and optional spikes for stability on various surfaces
- CNC-machined T6-6061 aluminium hardware for exceptional durability and a precision fit
- Hard anodised finish for increased resistance to scratches and corrosion
- Quick-deploy twist locks requiring only a quarter-turn for rapid setup and breakdown
- Low-angle shooting capability by fully spreading the legs for ground-level shots

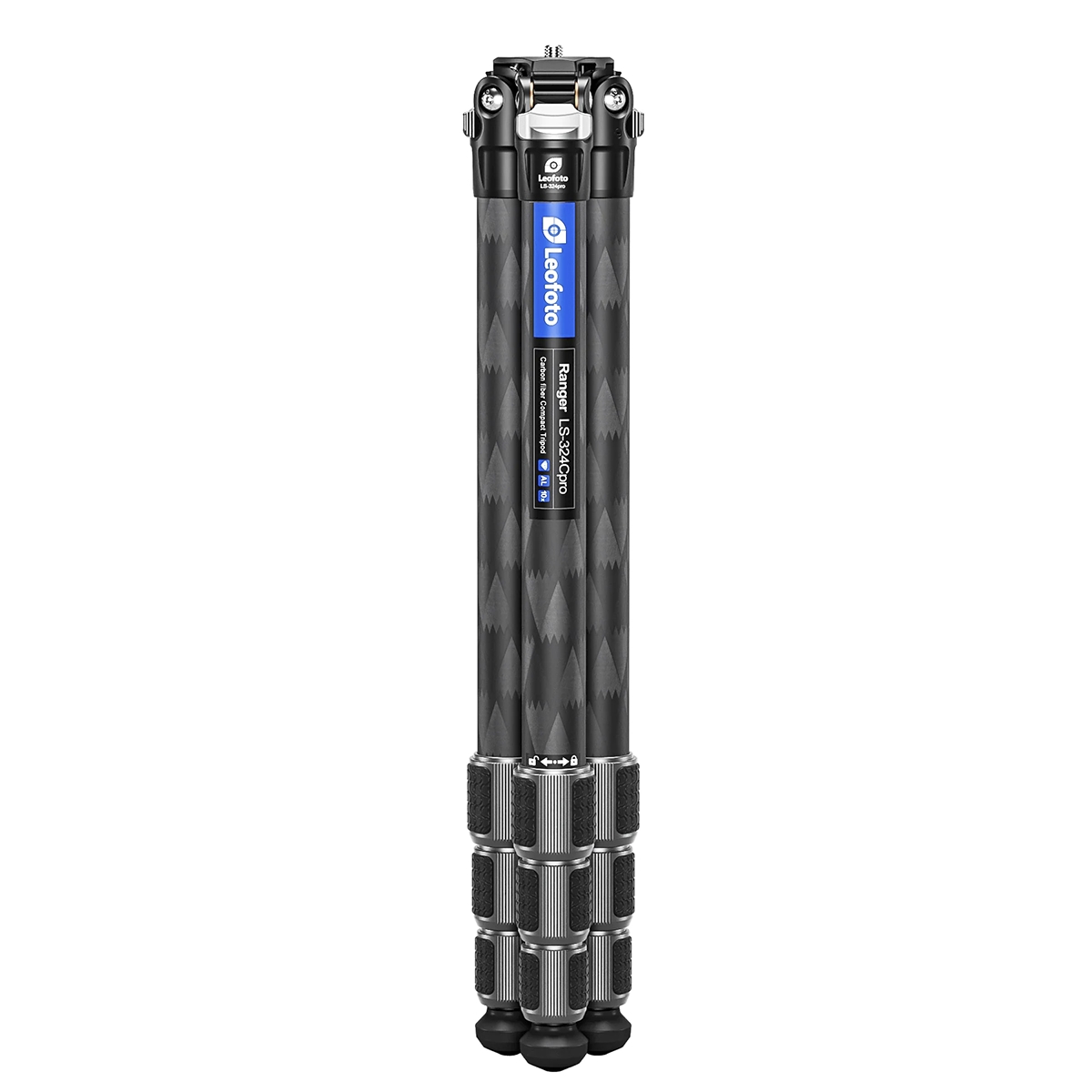

- Compact folding design for easy transportation and storage
- Includes LH-40LR ball head with smooth panning, strong locking, and Arca-Swiss compatibility for fast mounting and secure camera positioning
- Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod
- LH-40LR Ball Head
- Leofoto 10 year warranty
