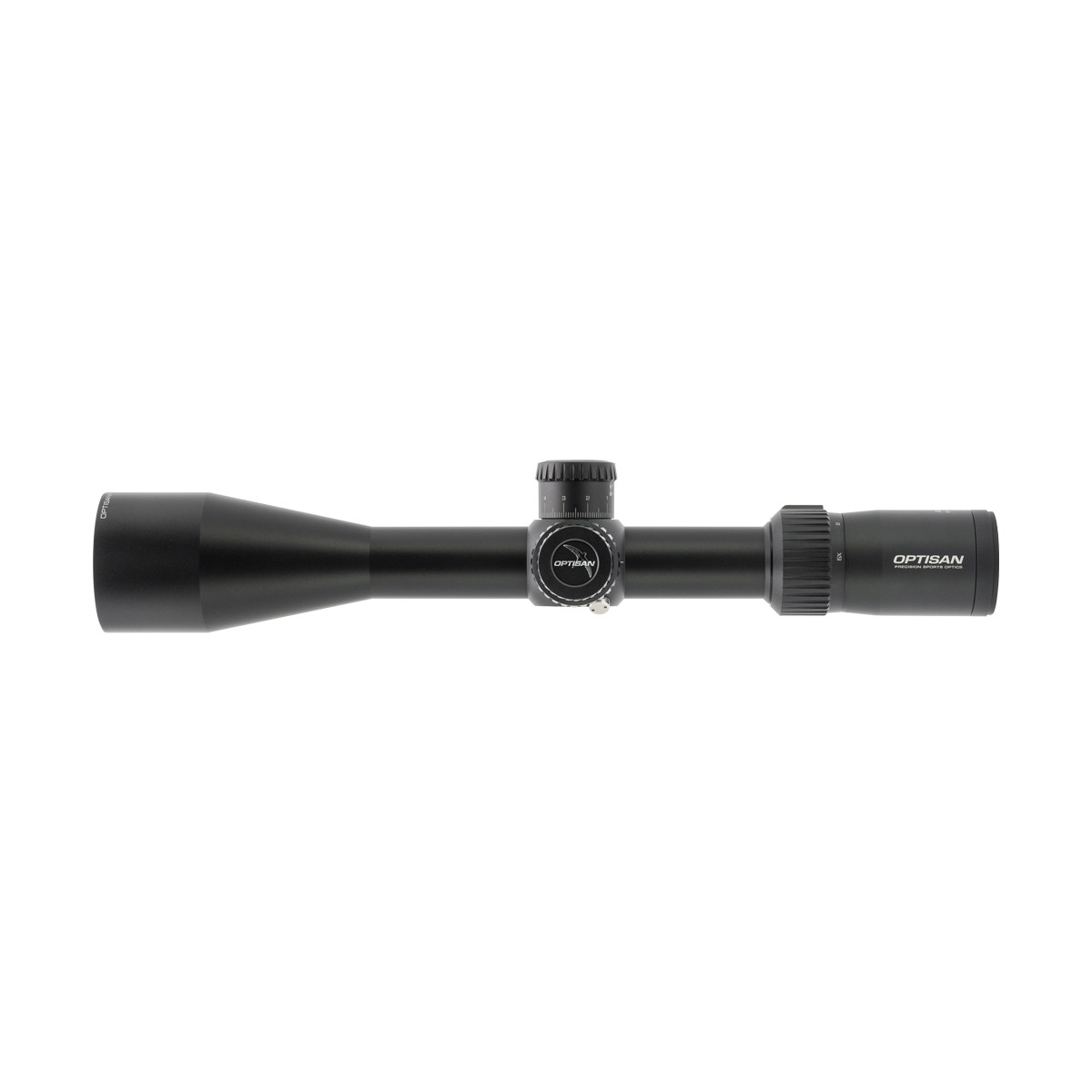

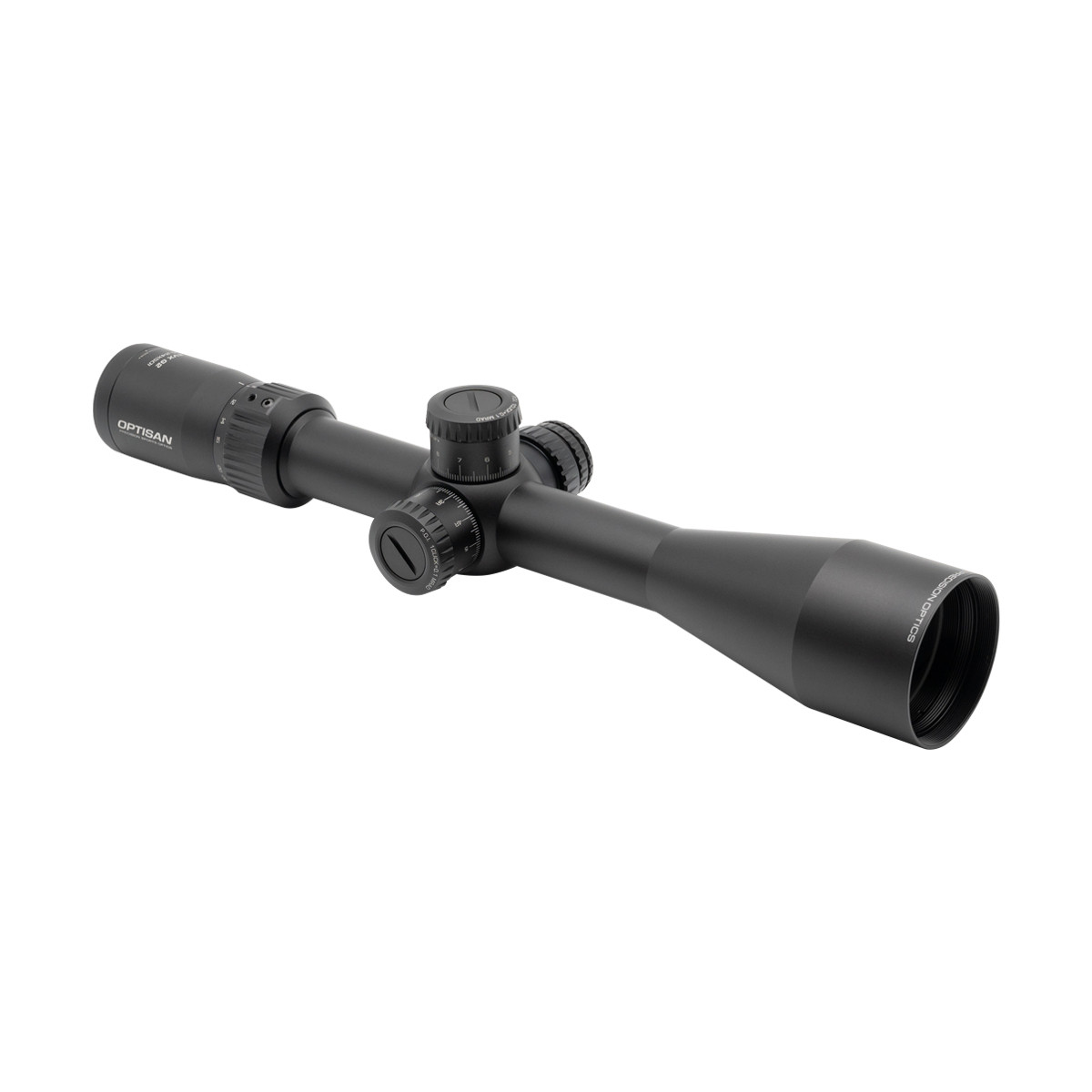

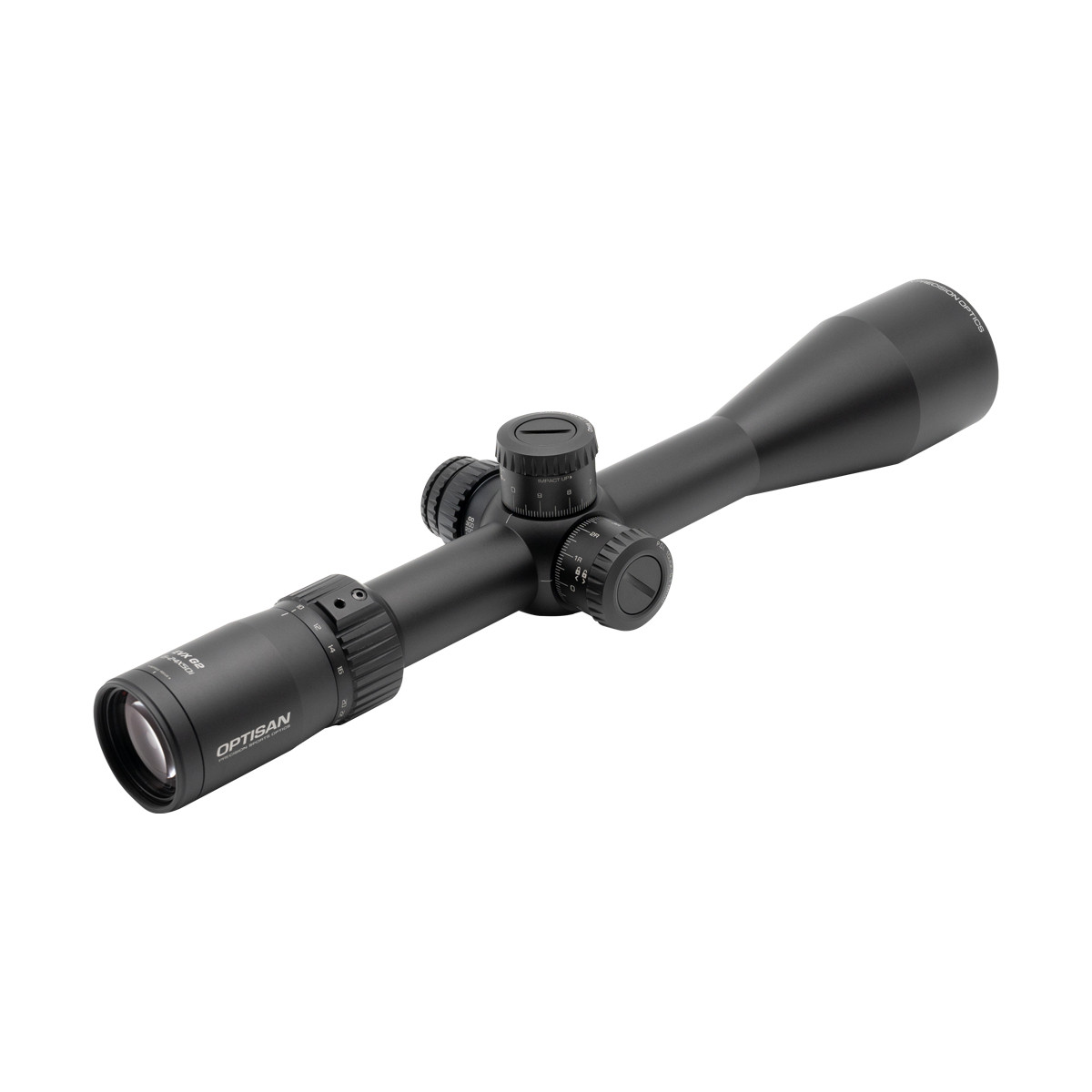

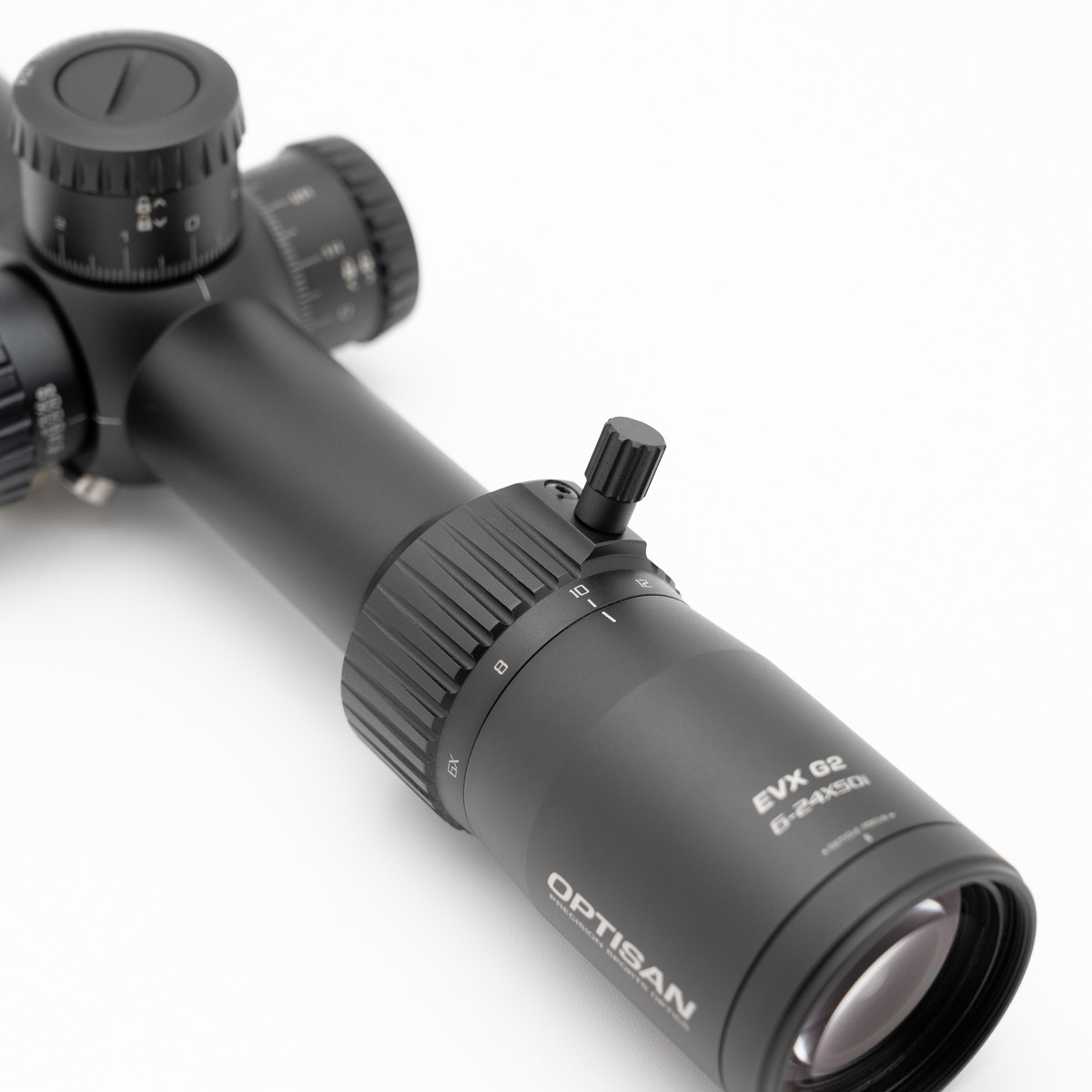

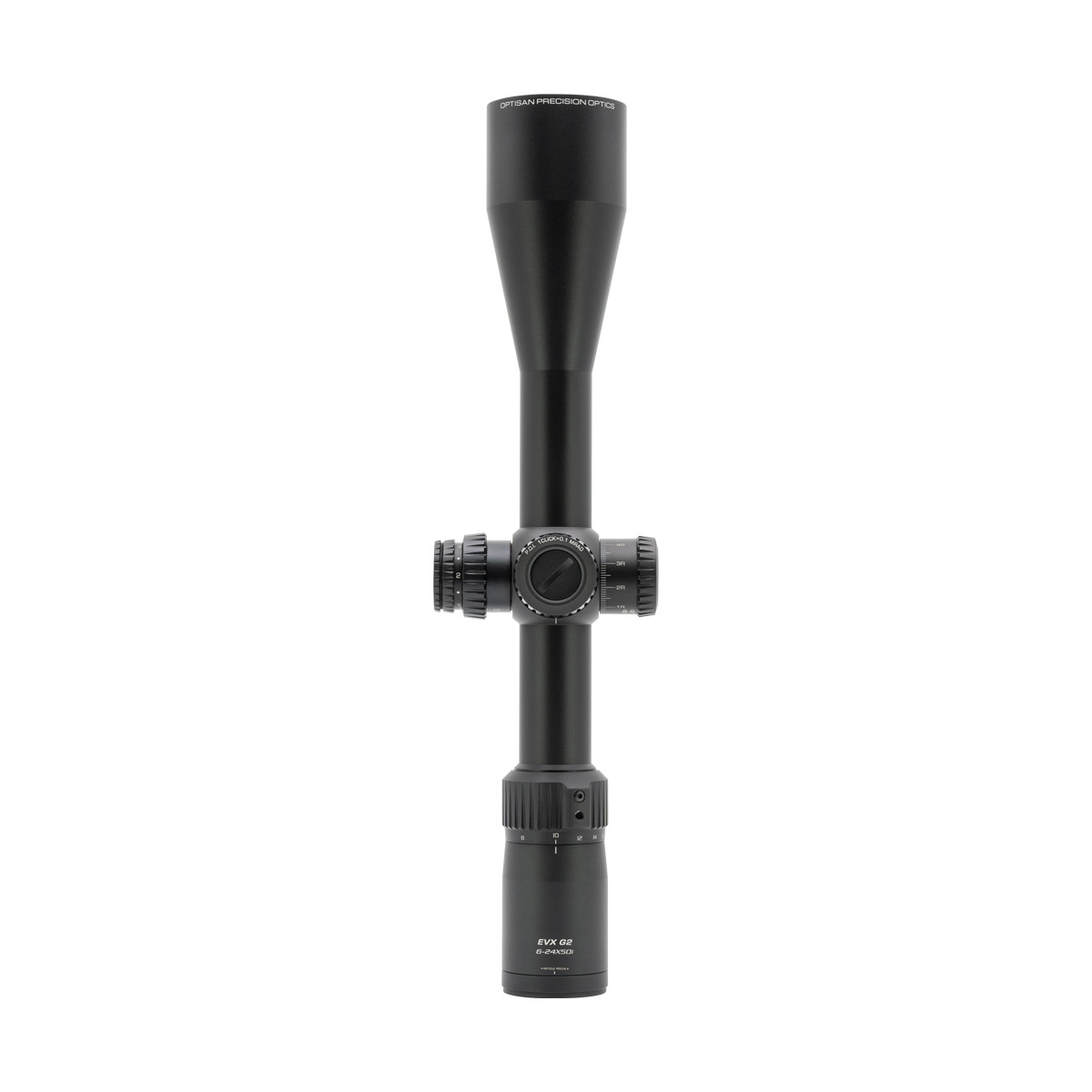

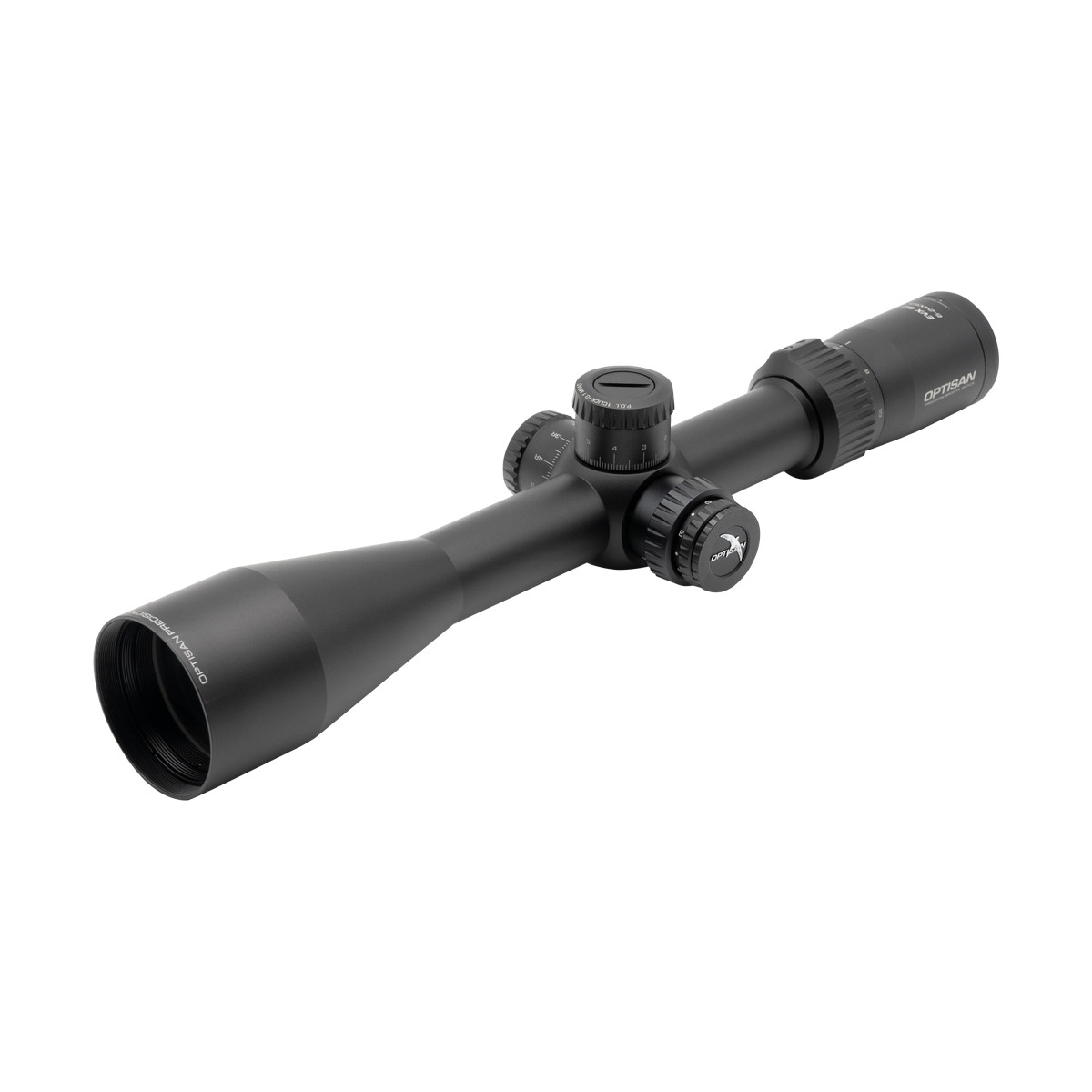

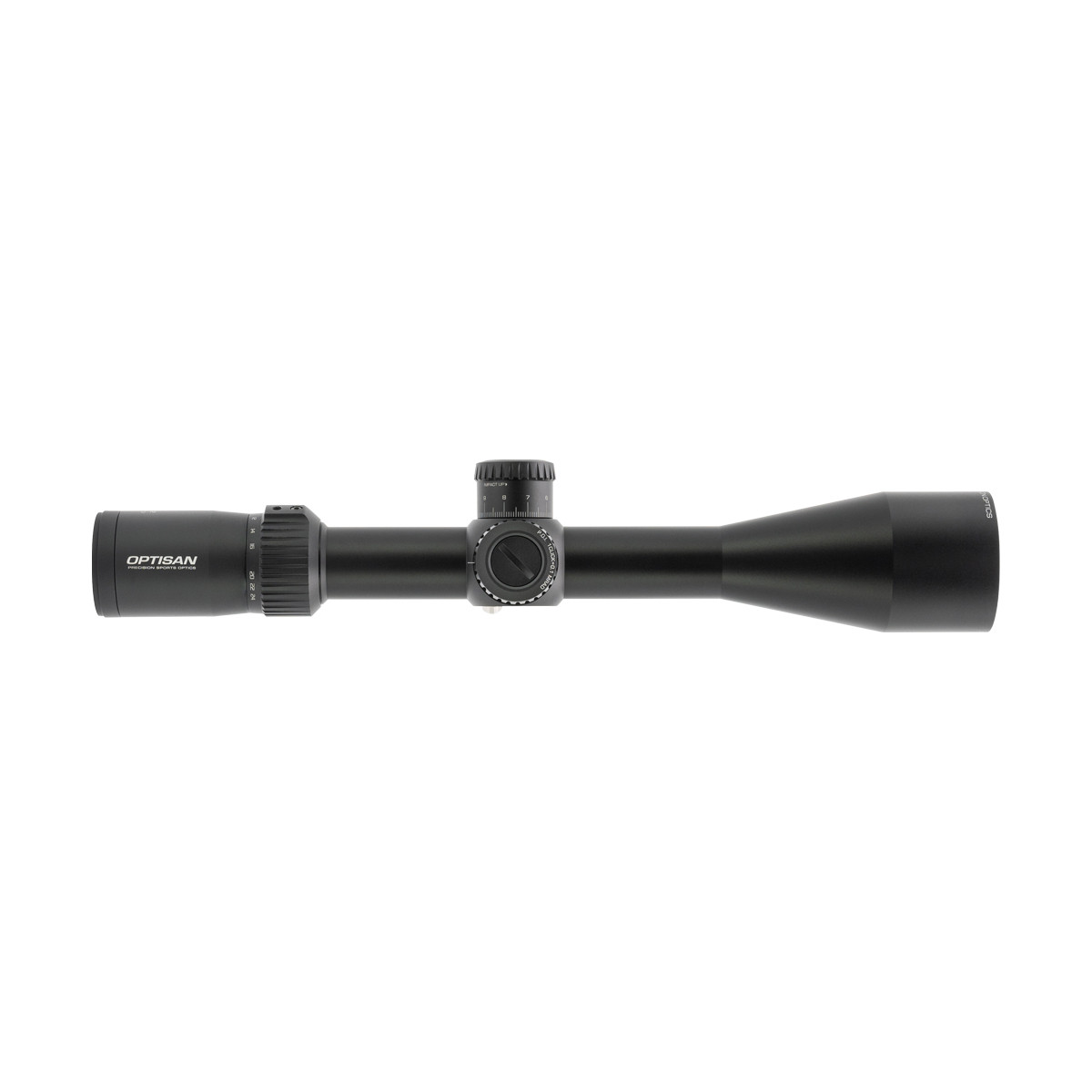

**SPECIAL** Optisan EVX Gen II 6-24X50 SFP Illuminated MHP10i 0.1 MRAD LT 30mm Rifle Scope
The Optisan EVX Gen II 6‑24x50 SFP Illuminated MHP10i rifle scope builds on a long legacy of reliable optics with a performance‑driven design perfect for hunters, competitive shooters, and precision marksmen alike, featuring a wide 6–24× magnification range and a bright 50 mm objective lens that delivers sharp, high‑resolution images at both medium and long distances, even in low‑light conditions, its Second Focal Plane (SFP) MRAD‑MHP10i reticle with six levels of illumination makes holdovers and range estimation intuitive without cluttering your view, and precise 0.1 MRAD per click turrets with locking and zero‑reset capability let you dial in adjustments with confidence, while the side focus parallax control ensures crisp target clarity from about 10 yds to infinity, all wrapped in a rugged 30 mm main tube built to withstand recoil and environmental rigors in the field.
-Nathan (Technical Advisor)
Optisan EVX Gen 2
The second focal plane EVX Gen 2 6-24x50 builds on the dependable and consistent reputation established by the EVX Gen 1 scope series during its 15 years of service. Designed for sub-MOA accuracy the EVX Gen 2 has undergone rigorous field testing to ensure it can withstand recoil up to 6000j, making this the perfect scope for an airgun, rimfire or centrefire.

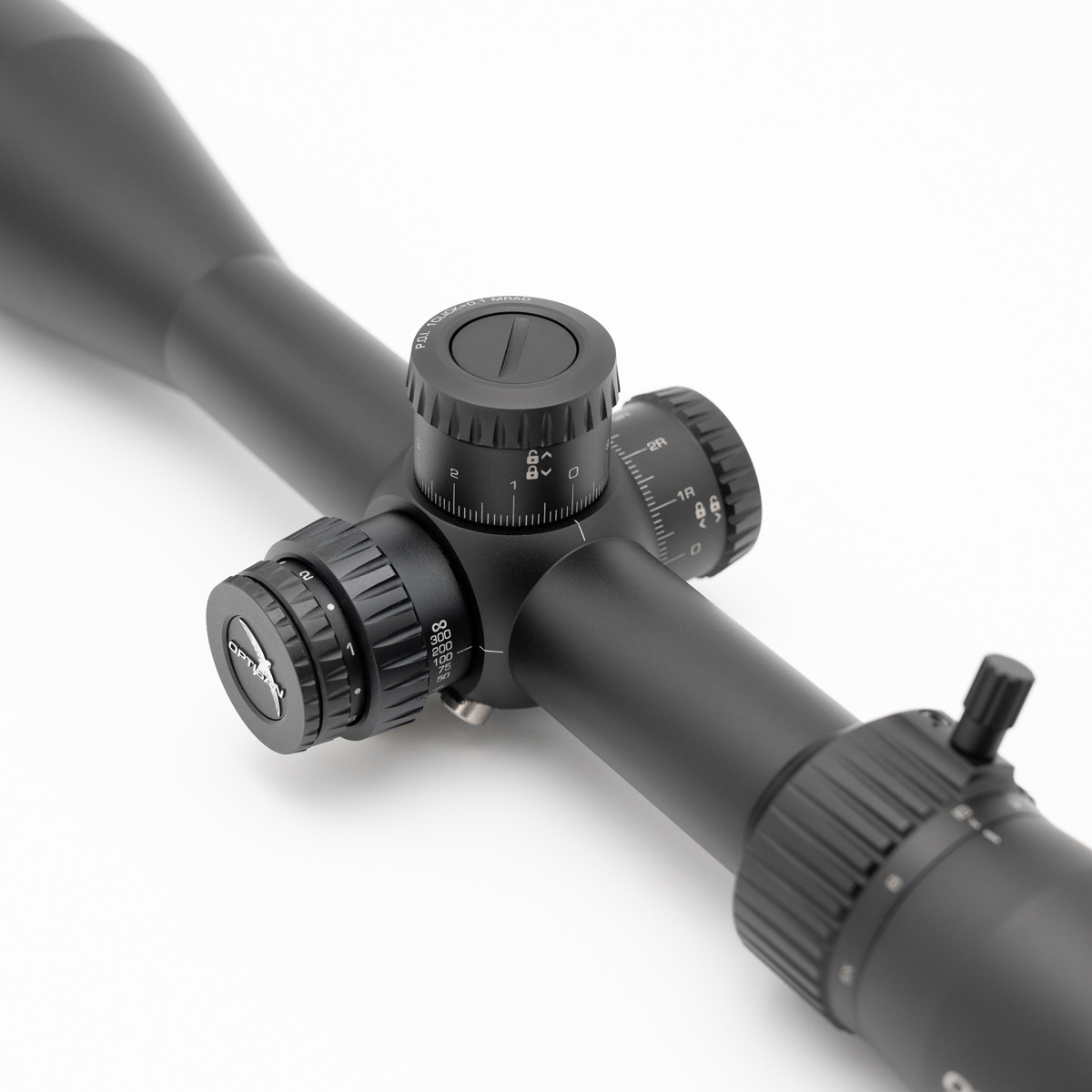

Designed to put the key functionality required for competitive shooting or extended hunting trips at your finger tips. The EVX Gen 2 built around a robust 30mm tube and equipped with locking, target style turrets that offer a precise and tactile adjustment. Lift the turret to dial your adjustments, push it down to lock. You can also reset the turret indicators to match your zero position, there is also a blank turret included in the box if you want to make your own ballistic turret. The EVX Gen2 is fitted with side focus allowing precise adjustment at the range or easy use with add-on night vision devices like the Pard NV007.
The new MHP mil-hash reticle, has been specifically designed to minimise obstruction of the shooter’s view and provide long-range holdover capabilities, with six levels of illumination (plus off).
The Optisan EVX G2 6-24x50 has an improved optical system which helps provide the shooter with better optical clarity and resolution. This versatile rifle scope is perfect for air rifle shooters and centerfire shooters; it's an ideal choice for target shooting with a smaller calibre centrefire or hunting with rear add on night vision.
Optical Data
- Magnification (High): 24X
- Magnification (Low): 6X
- Objective Diameter (mm): 50mm
- Outer dia. Objective (mm): 58mm
- FOV (min.mag - max.mag) (ft@100yds): 19.4ft - 4.9ft
- FOV (min.mag - max.mag) (m@100m): 6.46m - 1.63m
- FOV (min.mag - max.mag) (degree): 3.70° - 0.94°
- Eye relief (min.mag - max.mag) (in): 3.8'' - 3.5''
- Eye relief (min.mag - max.mag) (mm): 96.5mm - 88.9mm
- Exit Pupil (min.mag - max.mag) (mm): 8.3mm - 2.1mm
- Diopter Range (dpt): +/- 2.0 dpt
- Parallax Adjustment: 10 yds - infinity
- Coating: Fully multi-coated
Mechanical Data
- Tube Construction: One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click): 0.1 MRAD
- Windage Adjustment (value per click): 0.1 MRAD
- Turret Style (Elevation): Lockable Dialing Turret
- Turret Style (Windage): Lockable Dialing Turret
- Travel Per Rotation: 10 MRAD
- Elevation adj. range: ≥ 15 MRAD
- Windage adj. range: ≥ 14 MRAD
- Eye Piece Diameter (in): 1.73''
- Eye Piece Diameter (mm): 44mm
- Eye Piece Length (in): 2.15''
- Eye Piece Length (mm): 51.2mm
- Mounting Length rear (mm): 57.5mm
- Mounting Length front (mm): 57.5mm
- Tube Dia. (mm): 30mm
- Length (in): 14.33''
- Length (mm): 364mm
- Weight (g): 816g
- Weight (oz): 28.78oz
- Surface Finish: Matte Black
Environmental Data
- Functional temperature: -20 ~ 50 degree celcius
- Storage temperature: -20 ~ 50 degree celcius
- Submersion tightness: IPX7
Reticle Data
- Reticle: MRAD-MHP10i
- Calibrated Ranging Power: 10X
- Focal plane: Second Focal Plane
- Illumination: 6 Steps illumination with off setting in between
- Locking and zero resettable turrets
- Precise side focus from 10 yrds to infinity
- Illuminated reticle with 6 intensities
- 30mm main tube
- MHP reticle great crossover for hunting or target
- Flip up covers & blank turret included
- Download reticle information HERE
- Optisan EVX Gen II 6-24X50 SFP Illuminated MHP10i 0.1 MRAD LT Rifle Scope
- Lens covers
- Blank elevation turret dial
- 3" sunshade
- Speed lever
-
What does “6‑24x50” mean?
It means this scope offers variable magnification from 6× to 24× and a 50 mm objective lens that maximizes light gathering and clarity at range -
What is a Second Focal Plane (SFP) reticle?
In an SFP scope the reticle stays the same size as magnification changes; subtensions are calibrated for accuracy at a specific power but remain usable across the range -
What does “MRAD-MHP10i” reticle mean?
It’s a milliradian-based mil-hash pattern reticle designed to minimize visual clutter while providing holdovers, windage references, and ranging cues -
Is the reticle illuminated?
Yes, this model features an illuminated reticle with six selectable brightness levels plus off settings to suit different lighting conditions -
What does 0.1 MRAD per click adjustment mean?
Each click of the windage or elevation turret adjusts point of impact by 0.1 milliradian for fine, repeatable tuning -
What is side focus (parallax adjustment)?
Side focus lets you eliminate parallax error and sharpen your target image at different distances, improving accuracy, especially at longer ranges -
Does this scope work well in low light?
Yes, the 50 mm objective lens and fully multi-coated optics help deliver bright images at dawn, dusk, and in shadows -
Can this scope handle recoil and rough field use?
Yes, the robust 30 mm one-piece tube and tested design can withstand high-energy recoil and environmental challenges -
Is this scope good for both hunting and target shooting?
Yes, its magnification range, illuminated reticle, and tactile turrets make it versatile for hunting, competitive shooting, and precision work -
What accessories are included?
The scope typically includes lens covers, a 3″ sunshade, flip-up covers, a blank turret dial, and a speed lever
