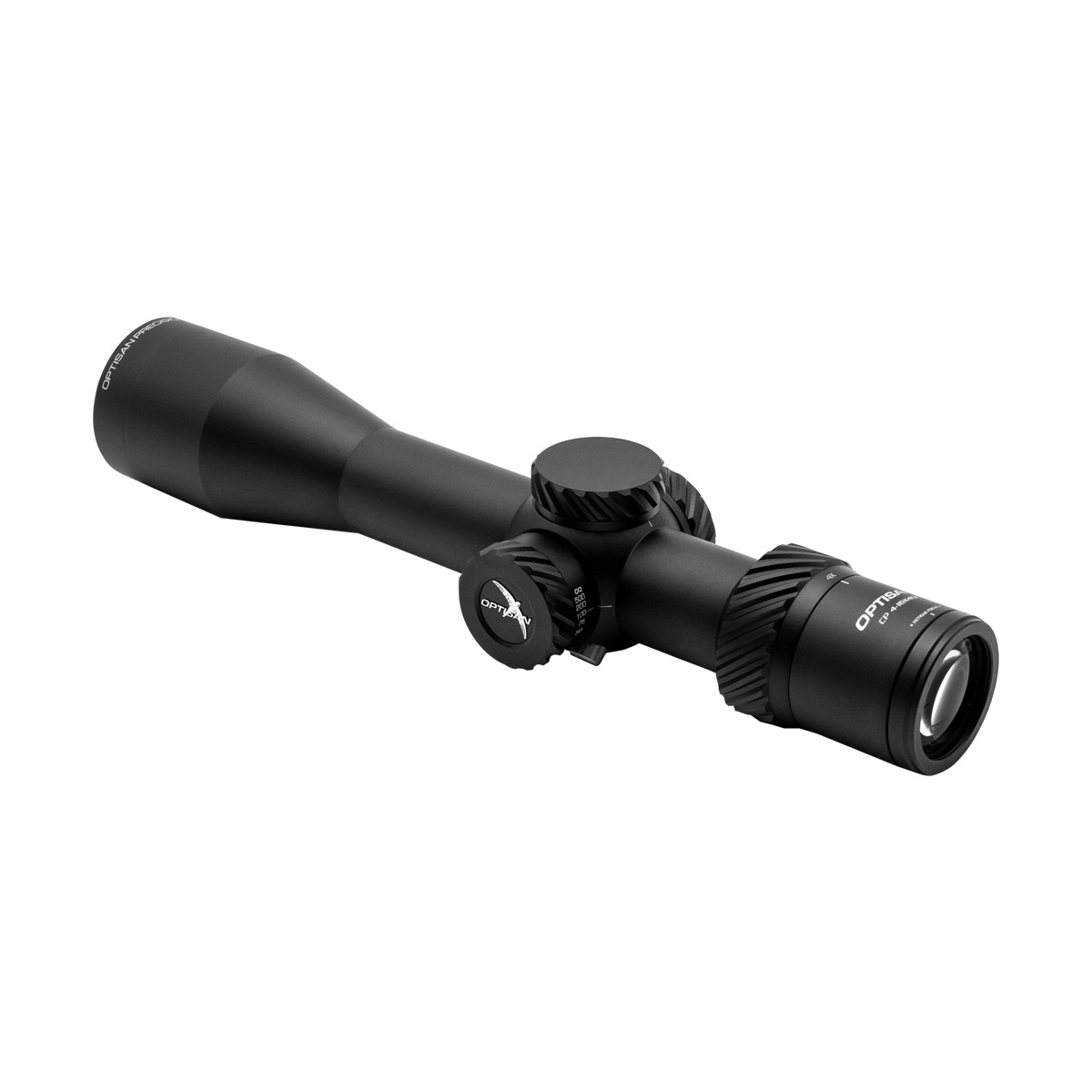

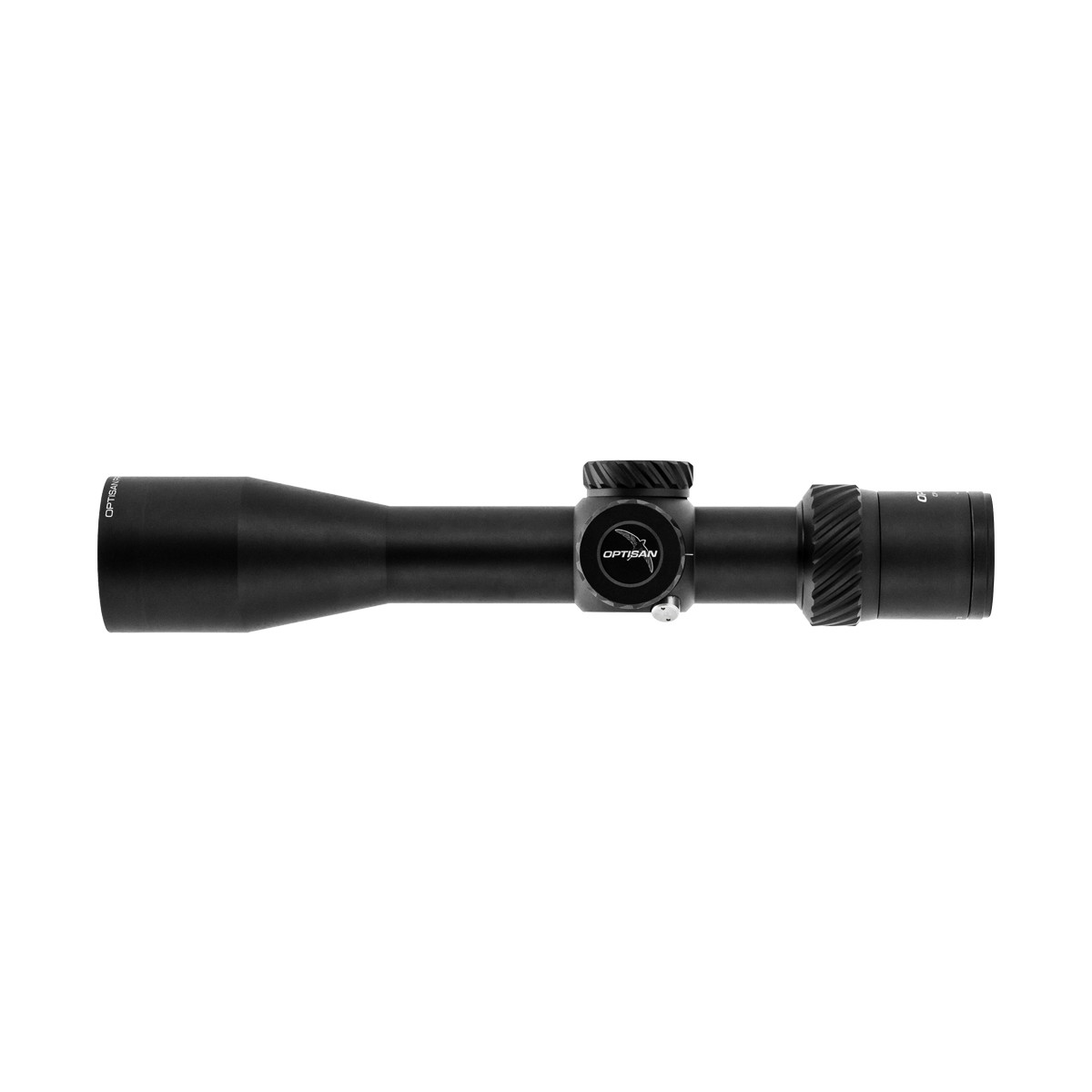

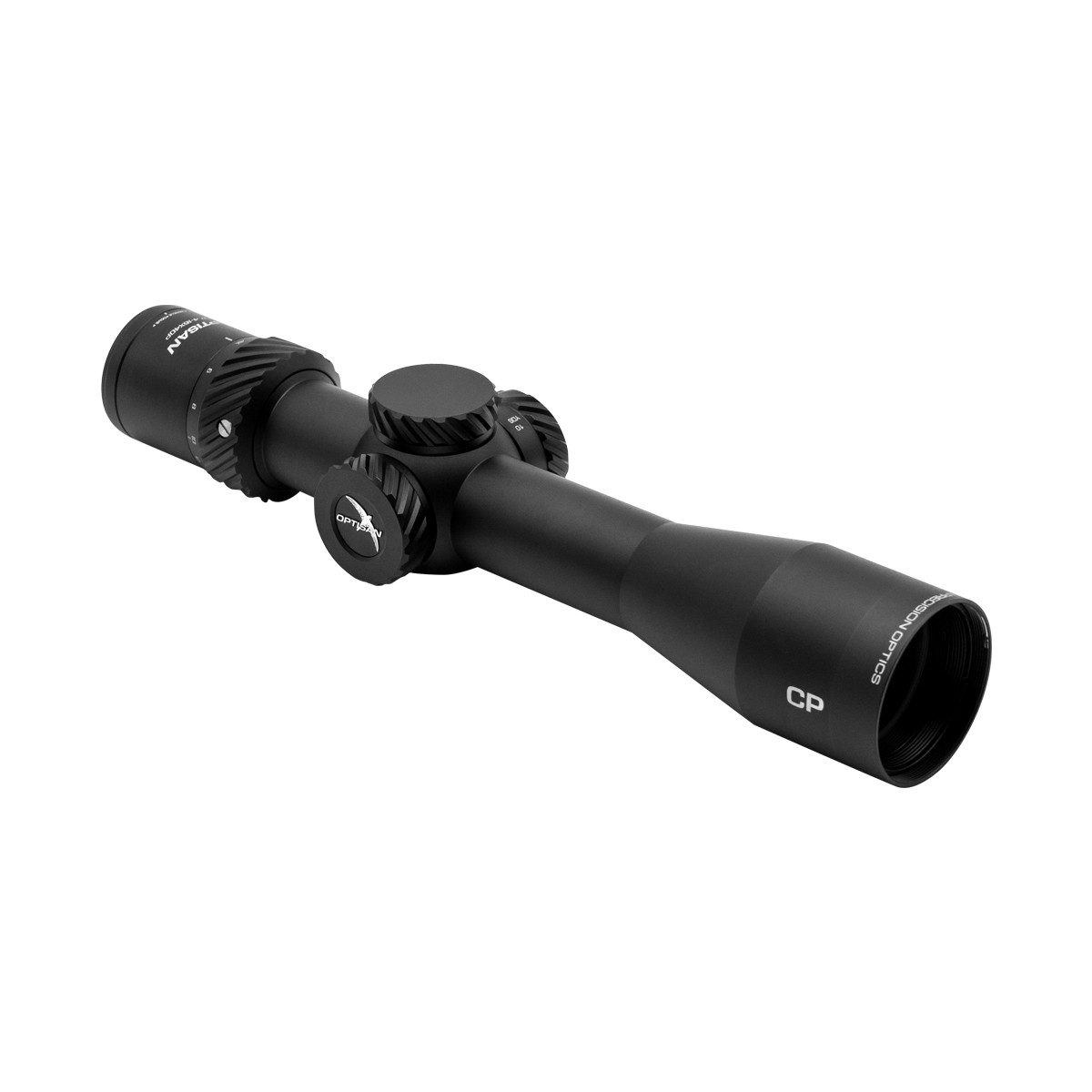

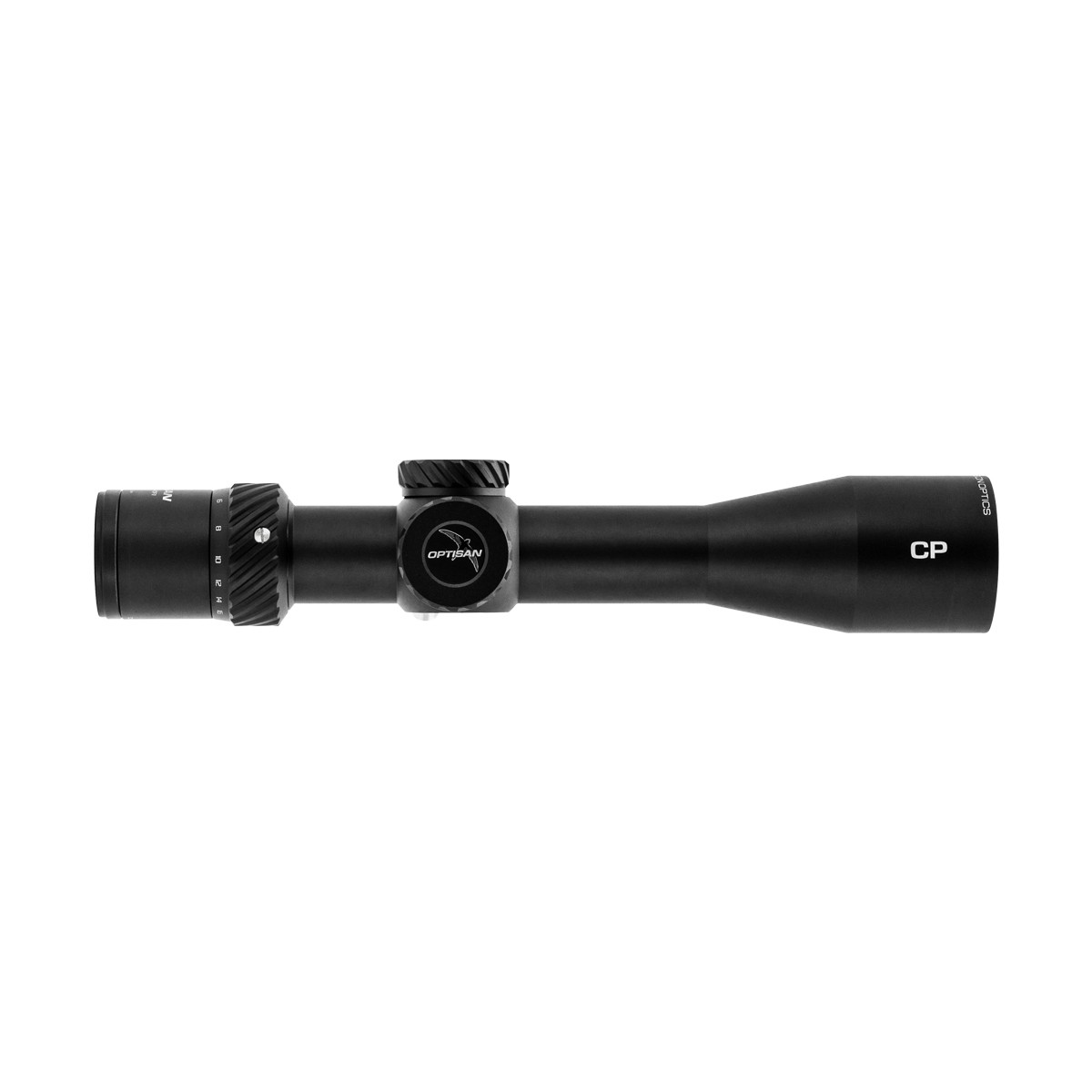

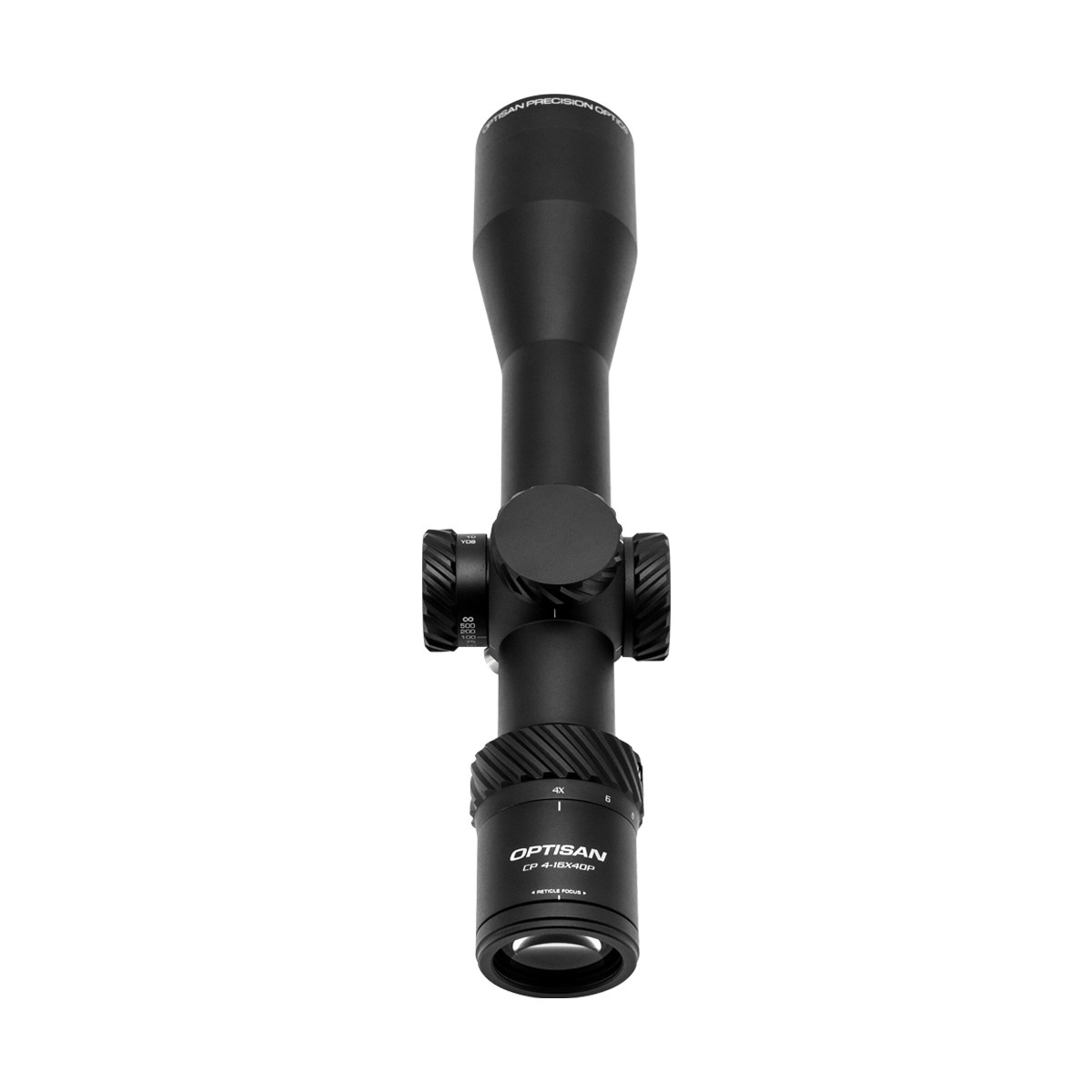

Optisan Optics CP 4-16x40 SFP Non Illuminated MRAD-MH10) Side Focus 0.1 MRAD 30mm Rifle Scope
The Optisan Optics CP 4-16x40 SFP rifle scope brings versatility and precision together in a sleek, dependable package. With a wide 4–16× zoom range and a 40 mm objective lens, this optic delivers sharp, bright views at both close and extended distances, perfect for hunting, tactical use, and precision target shooting. The MRAD-MH10 reticle provides practical ranging and intuitive holdovers, while the Second Focal Plane (SFP) design keeps the reticle easy to see across all magnifications. Featuring 0.1 MRAD click adjustments and a side focus parallax control, you’ll enjoy fine, repeatable tuning and crisp clarity from near to far. Built on a rugged 30 mm tube, the CP 4-16x40 is engineered to perform reliably in the field without weighing you down.
-Nathan (Technical Advisor)
Brand new to the Optisan CP range of riflescopes is the Optisan CP 4-16x40 SFP. This is a second focal plane-based rifle scope equipped with an MH10 non-illuminated reticle.
The second focal plane reticle gives adequate holdover markings for most air rifle shooting disciplines including HFT and general hunting applications.
The Optisan CP range of riflescopes has always been a fan favourite in the HFT world thanks to its compact design and small objective lens sizes which allows the shooter to mount the rifle scope closer to the barrel to help with bullet trajectories.
The Optisan CP, like every other CP within the range, has parallax adjustments down to 10 yds and out to infinity. The Optisan CP 4-16x40 is a 30mm main tube which is made from one-piece aircraft-grade aluminium, with a length of 268mm and weighs only 530 grams, making it great for hunting out in the field and vermin control.
| Magnification (High) | 16X ±5% |
| Magnification (Low) | 4X ±5% |
| Objective Diameter (mm) | 40mm |
| Outer dia. Objective (mm) | 48mm |
| FOV (min.mag）(ft/100yds) | 26.20 |
| FOV (max.mag）(ft/100yds) | 6.55 |
| Eye relief (in) | 3.5'' - 3.3'' |
| Exit Pupil (Max mag.） (mm) | 10 mm |
| Exit Pupil (min. mag.） (mm) | 2.5 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Low profile |
| Turret Style (Windage) | Low profile |
| Elevation adj. range | ≥ 18 mrad |
| Windage adj. range | ≥ 18 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.08'' |
| Eye Piece Length (mm) | 27.55 mm |
| Mounting Length rear (mm) | 55.70 mm |
| Mounting Length front (mm) | 30.00 mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 10.55'' |
| Length (mm) | 268mm |
| Weight (g) | 530g |
| Weight (oz) | 18.69 oz |
| Surface Finish | Matte Black |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Reticle | SFPMH10X |
| Focal plane | SFP |
| Illumination | Non-Illuminated |

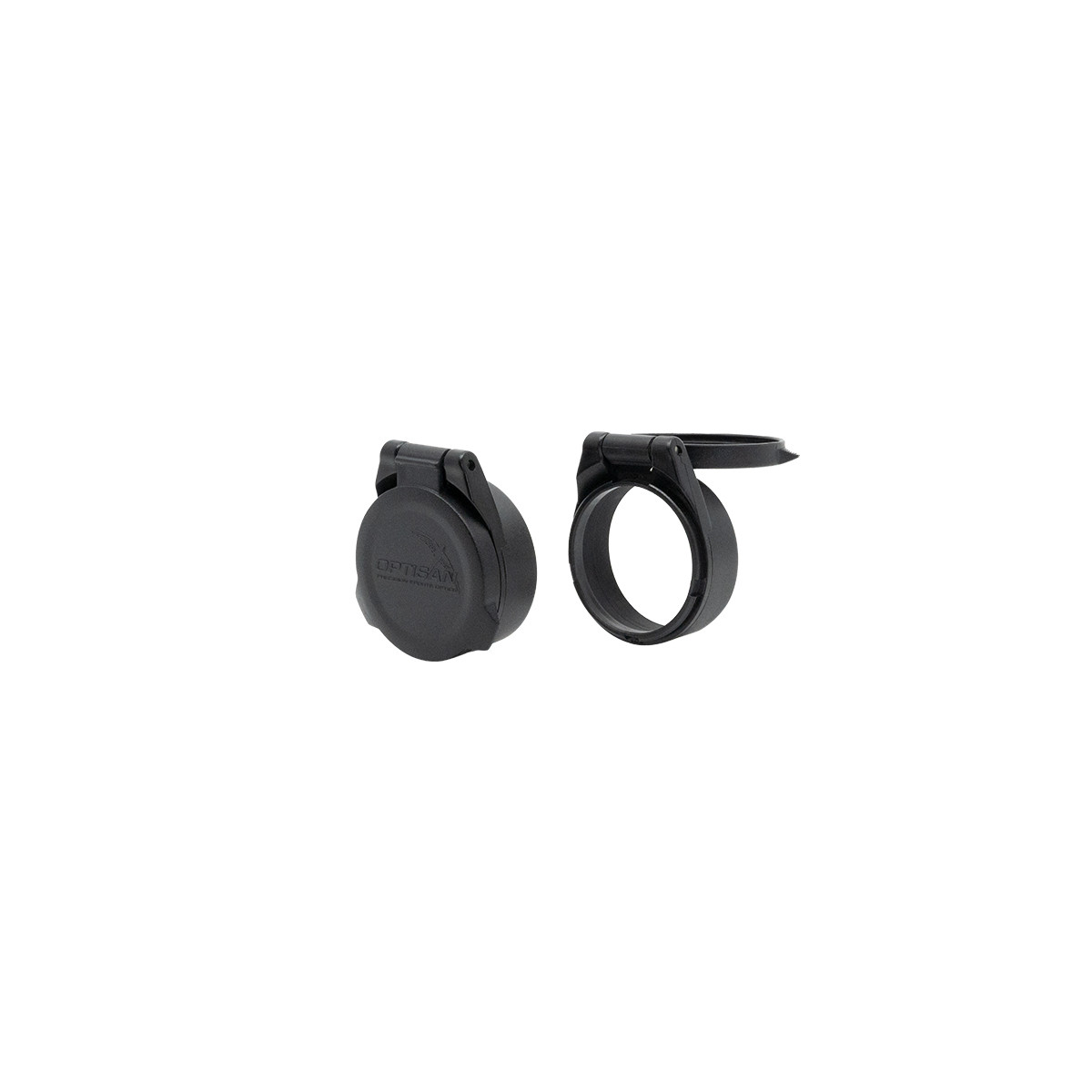

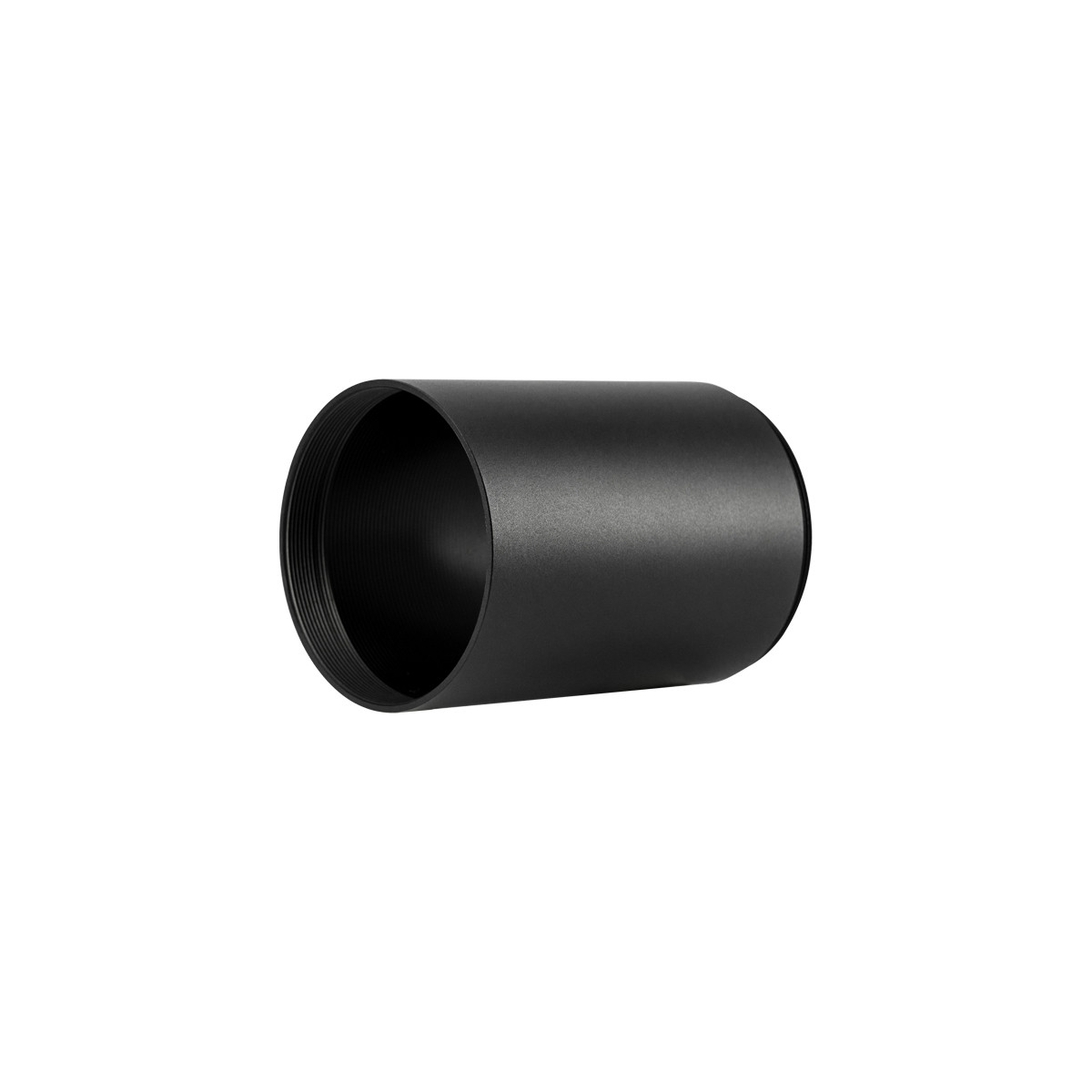

| Standard Accessories | 2.5" sunshade and flip up covers. |
| Travel Per Rotation |

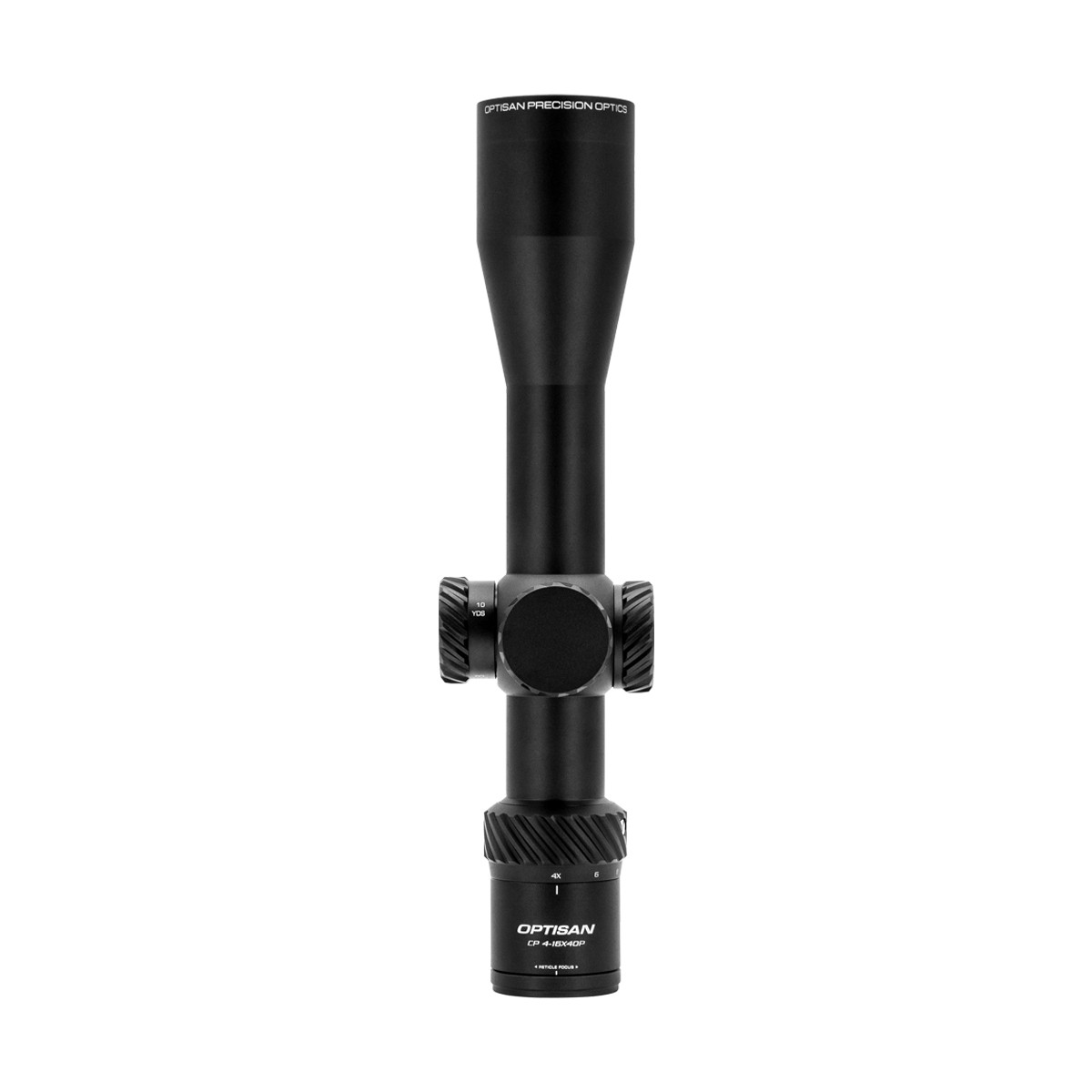

Optisan Optics CP 4-16x40 (MRAD-MH10) Non-Illuminated Rifle Scope.
-
What does “4-16x40” mean?
It refers to the variable magnification range (4×–16×) and a 40 mm objective lens that balances brightness, clarity, and compact size. -
What is a Second Focal Plane (SFP) reticle?
In an SFP scope, the reticle stays the same size as magnification changes, and the subtensions are calibrated for accuracy at a specific zoom level (usually highest magnification). -
What does MRAD-MH10 mean?
It’s the reticle style, a milliradian-based pattern (MH10) designed for practical ranging, holdovers, and wind correction using MRAD measurements. -
Is the reticle illuminated?
No, this model has a non-illuminated reticle for clear, distraction-free aiming in most lighting conditions. -
What does 0.1 MRAD per click adjustment mean?
Each turret click adjusts the point of impact by 0.1 milliradian, allowing precise control over windage and elevation. -

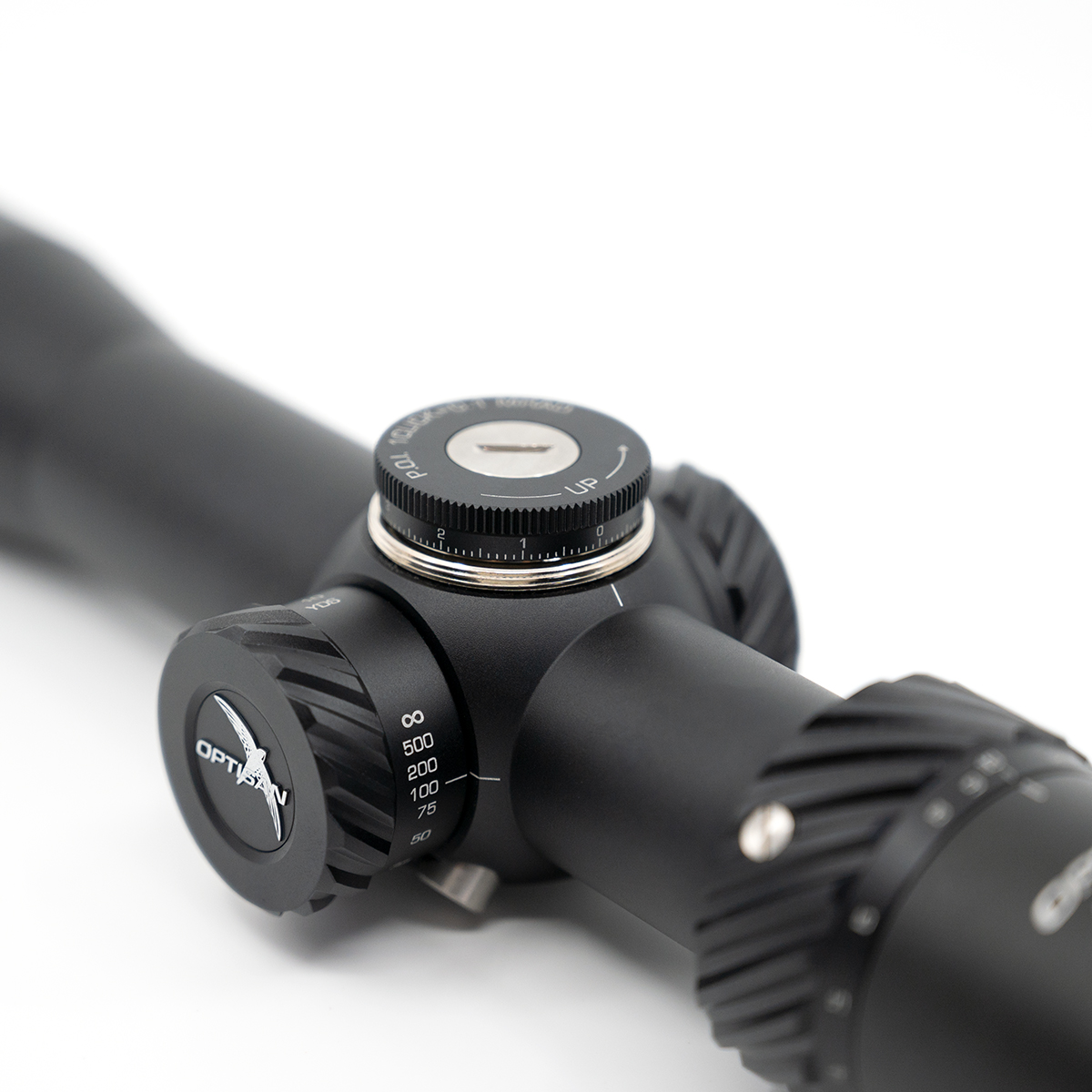

What is side focus (parallax adjustment)?
Side focus lets you eliminate parallax error at various distances for a sharp, aligned target image and reticle, particularly useful at longer ranges. -
Does this scope work well in low light?
Yes, the 40 mm objective and quality optics deliver bright, clear views in dawn, dusk, and shaded environments. -
Is this scope suitable for hunting?
Absolutely, its versatile magnification, clear optics, and rugged build make it ideal for hunting a wide range of game. -
Is this scope durable in the field?
Yes, built with a robust 30 mm main tube and quality construction, it’s designed to withstand recoil and field use. -
Who is this scope best for?
Shooters seeking a reliable, mid-to-long-range optic with practical reticle features and precise adjustments from hunters to tactical and precision shooters.
