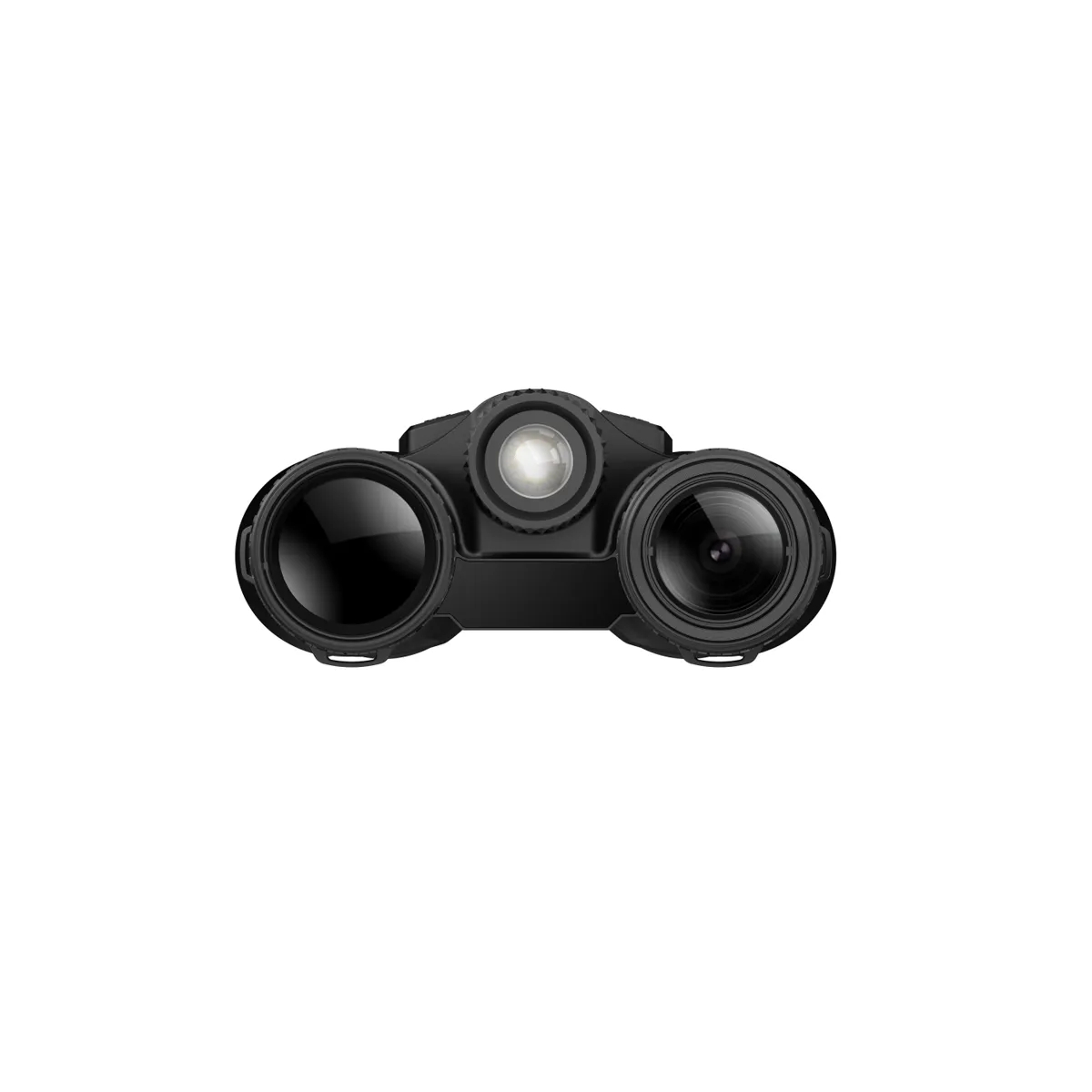

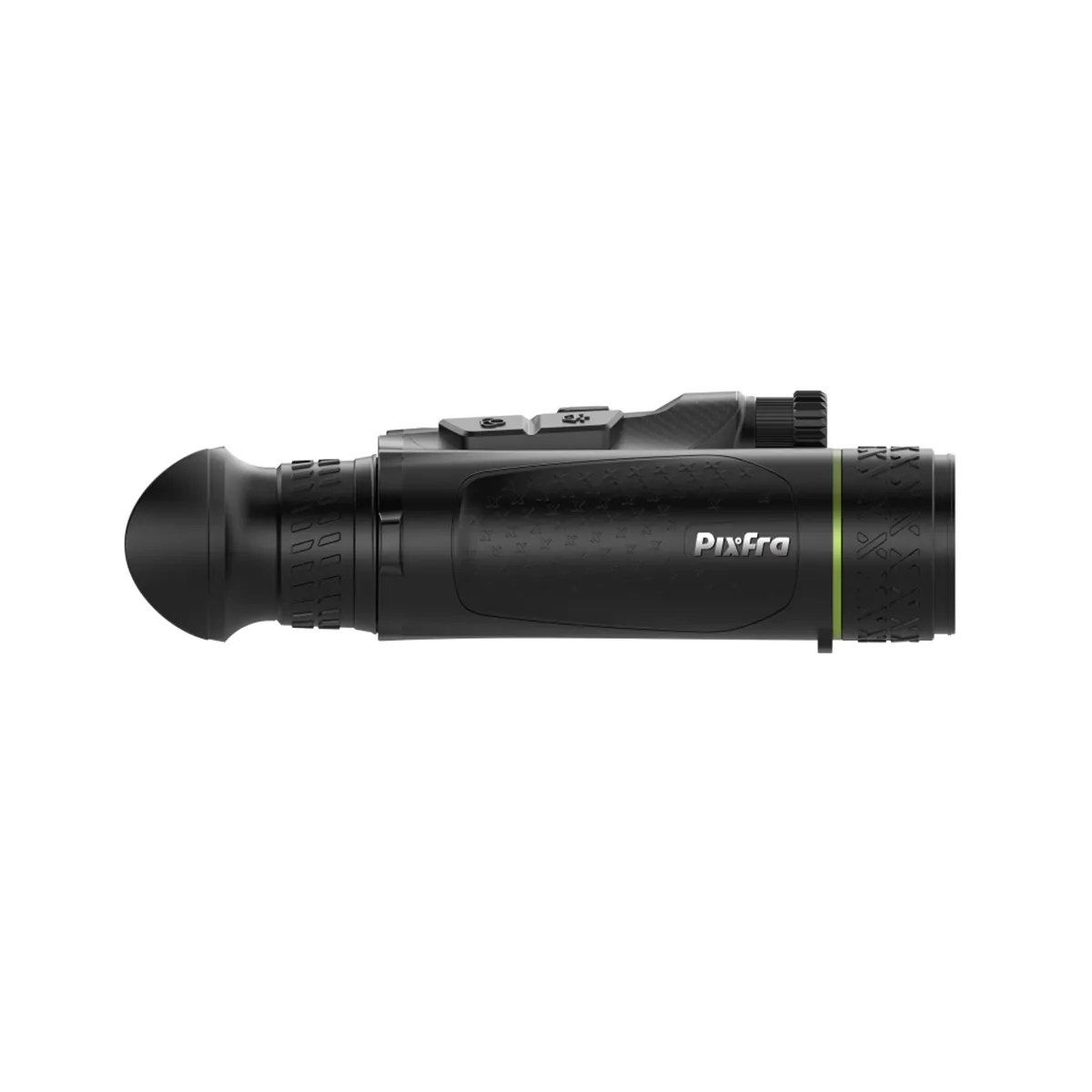

Pixfra DRACO D225-4K Multispectral Binoculars with LRF
850nm IR, 256x192, 12um, 25mm
The Pixfra DRACO D225-4K is a compact multispectral binocular combining thermal imaging, 4K digital day/night vision, a laser rangefinder and IR illumination in one rugged handheld device. Its 256×192, 12µm thermal sensor with ≤18 mK NETD detects subtle heat signatures out to 1,300 m, while the 4K CMOS sensor delivers sharp visual detail. A Full HD OLED display, AI-powered PIPS 3.0 processing, electronic image stabilisation and long 9-hour battery life make it ideal for demanding field use.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd

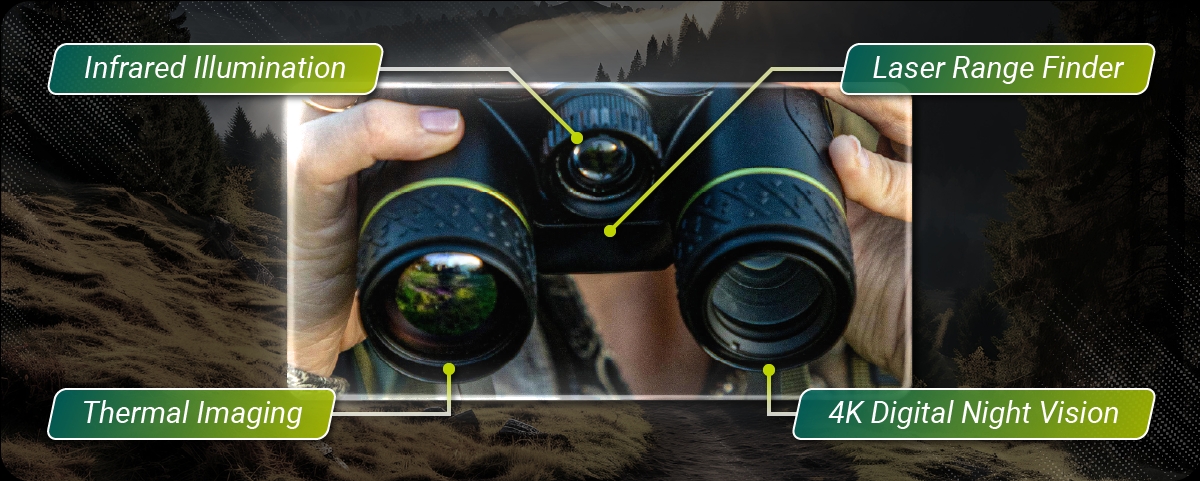

The Pixfra DRACO D225-4K Multispectral Binoculars are a compact, all-in-one observation solution designed for serious field use across day, low-light and night-time conditions. Combining thermal imaging, 4K digital day/night vision, a laser rangefinder and infrared illumination in a single ergonomic binocular format, the D225-4K delivers exceptional situational awareness for hunting, wildlife observation and security applications.
Built around a 256×192 VOx thermal sensor with 12 µm pixel pitch and ≤18 mK NETD, the DRACO D225-4K excels at detecting subtle heat differences, allowing reliable identification of animals, people and objects at distances of up to 1,300 m. The 25 mm thermal lens provides a balanced field of view with a base magnification ideal for scanning, while digital zoom enables closer inspection when required.

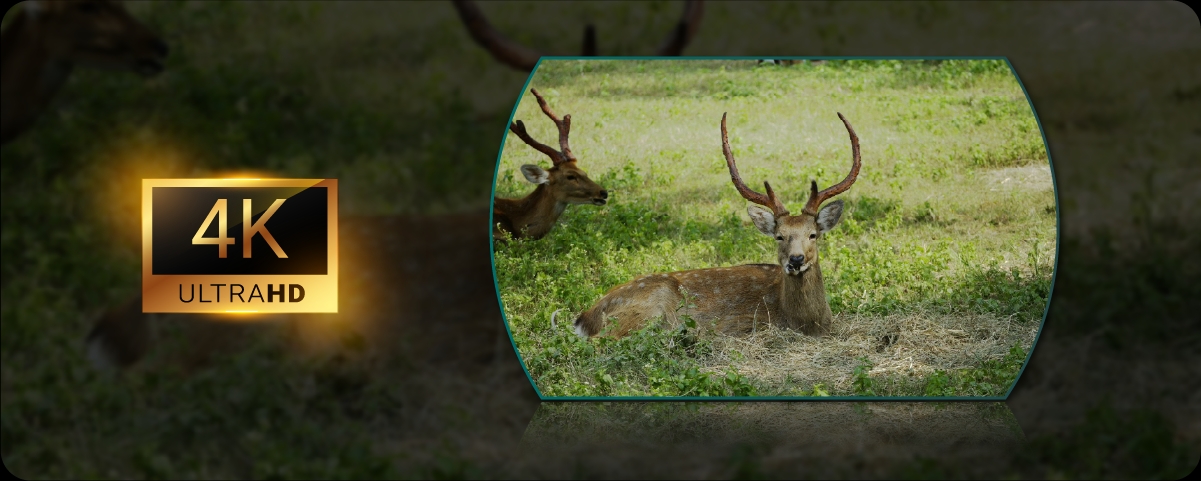

Alongside the thermal channel sits a 4K (3840×2160) digital day/night sensor, delivering sharp detail and natural colour by day and a clear monochrome image after dark. Automatic day/night switching ensures seamless performance as light levels change, while the included 850 nm IR illuminator enhances visibility in near-total darkness. A 940 nm IR illuminator is available separately for users who require reduced infrared signature.

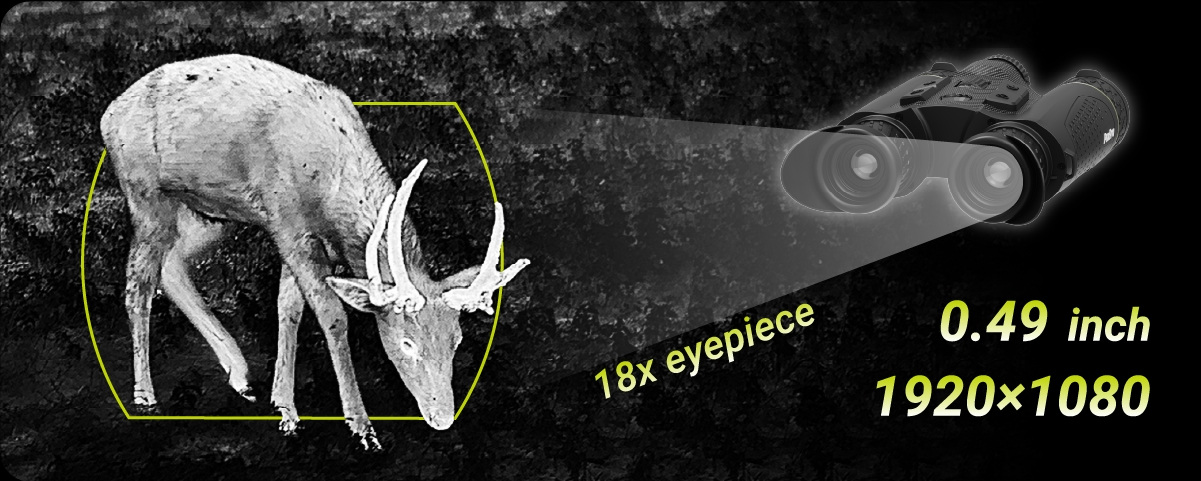

All imagery is viewed through a 0.49-inch Full HD OLED display paired with a high-magnification ocular lens, creating an immersive binocular-style viewing experience. Pixfra’s PIPS 3.0 AI image processing enhances clarity, contrast and stability across both thermal and digital channels, while electronic image stabilisation and defog mode maintain a clear, steady image in challenging weather.

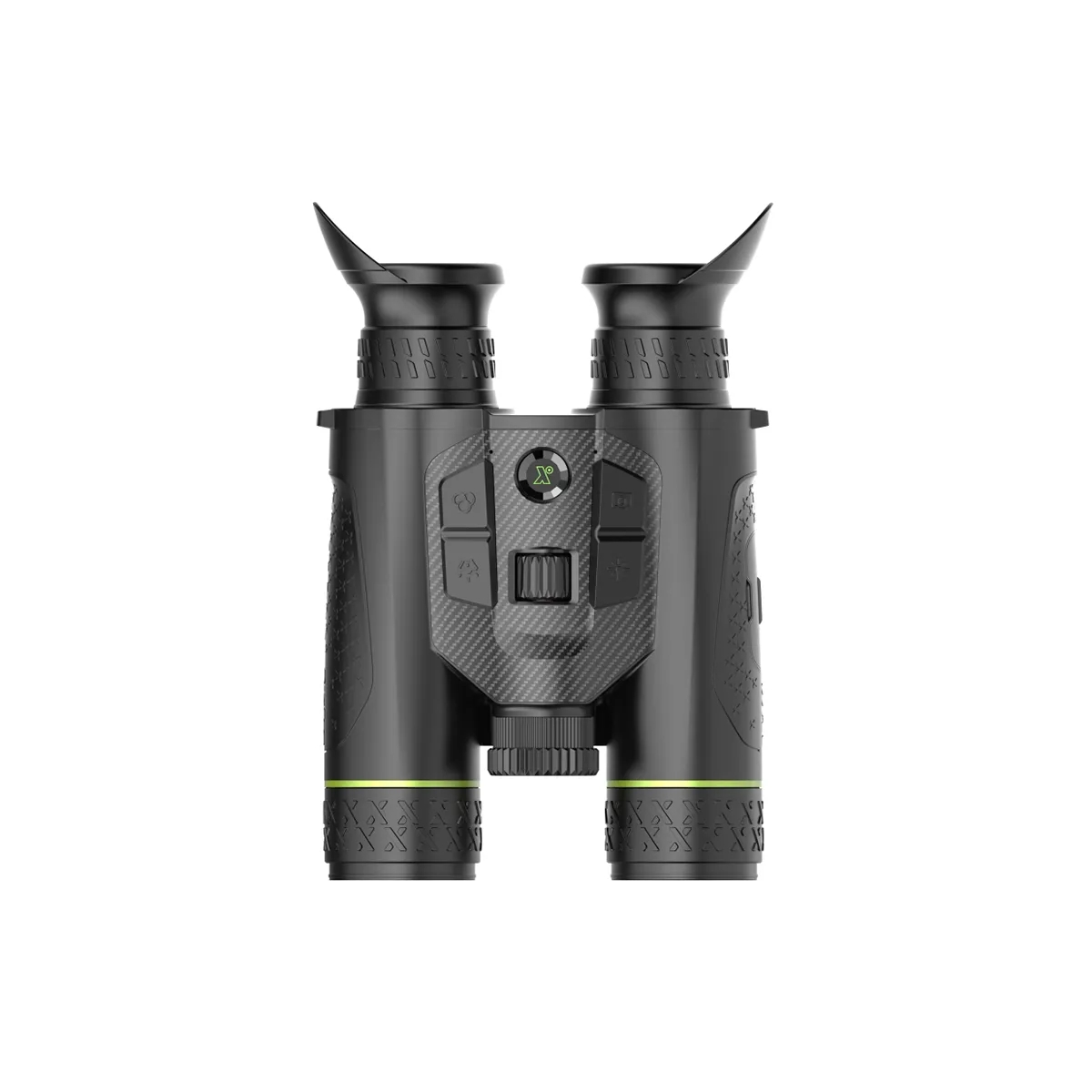

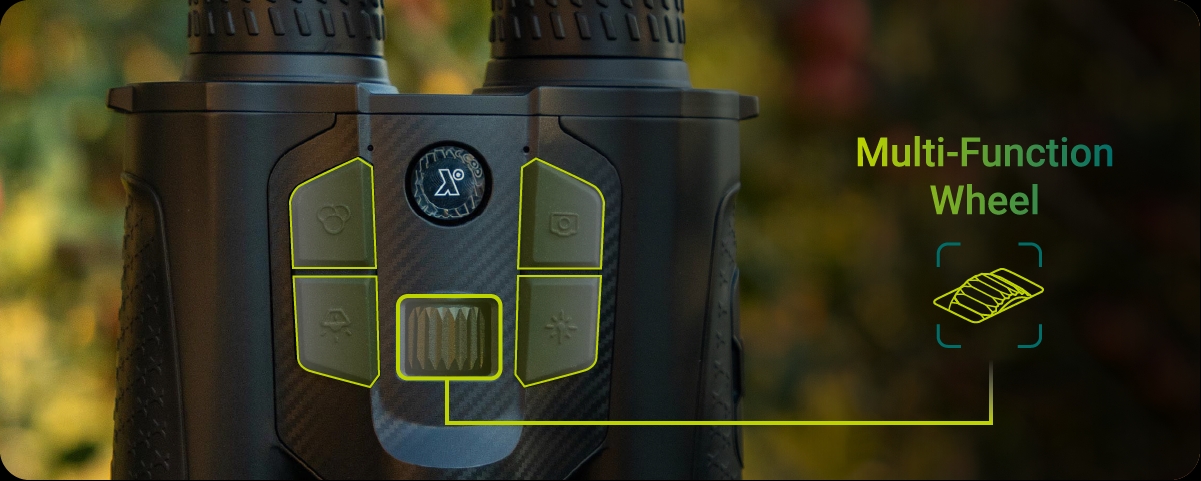

The DRACO D225-4K features a built-in laser rangefinder with up to 1,000 m range, adding precise distance measurement for fieldcraft and planning. Its magnesium-alloy housing offers excellent durability while keeping weight to a manageable 600 g-class, supported by an ergonomic grip and a multi-function control wheel with four-button layout that mirrors traditional binocular operation for intuitive, eyes-on control.
Designed for extended use, the unit delivers up to 9 hours of runtime on removable 18650 batteries and supports flexible charging via USB-C, power banks or external battery charging. Dual-band Wi-Fi (2.4 GHz and 5 GHz) enables stable live streaming and file transfer to a mobile app, while 64 GB of internal storage allows easy recording of photos and video in the field.
Compact, powerful and highly versatile, the Pixfra DRACO D225-4K is an ideal choice for users who want professional-grade multispectral performance in a single, portable binocular platform.
- Product Type Multispectral thermal & digital binoculars
- Imaging Modes Thermal imaging, digital day vision, digital night vision
- Thermal Sensor 256 × 192 VOx uncooled detector
- Pixel Pitch 12 µm
- Thermal Sensitivity (NETD) ≤18 mK
- Thermal Objective Lens 25 mm f/0.9
- Thermal Field of View 12.2 m × 9.3 m @ 100 m
- Thermal Base Magnification 4.3×
- Thermal Digital Zoom 1–8×
- Thermal Detection Range Up to approx. 1,300 m
- Digital Sensor 1/1.8” CMOS, 4K resolution (3840 × 2160)
- Digital Objective Lens 55 mm f/2.0
- Digital Base Magnification 5.5×
- Digital Digital Zoom 1–8×
- Digital Field of View 14.0 m × 8.8 m @ 100 m
- Day/Night Switching Automatic
- Display Type 0.49-inch OLED
- Display Resolution 1920 × 1080 (Full HD)
- User Interface Curved UI design
- Image Processing PIPS 3.0 AI image enhancement
- Image Stabilisation Electronic Image Stabilisation (EIS)
- Defog Mode Yes
- Laser Rangefinder Integrated, Class 1
- Rangefinder Distance Up to 1,000 m
- Range Accuracy ±1 m
- Infrared Illuminator Detachable 850 nm included (940 nm available separately)
- Colour Palettes (Thermal) White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
- Digital Viewing Modes Colour, Black & White, Green, Yellow, Auto
- Storage 64 GB internal memory
- Recording Photo and video capture
- Connectivity Dual-band Wi-Fi (2.4 GHz & 5 GHz)
- App Support Pixfra mobile app
- Interface / Charging Port USB-C
- Battery Type Removable 18650 Li-ion batteries
- Batteries Supplied 4 × 18650
- Runtime Up to approx. 9 hours (temperature dependent)
- Charging Options In-device USB-C, power bank, external charger
- Single Battery Operation Yes
- Housing Material Magnesium alloy
- Ingress Protection IP67
- Operating Temperature Range –30 °C to +55 °C
- Interpupillary Distance 60–74 mm (adjustable)
- Eyecups Foldable

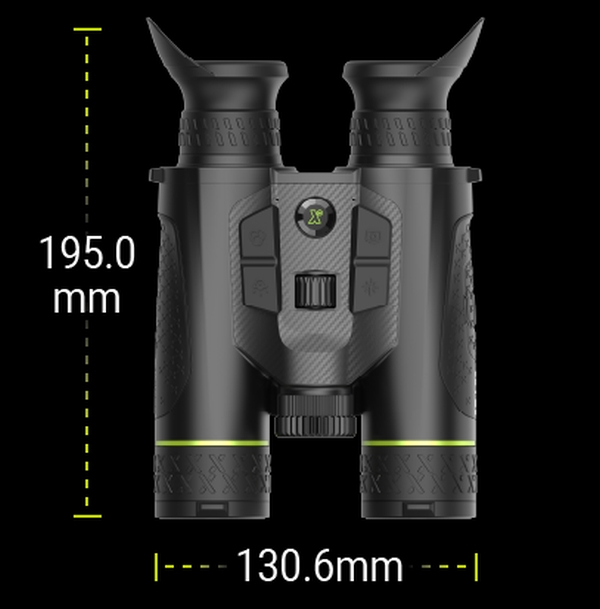

- Dimensions 195 × 130.6 × 61.7 mm
- Weight Approx. 610–620 g
- Intended Use Hunting, wildlife observation, surveillance, security and outdoor exploration
-
Multispectral binocular design combining thermal imaging, digital day/night vision, laser rangefinding and infrared illumination in one device
-
All-in-one observation tool suitable for daytime, low-light and night-time use
-
Ergonomic binocular-style housing designed for comfortable two-eyed viewing
-
Lightweight, well-balanced body optimised for extended handheld use
-
Intuitive control layout with multi-function wheel for blind operation in darkness
-
AI-powered image processing to enhance clarity, contrast and overall image consistency
-
Electronic image stabilisation for steadier viewing when handheld
-
Defog function to maintain image clarity in mist, rain and cold conditions
-
Automatic day/night switching for seamless transitions as light levels change
-
Detachable infrared illuminator supplied for enhanced night-time visibility
-
Optional alternative infrared wavelength available for reduced visible signature
-
Built-in laser rangefinder for accurate distance measurement in the field
-
High-contrast OLED display for comfortable viewing and reduced eye strain
-
Curved user interface designed to maximise usable viewing area
-

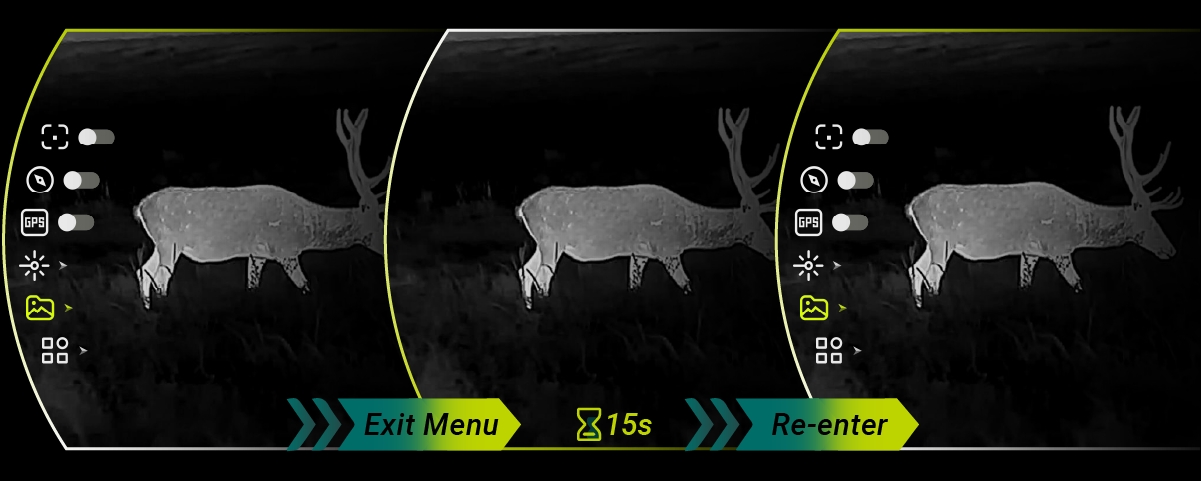

Menu memory function for faster, more efficient operation
-
Dual-band Wi-Fi for stable live streaming and app connectivity
-
Onboard photo and video recording for documenting observations
-
Flexible power options including removable batteries and external charging
-
Designed for hunting, wildlife observation, surveillance and security use
-
Durable construction built to withstand regular outdoor and field conditions
- Pixfra DRACO D225-4K Multispectral Binoculars
What makes the Pixfra DRACO D225-4K different from standard thermal binoculars?
The DRACO D225-4K is a true 4-in-1 multispectral device, combining thermal imaging, 4K digital day/night vision, a laser rangefinder and infrared illumination in one compact binocular. This removes the need to carry multiple devices in the field.
Can it be used in complete darkness?
Yes. In near-total or total darkness, the digital night vision works alongside the included 850 nm IR illuminator to provide clear visibility. A 940 nm IR illuminator is also available separately for users who want a lower visible infrared signature.
How effective is the thermal imaging for spotting animals or people?
The thermal channel is highly sensitive and designed to detect subtle heat differences, making it effective for spotting animals or people at long distances, even through darkness, light vegetation, mist or haze.
Does it automatically switch between day and night modes?
Yes. The device features automatic day/night switching, allowing seamless transitions at dusk and dawn without manual adjustments.
Is the binocular comfortable for long periods of use?
Absolutely. It features an ergonomic, lightweight magnesium-alloy body, adjustable interpupillary distance, foldable eyecups and a binocular-style viewing experience designed for extended observation sessions.
How accurate is the built-in laser rangefinder?
The integrated laser rangefinder provides precise distance measurements up to long ranges, making it useful for hunting, wildlife estimation, security monitoring and general situational awareness.
Can I record photos and videos?
Yes. The DRACO D225-4K allows both photo and video recording and includes 64 GB of internal storage, so no additional memory cards are required.
Does it support live streaming or mobile connectivity?
It does. With dual-band Wi-Fi (2.4 GHz and 5 GHz), the binocular can stream live footage to a compatible mobile app and transfer files wirelessly with a stable connection.
How long does the battery last, and how is it charged?
Battery life is designed for extended field use, offering up to a full day’s typical observation. The unit supports removable batteries and flexible charging via USB-C, power banks or an external charger.
Is the DRACO D225-4K suitable for harsh outdoor conditions?
Yes. The robust magnesium-alloy housing and weather-resistant design make it well suited for demanding outdoor environments, including cold, damp and variable weather conditions.
