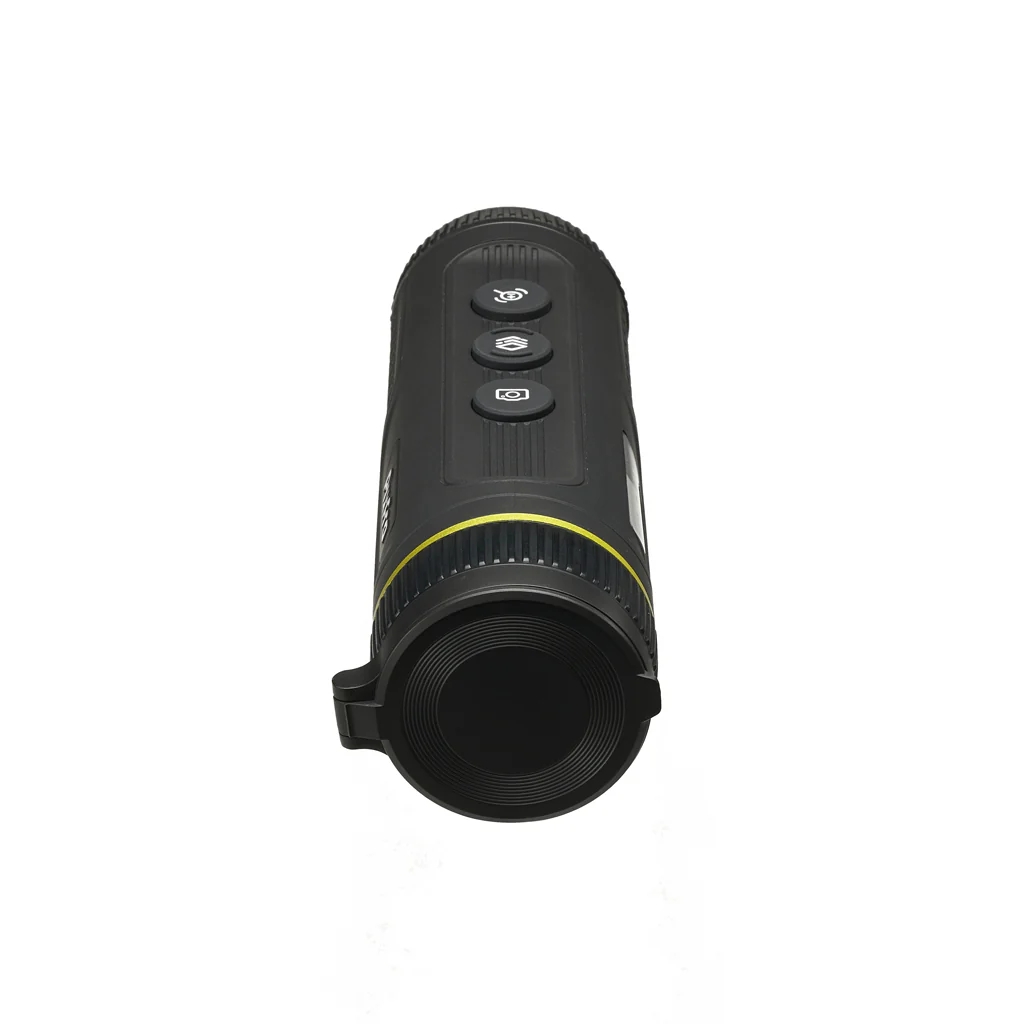

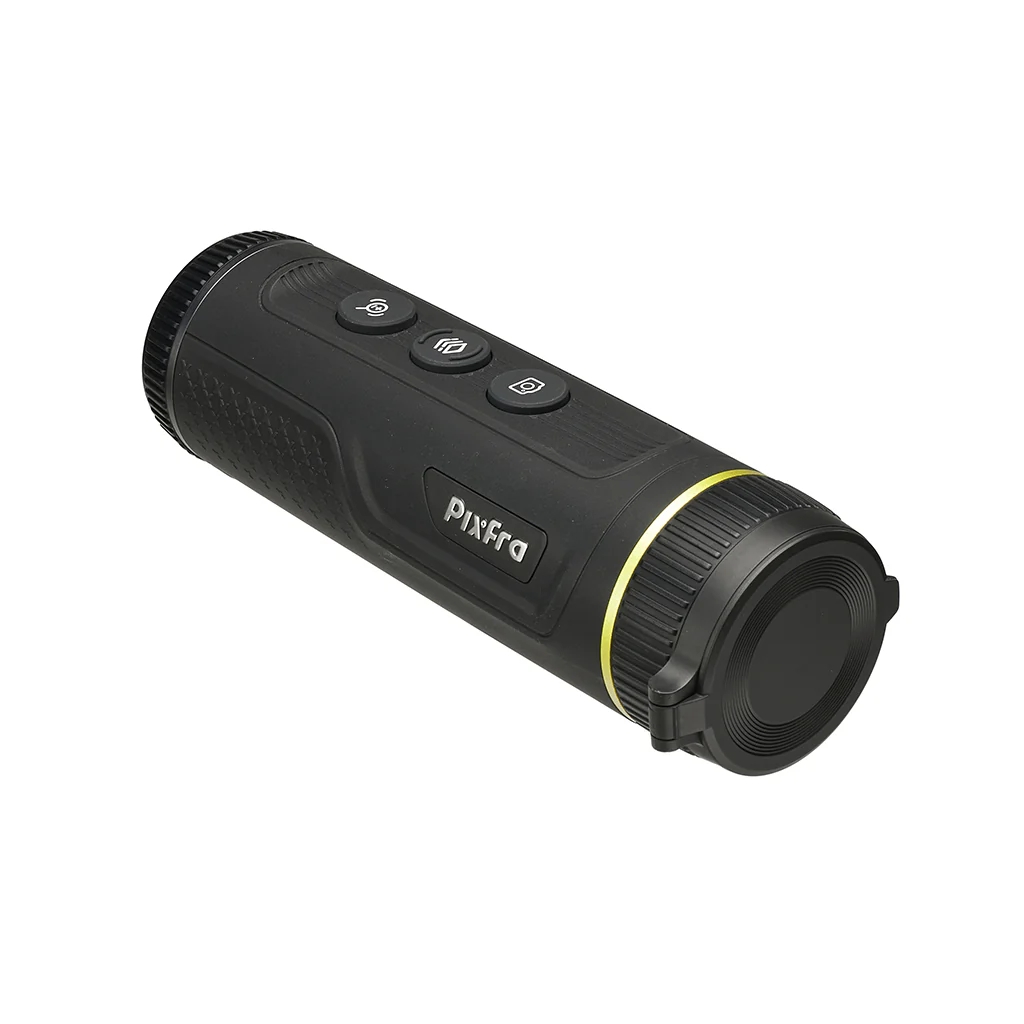

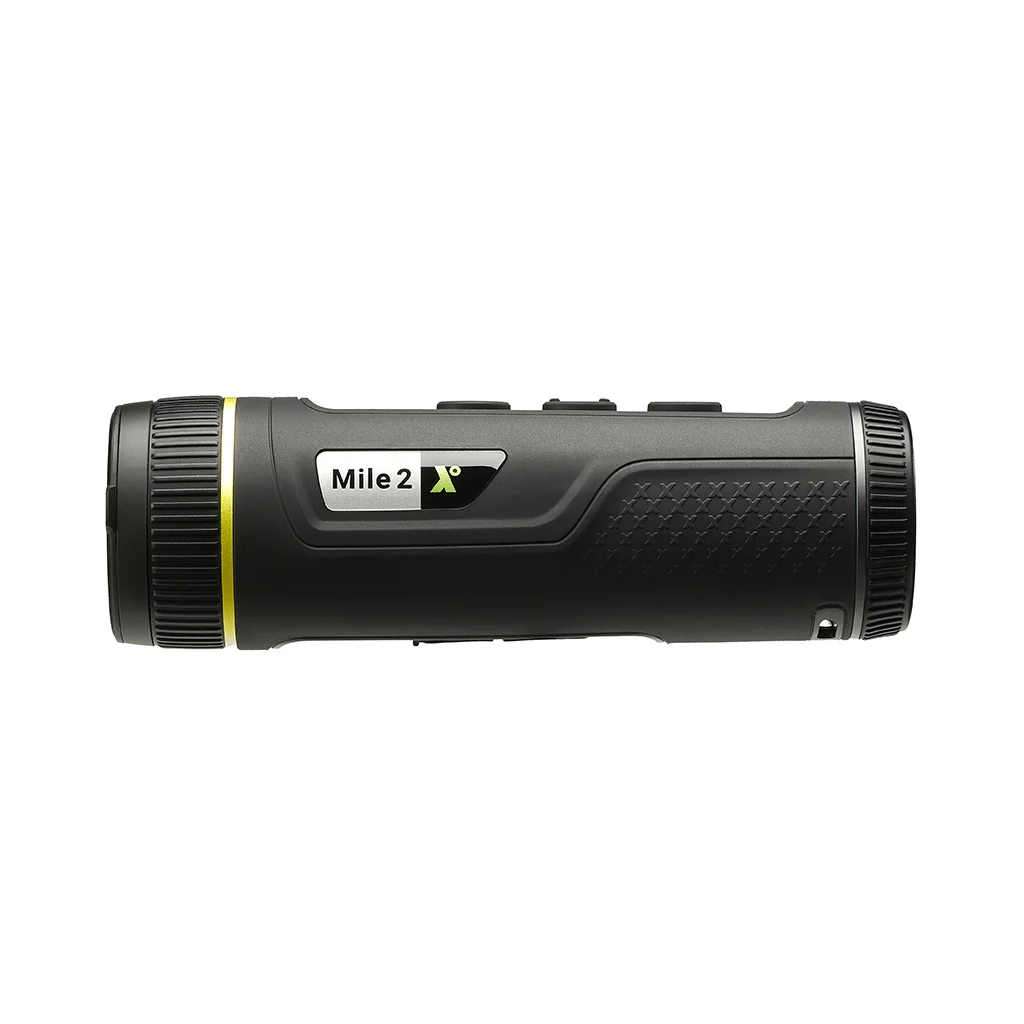

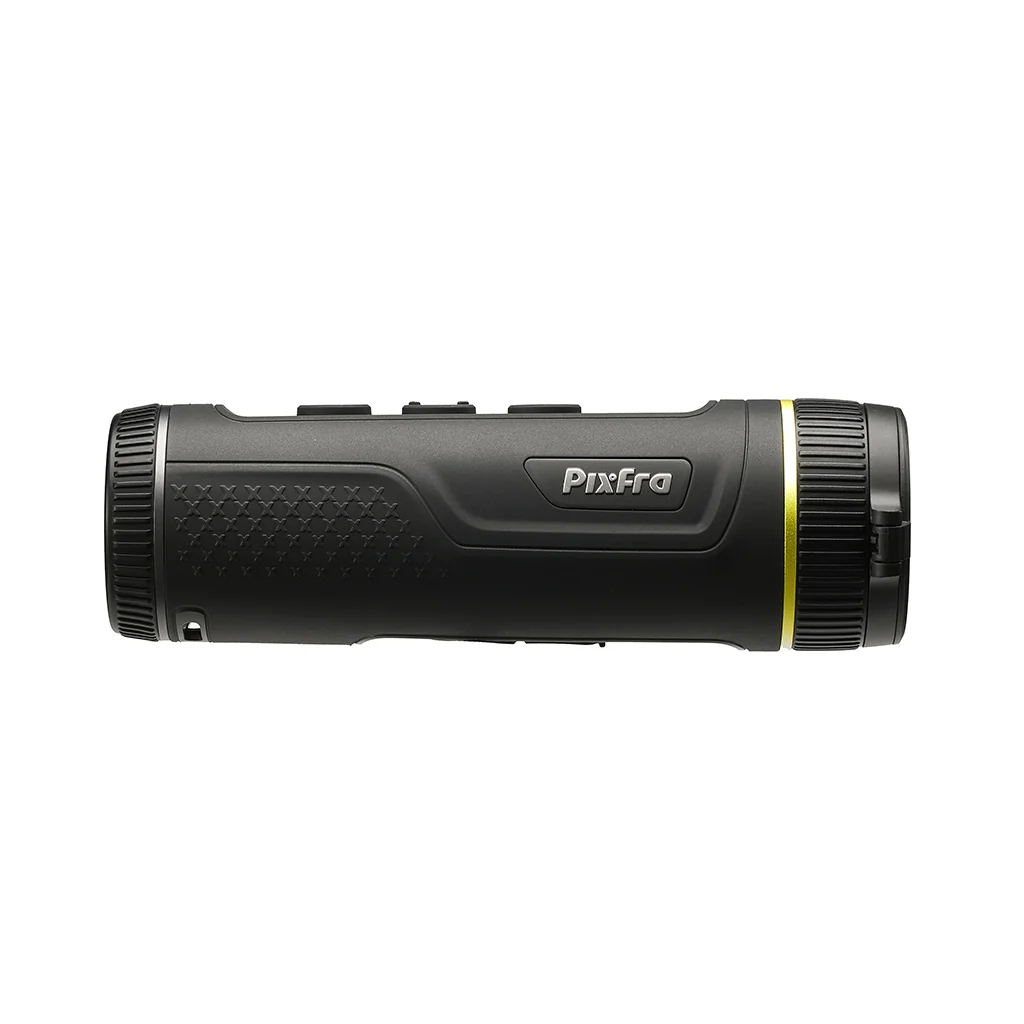

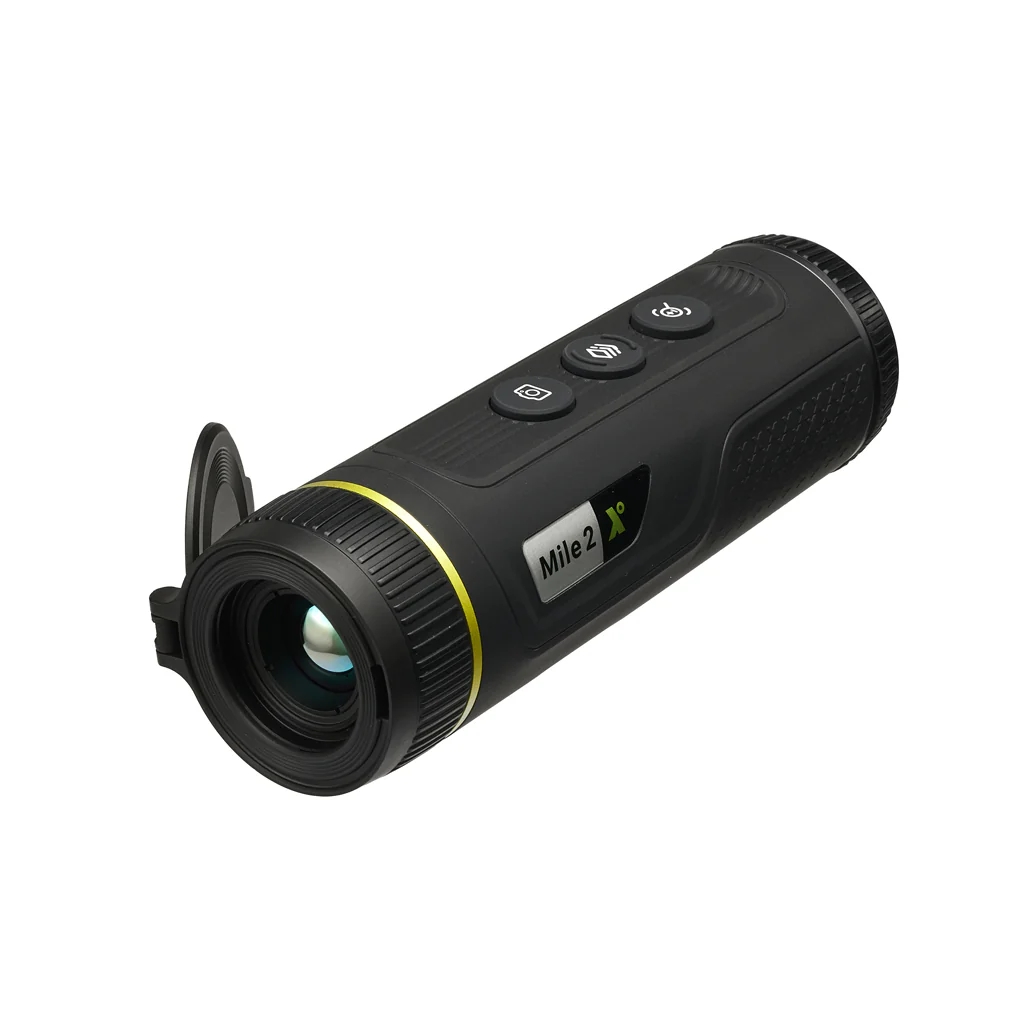

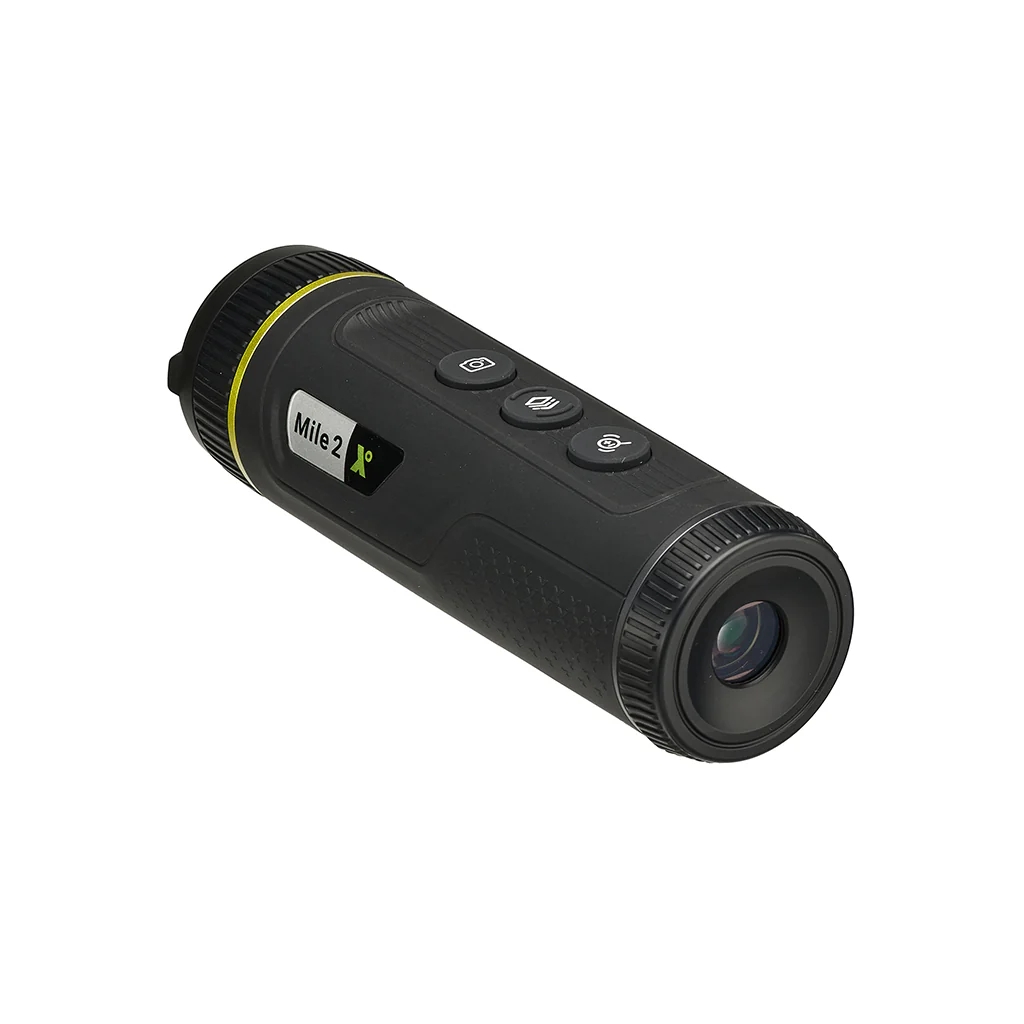

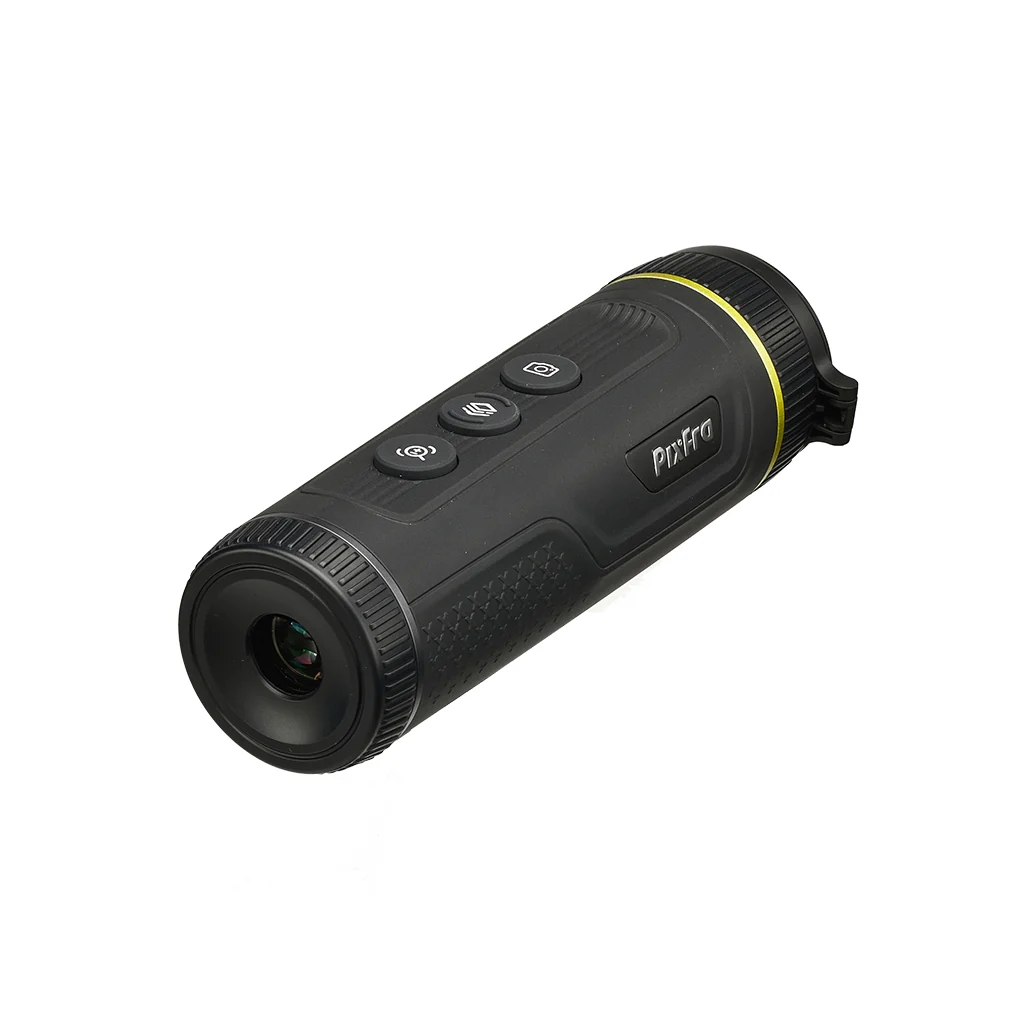

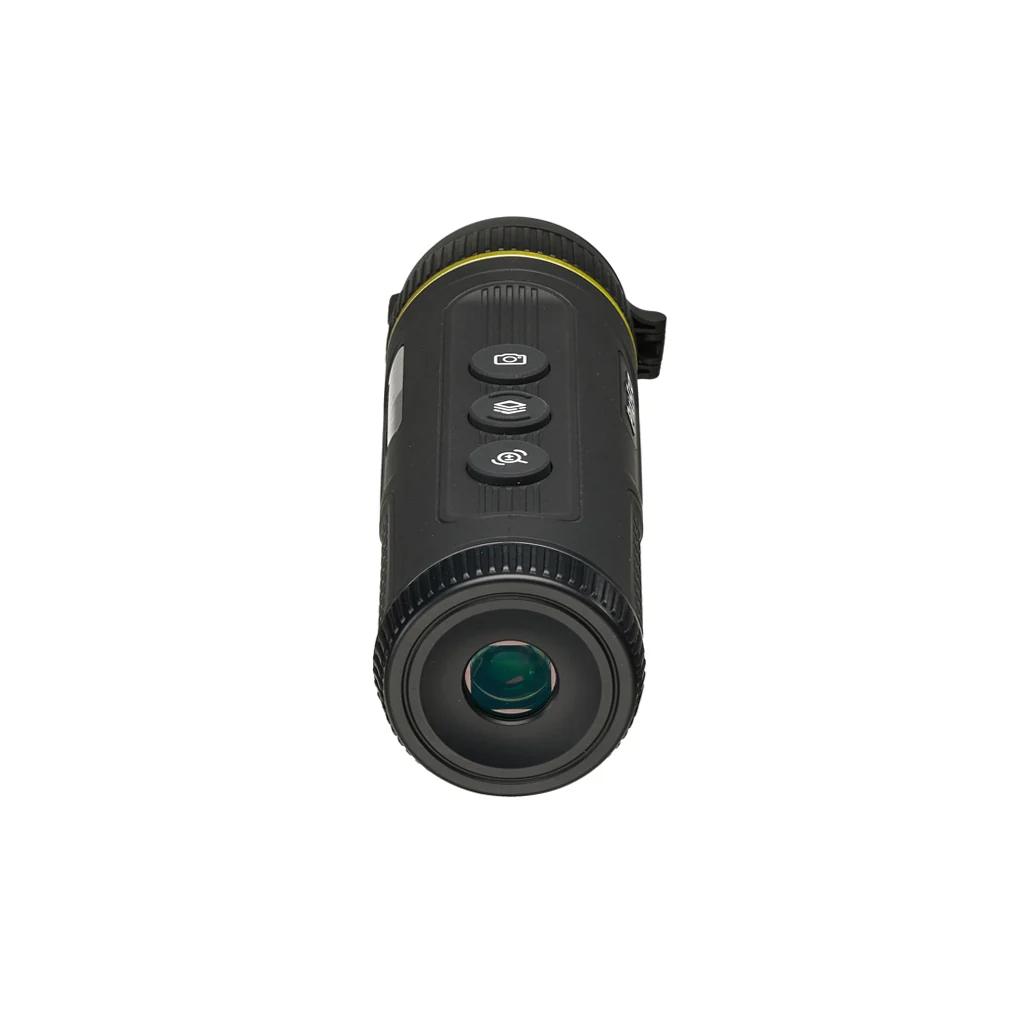

Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk
Designed with a sleek, slimline form, the Mile 2 M413 embodies both style and practicality. Its streamlined design features an innovative power button built into the Pixfra logo, reducing button clutter and simplifying device control. Despite its advanced capabilities, the monocular remains lightweight and compact, making it comfortable to carry for extended periods and easy to store in a pocket or backpack. Accessories like a soft carrying pouch, neck strap, and wrist strap are included to further enhance ease of use and portability.
Built to withstand demanding environments, the Mile 2 M413 carries an IP67 protection rating, safeguarding it against dust and water and ensuring peak performance in conditions from -30°C to +55°C. This rugged design makes the monocular ideal for use in diverse weather conditions, from heavy rain to high humidity, without sacrificing functionality or image quality.
The Mile 2 M413 also excels in connectivity, featuring a robust Wi-Fi hotspot that links the monocular to up to four smart devices at a distance of up to 40 meters. Through the Pixfra app, available on both Android and iOS, users can share live views and recorded content effortlessly, enabling group observations and collaborative insights. The device includes built-in video recording and 16GB of internal storage, allowing users to capture and store both still images and videos, ideal for documentation and review.
Powered by a rechargeable lithium battery with up to eight hours of operation per charge, the Mile 2 M413 supports prolonged observation sessions, ensuring users can remain in the field without interruption. With a USB Type-C port and overvoltage protection, the device is easy to recharge and reliable for extended use. The Pixfra Mile 2 M413 handheld thermal monocular combines top-tier imaging capabilities, rugged durability, and seamless connectivity, making it an exceptional choice for anyone seeking a reliable, high-quality thermal imaging device.
- Thermal Sensor 384×288, 12μm, <25mK NETD
- Objective Lens 13mm f1.0
- Spectral Range 8 μm–14 μm
- Field of View H
- Focus Control Manual
- Close Focus Distance 0.5 m (1.64 ft)
- Detection Range Up to 700 m
- Magnification 1.40x
- Frame Rate 50 Hz
- Display 800×600, 0.32-inch OLED
- Color Palettes 6 (White Hot, Black Hot, Iron Red, Alarm, Emerald, Amber)
- Video Compression H.264
- Diopter Adjustment -5 D to +3 D
- Eye Relief 15 mm (0.59 inch)
- Exit Pupil 6 mm (0.24 inch)
- Digital Zoom 1×, 2×, 4×, 8×
- Video Recording Yes
- Still Image Capture Yes
- Wi-Fi Hotspot Yes
- Hot Spot Tracking Yes
- Video Distance Measurement Yes
- FFC Calibration Auto, Manual, External Correction
- Standby Mode Yes
- Defective Pixel Correction (DPC) Yes
- Storage Built-in 16GB
- Battery Type Rechargeable Lithium Battery
- Battery Life Up to 8.0 hours (@ 25°C)
- Power Supply 5 VDC/2 A
- Port USB Type-C
- Overvoltage Protection Yes
- Operating Temperature -30 to +55 °C (-22 to +131 °F)
- Operating Humidity ≤95%
- Protection Grade IP67
- Packaging Dimensions 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″)
- Product Dimensions 156.5 mm × 56.6 mm × 50.3 mm (6.16″ × 2.23″ × 1.98″)
- Gross Weight 760 g (1.68 lb)
- Net Weight 320 g (0.71 lb)
-
High-Resolution Thermal Sensor
Equipped with an advanced 384×288, 12μm thermal sensor, the Pixfra Mile 2 M413 captures fine thermal details, making it easy to detect subtle heat signatures, even at extended distances. This high sensitivity allows users to identify objects and animals in a wide variety of outdoor conditions. -
Impressive Detection Range
With a detection range of up to 700 meters, the M413 provides remarkable clarity for spotting heat sources at long distances. This extended range is ideal for activities like wildlife observation, search and rescue operations, and nighttime navigation. -
Enhanced Display Quality
The 800×600 OLED display provides a clear, vivid viewing experience, showing intricate details and anatomical features with precision. This screen technology ensures that thermal images appear sharp, reducing eye strain and allowing for prolonged observation sessions. -
Compact, Slimline Design
The monocular is designed with both functionality and aesthetics in mind. Its slim, lightweight body reduces fatigue during extended use and is easy to carry, fitting comfortably in a backpack or even a pocket. The innovative design integrates the power button into the Pixfra logo, simplifying controls for a cleaner user interface. -
Built to Withstand Tough Conditions
With an IP67 rating, the M413 is fully protected against dust and can endure immersion in water, making it reliable in heavy rain, fog, and humid environments. It also functions seamlessly in extreme temperatures, ranging from -30°C to +55°C, making it dependable in diverse outdoor settings. -
Long Battery Life
A rechargeable lithium battery offers up to 8 hours of continuous operation, allowing users to rely on the device throughout extended excursions. This long battery life ensures users have uninterrupted performance for day or night observations. -
Wi-Fi Connectivity for Group Viewing
Featuring a built-in Wi-Fi hotspot, the M413 allows for seamless connectivity with up to four smart devices simultaneously at a range of up to 40 meters. This enables live view sharing with others via the Pixfra app on both Android and iOS, ideal for collaborative field observations. -
Onboard Recording and Storage
The device includes built-in video and image recording capabilities, allowing users to document their observations without needing additional equipment. With 16GB of internal storage, the M413 can save a significant amount of footage and images for later review or sharing. -
Convenient Accessories
The M413 comes with practical accessories like a soft pouch, wristband, neck strap, and lens cloth, enhancing portability and ease of use. These additions make it convenient to carry and keep the device ready for action.
- Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk
- USB Type-C Charging Cable
- Wristband
- Lanyard
- Lens Cloth
- Camera Pouch
- Eyeshade
- Quick Start Guide
- Pixfra 3 year warranty
