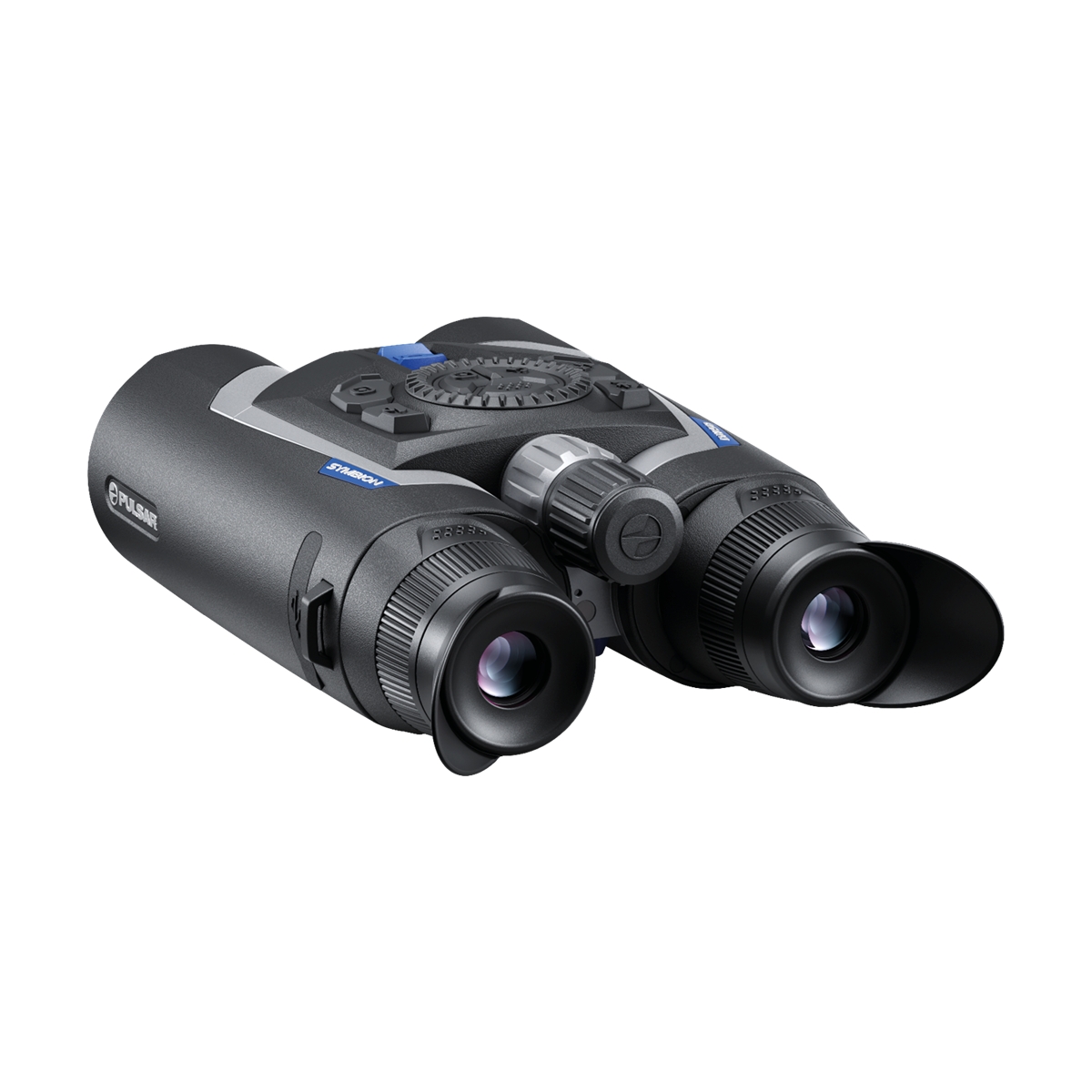

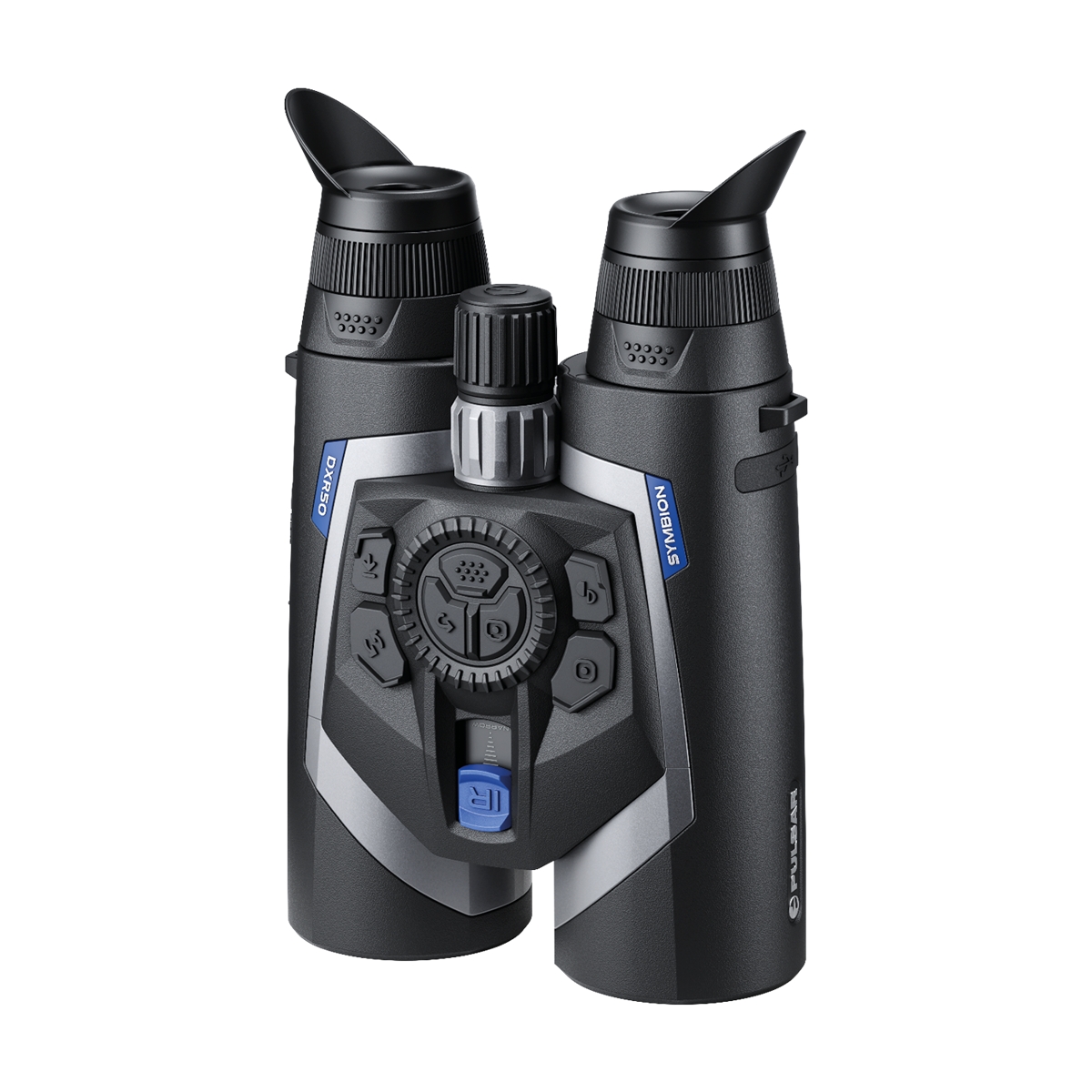

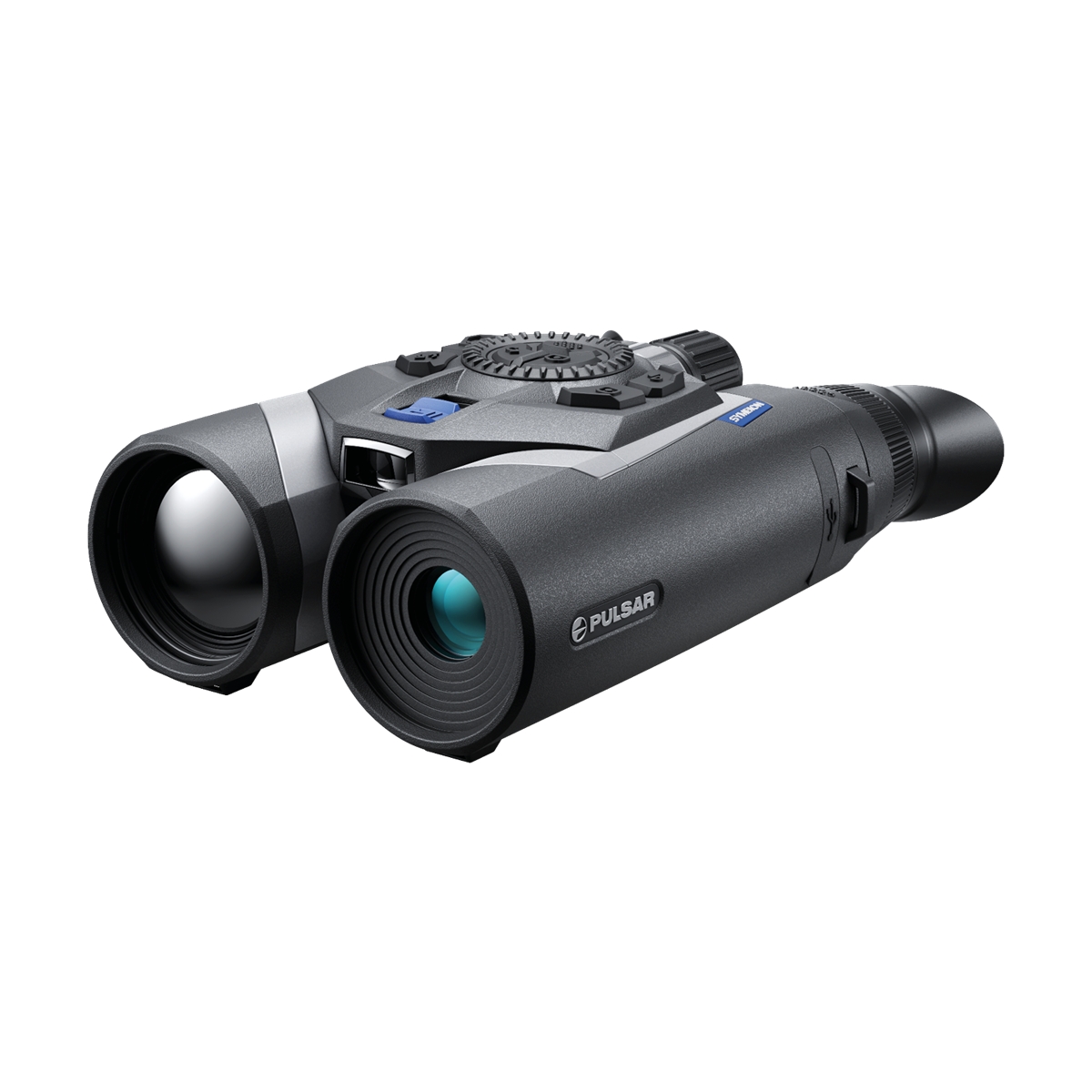

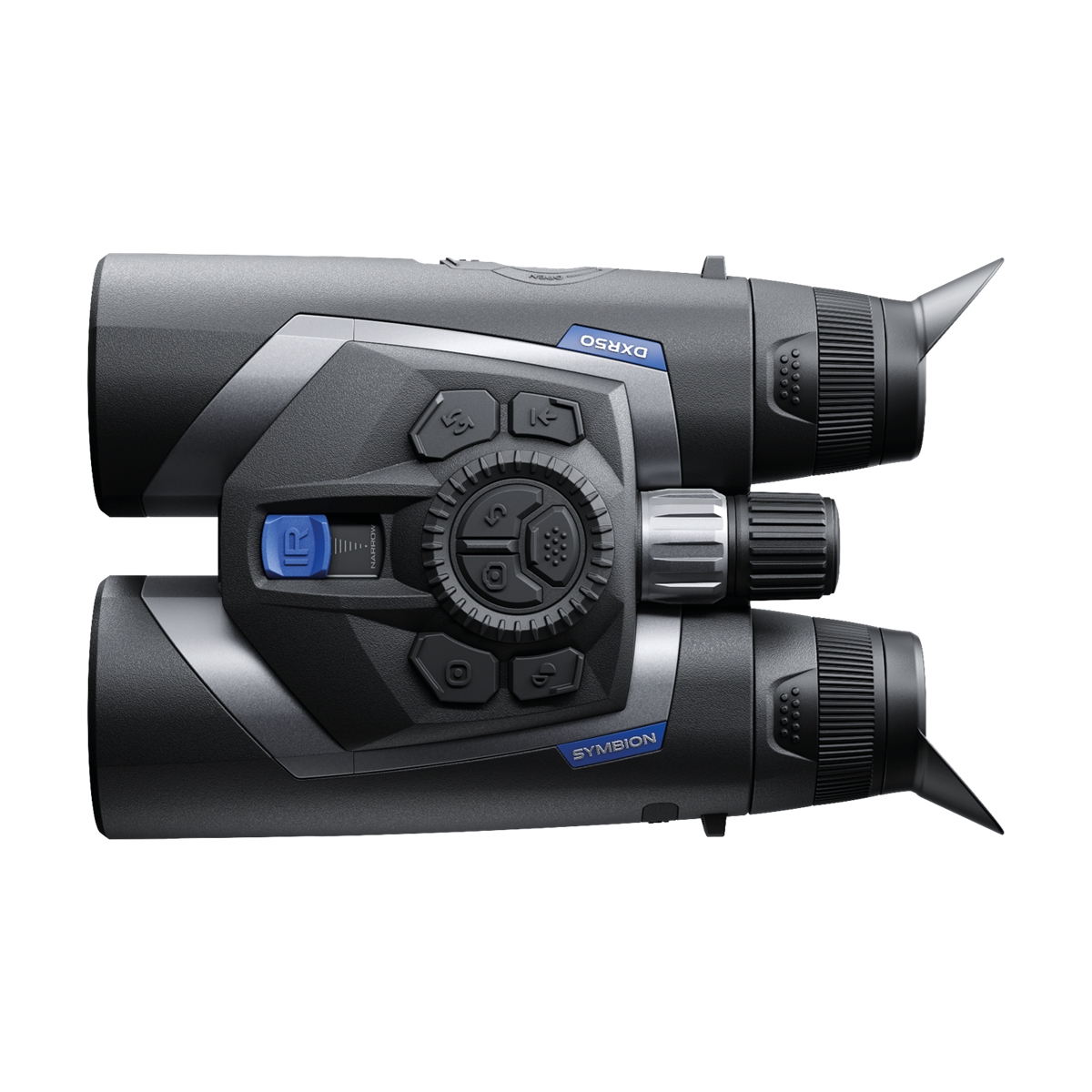

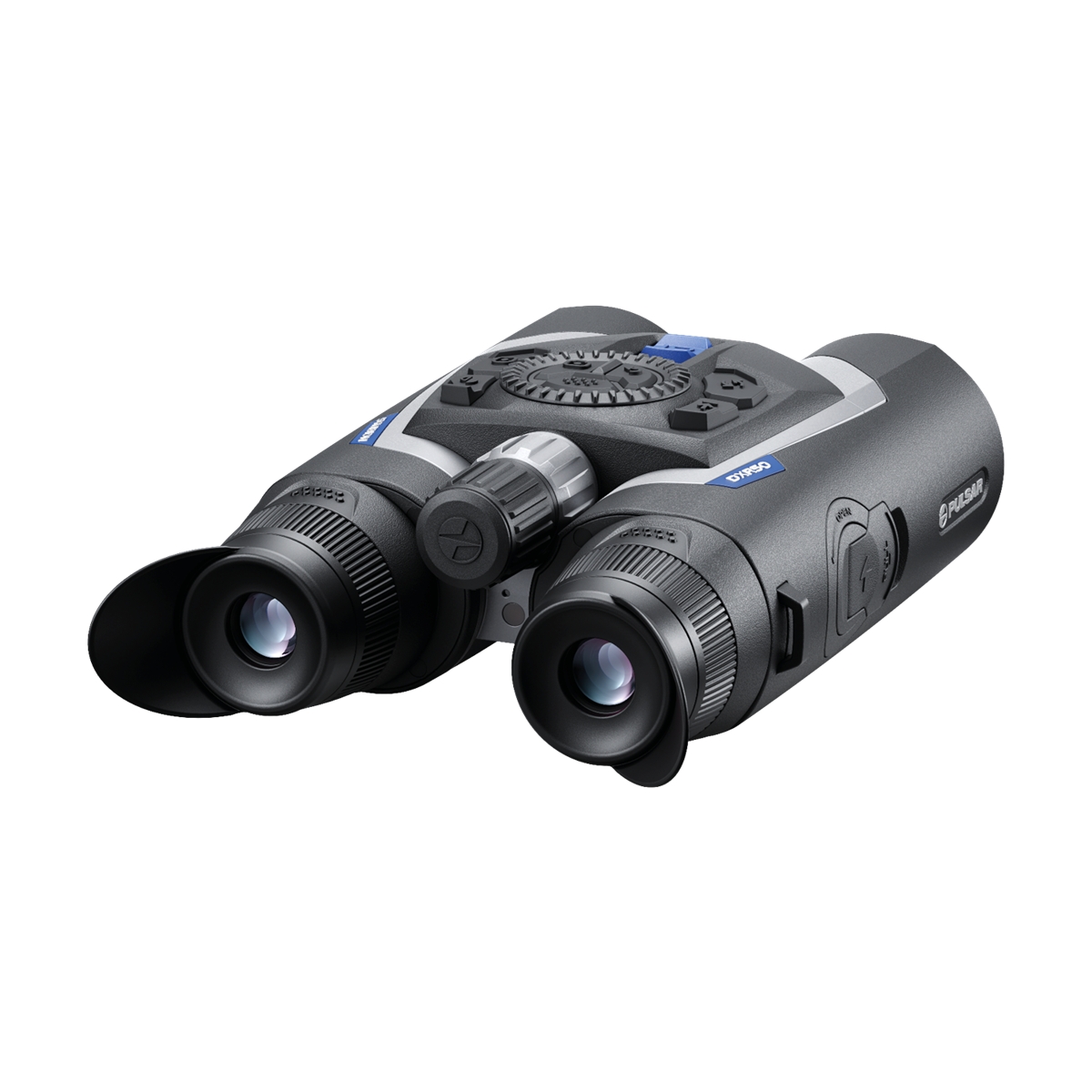

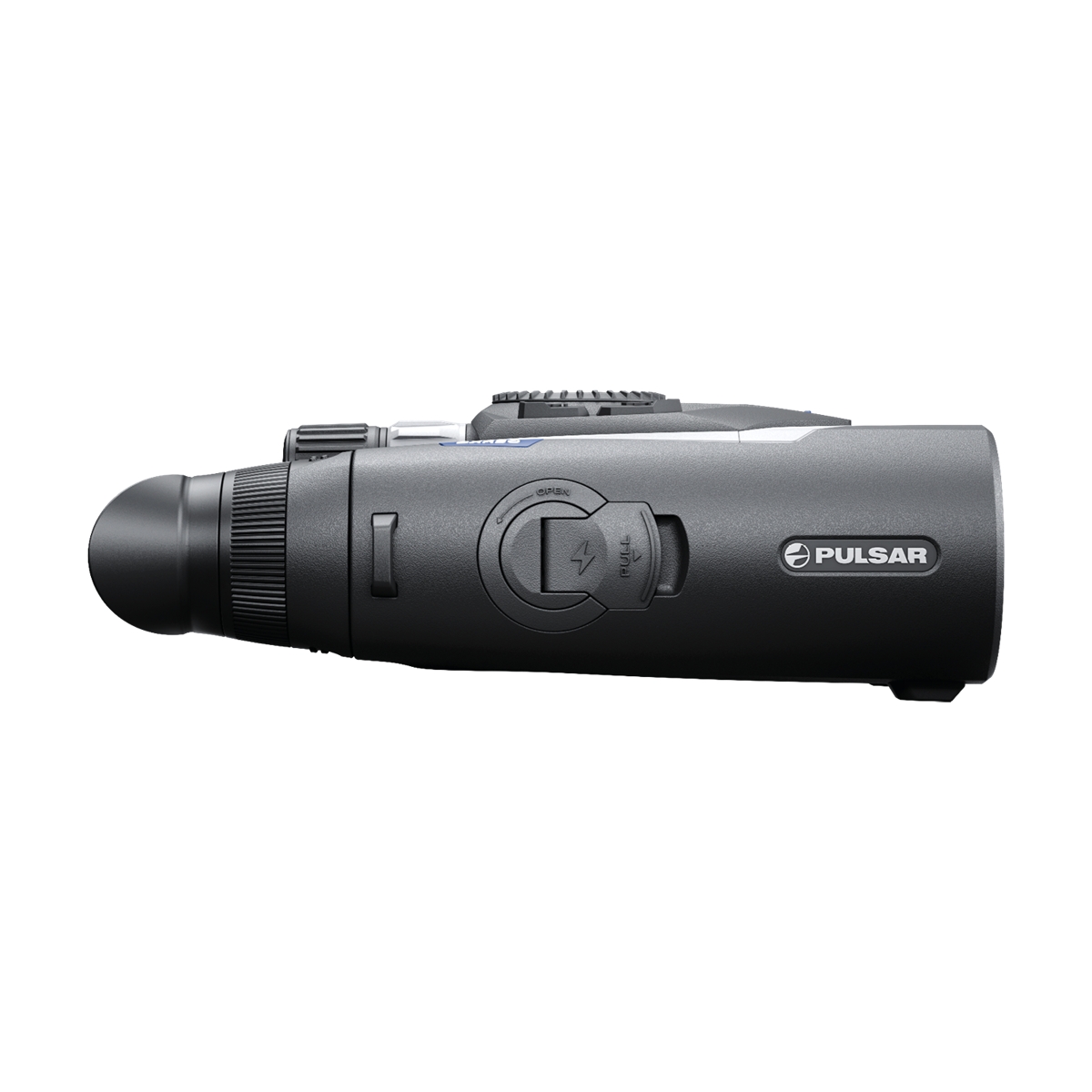

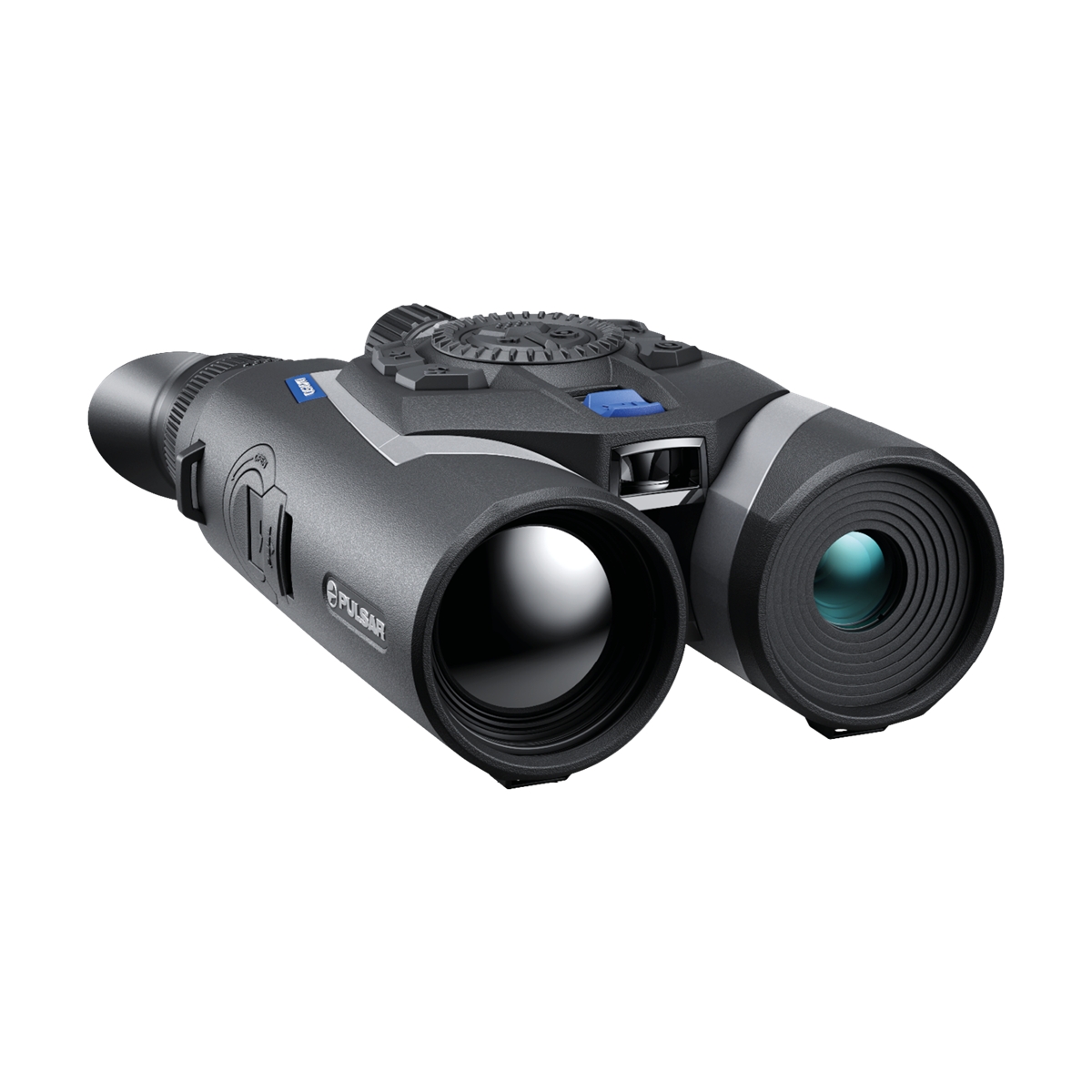

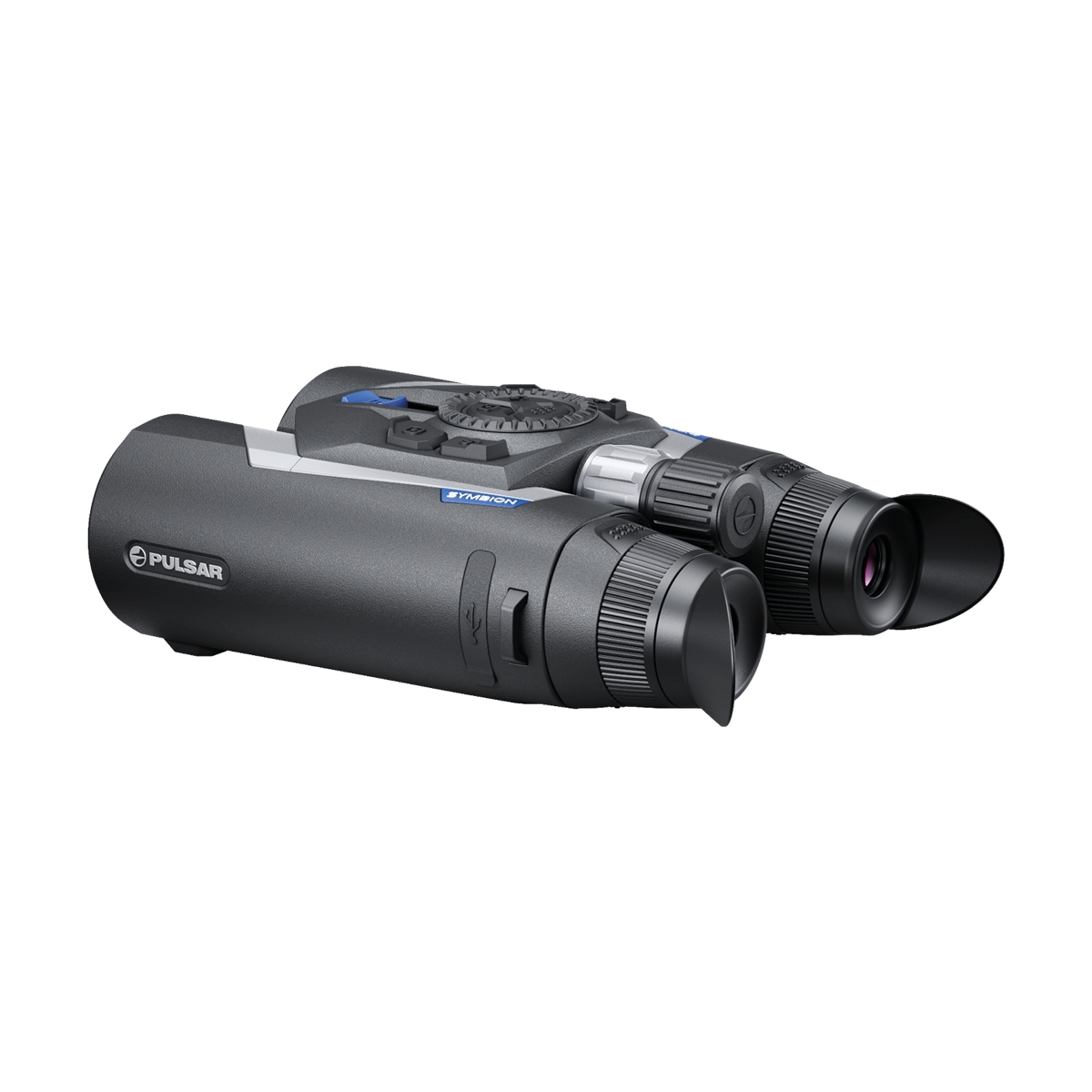

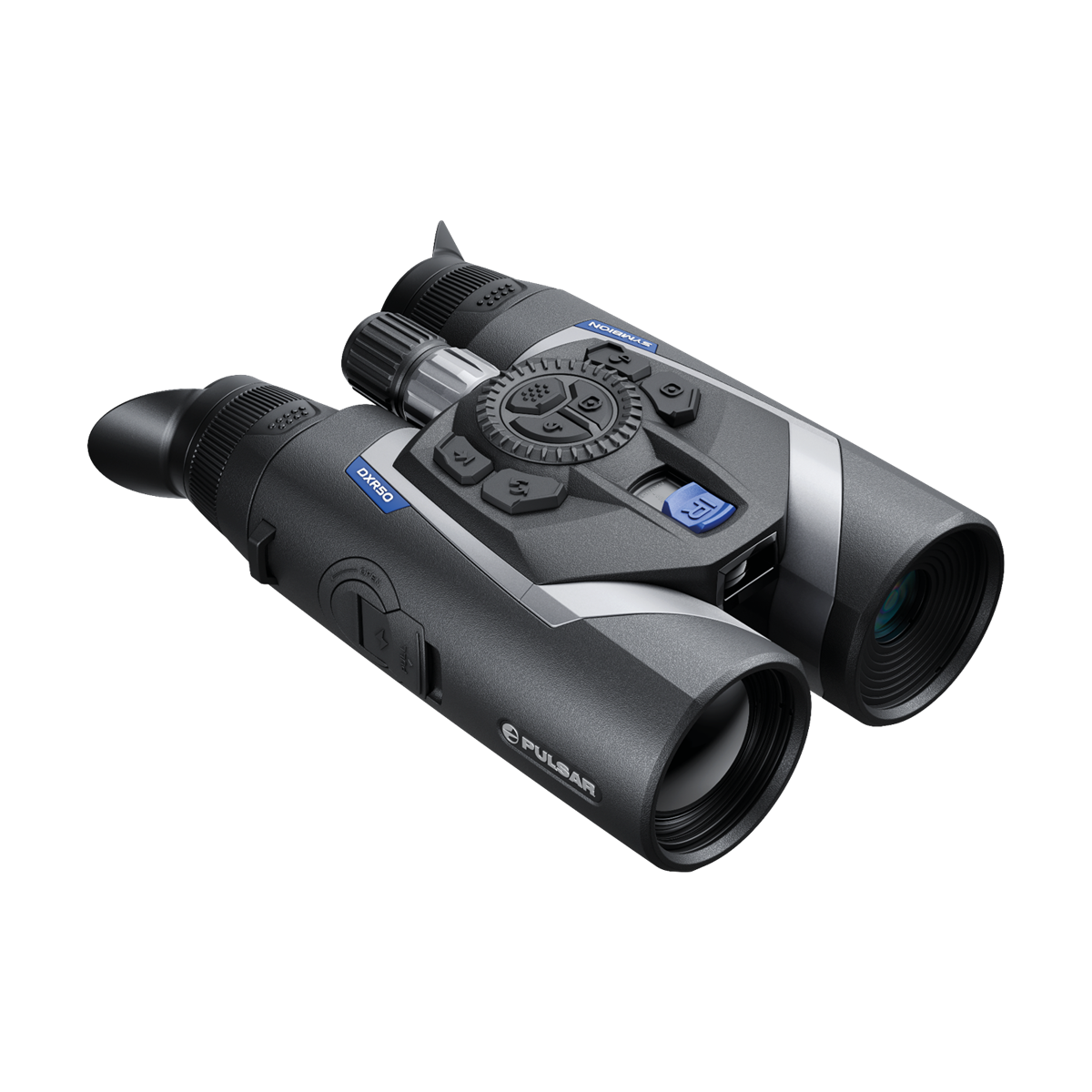

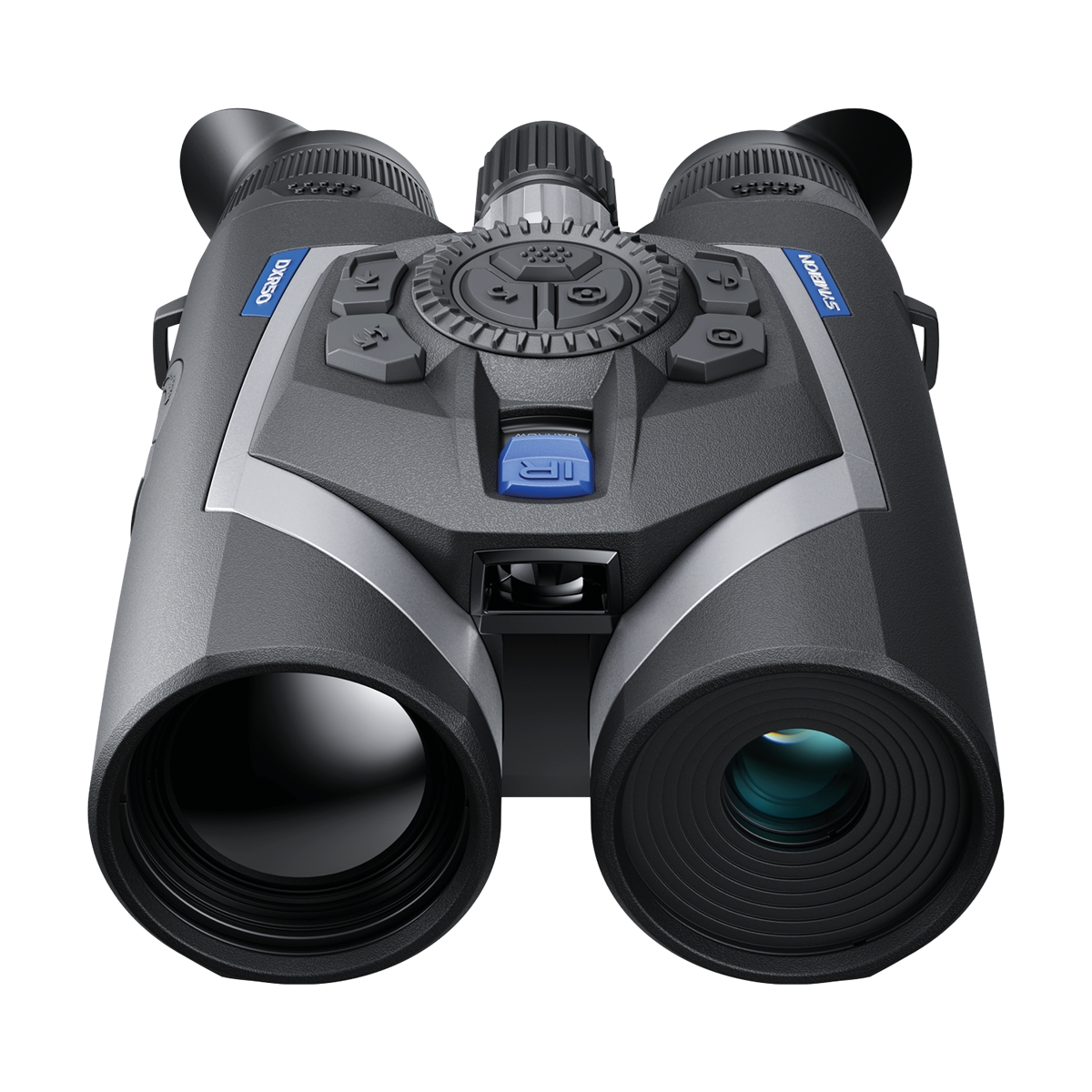

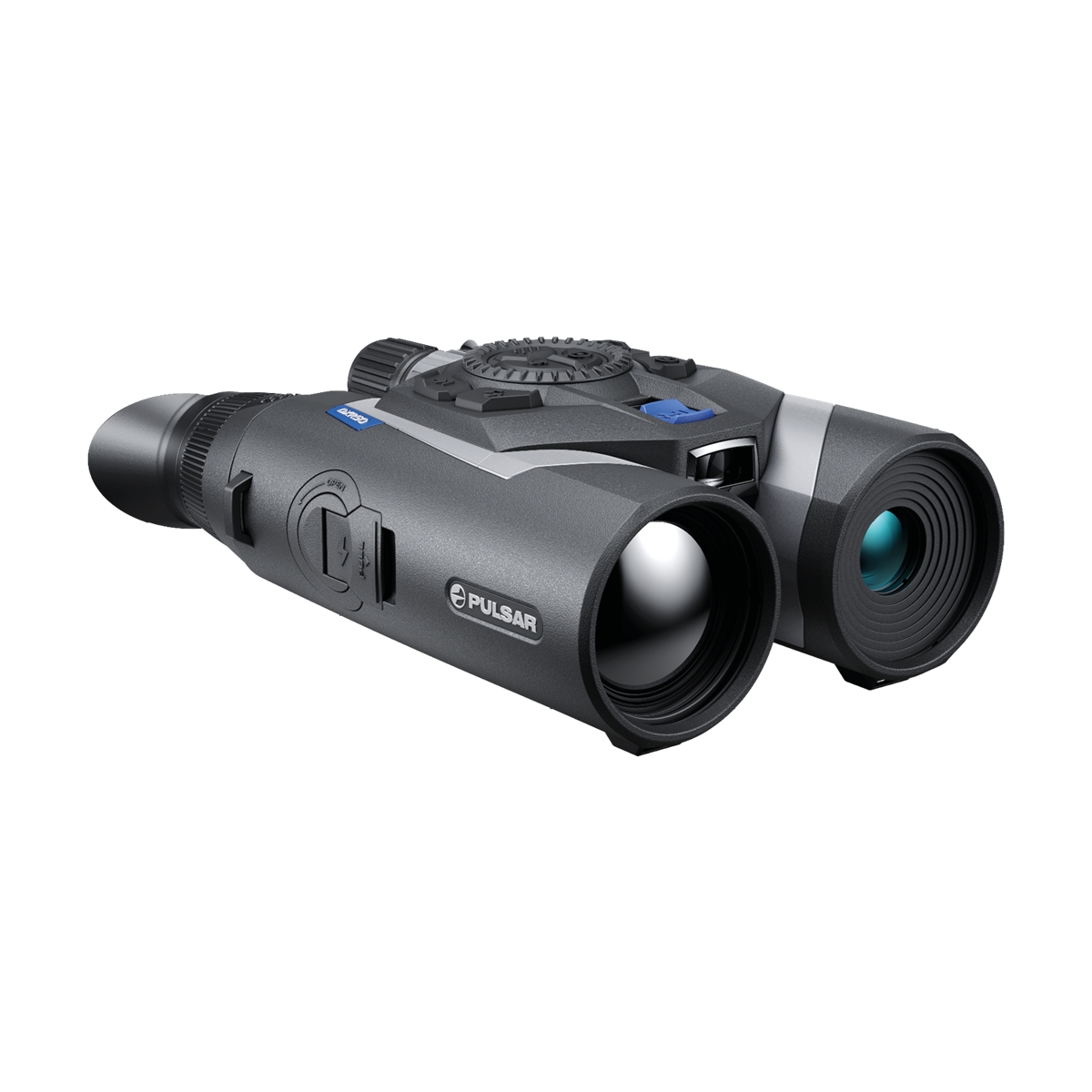

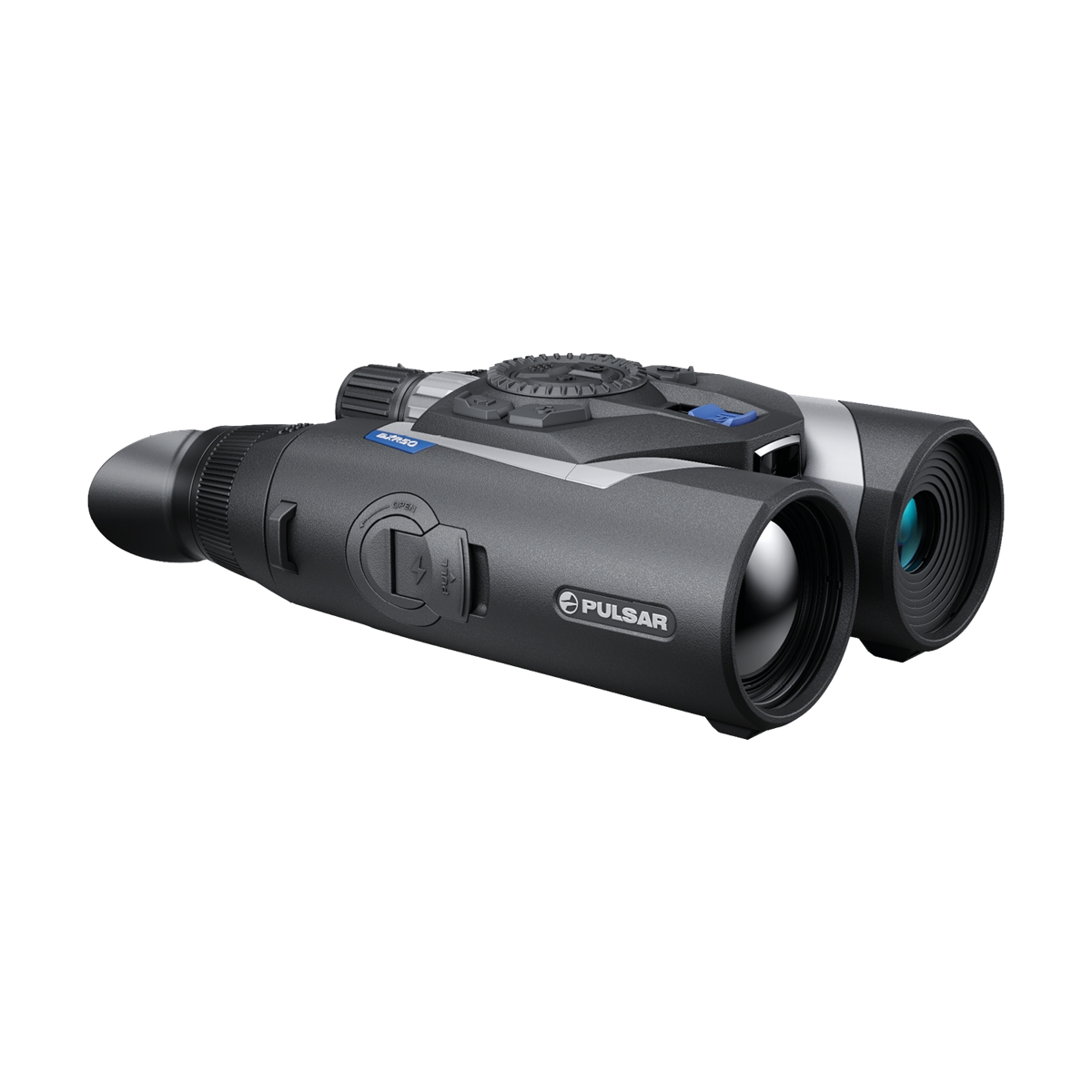

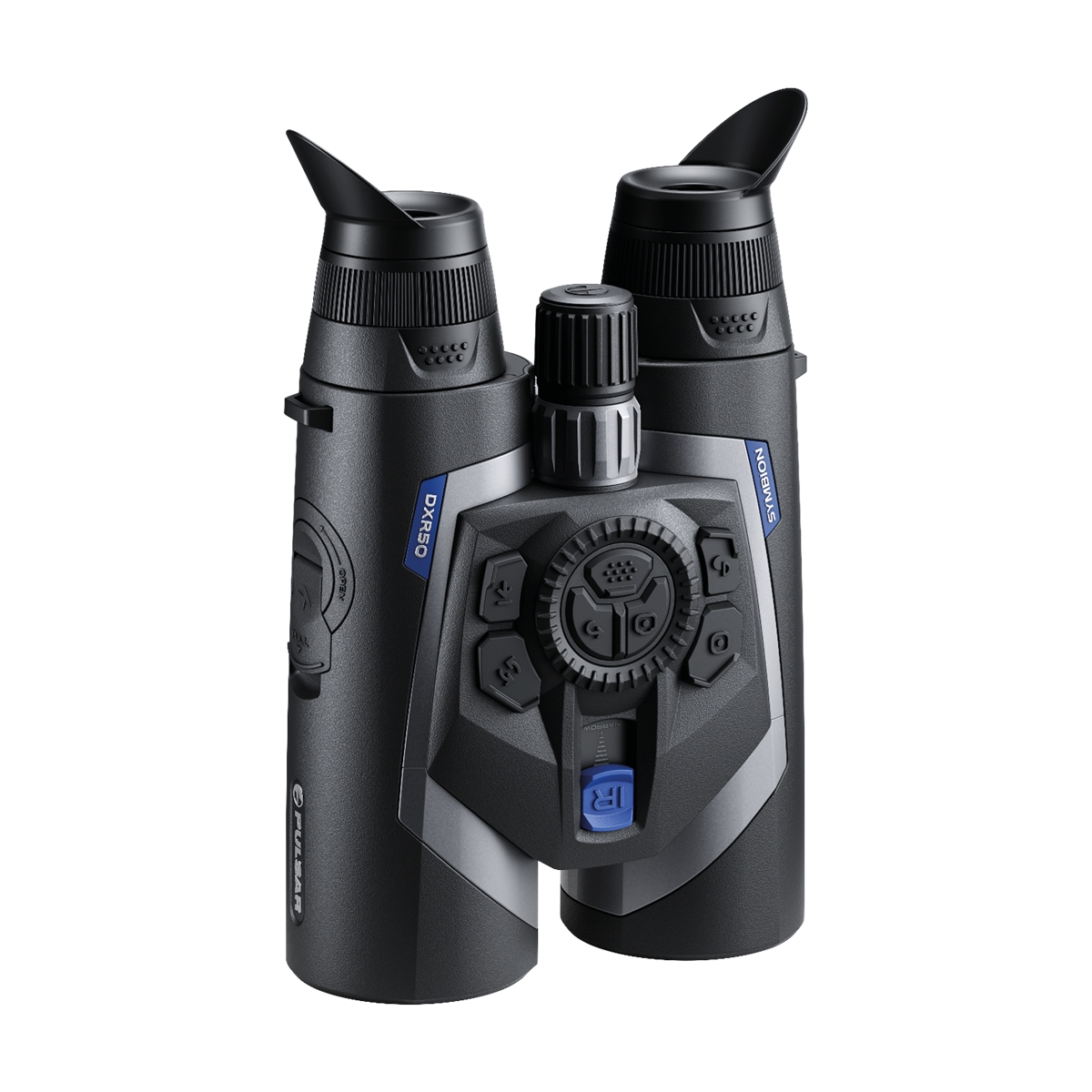

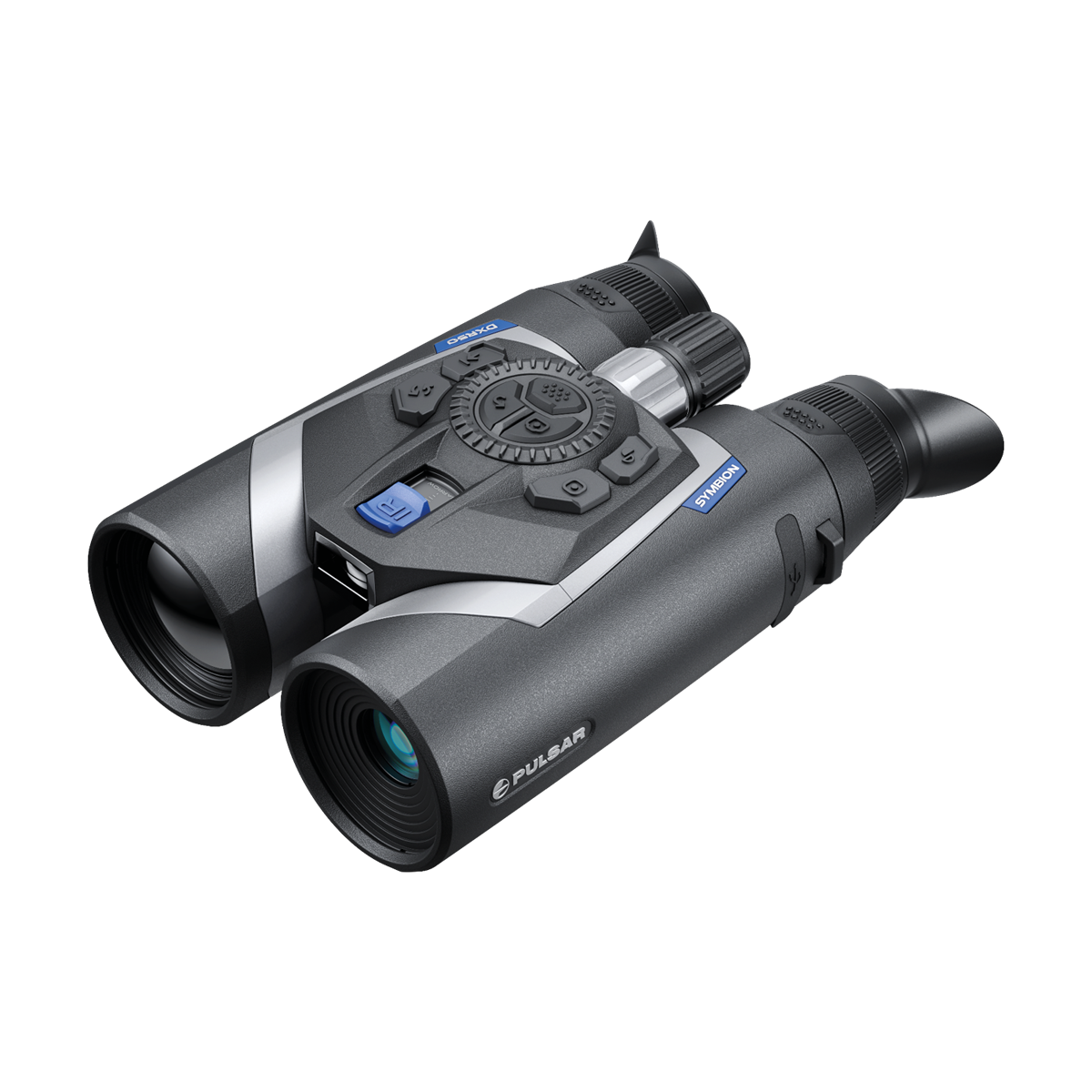

Pulsar Symbion DXR50 Multispectral Thermal Binoculars with LRF
640x480, <18mK, 12µm, 50mm
The Pulsar Symbion LRF DXR50 is a powerful multispectral binocular combining thermal imaging, 4K digital day optics and night vision in one rugged device. Its 640×480 thermal sensor with <18 mK sNETD delivers exceptional detection up to 2300 m, while the integrated laser rangefinder measures accurately to 1500 m. Premium 50 mm f/1.0 optics, image stabilisation, Picture-in-Picture viewing and a 10-hour battery life ensure confident, all-day performance in any conditions.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Pulsar Symbion LRF DXR50 is a true multispectral binocular system designed for those who demand complete control of their observation area, whatever the conditions. Combining 4K digital day optics, 4K digital night vision and high-performance thermal imaging in a single, premium device, it delivers seamless viewing from bright daylight through to complete darkness. An integrated next-generation laser rangefinder provides precise distance measurement out to 1500 metres with ±1 m accuracy, ensuring confident decision-making in the field.
At its core, the Symbion DXR50 features a 640×480, 12µm thermal sensor with an exceptional <18 mK sNETD, revealing fine heat signatures through foliage, fog, rain and humidity at detection distances of up to 2300 metres. Alongside this, the 4K digital channel produces crisp full-colour daytime imagery, strong low-light performance and high-contrast black-and-white night vision, enhanced by a built-in, focusable IR illuminator. Switching between channels is instant, allowing effortless transition from detection to identification as conditions change.
For even greater situational awareness, Picture-in-Picture enables simultaneous viewing of both channels, while premium 50 mm f/1.0 germanium optics deliver wide fields of view and outstanding clarity. A broad 4–32× thermal and 6.5–26× digital magnification range maintains image quality throughout, supported by electronic image stabilisation that keeps the image steady when tracking movement, walking uneven ground or observing from a vehicle.
Designed for extended observation, the Symbion offers nine colour palettes to suit different environments and reduce eye fatigue, including a green palette that mimics traditional night vision. A newly developed ergonomic control ring and focus system allows smooth one-handed operation, while the magnesium alloy housing and IP67 rating ensure durability in harsh weather, from heavy rain to extreme temperatures between -25°C and +50°C.
With up to 10 hours of runtime from the removable APS5 batteries, plus built-in photo and video recording with audio, the Symbion is ready for long sessions in the field. Content can be stored on the 64 GB internal memory or shared wirelessly via the Stream Vision 2 app using dual-band Wi-Fi, enabling remote control, file management and firmware updates. Rugged, versatile and uncompromising, the Pulsar Symbion LRF DXR50 represents the pinnacle of modern multispectral observation from Pulsar.
- Thermal Sensor 640×480, 12µm
- Sensor NETD <35 mK
- System NETD (sNETD) <18 mK
- Objective Lens 50 mm f/1.0
- Magnification 4–32× (thermal channel)
- Field of View (Horizontal) 8.8° (thermal channel)
- Field of View (m @ 100 m) 15.4 m (thermal channel)
- Detection Range 2300 m (thermal channel)
- Digital Zoom 2× / 4× / 8× (digital channel)
- Frame Rate 50 Hz
- Dioptre Adjustment -5 / +5
- Eye Relief 13 mm
- Display Type AMOLED
- Display Resolution 1920×1080 px
- Image Capture / Video Recording Yes (with audio)
- Built-in Memory 64 GB
- USB Interface USB Type-C
- Wi-Fi Yes (2.4 / 5 GHz)
- Bluetooth Yes
- Sensitivity Levels Normal / High / Ultra
- Colour Palettes 9
- Image Enhancement Smoothing filter
- Sleep Mode Yes
- Automatic Shut-off Yes
- Mobile App Support Stream Vision 2, Stream Vision Ballistics
- Built-in Laser Rangefinder Yes
- LRF Measuring Distance Up to 1500 m
- LRF Measuring Accuracy ±1 m
- LRF Wavelength 905 nm
- Battery Type APS5 (x2 included)
- Battery Life Up to 10 hours (depending on temperature)
- External Power Supply 5 V / 9 V USB Type-C power delivery
- Housing Material Magnesium alloy
- Tripod Mount 1/4″
- Operating Temperature Range -25 to +50 °C
- Level of Protection IP67
- Calibration Manual / Auto / Semi-auto
- Dimensions 207 × 132 × 72.5 mm
- Weight 1000 g
-
Multispectral viewing system combining thermal imaging, digital day optics and digital night vision in one device
-
Seamless switching between channels for fast transition from detection to identification
-
Integrated laser rangefinder for confident distance measurement in the field
-
Picture-in-Picture mode allowing simultaneous use of thermal and digital channels
-
Electronic image stabilisation for steady viewing when moving, tracking targets or observing from vehicles
-
Built-in IR illuminator with adjustable focus for enhanced night-time observation
-
Multiple colour palettes to optimise viewing in different environments and reduce eye strain
-
Ergonomic one-handed control system with intuitive control ring and focus knobs
-
Rugged magnesium alloy housing designed to withstand hard field use
-
Weatherproof and temperature-resistant construction for reliable performance year-round
-
Tripod compatibility for hands-free observation and long-duration monitoring
-
Photo and video recording with audio to capture and share observations
-
Internal storage and wireless connectivity for easy file management
-
Mobile app integration for remote control, media transfer and firmware updates
-
Long-lasting, rechargeable battery system for extended observation sessions
- Pulsar Symbion DXR50 Multispectral Thermal Binoculars with LRF
- 1/4” tripod mount
What makes the Symbion DXR50 different from standard thermal binoculars?
The Symbion DXR50 is a multispectral device, combining thermal imaging, 4K digital daytime optics and digital night vision in one unit, allowing seamless use across daylight, low-light and night-time conditions.
Can I switch between thermal and digital modes quickly?
Yes. You can instantly switch between thermal and digital channels, or even use Picture-in-Picture to view both simultaneously.
Does it have a built-in laser rangefinder?
Yes. The integrated laser rangefinder measures distances up to 1500 metres with an accuracy of ±1 metre, ideal for confident identification and ranging.
How well does it perform in poor weather?
The thermal channel’s high sensitivity (sNETD <18 mK) allows it to perform exceptionally well in fog, rain, snow and high humidity, where traditional optics struggle.
Is image stabilisation included?
Yes. Electronic image stabilisation reduces shake when handholding, tracking moving objects or observing from a vehicle.
Can I record photos and videos?
Absolutely. The device supports photo capture and video recording with audio, stored on the 64 GB internal memory or transferred wirelessly.
Can I connect it to my phone or tablet?
Yes. Using built-in Wi-Fi and Bluetooth, the Symbion connects to the Stream Vision 2 app, allowing remote control, media transfer and firmware updates.
How long does the battery last?
With the supplied APS5 rechargeable batteries, you can expect up to 10 hours of runtime, depending on temperature and usage.
Is it suitable for tripod use?
Yes. A 1/4″ tripod mount is included, making it ideal for static observation, surveying or long-duration monitoring.
Is the Symbion rugged enough for field use?
Definitely. It features a magnesium alloy housing, is IP67 rated, and operates reliably between -25°C and +50°C.
What types of users is this product best suited for?
The Symbion DXR50 is ideal for wildlife observation, pest control, ecological surveys, search and rescue, and professional field use where all-day, all-condition visibility is required.
- Pulsar 3 year warranty
