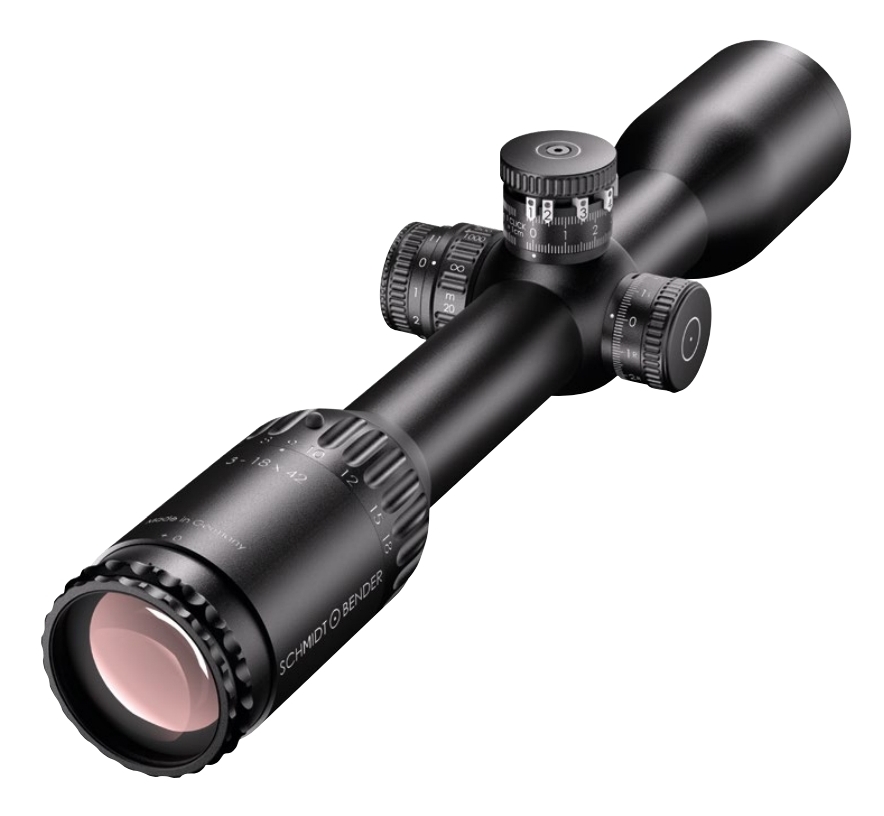

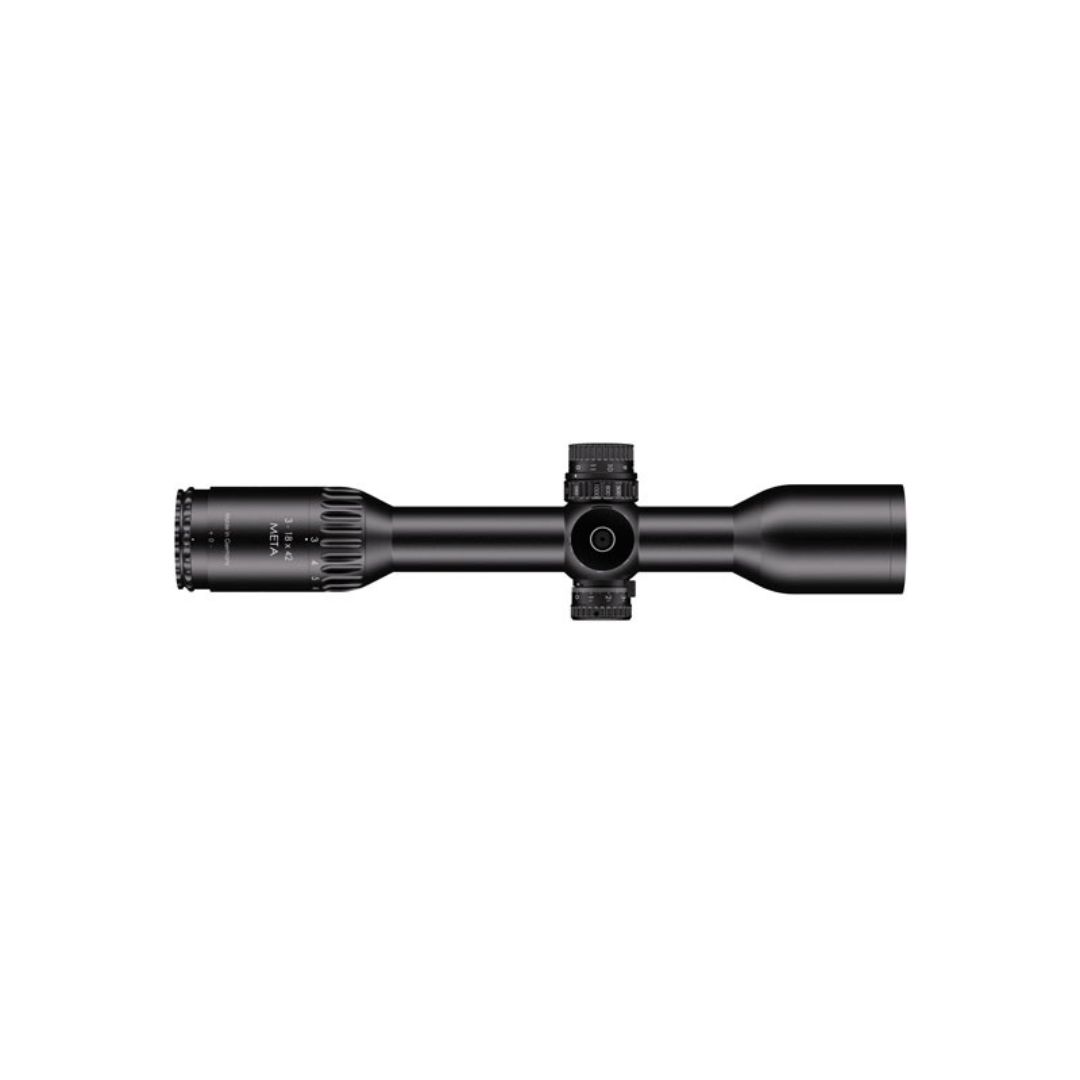

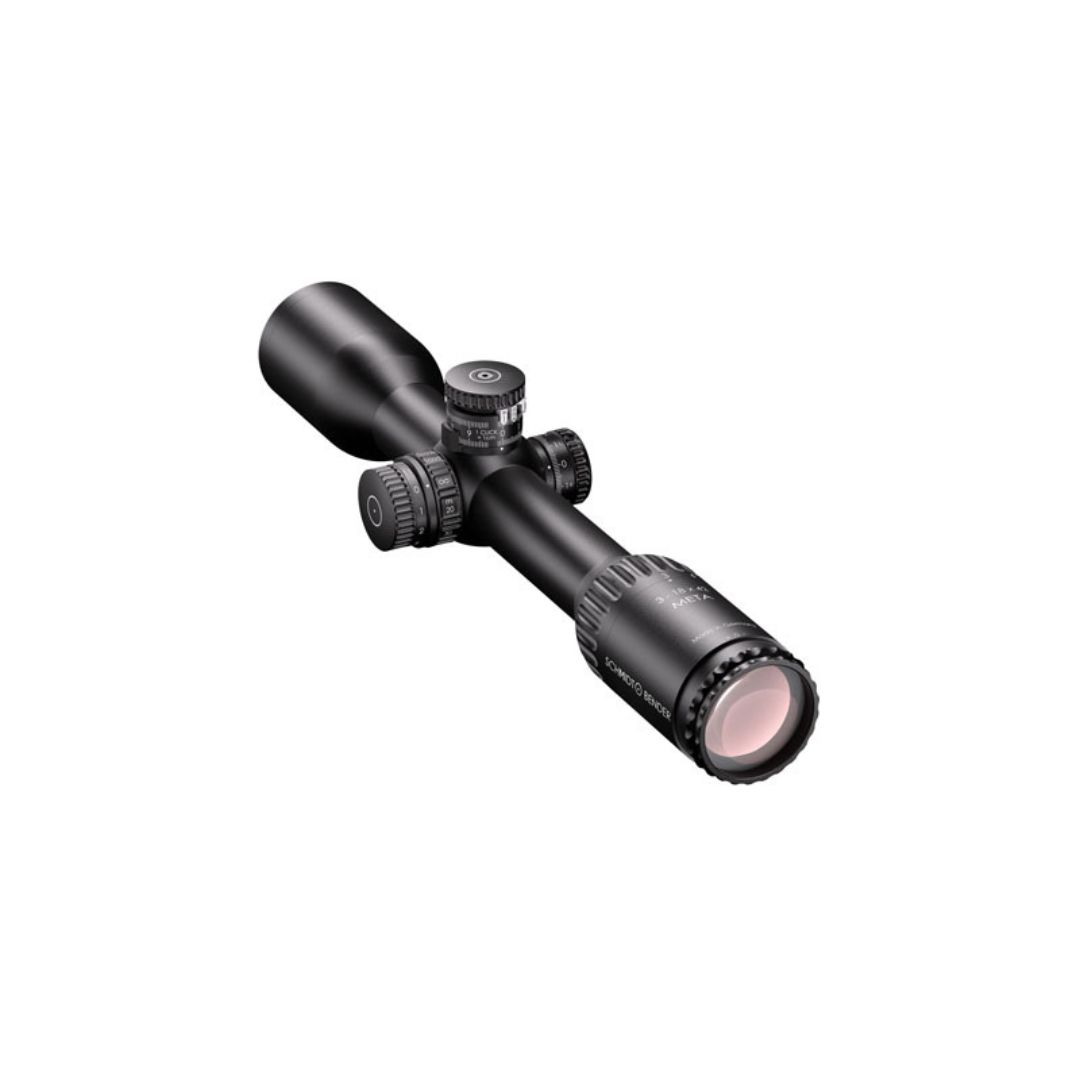

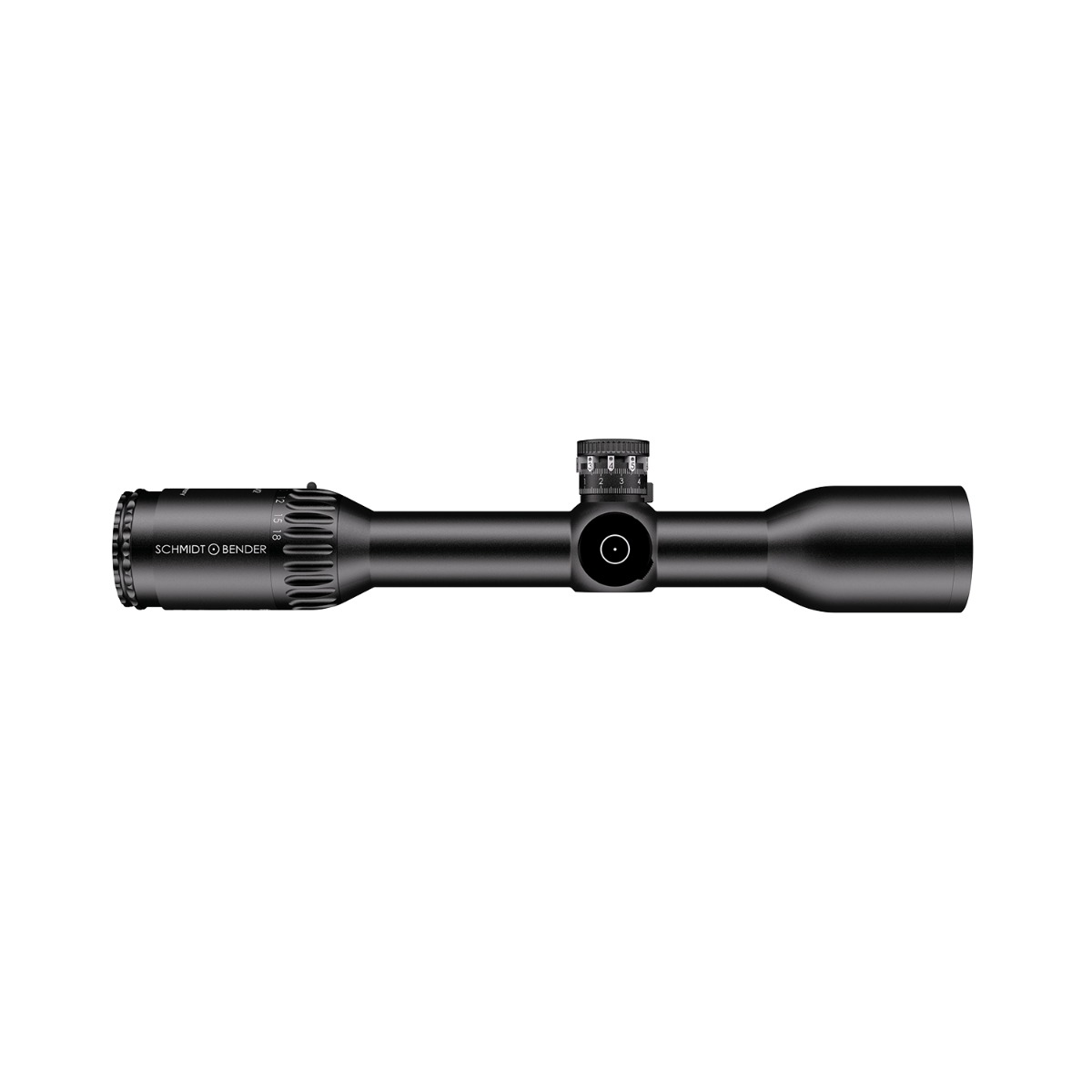

Schmidt & Bender 3-18x42 Meta SFP LP7 1cm CW BDC II-B / BDC 11LT 30mm Rifle Scope

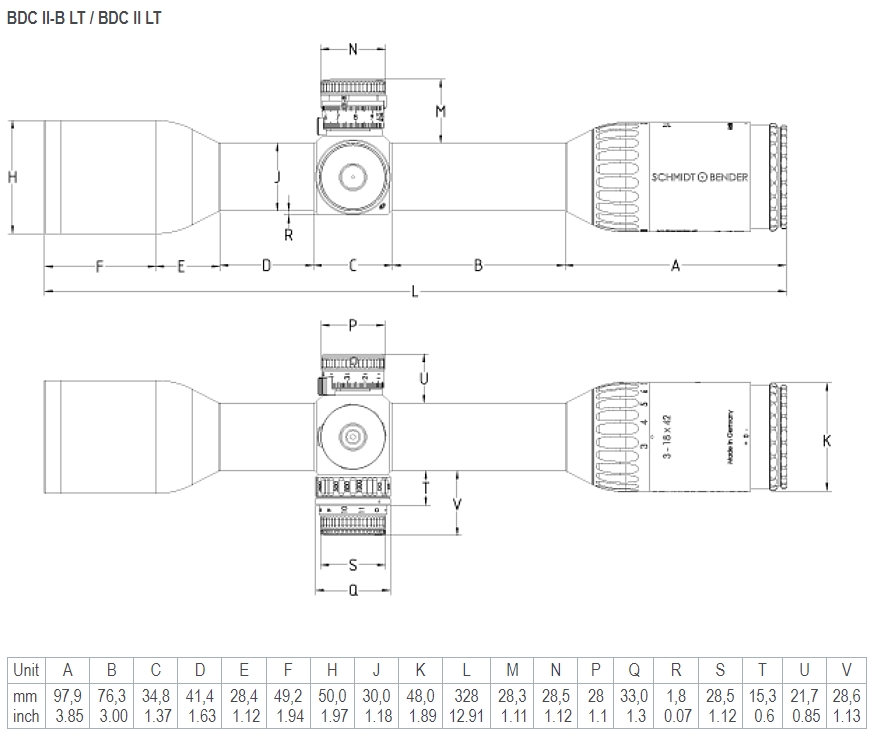

Dimensions And Weight

• Length (mm/in): 328/12.91
• Main tube diameter (mm/in): 30/1.18
• Mount system: Ring or LMZ rail mount
• Weight (g/oz): 680–700/23.99–24.69

Optical Data

• Magnification: 3–18
• Objective diameter (mm)/(in): 42/1.65
• Field-of-view (m/100 m)/(ft/100 yd): 14.5–2.4/43.5–7.2*
• Field-of-view (°): 8.3–1.4**
• Exit pupil diameter (mm/in): 8.3–2.3/0.33–0.09
• Eye relief distance (mm)/(in): 90/3.54
• Twilight factor: 10.8–27.5
• Transmission (%): 92
• Focal Plane: 2
• Diopter adjustment (dpt): –3 to +2
• Parallax adjustment (m/yd): 20 to ∞/21.87 to ∞

Further Data

• Internal travel elevation: min. 305 cm/100 m
• Internal travel windage: min. 305 cm/100 m
• Illumination: 11 settings
• Battery type: CR2032
• Nitrogen filling: Dried special nitrogen

Compability

• Throw Lever compatible: No
• Thread ocular: M41x0,5
• Thread objective: M47x0,75

Options

• Color: Black
• Temperature – Storage (°C)/(°F): –55 to +71/–67 to +160
• Temperature – Function (°C)/(°F): –40 to +61/–40 to +142
• Waterproof (m)/(ft): 3/9.84

Turret Configurations

• Turrets (Elevation / Windage): BDC II-B LT / BDC II LT
• Adjustment Range Elevation: 100 cm/100 m
• Adjustment Range Windage: ±50 cm/100 m
• Turret Rotation: cw***
• Click Value: 1 cm/100 m

LP7 SFP (Second Focal Plane) reticle advantages
Although a SFP reticle, the design of the LP7 reticle enables range estimation:

The “true magnification” of the 3-18x42 Meta is marked by a visual and tactile pin on the magnification ring at 9x power. You can estimate distances on 9x as well as on 18x zoom as follows.

Magnification ring with a visual and tactile pin
At 9x zoom
A roe buck stands at about 100 m if he fits between reticle center and horizontal bar (≙ 70 cm). He stands at about 50 m if he fits between the horizontal bars (≙ 140 cm).

At 18x zoom
A roe buck stands at about 200 m if he fits between reticle center and horizontal bar (≙ 70 cm). He stands at about 100 m if he fits between the horizontal bars (≙ 140 cm).

42 mm Objective

The lean and slim 42 mm objective makes the 3-18x42 Meta a very handy riflescope. The quick LP7 reticle with illuminated red dot in second focal plane, the generous eye-box and the big field-of-view of 14.5 m/100 m rsp. 43.5 ft/100 yd* provides excellent situational awareness especially when focusing on fast moving game or when stalking. An outstanding light transmission of 92 % guarantees a crystal clear image for great detail recognition which is crucial for identifying game. When darkness falls, the short and rugged design is a perfect fit for rear or front mounted night vision attachments.

LPI (Illumination Parallax Integrated)

The new 3-18x42 Meta hunting riflescope features our innovative “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. The very compact illumination/parallax adjustment retains the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It starts at 20 m/22 yd for close distances and goes up to infinity – which is most benefical when using night vision devices. Both knobs are clearly distinguished by size and feel while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.

BDC II-B (Bullet Drop Compensation II-Ballistic)

The BDC II-B allows the operator to easly set-up his own calibrated turret according to the ballistic of the rifle. The BDC II-B turret provides 6 position indicators marked 1–6 which correlate to 100 m/yrds–600 m/yrds. The position indicator can be placed at any position on the turret according to the ballistic coefficient. When using a silencer or interchangeable barrels, the position indicators are easy to adjust to the given environment conditions. Best of all: in the latter case it is also possible to use an interchangeable turret cap which matches the modified ballistic of the rifle. A Mode Lever locks or unlocks the turret. The BDC II-B turret – just like ST II-B – gives the hunter the fastest and most precise turret dialing solution.

• Schmidt & Bender 3-18x42 Meta SFP LP7 1cm CW BDC II-B / BDC 11LT 30mm Rifle Scope

• 20 year guaranteed parts warranty
• 10 years worldwide warranty
• 2 year warranty extension through registration
