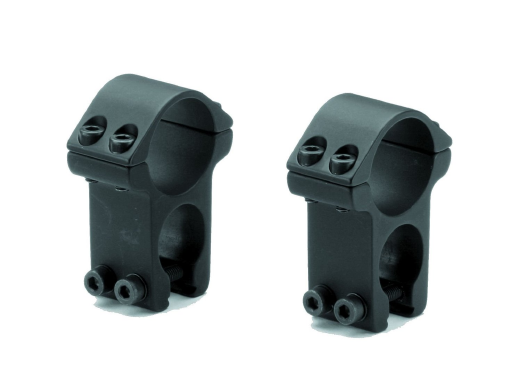

Sportsmatch HST46C 1" 9-11mm Dovetail 2 Piece Double Clamp Extra High See Thru Scope Rings
For 1" tube scopes fitting on 9-11mm dovetail.
Extra High - 29mm base to ring bottom, see thru design supports front iron sight use on scopes with upto 40mm lens diameter.
For 1" diameter body tube scopes.
2 piece with 4 screw base and tops. Very strong.
For 9-11mm and 3/8" dovetails = most modern air rifles and rimfires
EXTRA HIGH height profile - 29mm base to ring bottom height. Rough guide - Will fit the largest 1" scopes about. But the main reason for this design and height is to give the ability to see through and use rifle front iron sight as well as a scope.
In this use scenario Sportsmatch suggest suitability for scopes with upto 40mm lens diameter. A larger scope lens may mean not being able to use the iron sight.
Dimensions
A = 29mm
B = 21mm
C = N/A
Weight = 92g
Does not include arrestor pin.
Calculating scope to rifle body clearance
The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.
For scopes with a 1 inch (25mm)mm diameter body tube this means deducting 12.7mm.
Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.
The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring - the 'A' dimension that is shown above (29mm)
The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body. The saddle on these mounts is 29mm
Worked Example -
- A scope has an outer case measurement of 66mm.
- 66 divided by 2 = 33.
- 33 minus 12.7 = 20.3mm
- So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 20.3mm or else it will ground out on the rifle body.
- So in this case a lot of space but keep in mind that the scope design is not just about pure height.
Keep in mind that flip up lens caps may add 2mm or so.
Please Note- Some of our stocks of of Sportsmatch mounts are produced in Collaboration with WULF Optics and come in WULF Grey packaging.Apart from packaging it is the same product.
