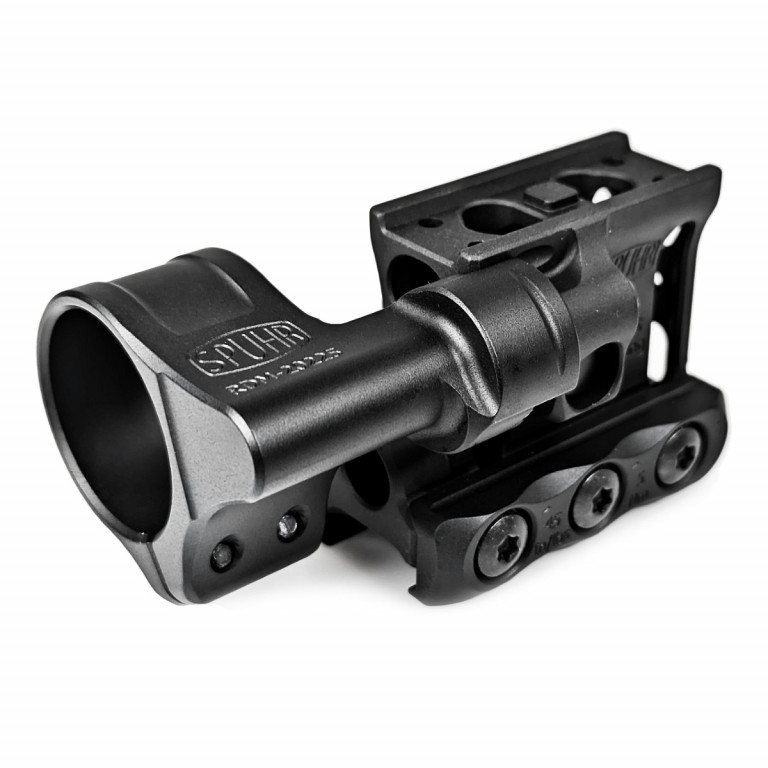

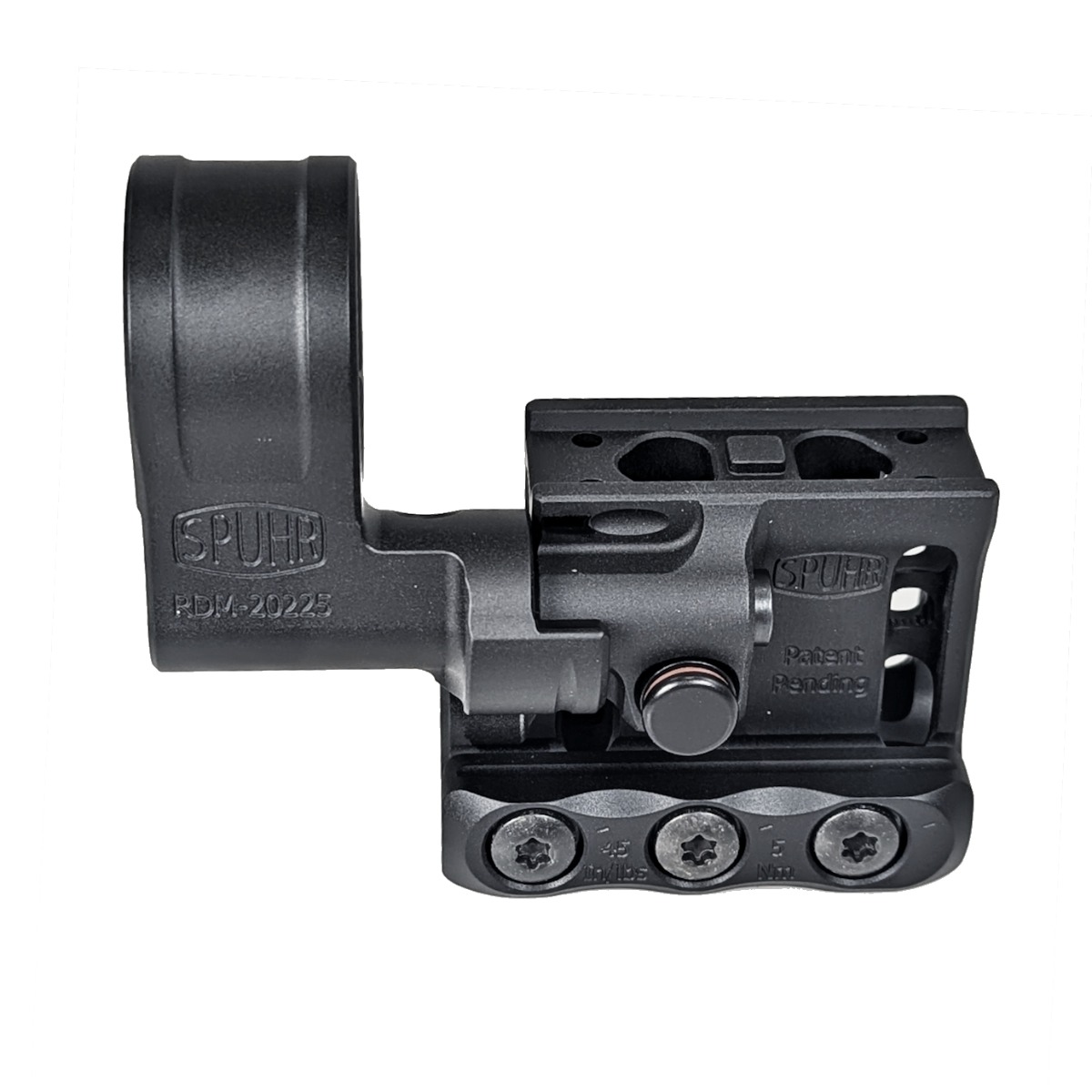

Spuhr Aimpoint T-2 Magnifier Mount System - H57mm / 2.25" Picatinny

• Color Black Hardcoat Anodized
• Footprint Aimpoint Micro
• Height 57 mm / 2.25"
• Interface Picatinny Rail
• Magnifier Yes
• Optional Rail Yes
• Quick Release No
• Height 57 mm / 2.25" (with Aimpoint Micro T-2)
• Length 57.5 mm / 2.26"
• Weight 189 g / 6.7 oz

• Robust Aluminum Alloy Construction: Made from 7075 T651 aluminum alloy with a hardcoat anodized finish.
• Tool-Free Magnifier Yoke Assembly: Quick attachment and detachment of the Aimpoint® 3XMag™ Magnifier without tools.
• See-Through Channel for Iron Sights: Compatible with M4-height iron sights, allowing continuous use.
• Optimal Mount Height: 57 mm (2.25 inches) from rail to optic centerline.
• Adjustable Magnifier Positioning: Shift magnifier between operational and stowed positions easily.
• Military Rail Compatibility: Fits MIL-STD-1913 and STANAG 4694 rails securely.
• Additional Accessory Support: Optional illuminator Picatinny rail and backup rear iron sight attachment.
• Corrosion-Protected Steel Parts: Features hardened and corrosion-protected steel locking parts and fasteners.
• Lightweight Design: Weighs only 189 g (6.7 oz) for minimal impact on rifle handling.

How critical is optical axis alignment between the red dot and magnifier?

Precise alignment is essential for optimal image clarity and minimal edge distortion. Misalignment can cause asymmetric vignetting, reduced field of view, and apparent point-of-aim shift when transitioning between magnified and unmagnified use.

Can small height differences between the red dot and magnifier affect performance?

Yes. Even minor height mismatches can result in the optical centerline of the magnifier not aligning with the red dot emitter, producing shadowing and uneven image brightness.

How does the mount maintain alignment between the red dot and magnifier under recoil?

The rigid mount structure keeps both optics fixed relative to each other, preventing differential movement that could otherwise alter optical alignment during repeated recoil cycles.

Does magnifier alignment influence perceived zero shift?

Improper magnifier alignment can create the illusion of zero shift because the shooter’s eye is forced off-axis. True point-of-impact remains unchanged if the red dot itself has not moved.

How should the magnifier be positioned for optimal eye relief?

The magnifier should be positioned so that full field of view is visible in a natural shooting position without requiring head movement. Excessive rearward placement can reduce usable eye box.

Can the flip mechanism introduce lateral movement over time?

Wear in the hinge mechanism can introduce small amounts of play after extensive use. However, the locking detent prevents movement during firing.

Does the flip direction influence usability?

Flip direction should be chosen to avoid interference with charging handles, controls, or sling attachments. The preferred direction also depends on whether the shooter is right or left-handed.

Can the magnifier introduce optical distortion if slightly offset?

Yes. Off-axis positioning causes the magnifier to operate outside its optimal optical region, increasing edge distortion and reducing image sharpness.

How does the mount minimize vibration-induced loosening?

Proper torque and rigid clamping surfaces reduce micro-movement between components, maintaining alignment even during rapid firing.

Can the system maintain alignment after repeated flip cycles?

The hinge mechanism is designed to maintain consistent positioning. Alignment remains stable provided the pivot hardware remains properly torqued.

Does thermal expansion affect alignment between the red dot and magnifier?

Because both components share the same mount structure, expansion occurs uniformly and optical alignment remains stable.

Can uneven rail surfaces affect optical centering?

Irregular rail surfaces can tilt the mount slightly, shifting the optical axis and causing uneven vignetting through the magnifier.

How does the system perform under rapid firing conditions?

The rigid mount helps maintain consistent alignment during rapid firing by minimizing movement between the optic and magnifier.

Can the magnifier position affect parallax perception?

Magnifiers enlarge the apparent movement of the dot relative to the target. Poor alignment can exaggerate perceived parallax effects.

Is it possible to achieve perfect optical centering without adjustments?

Most setups require minor positioning adjustments to achieve optimal centering due to variations in rail and optic tolerances.

How can optical centering be verified?

Centering can be checked by viewing a distant object and confirming that the red dot remains centered within the magnifier’s field of view without visible shadowing.

Does the mount prevent rotational misalignment of the optics?

The machined interfaces prevent rotation once properly secured, maintaining consistent optical orientation.

Can improper torque cause magnifier tilt?

Uneven torque across mounting screws can introduce slight tilt, which affects optical alignment and image symmetry.

Does the magnifier influence dot clarity?

The magnifier enlarges both the target and the emitter image. Any emitter irregularities or brightness bloom will become more noticeable.

How sensitive is the system to rail tolerance variations?

Small dimensional variations in rails can slightly alter alignment, although the rigid mount helps minimize the effect.

Can the mount accommodate repeated optic removal?

The mount is designed to maintain alignment if removed and reinstalled in the same rail position with consistent torque.

How does eye position affect perceived alignment?

Shooting from an inconsistent cheek weld can make the dot appear off-center even when the optics are perfectly aligned.

What is the most common installation issue affecting optical performance?

The most common issue is failing to align the magnifier directly behind the red dot, resulting in vignetting and reduced optical clarity.
