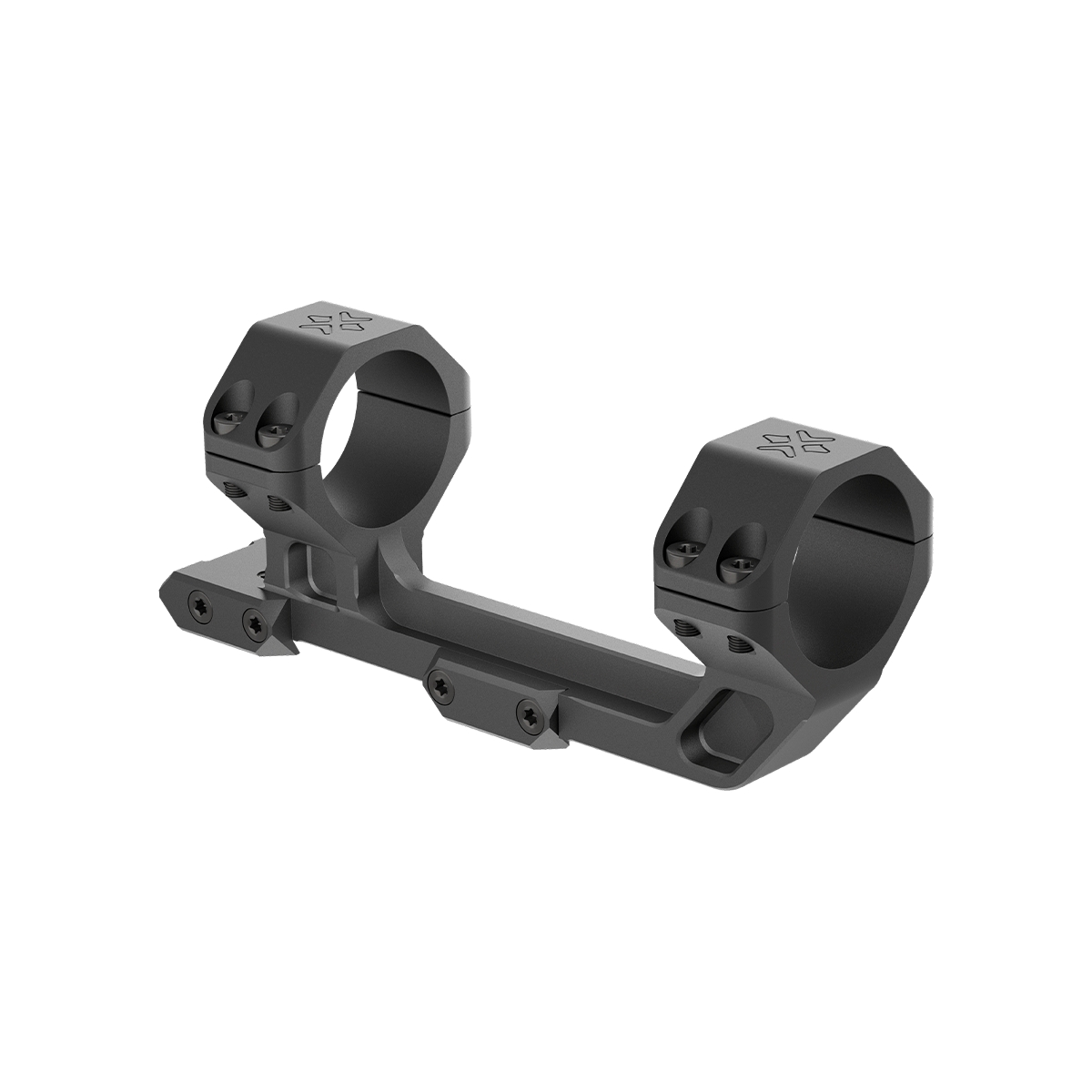

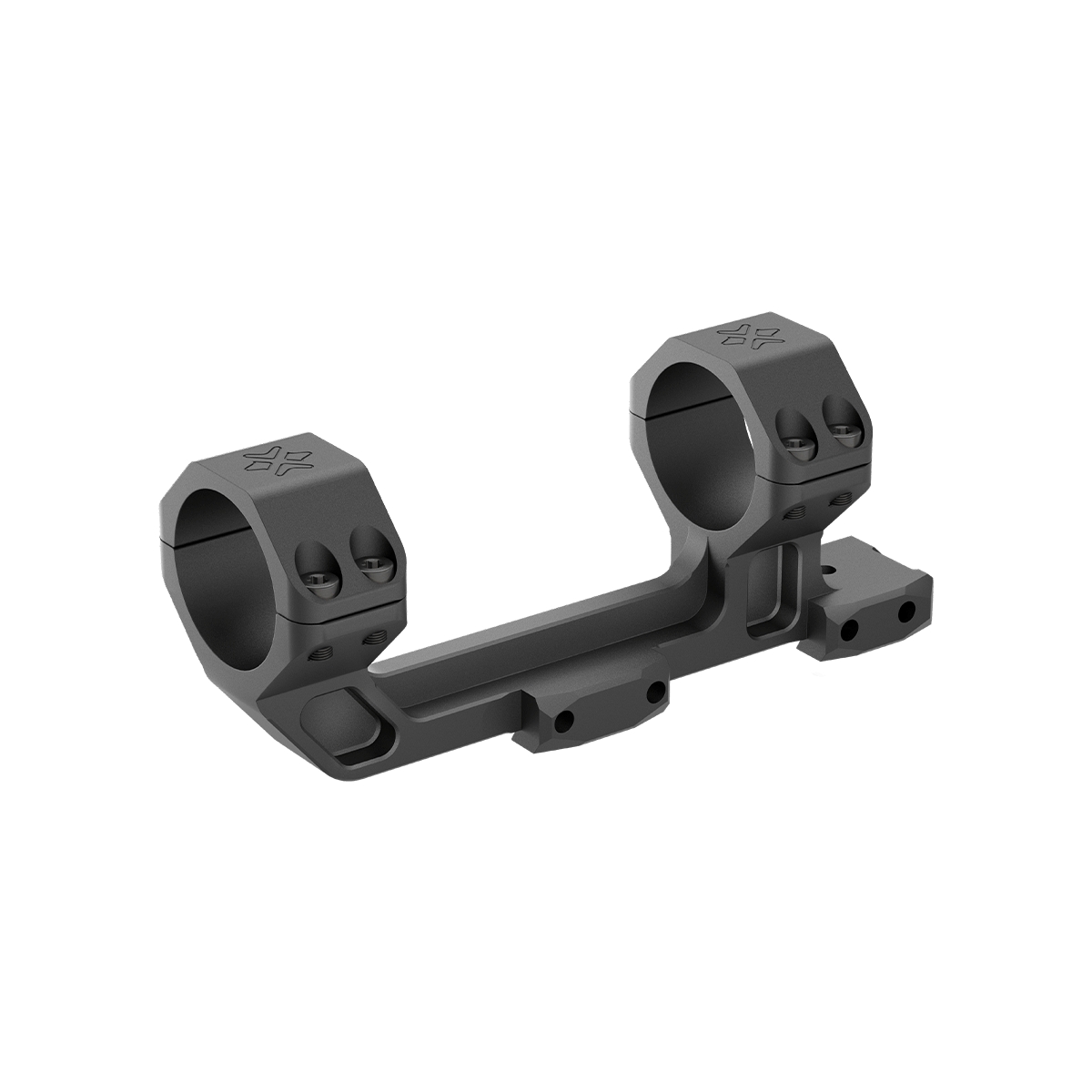

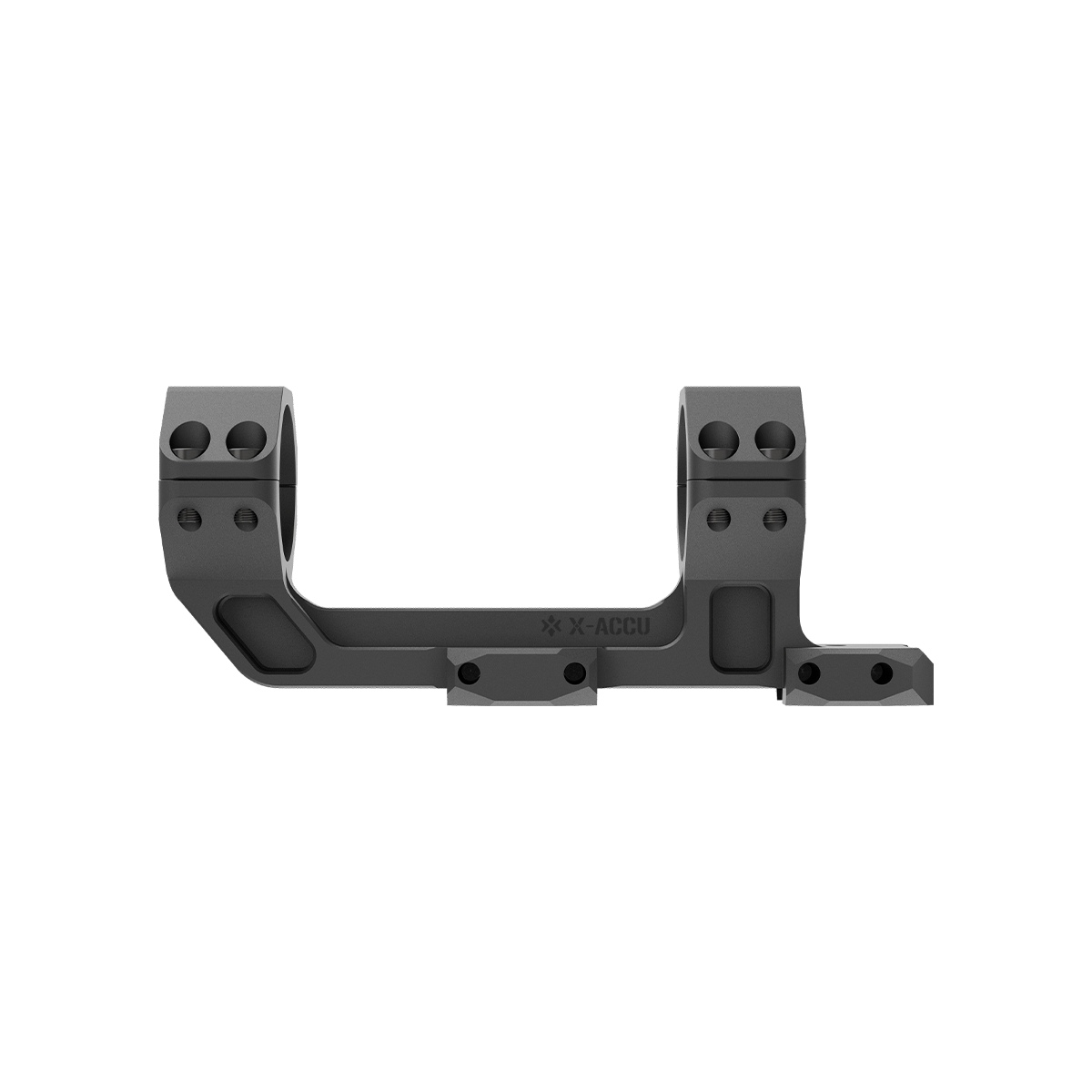

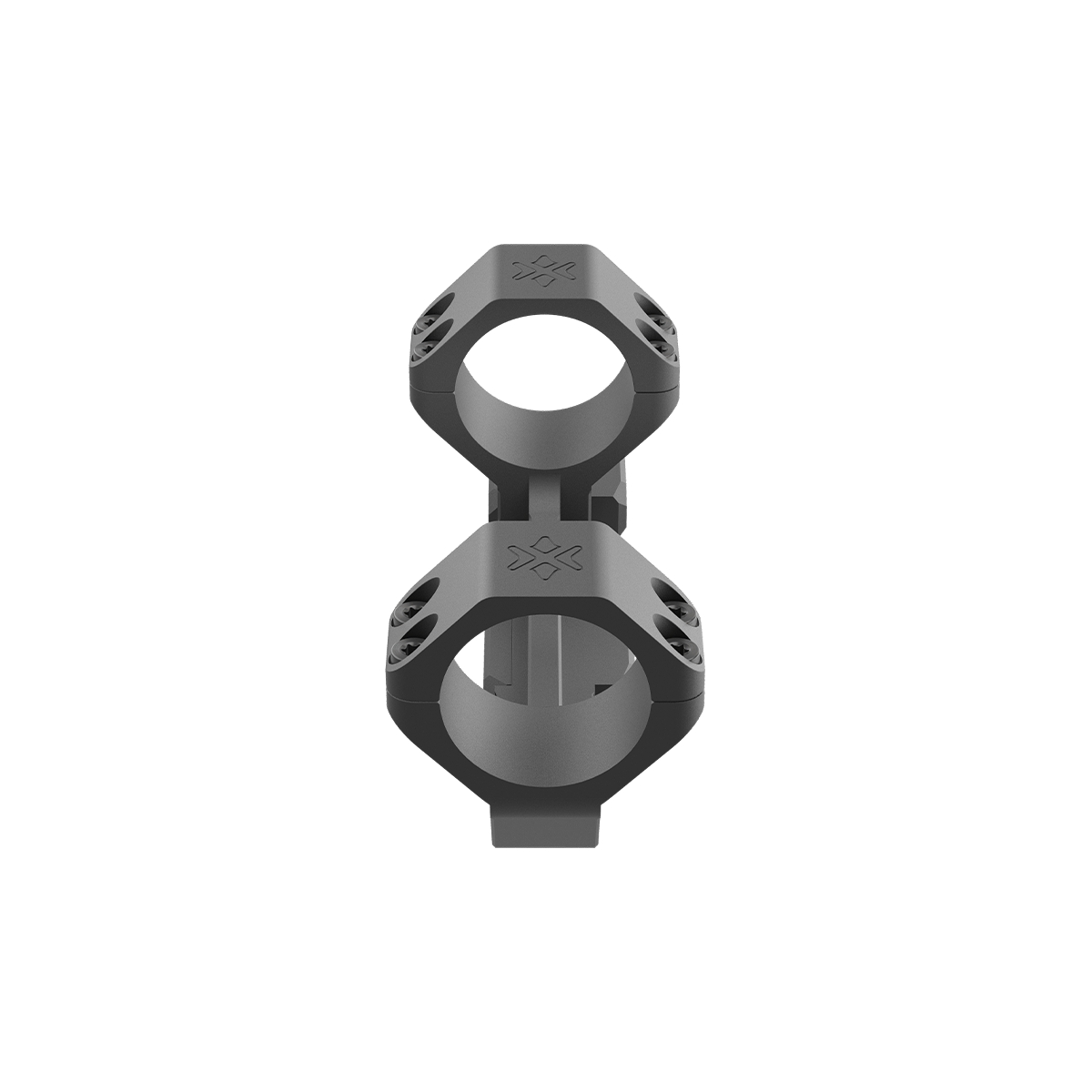

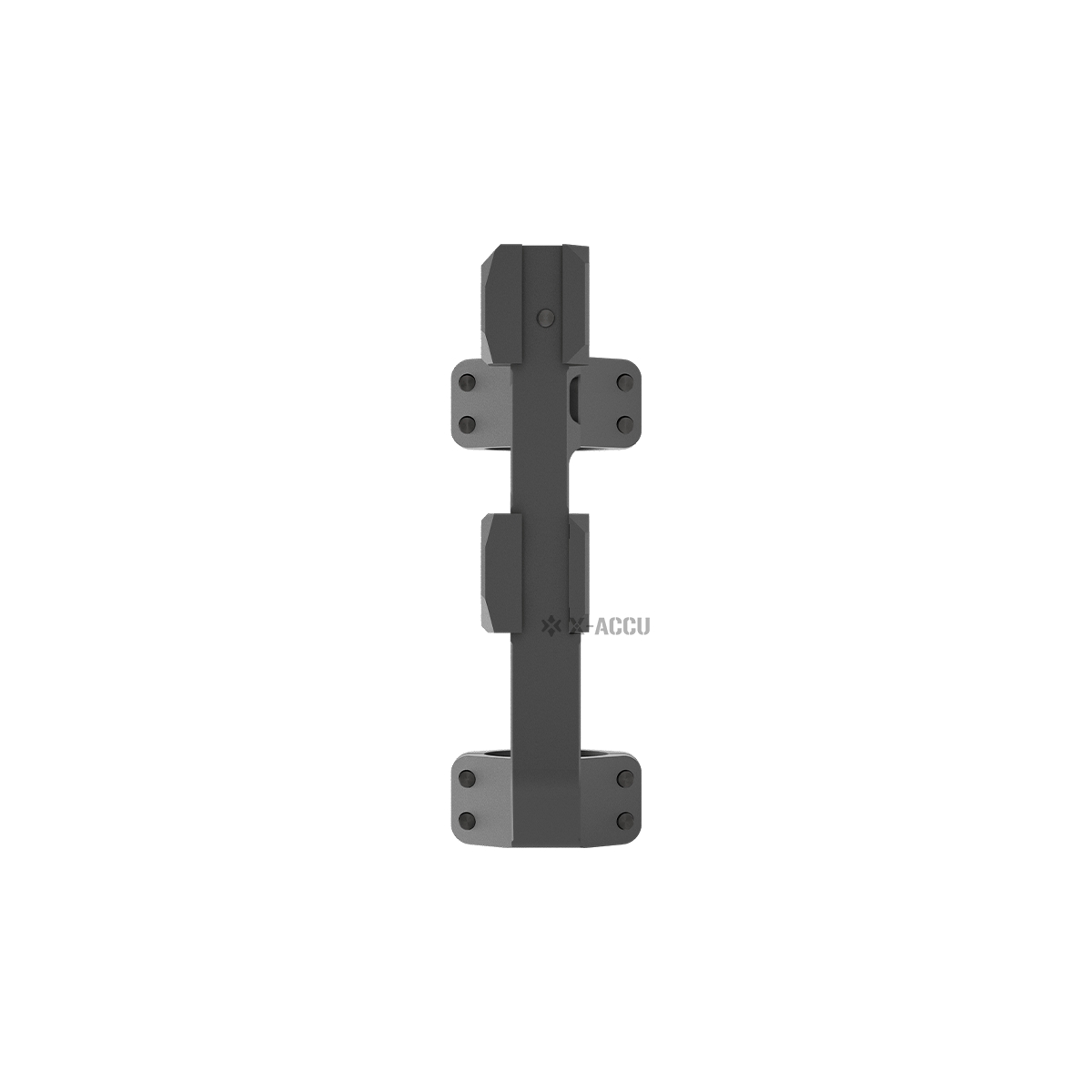

Vector Optics 30mm One Piece 11mm Dovetail Cantilever Rifle Scope Mount
Vector Optics 30 mm One-Piece Dovetail Cantilever ACD Mount – precision mounting with built-in anti-cant and lightweight design
This cantilever mount brings professional alignment and stability to your setup.
Machined from 6061-T6 aluminium for strength and precision, it offers a central height of 38 mm (1.5 in), giving larger objective scopes good rail clearance.
At 140 mm (5.5 in) total length and just 130 g (4.6 oz), it's both sturdy and light.
The twin-ring design locks tight with four screws each, while the dovetail interface and anti-retreat pin keep your scope secure under recoil.

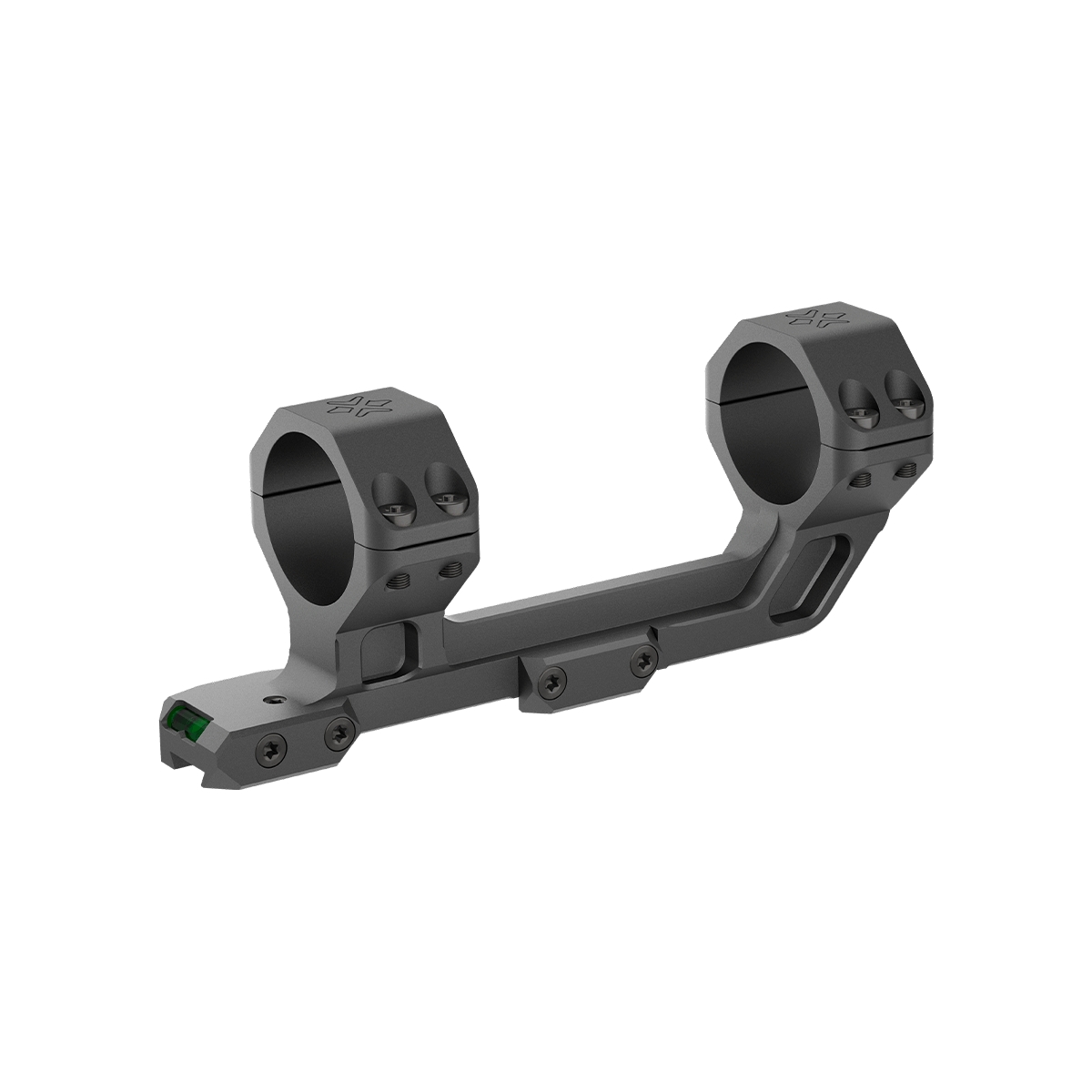

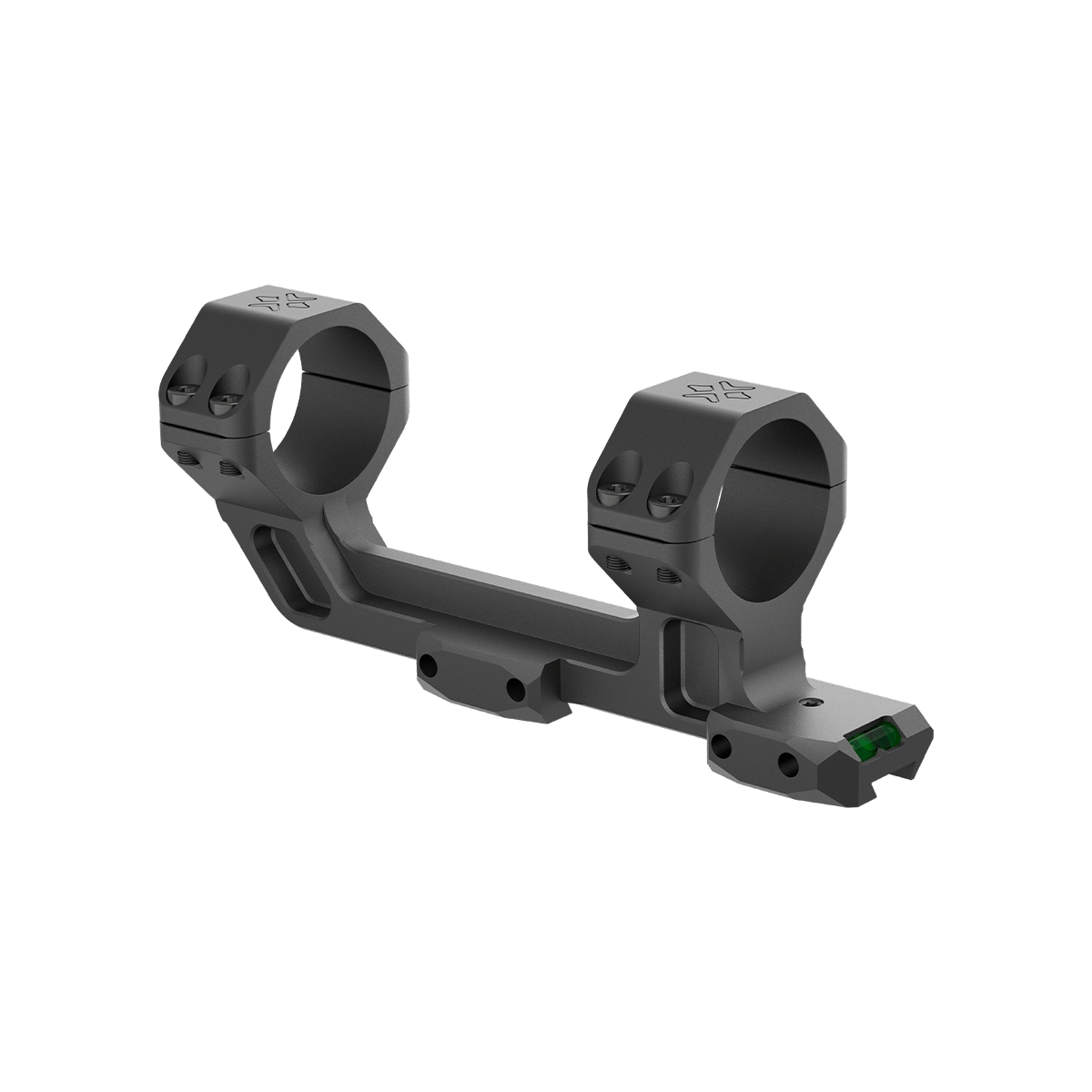

Plus, the integrated air bubble level ensures your rifle stays perfectly balanced at long range.
Built for serious use and backed by a 5-year warranty, this mount delivers precision and reliability in a sleek, professional package.
Perfect for:
-
High-precision shooters needing a rigid, level platform for optics
-
Long-range setups where perfect alignment and cant control matter
-
Lightweight builds demanding accuracy without added bulk

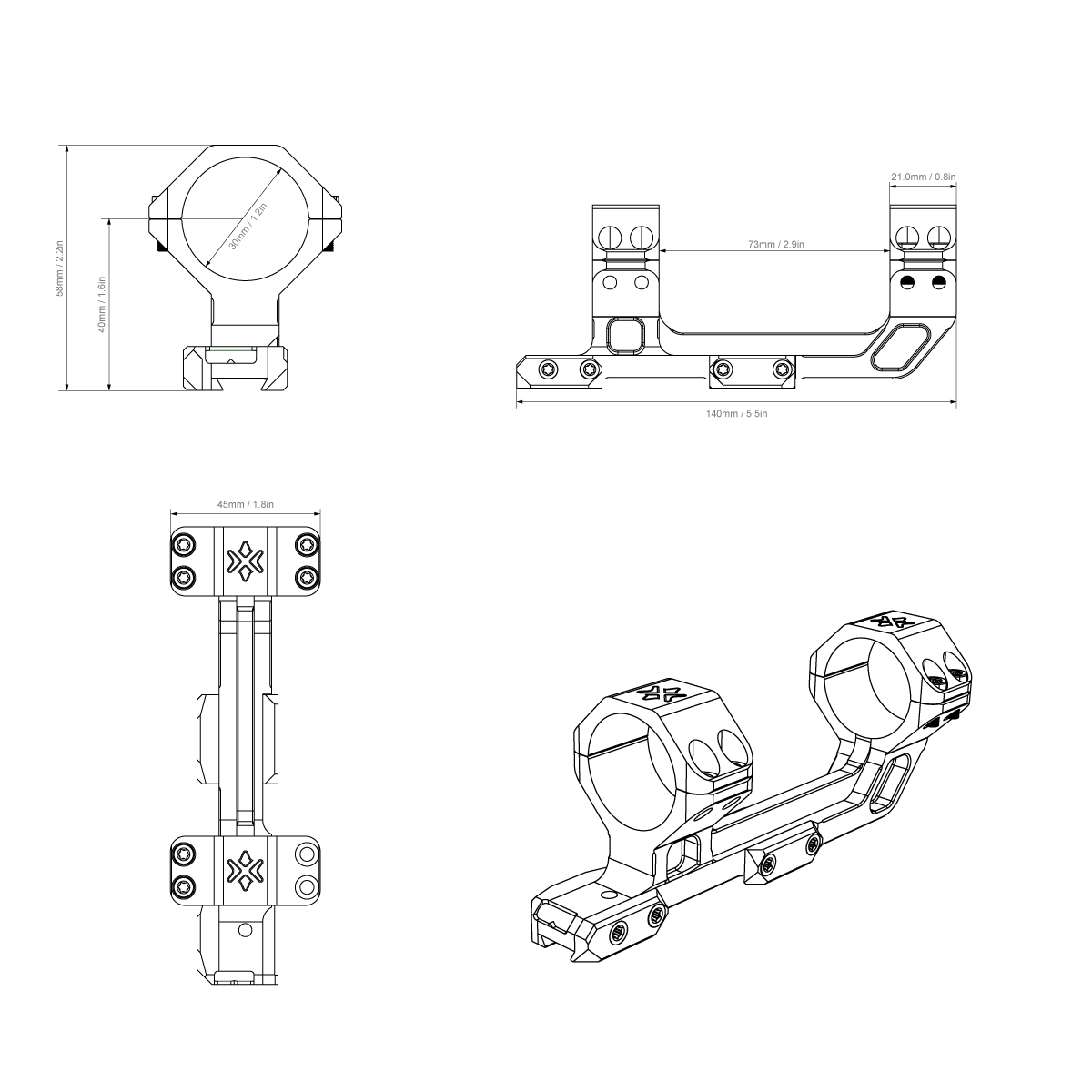

- Ring Diameter: 30mm
- Length: 140mm / 5.5in
- Height: 58mm / 2.2in
- Central Height: 38mm / 1.5in, bottom to center
- Material: 6061-T6 aluminum alloy
- Weight: 130g / 4.6oz
- Mount: 11mm Dovetail
- Finish: Black matte
- Screws per ring: 4
- High-durability aluminum alloy in black matte
- Do not use over 18 inch / pounds of torque on the scope rings' screws
- Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the Dovetail rail.
- Cantilever scope mount with anti cant device bubble level designed for hard and rigorous use.
- With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.
Optimal Height and Precision: With a 38mm (1.5-inch) bottom to ring center measurement, this mount ensures your scope is positioned perfectly for precision accuracy. It is fully CNC Machined for top-notch precision and durability.
Secure and Reliable: This mount is equipped with four screws per ring, providing an ultra-secure and stable platform for your optics. The 11mm dovetail mount is further enhanced with an Anti-Retreat Pin to prevent any unwanted movement, ensuring your scope stays in place, shot after shot.
Cantilever Dual Ring Design: The innovative cantilever dual ring scope base mount not only streamlines your setup but also features an integrated Air Bubble Level. This handy addition ensures that you shoot with the utmost precision, especially at long ranges. Say goodbye to guesswork and hello to bullseyes.
- Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount
- T15 torx wrench
Q: What’s the advantage of a one-piece cantilever mount?
A: It spreads load across the rail and keeps your scope perfectly aligned—ideal for repeatable accuracy.
Q: Does it help with scope cant?
A: Yes—it includes an integrated bubble level so you can ensure horizontal alignment before shooting.
Q: Will this hold under heavy recoil?
A: Absolutely—the 4-screw per ring design and anti-retreat pin keep it locked tight, even with magnum calibres.
Q: Is it lightweight?
A: Yes—despite its strength, it weighs just around 130 g (4.6 oz), keeping your setup agile.
- Vector Optics 5 year warranty
