BKL 260HMB 1" One Piece Dovetail Scope Mount High 11mm Air Rifle Mount
Heavy duty 4" mount with 6 clamp screws – high profile for larger scopes
- One-piece unitised mount (4" / 102mm length)
- Fits 1" (25.4mm) scope tubes
- Designed for 9.5–11.5mm dovetail rails
- High profile for improved objective clearance
- 6 clamp screws for maximum grip and stability
- Self-centring clamping system for improved alignment
- Durable hardened aluminium construction
- Made in USA
The BKL 260HMB one-piece mount is a heavy-duty solution for shooters who want maximum clamping strength and perfect alignment on 11mm dovetail rails.
Built as a unitised 4" long mount, it uses six clamping screws across the base to distribute pressure evenly along the rail. This gives a far more secure hold than standard two-piece rings, especially on air rifles and rimfire setups with recoil or vibration.

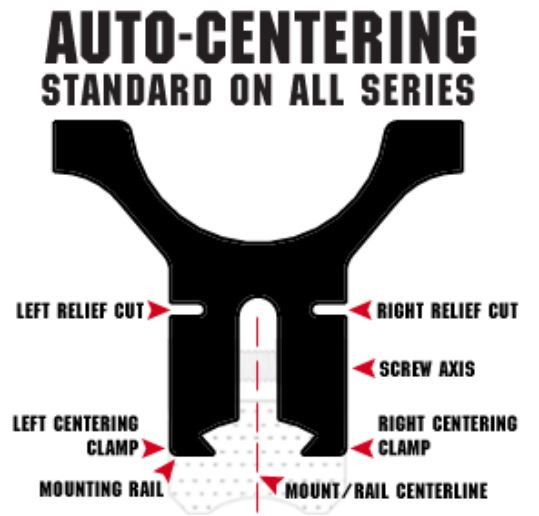

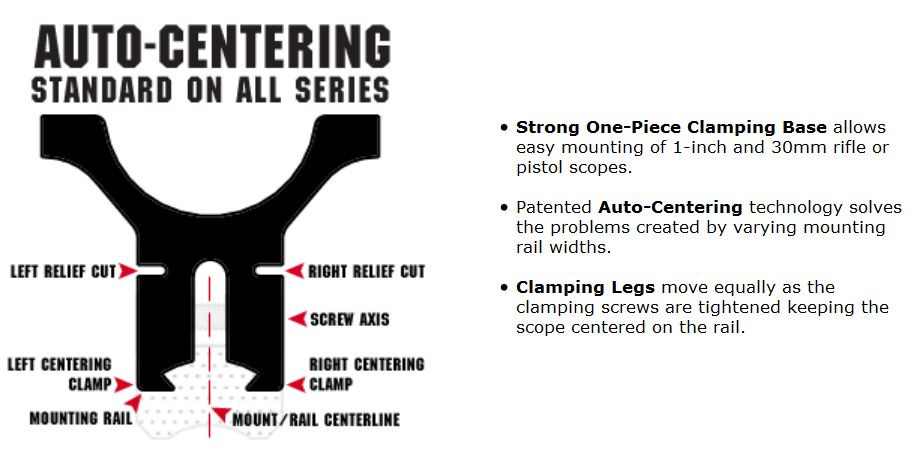

BKL’s self-centring clamping system pulls both sides of the mount together evenly as it tightens, keeping the scope aligned with the bore and reducing stress on the tube.
This high version provides increased clearance, making it suitable for larger objective lenses and rifles where extra height is required.
Profile - High - 37mm base to ring center. Equates to maximujm scope "OUTER" objective case diameter 72mm - so any big scope works. Example, Hawke 50mm AO scope will have 8mm clearance on a totally flat base.
Best suited for:
- Air rifles with hefty recoil (spring/gas ram)
- Rimfire rifles (.22LR etc.)
- Scopes with larger objective lenses (up to ~56mm)
- Setups needing maximum clamp security
Why Choose BKL One-Piece Mounts?
Compared to standard mounts:
- Stronger grip across full rail length
- Better alignment and less scope stress
- Reduced chance of movement under recoil
From real-world usage, BKL mounts are widely chosen for:
- Problem rails (slightly out of spec)
- Recoil-heavy air rifles
- Setups where zero shift is an issue
- Overall length: 4"
- Clamp length: 4"
- Ring width: 0.6"
- Bottom of Mount to bottom of Scope Tube: 0.974" (24mm) - 37mm base toi ring centre
- Turret clearance: 0.125"
- Weight: 5.1 oz.
- One-piece unitised mount (4" / 102mm length)
- Fits 1" (25.4mm) scope tubes
- Designed for 9.5–11.5mm dovetail rails
- High profile for improved objective clearance
- 6 clamp screws for maximum grip and stability
- Self-centring clamping system for improved alignment
- Durable hardened aluminium construction
- Made in USA
What rail does this fit?
This mount fits:
- 9.5–11.5mm dovetail rails (standard air rifle / rimfire)
What height is this mount?
This is a high mount:
- Base to ring bottom: ~24 mm
- Base to scope centreline: ~37–38 mm
Suitable for larger objective scopes or clearance over barrels/magazines.
What size scope tube does it fit?
- 1" (25.4 mm) scope tubes only
Why choose a one-piece mount?
A one-piece mount:
- spreads clamping force across the rail
- improves alignment
- reduces movement under recoil
This is especially useful on spring air rifles and rimfire rifles.
Will this handle recoil?
Yes. The 260 series is known as one of BKL’s strongest mounts, with 6 clamp screws and full-length grip.
- One year manufacturer's warranty
