BKL-300 30mm Single Strap 9-11mm Dovetail Rifle Scope Scope Rings - 39mm Height - Black
Rock-solid 30mm scope mounts for air rifle or rimfire
Self-aligning clamping, scope-friendly rings, and no-lap installation
For 9–11mm rails. Precision fit – Easy setup – Scope tube protection
HIGH - BKL call these Medium, but with 24 mm base height / 39 mm centre height, they are effectively a High mount compared to most brands. There’s no universal standard for mount heights. Always buy using the actual measurement, not the name.

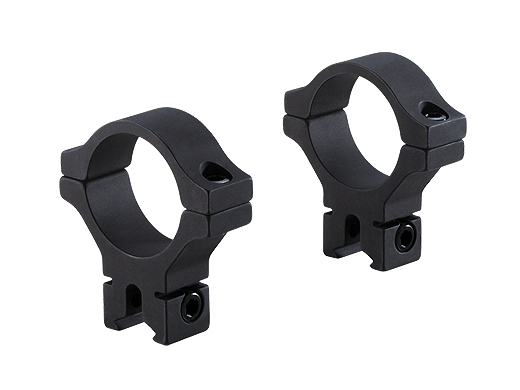

BKL 300 30mm 2-Piece Dovetail Scope Mounts – Self-Aligning, No-Lap Rings – 9–11mm Rails
Perfect for air rifles and rimfires with standard 9–11mm dovetail rails. The BKL 30o is a precision-engineered 2-piece mount for 30mm scope tubes, featuring:
- Radiused inner rings to prevent scope marking
- BKL’s self-aligning clamp system grips 3/8” & 11mm dovetails evenly
- No lapping required – true, stress-free installation
Specifications:
- Ring Diameter: 30mm (1.18")
- Base Type: 9–11mm dovetail
- Mount Type: 2-piece
- Height: 22-24mm (base of clamps to ring bottom), 37-39mm (to ring centre) - Lower number is from base block. Higher measure is from clamp bottom.
- Height - Labelled "Medium" but in most users defintion and compared to other manufacturers they are High.
- Weight: 84g
- Material: High-grade aluminium
- Finish: Matte black anodised
Fits:
- 9–11mm dovetailand 3/8" rails on airguns & rimfires (Weihrauch, Air Arms, CZ 452 etc.)
- Scopes with 30mm tubes, including those with larger objectives
- Shooters wanting quick install, perfect alignment, and no tube damage
Not compatible with:
- Picatinny/Weaver rails
- Wider dovetails (CZ 457, Tikka etc.)
- Proprietary bases
Scope Clearance Guide (example):See FAQs for more info
Distance base to ring center = 39mm. Ring diameter = 15mm
Scope measured with outer diameter (no lens) 64mm bell = 32mm radius
32 – 15 = 17mm needed under bell
Mount offers 22-24mm → ~5-7mm clearance
(Add ~1-2mm safety margin to your calculation)
About BKL
Made in the USA and backed by a limited lifetime warranty. BKL mounts are known for engineering excellence, secure hold, and easy alignment – a top choice for UK shooters.
PLEASE NOTE – The mount in the diagram is not the mount you’re purchasing, purely an illustration for measurement purposes only.
Height A - 36.87 mm
Height B - 21.87 mm
Height C - 39.87 mm
If you’re unsure what mounts you require for your setup, please call our sales team on +44 (0) 1803611895 or contact [email protected] prior to purchase.
- BKL-300 2 Piece Single Strap Medium Dovetail Scope Rings.
Q1 — What size scope tube do these rings fit?
For 30 mm body tube scopes only.
Q2 — What rail type?
Designed for 9–11 mm dovetail rails (air rifles, rimfires, some target rifles). Not for Picatinny or Weaver.
Q3 — Are these really “Medium”?
Not by most standards, the actual numbers tell the truth: Lower number is from base block. Higher measure is from clamp bottom.
-
Base → ring bottom: 22-24 mm
-
Base → ring centre: 37-99 mm
That’s taller than many brands’ “High.”
Always buy by measured height — not by whatever name the manufacturer prints. There’s no industry-wide definition for Low/Medium/High.
Q4 — What clearance will I get?
Take your objective lens diameter, halve it for the radius, and compare. Example:
-
60 mm objective = 30 mm radius
-
30 mm tube = 15 mm radius
-
Clearance needed under bell = 30 − 15 = 15 mm
-
This mount gives 24 mm → ~7-9 mm spare clearance
That’s a healthy margin — enough for 56–60 mm objectives even over chunky barrels or shrouds.
Q5 — Do they need lapping?
No. BKL’s clamping system self-aligns, so lapping is not required.
Q6 — Are they strong enough for centrefire?
They’re made from high-grade aluminium, black anodised. Strong and precise — but always check rail width (must be true 9–11 mm dovetail) and ensure torque is set correctly.
Q7 — Will they mark my scope tube?
The rings are radiused to spread clamping pressure and reduce marking risk.
Q8 — What’s the warranty?
Supplied with a one-year manufacturer’s warranty.
Clearance Guide (simple rules)
-
Measure your scope’s objective outer diameter.
-
Divide by 2 for radius. Subtract the tube radius (15 mm for 30 mm tube).
-
Result = minimum clearance needed.
-
Compare with mount base → ring bottom = 22-24 mm.
Example:
-
60 mm objective → needs 15 mm clearance
-
Mount gives 24 mm → ≈ 7-9 mm spare
This model will comfortably clear large 56–60 mm objectives on most dovetail rifles.
- One year manufacturer's warranty.
