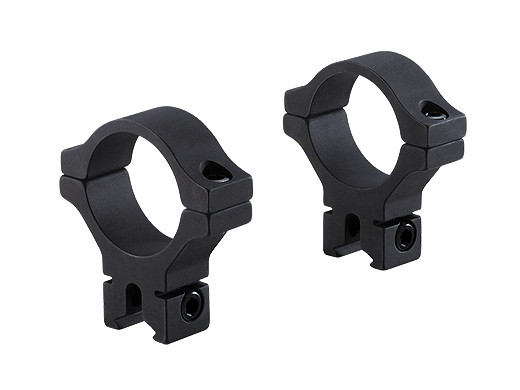

BKL-303 30mm Single Strap 9-11mm Dovetail Rifle Scope Mount Rings - Medium
Rock-solid 30mm scope mounts for air rifle or rimfire
Self-aligning clamping, scope-friendly rings, and no-lap installation
For 9–11mm rails. Precision fit – Easy setup – Scope tube protection
32mm base to ring center. Scopes upto 60mm objective outer diameter on flat base.
Don’t rely on the word “Low.” In BKL’s lineup the 303 is lower than their 300/301, but compared to most brands it’s closer to a Medium. There’s no industry-wide standard for ring height, so always go by the actual measurement: 17 mm base to ring bottom / 32 mm to centre.
BKL 303 30mm 2-Piece Dovetail Scope Mounts – Self-Aligning, No-Lap Rings – 9–11mm Rails
Perfect for air rifles and rimfires with standard 9–11mm dovetail rails. The BKL 303 is a precision-engineered 2-piece mount for 30mm scope tubes, featuring:
-
Radiused inner rings to prevent scope marking
-
BKL’s self-aligning clamp system grips 3/8” & 11mm dovetails evenly
-
No lapping required – true, stress-free installation
Specifications:
-
Ring Diameter: 30mm (1.18")
-
Base Type: 9–11mm dovetail
-
Mount Type: 2-piece
-
Height: 17mm (base to ring bottom), 32mm (to ring centre)
-
Height - Labelled "Low" but in most users defintion and compared to other manufacturers they are Medium.
-
Weight: 84g
-
Material: High-grade aluminium
-
Finish: Matte black anodised
Fits:
-
9–11mm dovetail rails on airguns & rimfires (Weihrauch, Air Arms, CZ 452 etc.)
-
Scopes with 30mm tubes, including those with larger objectives
-
Shooters wanting quick install, perfect alignment, and no tube damage
Not compatible with:
-
Picatinny/Weaver rails
-
Wider dovetails (CZ 457, Tikka etc.)
-
Proprietary bases
Scope Clearance Guide (example):See FAQs for more info
Distance base to ring center = 32mm. Ring diameter = 15mm
Scope measured with outer diameter (no lens) 60mm bell = 30mm radius
30 – 15 = 15mm needed under bell
Mount offers 17mm → ~2mm clearance
(Add ~1mm safety margin to your calculation)
About BKL
Made in the USA and backed by a limited lifetime warranty. BKL mounts are known for engineering excellence, secure hold, and easy alignment – a top choice for UK shooters.
PLEASE NOTE – The mount in the diagram is not the mount you’re purchasing, purely an illustration for measurement purposes only.
Height A - 29.27 mm
Height B - 14.27 mm
Height C - 32.27 mm
If you’re unsure what mounts you require for your setup, please call our sales team on +44 (0) 1803611895 or contact [email protected] prior to purchase.
- Designed for the shooter who needs stability and prefers independent rings
- High-performance aluminium
- Patented clamping system
- BKL-303 30mm 2pc Single Strap Low Dovetail Scope Rings.
Q1 — What size scope tube do these rings fit?
They fit 30 mm scope tubes.
Q2 — What rail do they fit?
Designed for 9–11 mm dovetail rails (air rifles, rimfires, etc.). Not suitable for Picatinny or Weaver.
Q3 — Are these really ‘Low’ rings?
BKL labels them “Low” because they sit below the taller BKL-300/301 models in their own range. Compared to most other brands, the 303 actually measures more like a Medium.
???? Always buy by actual height measurements — not the manufacturer’s “low/medium/high” tag, because there is no universal engineering standard across brands.
-
Base to ring bottom: 17 mm
-
Base to ring centre: 32 mm
Q4 — Will my scope’s objective clear the barrel?
For a 60 mm objective (30 mm radius), you’ll have about 2 mm clearance with these rings. Always add 1–2 mm safety margin.
Q5 — Do I need to lap the rings?
No. BKL’s self-aligning clamp system means lapping isn’t required.
Q6 — Can I use these on centrefire rifles?
Only if the rifle has a standard 9–11 mm dovetail. Not for wider dovetails (e.g. some BSA/CZ/Tikka), Picatinny, Weaver, or interrupted rails.
Q7 — What are they made from?
High-grade aluminium, matte black anodised. Approx. 84 g per pair.
Q8 — Will the rings damage my scope tube?
The inner profile is radiused to protect the tube and spread clamping force evenly.
Q9 — What warranty is included?
Supplied with a one-year manufacturer’s warranty.
Q10 — I’m unsure if they’ll fit my setup — what should I do?
Measure your rail width and objective diameter, then compare with the clearance guide below. If still unsure, contact us before buying.
- One year manufacturer's warranty.
