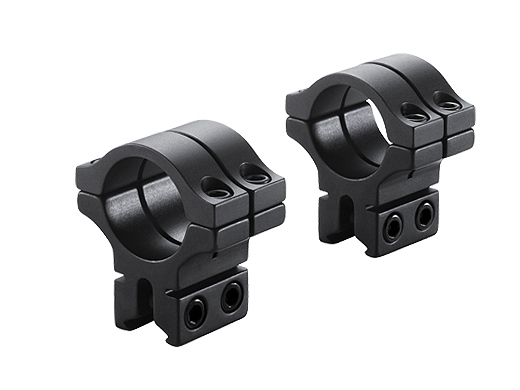

BKL-304 30mm 2 Piece Double Strap 9-11mm Dovetail Self Aligning Scope Rings
Rock-solid 30mm scope mounts for air rifle or rimfire
Self-aligning clamping, scope-friendly rings, and no-lap installation
For 9–11mm rails. Precision fit – Easy setup – Scope tube protection
32mm base to ring center. Scopes upto 60mm objective outer diameter on flat base.
Don’t rely on the word “Low.” In BKL’s lineup the 303 is lower than their 300/301, but compared to most brands it’s closer to a Medium. There’s no industry-wide standard for ring height, so always go by the actual measurement: 17 mm base to ring bottom / 32 mm to centre.
BKL 304 30mm 2-Piece Double-Strap Low Dovetail Scope Rings – Self-Aligning, No Lapping Required
The BKL 304 is a low-profile, 2-piece mount for 30mm scopes, designed to fit standard 9–11mm dovetail rails on air rifles and rimfire rifles. With a double-strap cap design and BKL’s self-aligning clamp system, it offers excellent grip, scope protection, and no need for lapping. Ideal for shooters running 30mm tubes with up to 50mm objective lenses.
Key Specifications:
-
Ring Diameter: 30mm (1.18")
-
Base Type: 9–11mm dovetail / 3/8"
-
Mount Type: 2-piece double-strap
-
Height: 17mm (base to ring bottom), 32mm (to ring centre)
-
Material: High-grade aluminium
-
Finish: Matte black anodised (also available in silver)
-
Special Features:
-
Radiused inner ring surface – reduces scope marking
-
Double-strap cap and base for strong, even clamp
-
Self-aligning clamp system – no lapping required
-
What the Specs Mean
These rings are designed for 30mm tube scopes and will work with most side-focus or AO scopes up to 50mm objective size. The 17mm base height gives a 32mm centre height, offering enough clearance for most barrels without raising your sightline excessively.
The double-strap design increases surface area and clamping strength—ideal for resisting movement on recoiling rifles. BKL’s self-aligning clamp system ensures a true, even grip on dovetails from 9–11mm without the need for shimming or lapping.
Usage Suitability
Ideal for:
-
Air rifles and rimfires with 9–11mm dovetail rails
-
Scopes with 30mm tubes and up to 50mm objectives
-
Shooters looking for low-profile, rock-solid mounting
Not suitable for:
-
Picatinny or Weaver rails
-
Wider dovetails (e.g. BSA 13mm, CZ 457, Tikka)
-
Interrupted or short top rails
-
High-recoil centrefire rifles with large, heavy optics
Scope Clearance Guide
-
Measure your scope’s objective bell diameter
-
Divide by 2 to get the radius
-
Subtract 15mm (half the ring diameter)
-
The result is the minimum mount height needed (base to ring bottom)
-
Add ~1mm margin
Example:
45mm bell = 22.5mm radius
22.5 – 15 = 7.5mm minimum needed
This mount gives 17mm → ~9.5mm of clearance
Note: Real-world fit may vary depending on barrel profile, rail height, and accessories like flip-up caps.
About BKL
Made in the USA, BKL mounts are renowned for quality machining and innovative clamping systems. Designed to hold securely and protect your optic, BKL mounts are a trusted choice for airgunners and rimfire shooters. Backed by a limited manufacturer’s warranty.
- BKL-304 30mm 2 Piece Double Strap Low Dovetail Scope Rings.
Q1 — What size scope tube do these rings fit?
They fit 30 mm scope tubes.
Q2 — What rail do they fit?
Designed for 9–11 mm dovetail rails (air rifles, rimfires, etc.). Not suitable for Picatinny or Weaver.
Q3 — Are these really ‘Low’ rings?
BKL labels them “Low” because they sit below the taller BKL-300/301 models in their own range. Compared to most other brands, the 304 actually measures more like a Medium.
???? Always buy by actual height measurements — not the manufacturer’s “low/medium/high” tag, because there is no universal engineering standard across brands.
-
Base to ring bottom: 17 mm
-
Base to ring centre: 32 mm
Q4 — Will my scope’s objective clear the barrel?
For a 60 mm objective (30 mm radius), you’ll have about 2 mm clearance with these rings. Always add 1–2 mm safety margin.
Q5 — Do I need to lap the rings?
No. BKL’s self-aligning clamp system means lapping isn’t required.
Q6 — Can I use these on centrefire rifles?
Only if the rifle has a standard 9–11 mm dovetail. Not for wider dovetails (e.g. some BSA/CZ/Tikka), Picatinny, Weaver, or interrupted rails.
Q7 — What are they made from?
High-grade aluminium, matte black anodised. Approx. 84 g per pair.
Q8 — Will the rings damage my scope tube?
The inner profile is radiused to protect the tube and spread clamping force evenly.
Q9 — What warranty is included?
Supplied with a one-year manufacturer’s warranty.
Q10 — I’m unsure if they’ll fit my setup — what should I do?
Measure your rail width and objective diameter, then compare with the clearance guide below. If still unsure, contact us before buying.
Clearance Guide
Step 1 — Measurements to know
-
Base → ring bottom: 17 mm
-
Base → ring centre: 32 mm
-
Scope objective diameter (e.g., 60 mm)
-
Rifle: distance from top of dovetail to barrel/receiver
Step 2 — Quick calculation
-
60 mm objective = 30 mm radius
-
30 mm tube radius = 15 mm
-
Clearance needed under bell = 15 mm
-
Mount provides 17 mm → ≈ 2 mm spare clearance
Step 3 — Safety margin
Add 1–2 mm extra as buffer. If you’re running a fat objective, barrel shroud, or close-fitting action, consider the taller 300/301 models.
- One year manufacturer's warranty
