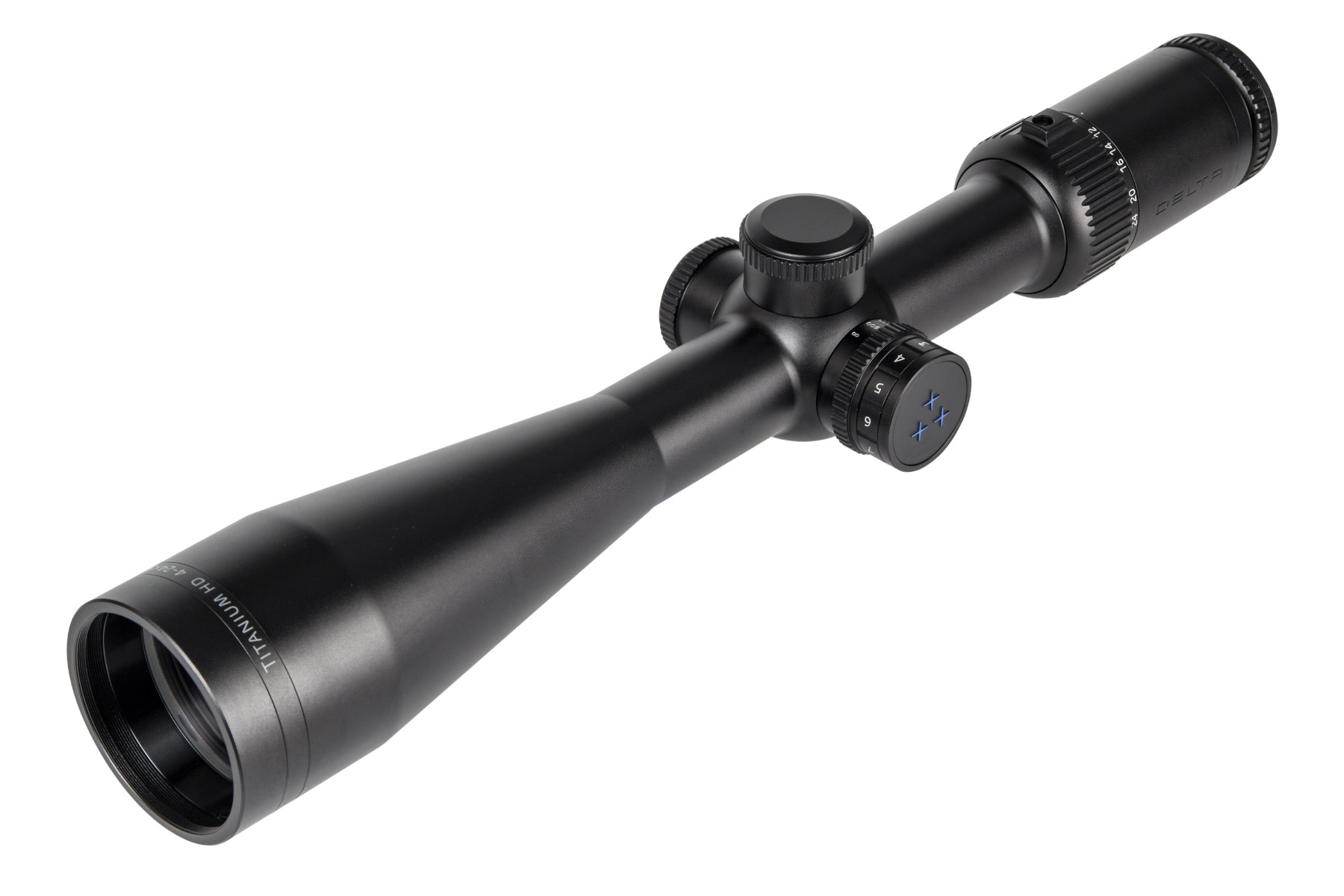

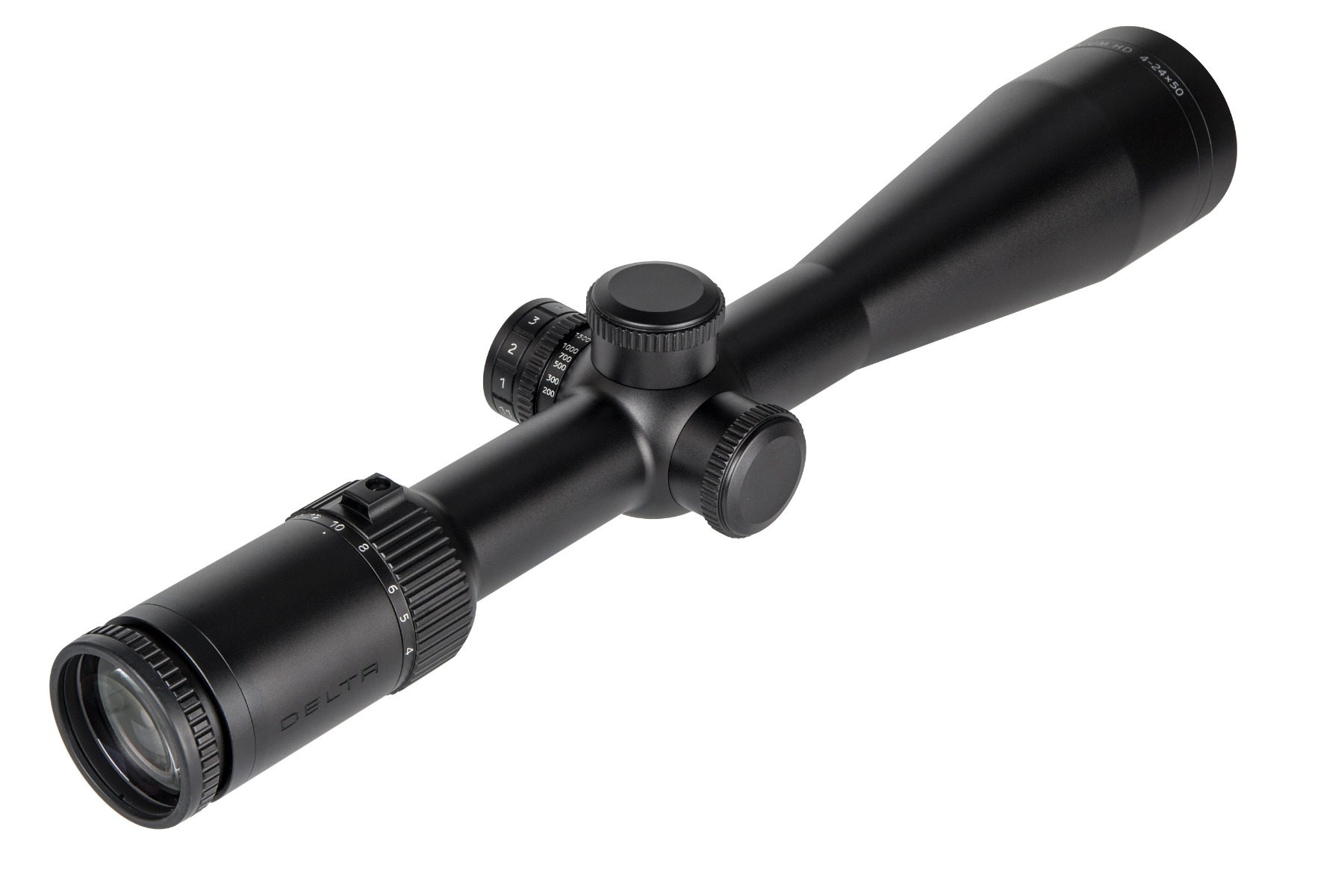

Delta Optical Titanium HD 4-24x50 Illuminated 4A-SB MOA Rifle Scope (with replaceable MOA turrets)
NEW FOR 2020
The Delta Titanium 4-24×50 HD offers not only precision and durability but gives the shooter a magnification range that is extremely versatile for short to long-distance hunting and now comes with interchangeable turrets! This gives you the option of having tactical style dial-able turrets or having the classic capped turrets, or a combination of both!
The Delta Titanium 4-24×50 HD gives the shooter an impressive total adjustment range of 100 MOA, both vertically and horizontally which is massive out of a 30mm tube.
This really is a Multi-purpose riflescope for both long-distance shooters and hunters alike.
A sufficient magnification range makes this riflescope practical for many hunters across all continents. The parallax adjustment side-knob with a range from 10m to infinity will be greatly appreciated by sports shooters. There are two reticles available, all with an illuminated central dot: 4A SB and Di MD.

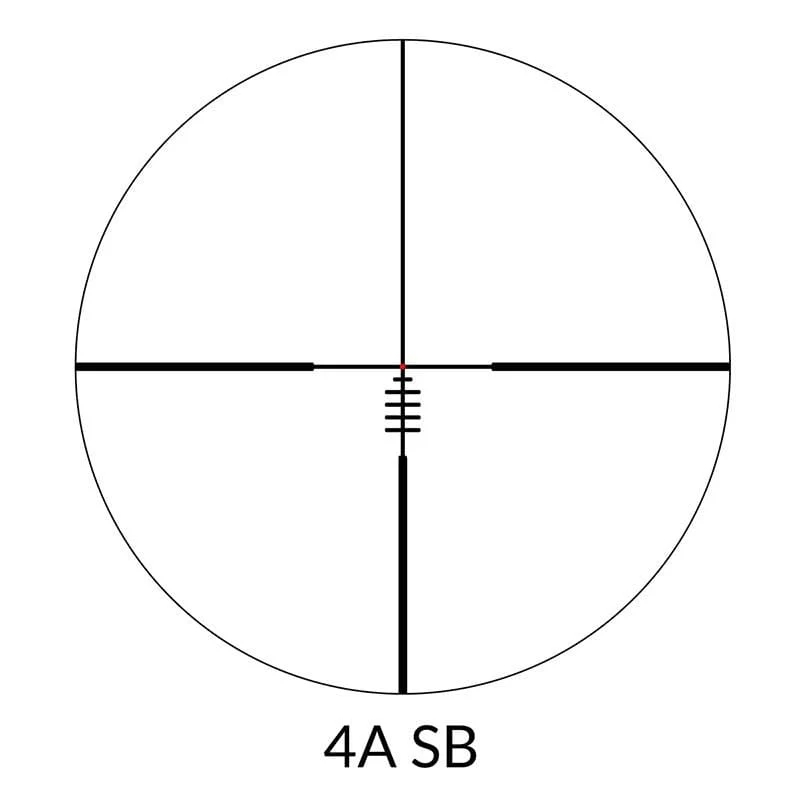

The 4A SB reticle is based on the classic Delta Optical 4AS reticle with specially designed ballistic markers. The reticle is calibrated for the magnification of 12x and a distance of 100m.
The markers are located under the central illuminated dot, the distance between each marker is 7cm. They allow making quick and fine adjustments when shooting at distances from 150 to 300m with an initial velocity of 800-900 m/s. For example, with a weapon (308 WIN, a 10.7 g bullet, 820 m/s) zeroed at a distance of 100m, one would need to use the second marker below the aiming point (14cm compensation) in order to shoot at a distance of 200m.
Other bullets with an initial velocity of about 900 m/s will fall about 1-3 cm above the aiming point, while slower projectiles (initial speed of about 800 m/s) will hit about 1-3 cm below the target.
The ends of the horizontal markers can be used for wind corrections. The first marker located 7cm below the central illuminated dot is 9cm long, while the remaining are each 18cm long.
- Spotting scope series: Titanium
- Supplier's symbol: DO-2462
- Minimum magnification: 4 x
- Maximum magnification: 24 x
- Objective diameter: 50 mm
- Distance from the eye: 80 - 98 mm
- Tube: 30 mm (1 part)
- Weight: 678 g
- Nitrogen Filling: Yes
- Working temperature: -20 / 71 ° C
- Reticle type: 4A SB
- Grid position: Second focal plane (SFP)
- Mesh backlight: Yes
- Cross adjustment range (vertical / horizontal): 100 MOA
- Exit pupil: 7.6 - 2.1 mm
- Parallax Adjustment: Side focus (10 m - ∞)
- Length: 371 mm
- Watertightness: 0.3 kg / cm2
- Shock resistance: 6500 J.
- Cross adjustment single click (MIL): 1/4 MOA
- Delta Optical Titanium HD 4-24x50 Illuminated 4A-SB MOA Rifle Scope (with replaceable MOA turrets).
- 10 Year UK Warranty
