DNT Optics ZULUS HD ZHD520R V2 5-20X Digital Night Vision Scope With LRF And Ballistic Calculator
Includes PM20L Picatinny Rail and Free Objective Focus Throw Lever
If you’re looking at this scope, you want advanced tech in the field—not gimmicks. The ZHD520R delivers a digital night vision experience with impressive clarity, precise ranging, and ballistic support built in. Perfect when you cycle between day and night hunts with the middle low‑light conditions and want one scope that does a great job for all.
The DNT ZULUS HD ZHD520R V2 is a next-generation 5–20x digital night vision scope featuring a Sony STARVIS 2 sensor, 60Hz Micro-OLED display, and built-in laser rangefinder with ballistic calculator. With day and night clarity,
Auto RAV video recording, 32GB internal memory, and a high-capacity 21700 battery delivering up to 10 hours of runtime, it’s built for performance in all conditions. Rugged, waterproof (IP67), and shockproof to 800Gs, it’s engineered for total confidence in the field.
The ZULUS HD ZHD520R V2 is the ultimate evolution in digital precision optics, engineered for serious shooters who demand uncompromising clarity and reliability across any light condition.
Whether you're tracking in broad daylight, at twilight, or in total darkness, the V2’s advanced STARVIS 2 sensor, enhanced by ED glass and AI-powered image algorithms, delivers unparalleled detail with a crisp 1920x1080 resolution and a smooth 60Hz frame rate.
It’s a leap beyond its predecessor, offering performance that rivals premium daytime scopes while unveiling the night in extraordinary clarity.
Upgraded with a brilliant 1800-nit Micro-OLED display, the V2 adapts seamlessly to changing light, giving you full control with five adjustable brightness settings.
In low light or darkness, the included IR illuminator enhances visibility even further, with optional discreet 940nm output for stealth operations.
Every shot is guided by precision. The integrated laser rangefinder provides accurate readings from 5 to 1,100 yards, instantly feeding distance data to the built-in ballistic calculator.
With real-time drop compensation, you stay locked on target no matter the range, and ballistic profiles can be managed directly on the scope or fine-tuned via the intuitive DNT app.
Designed for field endurance, the V2 runs on a high-capacity 21700 battery, offering up to 10 hours of runtime, a significant upgrade over the previous generation.
A redesigned magnification lever replaces the V1’s wheel for fast, glove-friendly adjustments, while 65mm of eye relief ensures safer, more comfortable shooting over extended sessions.
Capture your hunt with clarity using the built-in 32GB memory, high-quality video recorder, and noise-reducing microphone.
Choose from multiple trigger modes including manual, loop recording, or Auto RAV for recoil-activated hands-free capture, ensuring every moment is preserved.
Built for the elements, the ZULUS HD V2 is IP67 waterproof and dustproof, with a rugged, shockproof housing rated for up to 800 Gs of recoil. It stands up to rain, snow, and extreme environments without compromise.
The DNT Optics ZULUS HD ZHD520R V2 isn’t just an upgrade, it's a next-generation digital optic that redefines what’s possible in the field.
Sensor Specifications
-
Resolution: 1920x1080 pixels
-
Frame Rate: 60 Hz
-
Video Record Resolution: 1800x1080 pixels
Optical Specifications
-
Base Magnification: 5X
-
Digital Magnification: 5–20X
-
Eye Relief: 65 mm / 2.7 inches
-
Diopter Adjustment: ±3D
-
IR Wavelength: Vcsel: 850/940 nm (940nm module available separately)
-
IR Rating: Class 3R Eye Safe
-
Detection Range: 400 m
Display Specifications
-
Type: Micro–OLED
-
Display Resolution: 1920x1080 pixels
-
Frame Rate: 60 Hz
Power Specifications
-
Battery Type: 21700 Battery (flat top)
-
Operating Time: 10 h
-
External Power Supply: 5V–TYPE C USB
Physical Specifications
-
Net Weight: 542 g / 19.1 oz
-
Dimensions: 161.9×75.7×54.2 mm / 6.4×3.0×2.1 inches
-
Memory: Built-in Memory, 32GB
-
Waterproof: IP67
-
WIFI/APP: YES (DNT)
-
Operation Distance: 5–1000 M / 5–1100 Yards
-
Operating Temperature: -20 to 50°C / -4 to 122°F
-
Recoil Proof: 800 Gs
-
Dual-use digital optic for full daylight and night vision performance
-
Sony STARVIS 2 sensor delivers exceptional clarity in low-light and no-light conditions
-
Advanced AI image algorithms enhance detail, sharpness, and contrast
-
Built-in laser rangefinder (LRF) with real-time distance measurement up to 1,100 yards
-
Integrated ballistic calculator provides instant drop compensation based on distance
-
DNT App connectivity allows for remote control and ballistic profile adjustments
-
Ultra-bright Micro-OLED display with five brightness levels for all light conditions
-
Redesigned magnification lever for fast, glove-friendly zoom control
-
Generous 65mm eye relief for safer, more comfortable shooting
-
Auto RAV (Recoil Activated Video) and manual video recording with onboard storage
-
Noise-reducing microphone captures clear audio during hunts
-
32GB internal memory eliminates the need for SD cards
-

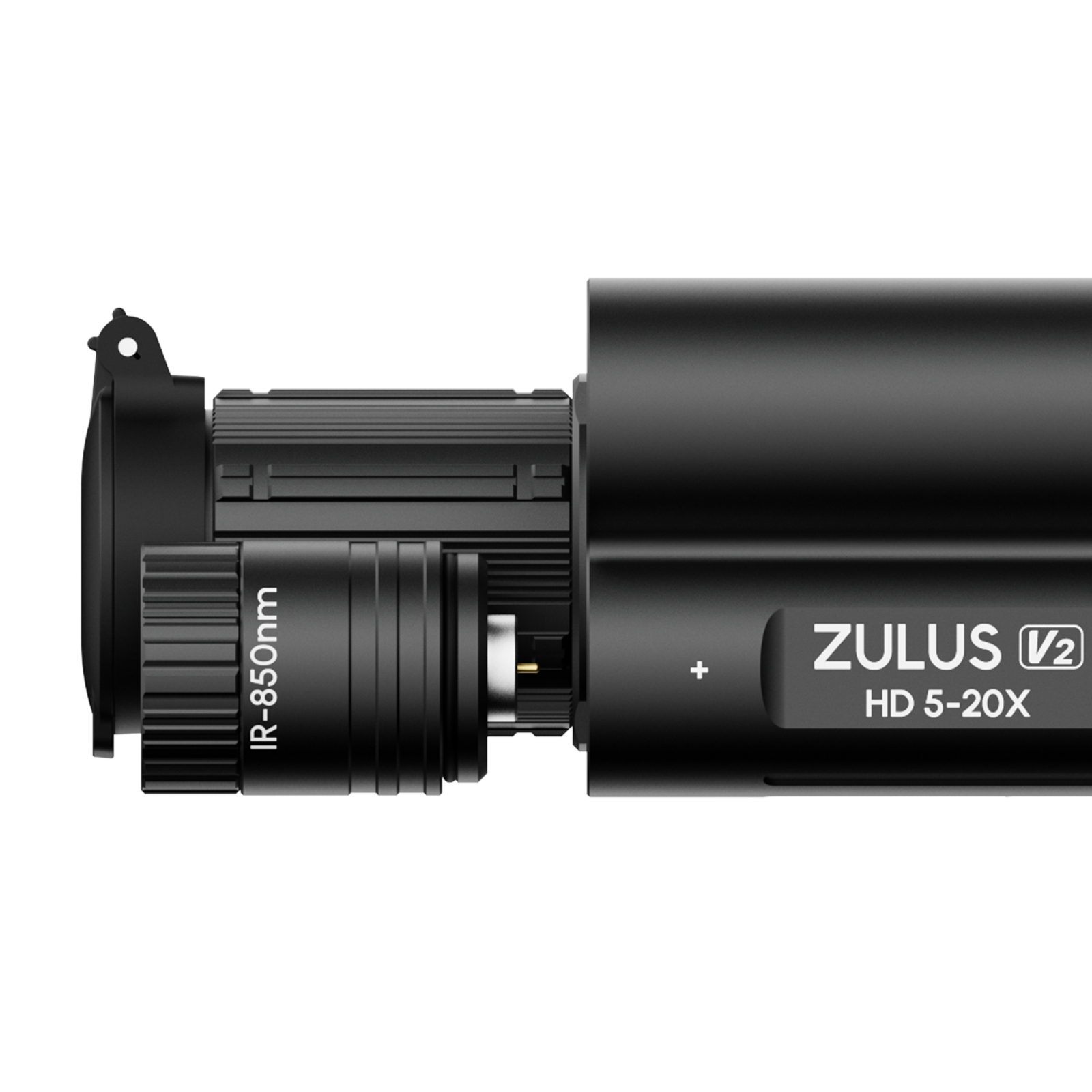

Detachable IR illuminator with choice of 850nm (included) or 940nm (available separately) output for covert or enhanced visibility
-
Rugged construction, fully waterproof (IP67) and dustproof
-
Shockproof housing rated to 800 Gs, capable of handling high-recoil firearms
-
Upgraded 21700 battery offers extended runtime for long sessions
-
USB-C external power option for continuous use in the field
-
Compact and lightweight design for easy handling and transport
-
Suitable for a wide range of shooting scenarios, from close-quarters to long-range
-

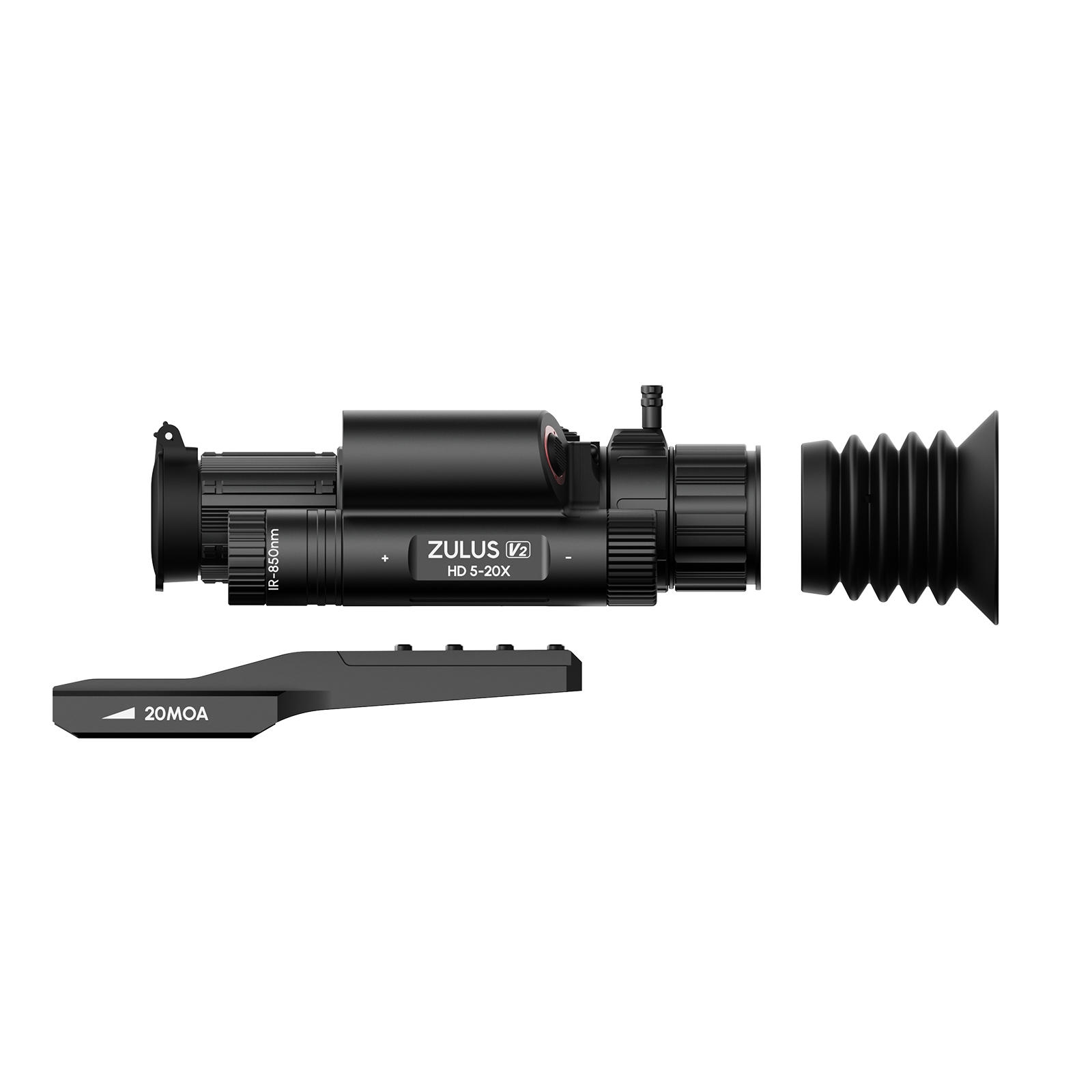

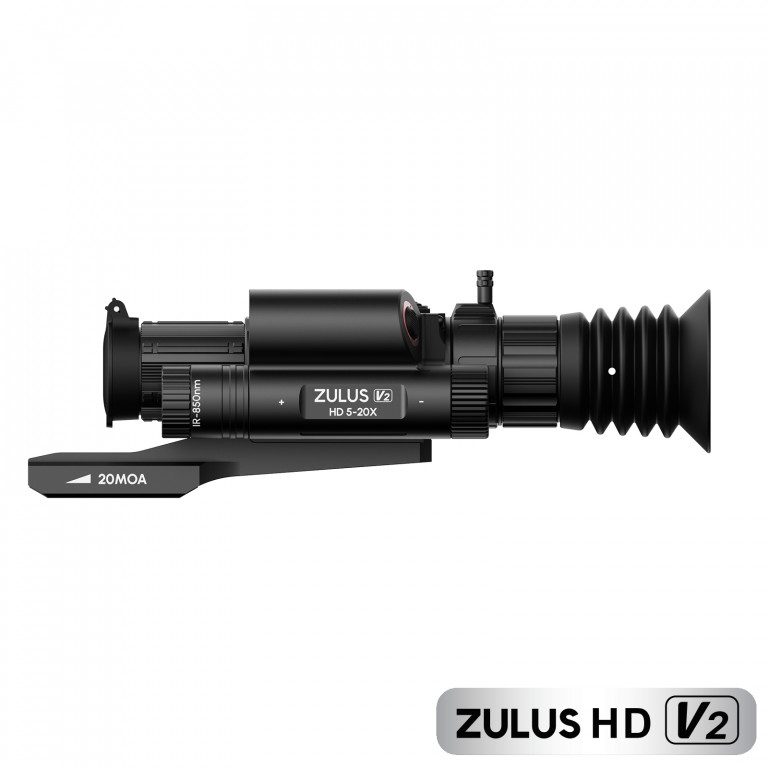

Includes PM20L Picatinny rail for straightforward mounting on rifles or setups. Add an adapter rail to use on 11mm or 13mm dovetail rails.
- DNT Optics ZULUS HD ZHD520R V2 - 5-20X Digital Night Vision Scope With LRF And Ballistic Calculator
- PM20L Picatinny Rail
- 21700 Battery
- Battery charger
- Eye cup
- Flip-up cover
- Lens cleaning cloth
- Quick start guide
- USB cable
- User manual
Q1: How well does it perform at night?
Exceptionally well — this is a purpose-built digital night vision scope, not just a day scope with a night mode.
With its Sony STARVIS 2 sensor and dedicated IR illuminator, the ZULUS HD delivers a clear, high-contrast image in full darkness, moonlight, or twilight. You'll be able to spot, range, and engage targets in conditions where traditional optics fall short.
Even in total darkness, the built-in IR system provides strong illumination for navigating and identifying targets
Q2: What type of battery arrangement does this scope use, and how long will it last?
It uses a rechargeable 21700 flat‑top batter8 (included). Expect usable time of upto 10 hours (lower IR brightness helps conserve power). USB‑C external power can also extend sessions with power bank support. Or carry a spare 21700 to be extra sure.
Q3: How reliable is the laser rangefinder feature?
It provides real time distance readings upto 1100 yards, accurate enough for adjusting your aim in the field. Of course, atmospheric conditions like fog, rain, or IR haze can affect performance, as with any optics.
Q4: Will this scope hold zero and stay rugged?
Yes — built with tough materials and rated for environmental protection to IP67. Design includes secure turrets and mounting options that help maintain zero during transport, recoil, or rough handling.
Q5: Is the ballistic calculator useful? Do I need an app?
The integrated calculator gives instant holdover info once distance is measured. The accompanying app expands capability, lets you configure ballistics for different ammunition or loads, and helps manage profiles effectively.
Q6: What clarity should I expect at high magnification in low light?
You’ll get a clear image, though as with any digital scope, increasing magnification and low ambient light increases noise. The sensor and display are strong, and IR helps—but for ultra‑long night shots you may want stronger IR illuminators or use in near dusk/dawn lighting.
Q7: Can I use this scope in the daytime, or is it just for night vision?
Yes — this is a full digital day/night scope, meaning it performs well in both conditions.
During the day, the Sony STARVIS 2 sensor and high‑resolution OLED display provide a crisp, colour‑accurate image. It works much like a camera viewfinder, so you get zoom, overlays, and reticle options without the need for ambient light.
There’s no risk of daylight damage, unlike traditional night vision tubes — so you can use it for scouting, plinking, or long‑range daytime shooting with all digital features (rangefinding, ballistic calculator, recording, etc.) fully functional.
