Element Optics Nexus 5-20x50 FFP Illuminated APR-1C MOA 30mm Rifle Scope
If you’re an MOA shooter who wants premium glass without overcomplicating things, the Element Optics Nexus 5-20x50 FFP Illuminated APR-1C MOA is a seriously capable bit of kit. Sitting at the top of Element’s lineup, it’s built with high-end materials and precision engineering, and you can feel that straight away. You’ve got a versatile 5–20x zoom range, excellent clarity from fully multi-coated lenses, and a first focal plane reticle that stays accurate at any magnification. The APR-1C layout keeps things clean and easy to use, ideal if you prefer dialing rather than dealing with a busy reticle. Add in a compact 30mm tube, smooth tool-free turrets with a solid zero-stop, and full waterproof, fogproof reliability, and you’ve got a scope that’s built for serious long-range shooting without any unnecessary fuss.
-Nathan (Technical Advisor)
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Element Optics Nexus 5-20x50 Ffp EHR-1C MOA
The word NEXUS means focal point, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope.
A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Element Optics design team of global competition winners & hunters understands optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions.
Theres a reason for the price tag: Element Optics have held nothing back, selecting only the very best materials, engineering teams, assembly procedures and technical inspections and youll realize that the moment you pick it up. Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.
| MAGNIFICATION RANGE | 5-20x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8-2.5mm |
| EYE RELIEF | 77-93mm |
| FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
| CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
| WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |
| LENGTH | 13.8” | 350mm |
| WEIGHT | 28oz | 794gr |
Element Optics Nexus 5-20x50 Ffp EHR-1C MOA
- 30mm Main Body Tube
- Compact, Lightweight design
- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Neoprene Cover included

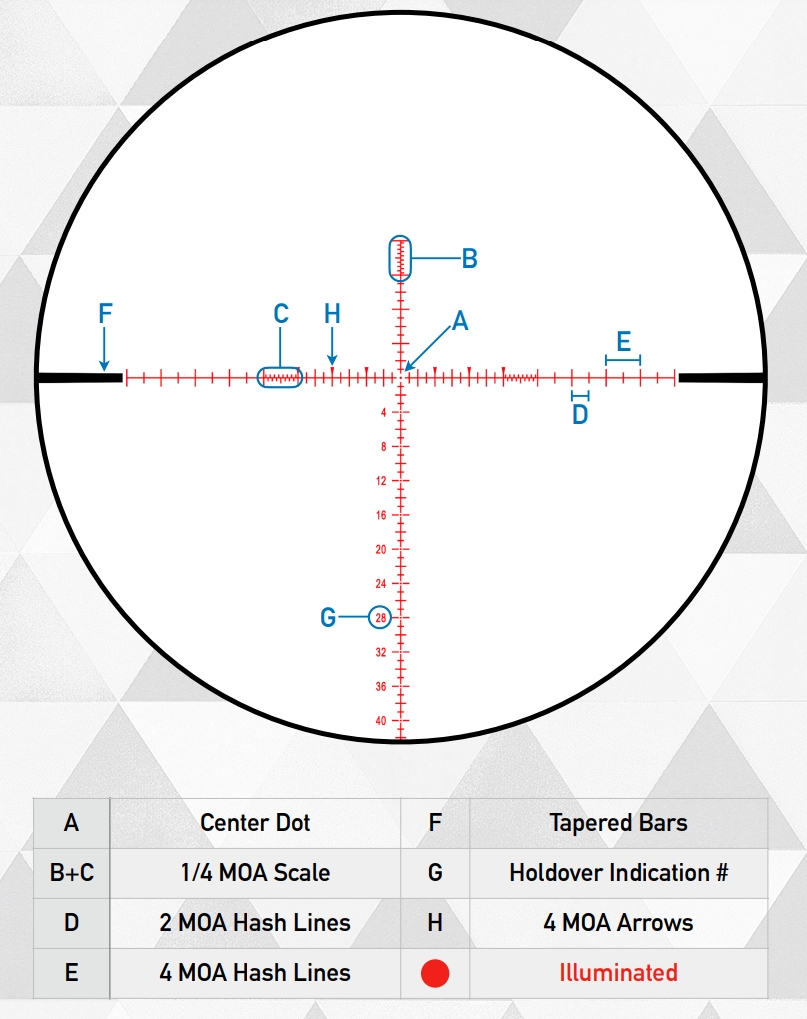

1. What is the APR-1C MOA reticle designed for?
It’s a clean, simple MOA reticle with minimal hold points, ideal for shooters who prefer dialing rather than using complex holdovers.
2. Is this scope suitable for long-range shooting?
Yes, with 5–20x magnification and around 80 MOA of elevation adjustment, it’s built for precision shooting at distance.
3. What does FFP (First Focal Plane) mean?
The reticle scales with magnification, so your holdovers remain accurate at any zoom level.
4. What is the click value on this model?
It uses 1/4 MOA clicks with 20 MOA per turret revolution.
5. How much adjustment range does it have?
You get roughly 80 MOA elevation and 50 MOA windage, giving plenty of room for long-range dialing.
6. How good is the glass quality?
It features advanced fully multi-coated lenses with an anti-fouling layer for improved clarity and durability.
7. Does it have a zero-stop?
Yes, it includes a hard mechanical zero-stop for quick and reliable return to your zero.
8. What is the parallax adjustment range?
Side parallax adjusts from around 10 yards out to infinity, making it very versatile.
9. Is it durable for heavy use?
Yes, it’s built from aircraft-grade aluminium and is waterproof, fogproof, shockproof, and nitrogen purged.
10. What comes in the box?
You typically get a sunshade, lens cloth, neoprene cover, and a removable magnification throw lever.
