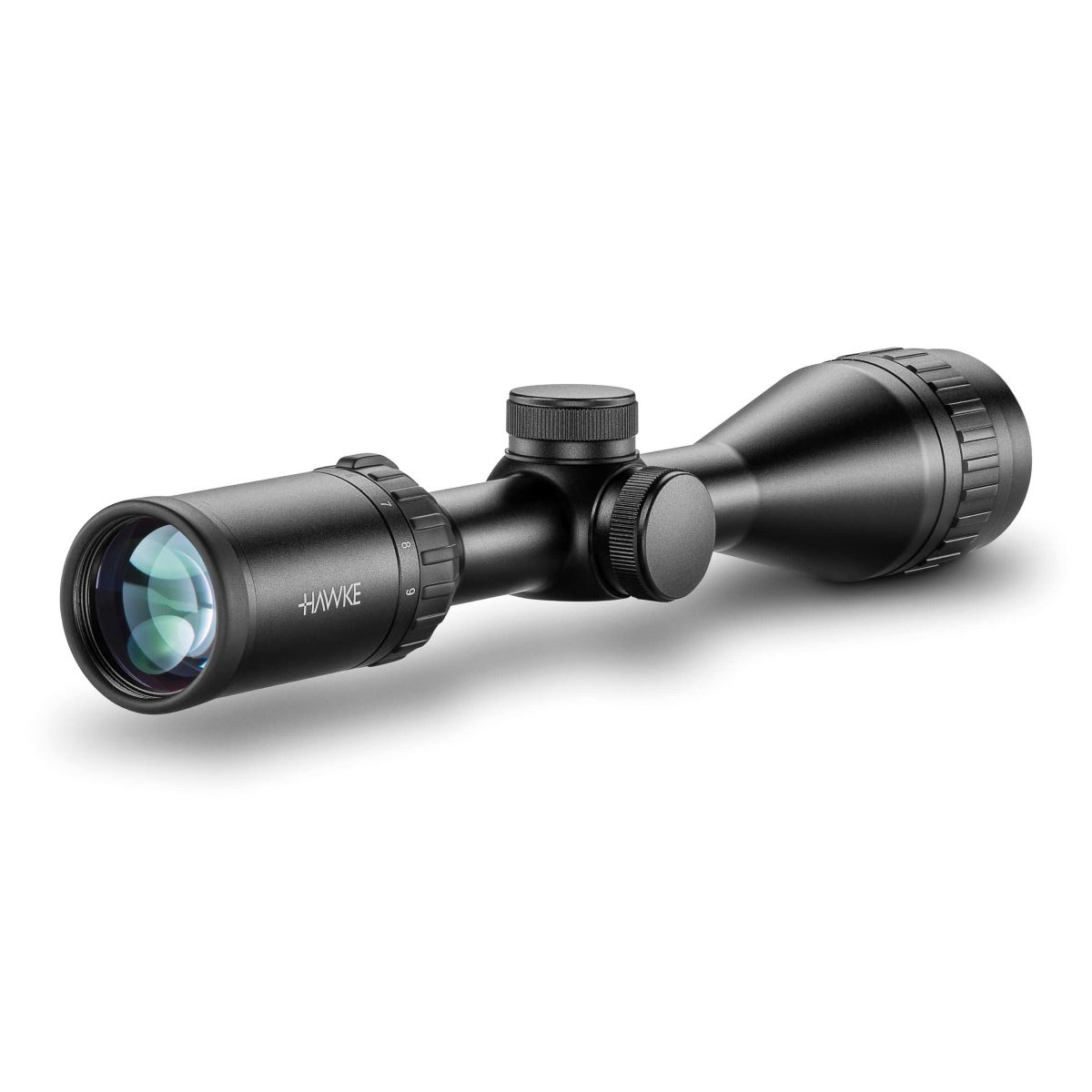

Hawke Airmax 3-9x40 AO AMX Rifle Scope
- Robust 1-inch mono-tube chassis for durability
- Advanced H2 optical system delivering clear, bright images
- Adjustable objective for parallax-free shooting from 10 yards to infinity
- Precise capped low-profile turrets with ¼ MOA click adjustments
- Wide field of view from 37.2 to 13.6 feet @ 100 yards for quick target acquisition
- AMX reticle designed with multiple holdover points for airgun trajectories
The Hawke Airmax 3-9x40 AO AMX Rifle Scope is tailored specifically for airgun shooters, featuring Hawke’s advanced H2 optical system that delivers exceptional clarity and brightness. Built with a robust 1-inch mono-tube chassis, this scope is designed to withstand demanding outdoor conditions, being fully nitrogen purged, shockproof, waterproof, and fog proof for reliable performance in any weather.
Its adjustable objective allows for precise parallax correction from 10 yards to infinity, ensuring sharp focus at all distances. The generous 3-9x magnification range paired with a large 40mm objective lens and 16-layer fully multi-coated lenses provides bright, clear images even in low-light situations. The high-torque zoom ring ensures smooth, precise magnification adjustments, complemented by a fast-focus eyepiece for quick reticle clarity.
The scope includes capped low-profile turrets that protect against accidental changes while offering accurate ¼ MOA click adjustments. The specially designed AMX reticle, calibrated with half Mil Dot spacing on the lower post and horizontal mil bars, provides multiple holdover points ideal for compensating pellet drop and range estimation on airguns with complex trajectories.
With a field of view ranging from 37.2 to 13.6 feet at 100 yards (7.1° to 2.6°) and comfortable eye relief of 90mm, this scope offers versatility and ease of use for extended shooting sessions. Backed by Hawke’s No-Fault Lifetime Warranty, the Airmax 3-9x40 AO AMX is a dependable and high-performance choice for any airgun enthusiast.
- Optical System System H2
- Scope Tube 1 Inch
- Magnification 3 - 9x
- Objective Lens 40mm
- Reticle AMX
- Parallax Adjustable Objective
- Field of View 37.2 - 13.6 ft @ 100 yards / 12.4 - 4.5 m @ 100 m
- Field of View (°) 7.1 - 2.6
- Eye Relief 3.5 in / 90 mm
- Parallax/Focus Range 10 yds - ∞ / 9 m - ∞
- Click Value ¼ MOA
- Turret Type (Elevation) Capped

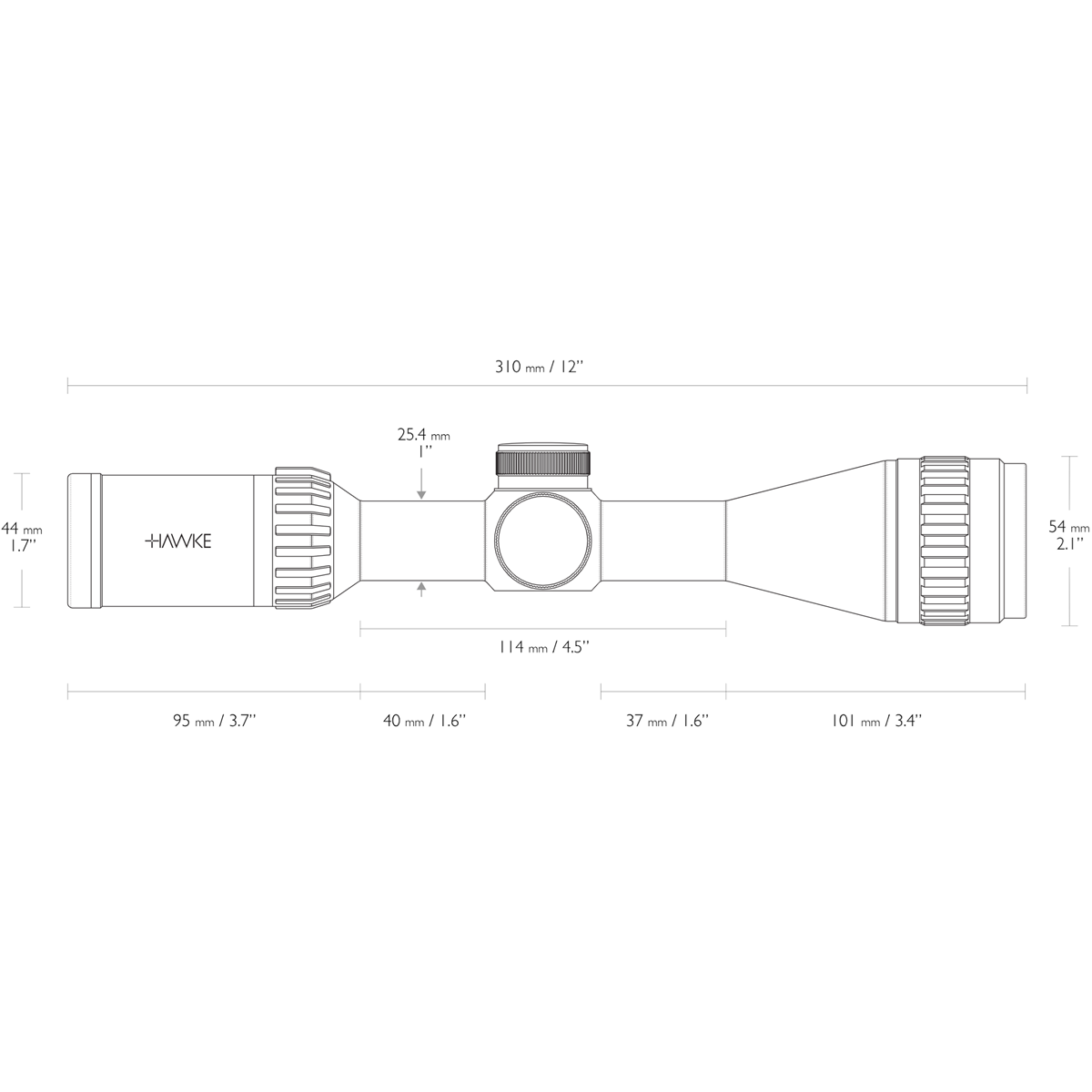

- Length 12.2 in / 310 mm
- Weight 18.3 oz / 519 g
-
Specifically designed for airgun shooters, optimising performance for airgun ballistics and trajectories
-
Features Hawke’s advanced H2 optical system for enhanced clarity and brightness
-
Built with a sturdy 1-inch mono-tube chassis for increased durability and reliability in tough conditions
-
Fully nitrogen purged to prevent internal fogging and moisture buildup
-
Shockproof construction to withstand recoil and rough handling
-
Waterproof design ensures performance in wet or humid environments
-
Adjustable objective allows for precise parallax correction at varying distances
-
Capped low-profile turrets protect against accidental adjustment while offering precise control
-
High-torque zoom ring provides smooth and secure magnification changes
-
Fast-focus eyepiece for quick reticle sharpening and easy target acquisition
-
AMX reticle tailored for airguns, featuring multiple holdover points to compensate for pellet drop
-
Reticle includes half Mil Dot spacing on the lower post and horizontal mil bars for accurate range estimation and bracketing
-
Lightweight and ergonomic design for comfortable use over extended periods
-
Backed by Hawke’s No-Fault Lifetime Warranty for peace of mind

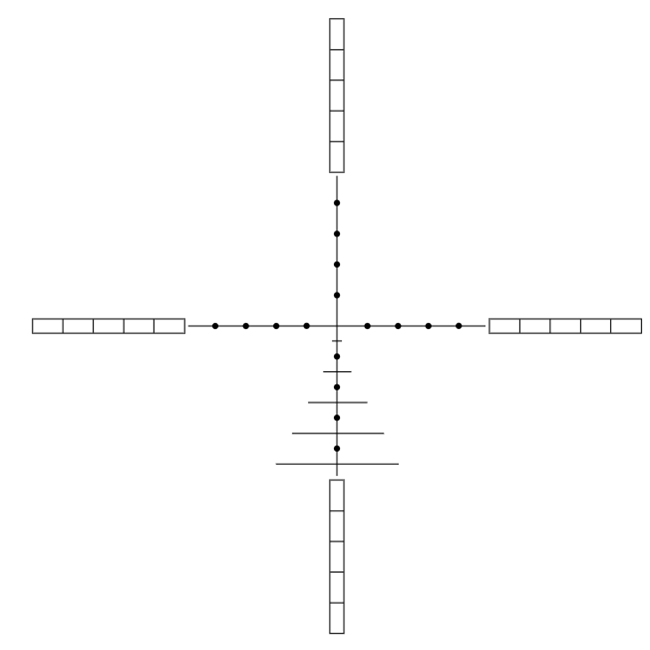

AMX Reticle:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- Hawke Airmax 3-9x40 AO AMX Rifle Scope
- Instruction Manual
- Lens Cloth
- Bikini Style Lens Covers
- Hawke Worldwide Warranty
