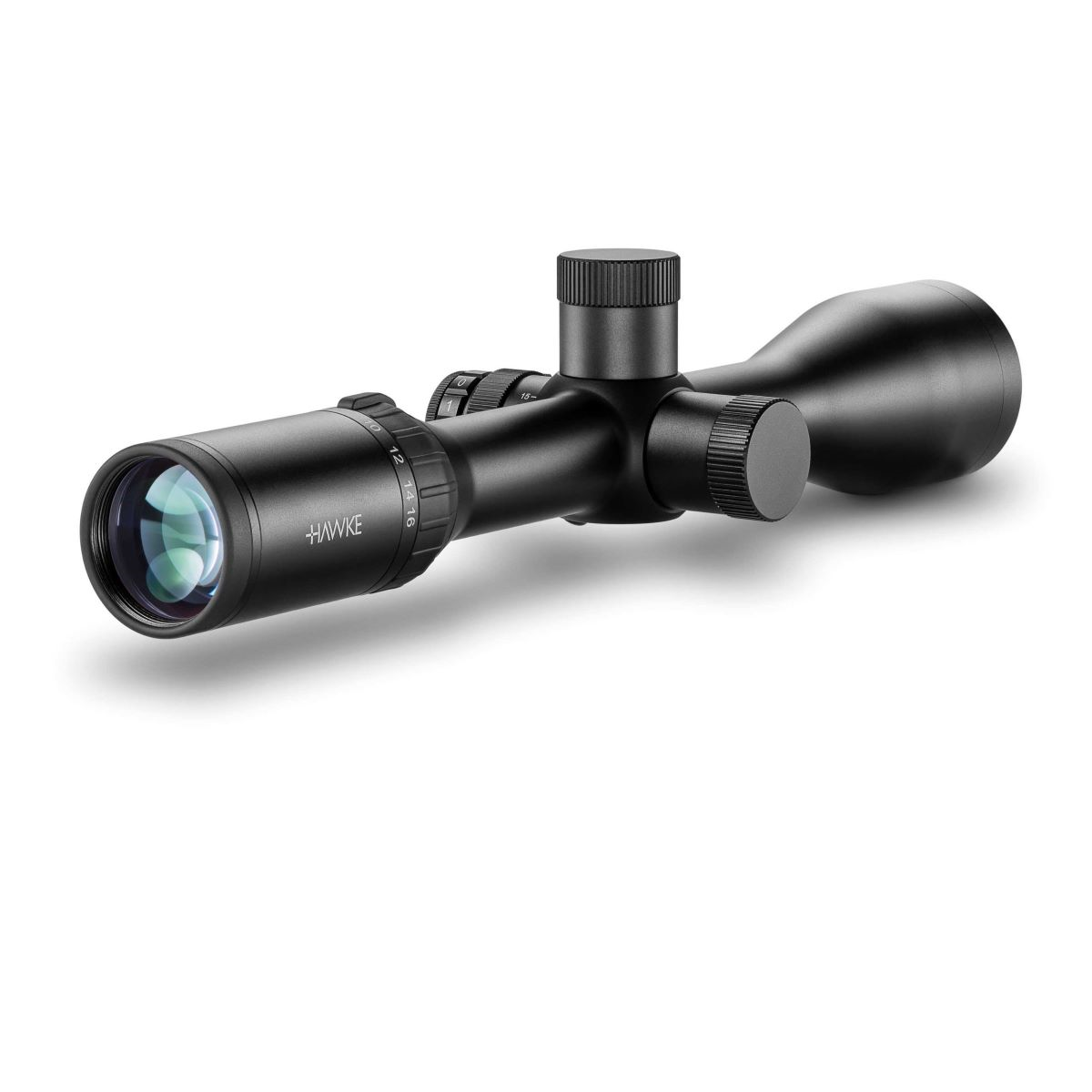

Hawke Airmax 30 WA SF 4-16x50 SFP 0.1MRAD AMX IR 30mm Rifle Scope
- Features H2 optics with 16-layer fully multi-coated lenses for exceptional clarity
- AMX IR reticle with multiple aim points and half mil-dot spacing for precise long-range shooting
- Wide-angle view with a field of view from 30.7 to 7.7 feet at 100 yards
- Side focus parallax adjustment for sharp target clarity
- Six-step red illumination for enhanced visibility in varying light conditions
- Robust 30mm mono-tube chassis that is shockproof, waterproof, and all calibre rated
The Hawke Airmax 30 WA SF 4-16x50 SFP AMX IR rifle scope is a high-performance optic specifically designed for airgun shooters, combining precision with reliability. Built around Hawke’s advanced H2 optical system, it delivers sharp, bright images through 16-layer fully multi-coated lenses, ideal for demanding field conditions. The 4–16x magnification offers excellent flexibility for mid- to long-range shooting, while the wide-angle view enhances target acquisition and situational awareness, with a generous field of view from 30.7 to 7.7 feet at 100 yards.
This scope features a robust 30mm mono-tube chassis, a side focus parallax adjustment from 10 yards to infinity, and a glass-etched AMX IR reticle in the second focal plane. The reticle includes multiple aim points with half mil-dot spacing and horizontal bars at key intervals for accurate holdover and bracketing, making it perfect for compensating for pellet drop at varying ranges. The six-step red illumination, controlled via a stepped rheostat, ensures clear visibility in changing light conditions.
User-friendly controls include capped target turrets, a fast-focus eyebell, and a high torque zoom ring for reliable and precise operation. Fully nitrogen purged, shockproof, waterproof, and fog proof, the Airmax 30 WA SF is built to perform in all environments and is rated for all calibres. Supported by the Hawke No-Fault Lifetime Warranty, it’s a trusted choice for airgun enthusiasts seeking accuracy, clarity, and rugged build quality.
- Optical System System H2
- Scope Tube 30mm
- Magnification 4 - 16x
- Objective Lens 50mm
- Reticle AMX IR
- Illumination 6 Levels (Red)
- Illumination Control Stepped Rheostat with Off Positions In-between
- Parallax Side Focus
- Field of View 30.7 - 7.7ft @100yds / 10.2 - 2.6m @100m
- Field of View (°) 5.9 - 1.5
- Eye Relief 4in / 102mm
- Parallax/Focus (Error free from) 10yds - ∞ / 9m - ∞
- Click Value 1⁄10 MRAD
- Turret Type (Elevation) Target

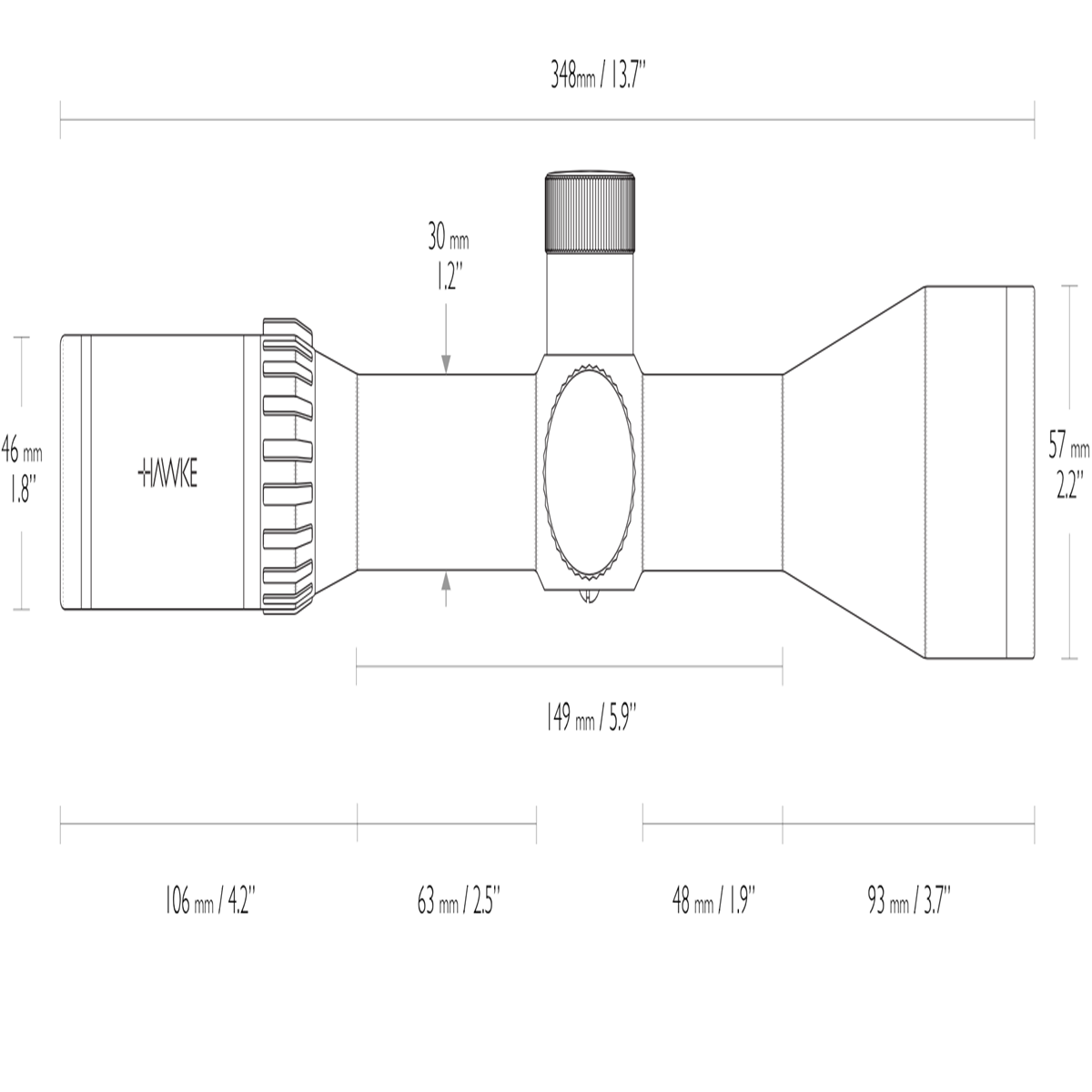

- Length 13.7in / 348mm
- Weight 26.8oz / 760g
-
Designed specifically for airgun use with tailored optical performance
-
Incorporates the AMX IR glass-etched reticle for precise aiming at varying distances
-
Provides multiple aim points with half mil-dot spacing on the lower post for long shots
-
Hollow posts segmented into mil spacing allow for effective target bracketing
-
Equipped with capped target turrets for easy and reliable windage and elevation adjustments
-
Utilises a high torque zoom ring for smooth magnification changes
-
Fast focus eyebell ensures quick and accurate eye relief adjustments
-
Side focus parallax adjustment enhances image sharpness and target clarity
-
Features six levels of red illumination controlled by a stepped rheostat with off positions in-between
-
Built on a durable 30mm mono-tube chassis that is nitrogen purged for fog proofing
-
Shockproof, waterproof, and all calibre rated to withstand tough conditions
-
Covered by Hawke’s No-Fault Lifetime Warranty for peace of mind

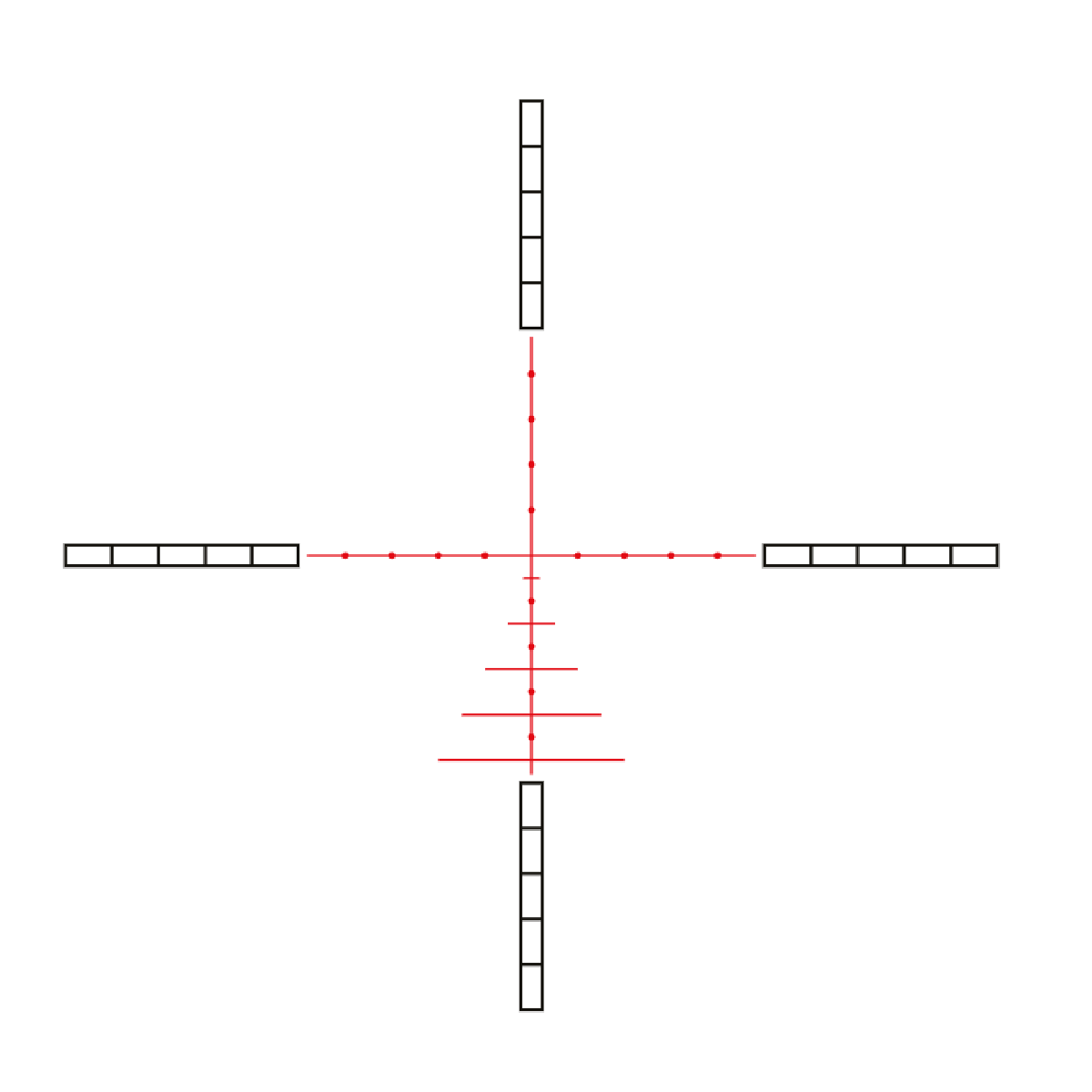

AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- HAWKE Airmax 30 WA SF 4-16x50 AMX IR Reticle Rifle Scope
-
Instruction Manual
-
Reticle Booklet
-
Lens Cloth
-
4" Sunshade
-
Metal Flip-Up Lens Covers (61052 & 61109)
-
Flip-Up Removal Tool
-
4" Sidewheel
-
Hex Key
-
CR2032 Battery
- Hawke No-Fault Lifetime Warranty
