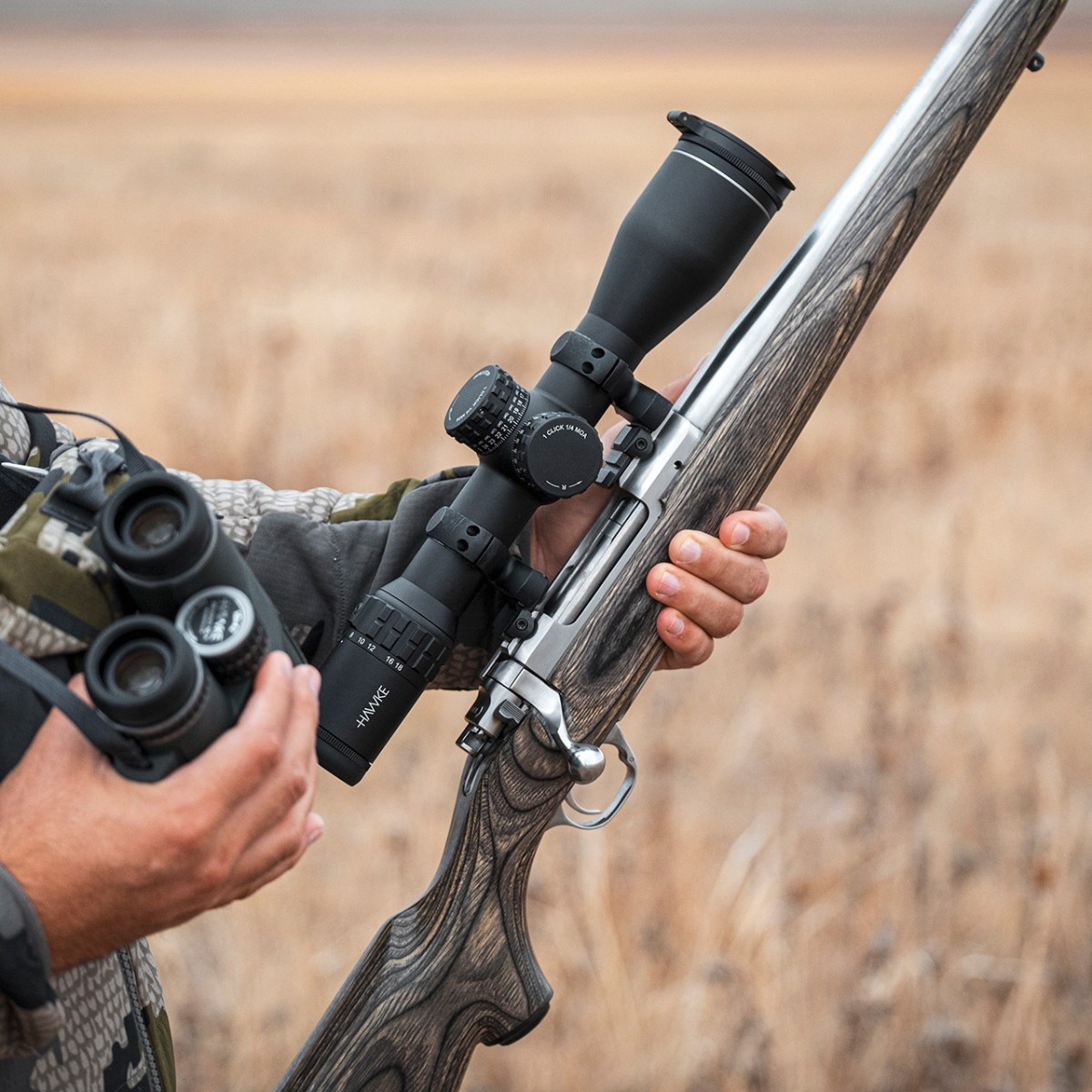

Hawke Frontier 3-18x50 SF 34mm FFP Illuminated MIL PRO EXT Rifle Scope
- Patented exposed zero lock 'n' stop evaluation turret
- Side focus
- High volume eyebox
- High grade, low dispersion crown glass
- Fast focus eyebell with lock ring
- First focal plane (FFP)
- Illumination
- 102mm eye relief
- 21 layer fully multi-coated lenses
- Supplied with professional metal flip-up covers
- 34mm mono-tube chassis
- Wide-angle FOV
- Multi-LED high-intensity reticle
- Zoom magnification throw lever (removable)
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All Calibre rated
- Supreme accuracy for rifle shooting, driven and hunting applications.
- Fifteen models in a variety of magnifications and reticle designs.
- All models feature Hawke's new H7 optics with a high zoom ratio, supreme clarity and light transmission.
- Precision build components and larger 34mm monotube construction designed for extreme long-range shooting.
- Length: 337mm/ 13.3"
- Weight: 790g/27.9oz
- Eye Relief: 102mm/4"
- Focus/Parallax - Side Focus: 14m to infinity/ 15 yards to infinity
- FOV: 12.5-2.1m@100m/ 37.5-6.3ft@100yds
- Exit Pupil: 16.7-2.8mm/0.66-0.11"
- Chassis: 34mm mono-tube
- Optical System: 3-18x
- Objective: 50mm
- Illumination: Red (11 levels with off positions in-between)
- Reticle: Mil Pro Ext
- Elevation Increment: 1/10 MRAD
- Elevation Adjustment Range: 46 MRAD
- Windage Increment: 1/10 MRAD
- Windage Adjustment Range: 25 MRAD
- Ocular Type: Locking fast focus
- Lens Coating: Fully multicoated- 21 layers
- Power Selector Style: Removeable zoom lever
- Focal Plane: FFP
- Turret Caps: No
- Turret Type: Exposed zero lock 'n' stop turrets
- Material: Aluminium
- Patented exposed zero lock 'n' stop evaluation turret
- Side focus
- High volume eyebox
- High grade, low dispersion crown glass
- Fast focus eyebell with lock ring
- First focal plane (FFP)
- Illumination
- 102mm eye relief
- 21 layer fully multi-coated lenses
- Supplied with professional metal flip-up covers
- 34mm mono-tube chassis
- Wide-angle FOV
- Multi-LED high-intensity reticle
- Zoom magnification throw lever (removable)
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All Calibre rated

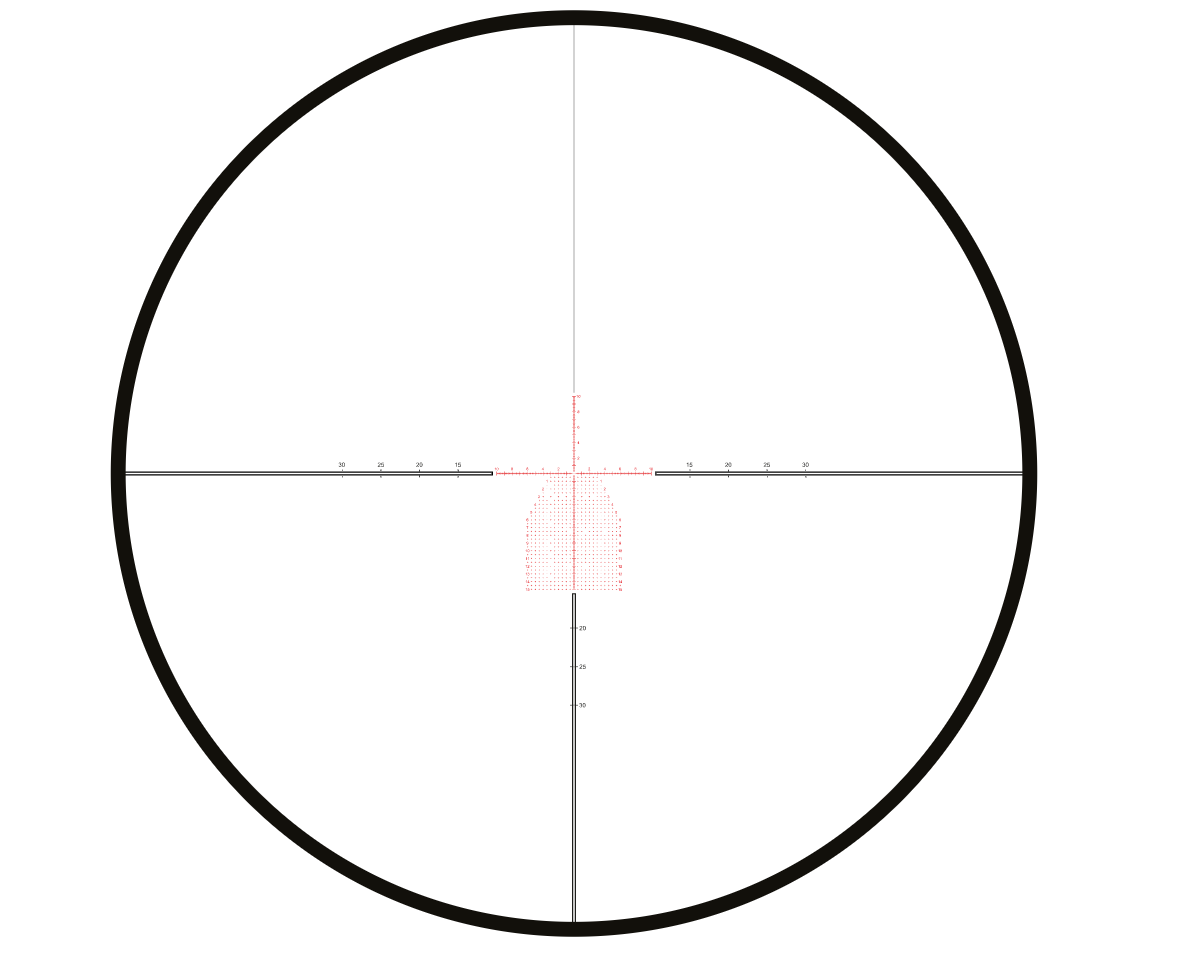

FFP Mil Pro Ext. Reticle (18x):
The FFP Mil Pro Ext. the reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With Mil spaced markings extending out to 15 Mil of holdover, the FFP Mil Pro Ext is a versatile reticle that provides aim points no matter how extreme the distance.
All reticle measurements are Mil spaced and offer 1 Mil, 0.2 Mil and 0.1 Mil brackets for range finding. Every Mil spacing on the lower section is numbered to ensure the quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
When the magnification is increased, the reticle increases in size along with the image you are looking at.
MIL-MIL SETUP
The Mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD. Because of FFP, this is true on all magnifications.
IMPERIAL
1 MRAD = 1yd @ 1000yds, or 3.6in @ 100yds. At different ranges this MRAD gap will change: 50yds = 1.8in, 100yds = 3.6in, 200yds = 7.2in, 300yds = 10.8in.
METRIC
1 MRAD = 1m @ 1000m, or 10cm @ 100m. At different ranges this MRAD gap will change: 50m = 5cm, 100m = 10cm, 200m = 20cm, 300m = 30cm.
- Hawke Frontier 3-18x50 SF 34mm FFP Illuminated MIL PRO EXT Rifle Scope
- Box
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Pro Flip-Up Covers
- 4" Sunshade
- Zoom Lever
- CR2032 Battery
- Hawke No-Fault Lifetime Warranty.
