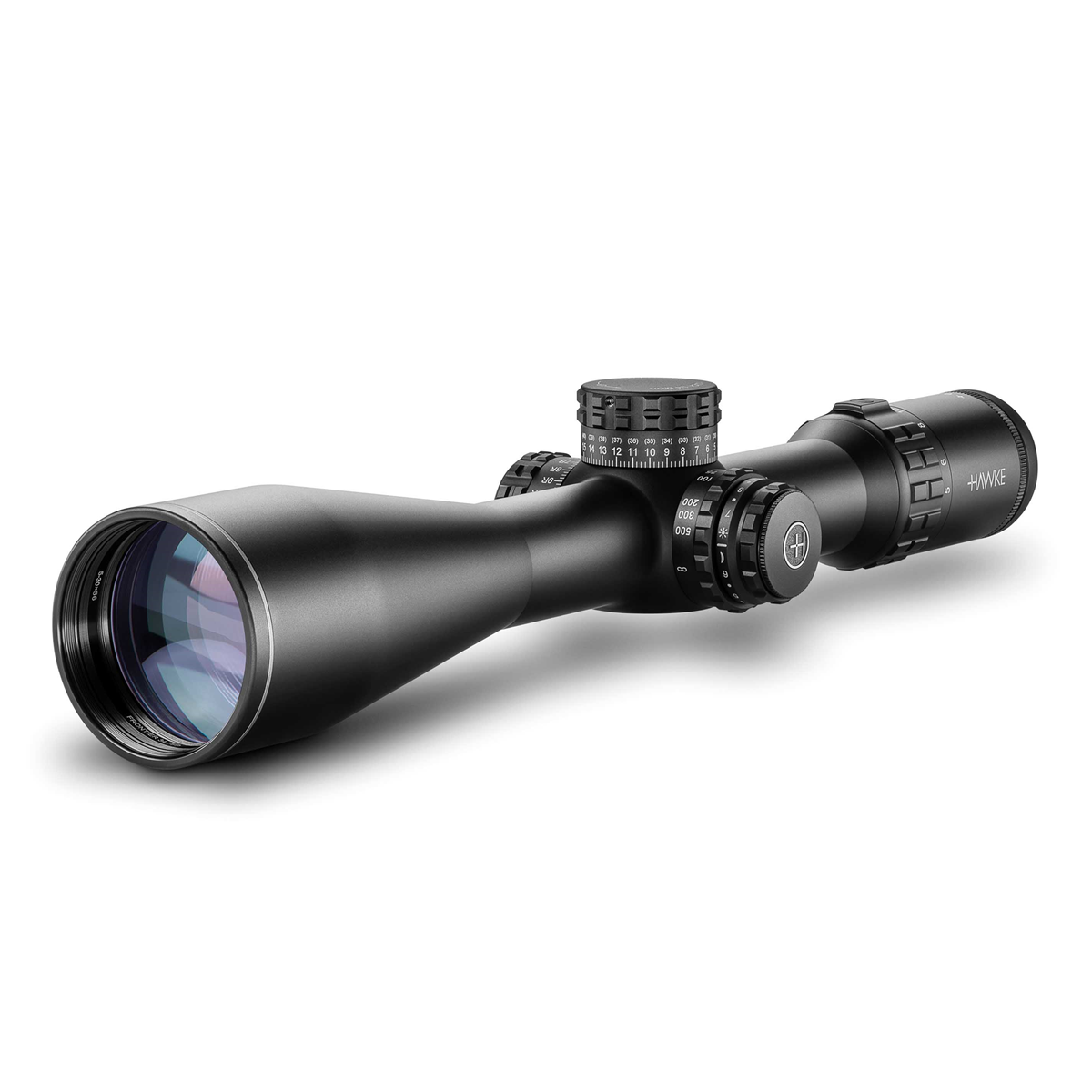

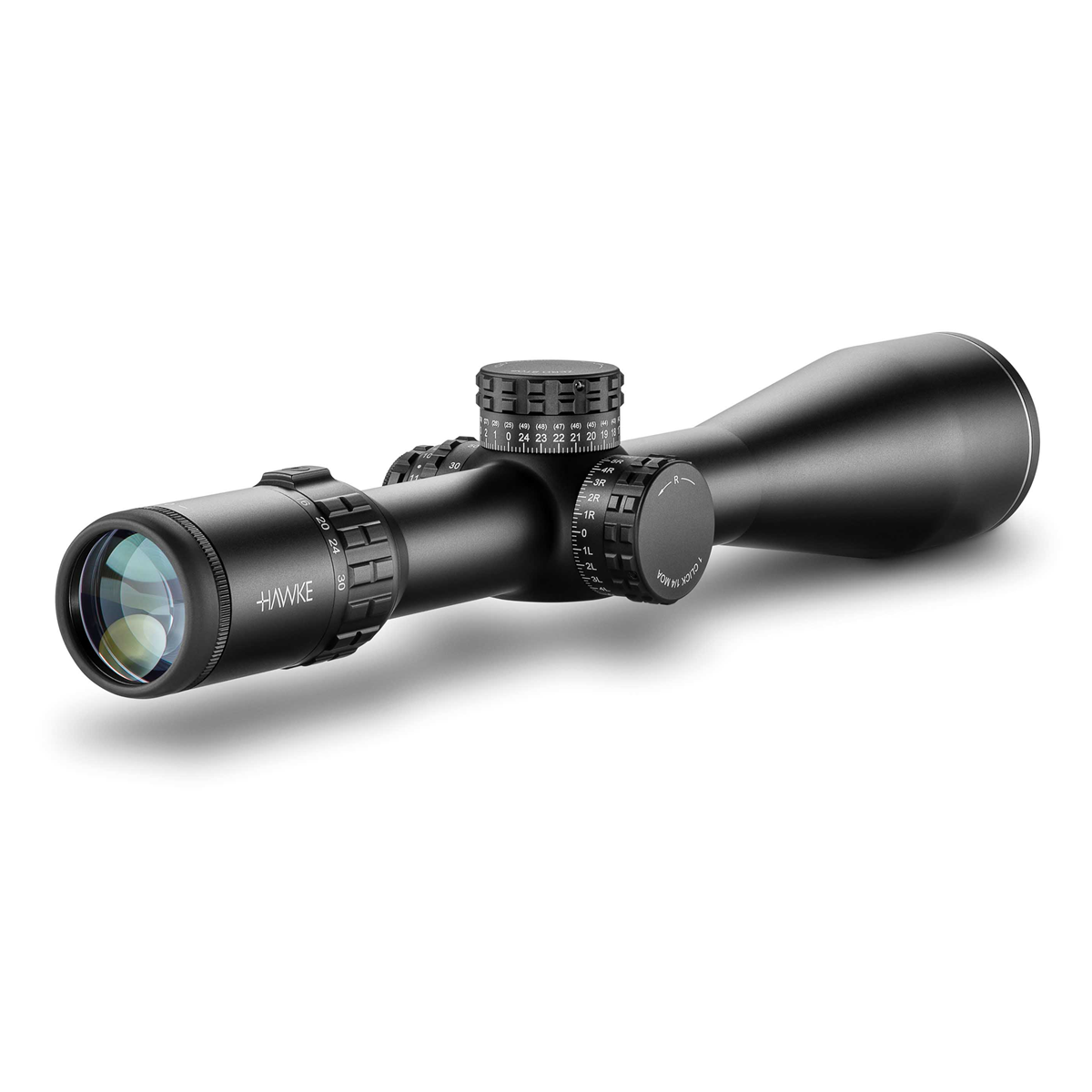

Hawke Frontier 5-30x56 SF 34mm FFP Illuminated MOA PRO EXT Rifle Scope
- Patent Exposed Zero Lock 'N' Stop Elevation Turret.
- Side Focus.
- High volume eyebox.
- High grade, low dispersion crown glass.
- Fast focus eyebell with lock ring.
- First Focal Plane (FFP).
- Illumination.
- 102mm eye relief.
- 21 layer fully multicoated lenses.
- 34mm Mono-Tube chassis.
- Wide-angle FOV.
- Multi-LED high-intensity reticle.
- Zoom magnification throw lever (removable).
- Supplied with professional metal flip-up covers.
- Nitrogen purged.
- Shockproof.
- Waterproof.
- Fog proof.
- All calibre rated.
- All models feature Hawke's new H7 optics with a high zoom ratio, supreme clarity and light transmission.
- Precision build components and larger 34mm monotube construction designed for extreme long-range shooting.

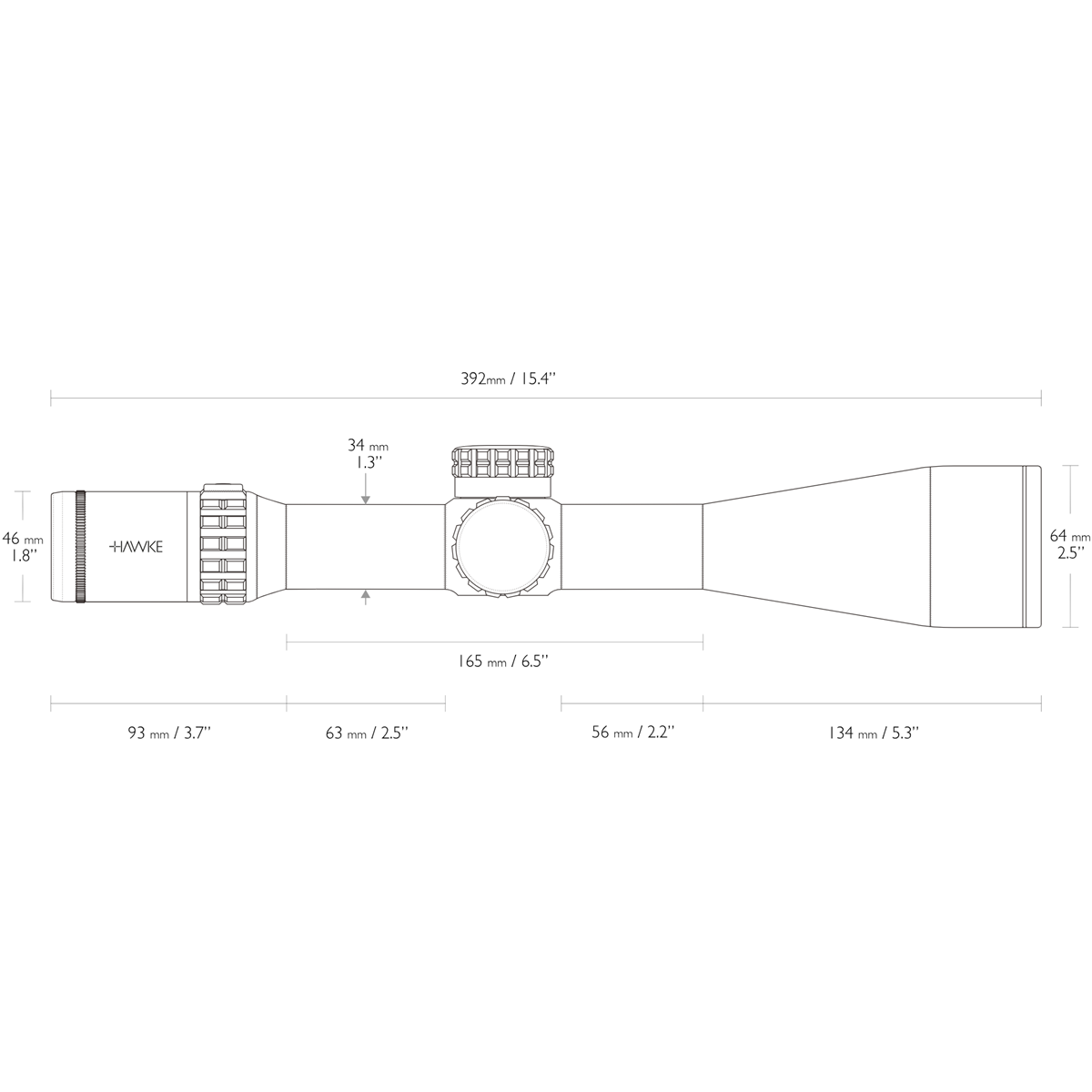

- Length: 39mm/15.4"
- Weight: 830g/29.3oz
- Eye Relief: 102mm/4"
- Focus/Parallax-Side Focus: 14mm to infinity/ 15 yds to infinity
- FOV: 7.2-1.3m @ 100m/ 22.5-3.8ft @ 100yds
- Exit Pupil: 11.2-1.9mm/ 0.44-0.07"
- Chassis: 34mm Mono-tube
- Optical System: 5-30x
- Objective Lens Diameter: 56mm
- Illumination: Red (11 Levels with Off Positions In-between)
- Reticle: MOA Pro Ext
- Elevation Increment: 1/4 MOA
- Elevation Adjustment Range: 99 MOA
- Windage Increment: 1/4 MOA
- Windage Adjustment Range: 53 MOA
- Material: Aluminium
- Ocular Type: Locking fast focus
- Lens Coating: Fully Multi-Coated; 21 layers
- Power Selector Style: Removable Zoom Lever
- Focal Plane: First Focal Plane (FFP)
- Turret Caps: No
- Turret Type: Exposed zero lock 'n' stop turrets.
- Patent Exposed Zero Lock 'N' Stop Elevation Turret.
- Side Focus.
- High volume eyebox.
- High grade, low dispersion crown glass.
- Fast focus eyebell with lock ring.
- First Focal Plane (FFP).
- Illumination.
- 102mm eye relief.
- 21 layer fully multicoated lenses.
- 34mm Mono-Tube chassis.
- Wide-angle FOV.
- Multi-LED high-intensity reticle.
- Zoom magnification throw lever (removable).
- Supplied with professional metal flip-up covers.
- Nitrogen purged.
- Shockproof.
- Waterproof.
- Fog proof.
- All calibre rated.
FFP MOA Pro Ext. Reticle (30x)
The FFP MOA Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings extending out to 60 MOA of holdover, the FFP MOA Pro Ext. is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are MOA spaced and offer 1 MOA and 0.5 MOA brackets for range finding. Every fourth MOA spacing on the lower section is numbered to ensure the quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
When the magnification is increased, the reticle increases in size along with the image you are looking at.
The MOA spaced reticle and 1⁄4 MOA turrets make for easy point of aim adjustment. Every 4 clicks on the turret will measure exactly 1 MOA spacing on the reticle. Because of FFP, this is true on all magnifications.
IMPERIAL
1 MOA = 1.047in @ 100yds. At different ranges this MOA gap will change: 50yds = 0.5in, 100yds = 1.0in, 200yds = 2.1in, 300yds = 3.1in.
METRIC
1 MOA = 29mm @ 100m. At different ranges this MOA gap will change: 50m = 15mm, 100m = 29mm, 200m = 59mm, 300m = 87mm.
Hawke Frontier 5-30x56 SF 34mm FFP Illuminated MOA PRO EXT Rifle Scope.
- Box
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Pro Flip-Up Covers
- 4" Sunshade
- Zoom Lever
- CR2032 Battery
- Hawke No-Fault Lifetime Warranty.
