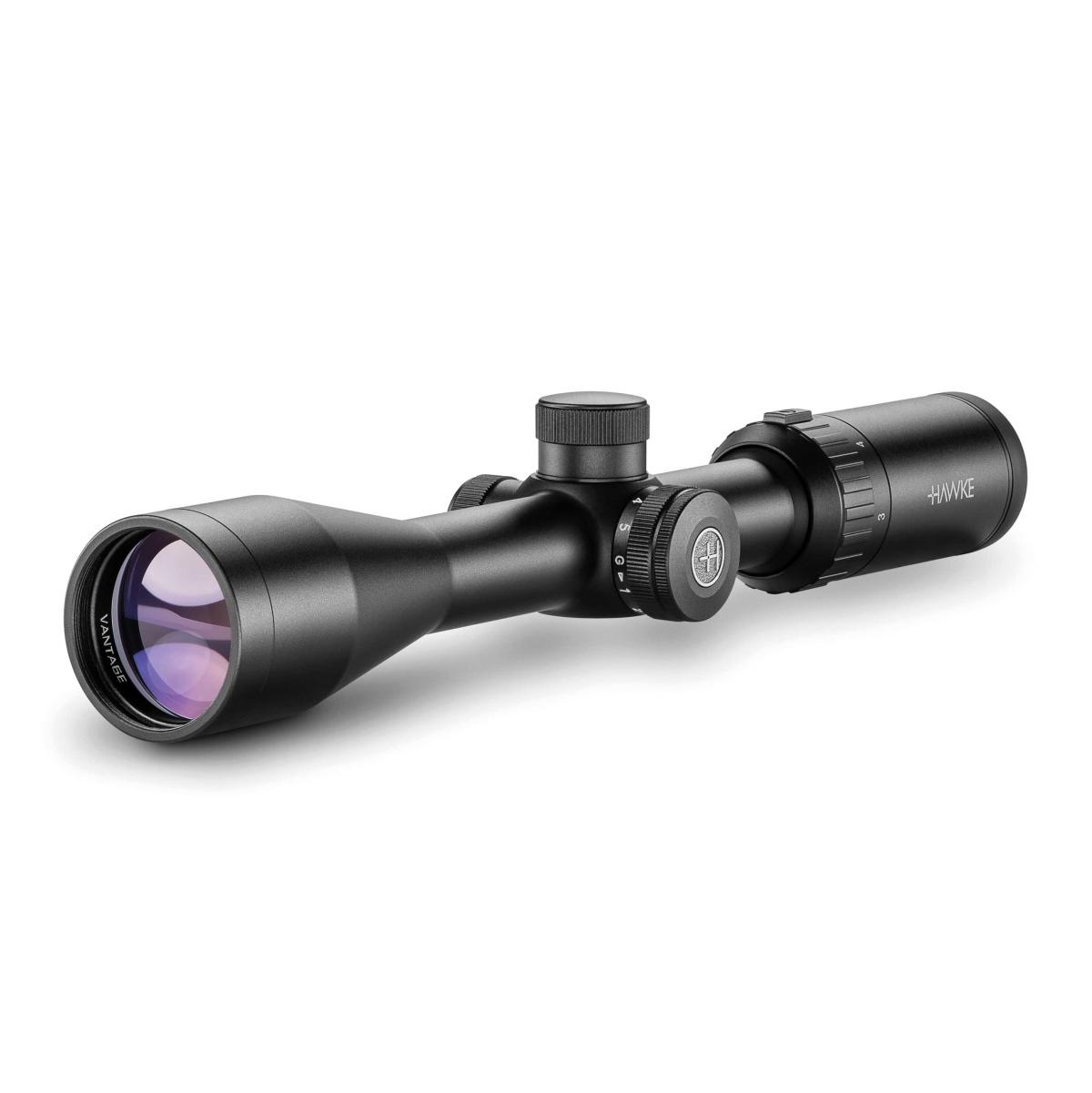

Hawke Optics Vantage IR 3-9x40 L4A Dot 1" Rifle Scope

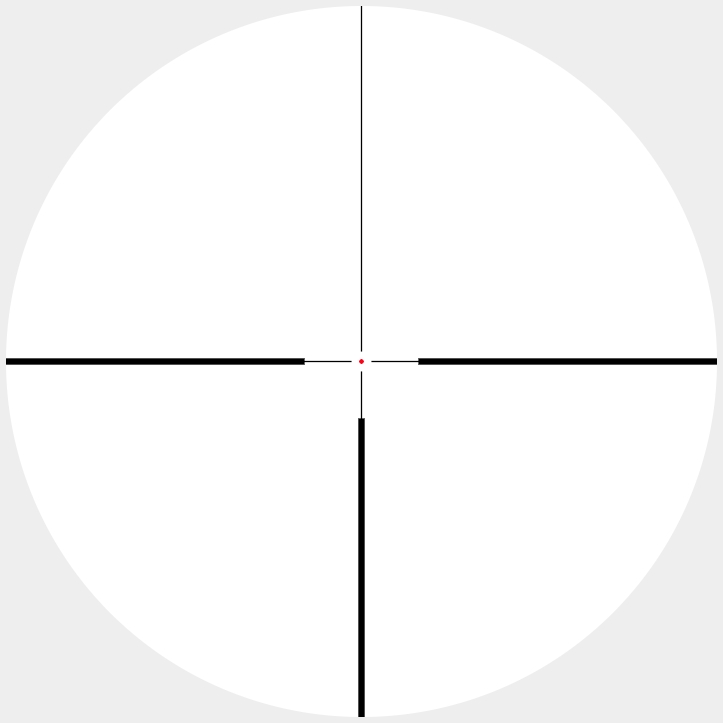

At the heart of the Vantage IR 3-9x40 is its advanced optical system, featuring fully multi-coated lenses with 11 layers of coatings to ensure maximum light transmission and crystal-clear imagery. The high torque zoom ring allows for smooth and precise magnification adjustments from 3x to 9x, while the fast focus eyebell ensures quick and easy reticle focusing, keeping your target in sharp focus at all times. The L4A Dot Reticle, a refined variant of the classic L4 design, offers a more open outer post to keep your target visible while aiming, providing 30″ spacing from center to post at 100 yards on 4x magnification.
The scope's illumination system offers five levels of red and green settings, providing optimal visibility in various lighting conditions. The capped low-profile turrets allow for easy and secure adjustments with a click value of 1/4 MOA, and the turret caps ensure your settings remain protected during rugged use. With a fixed parallax set at 100 yards, you can trust in the consistent accuracy and reliability of this scope.
Weighing in at just 15.2 ounces and measuring 12.4 inches in length, the Vantage IR 3-9x40 is lightweight and compact, making it a versatile choice for any shooting scenario. The 40mm objective lens and a field of view ranging from 39 to 12.7 feet at 100 yards (or 13 to 4.2 meters at 100 meters) provide a wide, clear view of your surroundings, enhancing your situational awareness. The exit pupil diameter ranges from 0.52 to 0.17 inches, offering comfortable eye relief of 3.5 inches.
The Vantage IR 3-9x40 L4A Dot 1" Rifle Scope by Hawke Optics is the perfect blend of cutting-edge technology, durability, and user-friendly features, ensuring that you stay on target with confidence and precision.
- Optical System System H2
- Scope Tube 1 Inch
- Magnification 3 - 9x
- Objective Lens 40mm
- Reticle L4A Dot
- Illumination 5 Levels - Red/Green
- Parallax Fixed
- Focal Plane SFP (Second Focal Plane)
- Lens Coating Fully Multi-Coated - 11 Layers
- Field of View 39 - 12.7ft @100yds / 13 - 4.2m @100m
- Field of View (°) 7.4 - 2.4
- Eye Relief 3.5in / 90mm
- PX/Focus 100yds / 91m
- Exit Pupil 0.52 - 0.17″ / 13.3 - 4.4mm
- Turret Type Capped
- Turret Caps YES
- Click Value 1⁄4 MOA
- Elevation Turret Clicks (max) 100 MOA
- Windage Turret Clicks (max) 100 MOA
- Ocular Type Fast Focus
- Power Selector Knurled Posi-Grip

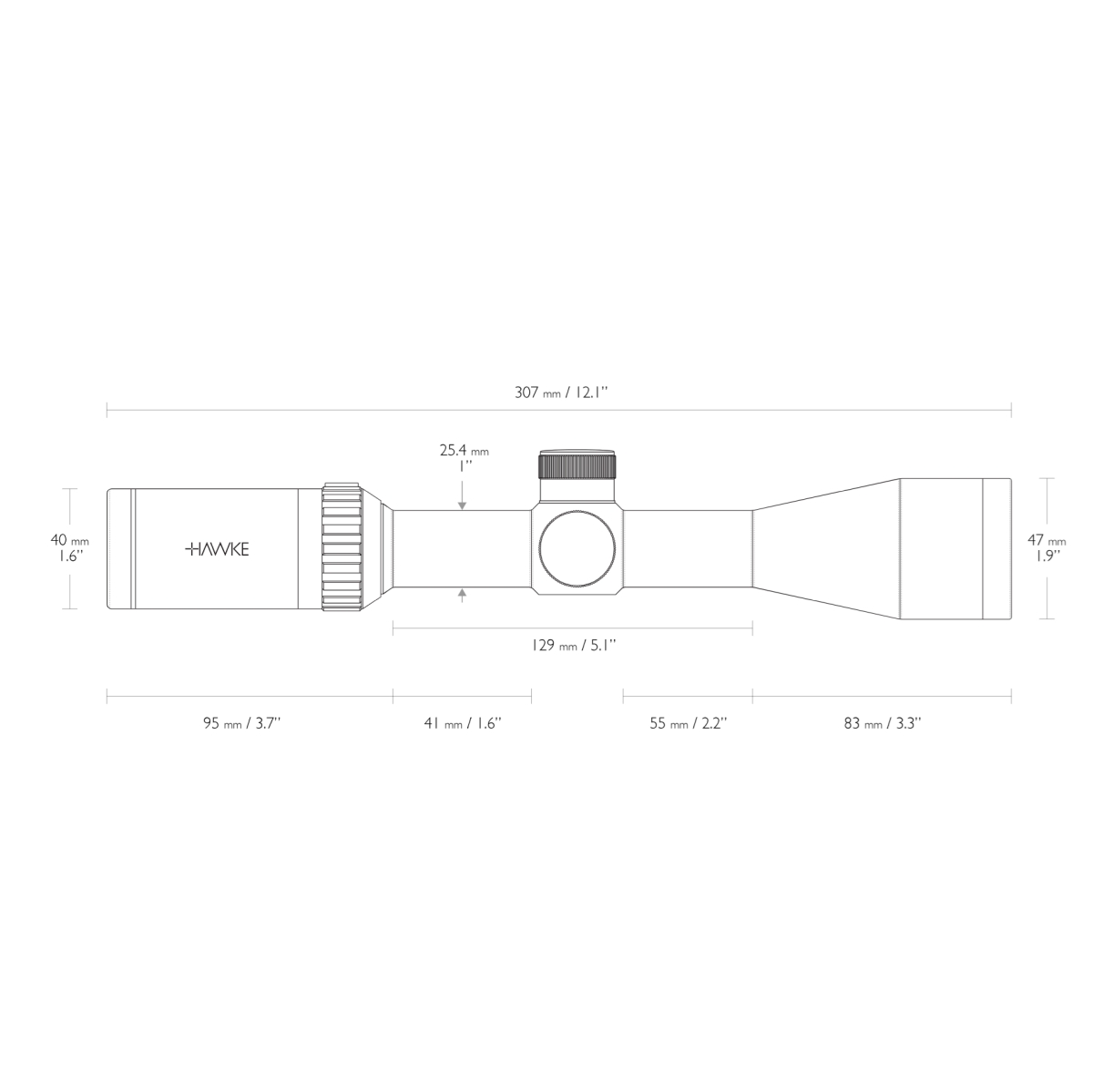

- Length 12.4in / 315mm
- Weight 15.2oz / 430g
- Durable nitrogen-purged, shockproof, waterproof, and fog proof construction
- 11-layer fully multi-coated lenses for superior light transmission
- L4A Dot Reticle for enhanced target visibility
- Five-level red/green illumination for versatile lighting conditions
- Capped low-profile turrets for secure and precise adjustments
- High torque zoom ring for smooth magnification changes
- Fast focus eyebell for quick and easy reticle focusing
- Lightweight and compact design for easy handling
- Backed by the Hawke No-Fault Lifetime Warranty
- Suitable for all calibres and rugged environments
Instruction Manual
Lens covers
Lens cloth
CR2032 battery
