Hawke Vantage 3-9x40 IR Red-Green Rimfire .22 LR (Subsonic) etched glass reticle Rifle Scope - 14223
Hawke Vantage illuminated reticle scopes offer beautiful 11 layer fully multi-coated optics for excellent clarity. With etched glass reticles they are Waterproof, Shockproof and Nitrogen purged.
The Vantage range is all calibre rated and supported by Hawkes Worldwide Warranty
Mount rings to fit it onto a rifle ARE NOT included
If you need airgun/rimfire 3/8" - 11mm or 20-22mm weaver/picatinny mount rings you will need to purchase them in addition to the scope. See shop and look for medium profile models for 1"/25mm tube. Please ask if unsure or see my guide to mounts and bases at http://www.tacticalscope.co.uk/blog/?p=50
>>> Waterproof, Shockproof, Nitrogen purged.
>>> All calibre rated - airgun, rimfire LR .22 and all major centerfire and shotgun types. Reticle on this model specific for rimfire LR .22
>>> Warranty: Hawke Worldwide Warranty
Glass etched reticle with red and green illumination
- 11 layer fully multi-coated optics for excellent clarity
- 1 inch mono-tube chassis for superior strength
Rimfire .22 (Subsonic) Reticle - Red-Green IR - Glass Etched
- Rheostat on saddle offers 5 levels of brightness - red and green
- ¼ MOA low profile ‘no-snag’ fingertip turrets
- Fast focus eyebell and high torque zoom ring
Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for the .22 LR Subsonic caliber. Zero on 9x magnification at 50 yards and all aim points are pre-calculated. 1057 fps (322 m/s).
The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.9x.
Compatible with Hawkes free X-Act Ballistic Reticle Calculator app - https://uk.hawkeoptics.com/x-act
Etched glass - The reticle is laser etched onto the lens glass. This makes it totally immune to recoil shock - it will never come loose as can happen with wire reticles.
In addition it eliminates all internal light reflection from use of the IR function, this again is a problem with wire reticle scopes.
Illuminated reticle function
Using illumination, red in low light and green in low and bright, helps you get sharp reticle over target contrast and massively improve the aim point and speed.
- In low light or very bright light targets can appear dark and shadowed.
- The standard black reticle in such situations is very hard to contrast against the target, especially if you are taking a shot under pressure on a sudden target of opportunity and/or moving target.
Fast and easy IR control by side turret. 5 levels red and green plus off for plain black.
40mm Fully Multi Coated Lens:
- 11 layer fully multi coated for excellent clarity.
- 40mm diameter - Excellent all round medium size. A good blend of size without bulk
3-9x variable magnification
- Adjust from 3x to 9x.
- A great magnification range for general purpose hunting.
- Very Easy and very fast dial adjustment.
- Ocular eyebell focus from 5 yards
Fast focus eyebell
Easy, effective focus.
- Chassis: 1" (25mm) Mono-tube
- Magnification range: 3-9x
- Objective: 40mm
- Reticle: Rimfire .22 LR (Subsonic) Reticle. Glass etched.
- Illumination: Red / Green - 5 Levels - and off for black
- Focus/Parallax: Fixed 69m / 75 yards
- Field of View: m @100m / ft @100yds 13 - 12.7m / 39 - 12.7ft
- Eye relief: 89mm / 3.5″

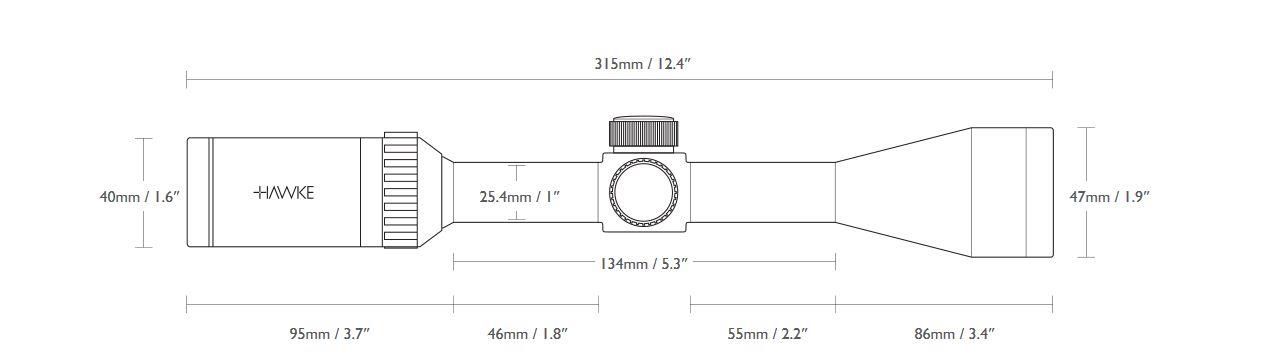

- Length: 315mm / 12.4″
- Weight: 430g / 15.2oz
- Material: Aluminium
- Exit Pupil: 13.3 - 4.4mm / 0.5 - 0.2"″
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 11 Layers
- Power Selector Style: Knurled Posi-Grip
- Elevation and Windage Increment: ¼ MOA
- Elevation and Windage Adjustment Range: 100 MOA
- Turret Caps: YES
- Turret Type: Low Profile
- Elasticated Lens Covers
- Lens Cloth
- CR2032 battery
- Sunshade and mount rings are NOT included.
