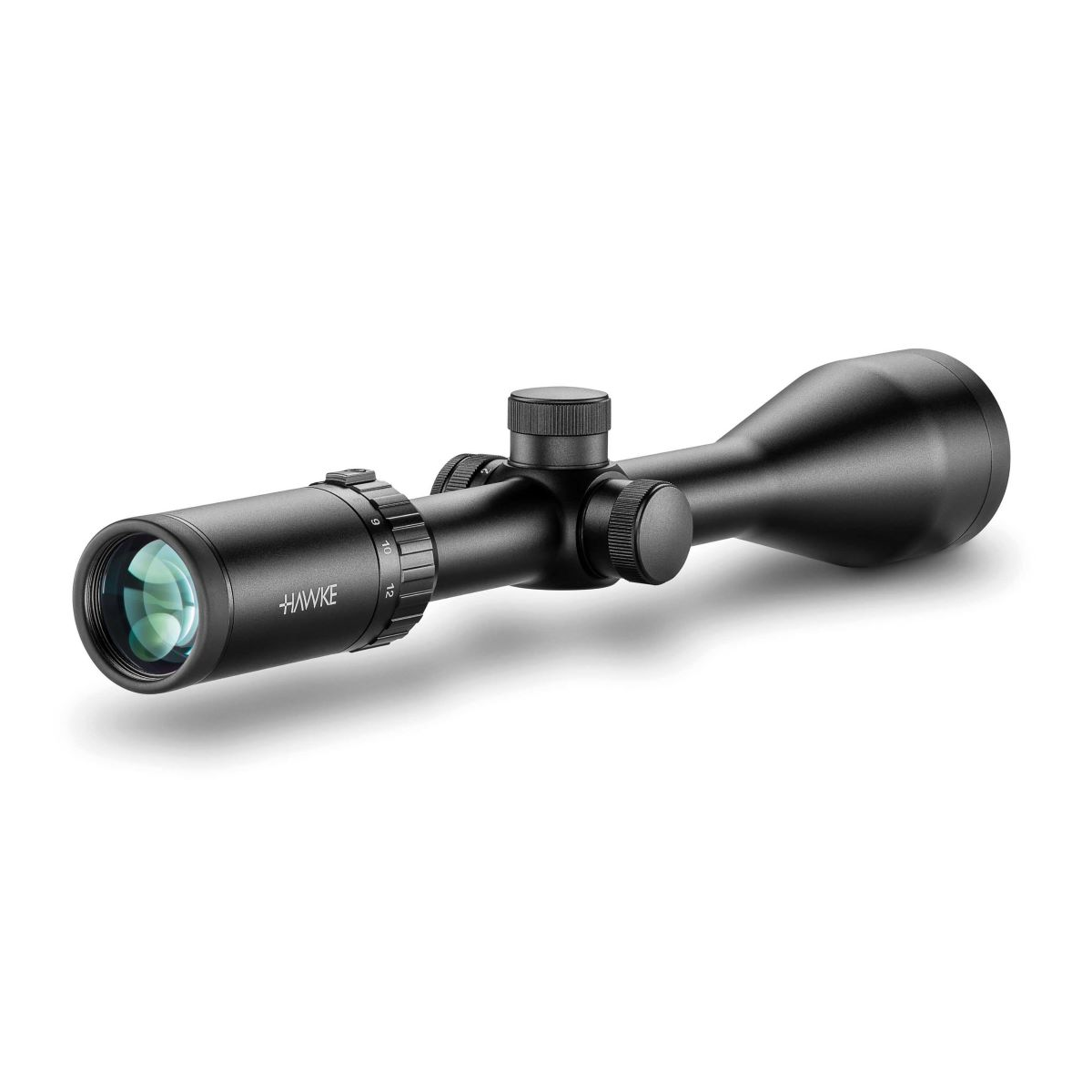

Hawke Vantage IR 3-9x50 L4A Dot Rifle Scope
- Capped low-profile turrets
- 1-inch mono-tube chassis
- illumination
- 11 layer fully multi-coated lenses
- High torque zoom ring
- Fast focus eyebell

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

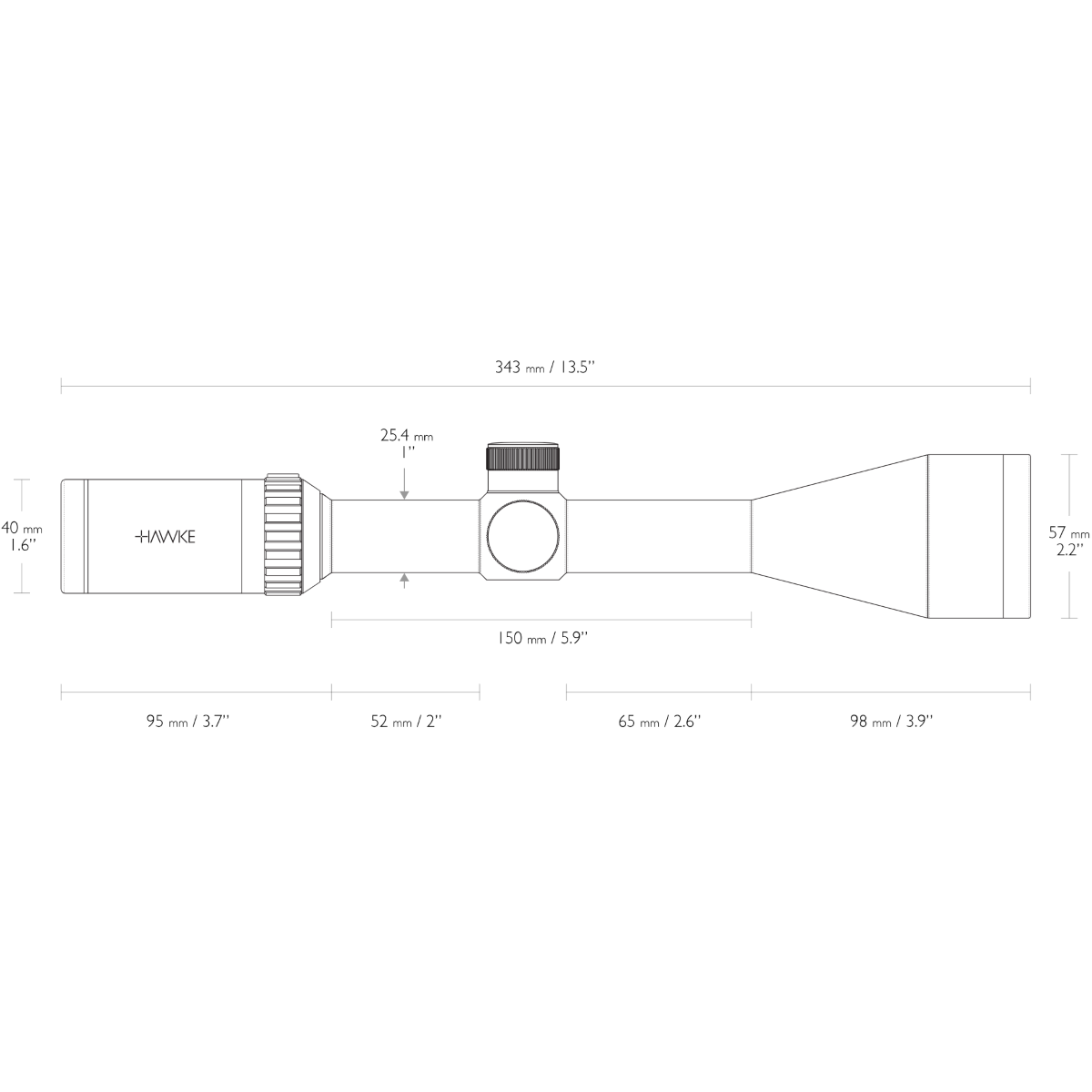

- Length: 343mm/13.5”
- Weight: 498g/17.6oz
- Eye Relief: 89mm/3.5”
- Focus/Parallax- Fixed focus: 91mm/100yds
- FOV: 11.2-3.6m @100m/ 33.6-11ft @100yds
- Exit Pupil: 17-6mm/ 0.8-0.2”
- Chassis: 1” mono-tube
- Optical System: 3-9x
- Objective: 50mm
- Illumination: Red/Green
- Reticle: L4A Dot
- Elevation Increment: ¼ MOA
- Elevation Adjustment Range: 90 MOA
- Windage Increment: ¼ MOA
- Windage Adjustment Range: 90 MOA
- Material: Aluminium
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 11 Layers
- Power Selector Style: Knurled Posi-Grip
- Focal Plane: SFP
- Turret Caps: Yes
- Capped low-profile turrets
- 1-inch mono-tube chassis
- illumination
- 11 layer fully multi-coated lenses
- High torque zoom ring
- Fast focus eyebell

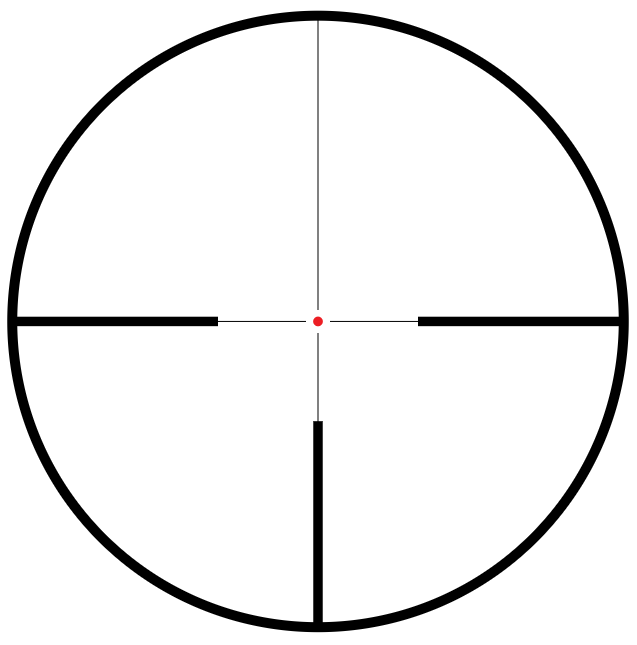

L4A Dot Reticle:
A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from centre to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
- Hawke Vantage IR 3-9x50 L4A Dot Rifle Scope
- Box
- Instruction Manual
- Lens Covers
- Lens Cloth
- CR2032 Battery
Hawke No-Fault Lifetime Warranty:
When you buy your new Hawke scope or binocular, you're buying peace of mind… for life. In the event your product becomes damaged or defective we'll repair it at no charge to you. It doesn't matter how it happened or whose fault it was - we've got you covered.
