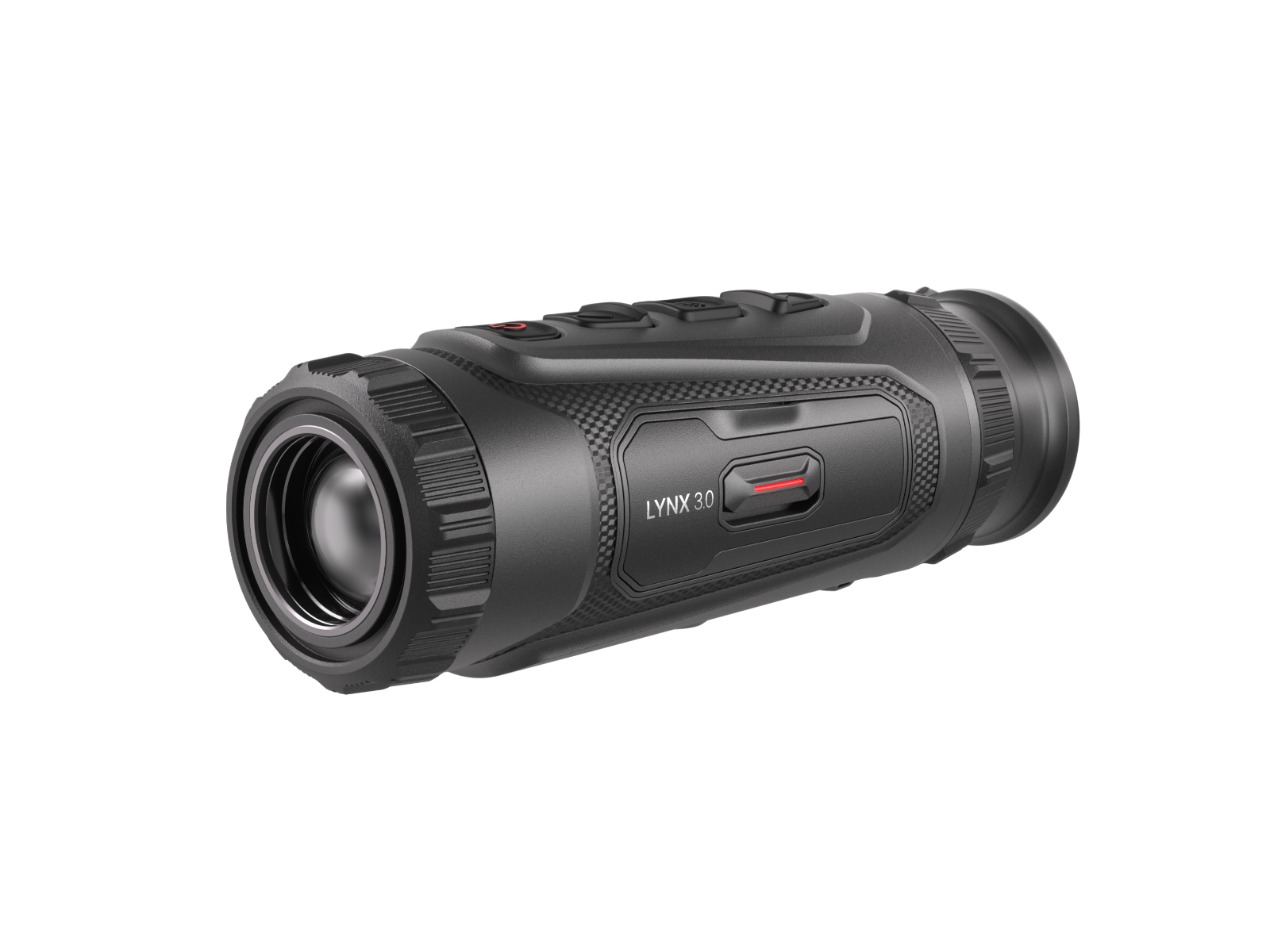

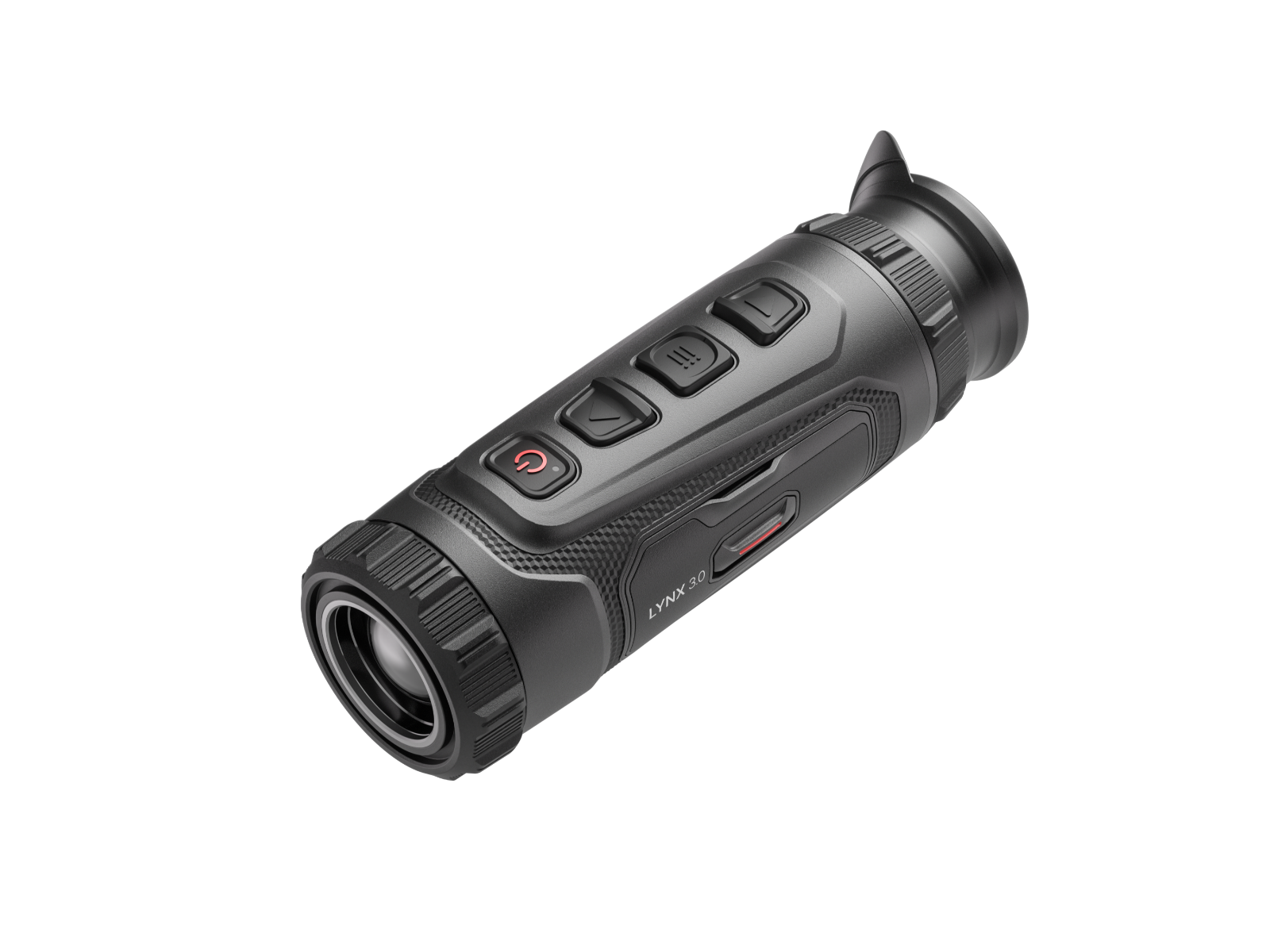

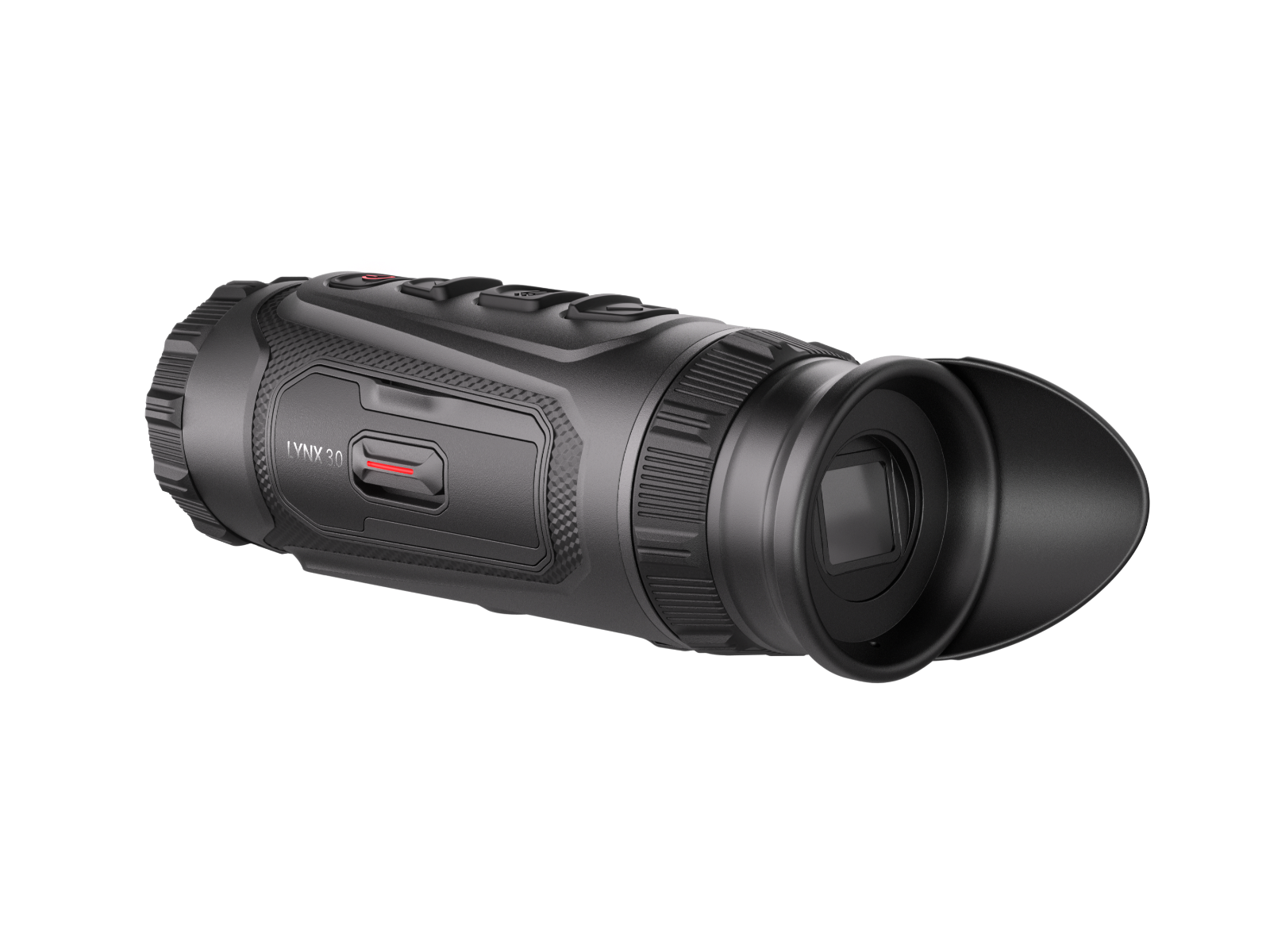

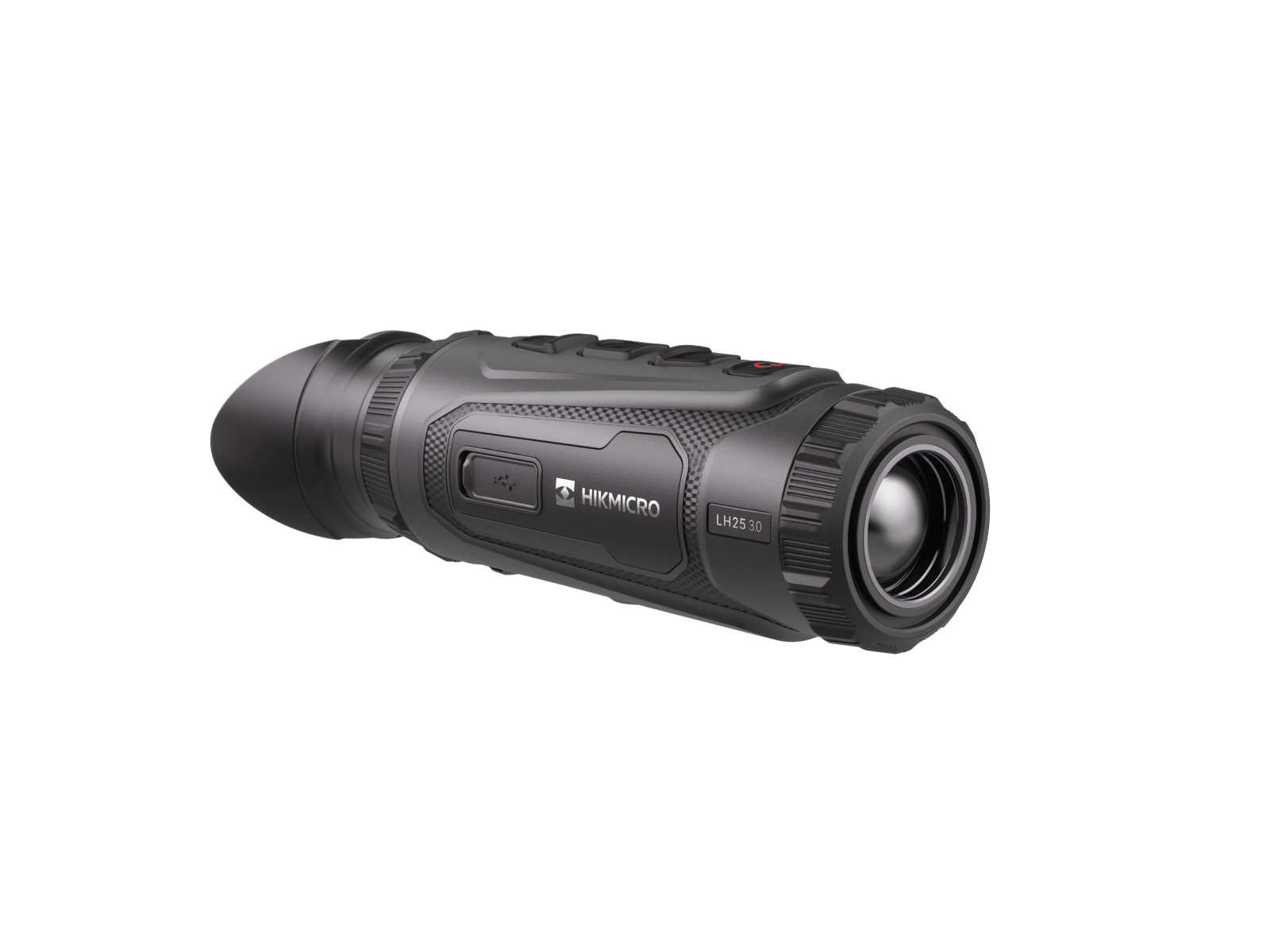

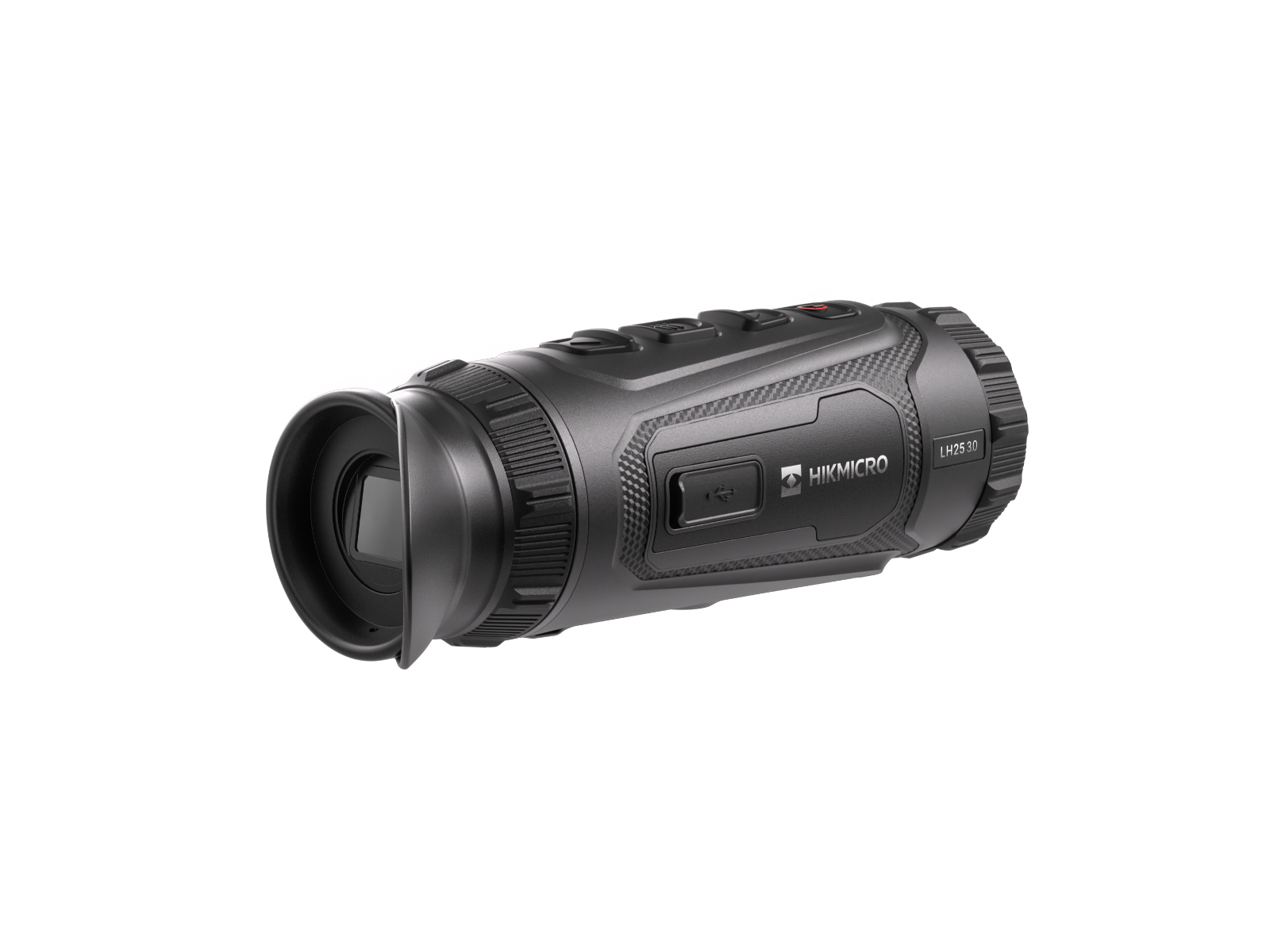

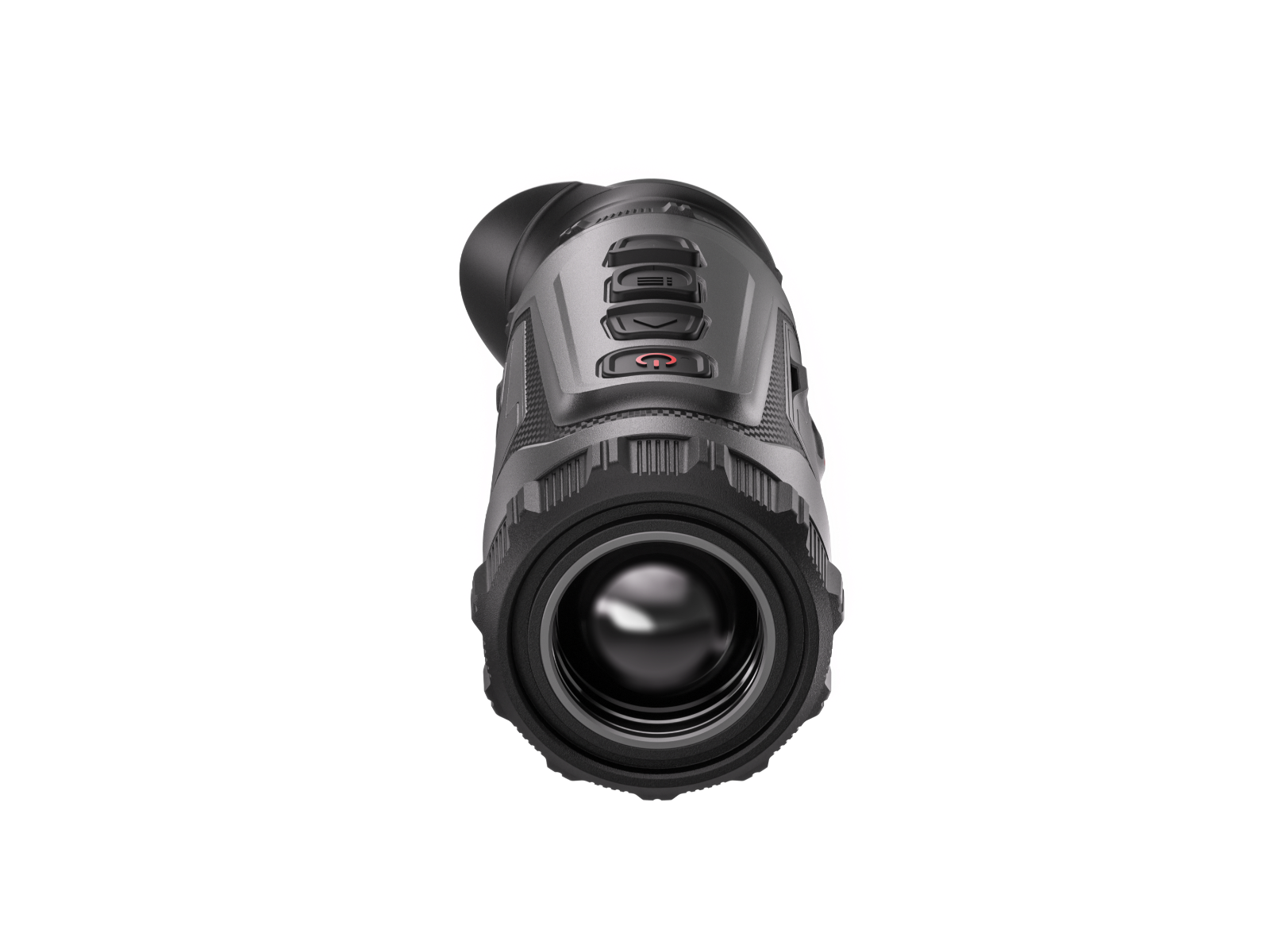

HIKMICRO Lynx 3.0 25mm Thermal Monocular LH25
25mm <15mK 384x288px 12µm 50Hz
The Lynx 3.0 , redefining entry-level thermal imagers. The HIKMICRO LH25 delivers long-range thermal imaging with AI clarity, silent shutterless operation, and extended endurance , built for precision and field performance.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH25 is built for professionals requiring extended range and precision. With a 384x288 thermal detector and a 25mm F1.0 lens, it delivers 2.5x base magnification, a 10.5° field of view, and a 1200-metre detection range, ensuring exceptional long-distance performance.
Driven by AI Image Pro 3.0 and Zoom Pro algorithms, the LH25 enhances image detail and consistency under all lighting conditions. Its HSIS shutterless system ensures fluid, silent image processing for uninterrupted use in tactical or wildlife applications.
Weighing only 328.5 grams, the LH25 combines portability with rugged dependability. The replaceable 18650 battery powers up to 4.5 hours at -20°C, ensuring sustained operation for demanding professionals. Designed for open landscapes and technical use, it sets a new standard in thermal imaging efficiency.
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 384 × 288
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm to 14 μm
- NETD Less than 15 mK (@25°C), F#=1.0
- Lens (Focal Length) 25 mm, F1.0
- Focus Mode Focus Wheel
- Min. Focusing Distance 3 m
- Magnification 2.5 × - 20 × (8×)
- Field of View (H × V), Degrees / m @100 m 10.5° × 6.4° / 18.4 m × 11.2 m
- Detection Range 1200 m
- Display 1920 × 1080, 0.49 inch, AMOLED
- Contrast Adjustment Yes
- Brightness Adjustment Yes
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5 D to +3 D
- Tone Adjustment Cold, Warm
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Sync Pro Yes
- Battery Type Replaceable and rechargeable 18650 battery
- Protection Level IP67
- Weight 328.5 g with Battery
- 384×288 thermal detector with NETD < 15 mK
- 25mm F1.0 lens with 1200m detection range
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.49” 1920×1080 AMOLED display
- Up to 4.5 hours’ operation at -20°C
- Lightweight, pocket-sized 328.5g design
- 1 x Lynx 3.0 Thermal Monocular
- 1 x Quick Start Guide
- 2 x 18650 Battery
- 1 x Type-C USB Cable
- 1 x Battery Charger
- 1 x Lint Free Cloth
What battery does this unit use?
- A replaceable & rechargable Pip-Top 18650 battery
What is the detection distance?
- up to 1200 Metres
What is the battery life?
- 4.5 hours at -20°C. It will be longer in warmer conditions.
How does this unit focus?
- This unit has a manually adjustable focus wheel at the front of the unit.
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
