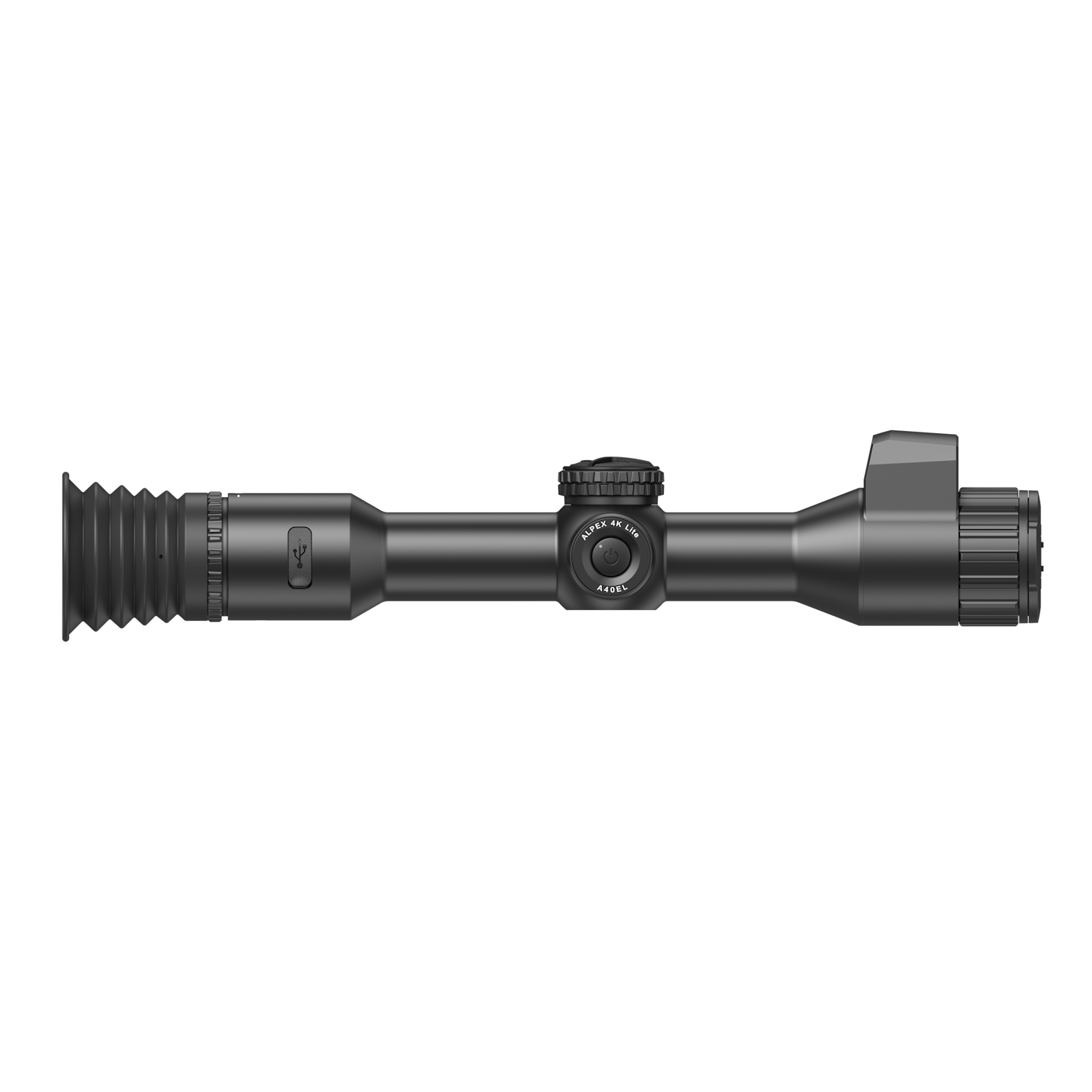

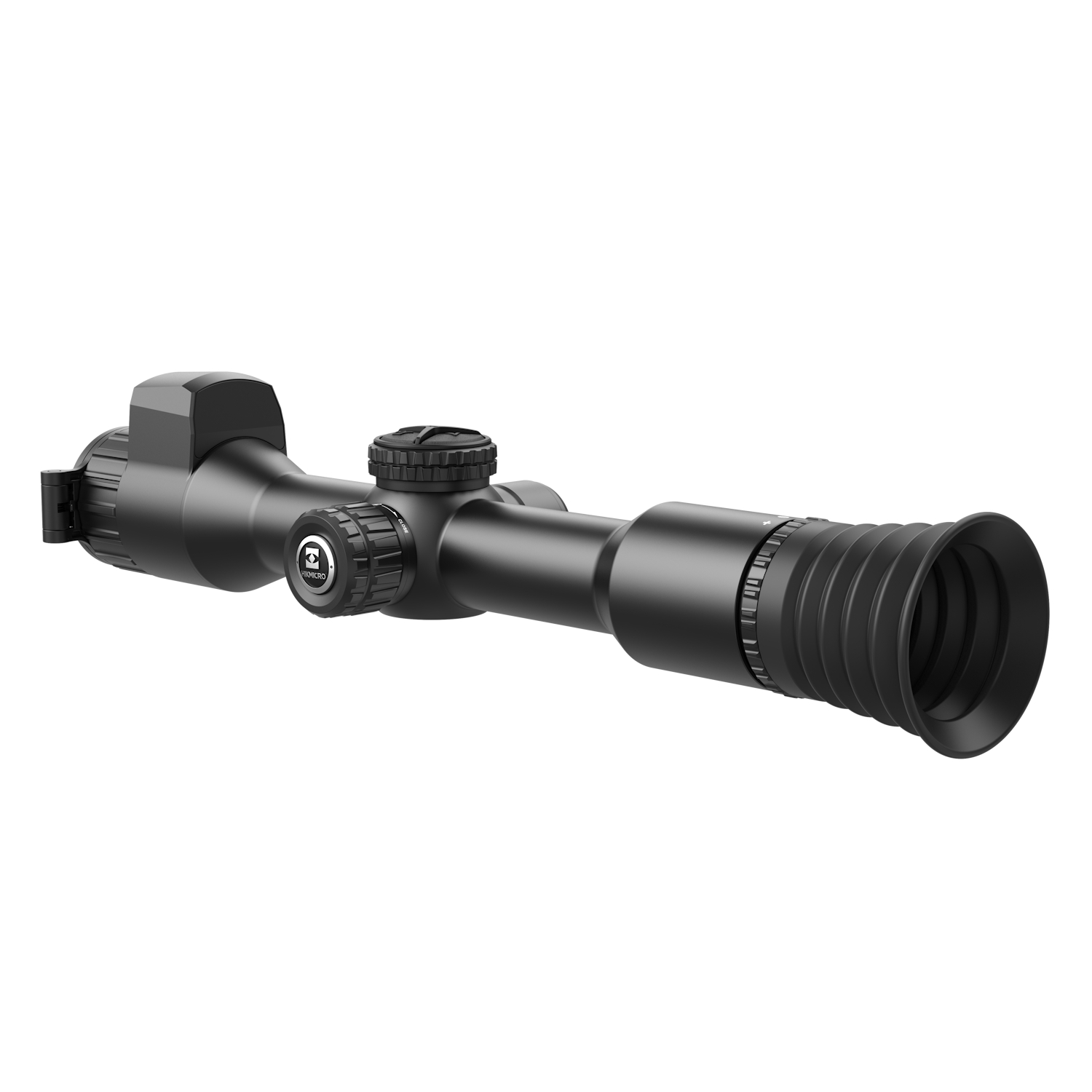

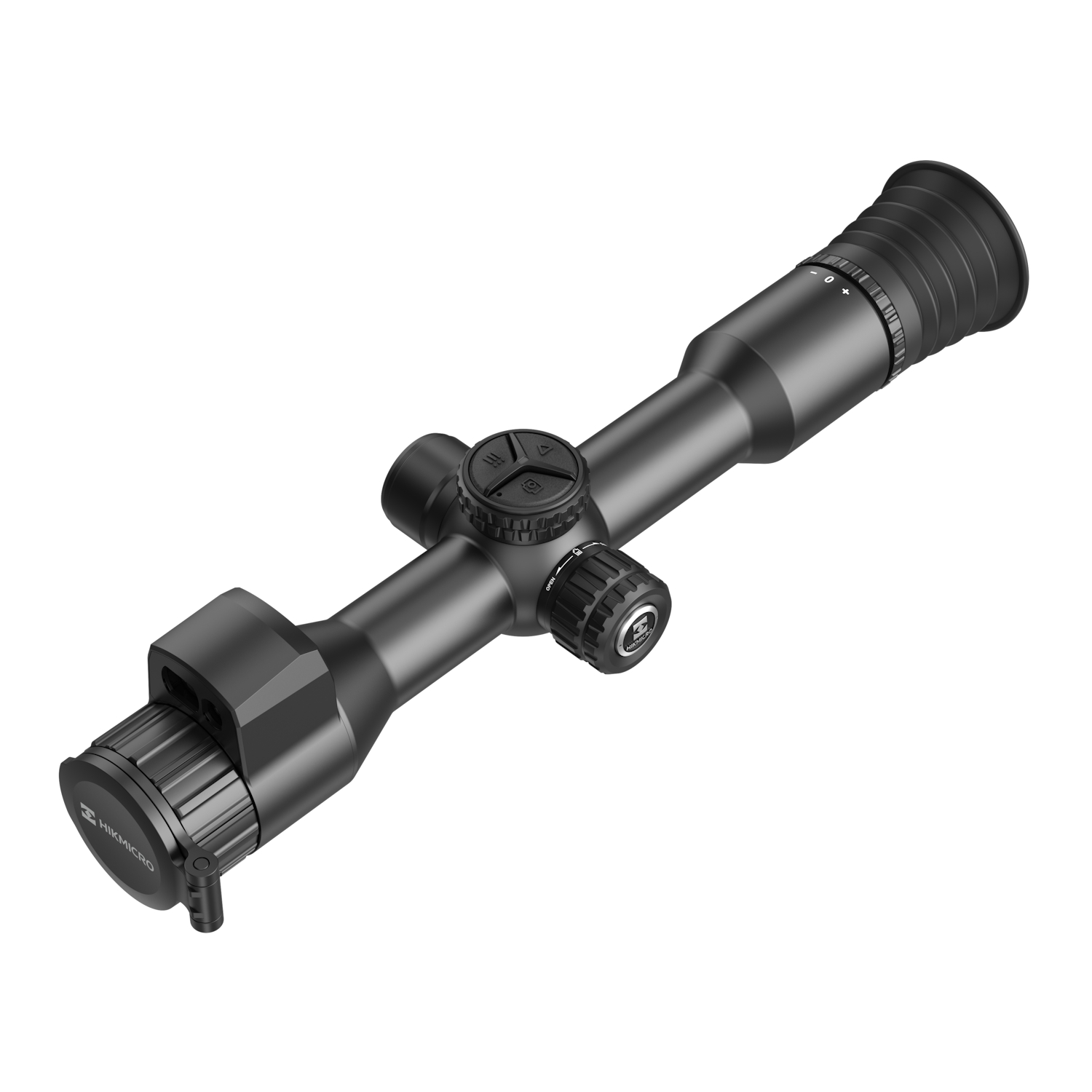

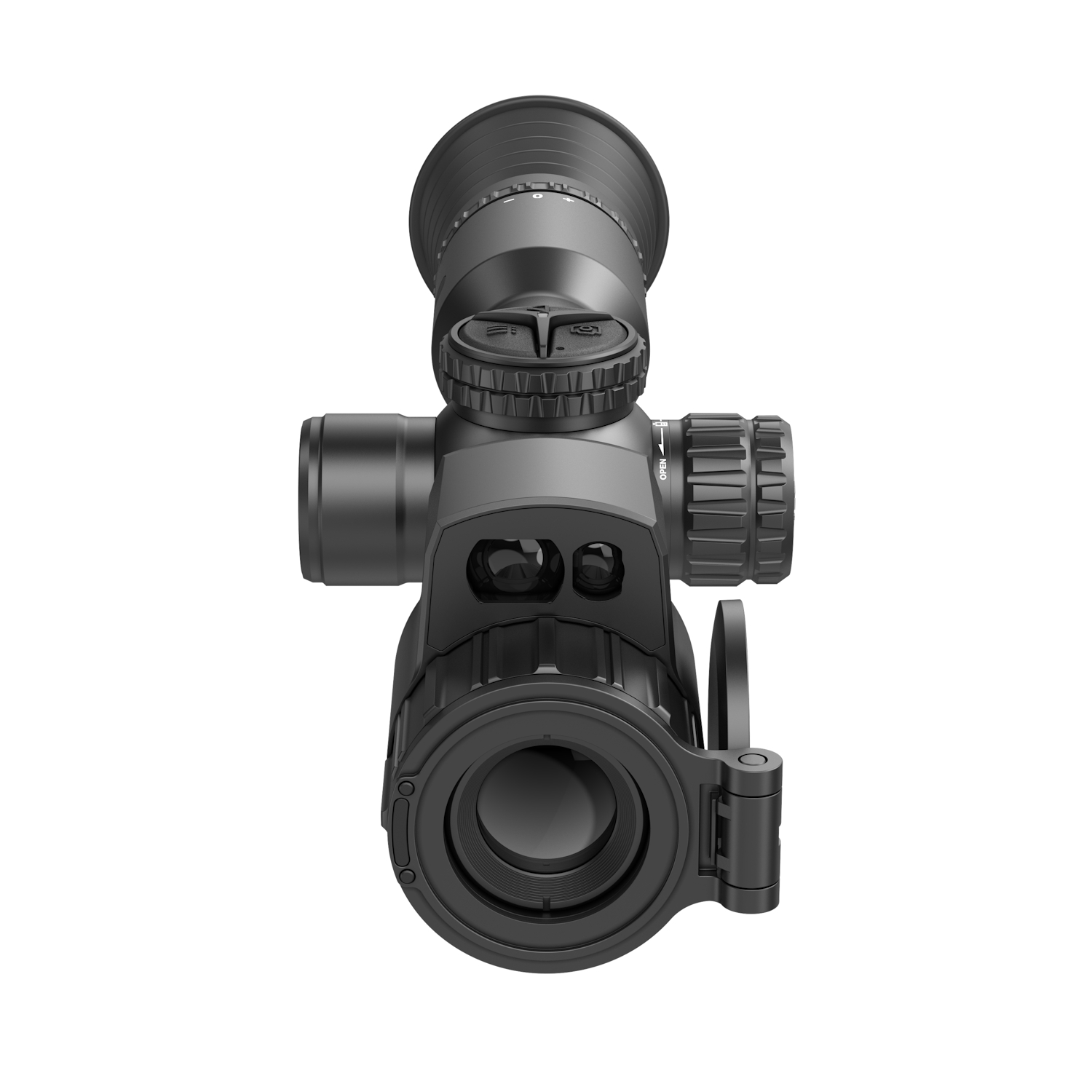

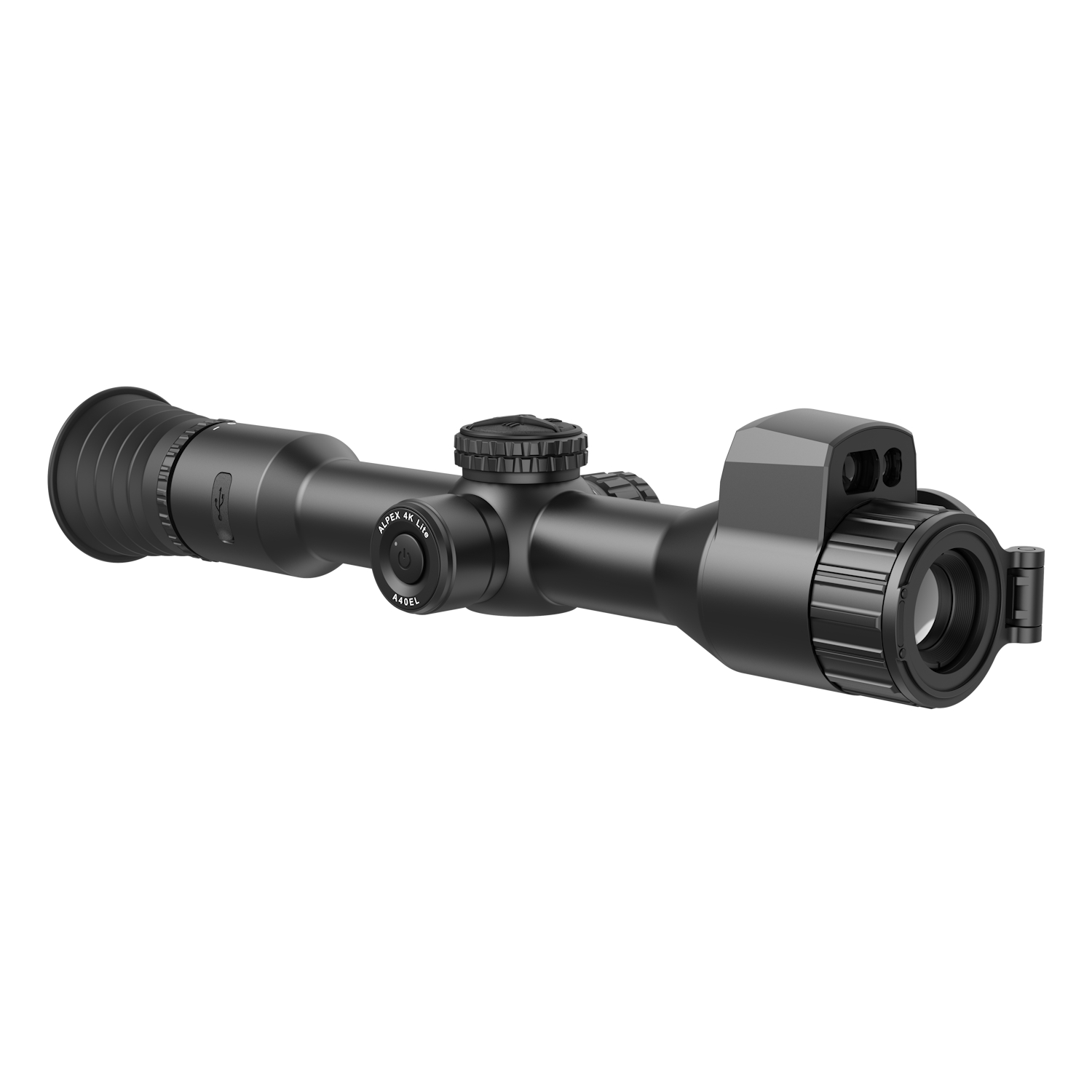

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope
40mm 3840x2160px UHD
- Integrated Laser Rangefinder: Built-in 1000m LRF with ±1m accuracy and real-time ballistic adjustment for pinpoint precision.
- 4K UHD Sensor: 3840×2160 CMOS resolution delivers unmatched clarity in both day and low-light conditions.
- One-Second Startup: Powers on instantly, ensuring you're always ready for rapid target acquisition in the field.
- Dual-Frequency Imaging: 50Hz at 4K and 100Hz at 1080P for blur-free motion and stable observation.
- Ultra-Compact Build: 25% slimmer, just 474g, with a 30mm magnesium-alloy tube for seamless airgun integration.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
Purpose-built for serious airgun and rimfire users, the Alpex 4K Lite A40EL offers a compact, high-performance solution for day and night shooting. At just 474g and under 28cm long, it’s 25% smaller and lighter than standard scopes, while still delivering industry-leading image quality and technology.
Key Features:
-
4K UHD CMOS sensor (3840×2160) for ultra-clear daytime and low-light performance
-
Built-in 1000m laser rangefinder with ±1m accuracy
-
Integrated ballistic calculator adjusts your reticle holdover instantly
-
50Hz frame rate at 4K and 100Hz at 1080p for smoother image tracking
-
Rapid 1-second start-up time – perfect for responsive shooting
-
Five viewing modes: Day, Night, Auto, Green, and Yellow
-
Lightweight magnesium-alloy 30mm tube with intuitive controls
-
IP67 waterproof rating and temperature-resistant from –30°C to +55°C
-
32GB internal storage for video (1920×1080) and audio recording
-
Recoil-activated video capture with pre/post-shot buffer
-
Internal rechargeable battery + external 18650 for up to 7–8 hours runtime
-
USB-C charging and Wi-Fi for use with the HIKMICRO Sight app
Why Choose the Alpex 4K Lite A40EL?
-
See clearly day or night with ultra-high 4K resolution
-
Built-in LRF and ballistic calculator provide confidence for long-range shots
-
Compact and lightweight – no need to compromise on balance or comfort
-
Onboard recording lets you capture and review every moment
-
Built tough for field conditions – waterproof, fogproof, and shock-resistant
Common Questions Answered:
-
Will it fit 30mm rings?
Yes – it’s designed for standard 30mm mounting systems. -
Is it suitable for airgun and rimfire recoil?
Absolutely. Built with durability and recoil resistance in mind. -
Can I record my hunts?
Yes – video and audio are recorded with pre- and post-shot features. -
How long does the battery last?
Up to 7–8 hours using internal and external 18650 power.
Summary
If you’re looking for a reliable, feature-packed day and night vision scope that delivers superb clarity, fast operation, and advanced ranging tech – all in a lightweight package – the Alpex 4K Lite A40EL ticks every box. Ideal for pest control, small game, or field sport enthusiasts who demand performance without bulk.
Smart HIKMICRO Sight App Integration: Hunt Ground, Share, Protect
The ALPEX 4K Lite's accompanying app, HIKMICRO Sight, includes a built-in hunt ground feature that fosters connection within the hunting community. Share hunting locations and track your progress.
It's not just a tool—it's a community-driven ecosystem for responsible land management.
- Max. Resolution 3840 × 2160
- Frame Rate 50 Hz (4K), 100 Hz (1080P)
- Lens 40 mm, F2.0
- Detection Range (Day) 800 m
- Minimum Focusing Distance 2 m
- Magnification Range 3.5× to 20.5×
- Base Magnification 5.8×
- Zoom Continuous
- Step Values 0.5×, 1×, 2×, 3×, 4×
- Field of View (Degrees) 10.7° × 6.1°
- Field of View (Metres @100 m) 18.7 m × 10.1 m
- Display Type OLED
- Display Size 0.49 inch
- Display Resolution 1920 × 1080
- Image Modes Day, Night, Auto, Green, Yellow
- Exit Pupil 6 mm
- Eye Relief 45 mm
- Dioptre Adjustment -5 D to +5 D
- Video Recording On-board (1920 × 1080)
- Photo Capture Yes
- Audio Recording Yes
- Recoil-Activated Recording Yes
- Standby Mode Yes
- Storage 32 GB built-in EMMC
- Picture-in-Picture (PIP) Yes
- Freeze Zeroing Yes
- Zeroing Profiles 5
- Maximum Recoil Resistance 1000 g / 0.4 ms
- Wi-Fi Hotspot Yes
- Ballistic Calculation Yes
- Click Value 1 click = 1 cm @ 100 m
- Battery Type (Internal) Rechargeable lithium battery
- Battery Type (External) Replaceable & rechargeable 18650 battery
- Operating Time Up to 7 hours (@25°C, Hotspot off)
- Charging Interface USB Type-C (5 VDC / 2 A)
- Direct Charging Supported only with internal battery
- Mounting Standard 30 mm
- Protection Level IP67
- Operating Temperature -30°C to 55°C (-22°F to 131°F)

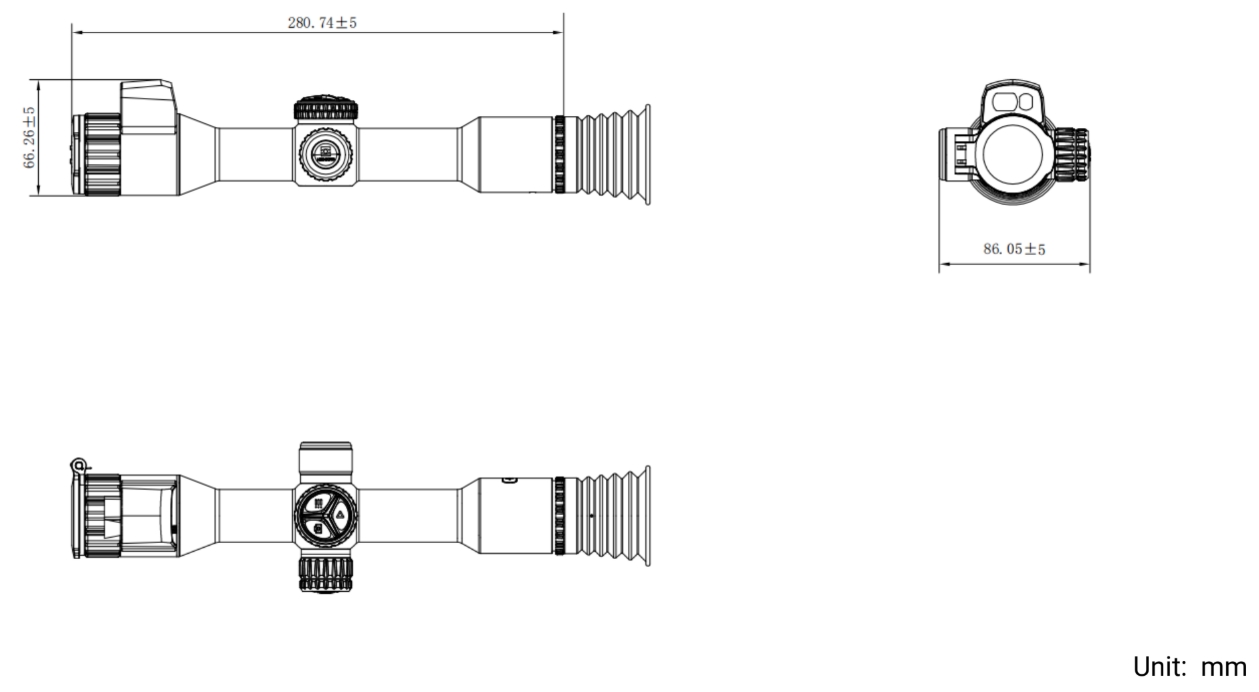

- Dimensions 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)
- Weight 474 g (without external battery)
- Laser Rangefinder – Safety Class Class 1
- Laser Rangefinder – Wavelength 905 nm
- Laser Rangefinder – Minimum Measuring Range 3 m
- Laser Rangefinder – Maximum Measuring Range 1000 m
- Laser Rangefinder – Measurement Accuracy ±1 m
- Integrated Laser Rangefinder: Built-in 1000m LRF with ±1m accuracy and real-time ballistic adjustment for pinpoint precision.
- 4K UHD Sensor: 3840×2160 CMOS resolution delivers unmatched clarity in both day and low-light conditions.
- One-Second Startup: Powers on instantly, ensuring you're always ready for rapid target acquisition in the field.
- Dual-Frequency Imaging: 50Hz at 4K and 100Hz at 1080P for blur-free motion and stable observation.
- Ultra-Compact Build: 25% slimmer, just 474g, with a 30mm magnesium-alloy tube for seamless airgun integration.
- Built-in 1000m laser rangefinder with ballistic correction.
- Adaptive day/night/auto/green/yellow display modes.
- Supports .177, .22, and .25 pellet drop compensation.
- 0.49" OLED screen with full HD resolution.
- Recoil-activated video with integrated audio capture.
- 32GB internal EMMC storage for recording sessions.
- Up to 7 hours continuous runtime with dual battery support.
- Lightweight magnesium body ensures long-term durability.
- Seamless zoom up to 20.5x with step or continuous control.
- Operates instantly with one-second boot time.
- Smart HIKMICRO Sight App Integration: Hunt Ground, Share, Protect
- HIKMICRO Alpex 4K LITE Digital Day and Night Vision Rifle Scope with LRF
- Quick start guide
- Type-C USB cable
- Lint free cloth
- 1x battery
- 1x battery charger
- Note - 30mm mount rings not included. If unsure on mounts, if you need new or if what you have already will work, please contact us
- Battery: 1 year warranty
- Unit: 3 year warranty
