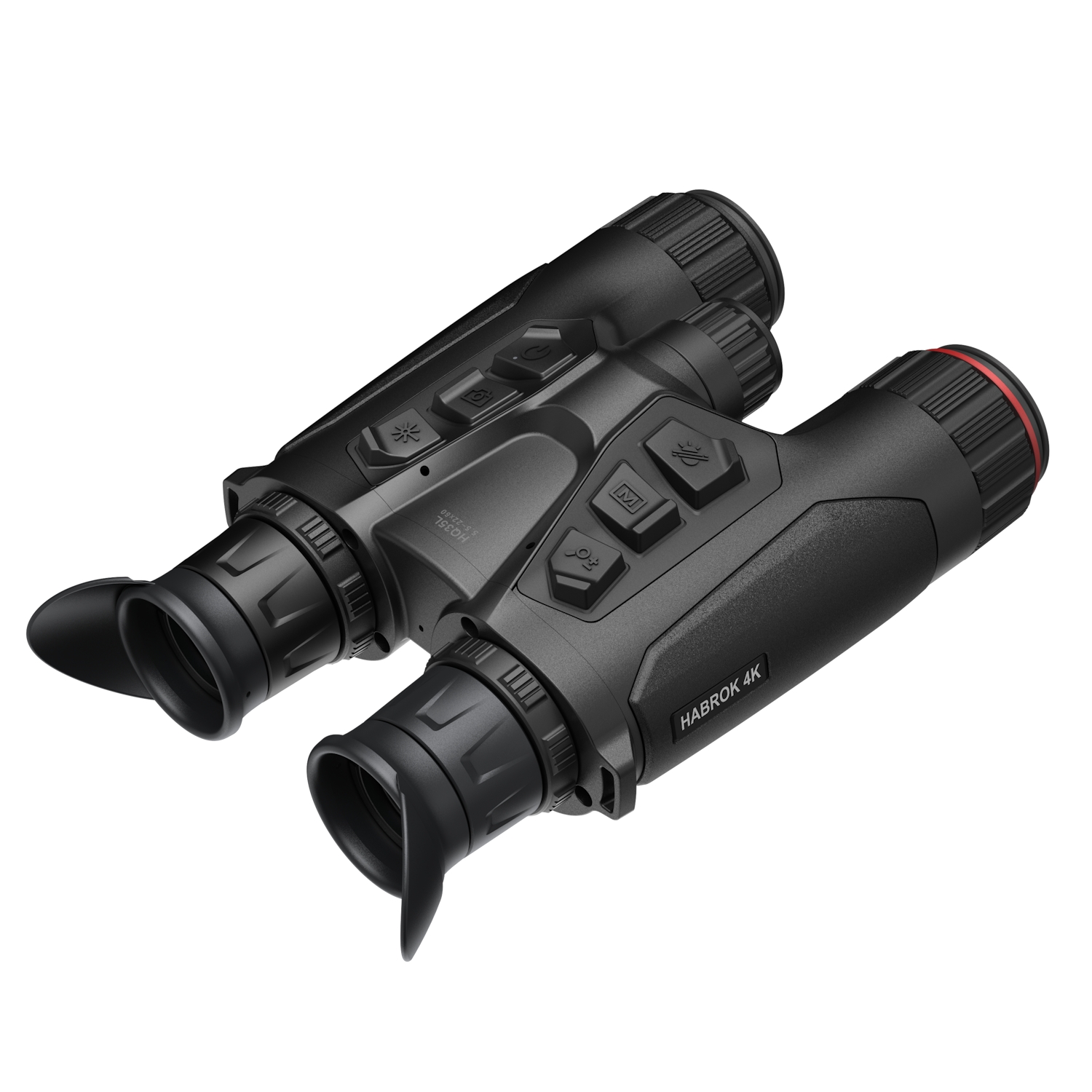

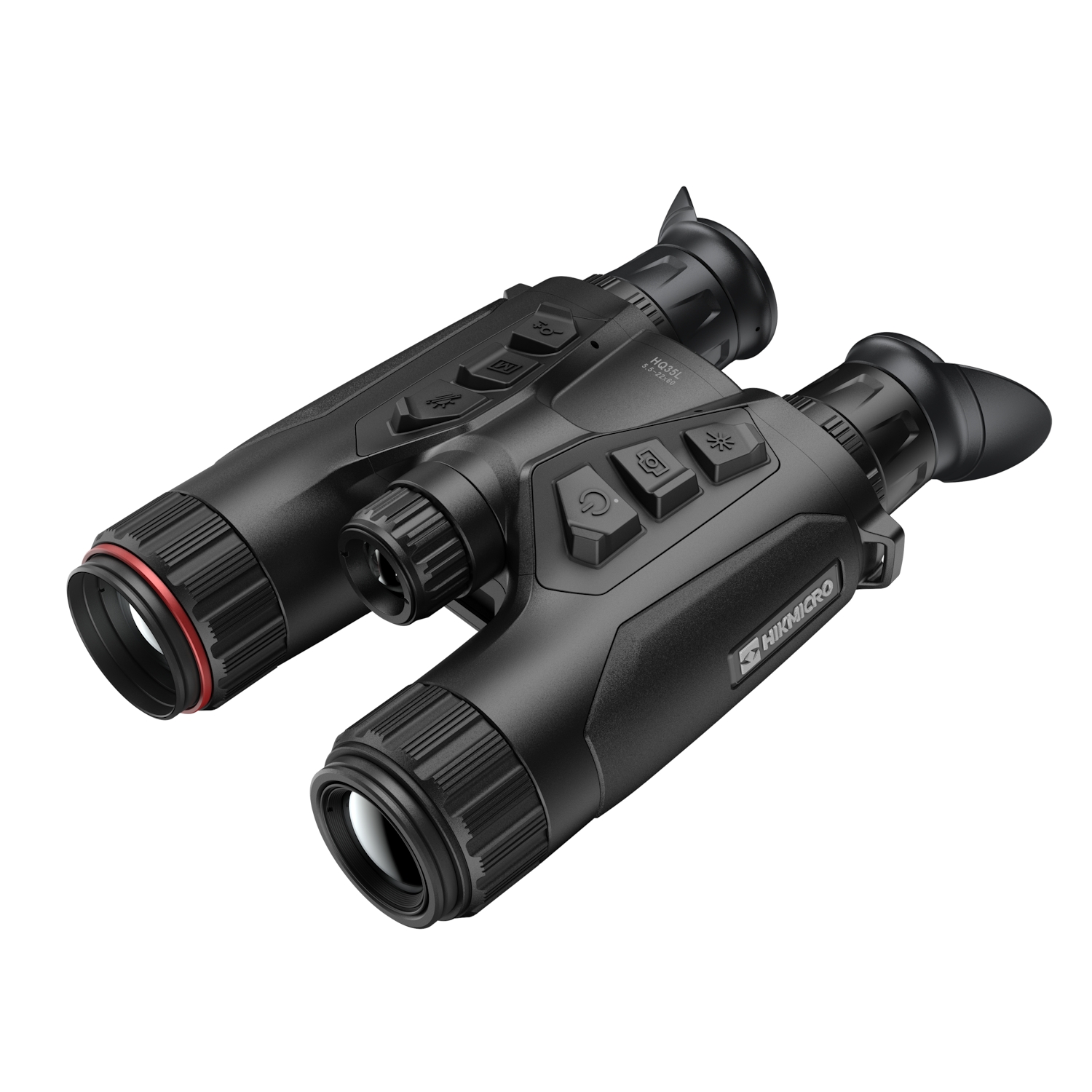

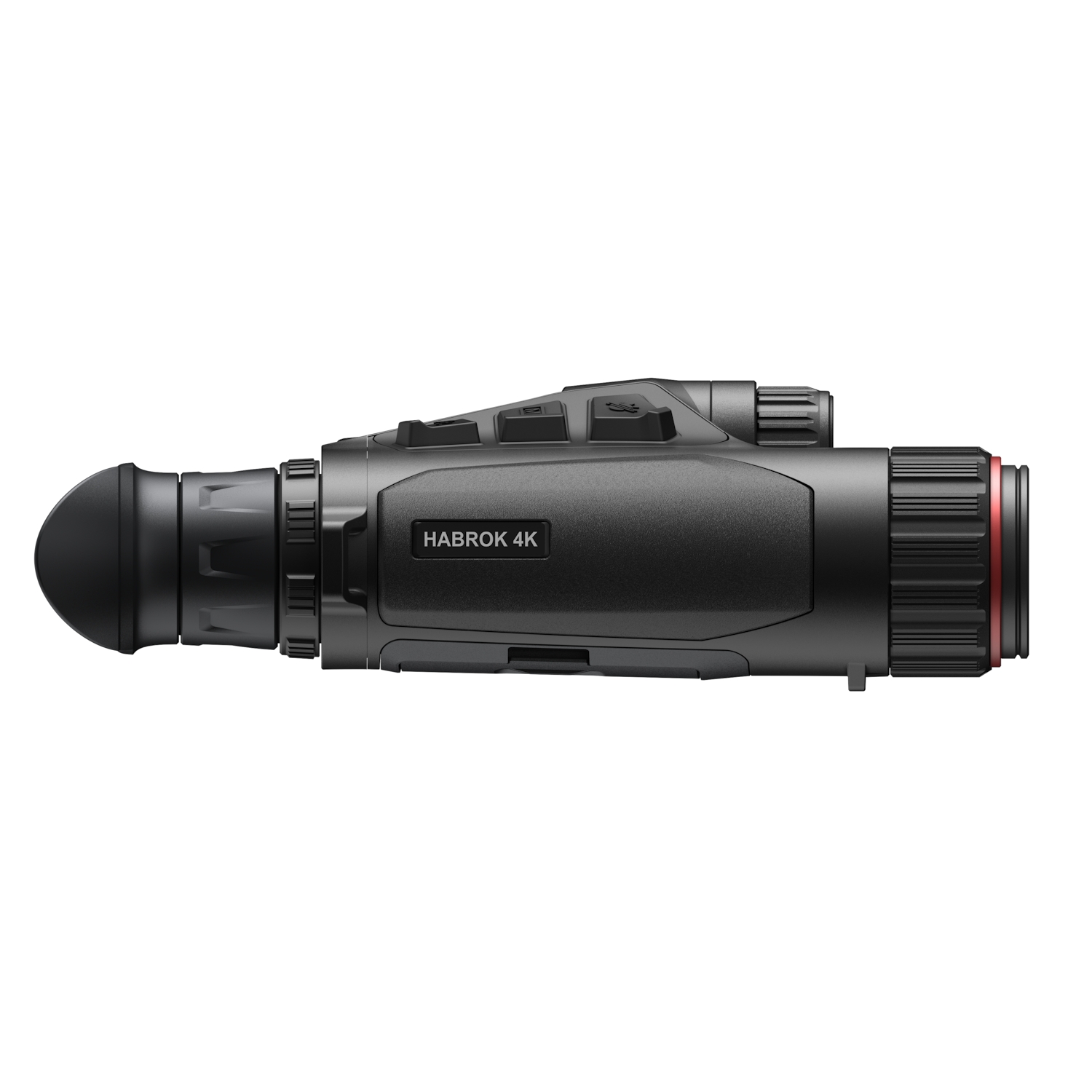

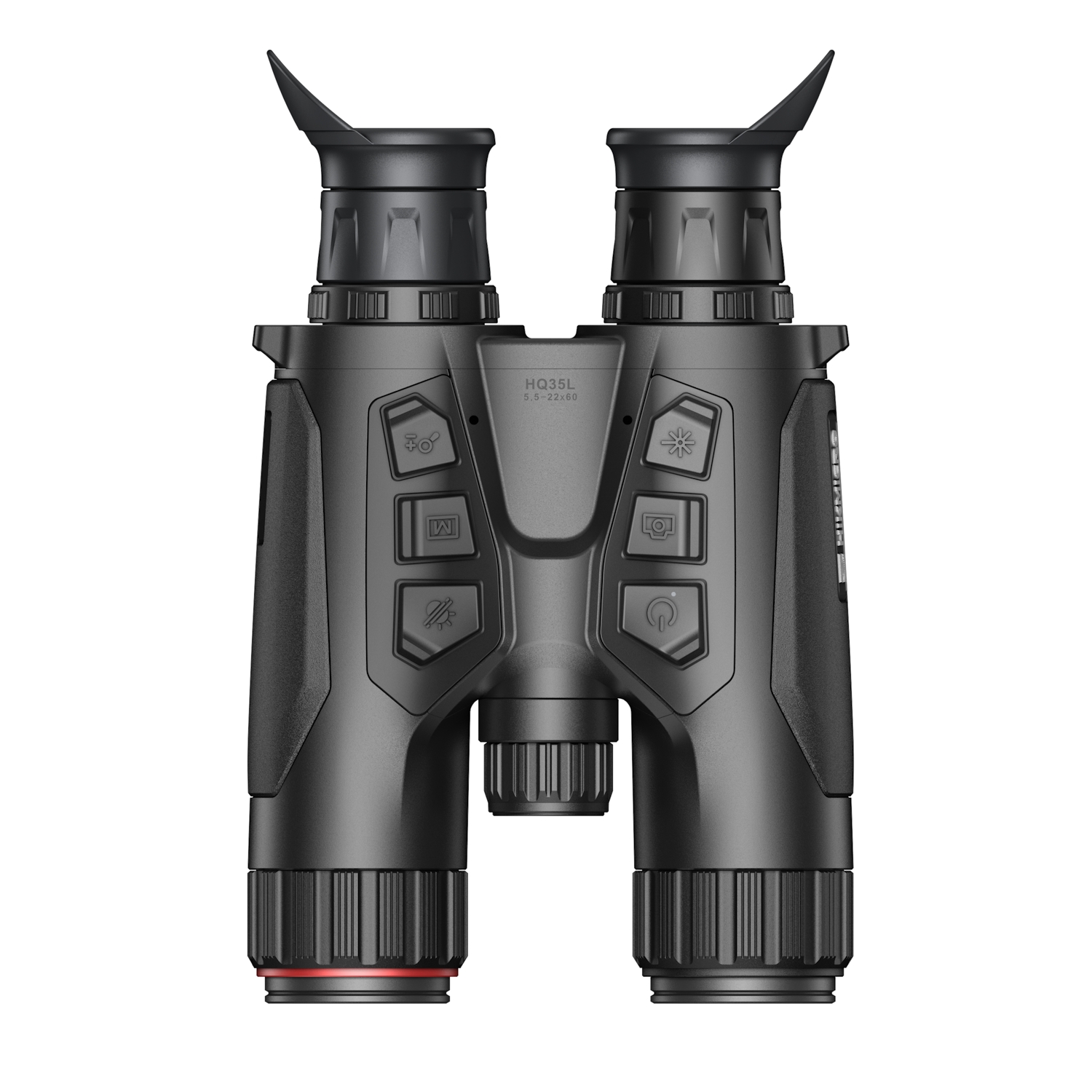

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF - 640px 35mm with 4K Optical Camera and Harness

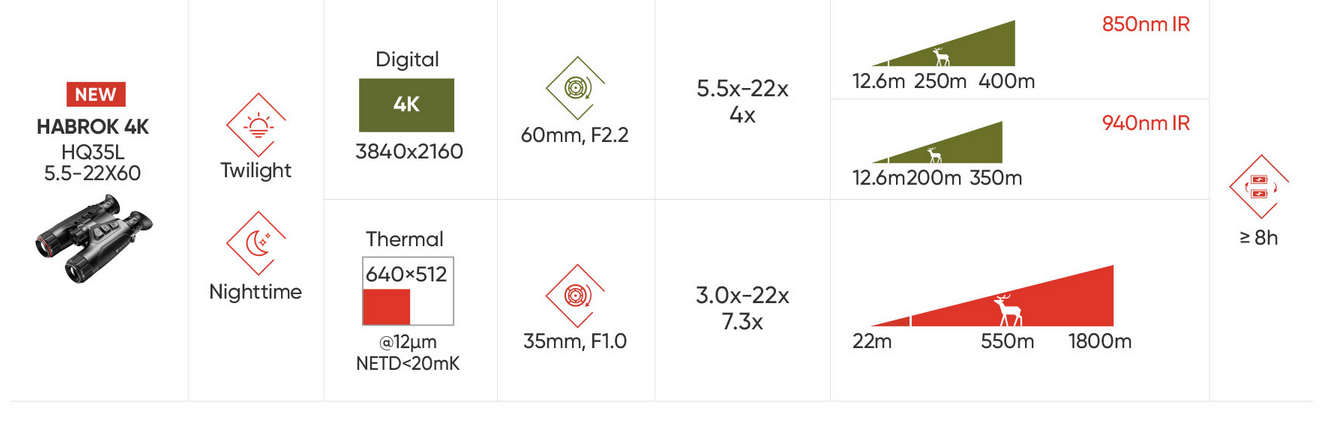

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array

• Resolution: 640 × 512

• Frame Rate: 50 Hz

• Pixel Pitch: 12 μm

• Spectral Range: 8 μm – 14 μm

• Thermal Sensitivity (NETD): < 20 mK (@25°C, F#=1.0)

• Lens: 35 mm, F1.0

• Focus Mode: Manual (Focus Ring)

• Detection Range: 1800 m

• Minimum Focusing Distance: 3.5 m

• Magnification: 3.0× to 22.0× (7.3× base)

• Field of View (H × V):

  • 12.5° × 10.1°

  • 22.0 m × 17.6 m @ 100 m

Optical Module

• Sensor Type: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160

• Lens: 60 mm, F2.2

• Minimum Working Distance: 3 m

• Focus Mode: Manual (Focus Ring)

• Magnification: 5.5× to 22.0× (4× base)

• Field of View (H × V):

  • 7.3° × 4.1°

  • 12.6 m × 7.2 m @ 100 m

Infrared Illumination

• Smart IR: Yes

• IR Illuminator: Replaceable

  • Default: 940 nm

  • Optional: 850 nm

• Night Viewing Range: 400 m

Image Display

• Display: 0.49 inch OLED, 1920 × 1080

• Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion

• Optical Modes: Day, Night, Auto

• Flat Field Correction (FFC): Auto / Manual / External

• Exit Pupil: 8 mm

• Eye Relief: 15 mm

• Diopter Adjustment: -5 D to +3 D

• Adjustments:

  • Brightness: Yes

  • Contrast: Yes

  • Tone: Cold / Warm

• Zoom Pro: Yes

System Features

• Video Recording: Yes

• Snapshot Capture: Yes

• Audio Recording: Yes

• Standby Mode: Yes

• Onboard Storage: 64 GB Built-in EMMC

• Picture-in-Picture (PIP): Yes

• Wi-Fi Hotspot: Yes

• Hot Track: Yes

• Digital Magnetic Compass: Yes

• GPS Module: Yes

• Local Album Access: Yes

Power Supply

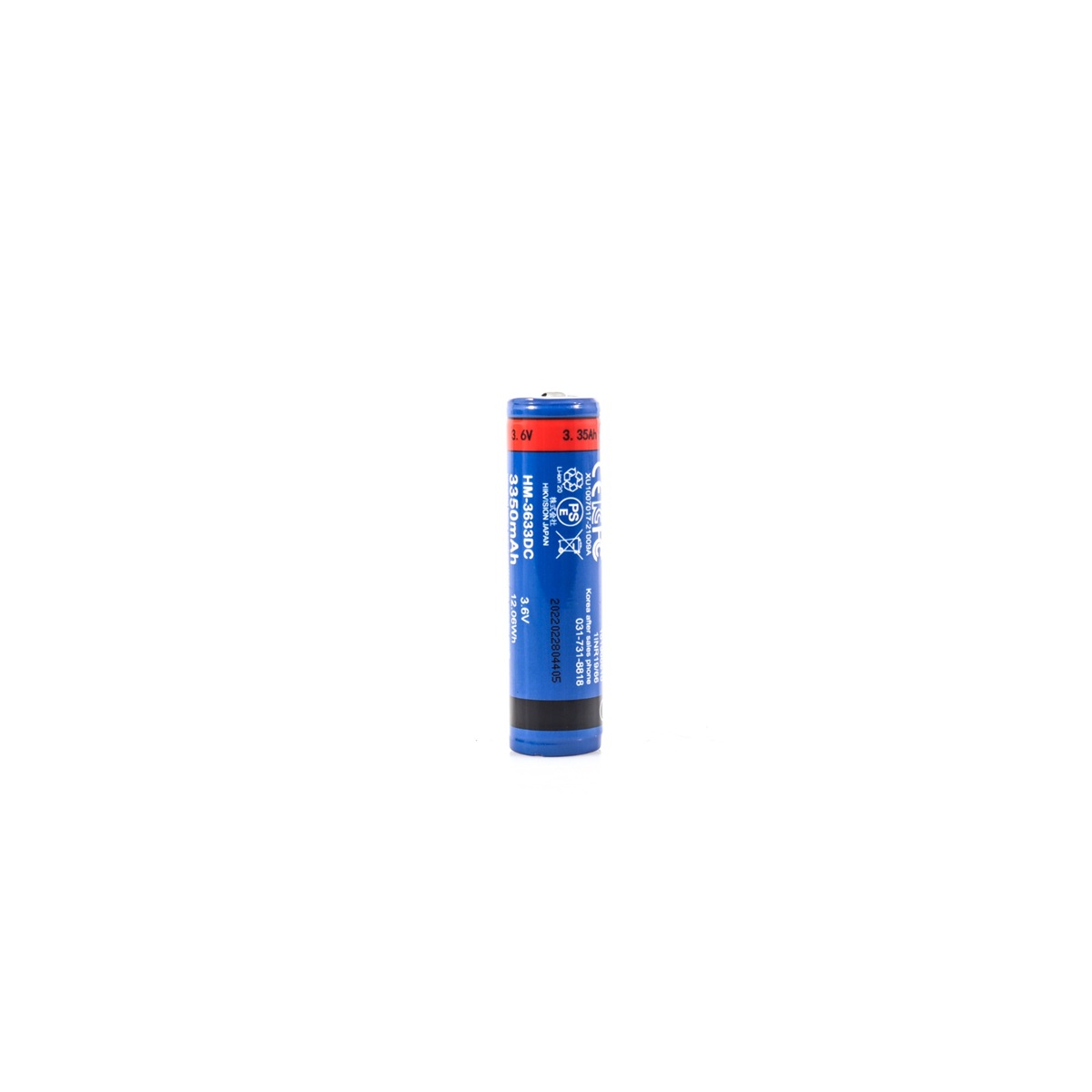

• Battery Type: Replaceable & Rechargeable 18650 Li-ion

• Operating Time: ≥8 hours (@25°C, Hotspot off)

• Charging & Power:

  • USB Type-C: 5 V DC, 2 A

  • Supports external power and direct charging

General

• Protection Level: IP67

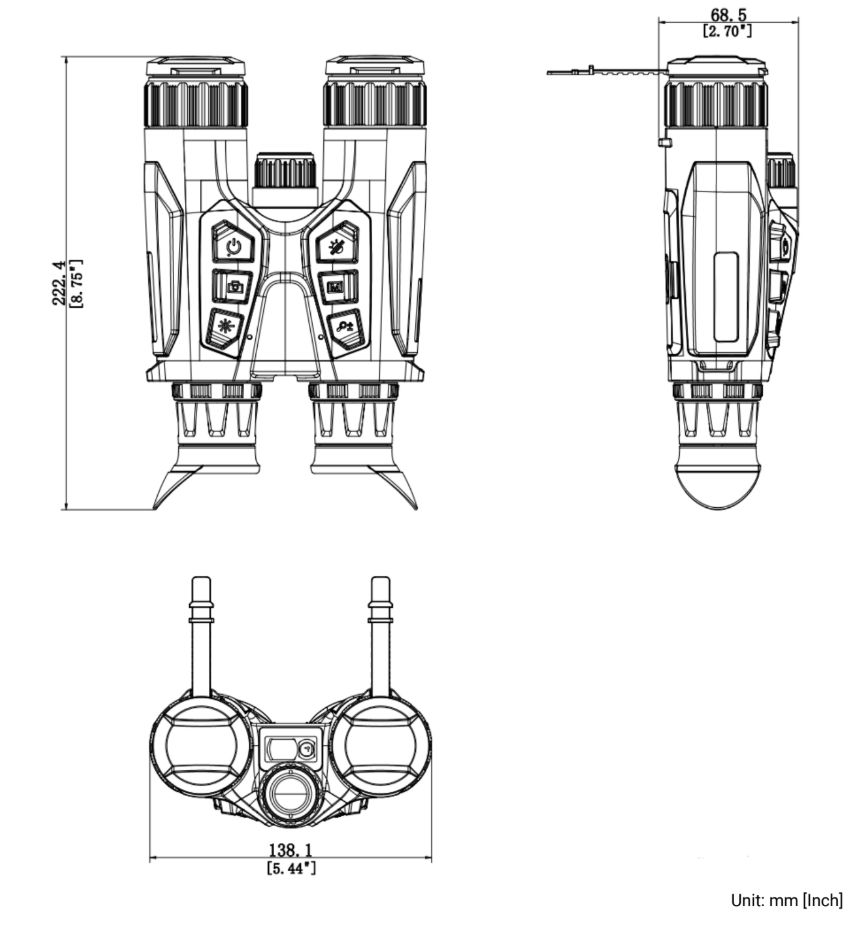

• Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")

• Weight: 798 g (without battery)

• Interpupillary Adjustment Range: 60 mm – 74 mm

• Mounting: 1/4"-20 UNC Adapter

• Operating Temperature: -30°C to +55°C

Laser Rangefinder

• Laser Class: Class 1

• Wavelength: 905 nm

• Measuring Range:

  • Minimum: 10 m

  • Maximum: 1000 m

• Accuracy: ±1 m

• 640x512 Thermal Sensor with 20mK NETD: Detects heat signatures with extreme sensitivity and clarity in all environments.
• 4K Ultra HD Optical Camera with 60mm Lens: Captures detailed visuals in daylight, twilight, and total darkness.
• Dual Replaceable IR Illuminators (850nm & 940nm): Adapt your visibility to different environments and light conditions effortlessly.
• Built-in 1000m Laser Rangefinder: Precisely measure target distances in real time with ±1m accuracy.
• Advanced Image Stabilization Algorithm: Delivers smooth, blur-free viewing even when zoomed or in unstable field conditions.
• 640x512 thermal sensor with ultra-sensitive 20mK NETD
• 4K CMOS camera with 60mm high-resolution lens
• Dual replaceable IR illuminators (850nm/940nm)
• 1000m integrated laser rangefinder
• Up to 8 hours battery life
• Onboard 64GB image and video storage
• 5.5x to 22x variable magnification
• Real-time image stabilization system
• IP67 waterproof and rugged magnesium chassis
• Built-in GPS, compass, and hotspot sharing

• HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF
• Neck strap
• Type C USB cable
• Tripod adaptor
• 4x Batteries
• Replaceable IR illuminator (940nm)
• Quick start guide
• Lint free cloth
• Battery charger
• Binocular harness

• 3-Year HIKMICRO Warranty

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
