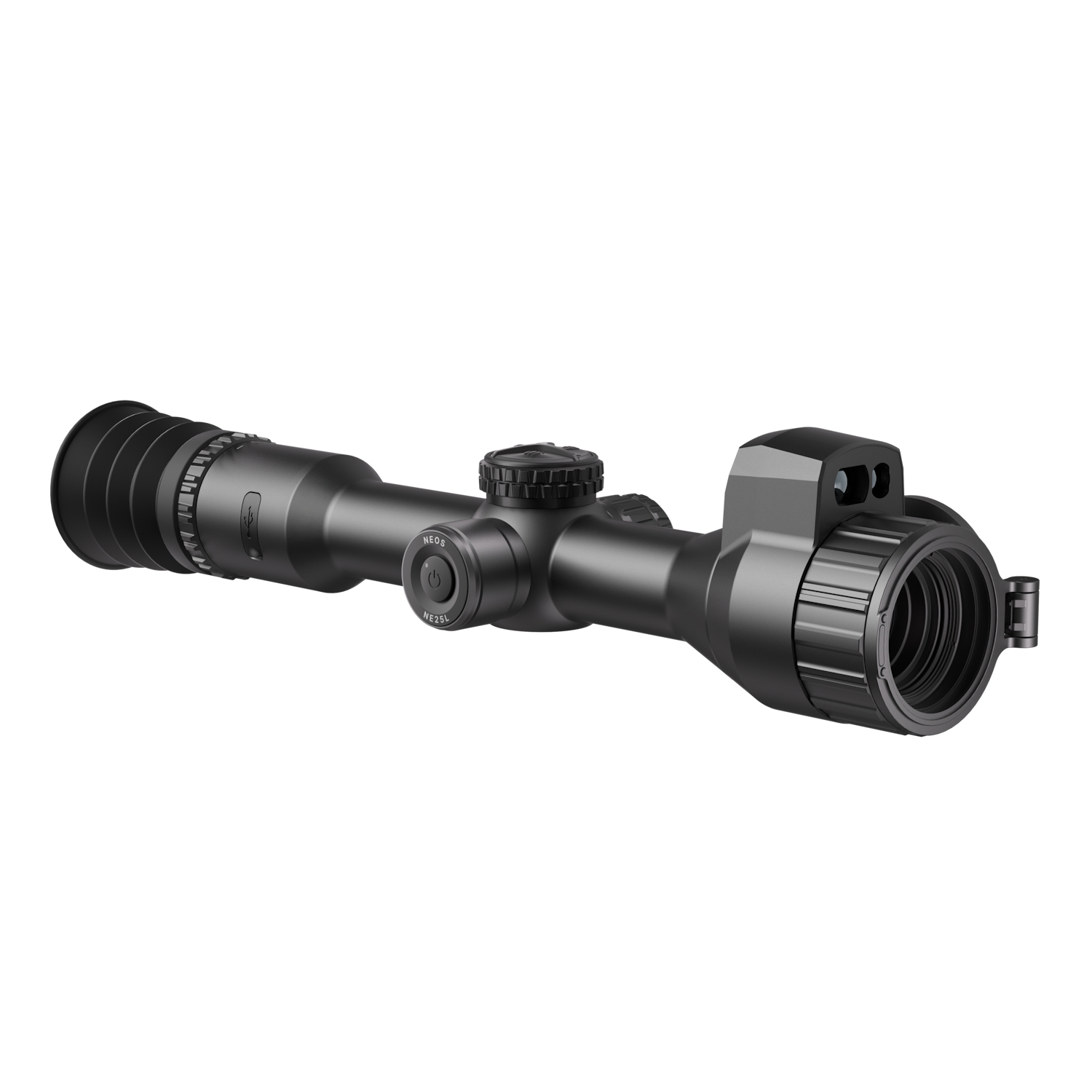

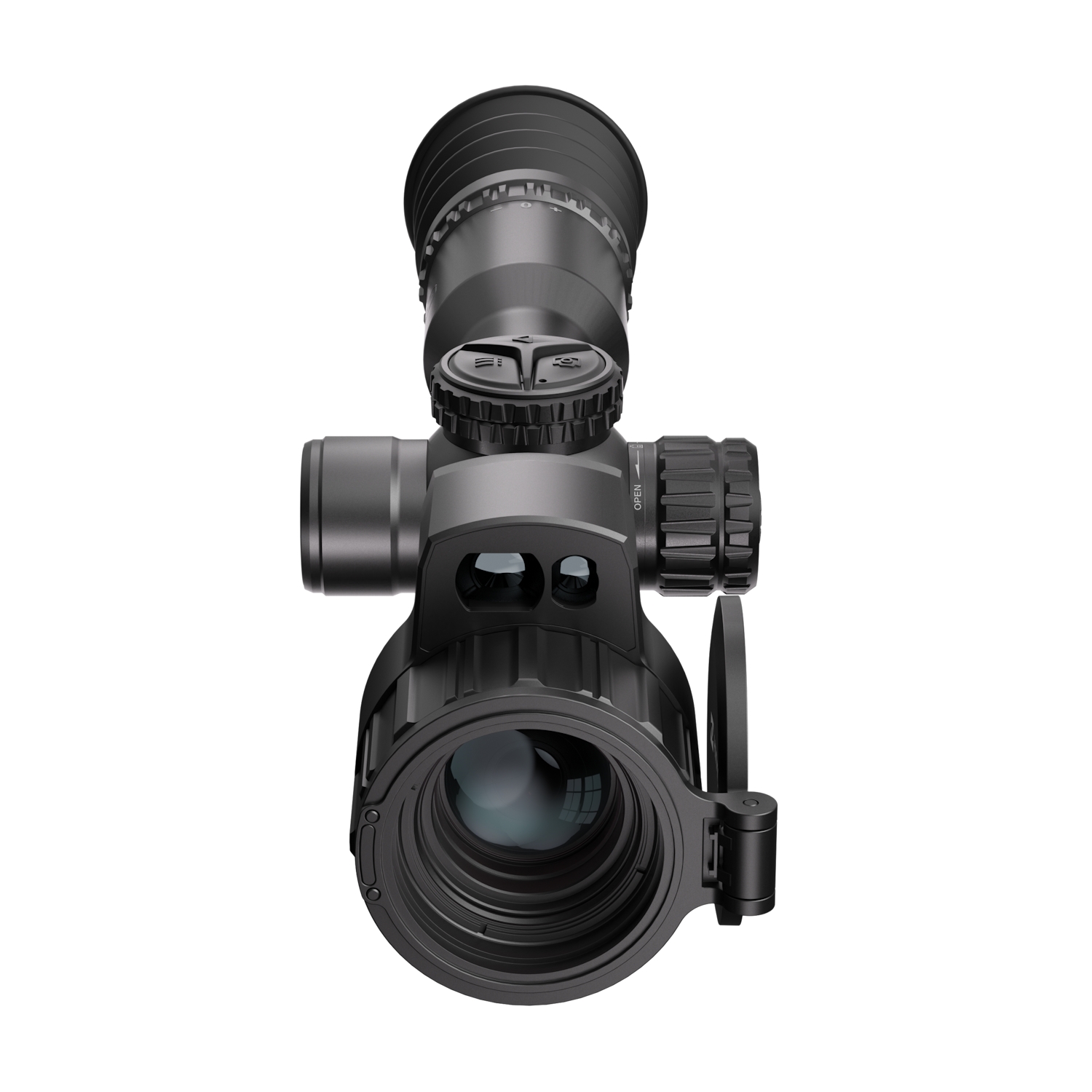

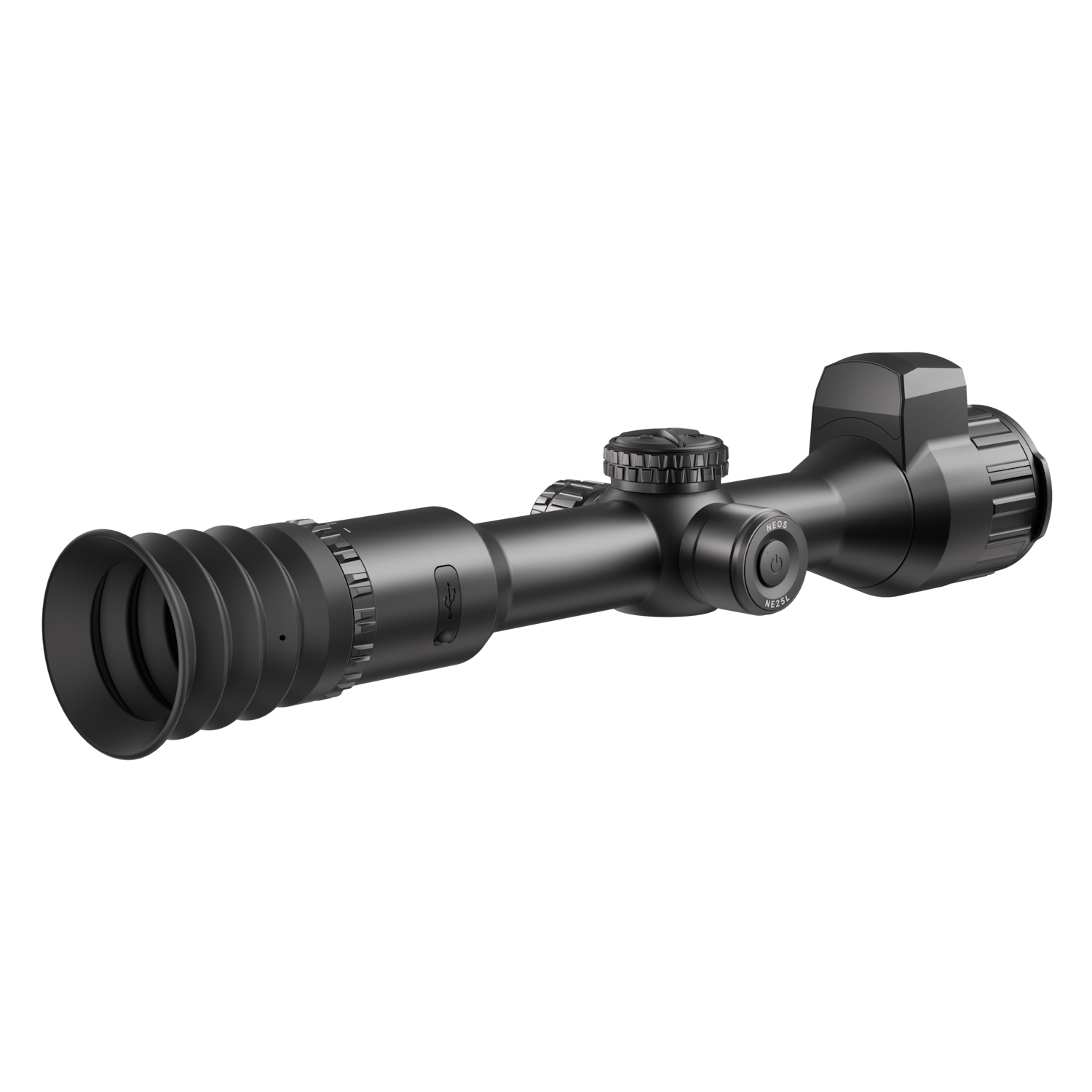

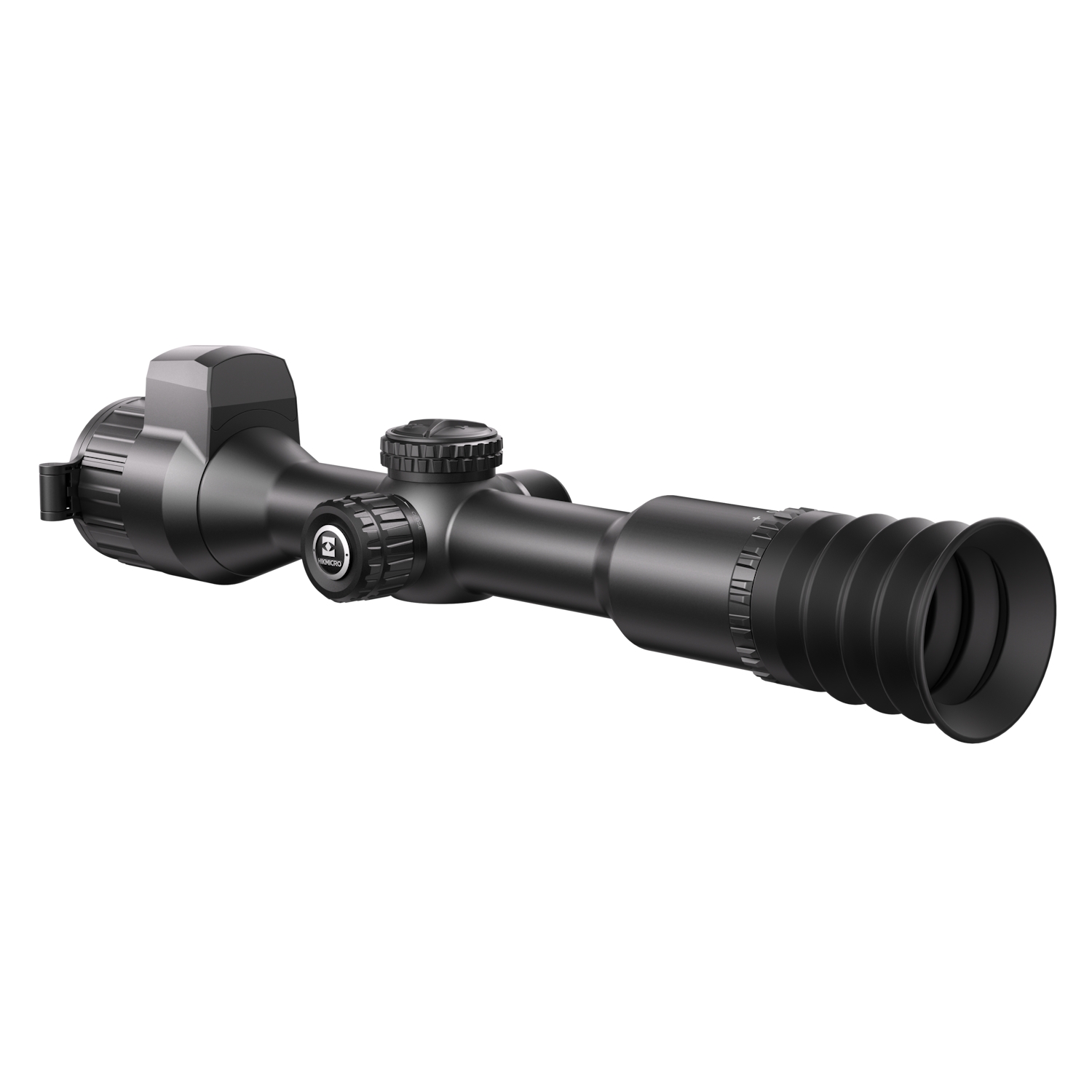

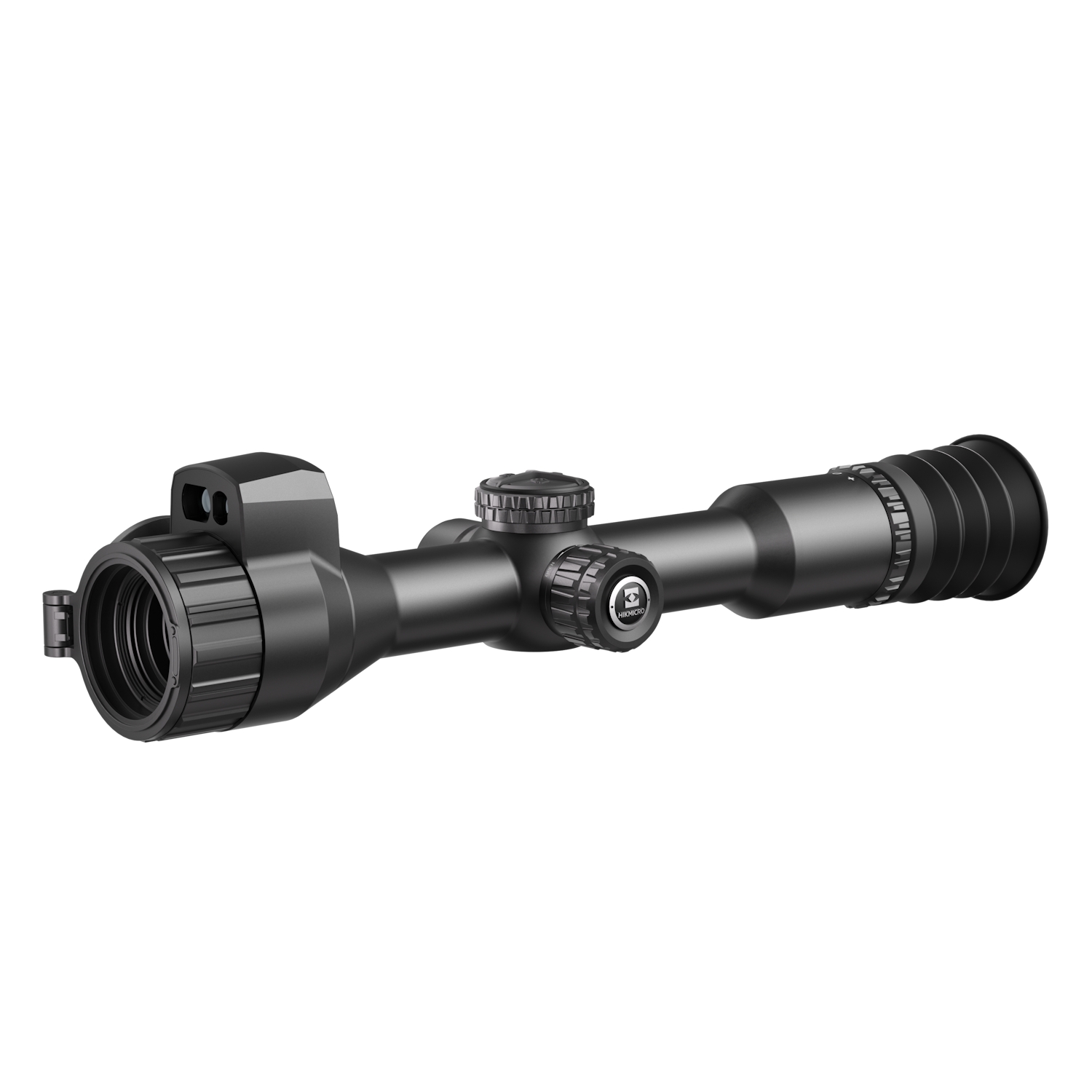

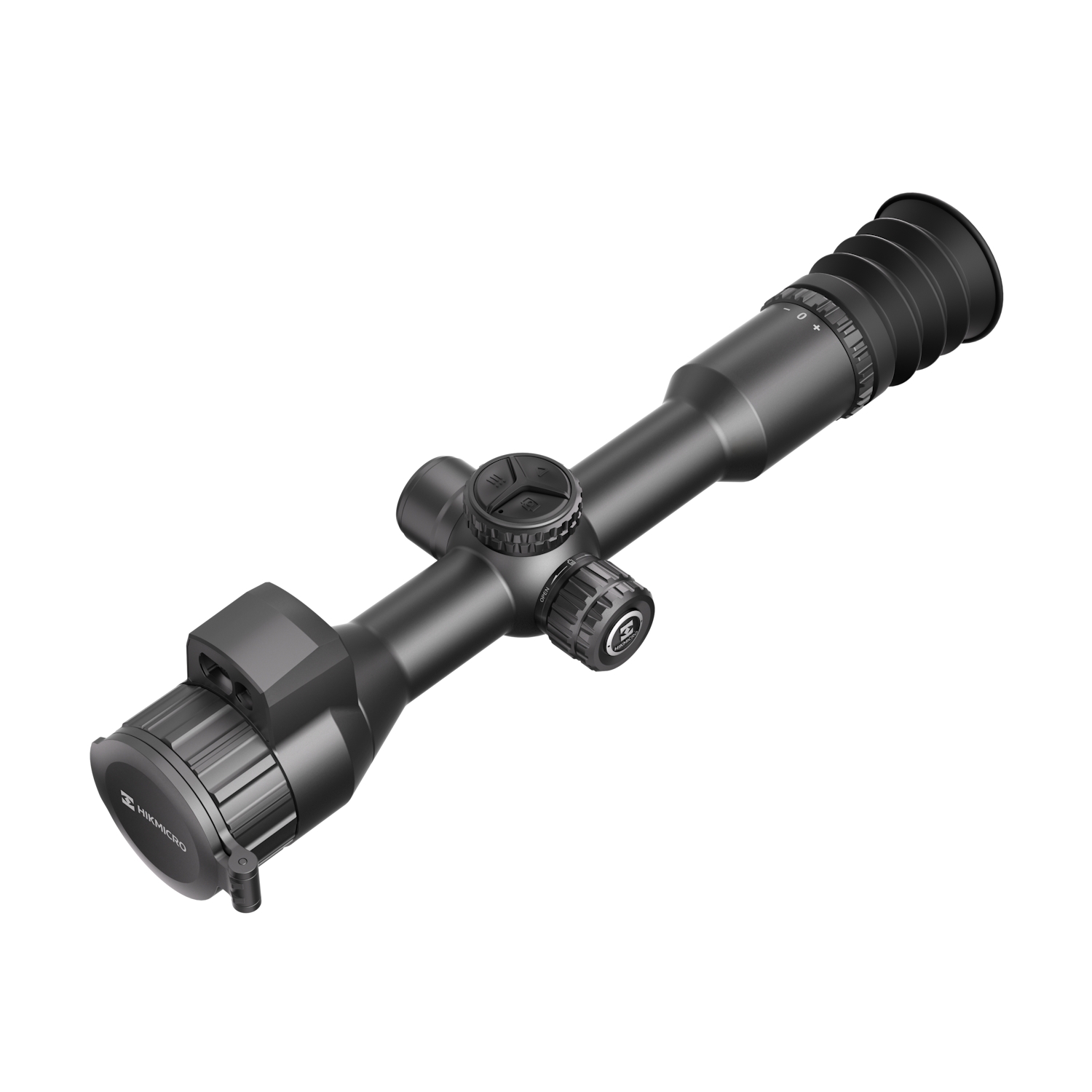

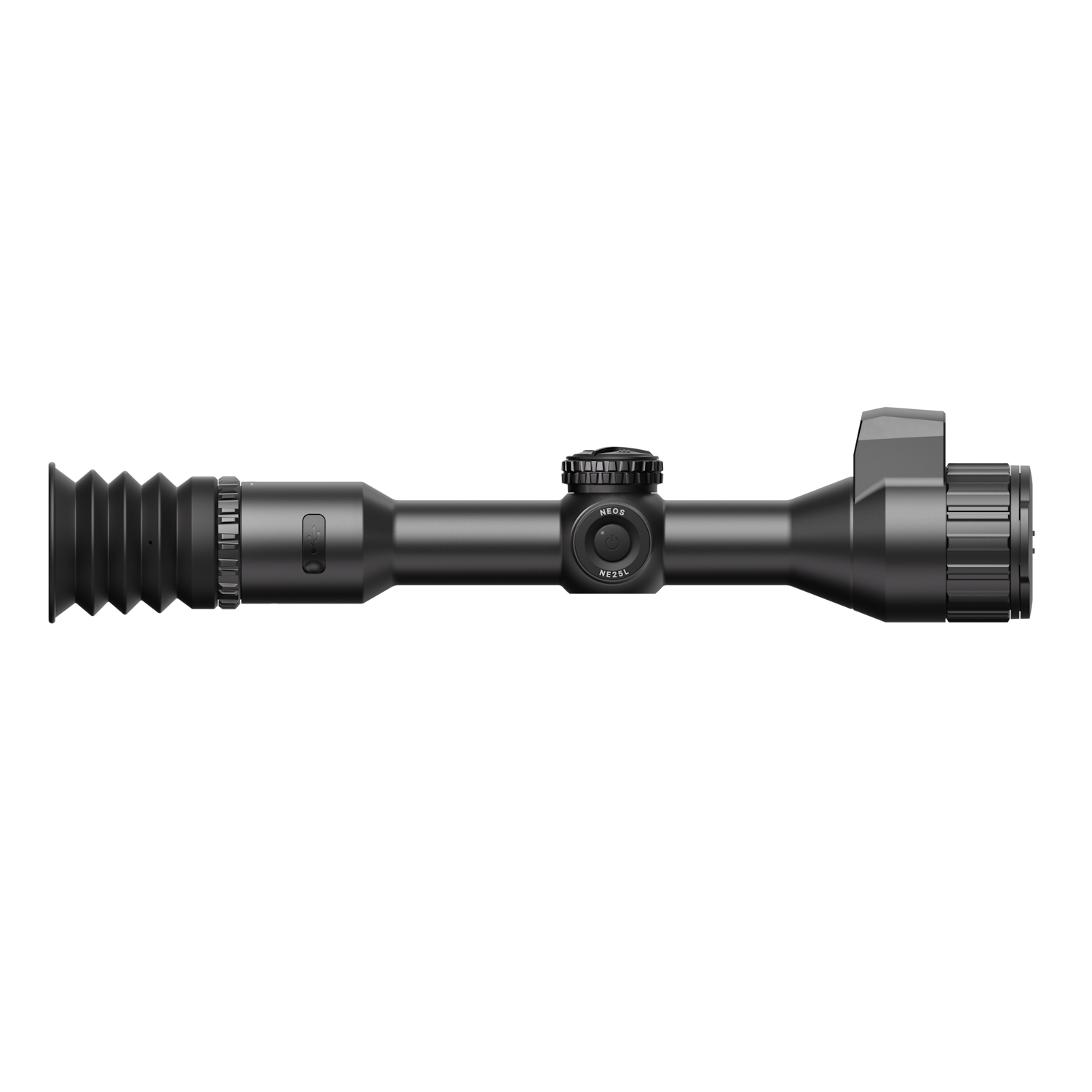

HIKMICRO Neos NH25L Thermal Rifle Scope with LRF and Ballistics Calculator
320x240, 12um, <18mK, 25mm, LRF
The HIKMICRO Neos NH25L Thermal Rifle Scope combines a 320×240 thermal sensor, sub-18mK NETD sensitivity and advanced Image Pro 3.0, Zoom Pro and shutterless HSIS technology for a smooth, detailed thermal image. Its integrated 1000m laser rangefinder and ballistic calculator support more accurate shooting, while the large 0.49-inch AMOLED display gives a clear, immersive view. Lightweight at just 550g, with 9-hour battery life, quick start-up and 30mm tube mounting, it is built for practical field use.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The HIKMICRO Neos NH25L Thermal Rifle Scope with LRF and Ballistics Calculator is a compact, lightweight thermal imaging scope designed for shooters who want fast target detection, smooth performance and accurate shot placement in a streamlined 30mm tube format.
At the heart of the NH25L is a 320×240 VOx thermal sensor with a highly sensitive NETD of less than 18mK, helping deliver clear thermal detail even in challenging weather, low contrast environments and difficult nighttime conditions. Combined with a 25mm F1.0 lens, 50Hz frame rate and up to 1200m detection range, it provides a strong balance of image clarity, range and usability.
HIKMICRO’s latest image processing technology gives the NH25L a major performance advantage. Image Pro 3.0, Zoom Pro, Sync Pro and the HIKMICRO Shutterless Image System work together to produce a smoother, more detailed image with reduced latency and no disruptive shutter freeze during viewing.
The integrated 1000m laser rangefinder and ballistic calculation system make the NH25L a highly capable shooting optic. With accurate distance measurement, on-screen ballistic support and 5 zeroing profiles, users can set the scope up for different rifles, ammunition or shooting scenarios with ease. Quick zeroing via the HIKMICRO Sight App also makes setup faster and more convenient.
Viewing is handled through a large 0.49-inch AMOLED display, giving a sharp and immersive image with multiple colour palettes including Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome. The scope also features picture-in-picture, contrast adjustment, brightness adjustment and tone control, allowing the image to be tailored to different environments.
Despite its powerful feature set, the NH25L remains practical in the field. Weighing just 550g, with a compact ergonomic design and standard 30mm mounting, it feels familiar on a rifle and is easy to integrate into existing setups. It also offers 1-second quick start-up, IP67 weather protection and a wide operating temperature range from -30°C to 55°C.
For recording and reviewing your shooting, the NH25L includes 64GB built-in storage, onboard video recording, snapshot capture, audio recording, recoil-activated recording and a local album. Power is supplied by an internal rechargeable lithium battery and an external rechargeable 18650 battery, delivering up to 9 hours of continuous operation.
Overall, the HIKMICRO Neos NH25L is a feature-packed thermal rifle scope for hunters and pest controllers who want high-sensitivity thermal performance, built-in LRF, ballistic calculation, smooth shutterless imaging and a lightweight 30mm scope design in one complete package.
- Image Sensor VOx uncooled focal plane arrays
- Maximum Resolution 320 × 240
- Frame Rate 50Hz
- Pixel Pitch 12μm
- Response Waveband 8μm to 14μm
- NETD Less than 18mK at 25°C, F# = 1.0
- Objective Lens 25mm, F1.0
- Focus Mode Manual focus ring
- Detection Range 1200m
- Minimum Focusing Distance 3m
- Magnification 3.5× to 24.5×
- Field of View 7.0° × 5.3°
- Field of View at 100m 12.2m × 9.3m
- Display 0.49-inch AMOLED
- Colour Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 8mm
- Eye Relief 55mm
- Diopter Adjustment -4D to +4D
- Brightness Adjustment Yes
- Tone Adjustment Cold and Warm
- Contrast Adjustment Yes
- Zoom Pro Yes
- HIKMICRO Shutterless Image System Yes
- Image Pro 3.0 Yes
- Sync Pro Yes
- Video Recording On-board video recording
- Snapshot Capture Yes
- Hotspot Yes
- Standby Mode Yes
- Storage Built-in 64GB EMMC
- Picture-in-Picture Yes
- Local Album Yes
- Audio Recording Yes
- Recoil-Activated Recording Yes
- Freeze Zeroing Yes
- Maximum Recoil Resistance 1000g/0.4ms
- Zeroing Profiles 5
- Ballistic Calculation Yes
- Click Value 1 click = 1cm at 100m
- Distance Measurement Yes
- Battery Type One internal rechargeable lithium battery and one replaceable rechargeable 18650 external battery
- Battery Operating Time Up to 9 hours continuous use at 25°C with Zoom Pro and LRF on
- Type-C Power Supply 5V DC/2A via USB Type-C interface
- Fast Charging Support QC3.0 supported
- Charging Note Only the built-in battery is charged via Type-C cable; the external battery should be charged using the battery charger
- Protection Level IP67
- Mounting Standard 30mm

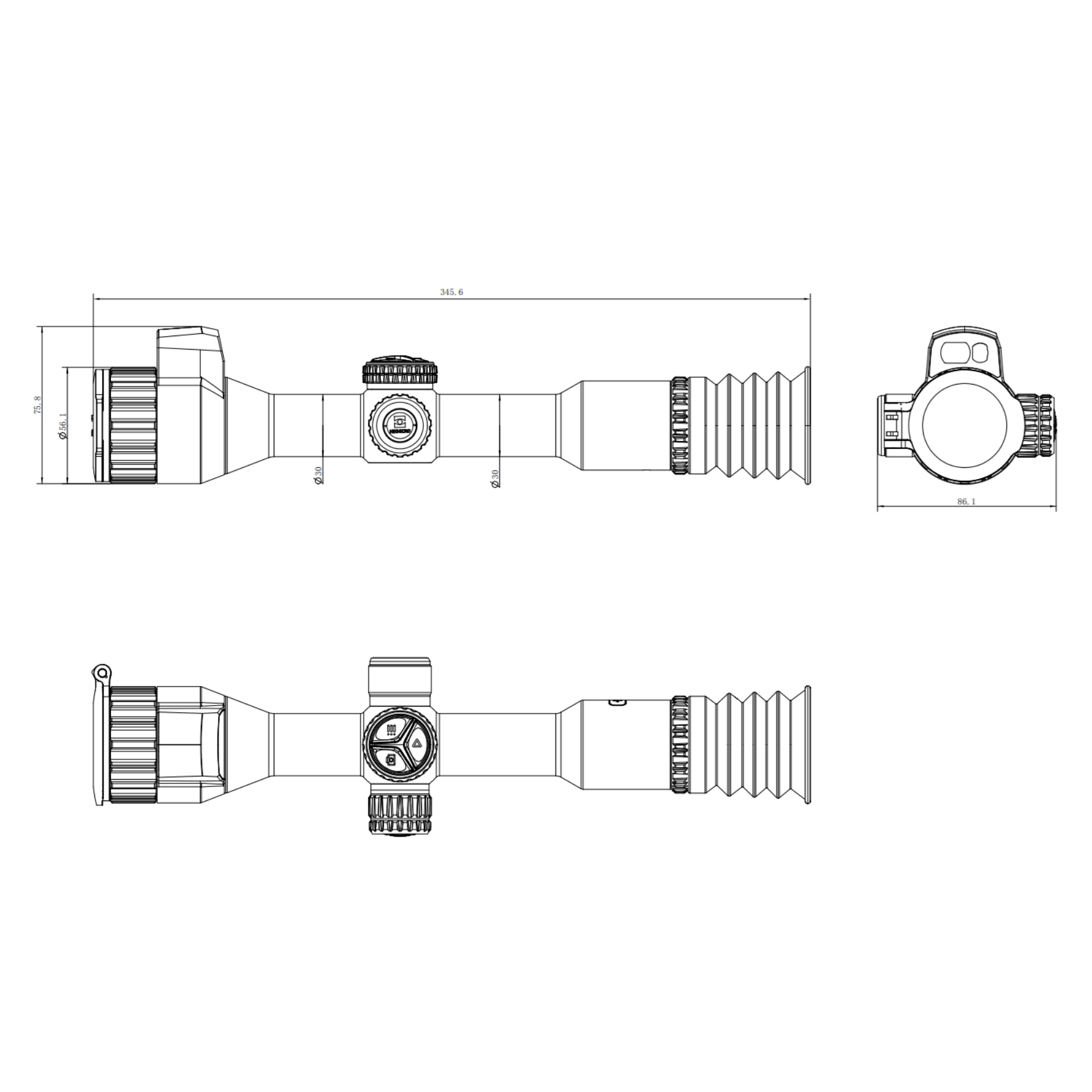

- Dimensions 345.6mm × 86.1mm × 75.8mm
- Weight 550g
- Working Temperature -30°C to 55°C
- Centre Height 32mm
- Laser Safety Class Class 1
- Laser Wavelength 905nm
- Maximum Measuring Range 1000m
- Measurement Accuracy ±1m
- Minimum Measuring Range 10m
- Built-in laser rangefinder helps measure distance to the target quickly and accurately without needing a separate rangefinding device.
- Integrated ballistic calculator provides shooting support based on distance, helping improve accuracy and confidence in the field.
- High-sensitivity thermal imaging helps detect heat signatures clearly, making it easier to spot animals in darkness, cover, woodland edges and challenging weather conditions.
- Advanced image processing improves clarity, detail and contrast, giving the user a sharper and more refined thermal image.
- Shutterless viewing system reduces image interruption, creating a smoother viewing experience without regular shutter freezes.
- Zoom enhancement technology helps maintain a clearer image when increasing magnification, making longer-range observation more practical.
- Large AMOLED viewing display gives a bright, detailed and immersive image through the eyepiece.
- Multiple colour palettes allow the user to choose the best thermal display mode for different environments, preferences and lighting conditions.
- Lightweight, ergonomic design makes the scope easier to handle in the field and helps maintain better rifle balance.
- 30mm tube-style design allows the scope to mount in a familiar way, making setup simple for users already used to traditional rifle scopes.
- Quick start-up function allows the scope to power on rapidly when needed, helping avoid missed opportunities.
- Long battery life supports extended use during longer hunting or pest control sessions.
- Internal and external battery system provides flexible power management for longer time in the field.
- Quick zeroing via the HIKMICRO Sight App makes setup more convenient and helps streamline the zeroing process.
- Freeze zeroing function makes it easier to zero the scope by holding the image in place while making adjustments.
- Multiple zeroing profiles allow the scope to be set up for different rifles, calibres, ammunition types or shooting situations.
- Picture-in-picture mode gives a magnified aiming window while still maintaining a wider field of view around the target area.
- Onboard video recording allows users to capture footage directly through the scope.
- Snapshot capture makes it easy to save still images during use.
- Recoil-activated recording automatically captures footage when a shot is taken, helping record key moments without manual operation.
- Audio recording allows video clips to include sound for a more complete record of the session.
- Built-in storage provides space for saving videos and images without needing a separate memory card.
- Local album function allows captured media to be reviewed directly through the device.
- Hotspot connectivity enables connection to compatible devices for app control, setup and media transfer.
- Standby mode helps conserve battery life while keeping the scope ready for use.
- Weather-resistant construction makes the scope suitable for demanding outdoor use in poor conditions.
- Wide operating temperature capability allows the scope to perform in cold winter conditions as well as warmer environments.
- Multiple image adjustment options let the user fine-tune brightness, contrast and tone to suit the situation.
- Practical field-focused design combines thermal detection, rangefinding, ballistic support, recording and app connectivity in one complete rifle scope.
- HIKMICRO Neos NH25L Thermal Rifle Scope with LRF and Ballistics Calculator
- Quick start guide
- Type-C USB cable
- Lint free cloth
- Battery
- Battery charger
Does the HIKMICRO Neos NH25L have a built-in laser rangefinder?
Yes, the HIKMICRO Neos NH25L has an integrated laser rangefinder with a maximum measuring range of up to 1000m.
Does this thermal scope have a ballistic calculator?
Yes, the NH25L features built-in ballistic calculation, helping provide more accurate shooting support once the target distance has been measured.
What is the thermal sensor resolution?
The NH25L uses a 320×240 thermal sensor, giving a good level of detail for spotting and identifying heat signatures.
How sensitive is the thermal image?
It has a NETD rating of less than 18mK, which means it can detect very small temperature differences and provide a clearer image in poor weather or low-contrast conditions.
What detection range does the NH25L offer?
The scope has a detection range of up to 1200m, depending on target size, weather conditions and the surrounding environment.
Is the image smooth when scanning?
Yes, the 50Hz frame rate helps provide a smooth image, making it easier to scan fields, woodland edges and moving targets.
Does the scope suffer from shutter freeze?
The NH25L uses HIKMICRO Shutterless Image System technology, which helps reduce image interruption and provides a smoother viewing experience.
What is Image Pro 3.0?
Image Pro 3.0 is HIKMICRO’s image processing technology, designed to improve image clarity, detail and contrast.
What is Zoom Pro?
Zoom Pro helps maintain a clearer image when increasing magnification, making it more useful when observing or aiming at longer distances.
What magnification range does it have?
The NH25L offers 3.5× to 24.5× magnification.
What display does the scope use?
It uses a large 0.49-inch AMOLED display, giving a bright, clear and immersive image through the eyepiece.
Can I change the thermal colour palette?
Yes, the scope offers multiple colour palettes including Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome.
Is it suitable for air rifles or rimfire rifles?
Yes, the NH25L can be a strong option for air rifle and rimfire use, especially where a compact thermal scope with built-in rangefinding and ballistic support is useful.
Is it suitable for centrefire rifles?
Yes, the scope is recoil rated up to 1000g/0.4ms and can be used on suitable centrefire setups.
How much does the NH25L weigh?
The scope weighs approximately 550g, making it lightweight for a thermal rifle scope with built-in LRF and ballistic features.
Does it mount like a normal rifle scope?
Yes, it uses a 30mm mounting standard, so it can be fitted using compatible 30mm scope mounts.
How long does the battery last?
The NH25L offers up to 9 hours of continuous running at 25°C with Zoom Pro and the LRF switched on.
What type of battery does it use?
It uses one internal rechargeable lithium battery and one replaceable rechargeable 18650 external battery.
Can I charge it by USB-C?
Yes, it supports USB Type-C power input. The built-in battery can be charged via USB-C, while the external 18650 battery should be charged using a separate battery charger.
Does it record video?
Yes, the scope has onboard video recording, allowing you to capture footage directly through the device.
Does it have recoil-activated recording?
Yes, recoil-activated recording is included, so the scope can automatically capture footage when a shot is taken.
Can it take photos?
Yes, the NH25L can capture snapshots as well as video.
How much storage does it have?
It has built-in 64GB EMMC storage for saving videos, photos and recordings.
Does it have audio recording?
Yes, the NH25L supports audio recording.
Can I connect it to an app?
Yes, the scope supports hotspot connectivity and quick zeroing through the HIKMICRO Sight App.
How easy is it to zero?
The NH25L includes freeze zeroing and quick zeroing via the HIKMICRO Sight App, making setup more straightforward.
How many zeroing profiles does it have?
It has 5 zeroing profiles, allowing you to save different setups for different rifles, ammunition or shooting scenarios.
Is it waterproof?
The scope has an IP67 protection rating, making it suitable for use in wet and challenging outdoor conditions.
Can it be used in cold weather?
Yes, the NH25L has a working temperature range of -30°C to 55°C, making it suitable for use in demanding winter conditions.
Does it have picture-in-picture mode?
Yes, picture-in-picture mode is included, giving you a magnified aiming view while retaining a wider overall image.
What is the minimum focusing distance?
The minimum focusing distance is 3m, making the scope usable at close range as well as longer distances.
Is the laser rangefinder safe?
Yes, the laser rangefinder is Class 1 rated, which is considered safe under normal operating conditions.
