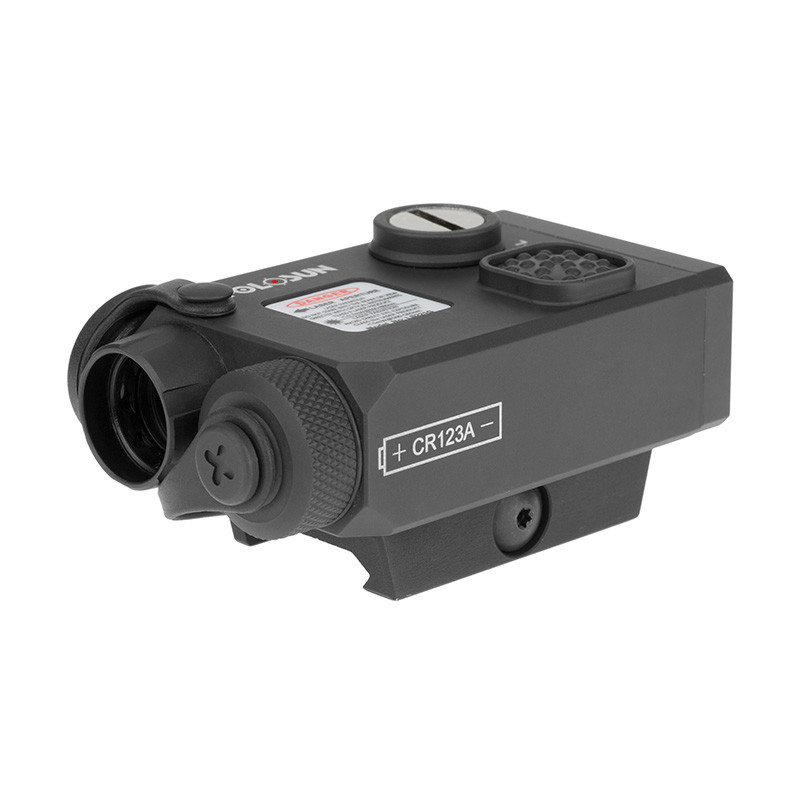

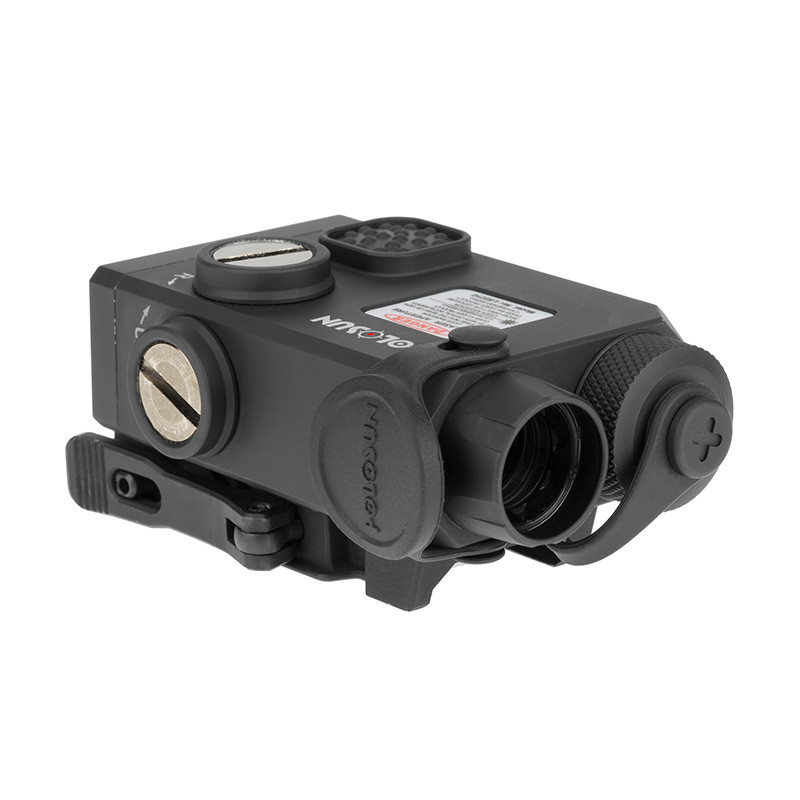

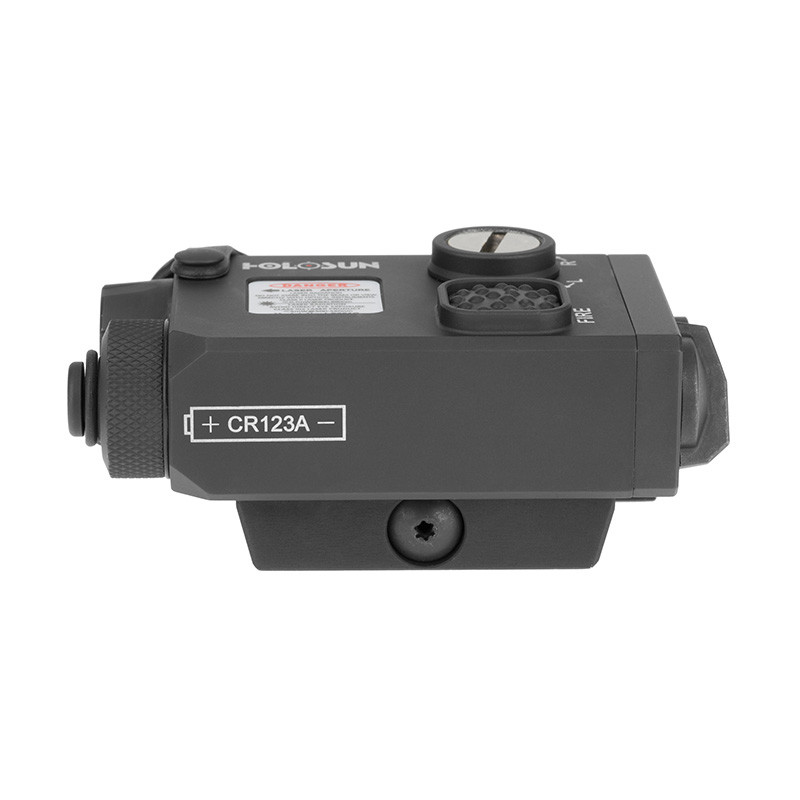

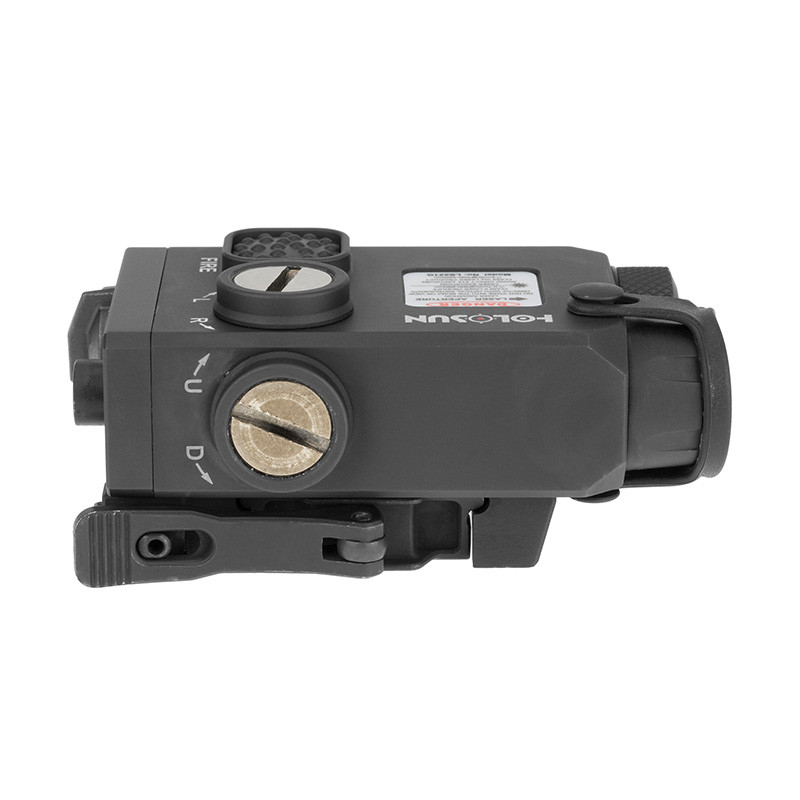

Holosun LS221R&IR Co-axial Visible Red & IR Laser Aiming Device with Picatinny QD Mount
The Holosun LS221R & IR is a compact dual laser aiming unit that gives you both a visible red laser and an IR laser in one setup, built for serious rifle use—especially if you’re running night vision. It uses a co-axial design so both lasers are aligned, and it comes with a quick-detach Picatinny mount so you can pop it on or off without hassle. The housing is tough 7075 aluminum, it’s fully weather-resistant, and it includes a remote pressure switch for easier activation under stress. It’s basically a compact, durable “do-it-all” laser block for daytime aiming and NV setups when you need precision and flexibility in one unit.
-Nathan (Technical Advisor)
Powered by a single CR123 battery, the LS221R&IR boasts an impressive battery life of up to 5000 hours, ensuring long-lasting performance in the field. Its rear-facing selector switch allows seamless toggling between visible low, visible high, IR low, and IR high settings. Users can easily operate these functions via the included remote pressure switch or turn the unit off when not in use.
For precision aiming, the LS221R&IR is equipped with tactile windage and elevation adjustments, enabling accurate zeroing. This versatile and durable laser sight is perfect for a variety of tactical and shooting applications, delivering reliable performance and exceptional battery longevity.
- Window Size N/A

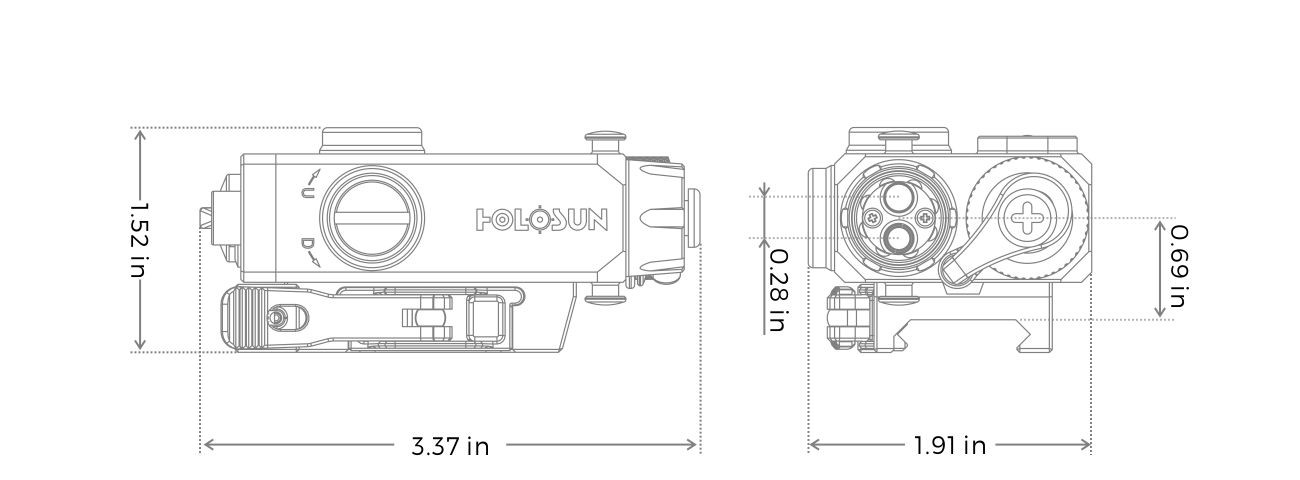

- Dimension (in) 3.4×1.9×1.5
- Weight (oz) 6.7
- Housing Material 7075 T6 Aluminum
- Surface Finish MAO
- Adjustment per Click 0.5 MOA
- W&E Travel Range ±50 MOA
- Storage Temperature -40℃~65℃
- Working Temperature -40℃~51℃
- Submersion IP67
- Vibration 1000G
- White LED Candela N/A
- Laser & Illuminator Type Dual Laser
- White LED Output N/A
- IR Illuminator Class N/A
- IR Illuminator Output N/A
- IR Pointer Class IIIB
- IR Pointer Output 0.1mw(low)/0.7mw(high)
- Visible Laser Class IIIA
- Visible Laser Output 1mw(low)/5mw(high)
Holosun LS221R&IR
The LS221R&IR features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS221R&IR is powered by a single CR123 battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between visible low, visible high, IR low, IR high activation using the included remote pressure switch or turn the unit OFF. The LS221R&IR also includes tactile windage and elevation adjustments for a precision zero.
- Holosun LS221R&IR Co-axial Visible Red & IR Laser Aiming Device
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123A Battery
1. What does the LS221R actually do?
It combines a visible red laser for daytime use and an IR laser for night vision applications in one unit.
2. What does “co-axial” mean?
It means the visible and IR lasers are aligned to the same point of impact, so you don’t need separate zeroes.
3. Is it meant for rifles or pistols?
It’s designed for rifles and carbines with a Picatinny rail system.
4. Does it come with a quick-detach mount?
Yes, it includes a QD Picatinny mount for fast installation and removal.
5. Does it work with night vision gear?
Yes, the IR laser is specifically designed for use with night vision devices.
6. How durable is it?
Very durable—7075 aluminum construction, waterproofing, and built for recoil and field use.
7. How is it powered?
It runs on a single CR123 battery with long runtime (up to thousands of hours depending on use).
8. Does it have a remote switch?
Yes, it includes a pressure pad for easier activation when mounted on a rifle.
9. Can you adjust the lasers?
Yes, it has windage and elevation adjustments for precise zeroing.
10. Is it bulky compared to other laser units?
Yes, it’s a bit larger than simple single lasers, but that’s because it combines both visible and IR systems in one housing.
- Holosun 10 years / product lifetime warranty. Read more here
