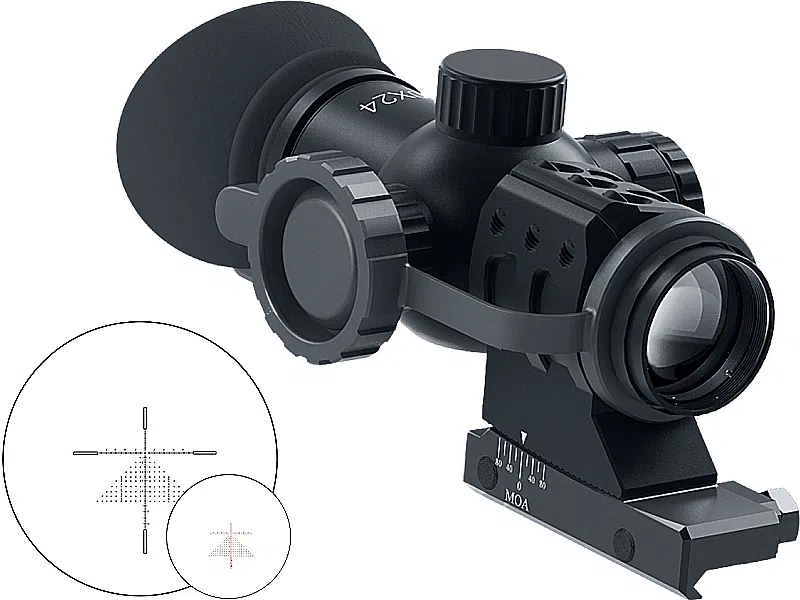

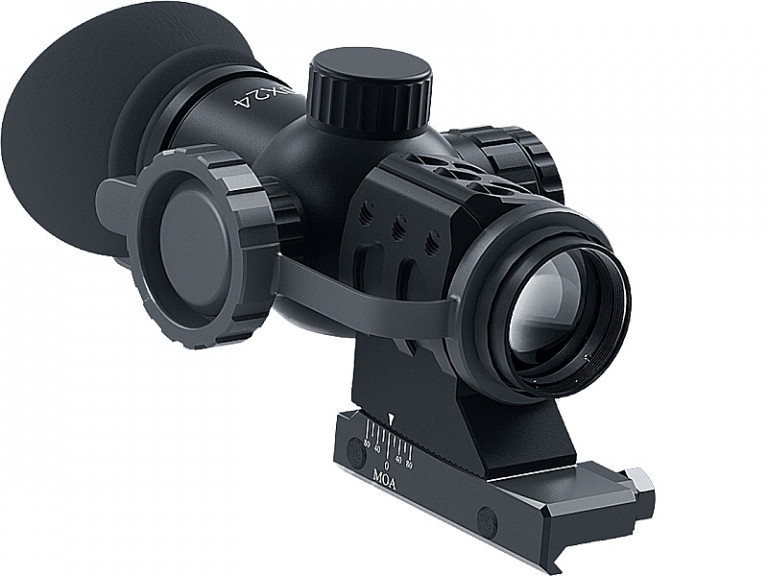

Immersive Optics 10x24 Mildot w/moa Adj Extended Mount Prism Scope
When you need more magnification but still want to keep your setup agile, the Immersive Optics 10x24 delivers. This prismatic scope provides a crystal-clear 10x magnification in a frame that is significantly smaller and lighter than standard 10x rifle scopes. We offer both standard and Extended Mount versions to ensure the perfect eye relief on various rifle platforms. It’s a game-changer for HFT (Hunter Field Target) shooters who need a high-detail image with an incredibly forgiving eye box. - George
The Immersive Optics 10x24 day scope offers high accuracy shooting within a highly compact format.
Using a prism-based optical system, the 10x24 ' s size can be immediately reduced, eliminating a traditionally large objective lens and exceedingly long housing & eye relief. This is done without sacrificing the scope's light-gathering performance, the field of view or magnification.
The implementation of this new prismatic design not only allows the 10x24 to maintain a high optical output and a minimal size, but also a reduced bulk and weight, which results in a better balance for whichever shooting platform the scope is mounted on. This optimization means that a shooter can aim for longer without fatiguing.
Offers up to 4x wider field of view when compared to traditional sights and can focus down to a distance of 6m for close-range shooting.
The 10x24 has a glass-etched illuminated reticle , high precision windage & elevation controls (no parallax) and comes with Smart MOA adjustable, CNC machined mounts designed to help zero the scope and stay in the middle of its adjustment range.

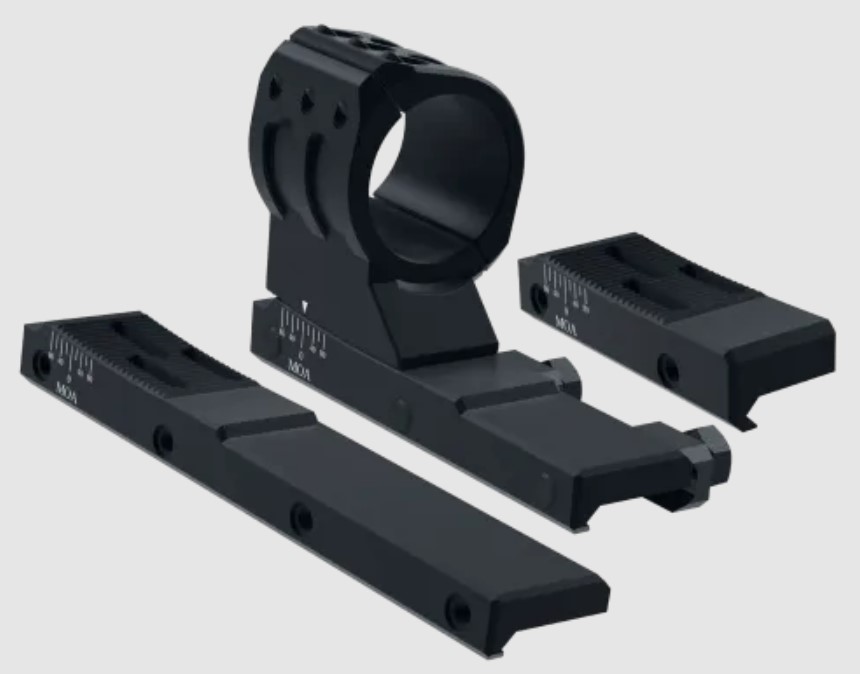

Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
This scope is fitted with ED (Extra-Low Dispersion) glass which helps to maintain natural colour reproduction within the observable field of view, minimizing chromatic aberration (colour fringing), resulting in high clarity, picture-perfect results even at long distances.
All Immersive Optics day scopes feature an innovative eye-relief and lens cap retention system which allows these aspects to be quickly and easily held securely out of the way.
All Immersive Optics scopes have CNC machined housings for zero errors, with optical channels being nitrogen-filled for anti-fogging and sealed against water for maximum quality of use.
This optic can be used with rifles with moderate to no recoil, a great choice for airgun shooters.
- Magnification: 10x
- Field Of View: 6 degrees
- Lens Diameter: 24mm
- Reticle: Mildot Extended
- Weight: 248g
- Dimensions: 122x51x72mm
- Prismatic design
- Compact size
- Lightweight
- Short eye-relief
- High magnification
- Wider field of view (when compared to traditional sights)
- ED glass for high clarity
- Highly focusable
- No parallax
- Illuminated reticles
Supplied with Smart MOA adjustable, CNC machined mounts will help to zero the scope and stay in the middle of its adjustment range. Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
- Innovative eye-relief & lens cap retention system
- Better gun/scope weight distribution
- Reduced shooter fatigue
- For rifles with moderate to no recoil
- CNC machined precision mechanics
- 0.1 mill turrets to match mildot reticles
- Adjustable elevation & windage (MIL 28 | MOA 83)
- Precise rotations (MIL 5 | MOA 15) & revolutions (Clicks 50)
- Nitrogen-Filled optical channel (Anti-Fogging)
- Waterproof
- Shock-Resistant (600G)
- Powered by 1x CR2032 battery
- 3 Year Warranty
EXTENDED MILDOT
- Immersive Optics 10x24 Mildot Extended w/moa Adj Mounts Prism Scope
- Smart MOA adjustable, CNC machined mount. Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
1. What makes Immersive Optics prismatic scopes different from traditional rifle scopes?
Traditional rifle scopes use a series of lenses to transmit light, which results in a long, heavy tube. Immersive Optics uses a prism-based optical system, which allows the scope to be significantly shorter and lighter. The primary advantage is an "immersive" viewing experience—the image appears to surround your eye rather than looking through a distant tube—and a field of view that can be up to 4x wider than a conventional optic at the same magnification.
2. Why do Immersive Optics scopes have such short eye relief?
The short eye relief (often between 15mm and 45mm) is a deliberate design choice to maximize the Field of View (FOV). By placing your eye closer to the ocular lens, you get a much larger picture of the landscape, which is critical for rapid target acquisition. Because of this "zero eye relief" design, these scopes are specifically optimized for low-recoil rifles like airguns (PCP and springers) and rimfire rifles (like .22 LR).
3. Are Immersive Optics scopes suitable for high-recoil centerfire rifles?
Generally, no. Because the eye relief is very short, the recoil of a high-power centerfire rifle could cause the scope to strike the shooter's eye (often called "scope eye"). However, the Immersive Optics 5x30 Pro model offers an extended 85mm eye relief, making it a safer and highly effective option for medium-recoil calibers like .223 or .243 Win.
4. Can I use Immersive Optics for close-range pest control and HFT?
Yes, they are ideal for these applications. One of the standout features of Immersive Optics is their short minimum focus distance (as low as 6 meters). This makes them perfect for Hunter Field Target (HFT) and close-range pest control where traditional scopes often struggle to maintain a sharp focus. The wide FOV also helps you keep moving targets in sight more easily in dense environments.
5. Do Immersive Optics scopes come with mounts included?
Yes, most Immersive Optics models come as a complete package including MOA adjustable mounts. Since prismatic scopes sit lower than traditional optics, these dedicated mounts are designed to provide the correct height and alignment for your rail. The inclusion of multiple base options (often including both Picatinny and sometimes Dovetail adapters) ensures you can fit the scope to your rifle straight out of the box.
- 3 Year Warranty
