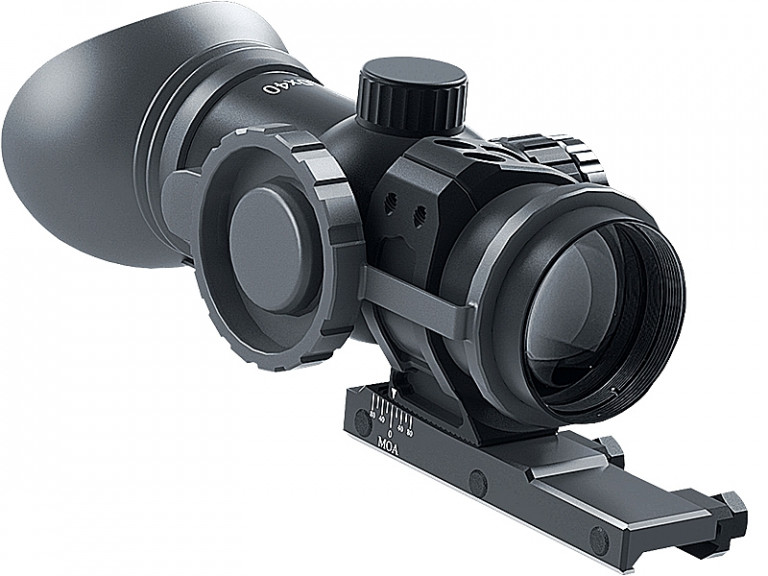

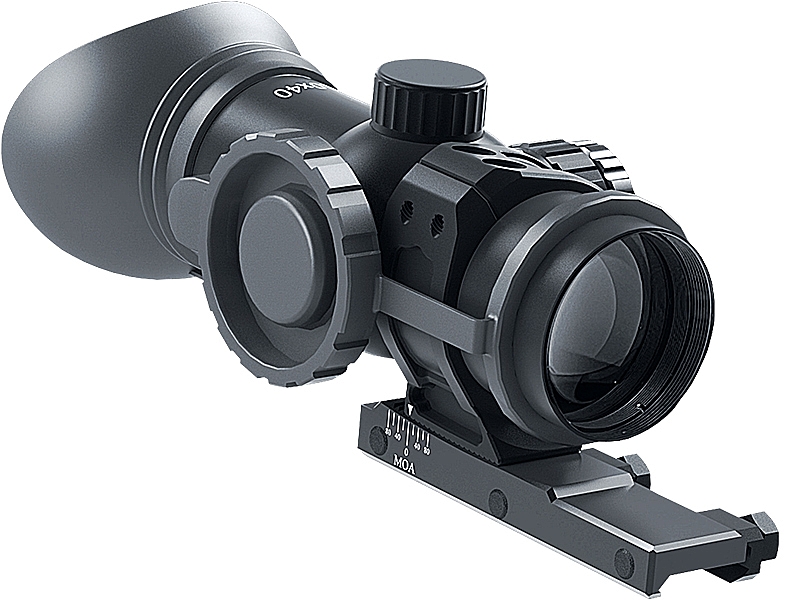

Immersive Optics 10x40 Prismatic MilDot Rifle Scope with MOA Adjustable Extended Mount
The Immersive Optics 10x40 is a powerhouse of light management. The 40mm objective lens allows for a bright, vibrant image even in tricky lighting conditions, such as woodland hunting at dawn or dusk. By utilizing a prismatic design, it packs the performance of a full-sized 10x40 scope into a compact body that won't throw off your rifle's balance. Available with MOA Adjustable Extended Mounts, this scope ensures you can zero perfectly while enjoying an ultra-wide field of view that makes finding your target feel natural and instantaneous.- George
A compact sight with the sharpest image and impressive light transmission for a bright picture for use from dawn to dusk. Shallower depth of field enables range finding when focusing.

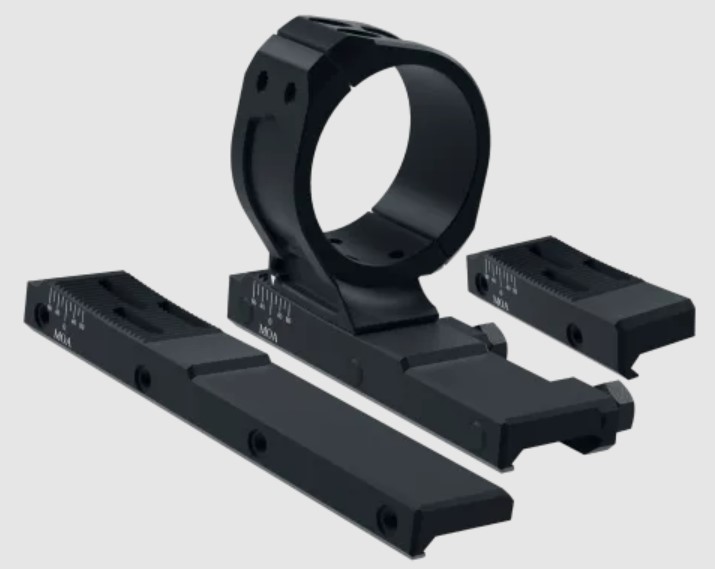

Supplied with Smart MOA adjustable, CNC machined mounts will help to zero the scope and stay in the middle of its adjustment range. Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
The prismatic design allows us to make much more compact and lightweight scopes with the superior optical performance. Being compact allows for much better Gun/Scope weight distribution, the weight being further back massively reduces fatigue, which allows the shooter to stay out longer and shoot more accurately.
Airguns and rimfire:
Scope rings - 1.5 nM
Mounts rail - 2.5 nm
Centerfire:
Scope rings - 3 nM
Mounts rail - 3.5 nM
| Magnification | 10x |
| Objective Lens Diameter (mm) | 40 |
| Eye Relief (inches/mm) | 0.7/17 |
| Field of View (ft@100yds/ m@100m) | 34/11.4 |
| Minimum Focusing (M) | 6 |
| Click Value (MIL/MOA/cm@100m) | 0.1/0.338/1 |
| Clicks per Revolution | 50 |
| Travel Per Rotation (MIL/MOA) | 5/15 |
| Max Elevation Adjustment (MIL/MOA) | 28/83 |
| Max Windage Adjustment (MIL/MOA) | 28/83 |
| Sight dimensions (mm) | 80x60x135 |
| Sight dimensions (in) | 3,1x2,5x6,1 |
| Weight (with MOA adj. mounts) oz/gr | 17,1/485 |
| Waterproof and Nitrogen filled | Yes |
- Up to 4X wider field of view when compared to traditional sights
- Only 135mm long
- Focusing down to 6 meters
- ED (Low dispersion) Glass and CNC machined precision mechanics

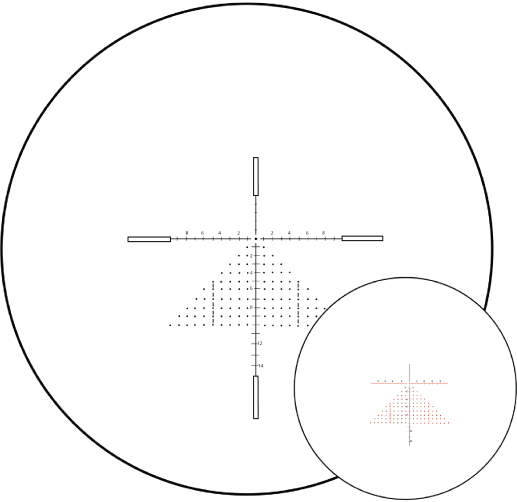

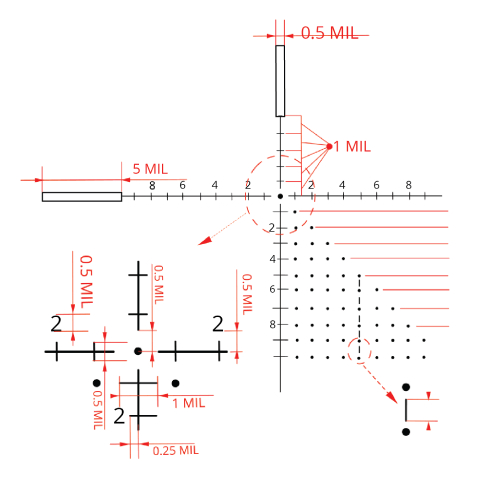

- 0.1 mill turrets to match mildot reticules
- Waterproof and nitrogen filled
1. What makes Immersive Optics prismatic scopes different from traditional rifle scopes?
Traditional rifle scopes use a series of lenses to transmit light, which results in a long, heavy tube. Immersive Optics uses a prism-based optical system, which allows the scope to be significantly shorter and lighter. The primary advantage is an "immersive" viewing experience—the image appears to surround your eye rather than looking through a distant tube—and a field of view that can be up to 4x wider than a conventional optic at the same magnification.
2. Why do Immersive Optics scopes have such short eye relief?
The short eye relief (often between 15mm and 45mm) is a deliberate design choice to maximize the Field of View (FOV). By placing your eye closer to the ocular lens, you get a much larger picture of the landscape, which is critical for rapid target acquisition. Because of this "zero eye relief" design, these scopes are specifically optimized for low-recoil rifles like airguns (PCP and springers) and rimfire rifles (like .22 LR).
3. Are Immersive Optics scopes suitable for high-recoil centerfire rifles?
Generally, no. Because the eye relief is very short, the recoil of a high-power centerfire rifle could cause the scope to strike the shooter's eye (often called "scope eye"). However, the Immersive Optics 5x30 Pro model offers an extended 85mm eye relief, making it a safer and highly effective option for medium-recoil calibers like .223 or .243 Win.
4. Can I use Immersive Optics for close-range pest control and HFT?
Yes, they are ideal for these applications. One of the standout features of Immersive Optics is their short minimum focus distance (as low as 6 meters). This makes them perfect for Hunter Field Target (HFT) and close-range pest control where traditional scopes often struggle to maintain a sharp focus. The wide FOV also helps you keep moving targets in sight more easily in dense environments.
5. Do Immersive Optics scopes come with mounts included?
Yes, most Immersive Optics models come as a complete package including MOA adjustable mounts. Since prismatic scopes sit lower than traditional optics, these dedicated mounts are designed to provide the correct height and alignment for your rail. The inclusion of multiple base options (often including both Picatinny and sometimes Dovetail adapters) ensures you can fit the scope to your rifle straight out of the box.
