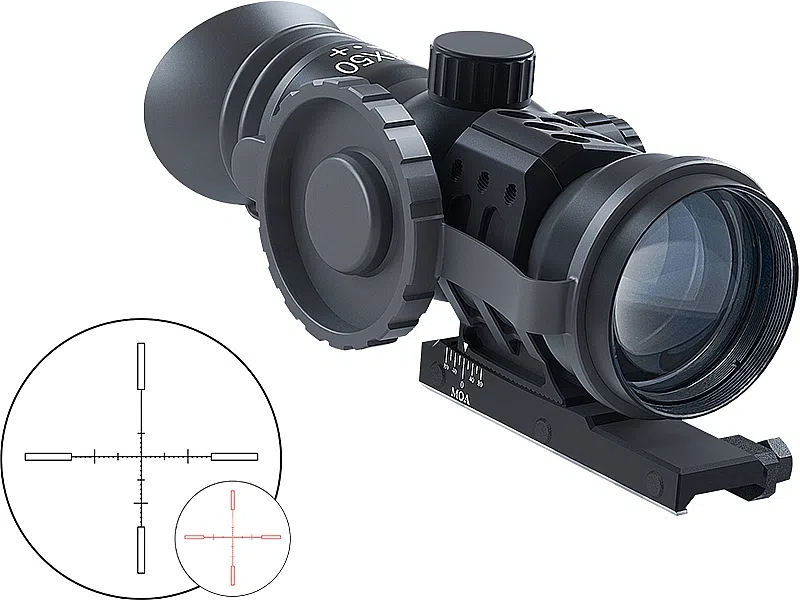

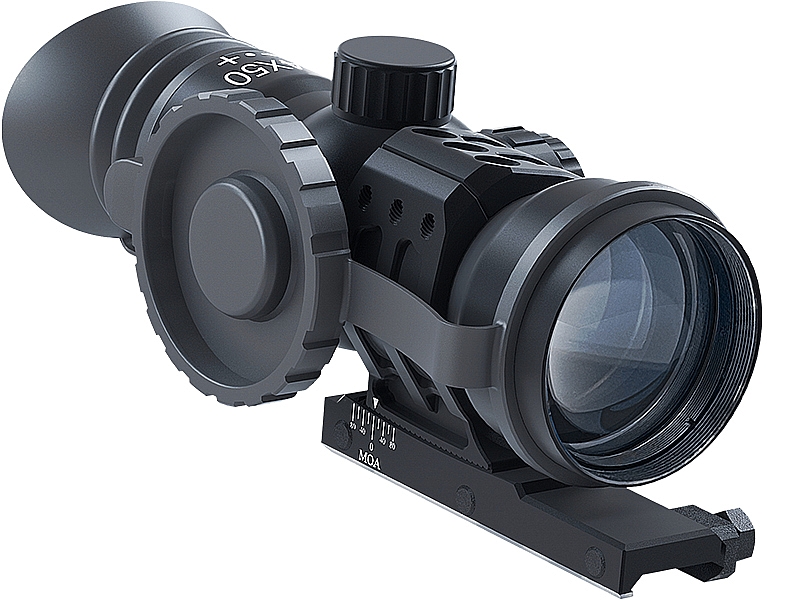

Immersive Optics 14x50 Mildot w/MOA ADJ MOUNTS Prism Rifle Scope
- Prismatic design
- Compact size
- Lightweight
- Short eye-relief
- High magnification
- Wider field of view (when compared to traditional sights)
- ED glass for high clarity
- Highly focusable
- No parallax
- Illuminated reticles
- Innovative eye-relief & lens cap retention system
- Better gun/scope weight distribution
- Reduced shooter fatigue
- For rifles with moderate to no recoil
- CNC machined precision mechanics
- 0.1 mill turrets to match mildot reticles
- Adjustable elevation & windage (MIL 28 | MOA 83)
- Precise rotations (MIL 5 | MOA 15) & revolutions (Clicks 50)
- Nitrogen-Filled optical channel (Anti-Fogging)
- Waterproof
- Shock-Resistant (600G)
- Powered by 1x CR2032 battery
- 3 Year Warranty
- Dimensions -Â 154x64x80 mm
- Magnification -Â 14.0x
- Lens: 50mm
- Mount Type: MOA Mount. QWeaver/picatinny base
- Range 6m - ∞
- Waterproof
- Shock-Proof
- 45mm Eye Relief
- Anti-Fogging - Nitrogen-Filled
- 34mm Tube Size
The Immersive Optics 14x50 day scope offers high accuracy shooting within a highly compact format.
Using a prism-based optical system, the 14x50's size can be immediately reduced, eliminating a traditionally large objective lens and exceedingly long housing & eye-relief. This is done without sacrificing the scope's light-gathering performance, the field of view or magnification.
The implementation of this new prismatic design not only allows the 14x50 to maintain a high optical output and a minimal size, but also a reduced bulk and weight, which results in a better balance for whichever shooting platform the scope is mounted on. This optimisation means that a shooter can aim for longer without fatiguing.
Offers up to 4x wider field of view when compared to traditional sights and can focus down to a distance of 6m for close-range shooting.
The 14x50 has a glass-etched illuminated mildot, high precision windage & elevation controls (no parallax)

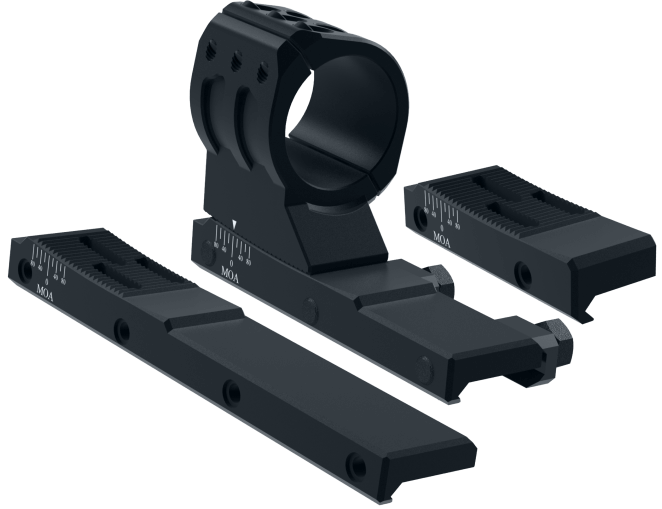

Smart MOA adjustable, CNC machined mounts will help to zero the scope and stay in the middle of its adjustment range. Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
This scope is fitted with ED (Extra-Low Dispersion) glass which helps to maintain natural colour reproduction within the observable field of view, minimising chromatic aberration (colour fringing), resulting in high clarity, picture-perfect results even at long distances.
All Immersive Optics day scopes feature an innovative eye-relief and lens cap retention system which allows these aspects to be quickly and easily held securely out of the way.
All Immersive Optics scopes have CNC machined housings for zero errors, with optical channels being nitrogen-filled for anti-fogging and sealed against water for maximum quality of use.
This optic can be used with rifles with moderate to no recoil, a great choice for airgun shooters.
Perfect for:
-
Precision target shooters who need fixed 14× magnification
-
Airgun and rimfire rifles where compact design and accuracy are key
-
Long-range users wanting clarity, light control, and adjustable mounts included
| Model | Product Code |
Magnification | F.O.V | Lens | Reticle | Weight | Dimensions |
|---|---|---|---|---|---|---|---|
| 5x24 MILDOT w/MOA ADJ MOUNTS |
IMM-524MD-M | 5.0x | 6.5° | 24mm | Mildot | 304g | 130x53x72mm |
| 5x24 MILDOT RAPID w/MOA ADJ MOUNTS |
IMM-524MDR-M | 5.0x | 6.5° | 24mm | Mildot Rapid | 304g | 130x53x72mm |
| 5x30 MILDOT w/MOA ADJ MOUNTS |
IMM-530MD-M |
5.0x | 6.9° | 30mm | Mildot | 336g | 130x53x72mm |
| 5x30 MILDOT RAPID w/MOA ADJ MOUNTS |
IMM-530MDR-M |
5.0x | 6.9° | 30mm | Mildot Rapid | 336g | 130x53x72mm |
| 10x24 MILDOT w/MOA ADJ MOUNTS |
IMM-1024MD-M |
10.0x | 6.0° | 24mm | Mildot | 248g | 122x51x72mm |
| 10x24 MILDOT EXTENDED w/MOA ADJ MOUNTS |
IMM-1024MDE-M |
10.0x | 6.0° | 24mm | Mildot Extended | 248g | 122x51x72mm |
| 10x40 MILDOT w/MOA ADJ MOUNTS |
IMM-1040MD-M |
10.0x | 6.5° | 40mm | Mildot | TBC | 135x60x80mm |
| 10x40 MILDOT EXTENDED w/MOA ADJ MOUNTS |
IMM-1040MDE-M |
10.0x | 6.5° | 40mm | Mildot Extended | TBC | 135x60x80mm |
| 14x50 MILDOT w/MOA ADJ MOUNTS |
IMM-1450MD-M |
14.0x | 5.5° | 50mm | Mildot | TBC | 154x64x80mm |
| 14x50 MILDOT EXTENDED w/MOA ADJ MOUNTS |
IMM-1450MDE-M |
14.0x | 5.5° | 50mm | Mildot Extended | TBC | 154x64x80mm |
- Prismatic design
- Compact size
- Lightweight
- Short eye-relief
- High magnification
- Wider field of view (when compared to traditional sights)
- ED glass for high clarity
- Highly focusable
- No parallax
- Illuminated reticles
- Innovative eye-relief & lens cap retention system
- Better gun/scope weight distribution
- Reduced shooter fatigue
- For rifles with moderate to no recoil
- CNC machined precision mechanics
- 0.1 mill turrets to match mildot reticles
- Adjustable elevation & windage (MIL 28 | MOA 83)
- Precise rotations (MIL 5 | MOA 15) & revolutions (Clicks 50)
- Nitrogen-Filled optical channel (Anti-Fogging)
- Waterproof
- Shock-Resistant (600G)
- Powered by 1x CR2032 battery
- 3 Year Warranty
- Dimensions - 154x64x80 mm
- Magnification - 14.0x
- Lens: 50mm
- Mount Type: MOA Mount. QWeaver/picatinny base
- Range 6m - ∞
- Waterproof
- Shock-Proof
- 45mm Eye Relief
- Anti-Fogging - Nitrogen-Filled
- 34mm Tube Size
MILDOT RETICLE
- Immersive Optics 14x50 Mildot w/MOA ADJ MOUNTS Prism Rifle Scope
- Supplied with Smart MOA adjustable, CNC machined mounts will help to zero the scope and stay in the middle of its adjustment range. Mount ring plus selection of rails included to help place the scope in a comfortable position for the users head on any type of gun, from bullpup to a full-length sporter
Q: Why choose a prism scope over a traditional scope?
A: Prism scopes are shorter and often give a wider field of view, while etched reticles remain visible without power.
Q: What’s the benefit of the supplied adjustable mounts?
A: They let you dial in MOA adjustment mechanically, preserving turret travel for fine zeroing.
Q: Can I still use the scope if the battery dies?
A: Yes—the etched Mil-Dot reticle remains clearly visible. Illumination is only needed for low light or dark target contrast.
Q: Is this scope suitable for springer air rifles?
A: Yes—Immersive Optics scopes are designed to handle the unique recoil of spring-piston rifles.
About fixed high-magnification prisms:
Unlike low-power prism scopes (1×–5×) that compete with red dots, high-power prisms such as 10× or 14× are designed for specialist precision shooting. They combine the compact body of a prism with the clarity and etched reticle reliability of a riflescope, offering an alternative to bulky high-magnification optics.
Q: Why choose a fixed 14× prism instead of a variable scope?
A: A fixed prism is shorter, lighter, and simpler, with fewer moving parts—yet it still delivers high magnification and clarity.
Q: Who benefits most from high-magnification prisms?
A: Benchrest shooters, precision airgunners, and target shooters who value compact size without sacrificing zoom.
Q: Is field of view restricted at 14×?
A: Yes—field of view is narrower, but this is a trade-off for the precision and target detail gained.
Q: Do they handle recoil well?
A: Yes—prisms are very robust, with etched reticles that withstand heavy recoil and springer use.
