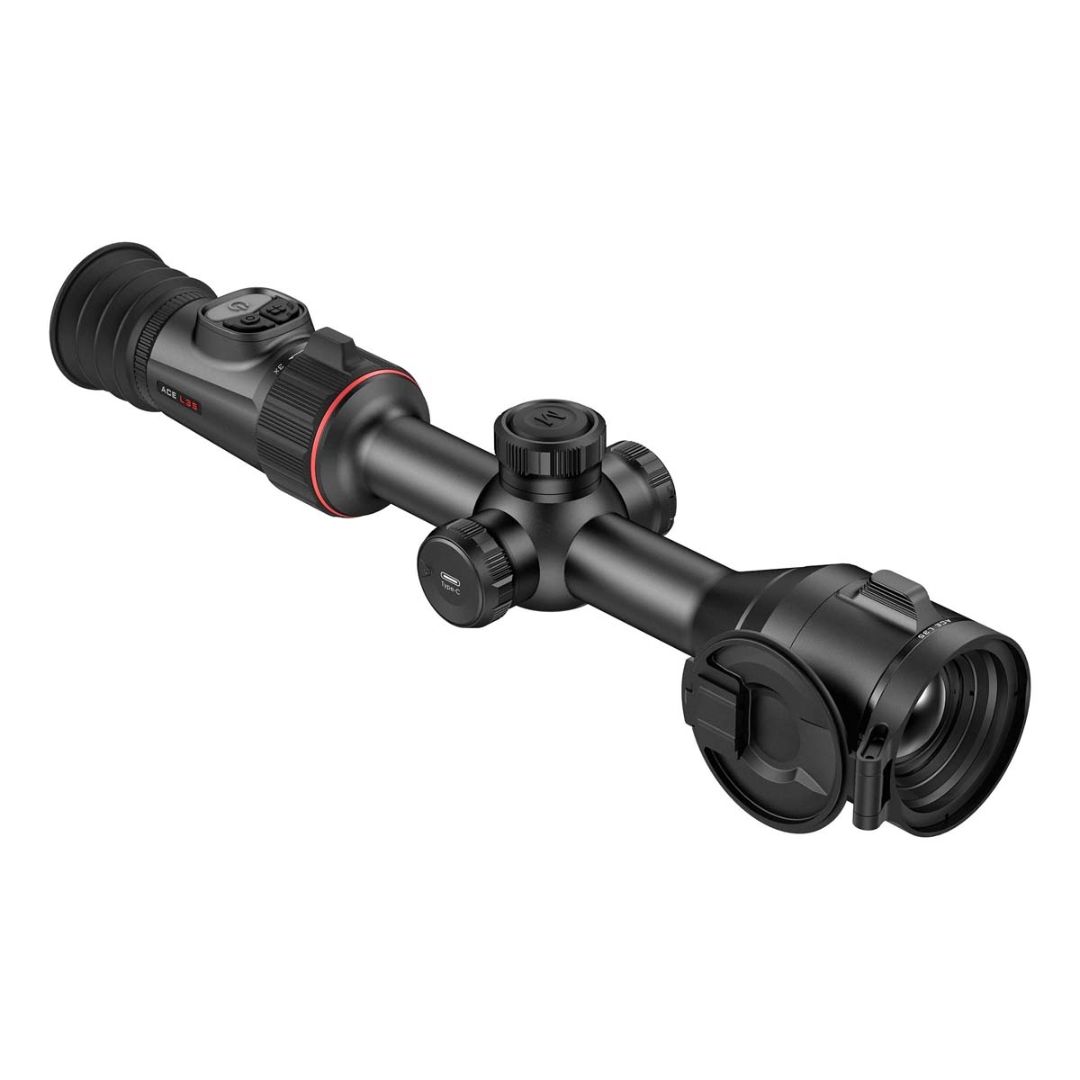

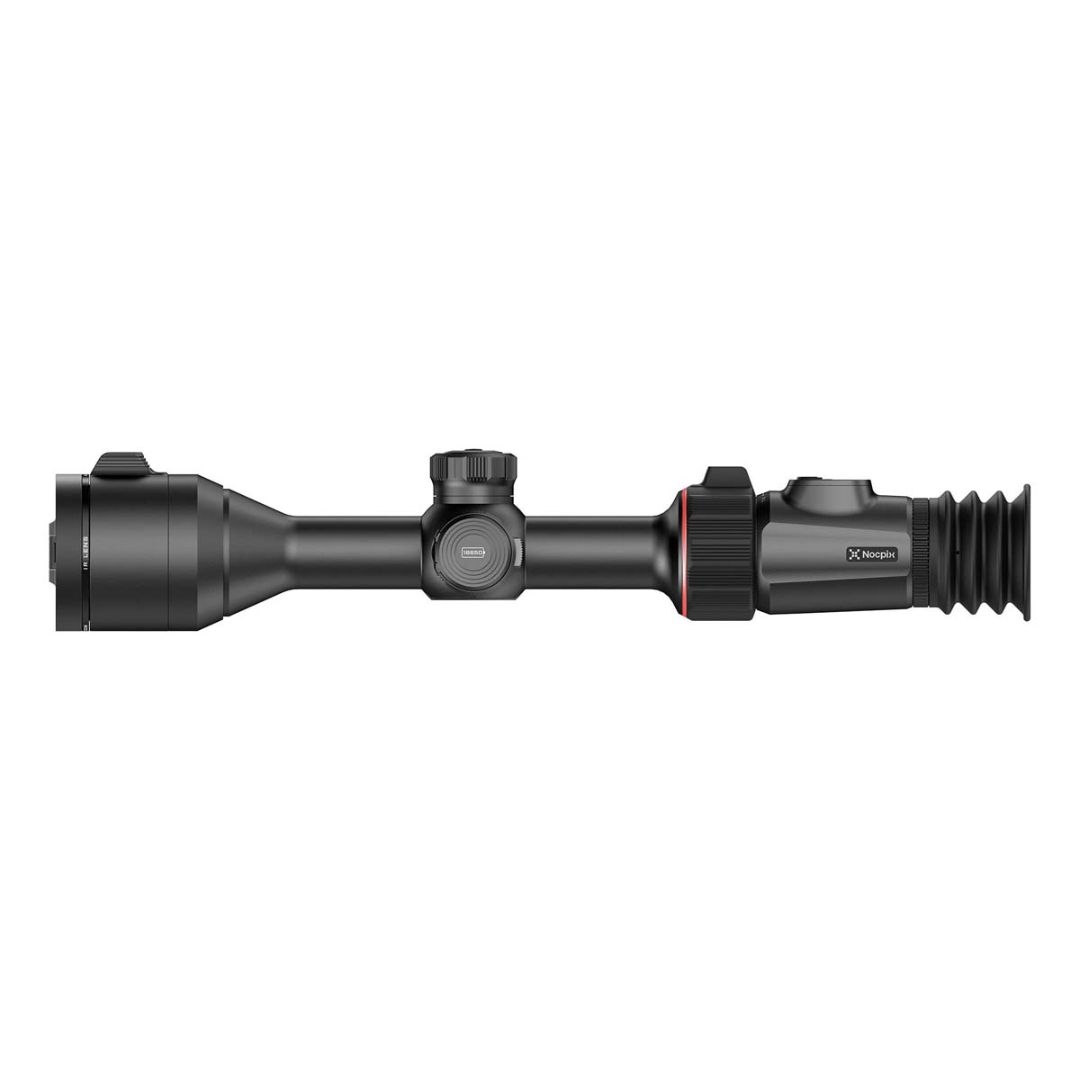

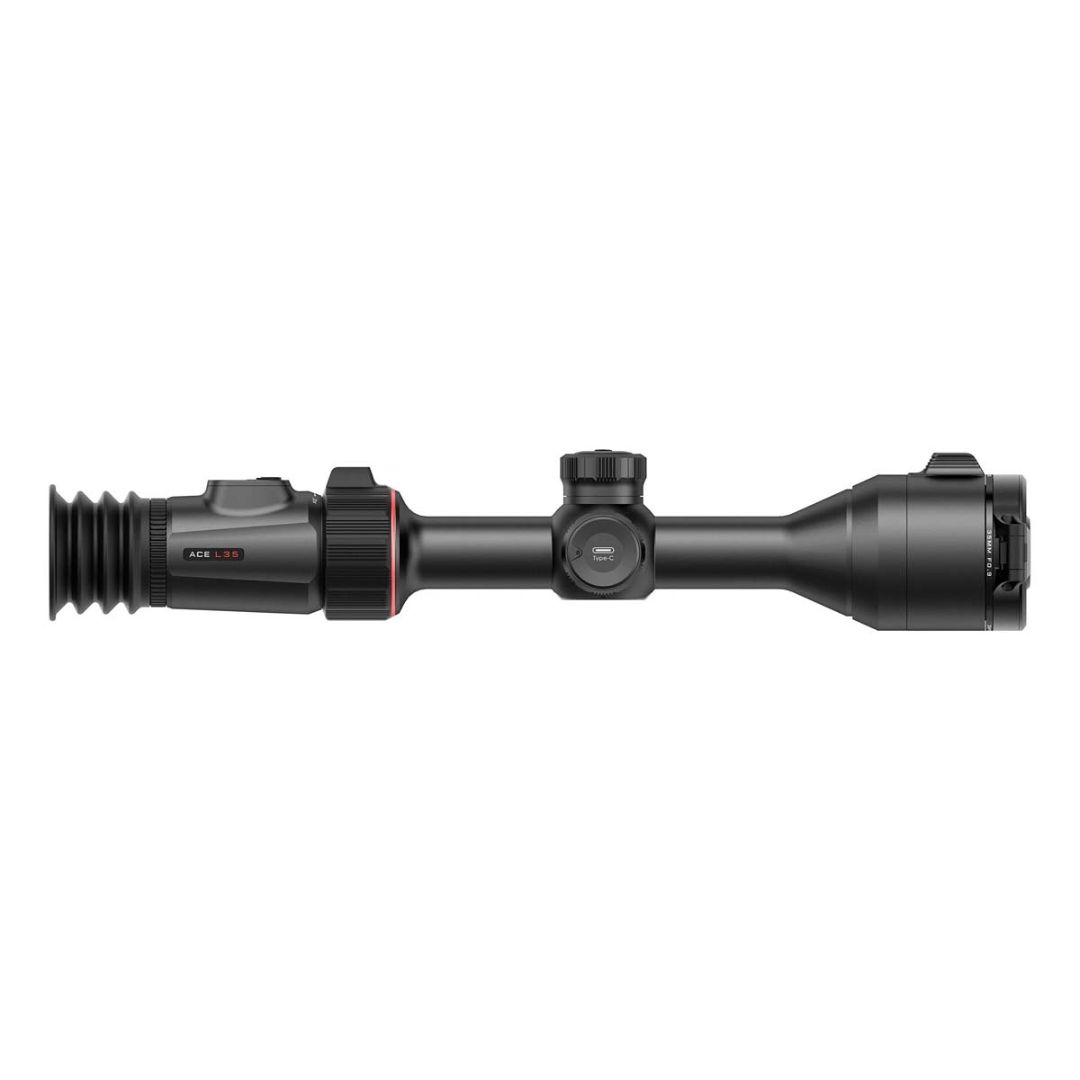

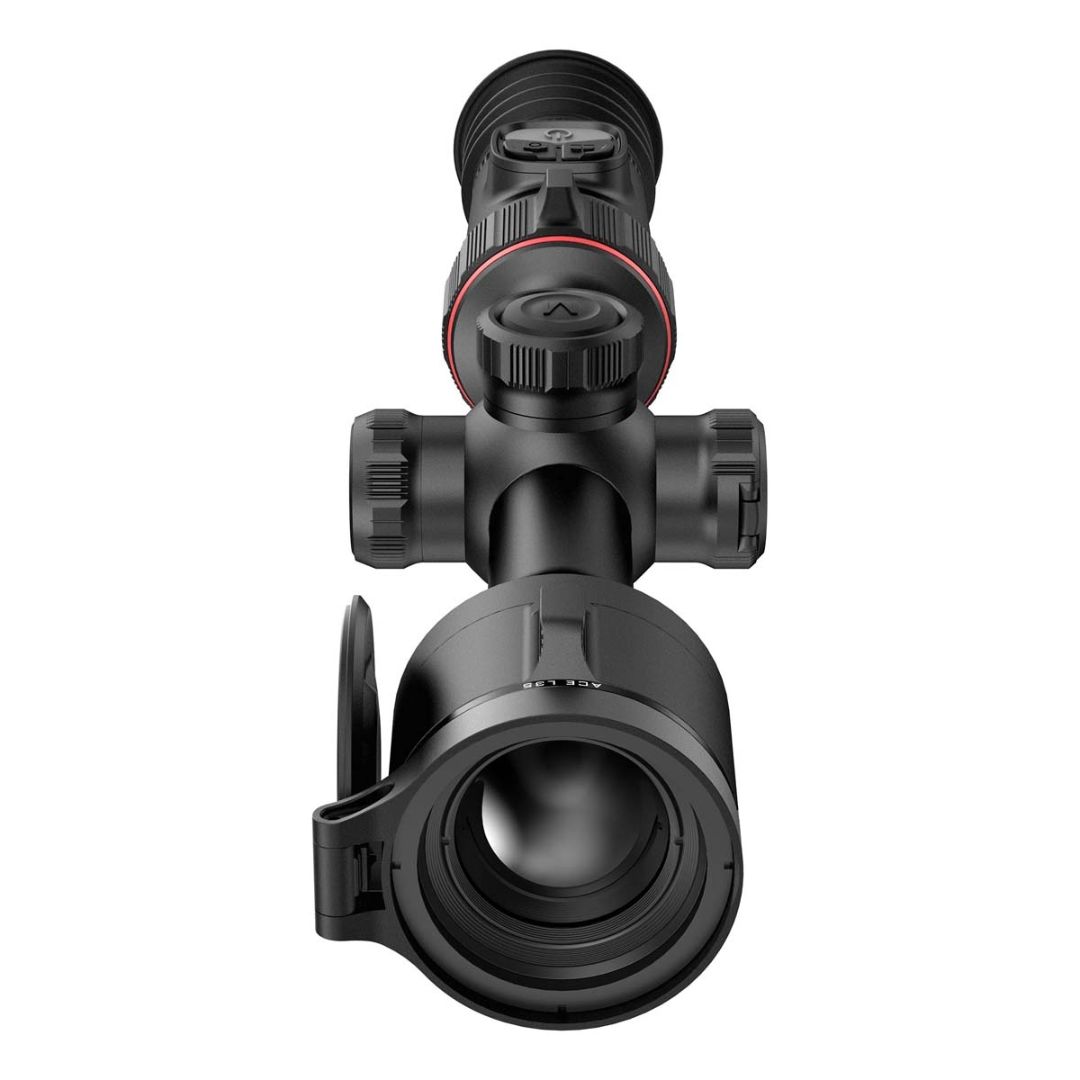

NocPix ACE L35 Thermal Rifle Scope - 35mm 12um 384x288 <18mk NETD
Investing in thermal shouldn't mean compromising on comfort or ease of use. The Nocpix Ace L35 offers premium European-designed visual clarity at a price point that makes sense for the serious British fieldsports enthusiast. Engineered to withstand the worst of the UK weather while providing an immersive, fatigue free view, it’s an absolute workhorse that helps ensure you’ll spot what standard optics miss.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Designed to operate without the need for external light sources, the ACE series excels in any lighting or weather condition—whether it's day or night, in rain, snow, fog, or haze. Its infrared thermal imaging capabilities allow users to detect targets even behind obstacles like branches and bushes, while remaining unaffected by strong light. With a variety of battery options for extended use, the ACE series is perfect for low-visibility hunting, observation, and positioning in challenging environments.

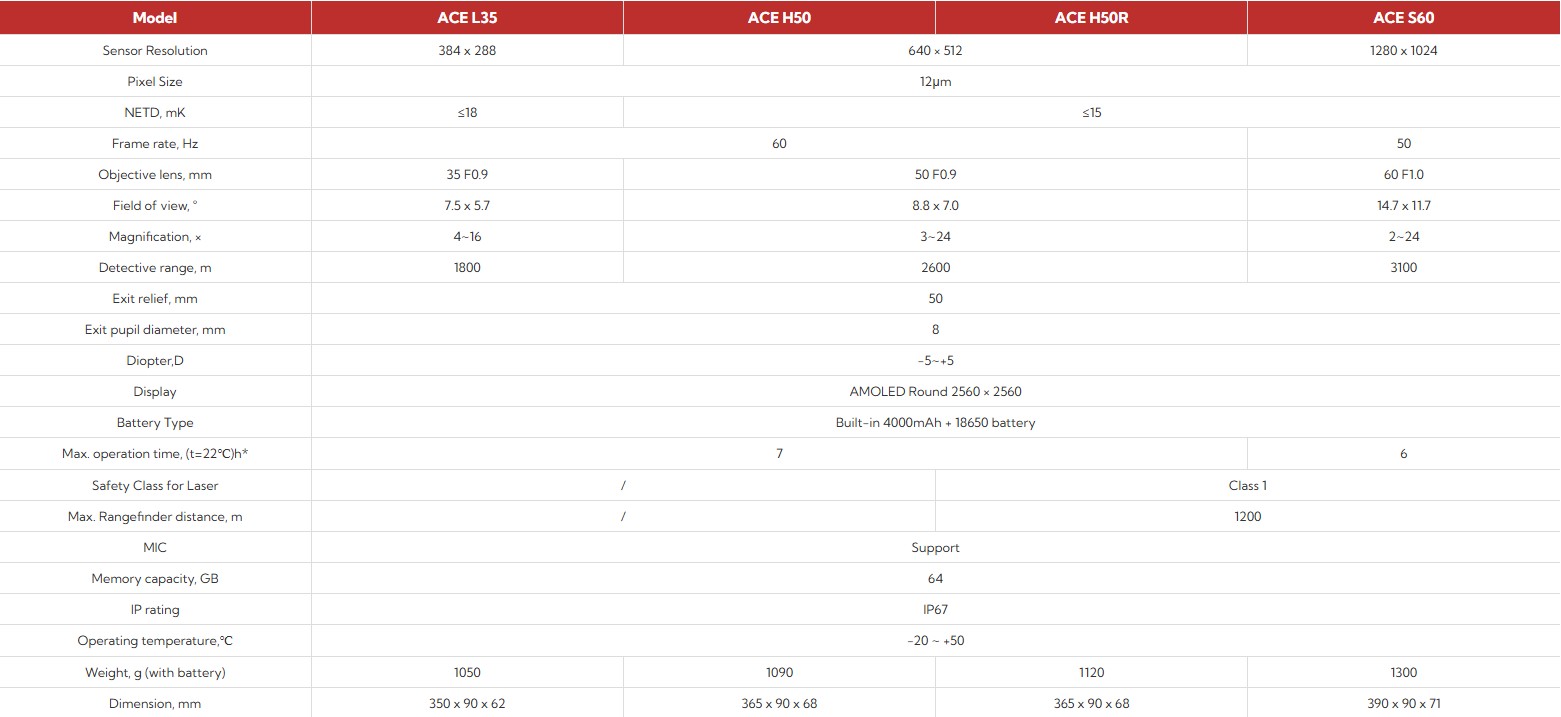

- Type: Vox
- Resolution: 384 x 288
- Pixel Size: 12
- NETD, mK: ≤18
- Frame Rate: 60
- Objective Lens: 35mm F0.9
- Field of View: 7.5 x 5.7
- Field of View (Linear): 13.2 x 9.9
- Magnification: 4~16
- Detection Range: 1800
- Eye Relief: 50
- Exit pupil Diameter: 8
- Diopter: -5 ~ +5
- Display Type: AMOLED
- Display Resolution: 2560 x 2560
- Battery: Built-in battery/4000mAh + Replaceable 18650 battery
- Max. operating Time: 7
- External Power Supply: 5V (Type C)
- Wi-Fi/APP: YES
- MIC: YES
- Photo / Video Recorder: YES
- Recoil Activated Video: YES
- Memory Capacity: 64GB
- IP rating: IP67
- Max. recoil power on rifled weapon: 6000
- Max. Operating Temperature: -20 ~ +50
- Compatible mount: 30mm
- Weight (oz): 37.04
- Weight (g): 1050
- Dimensions (in): 13.78 x 3.54 x 2.44
- Dimensions (mm): 350 x 90 x 62
- 18mK NETD
- Ocular zoom
- Recoil Activated Video function
- Gallery function
- Dual power supply system
- Built-in memory, supporting photographing, video recording
- Built-in Wi-Fi module, supporting APP connection
- Built-in compass and motion sensor
- PIP (picture-in-picture) function
- Pixel defect correction
- Convenient operation interface
• ACE Series Thermal Imaging Scope
• Heated target for zeroing
• Lens cloth
• 2 x 18650 battery
• Type-C cable
• Quick start guide
• Battery charger
• Portable bag
How does the NocPix ACE L35 perform in heavy rain, thick fog, or dense brush?
Because the ACE L35 relies entirely on infrared thermal imaging rather than ambient light, it performs exceptionally well in poor weather. The built-in Reality+ image processing algorithm actively filters out environmental temperature noise. This allows you to clearly detect targets and cut through obstructions like thick fog, heavy rain, snow, and dense foliage or branches where traditional night vision or standard optics would fail.
What is the benefit of the "Ocular Zoom" feature on this scope?
Unlike traditional electronic digital zoom (e-zoom) which stretches pixels and causes the image to look blurry or pixelated when you zoom in, the ACE series uses a Vision+ system with unique ocular zoom. This provides direct optical magnification adjustment at the eye end, allowing you to get a much closer, highly detailed view of your target while maintaining excellent resolution and a wide, distortion free field of view.
How does the dual power supply system work?
To prevent you from running out of power mid-hunt, the ACE L35 utilizes a continuous dual battery system. It has an internal 4000mAh rechargeable battery as its primary foundation, combined with a compartment for a standard, replaceable 18650 battery. The scope will seamlessly draw power from both sources to maximize field time, and you can swap out the external 18650 battery without having to turn the device off. It can also be powered or charged on the go via a USB Type-C port.
How does the Recoil Activated Video (RAV) function work?
You don't have to worry about forgetting to hit the record button right before taking a shot. When the Recoil Activated Video feature is turned on, the scope constantly buffers footage in its internal memory. The moment the scope senses the physical recoil of your rifle, it automatically saves a video clip containing the seconds leading up to the shot, the moment of impact, and the immediate aftermath, storing it directly onto the internal 64GB storage.
Can I review my photos and videos directly on the scope?
Yes. The ACE L35 includes a built in Gallery feature. Unlike older thermal systems that require you to download files to a computer or phone just to see what you recorded, this scope allows you to playback videos and view captured photos directly through the AMOLED display while still out in the field.
How do I connect the scope to my smartphone or tablet?
The scope features an integrated Wi-Fi module that allows it to sync directly with the official NocPix mobile application. Once connected, you can stream the live thermal view straight to your phone's screen, adjust core settings remotely, and wirelessly download your media files to share them or back them up.
How do I mount the NocPix ACE L35 to my rifle?
The ACE L35 was intentionally designed with a sleek, streamlined body shaped like a traditional day optic. Because it utilizes a standard 30mm main tube chassis, it is highly versatile and can be easily mounted to bolt action or semi automatic rifles using standard 30mm scope rings or Quick-Detach (QD) mounts.
- NocPix 3 year warranty for main body, 2 year warranty for battery
