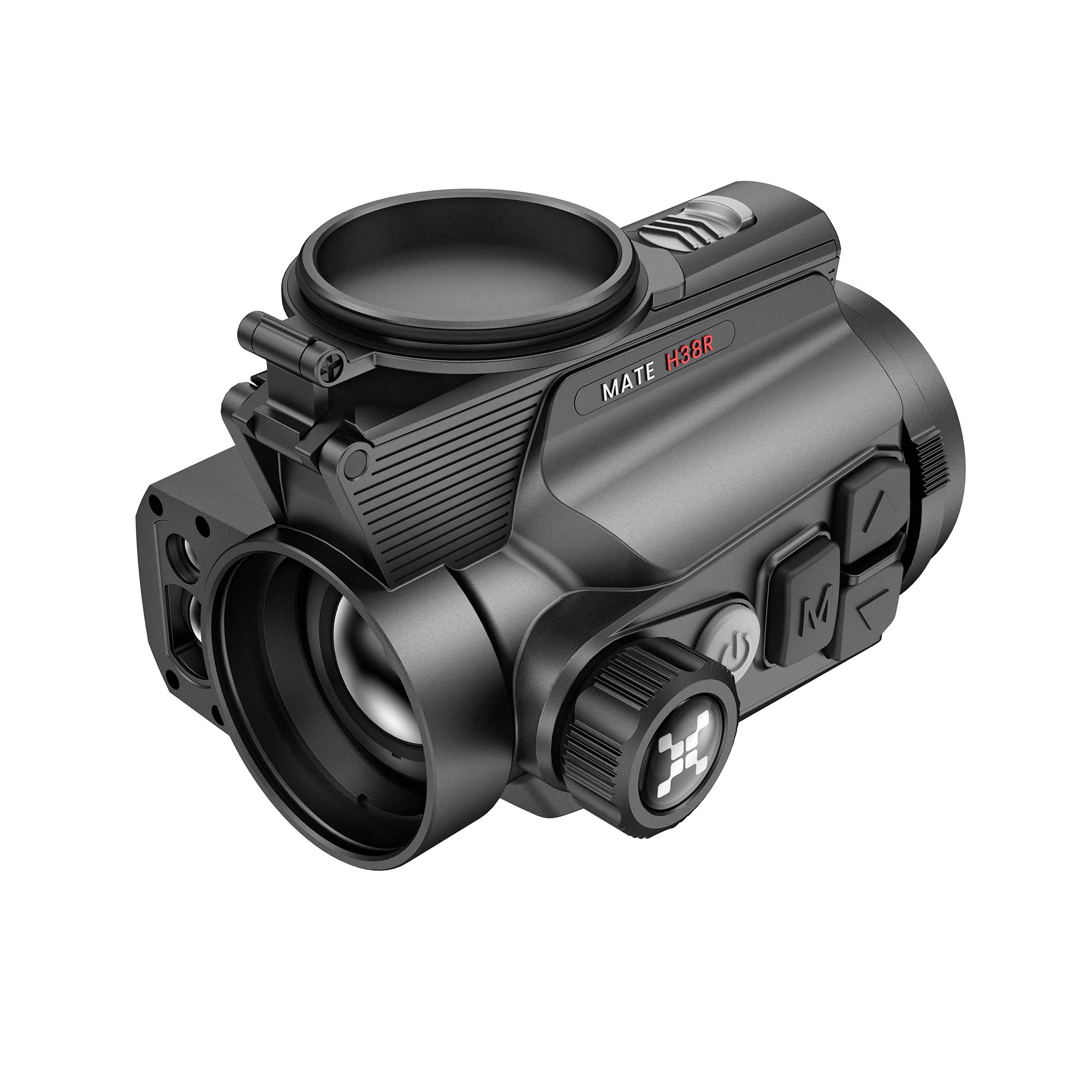

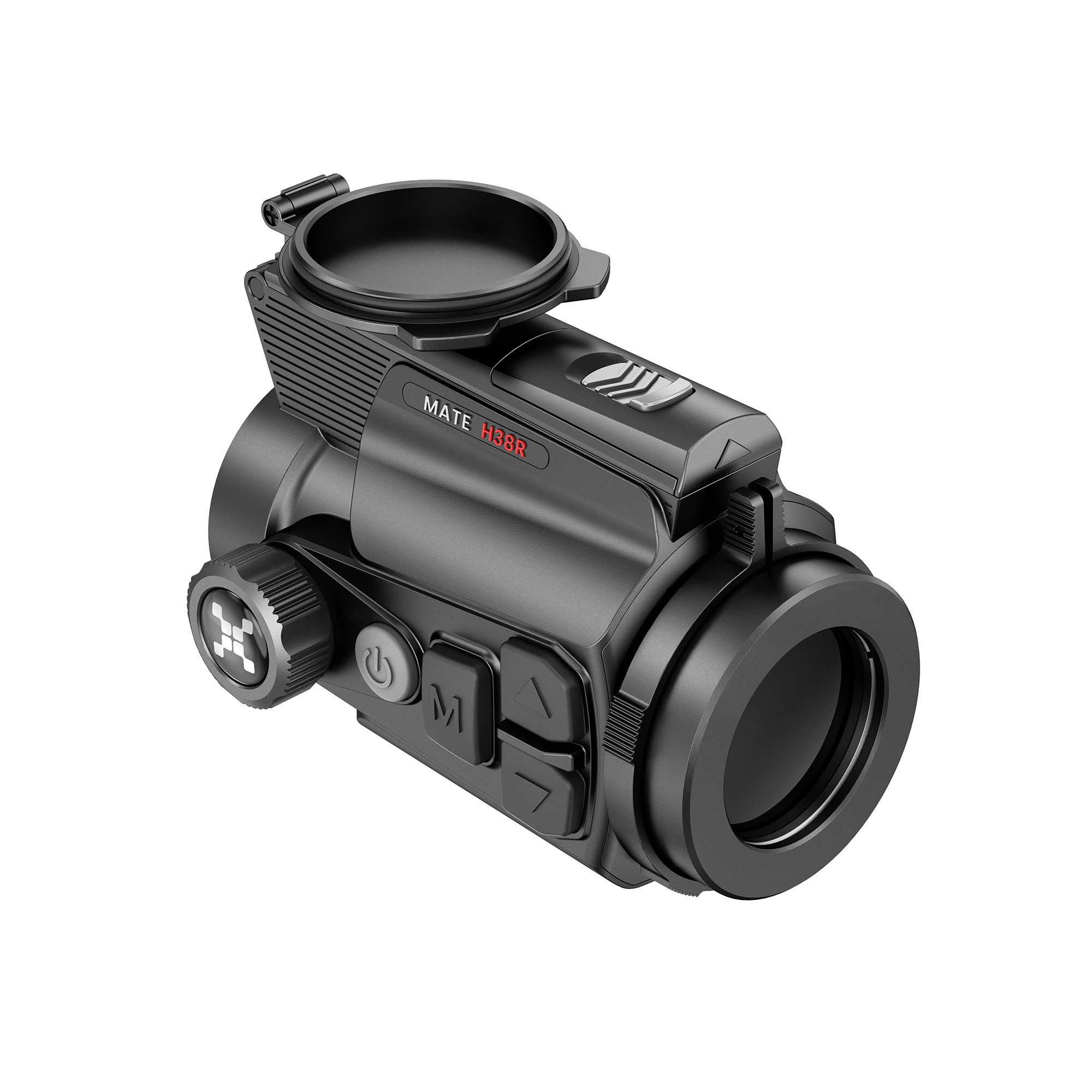

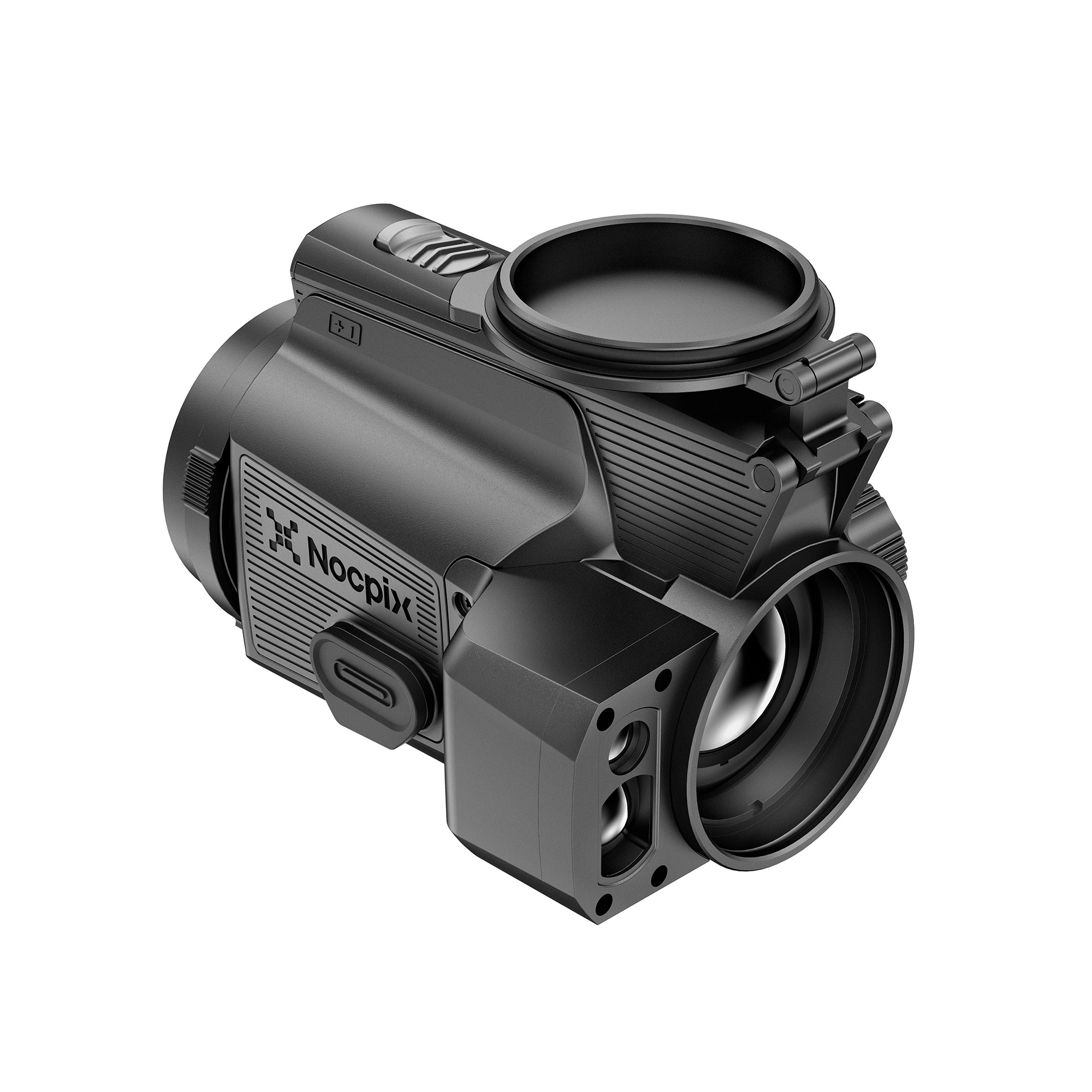

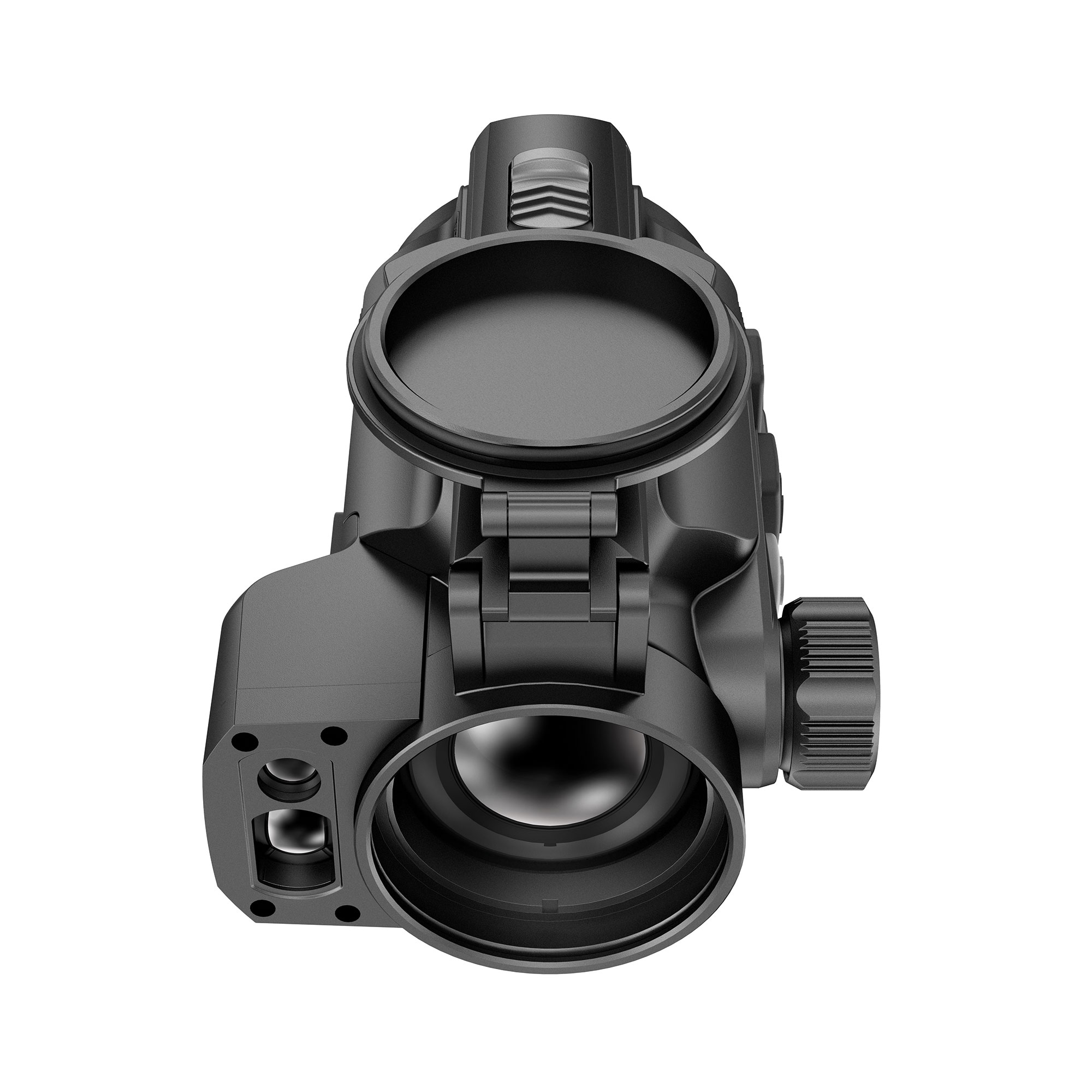

NocPix MATE H38R Thermal Clip On Attachment with LRF - 640x512, <15mK, 12um
The NocPix H38R Thermal Clip-On with LRF combines cutting-edge performance with rugged reliability for serious hunters. Featuring a 640×512 sensor, ≤15mK sensitivity, and a 38mm f/1.0 lens, it delivers exceptional thermal clarity and a detection range of up to 1950m. The Magic Zoom with R+ AI ensures seamless magnification, while the built-in 1200m laser rangefinder provides instant distance readings. With 1 MOA precision, 60Hz shutterless imaging, and a lightweight magnesium alloy chassis, the H38R guarantees accuracy, durability, and confidence in any conditions.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The NocPix H38R Thermal Clip-On Attachment with LRF is engineered for serious hunters who demand precision and reliability in all conditions. Built on advanced infrared thermal imaging principles, it requires no external light and performs flawlessly both day and night. Whether in rain, snow, fog, or haze, the H38R ensures clear visibility without being affected by bright light or obstructive cover such as grass, branches, or shrubs.
At its core lies an in-house high-performance detector delivering 640×512 resolution, 12 μm pixel pitch, and an impressive NETD ≤ 15 mK. This combination reveals the finest heat signatures, enabling you to identify and track game with ease across challenging terrain. The 38mm f/1.0 large-aperture lens enhances thermal detail and extends detection capability to 1950 metres, while the 60 Hz shutterless imaging guarantees smooth visuals with no delay or blur, even when tracking fast-moving targets.
Designed for seamless integration, the H38R attaches directly to your day scope and maintains 1 MOA accuracy with repeatable precision. Factory calibration eliminates the need for additional adjustments, meaning it can be mounted and swapped between rifles effortlessly. The Magic Zoom function with R+ AI technology automatically syncs with your scope’s magnification, ensuring consistent clarity up to 16× zoom without distortion or point-of-impact shift.
The built-in 1200-metre Class 1 laser rangefinder provides fast, accurate distance readings, while integration with NocPix’s advanced ballistic calculator offers live reticle adjustments for confident, accurate shot placement. A 1920×1080 AMOLED display delivers crisp imagery, and the wide 11.6° × 8.7° field of view ensures you never miss movement at the edges of your vision.
Practicality is central to the H38R’s design. With replaceable 18650 batteries providing up to 4 hours of runtime (three are included), plus a 64GB memory capacity, you’re equipped for extended sessions in the field. Its IP67 waterproof rating, -20°C to +50°C operating range, and 457g magnesium alloy chassis make it both rugged and lightweight, tested to withstand recoil up to 7,000 J.
The NocPix H38R comes complete with remote control accessories, MAGIC ZOOM support, charger, heated zeroing targets, and a portable bag, ensuring you’re fully prepared from the outset.
- Type Clip-On
- Range MATE
- Sensor Resolution 640 × 512
- Pixel Size 12 μm
- NETD ≤15 mK
- Frame Rate 60 Hz
- Objective Lens 38 mm f/1.0
- Field of View 11.6° × 8.7°
- Detection Range 1950 m
- Display AMOLED 1920 × 1080 (Rectangle)
- Exit Pupil Diameter 35 mm
- Eye Relief 20 mm
- Laser Rangefinder Distance 1200 m (Class 1)
- Operating Time 4 h
- Battery Type Replaceable 18650 (3 supplied)
- Built-in Battery No
- Storage Capacity 64 GB
- Reality+ AI Yes
- Vision+ System No
- Microphone Supported
- IP Rating IP67
- Operating Temperature -20°C to +50°C
- Weight (with battery) 457 g
- Dimensions 115 × 85 × 76 mm
-
Day and night use without external light, unaffected by strong light or poor weather conditions such as rain, fog, and snow.
-
Clip-on design for seamless attachment to your existing day scope, requiring no re-zeroing after mounting.
-
Magic Zoom with R+ AI technology, automatically syncing with your scope’s magnification for clear, distortion-free imaging at any zoom level.
-
Built-in 1200m Class 1 laser rangefinder with live ballistic calculator integration for smarter aiming and quicker target acquisition.
-
1 MOA accuracy with repeatable precision, maintaining zero even after repeated mounting and dismounting.
-
Shutterless 60 Hz imaging for smooth, uninterrupted visuals without delays or motion blur.
-
Reality+ AI image enhancement, improving clarity and detail for confident identification of targets.
-
Wide field of view, giving hunters continuous situational awareness without constant repositioning.
-
Factory calibration allowing the unit to be used straight out of the box with minimal setup.
-
Lightweight two-piece magnesium alloy chassis, offering strength, durability, and recoil resistance up to 7,000 J while remaining easy to carry.
-
Replaceable batteries, ensuring uninterrupted use during extended hunting sessions.
-
Rugged field design with IP67 waterproofing and operation in extreme temperatures, guaranteeing reliable performance in demanding environments.
-
Comprehensive kit included, featuring remote control, heated zeroing targets, and a portable bag for ease of use and transport.
- NocPix H38R Thermal Clip On Attachment with LRF
- Remote Control Accessories
- MAGIC ZOOM
- 3 x 18650 battery
- Battery charger
- Type-C cable
- Heated target for zeroing x10
- Lens cloth
- Quick start guide
- Portable bag
Can the NocPix H38R be used both day and night?
Yes, it works in complete darkness as well as daylight. It is not affected by bright light, fog, rain, or snow, making it suitable for all conditions.
Do I need to re-zero my rifle after attaching it?
No. The clip-on design with factory calibration ensures 1 MOA accuracy and maintains zero, even after repeated mounting and dismounting.
What is the maximum detection range?
The H38R can detect heat signatures up to 1950 metres, depending on conditions and target size.
Does it have a built-in rangefinder?
Yes. The integrated 1200m Class 1 laser rangefinder provides quick and accurate distance readings, paired with a ballistic calculator for smarter aiming.
How long does the battery last?
Up to 4 hours per charge, with 3 replaceable 18650 batteries supplied for extended sessions.
Is it waterproof and durable?
Yes. With an IP67 rating, the H38R is fully protected against dust and immersion in water. Its magnesium alloy body is recoil-tested up to 7,000 J for long-term reliability.
Can I record or store footage?
Yes. The unit has 64 GB of built-in storage for saving images and videos.
What is Magic Zoom with R+ AI?
Magic Zoom automatically syncs with your scope’s magnification, and with R+ AI it enhances clarity in real time, even at high zoom levels.
How heavy is the device?
The H38R weighs just 457 grams (with battery), keeping your setup light and balanced.
What’s included in the box?
The package includes the thermal attachment, remote control accessories, 3x 18650 batteries, charger, Type-C cable, heated zeroing targets, lens cloth, quick start guide, and a carry bag.
- NocPix 3 year warranty for main body
