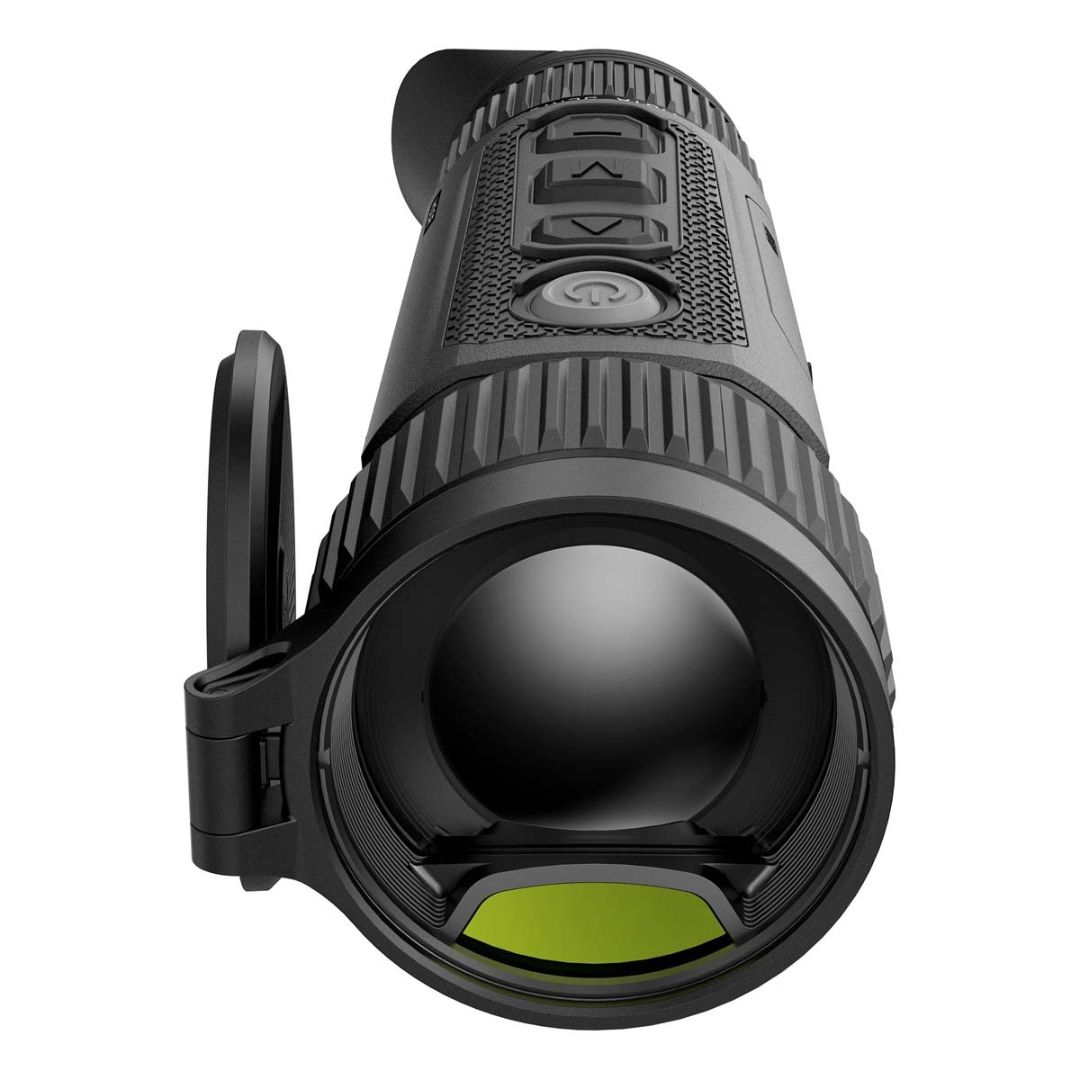

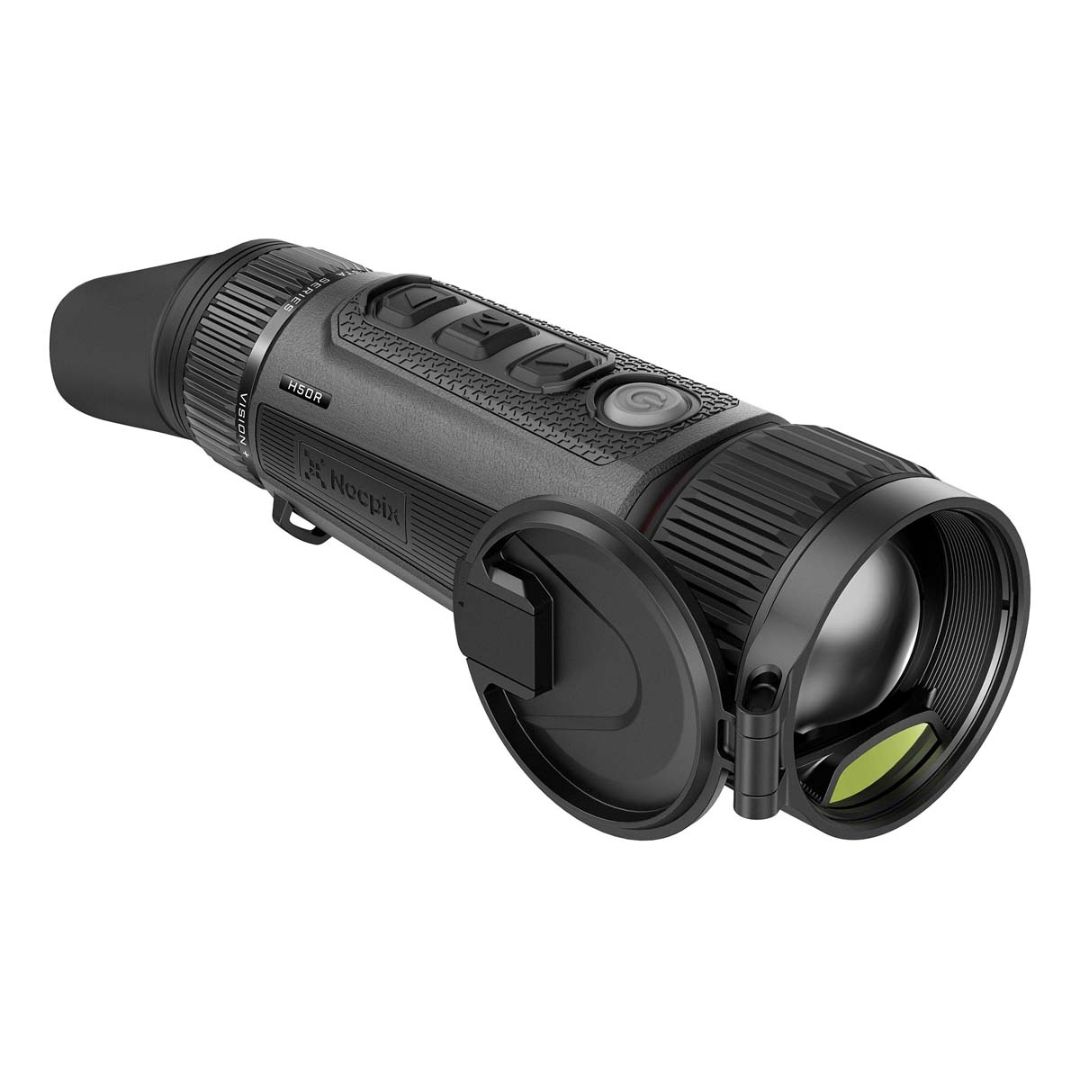

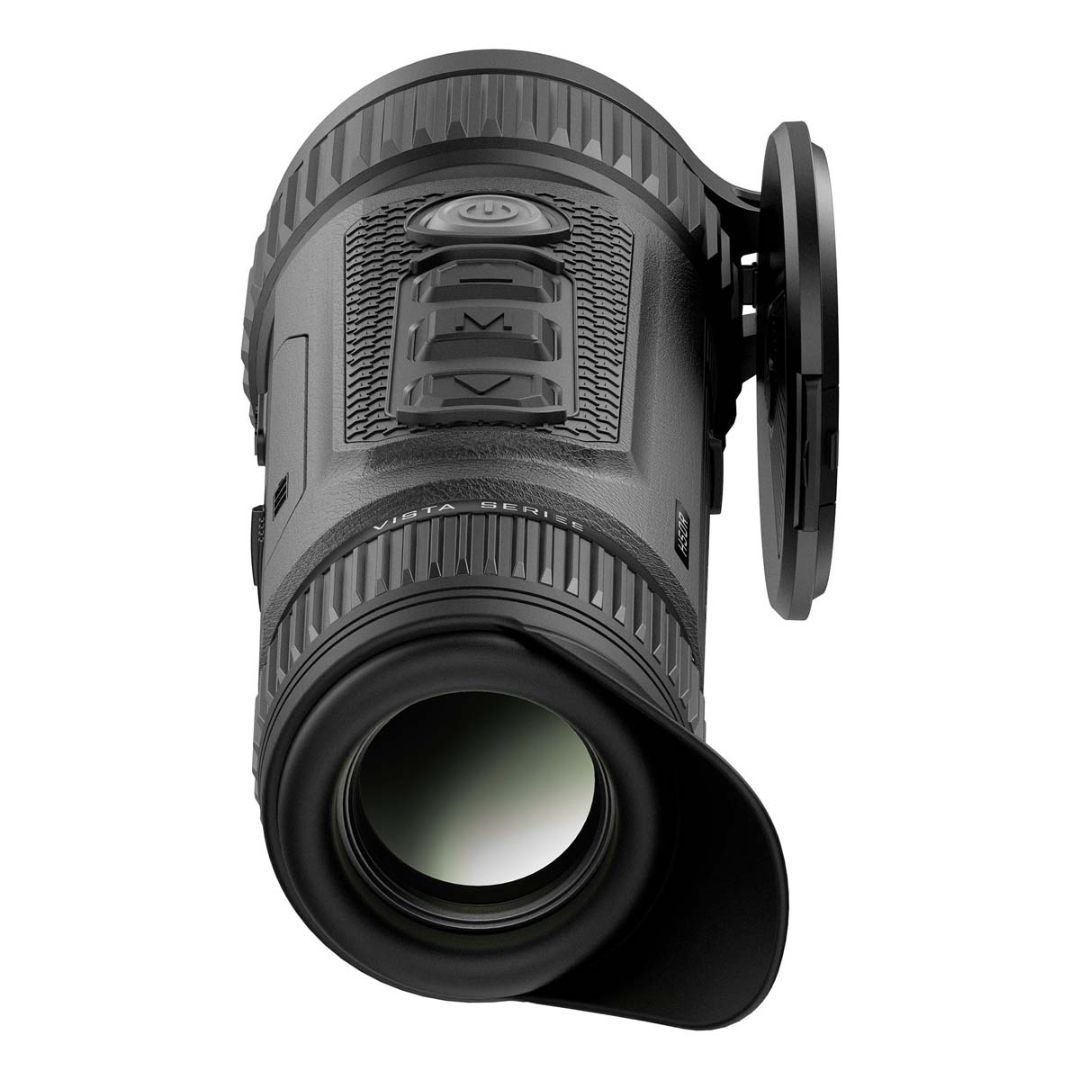

NocPix VISTA H50R Handheld Thermal Monocular with LRF - 50mm 12um 640x512 <15mK NETD
- 640×512 12μm detector
- NETD≤15mK
- 60Hz high frame rate
- F0.9 objective lens
- AMOLED 2560×2560 round display
- Rechargeable Battery pack IBP-7 for quick replacement
- Smooth digital zoom: 1×~8×
- Ultra clear mode
- Eye protection with low brightness, colour palette and warm hue
- Electronic image stabilisation
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The VISTA H50R is highly versatile and well-suited for a range of applications, including hunting, security, observation, terrain navigation, and search and rescue operations. Its advanced thermal technology ensures reliable performance, providing clear imagery and accurate measurements in challenging environments.
- Resolution: 640 x 512
- Pixel Size: 12
- NETD, mK: ≤15
- Frame Rate: 50
- Objective Lens: 50mm F0.9
- Field of View: 8.8 x 7.0
- Field of View (Linear): 15 x 12
- Magnification: 4~40
- Detection Range: 2600
- Eye Relief: 25
- Exit pupil Diameter: 8
- Diopter: -4 ~ +6
- Display Type: AMOLED
- Display Resolution: 2560 x 2560
- Battery: Replaceable li-ion battery pack IBP-7 / 4400mAh
- Max. operating Time: 5.5
- Range Finding Distance: 1200
- Laser: Class 1
- Wi-Fi/APP: YES
- MIC: YES
- Memory Capacity: 64GB
- IP rating: IP67
- Max. Operating Temperature: -20 ~ +50
- Weight (oz): 22.93
- Weight (g): 650
- Dimensions (in): 7.64 x 2.76 x 3.23
- Dimensions (mm): 194 x 70 x 82
- 640×512 12μm detector
- NETD≤15mK
- 60Hz high frame rate
- F0.9 objective lens
- AMOLED 2560×2560 round display
- Rechargeable Battery pack IBP-7 for quick replacement
- Smooth digital zoom: 1×~8×
- Ultra clear mode
- Eye protection with low brightness, colour palette and warm hue
- Electronic image stabilisation
• VISTA series Thermal Imaging Monocular
• Portable bag
• Battery pack IBP-7 × 2
• Data cable
• Neck Strap
• Lens cleaning cloth
• Quick start guide
Can I use the Vista H50R comfortably while walking or on the move?
Yes. Traditional thermal monoculars often require you to stand perfectly still to avoid a distorted or jarring image. The Vista H50R is designed with an expanded 8mm exit pupil diameter. This wider viewing window means you can maintain a full, clear, and stable image even while panning or slowly walking through the field.
Does the integrated Laser Rangefinder (LRF) make the device bulky or awkward to hold?
No. Nocpix utilizes a 2 in 1 integrated design where the LRF is seamlessly built into the optical axis of the main housing. This eliminates the large, blocky external laser boxes found on older thermal units. The result is a streamlined, well balanced, and compact monocular that retains full ergonomics without sacrificing its 1,200-meter ranging capabilities.
How does the 60Hz frame rate benefit me compared to older 50Hz devices?
The upgrade to a 60Hz frame rate provides significantly smoother motion capture. When you are tracking fast moving animals or rapidly panning across a landscape, a higher refresh rate eliminates ghosting, lagging, and choppy visuals, giving you a fluid and lifelike viewing experience.
Will the display screen or button clicks give away my position to wildlife at night?
No, the device is built with stealth in mind. It features a rotatable, form fitting eye mask designed to block any light leakage from the AMOLED display from reflecting onto your face. Additionally, the control buttons are designed to operate completely silently, preventing any audible clicking sounds from alerting animals in quiet environments.
How well does the battery hold up in freezing winter weather?
The Vista H50R is highly optimized for cold weather. It comes with two replaceable battery packs that offer a combined total of up to 11 hours of battery life. Crucially, the internal battery architecture is designed to retain 90% of its operational efficiency even in extreme sub zero conditions down to -20°C.
What features are included to prevent eye strain during long nights of scouting?
Staring at a bright thermal screen for hours can cause intense visual fatigue. To combat this, the Vista H50R offers 7 distinct color palettes. This includes specialized, eye friendly options like pure green and red monochrome modes, which are much gentler on the eyes and help preserve your natural night vision during extended use.
- NocPix 3 year warranty for main body
