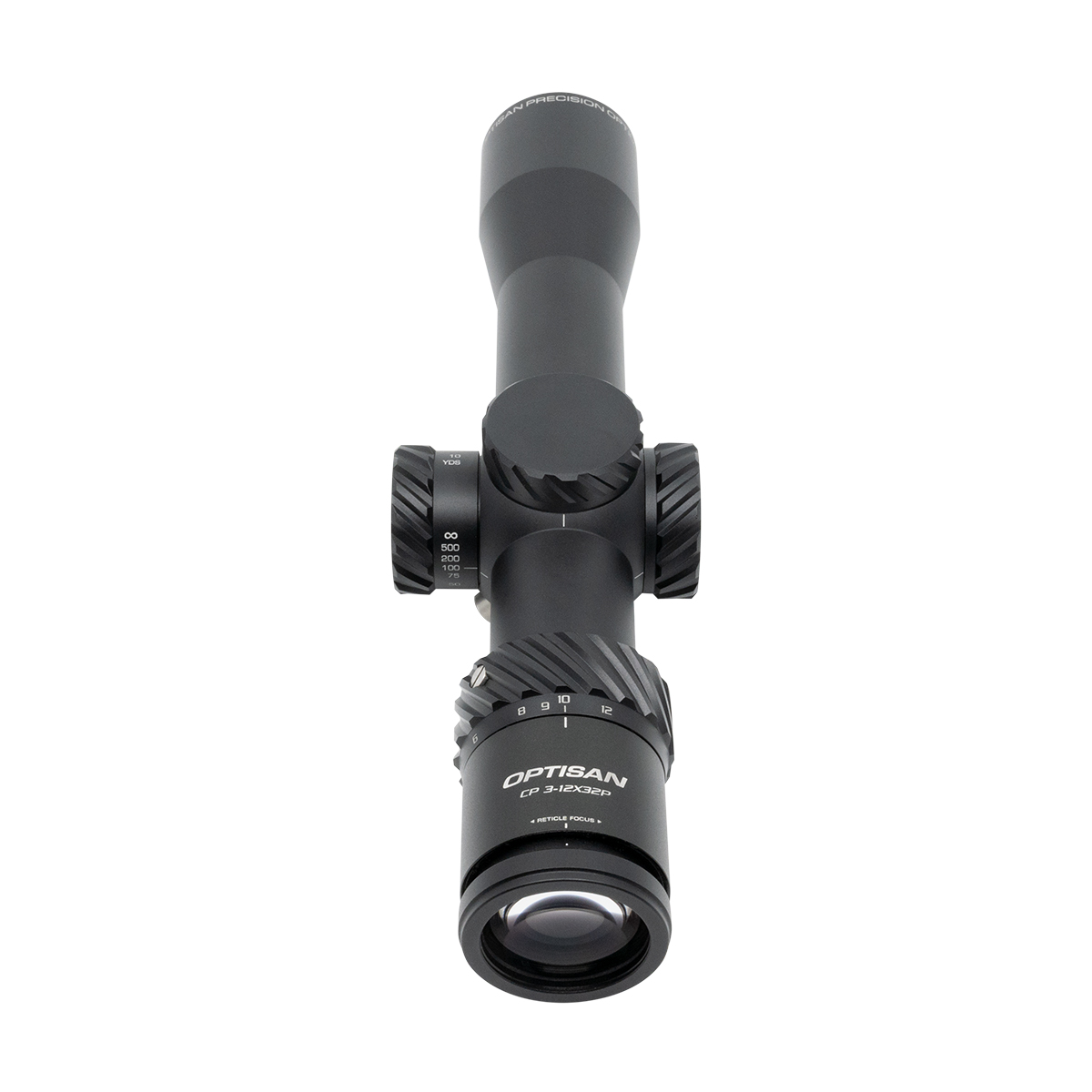

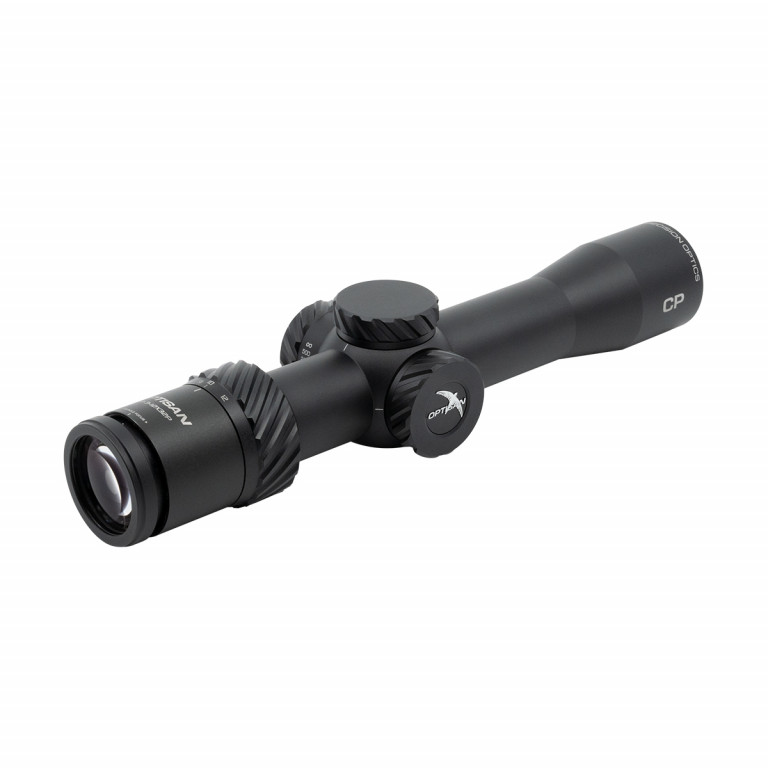

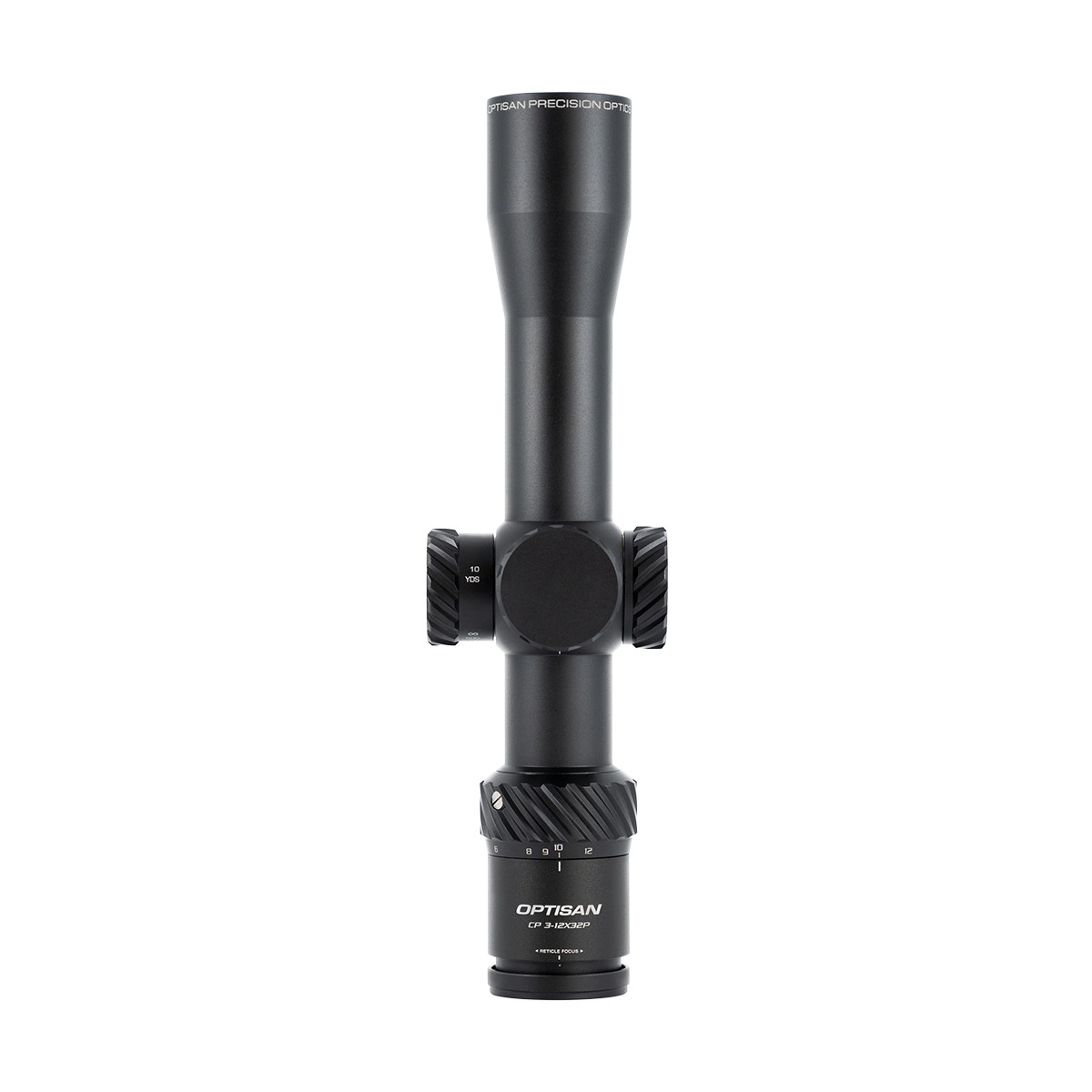

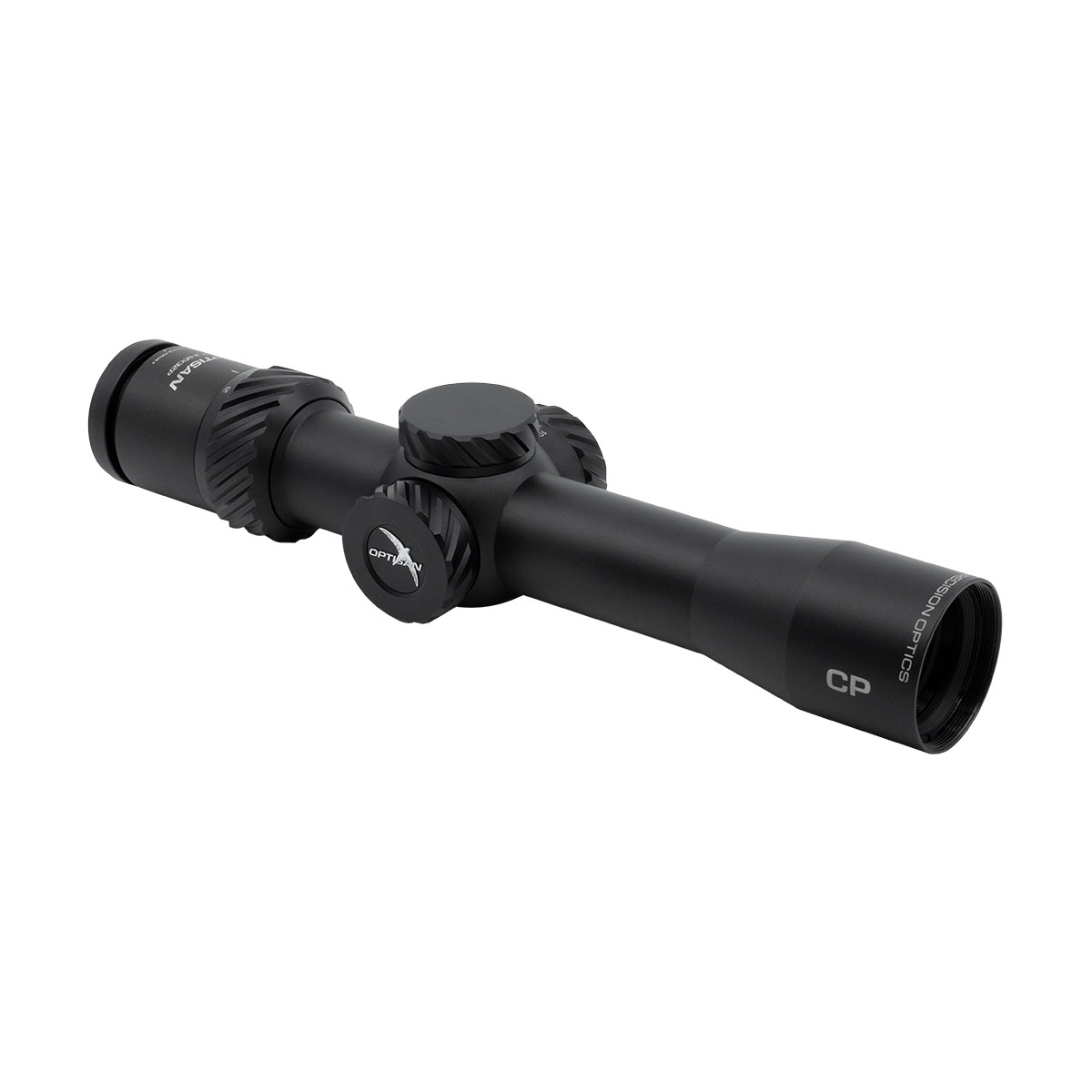

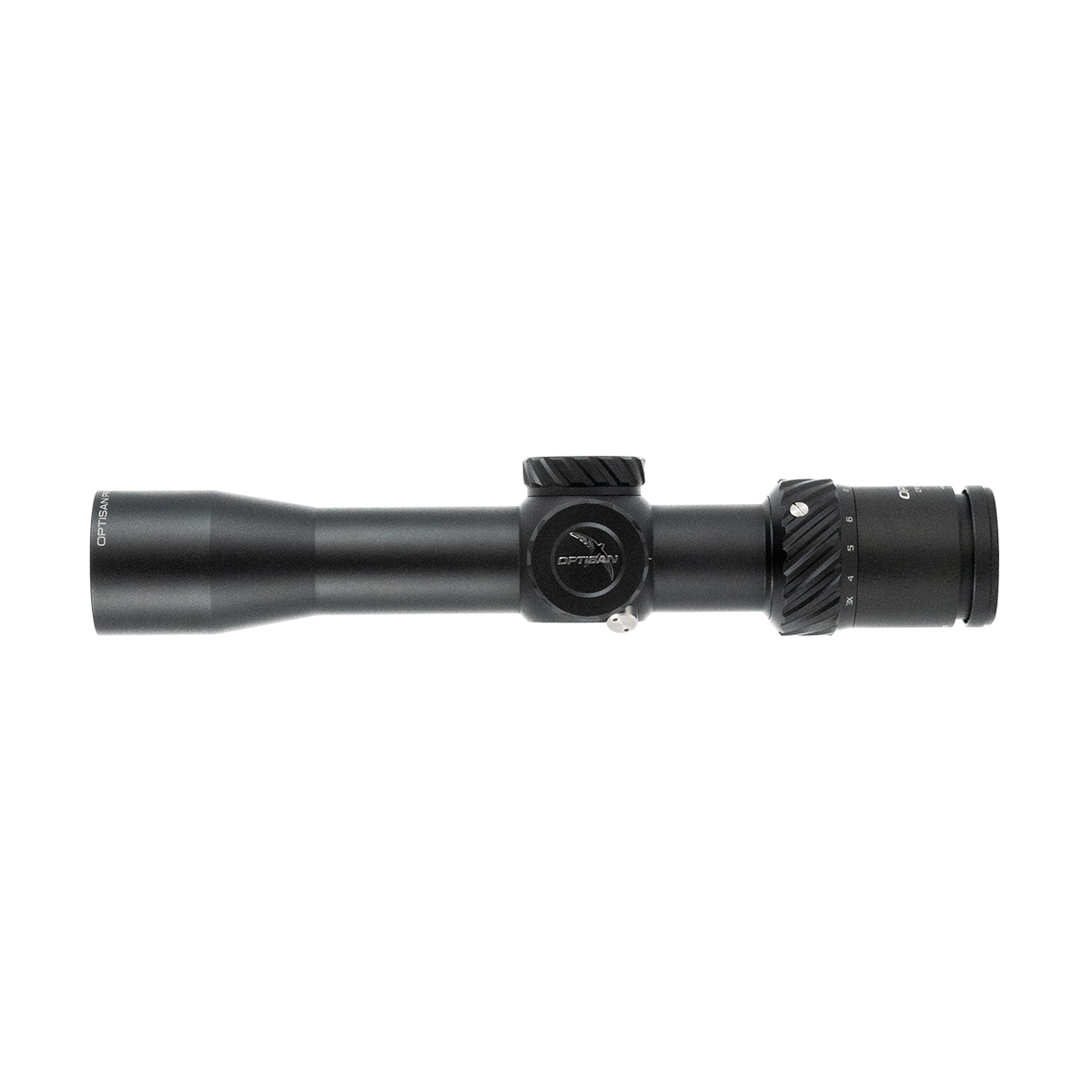

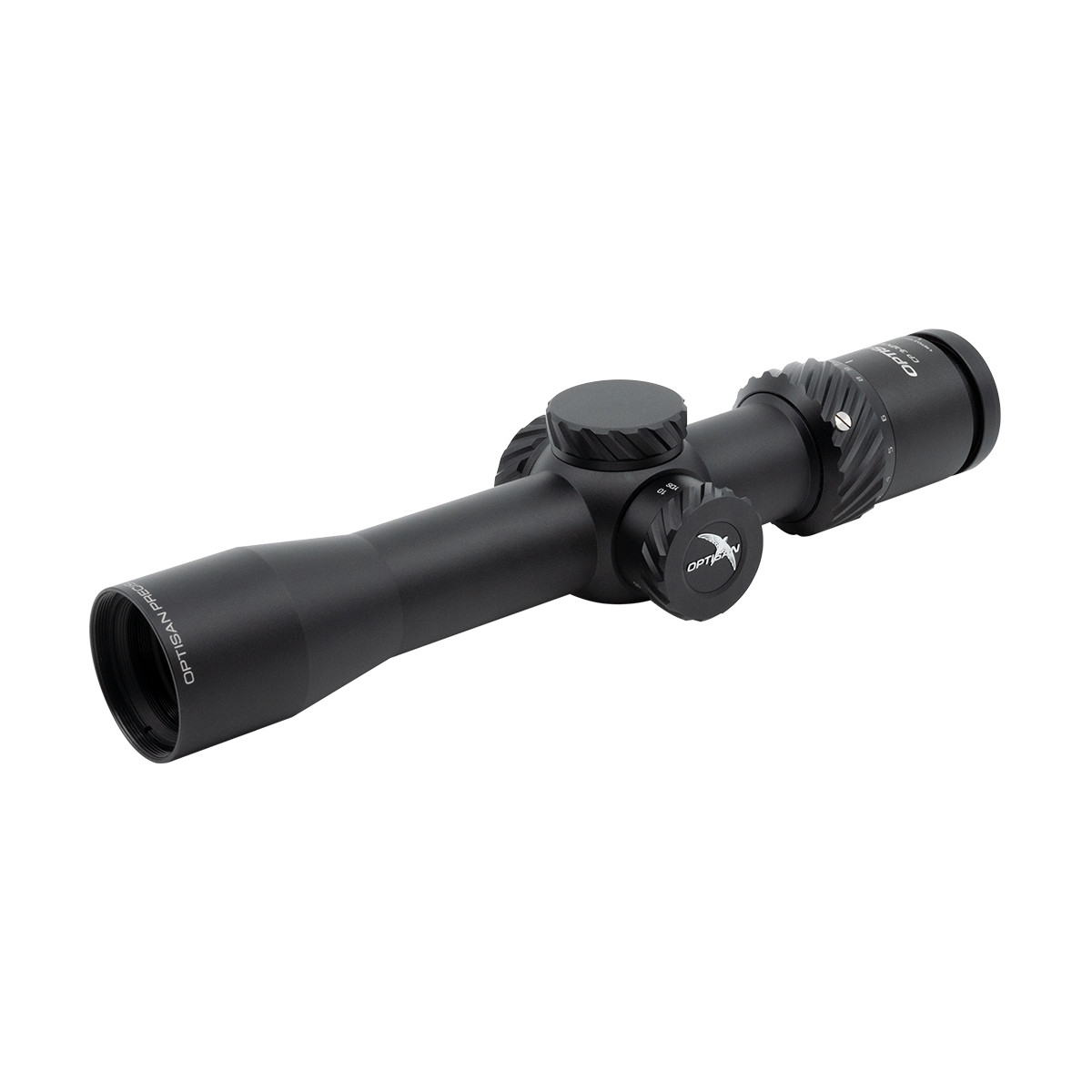

Optisan Optics CP Compact 3-12x32 SFP MH10 Non-Illuminated 0.1 MRAD 30mm Rifle Scope
The Optisan Optics CP Compact 3-12x32 SFP MH10 rifle scope brings versatile performance to every hunt or shooting session without weighing you down. With a smooth 3–12x magnification range and a bright 32 mm objective, this scope gives you the flexibility to dial in at close-to-medium ranges or pick out targets at longer distances, all with crisp optics and clear contrast. Its MH10 non-illuminated reticle with 0.1 MRAD subtensions provides intuitive holdovers and precise adjustments, while the Second Focal Plane (SFP) design keeps the reticle easy to read throughout the zoom range. Built on a sturdy 30 mm tube, this compact optic offers reliable tracking and repeatable adjustments, making it a great choice for hunters, tactical shooters, and marksmen who demand performance in a rugged, lightweight package.
-Nathan (Technical Advisor)
Optisan CP Compact 3-12x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Introducing the (NEW FOR 2020!) Optisan CP Compact 3-12x32 MIL MH10 Rifle Scope.
Compact and lightweight - well matched to the latest generation of compact rifles.
Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.
Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.
The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.
Optisan CP Compact 3-12x32 SFP MIL Non-Illuminated MH10 Rifle Scope
| OPTICAL DATA | |
|---|---|
| Magnification (High) | 3X |
| Magnification (Low) | 12X |
| Objective Diameter (mm) | 32mm |
| Outer dia. Objective (mm) | 40mm |
| FOV (min.mag）(ft/100yds) | 36 |
| FOV (max.mag）(ft/100yds) | 9 |
| Eye relief (in) | 3.5" - 3.3" |
| Exit Pupil (Max mag.） (mm) | 2.6 mm |
| Exit Pupil (min. mag.） (mm) | 10.6 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| MECHANICAL DATA | |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Low-profile, Zero-resettable |
| Turret Style (Windage) | Low-profile, Zero-resettable |
| Travel Per Rotation | 10 mrad |
| Elevation adj. range | ≥ 20 mrad |
| Windage adj. range | ≥ 20 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.08'' |
| Eye Piece Length (mm) | 27.55 mm |
| Mounting Length rear (mm) | 55.70 mm |
| Mounting Length front (mm) | 30.00 mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 9.52'' |
| Length (mm) | 242mm |
| Weight (g) | 487 |
| Weight (oz) | 17.17 |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA | |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA | |
| Reticle | SFPMH10X |
| Calibrated Ranging Power | 10X |
| Focal plane | Second |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE | |
| Standard Accessories | 2.5'' sunshade Lens covers |
Optisan CP Compact 3-12x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- Compact design
Only 25.4 cm length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.
- Minimized Parallax error
By using a 32mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances whilst experiencing minimal shift of impact, this is very helpful in many competitive and hunting shooting situations.
Parallax adjustment range is from 10 yards up to 500 yards to infinity,
- Springer rated
Field tested by champion shooters for more than for one year on spring air rifles it is a robust riflescope that is capable of use larger caliber rifles including centerfire
Optisan CP Compact 3-12x32 SFP MIL Non-Illuminated MH10 Rifle Scope
MH10 (Non-Illuminated)
The MH10 reticle is an all-round MRAD(MIL) based reticle designed for precision ranging at 10X with uncluttered windage correction reference marks.
Optisan CP Compact 3-12x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- 2.5'' Sunshade.
- ABS Flip-Up Covers
-
What does “3-12x32” mean on this rifle scope?
The numbers indicate a variable magnification range from 3x to 12x and a 32 mm objective lens diameter, giving you versatility across short to longer-range shooting. -
What is a Second Focal Plane (SFP) reticle?
An SFP reticle stays the same size regardless of magnification, with the subtensions calibrated for use at one specific power (often the highest). -
What does “MH10” refer to?
MH10 is the model of the reticle pattern used in this Optisan scope, designed for quick range estimation and holdover reference. -
What does 0.1 MRAD adjustment mean?
Each click of the turret changes point of impact by 0.1 milliradian, providing precise and consistent adjustment for windage and elevation. -
Is the reticle illuminated?
No — this model features a non-illuminated reticle optimized for clarity and contrast without distraction. -
What are the advantages of a 30 mm tube?
A 30 mm main tube offers a good balance of strength and elevation adjustment range, with improved light transmission compared to smaller tubes. -
Is this scope suitable for hunting?
Yes — the wide magnification range and clear optics make it a strong all-around choice for hunting a variety of game. -
How durable is this rifle scope?
The CP Compact series is engineered with rugged materials to withstand field use and recoil from common hunting calibers. -
Does this scope perform well in low-light conditions?
With a 32 mm objective and quality optics, it provides bright images at dawn and dusk, though the reticle itself is not illuminated. -
Who will benefit most from this scope?
Shooters seeking a versatile, lightweight optic with reliable performance across a range of distances — from close-in shots to longer targets — will appreciate this scope’s flexibility and clarity.
