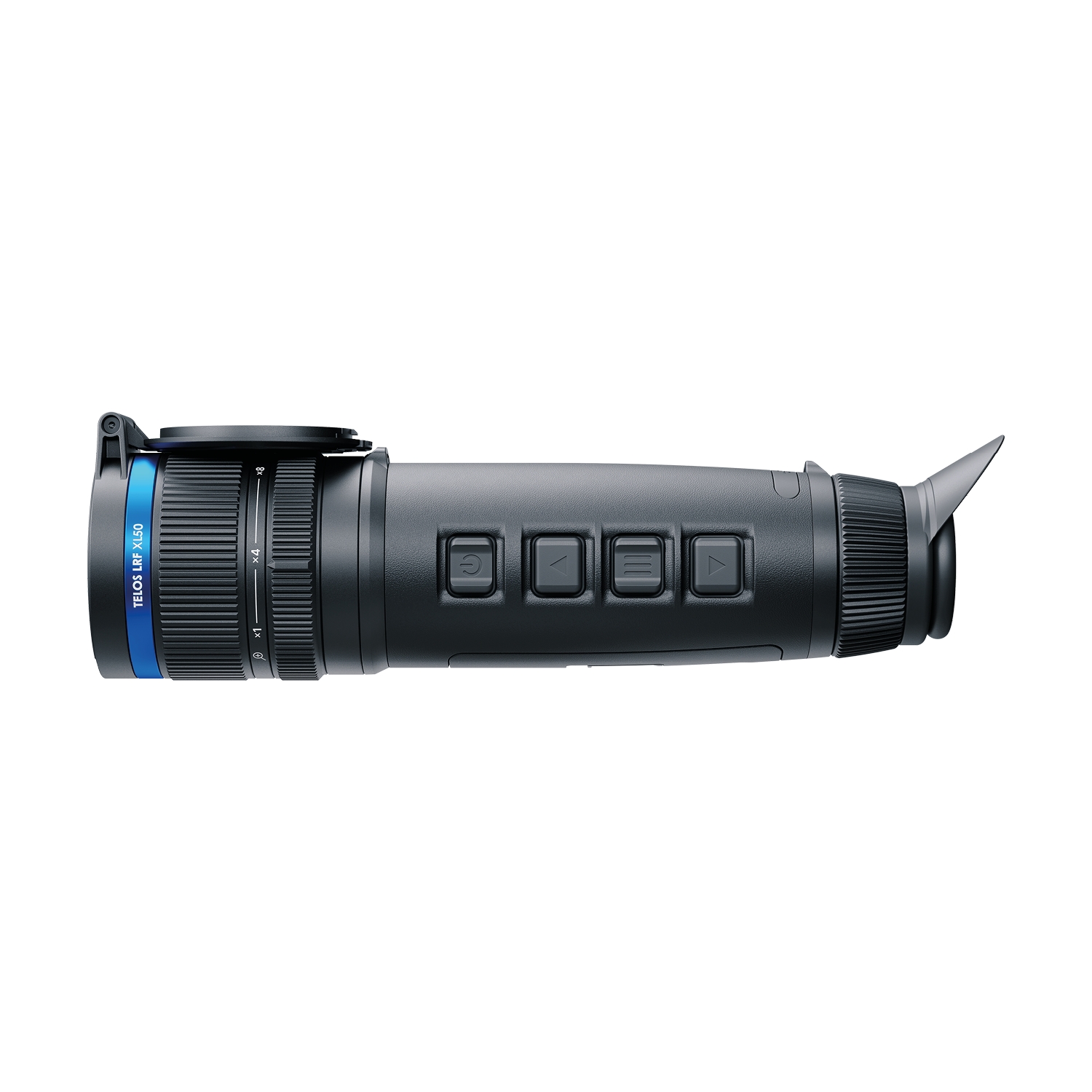

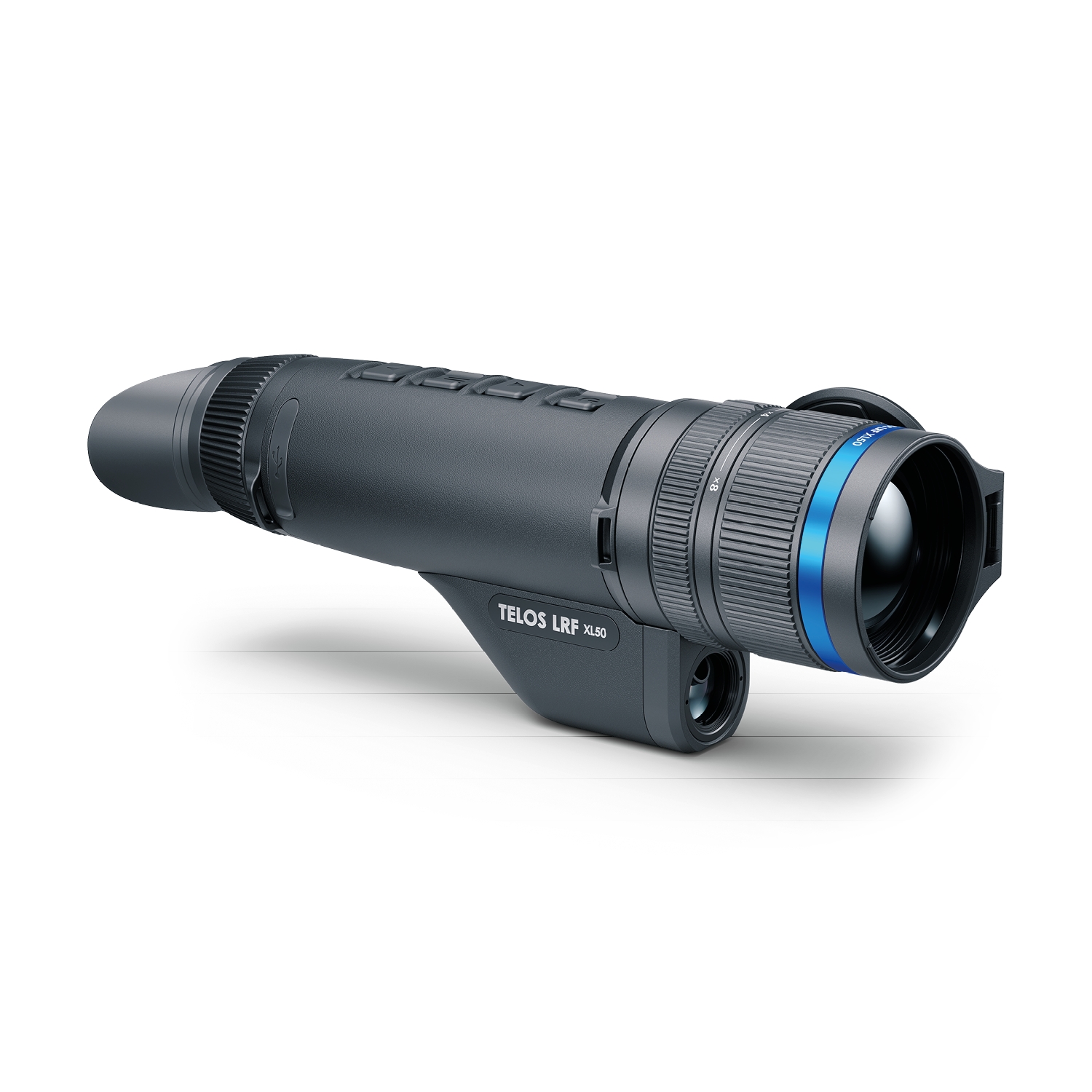

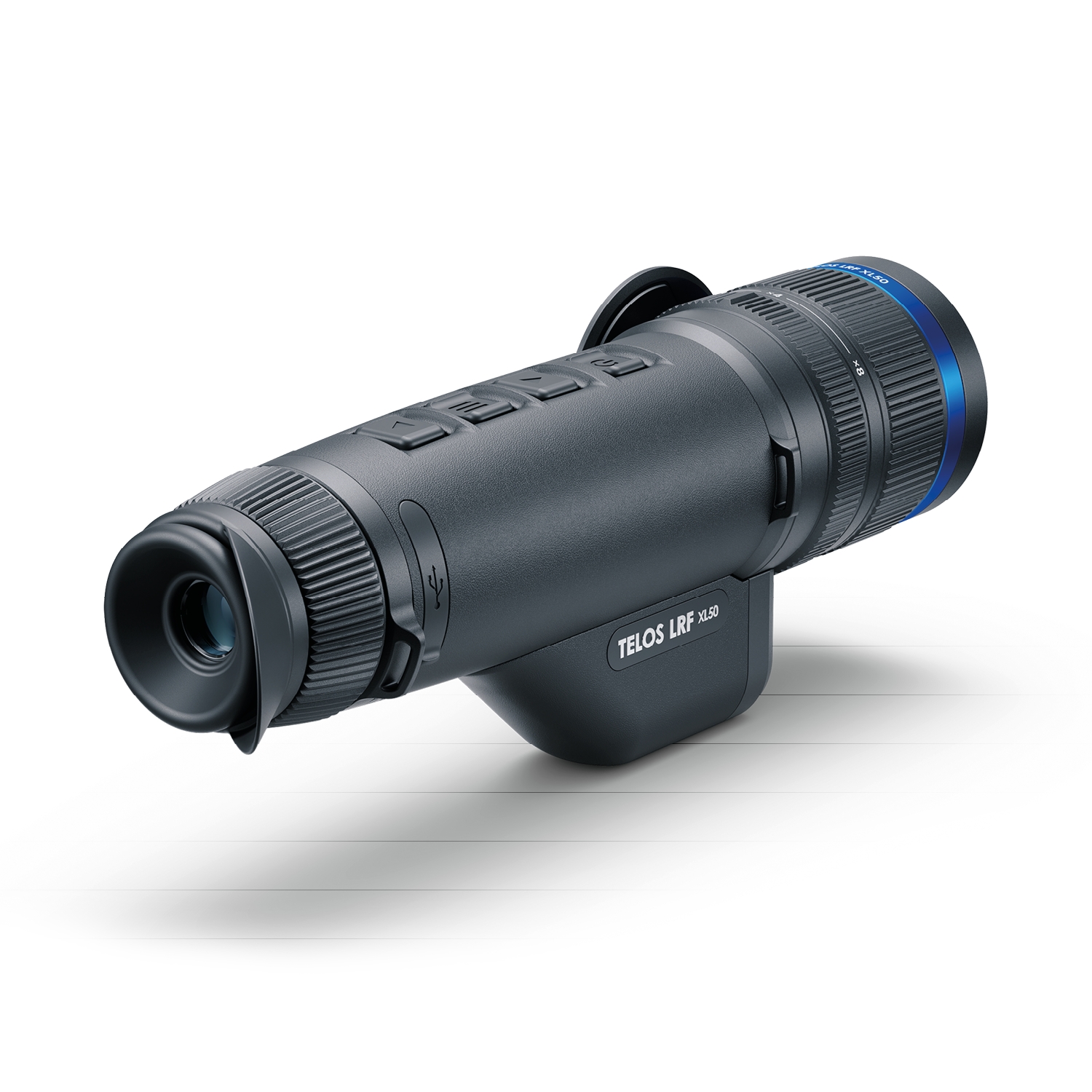

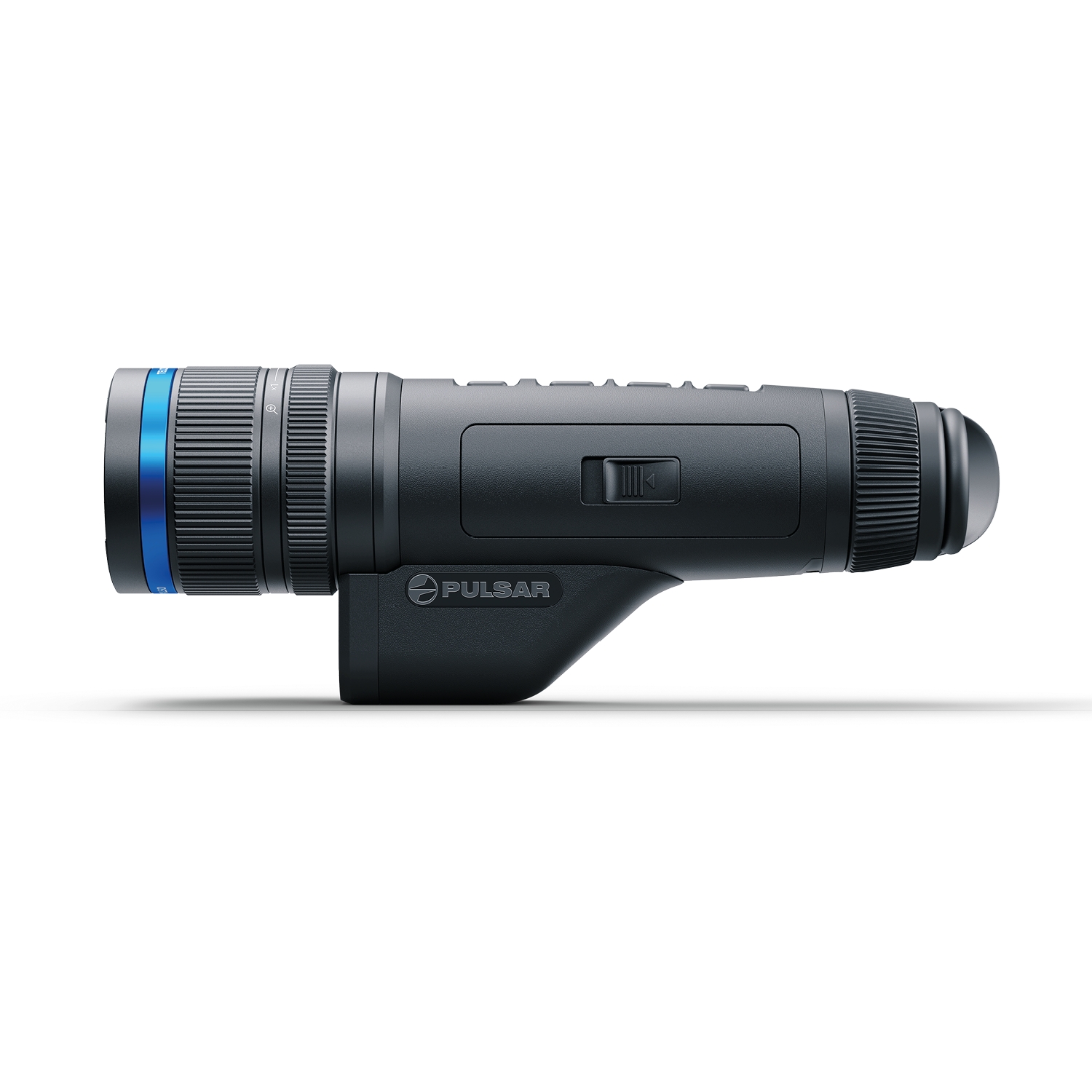

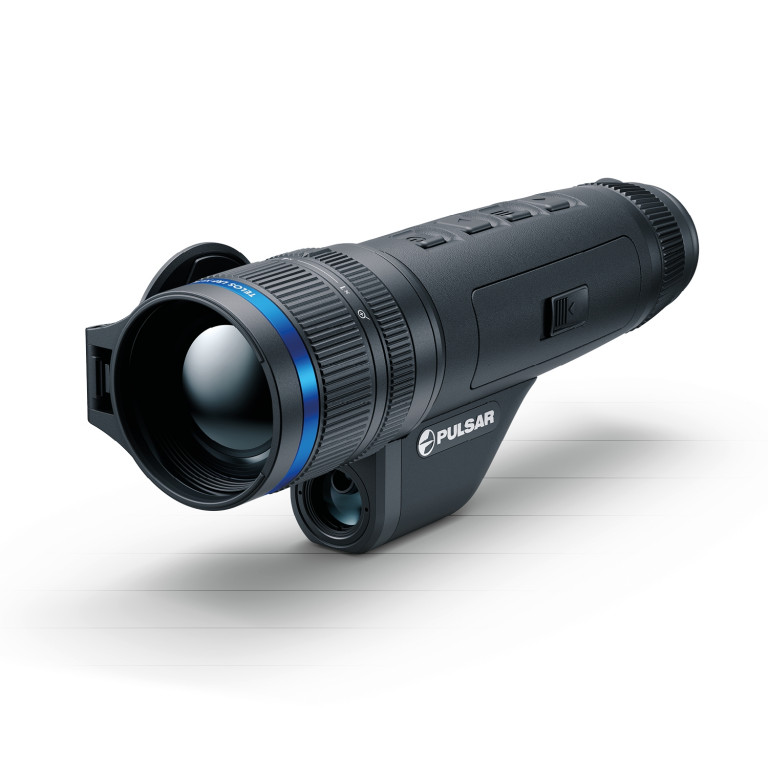

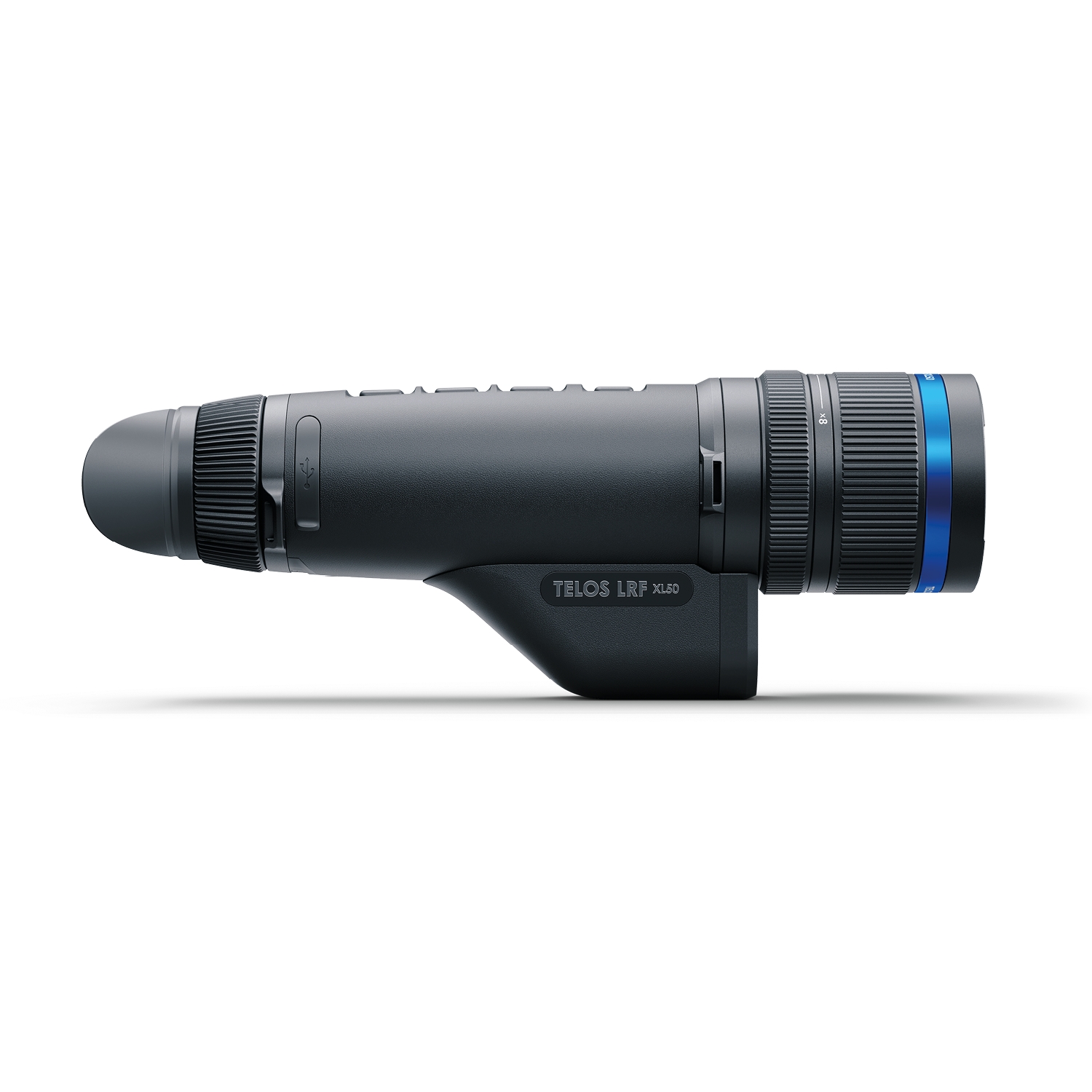

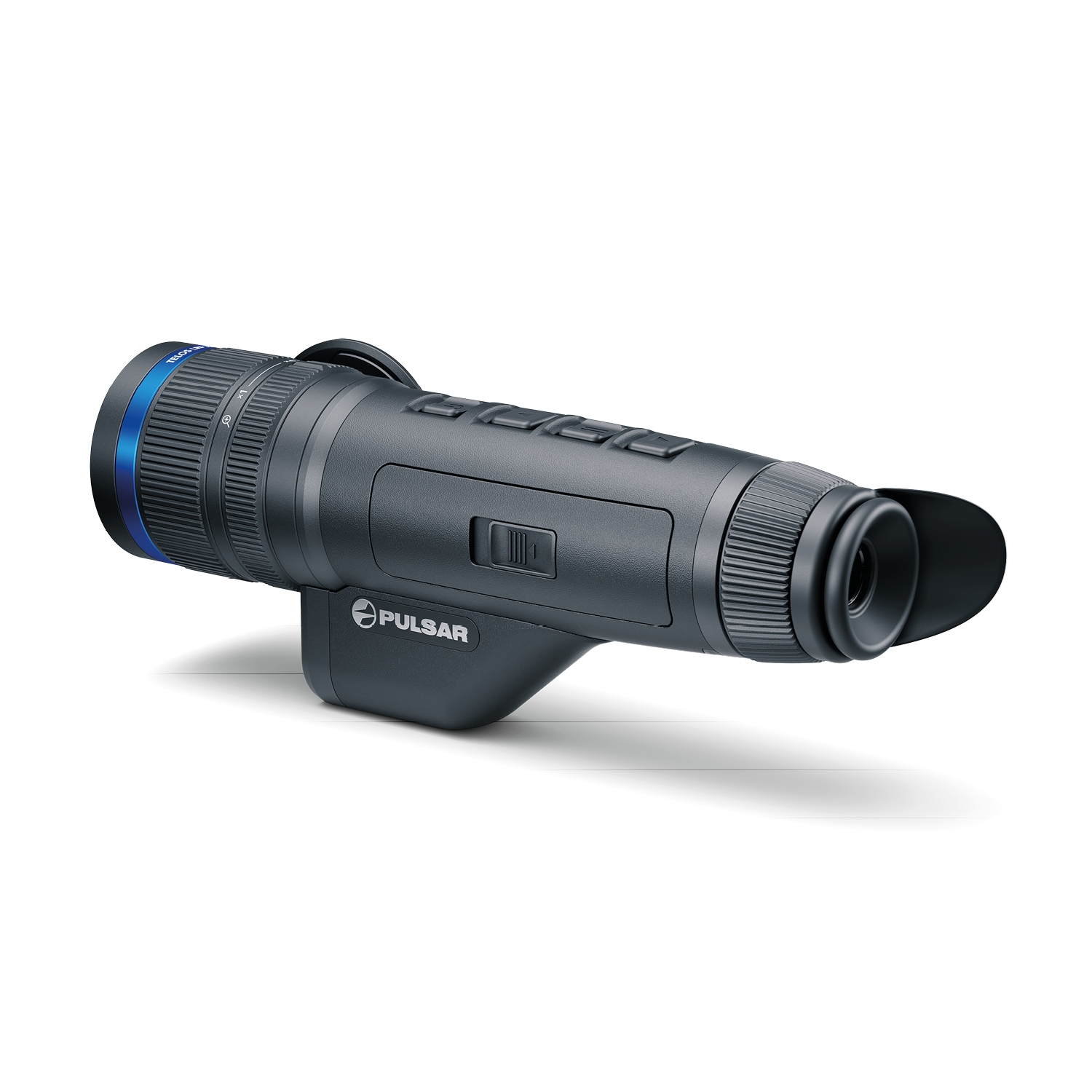

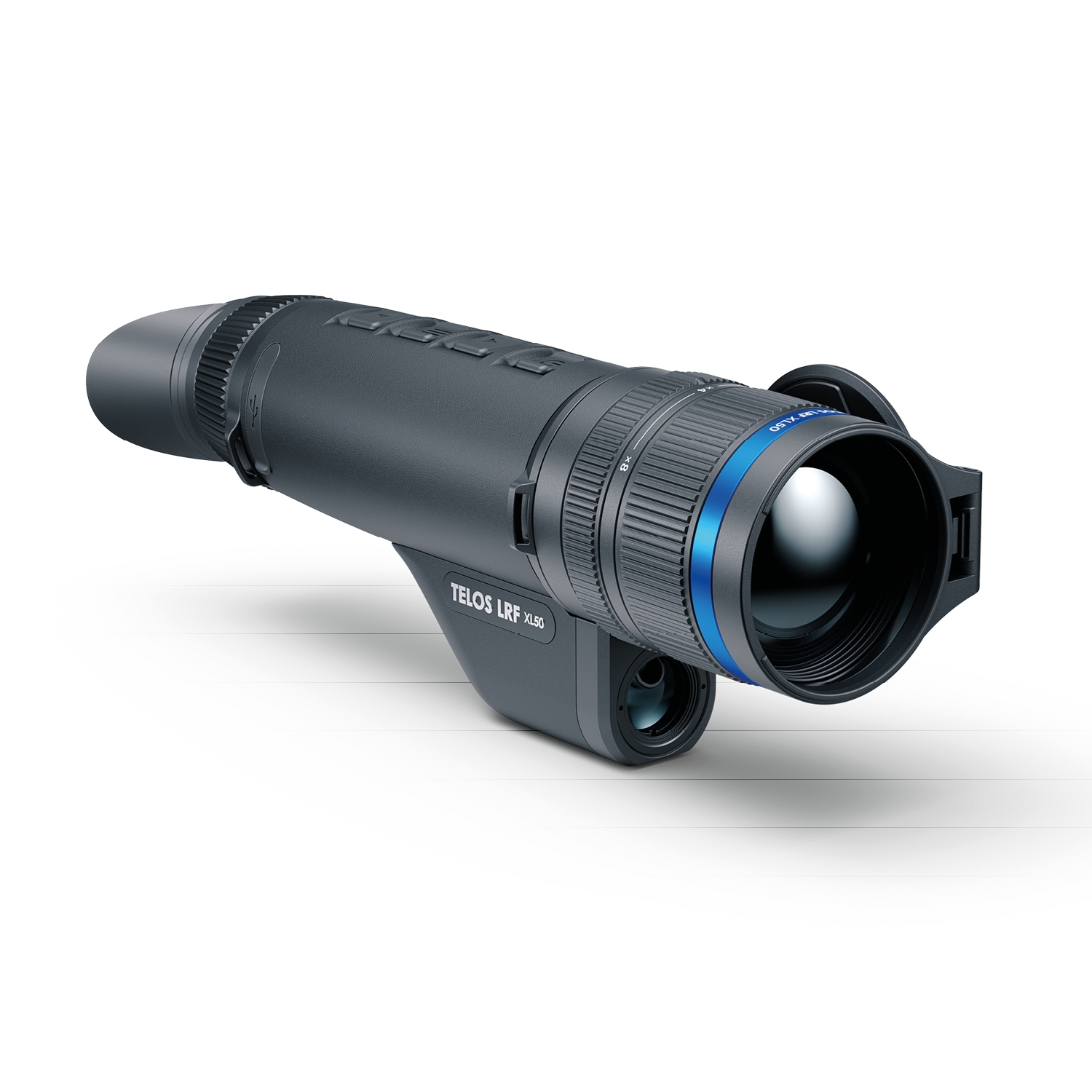

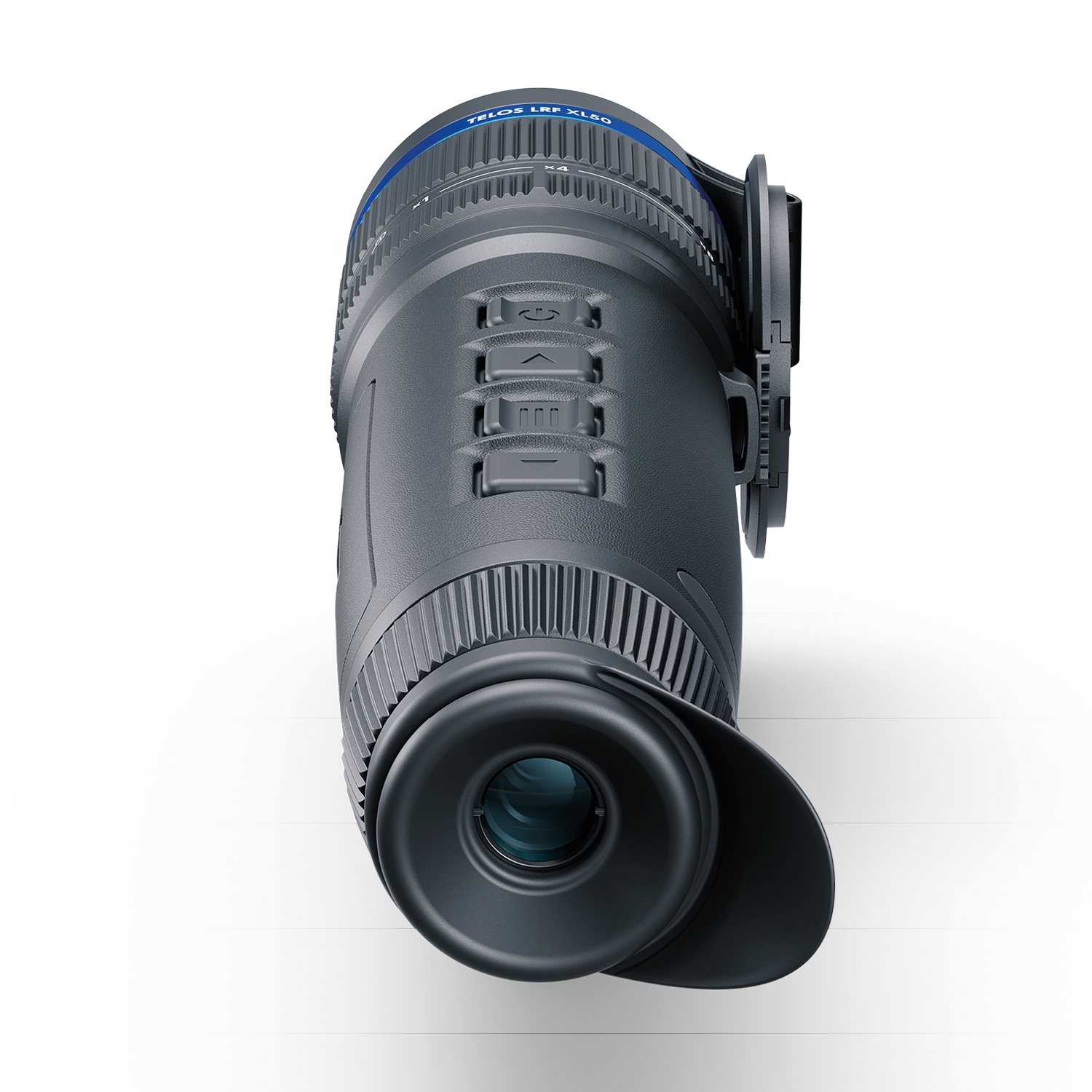

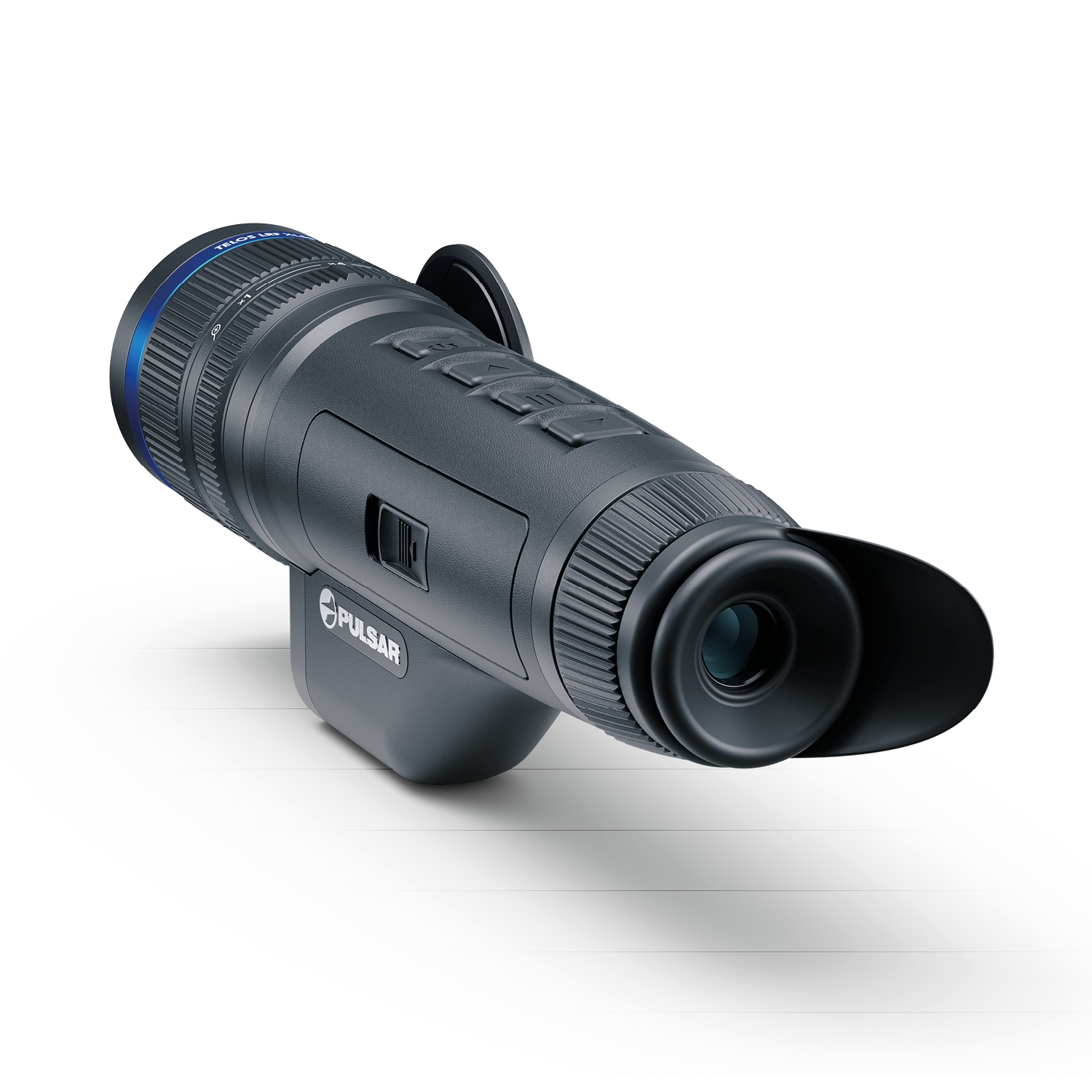

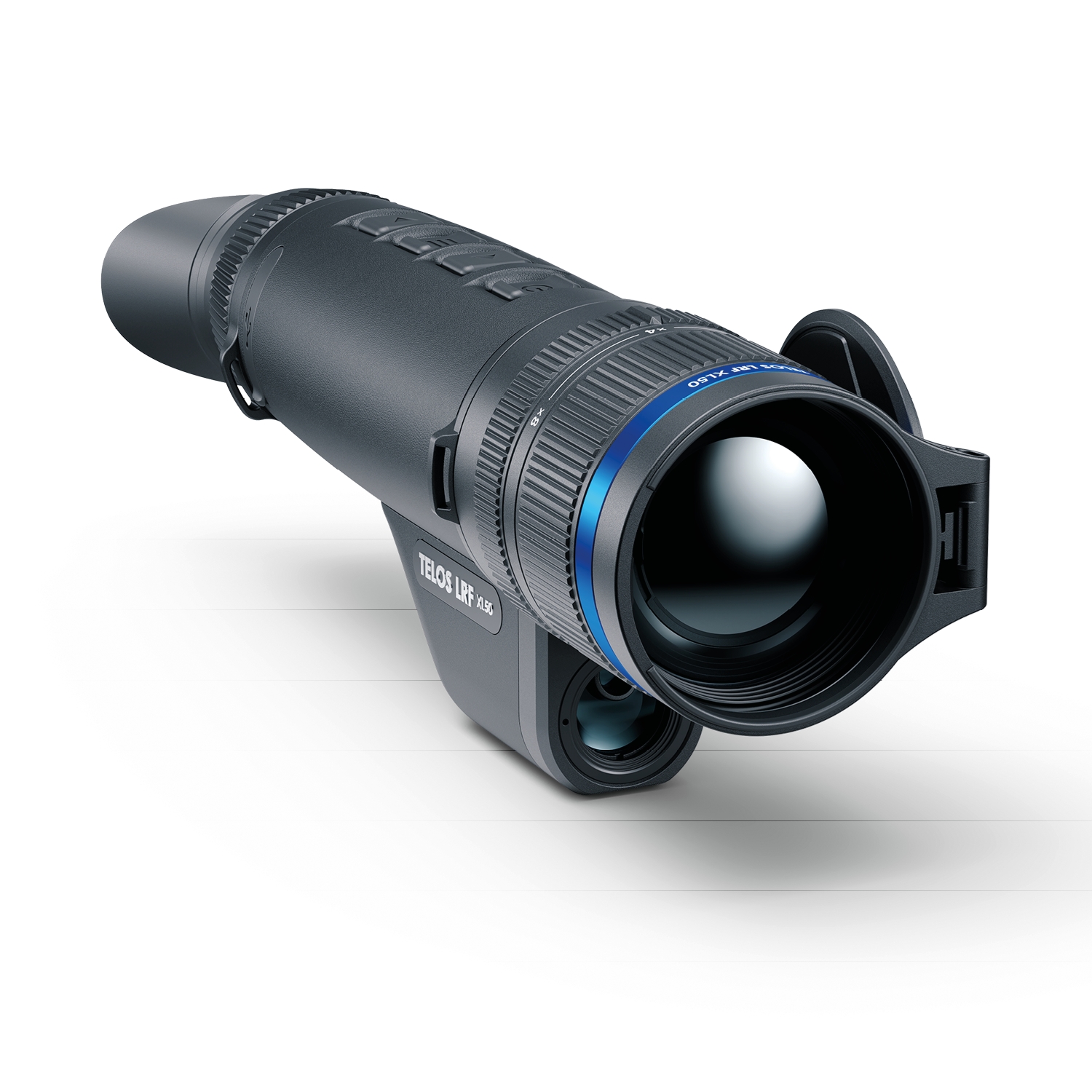

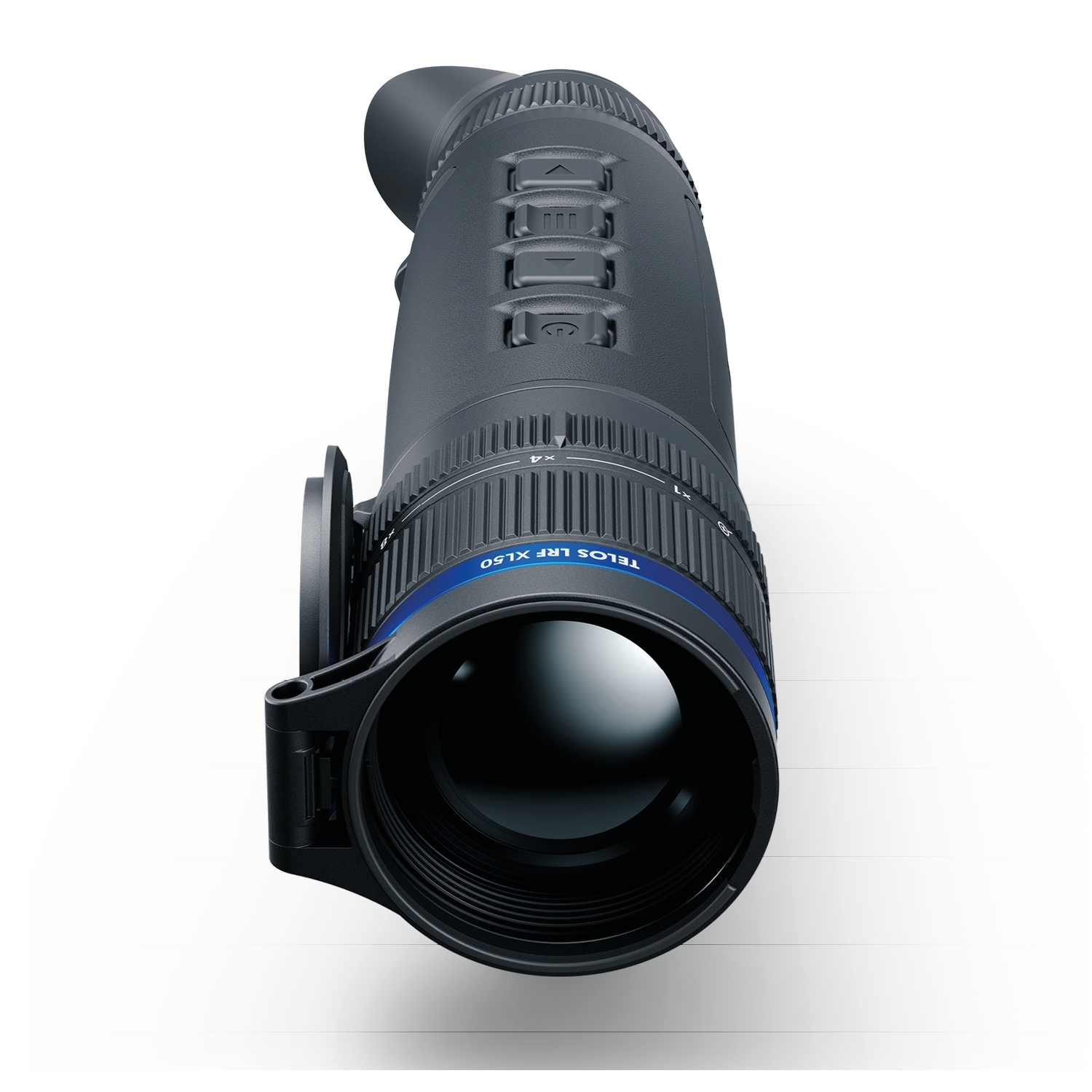

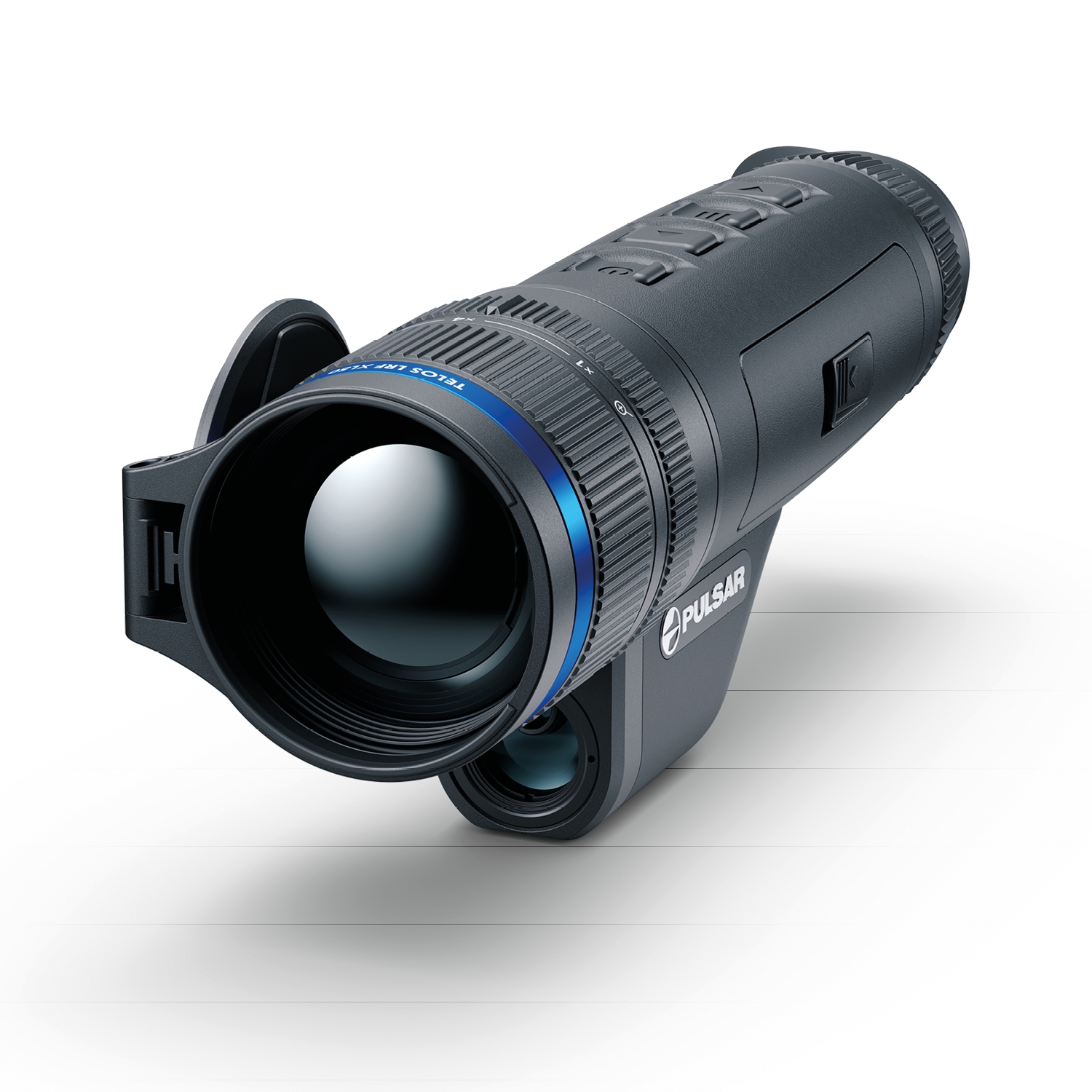

Pulsar TELOS LRF XL50 Hand Held Thermal Monocular - 50mm <40mK 1024x768px 12um
The Pulsar Telos LRF XL50 is proper top-tier handheld thermal gear—huge 1024×768 HD sensor on a 12µm platform, ultra-sensitive <40mK NETD (with excellent system-level performance), and a smooth 50Hz refresh that keeps the image stable and detailed even when you’re scanning at distance. The 50mm F1.0 lens gives you serious reach, with detection out to around 2300m, and the built-in laser rangefinder takes all the guesswork out of distance instantly. It’s rugged, fully upgradeable, and designed so you can adapt it over time instead of replacing the whole unit.
-Nathan (Technical Advisor)
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Pulsar Telos LRF XL50 Thermal Imaging Monocular sets a new benchmark in handheld thermal technology, combining extreme sensitivity with precision rangefinding. Featuring a large format 1024×768, 12µm, <40 mK NETD European-made Lynred HD thermal sensor and a fast aperture 50mm f1.0 germanium lens, the Telos LRF XL50 delivers crystal-clear, high-contrast thermal imaging across its 2.5–20x magnification range with a staggering detection distance of up to 2300 metres.
A built-in laser rangefinder provides highly accurate distance measurements up to 1000 metres (±1m), while Pulsar’s Image Boost technology enhances image detail and sharpness in challenging conditions. With its rugged, ergonomic design, upgradeable system architecture, eight colour palettes, built-in still image & video recorder, and Stream Vision 2 connectivity, the Telos LRF XL50 offers both cutting-edge performance and lasting adaptability for hunters, security professionals, and outdoor explorers.
- Sensor Type Uncooled
- Sensor 1024×768, 12µm
- NETD <40 mK
- sNETD <20 mK
- Frame Rate 50 Hz
- Objective Lens 50mm f1.0
- Magnification 2.5 – 20.0x (x8 Digital Zoom)
- Field of View 14 × 10.5°
- Eye Relief 14 mm
- Display 1024×768 AMOLED HD
- Detection Range 2300m
- Laser Rangefinder Up to 1000m, ±1m accuracy
- Video Recording Yes, with audio
- Still Image Capture Yes
- Video / Photo Resolution 1024×768
- Video / Photo Format .mp4 / .jpg
- Built-In Memory 64 GB
- Wi-Fi Built-in
- Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
- Wi-Fi Frequency 2.4 GHz / 5 GHz
- Degree of Protection IPX7 (waterproof)
- Operating Temperature Range -25°С to +40°С
- Compatible Mounts 1/4″
- Supported Applications Stream Vision 2
- Power Output Voltage 3.0–4.2 V
- Battery Type LPS 7i Li-Ion Battery Pack
- Battery Capacity 6400 mAh
- Operating Time Up to 7 hours (at 22°C)
- External Power Supply 5V, 9V (USB Type-C Power Delivery)
- Body Material Rubber-armoured reinforced plastic
- Dimensions 243 × 72 × 62 mm
- Weight 680 g (without battery) / 720 g (with battery)
- Timeless, Upgradeable Design – built to adapt to future needs, allowing upgrades to optics, electronics, or rangefinder functions for long-term value.
- Extreme Thermal Sensitivity – 1024×768 HD thermal sensor with <40 mK NETD and fast aperture 50mm lens for exceptional performance, detecting even the smallest heat signatures in fog, rain, snow, or high humidity.
- Image Boost Technology – proprietary processing algorithms improve clarity, detail, and contrast, even in low-contrast environments such as water, grass, or sky. Adjustable sensor sensitivity, smoothing filters, and brightness/contrast controls ensure comfortable, fatigue-free observation.
- Precision Laser Rangefinder – accurate to ±1m, with single measurement and continuous scanning modes, effective up to 1000m.
- Ergonomic & User-Friendly – comfortable layout with easily reachable top-panel buttons, ambidextrous rotating hand strap, and camera-style focusing/magnification rings for intuitive control.
- Customisable User Experience – re-order menu items and adjust button priorities to suit personal preferences for quick access to key functions.
- Rugged & Weatherproof Build – rubber-armoured reinforced housing ensures durability, non-slip handling, and IPX7 waterproof protection, reliable even after immersion in 1m of water for 30 minutes. Operates flawlessly from -25°C to +40°C.
- Recording & Connectivity – capture high-resolution stills and videos with audio on 64GB internal memory, and use Stream Vision 2 for wireless control, gallery sharing, and firmware updates.
- Extended Battery Life – powered by the LPS 7i Li-Ion battery pack, offering up to 7 hours of use, with fast USB-C Power Delivery charging for uninterrupted performance.
- Eight Colour Palettes – optimise viewing for detection, recognition, or long observation using White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet.
- Pulsar TELOS LRF XL50 Hand Held Thermal Monocular - 50mm <40mK 1024x768px 12um
1. What resolution does it use?
It uses a high-definition 1024×768 thermal sensor with a 12µm pixel pitch for very detailed imaging compared to standard 640 systems.
2. How sensitive is it in poor conditions?
It has a sensor NETD of under 40mK, with system sensitivity effectively around <20mK, helping it separate small heat differences in fog, rain, and cluttered scenes.
3. What is the detection range?
It can detect heat signatures out to approximately 2300 metres depending on target size and conditions.
4. Does it have a laser rangefinder?
Yes, it includes a built-in LRF with a measuring range up to about 1000m and ±1m accuracy.
5. What magnification does it offer?
It provides 2.5–20x magnification with up to 8x digital zoom for fine detail at range.
6. How long does the battery last?
Around 7 hours depending on conditions, using a high-capacity LPS 7i battery system.
7. Is it comfortable to carry?
Yes—despite being a high-end unit, it’s relatively compact for its class at around 700g with battery installed.
8. Is it weatherproof?
Yes, it’s IPX7 rated, so it can handle heavy rain and harsh outdoor use.
9. Can it record video and images?
Yes, it has built-in recording with 64GB internal memory for photos and video capture.
10. What’s the main advantage over lower Telos models?
The jump to a 1024×768 HD sensor and very low effective NETD gives noticeably better detail, especially for identification and separation in complex backgrounds like brush or mixed terrain.
